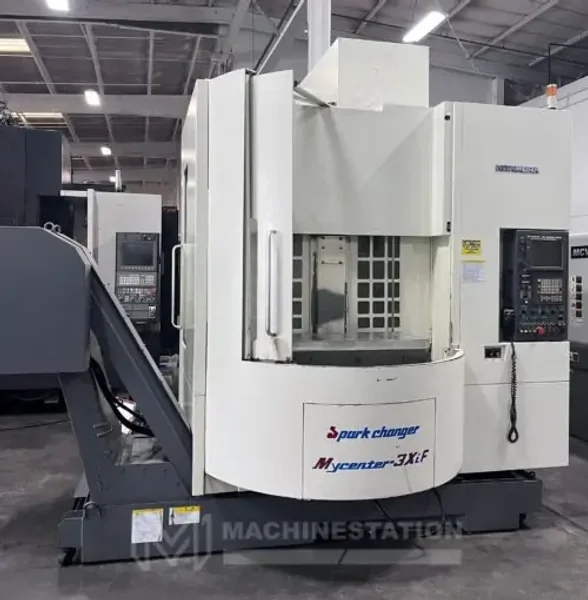

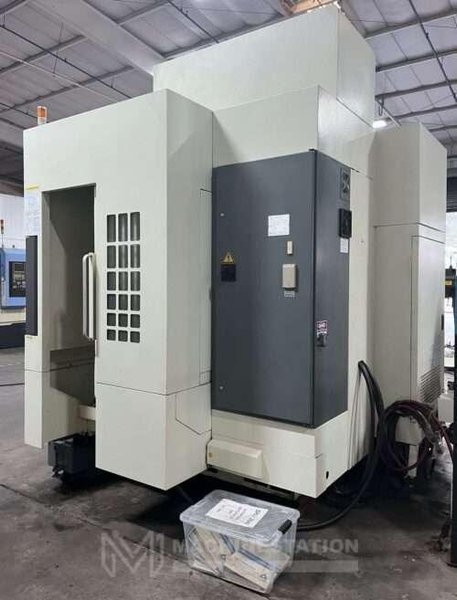

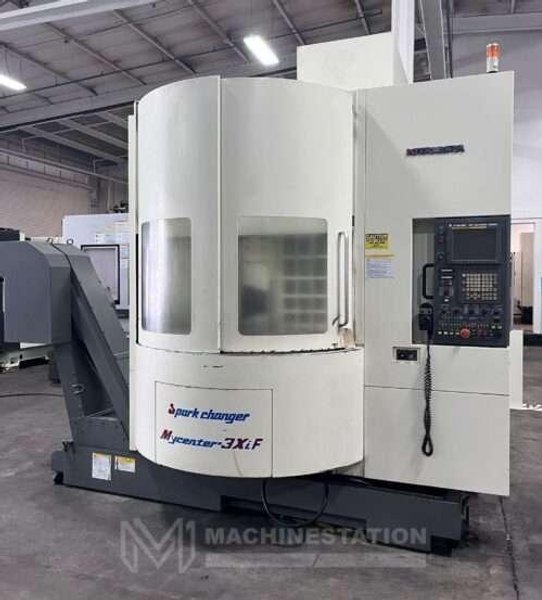

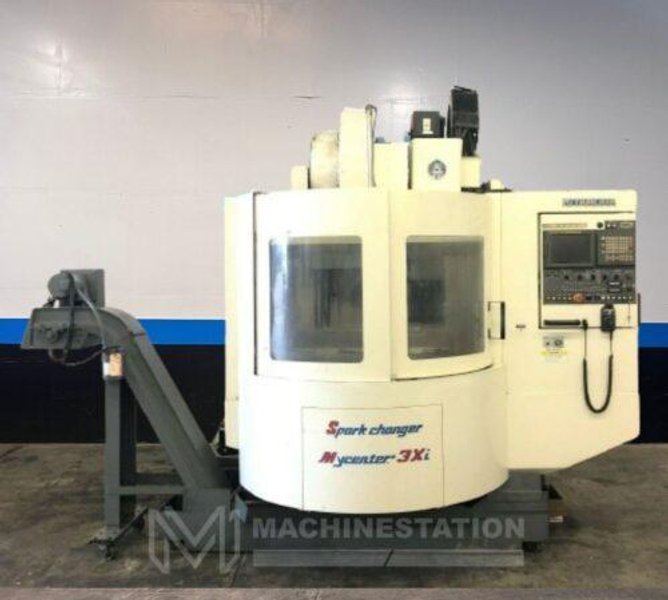

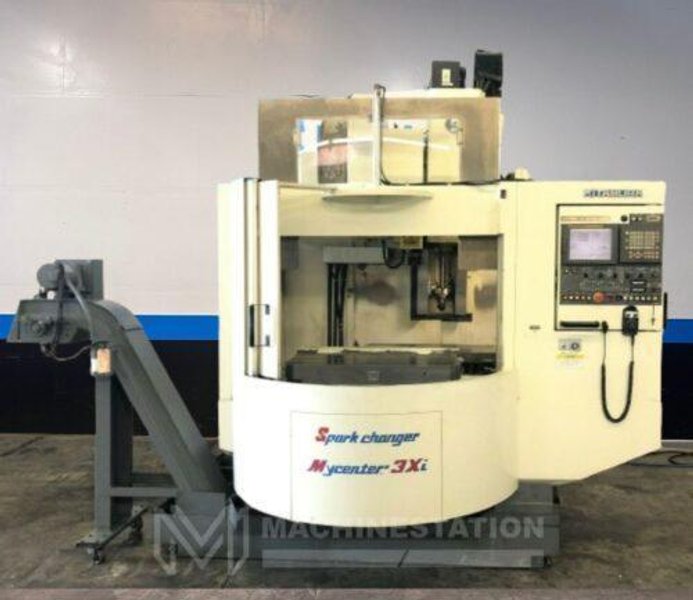

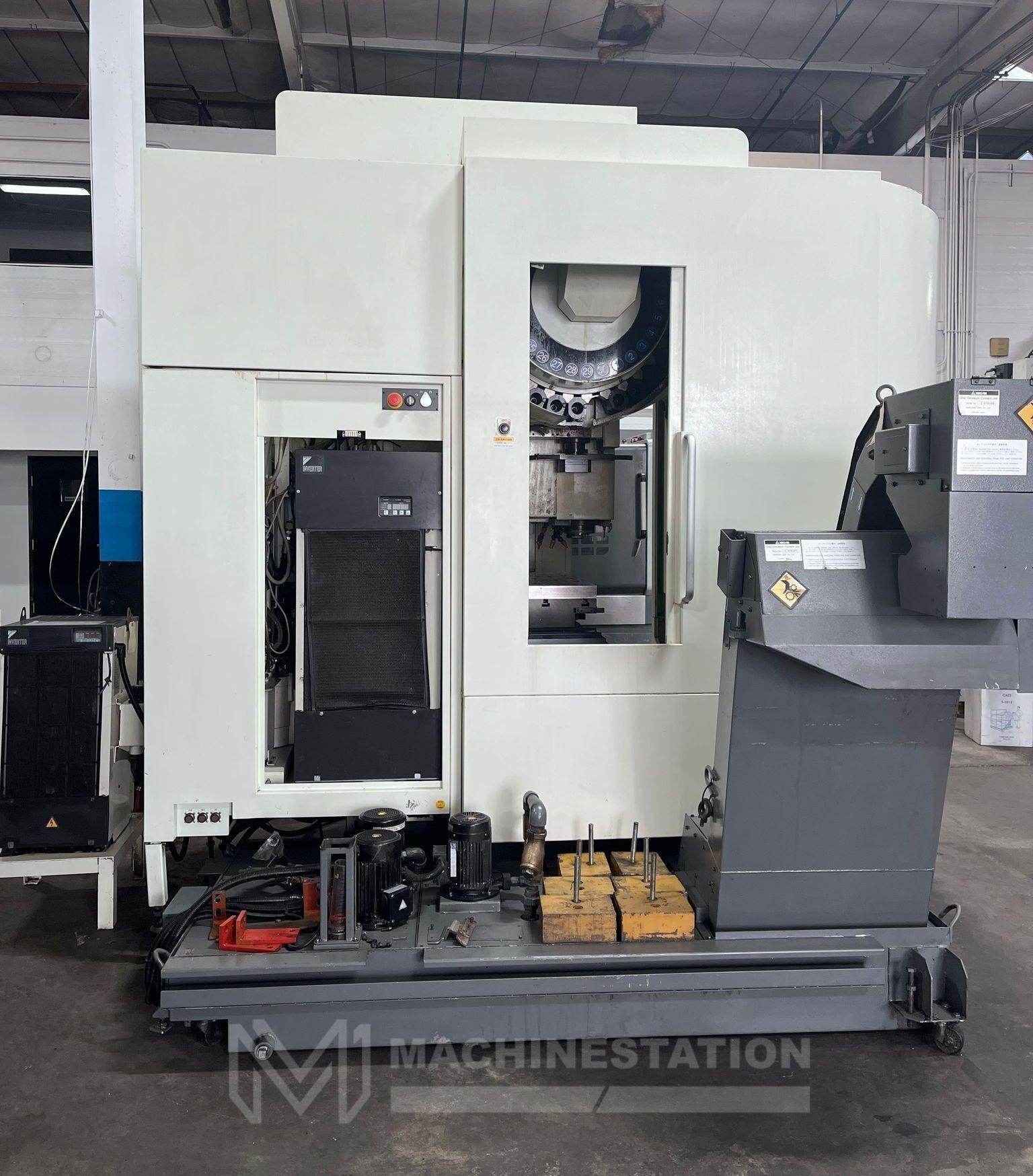

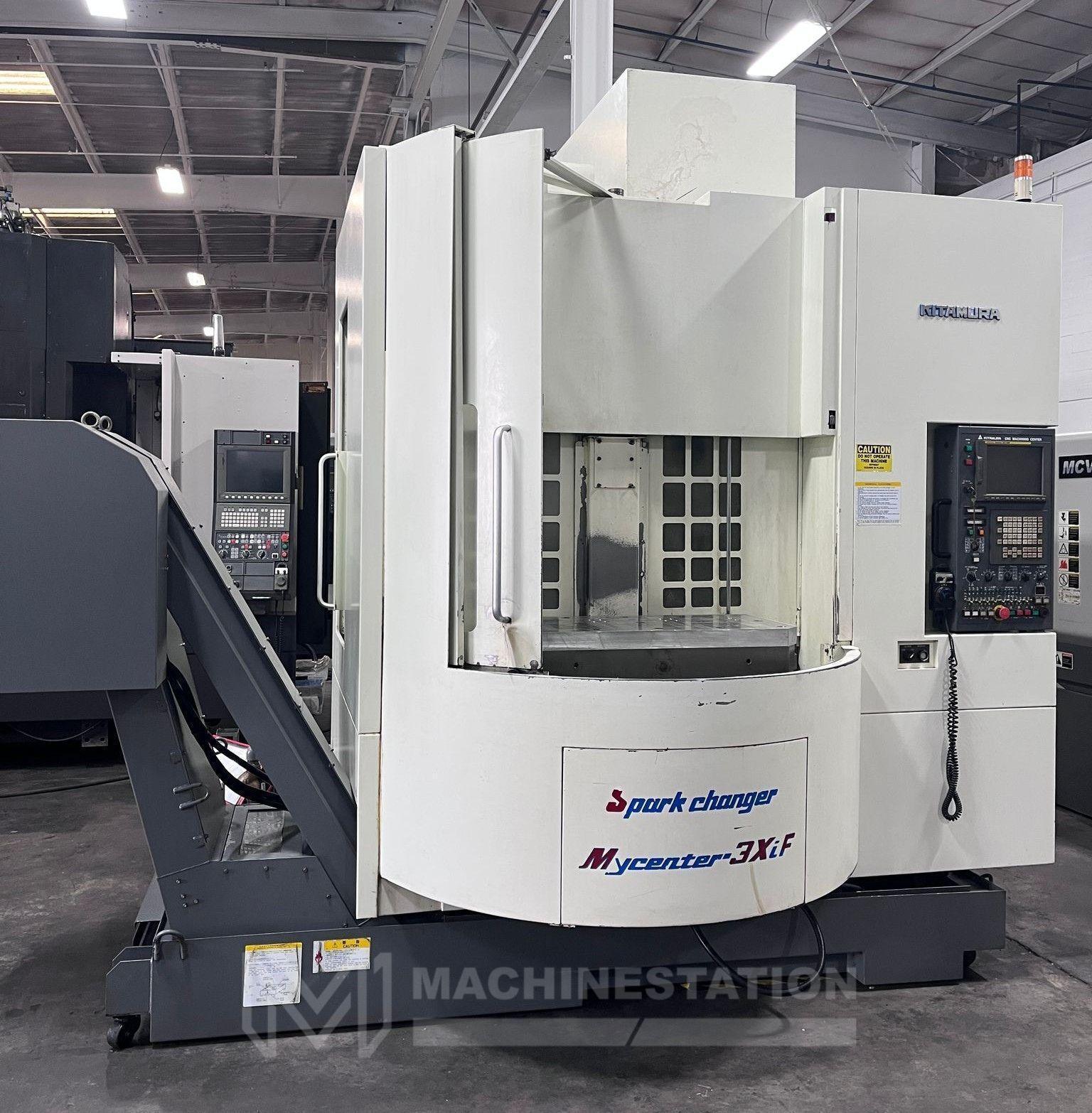

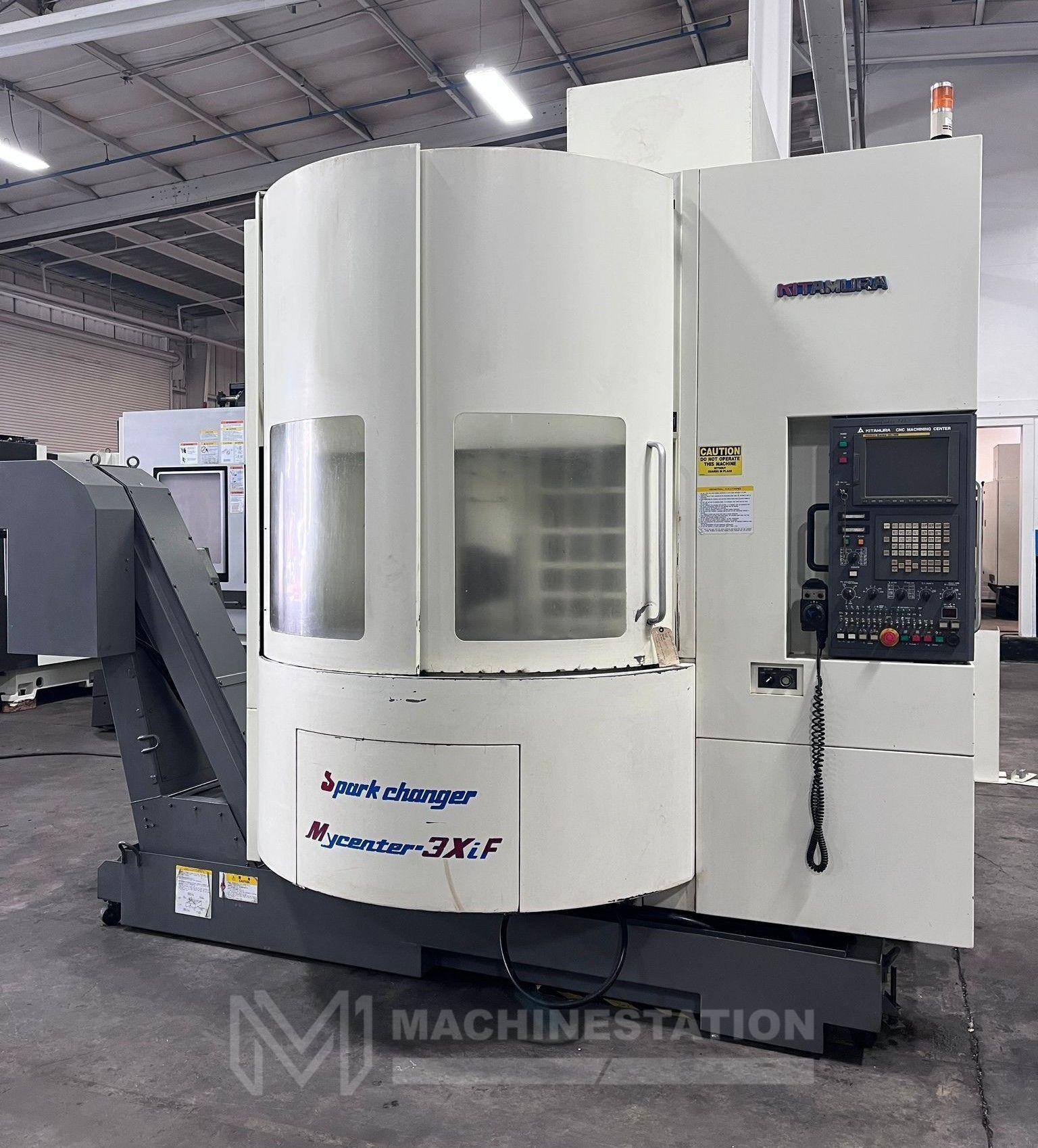

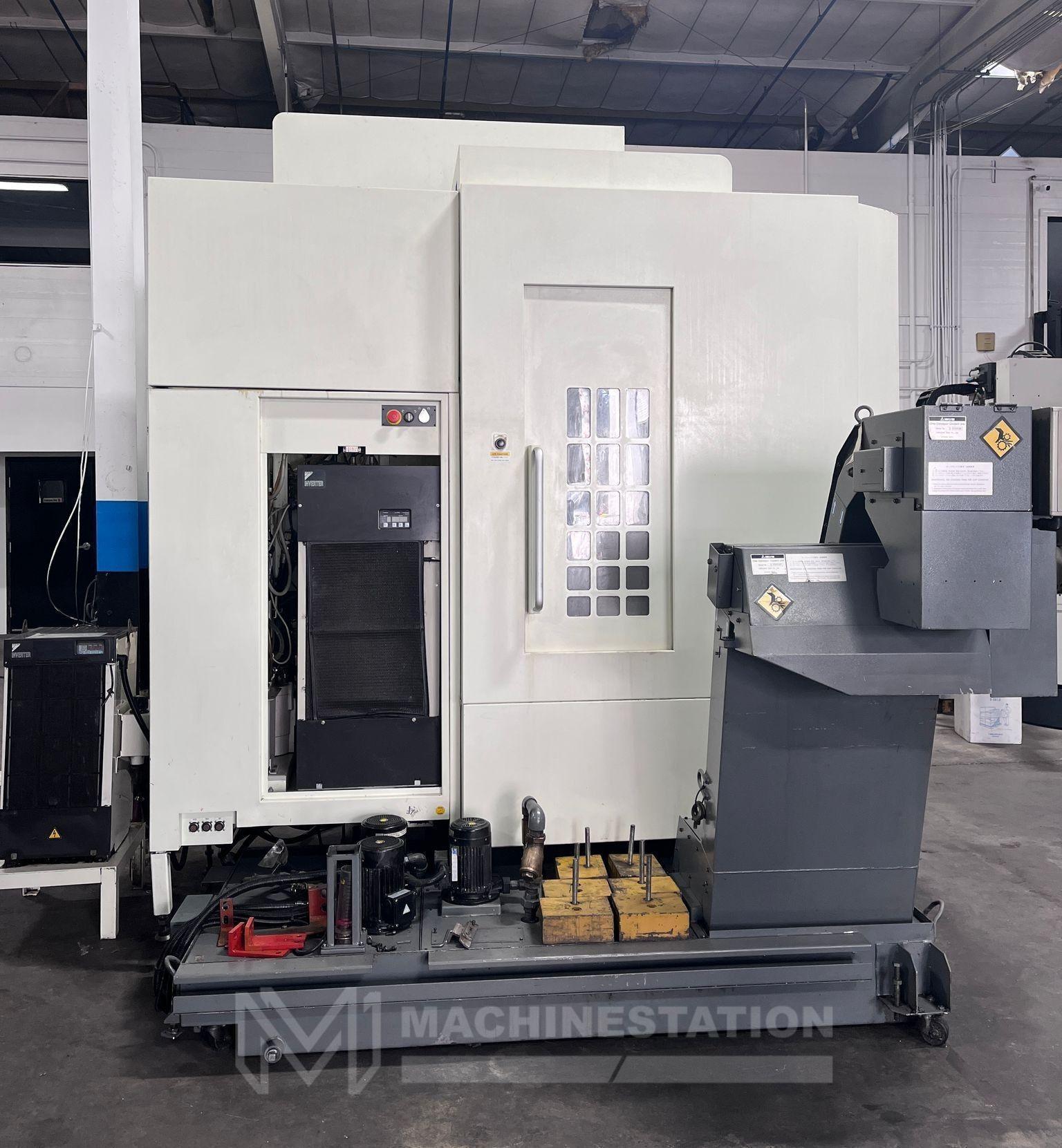

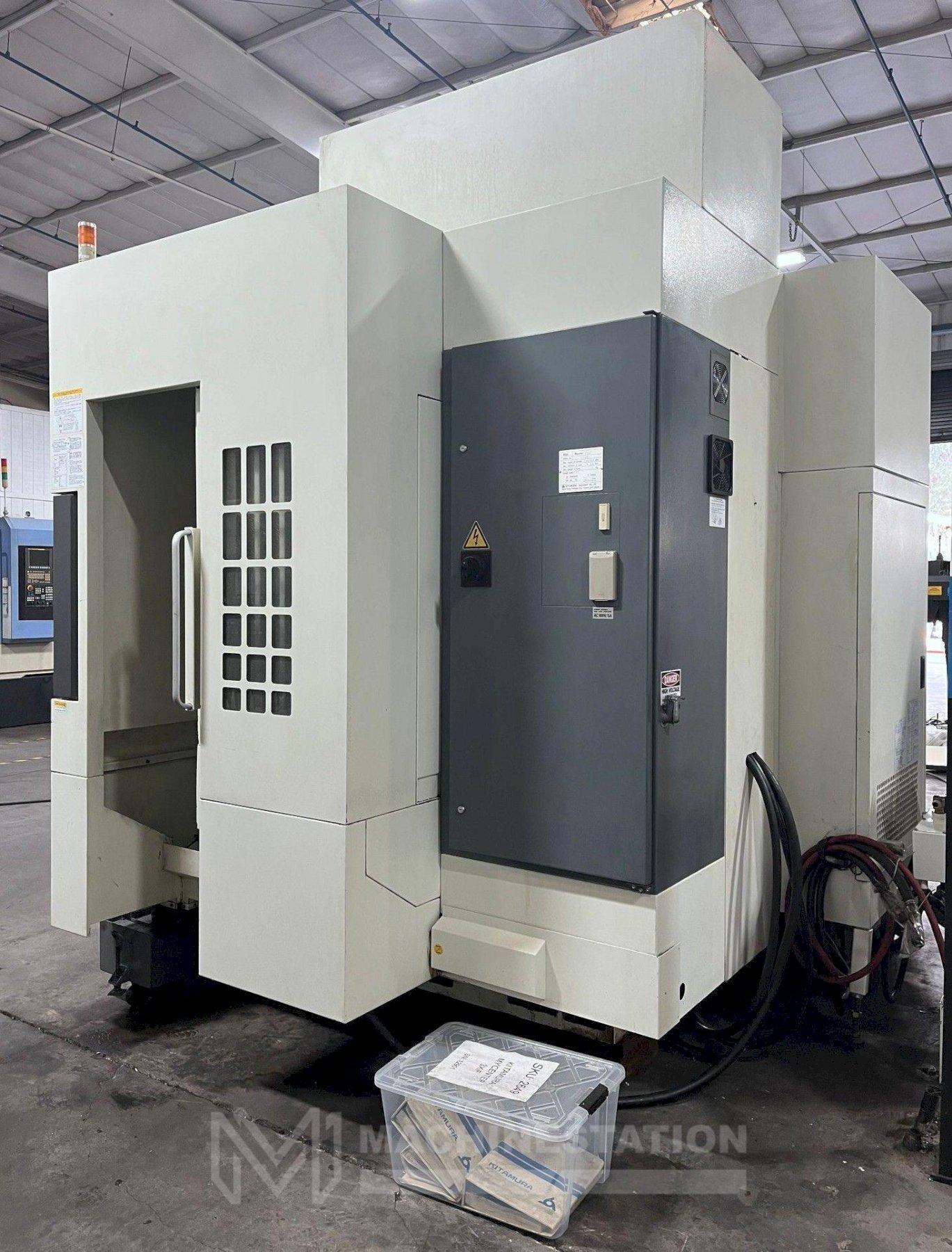

Kitamura MyCenter 3XiF Spark Changer CNC Vertical Mill

Brand
KITAMURA
Category
Machining Centers
Type
Vertical Machining Centers
Model
MyCenter 3XiF Spark Changer
Stock #
112649
Year
Not specified
Condition
Not specified

Location

Not specified

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

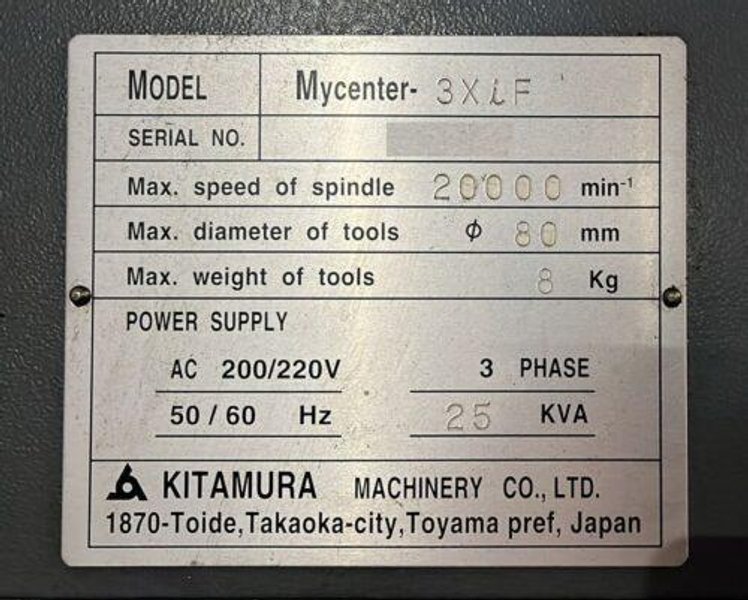

Make: Kitamura
Model: MyCenter 3XiF Spark Changer
Features:

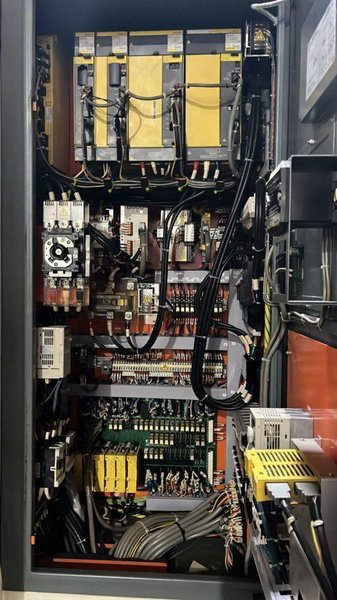

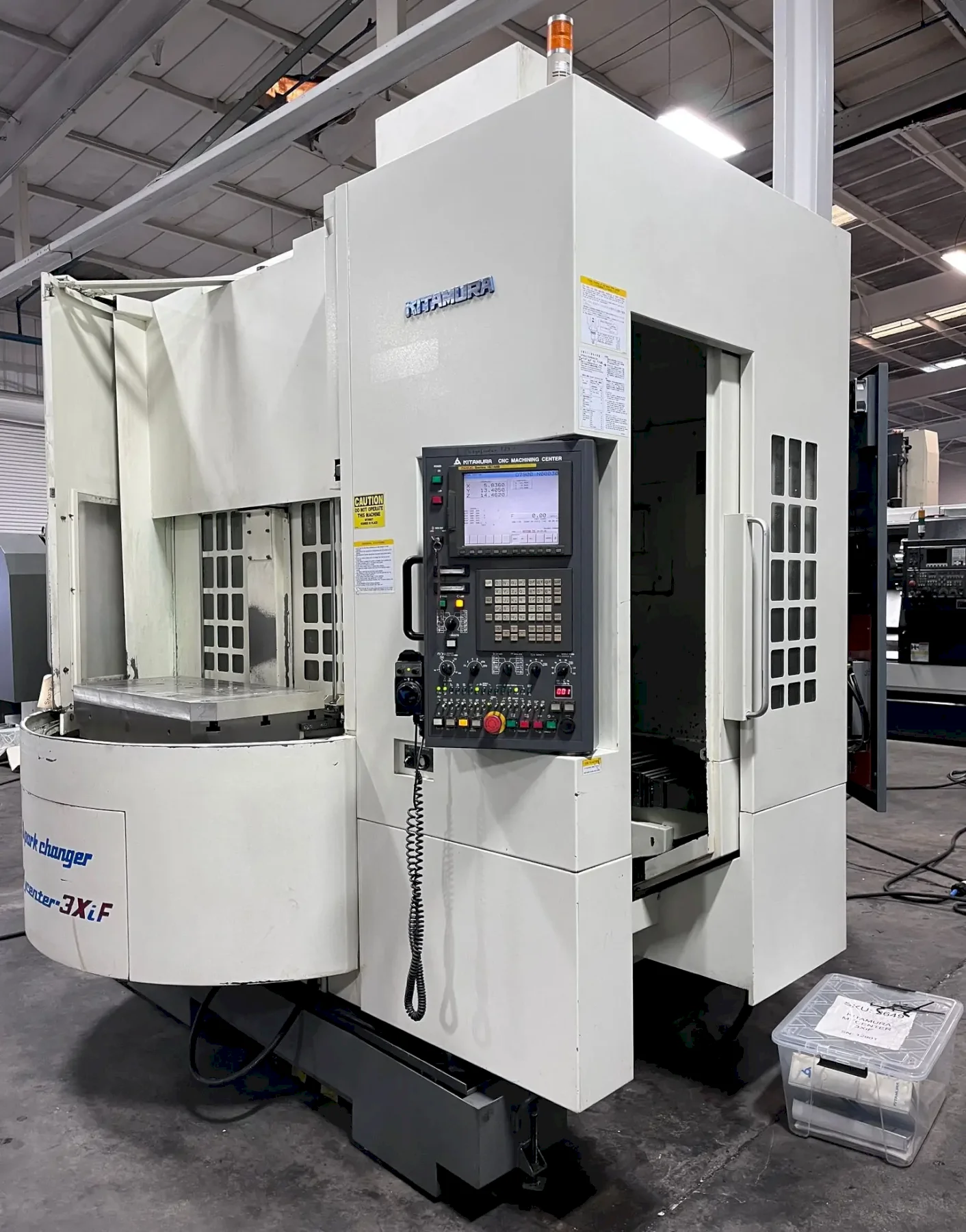

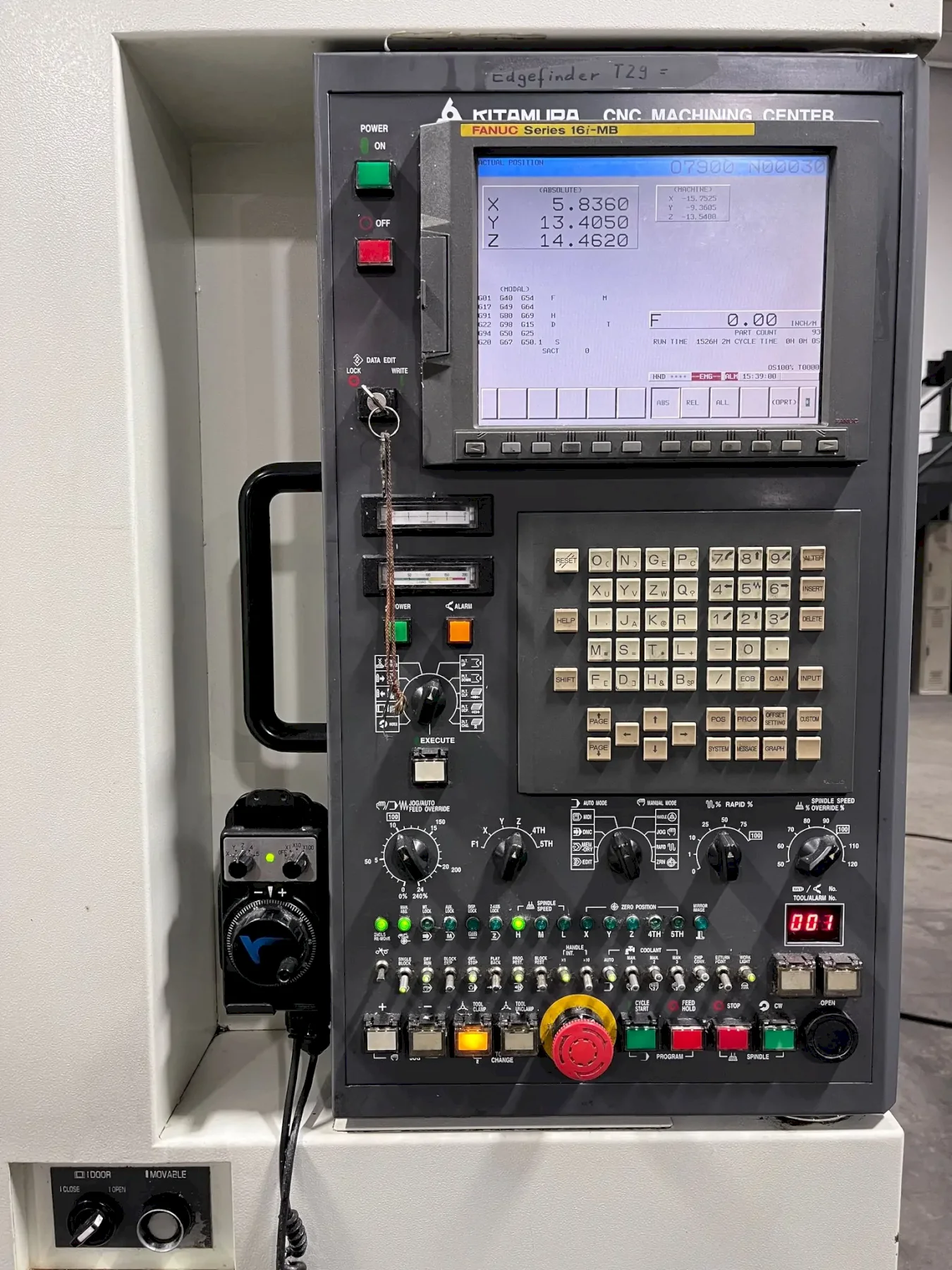

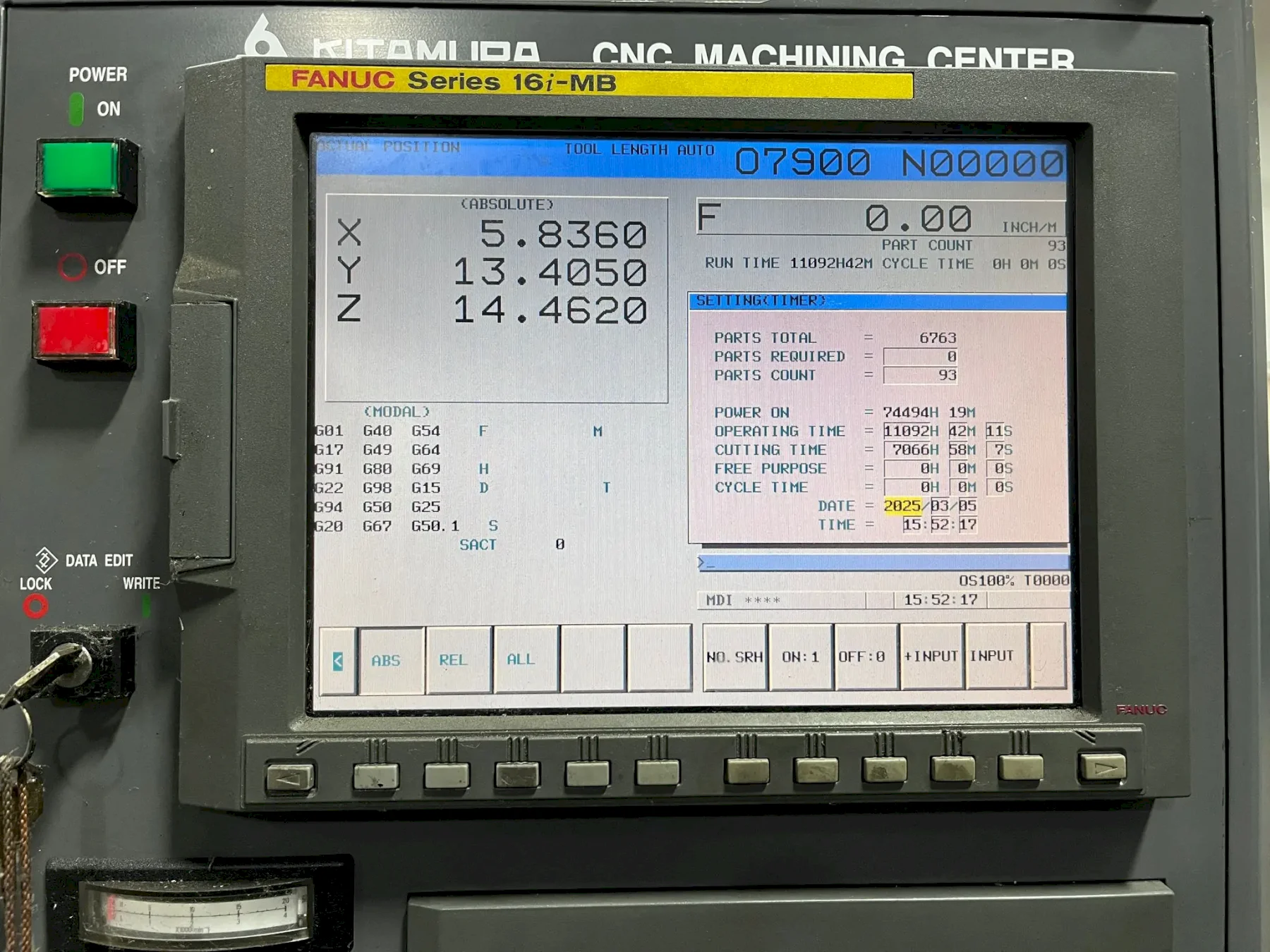

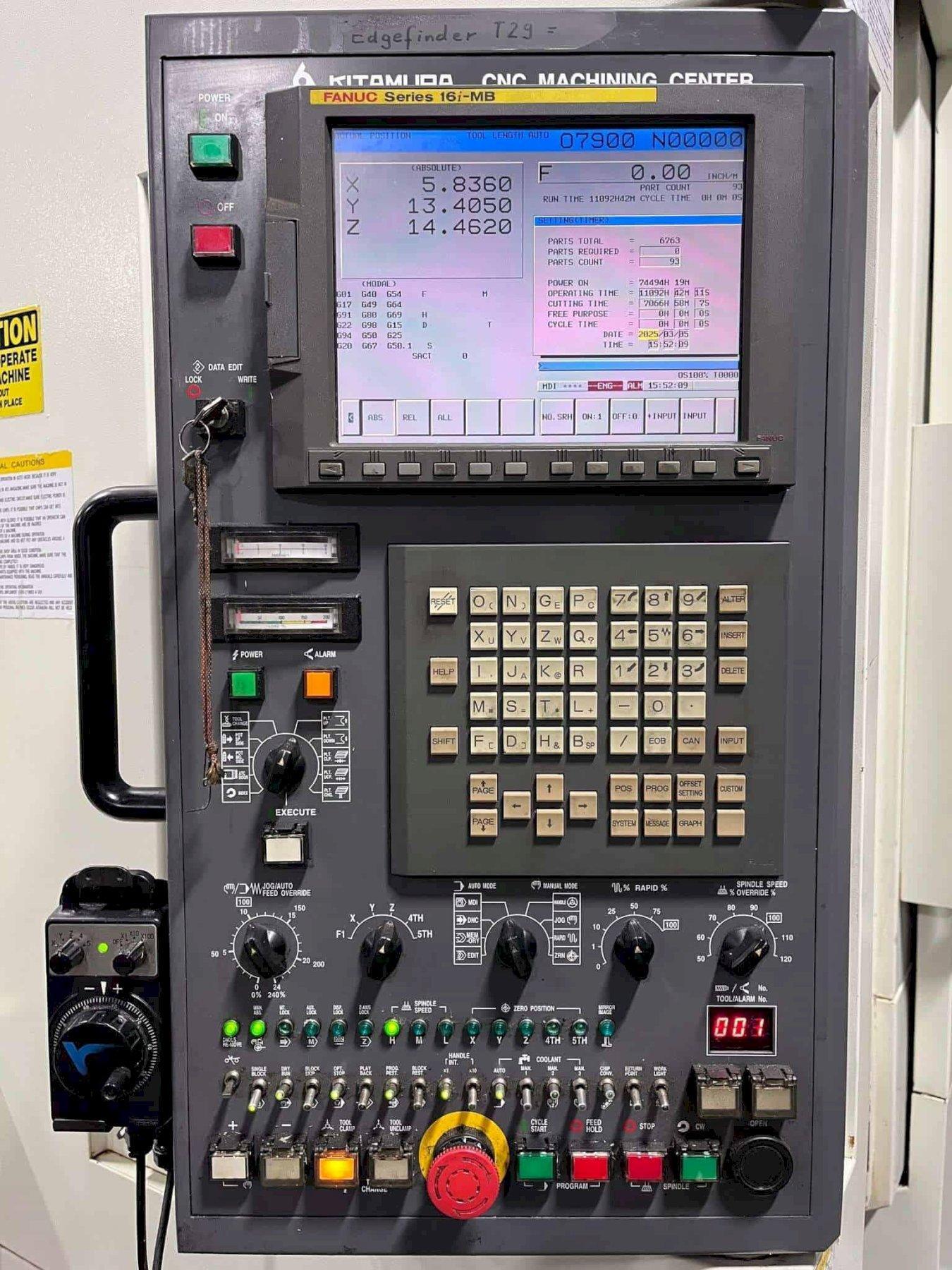

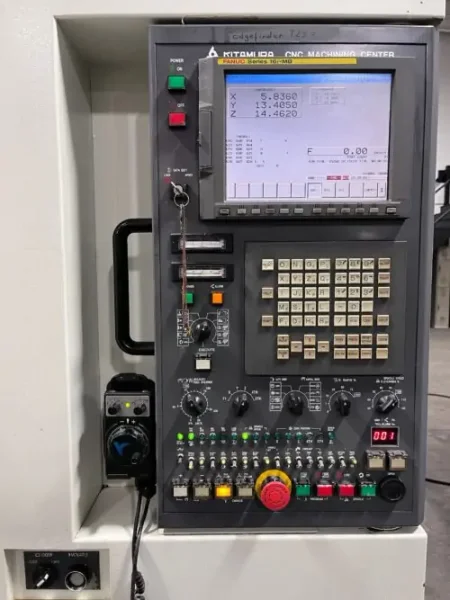

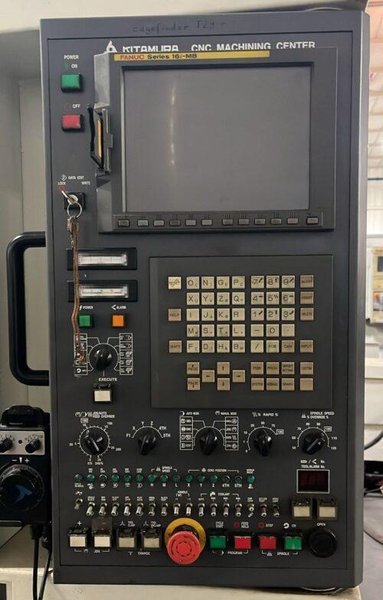

Fanuc 16iM CNC Control

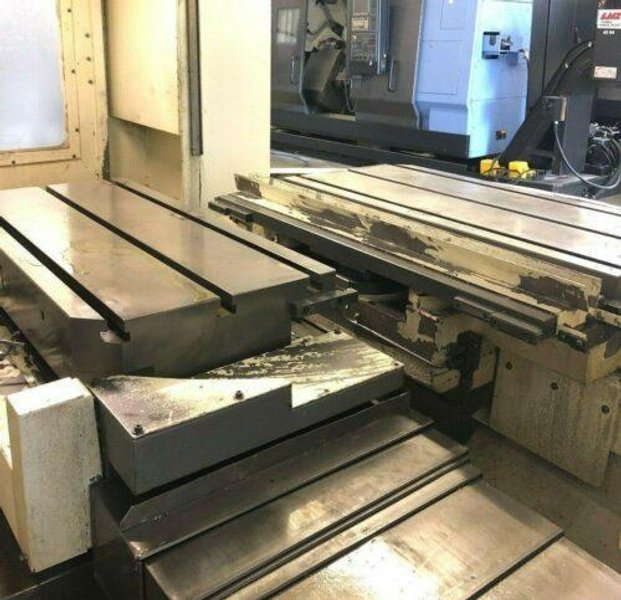

180° Rotary Type Pallet Changer
20,000 RPM High-Speed Spindle
30 Tools Side Mount High Speed Tool Changer
Coolant through Spindle
20 HP High Torque Spindle
Fast Rapid Traverse
MPG Handwheel Control

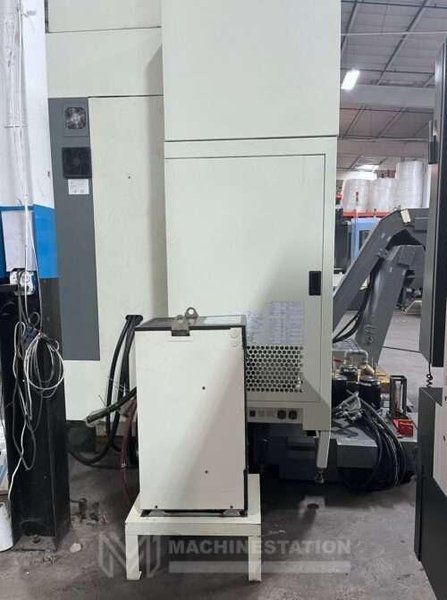

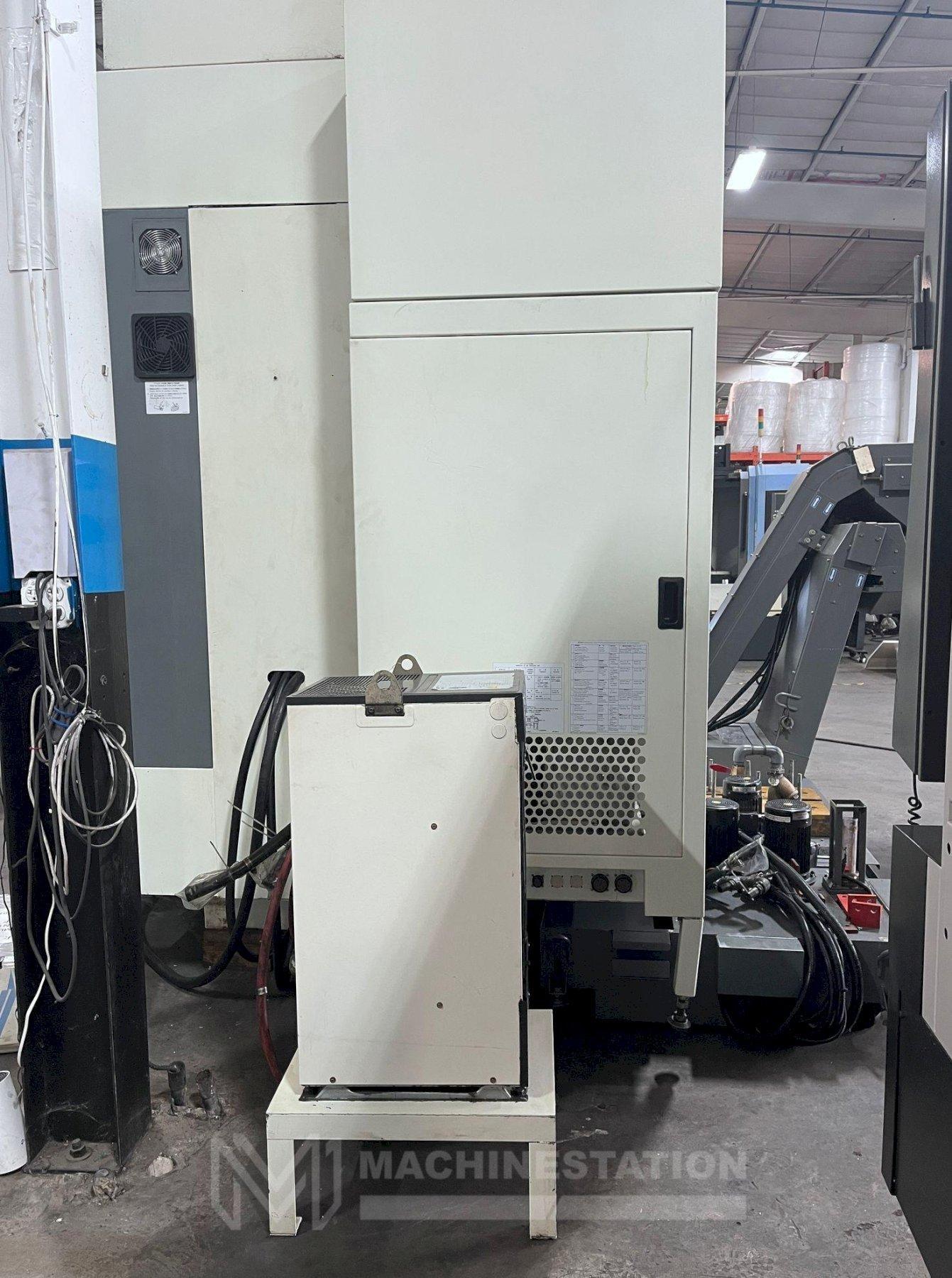

Spindle Chiller
Rigid Tapping
Spindle Orientation
Flood coolant with large separate coolant tank
Chip Conveyor
Books and Manuals

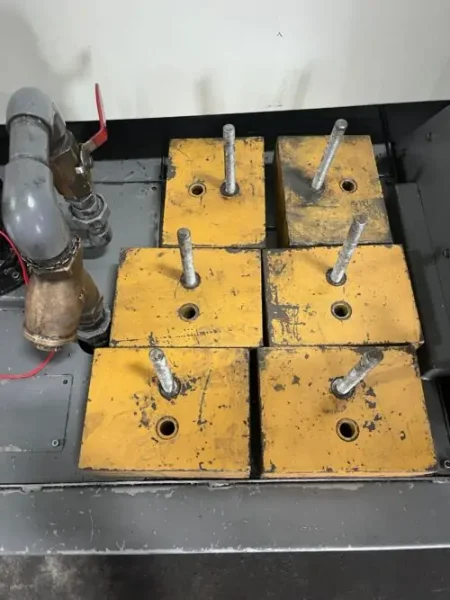

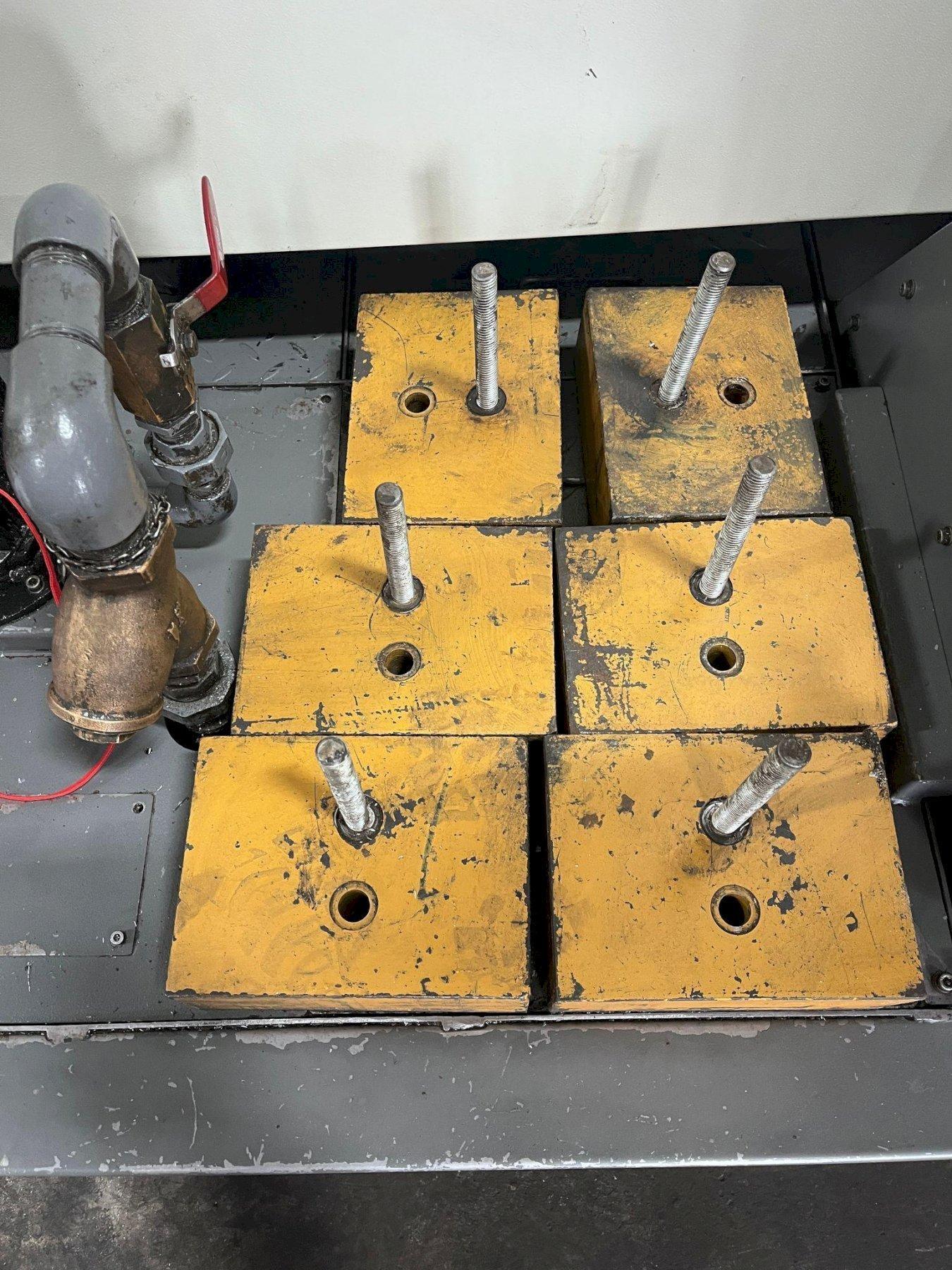

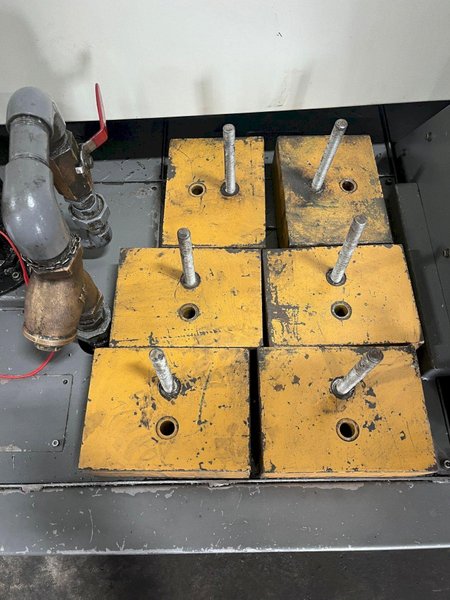

Levelling Pads
Travel:
X-Axis: 30.19 inch
Y-Axis: 17.97 inch
Z-Axis: 18.19 inch
Rapid Traverse Rates: 1181 Inch Per Minute
Cutting Feed Rates: 945 Inch Per Minute

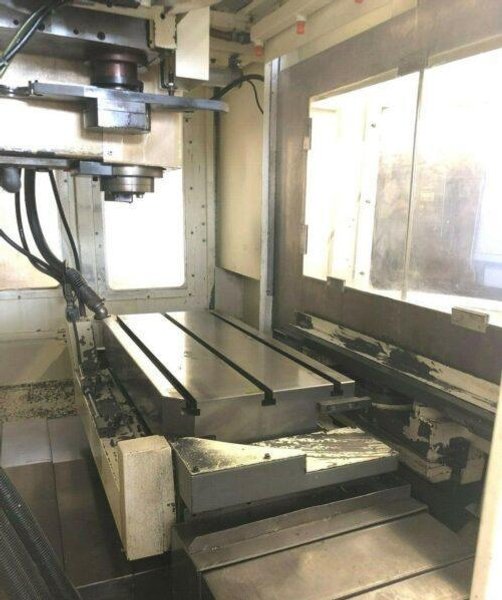

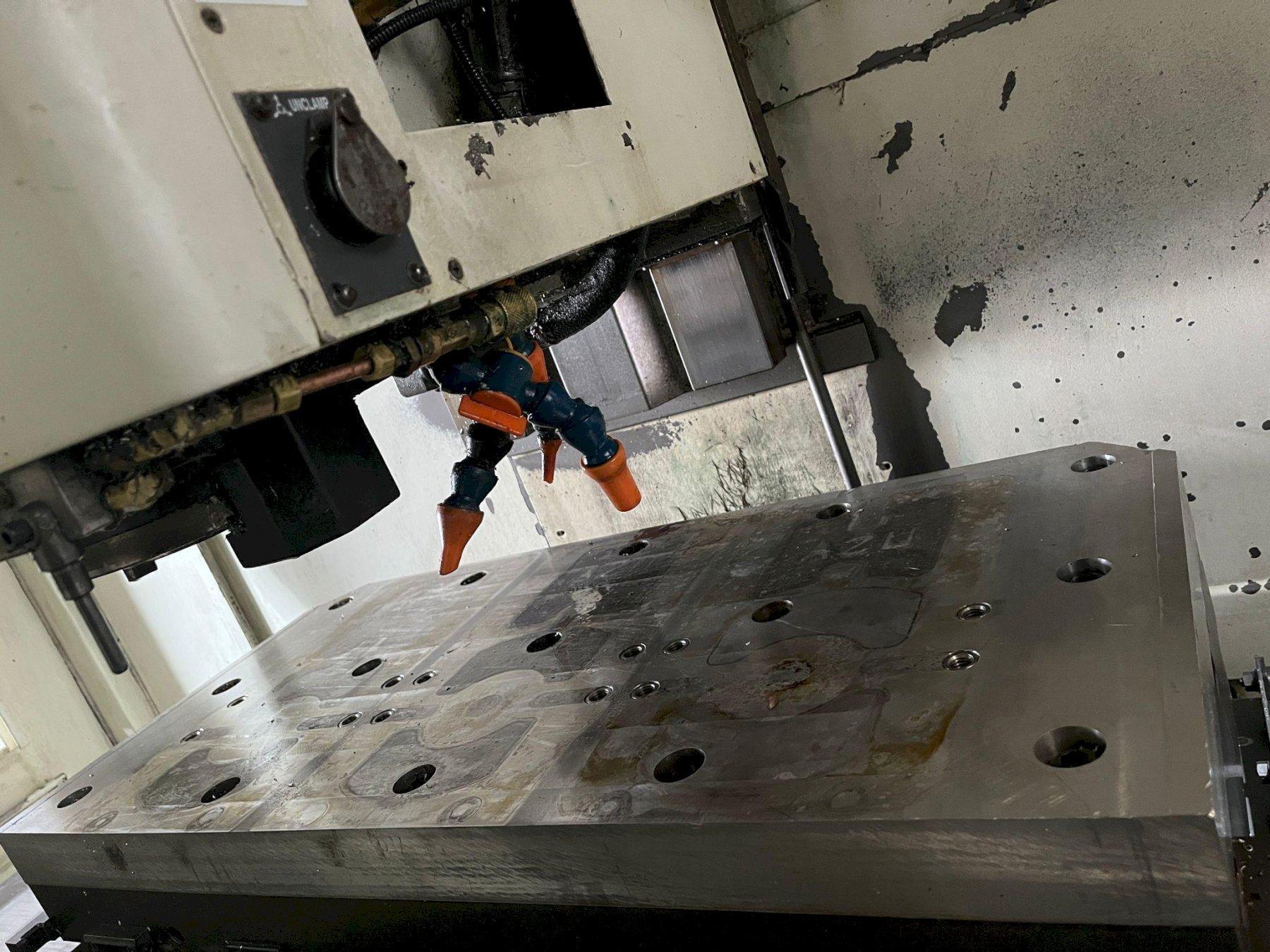

Table:
Length: 34.00 inch
Width: 16.0 inch
Max Weight on Table: 440 lbs
Spindle:
Taper Size: CAT-40
Speed Range: 20,000 RPM
Spindle Power: 20 HP

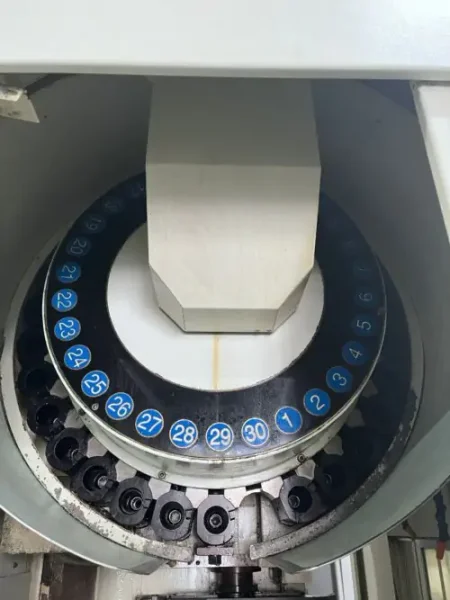

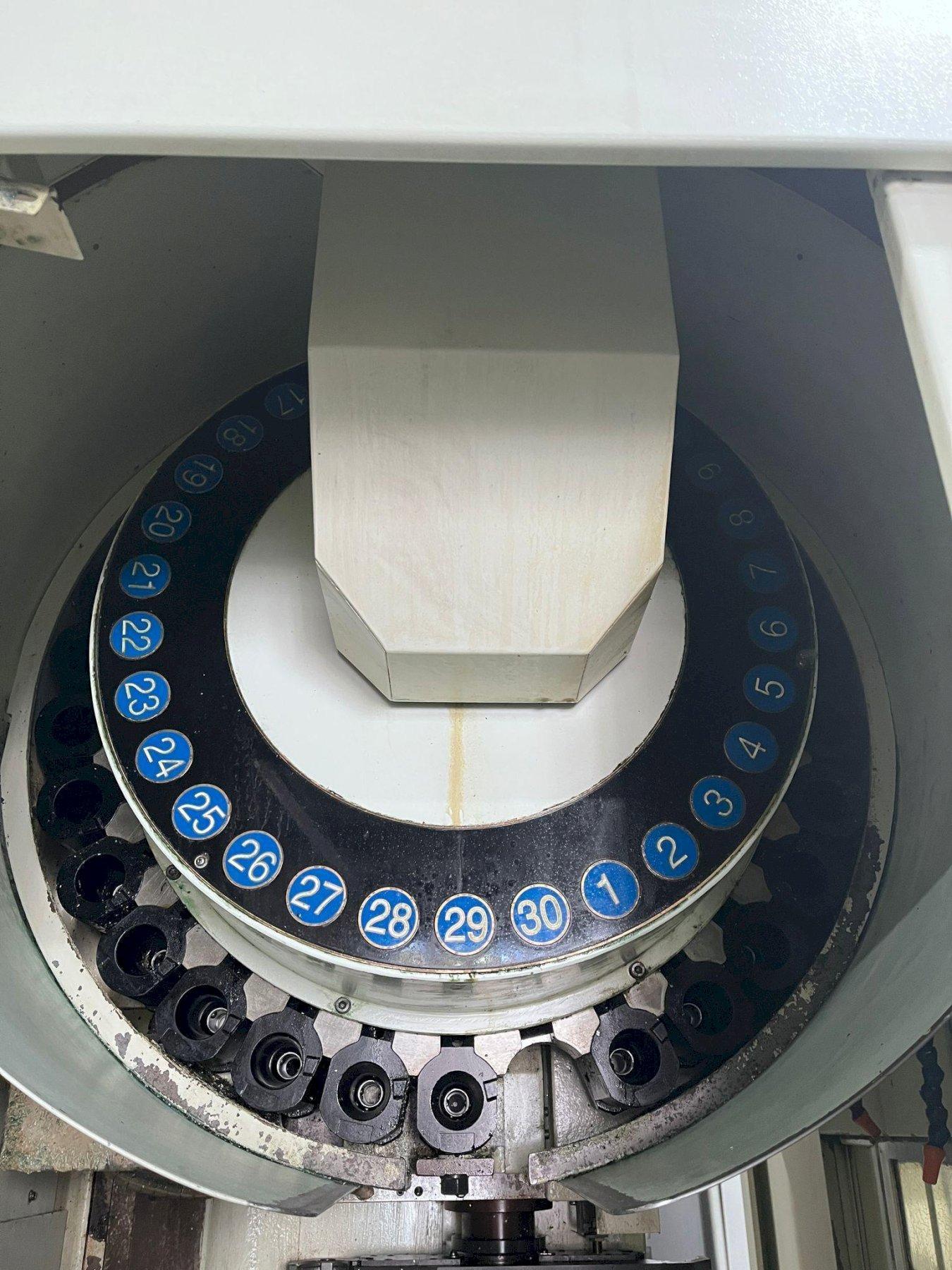

Automatic Tool Changer:
Capacity: 30 Tools
Max Tool Weight: 17.63 lbs
Max Tool Dia: 3.14 inch
Tool Changing Time: 1.7 Seconds
General:
Air Required: 80 psi 4 scfm
Power: 25kva / 205-220v / 66FLA / 3-Phase
Overall Dimensions: 120 inch x 97 inch x 110 inch High
Weight: 17,500 lbs. Approx.
