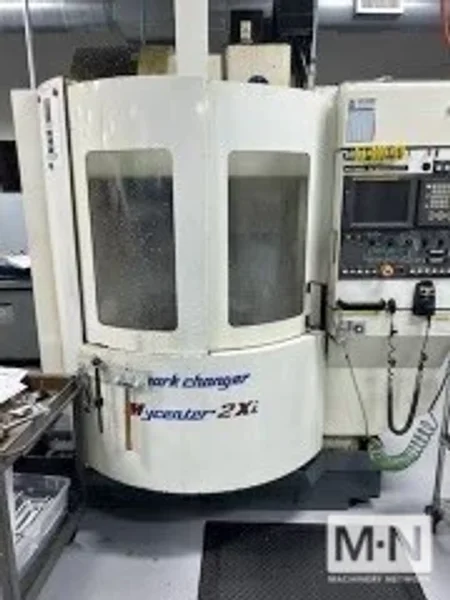

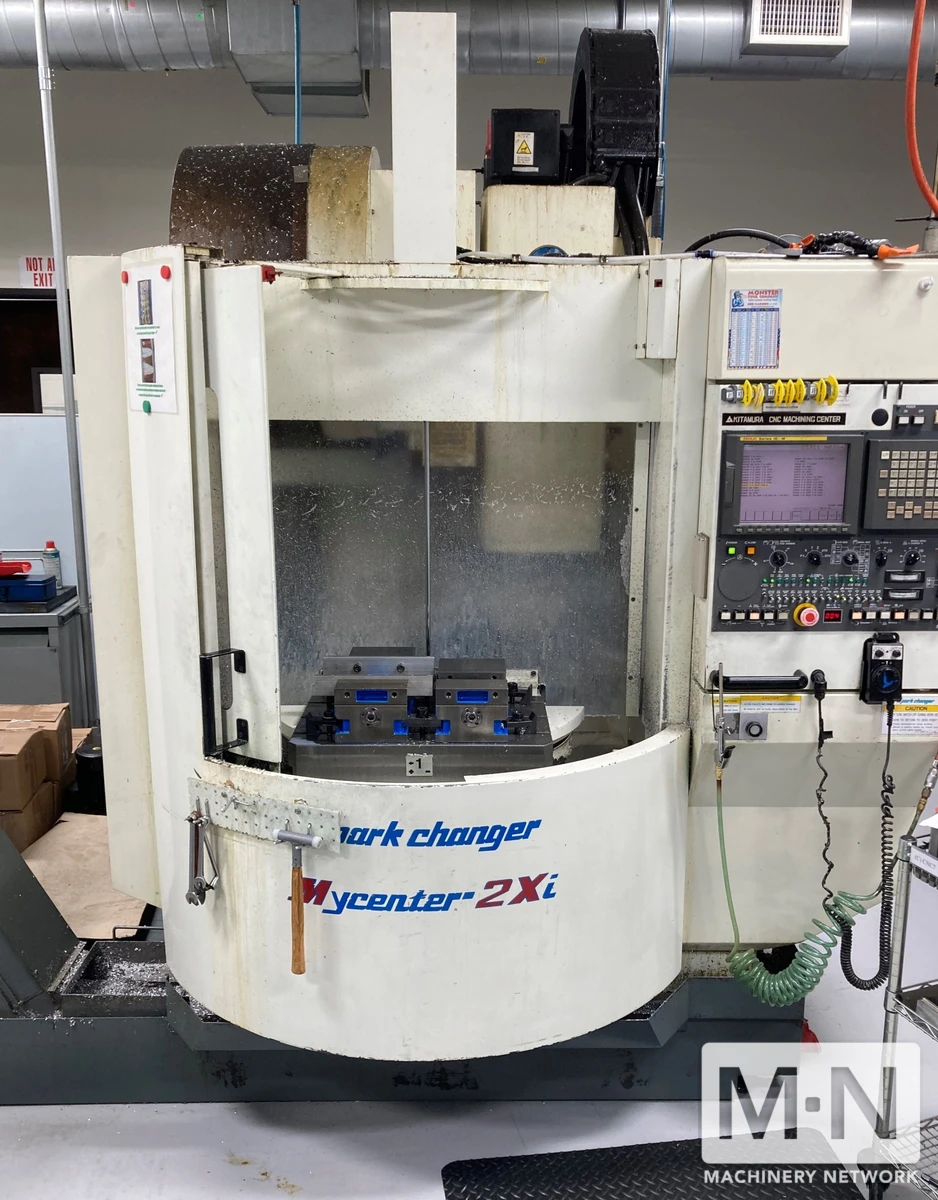

Kitamura Mycenter 2Xi CNC Vertical Machining Center

Kitamura Mycenter 2Xi CNC Vertical Machining Center

Name: Kitamura Mycenter 2Xi CNC Vertical Machining Center
Brand: KITAMURA
SKU: 50956
Availability: InStock

Brand

KITAMURA

Location

Not specified

Specifications
Files & Videos

Overview

Type:

Vertical Machining Centers

Manufacturer:

KITAMURA

Model:

MYCENTER 2XI

Stock #:

50956

Status:

For Sale

ImperialMetric

X Axis Travel	20"	508 mm
Y Axis Travel	14"	355.6 mm
Z Axis Travel	18"	457.2 mm
Cutting Feed Rate	1,417 IPM	1,417 IPM
Distance From Spindle To Column	21.9"	556.26 mm
Spindle Motor	15 hp	11.2 kW
Spindle Speed	15,000 RPM	15,000 RPM
ATC Capacity	24	24
Spindle Taper	CT40	CT40
# Axis	3	3
Table dimensions	14" x 30.9"	14" x 30.9"
Max. Table Load	529 Lbs	529 Lbs
Dimensions	93.7" x 79.5" z 116.6"	93.7" x 79.5" z 116.6"

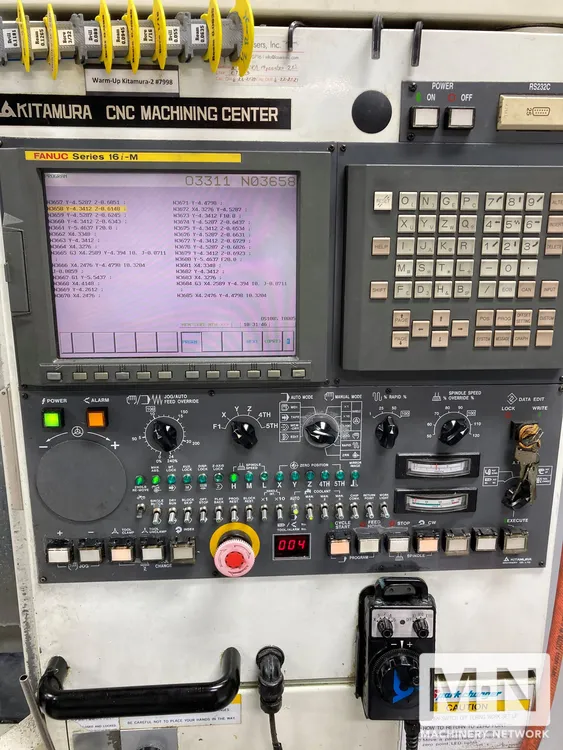

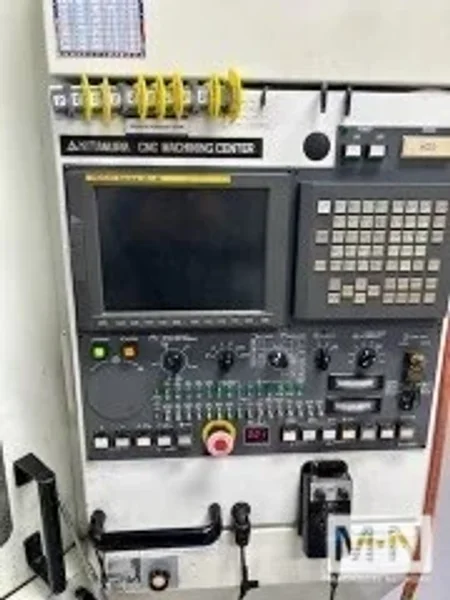

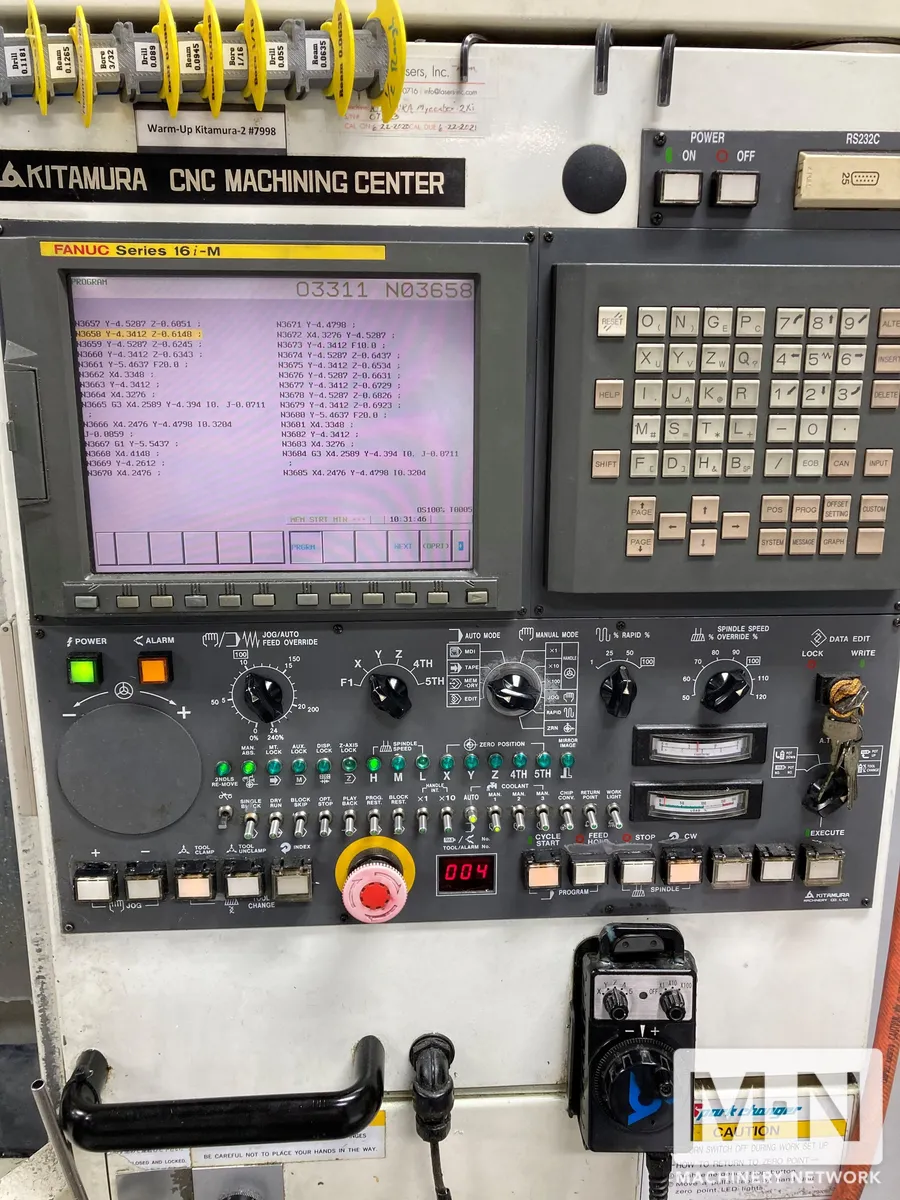

KITAMURA-FANUC 16iM control (10.4" color LCD)
Installation parts kit
Standard spare parts
Leveling bolts and plates
Spindle orientation
Spindle nose air blow
Coolant device
Coolant tank (330U87GAL)
Coolant pump (1,21 0w/60Hz)
Automatic way lubrication
Self diagnosis function
Spindle speed meter
Spindle load meter
Fully enclosed splash guard
Stainless chip tray
Spindle oil cooler
Oil air unit
High precision tapping function
4 additional M codes
Work light
Cycle finish indication lamp

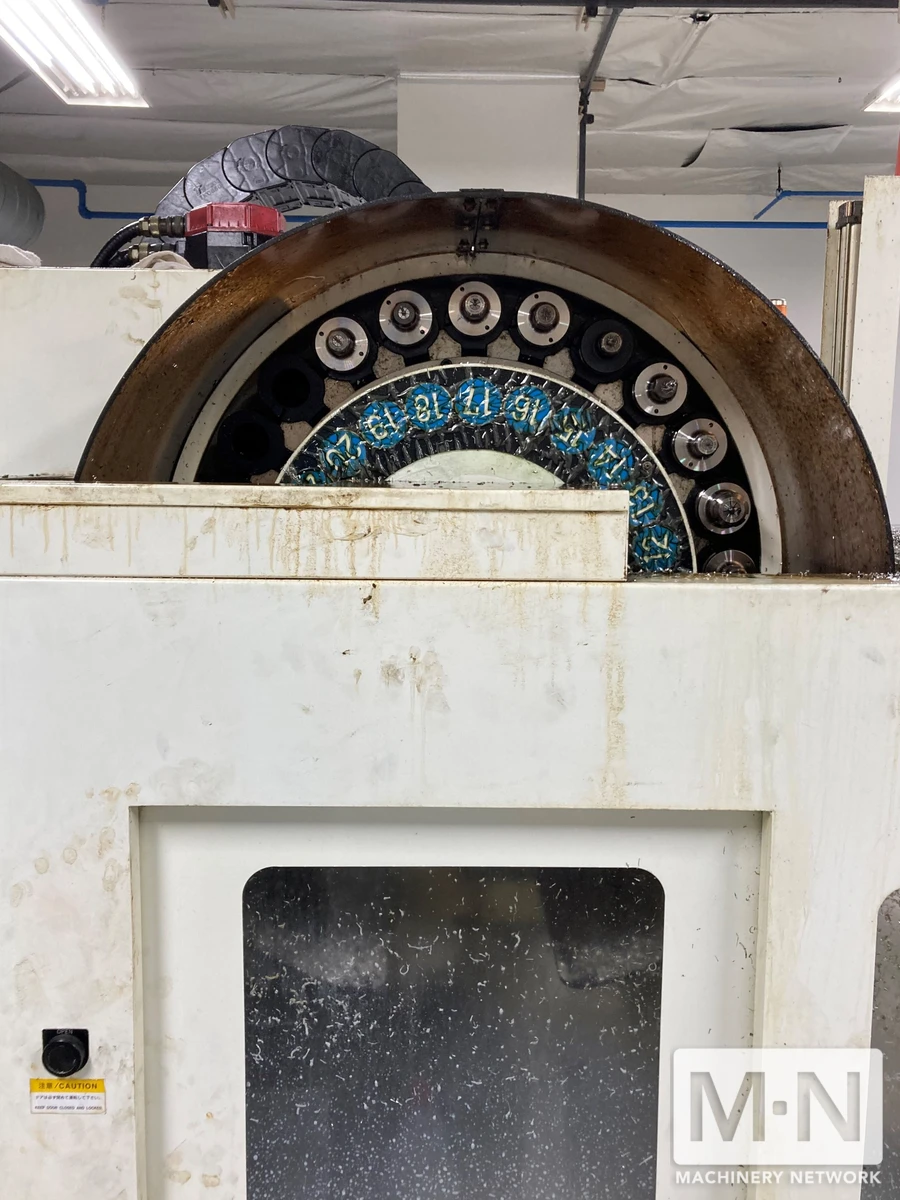

24 tools ATC(Stand-by ATC function by pre-read T code)
Servo ATC magazine
RS232C interface
Operation panel with M function indicator
Controlled counter balance
Separated manual pulse generator (for Sparkchanger)
