Kitamura MyCenter 3X CNC Vertical Machining Center
Brand
Category
Model
MyCenter 3X
Stock #
VMCKIT3X
Year
1998
Condition
Used
Location
Illinois
| Table Size | 16” x 35 1/2” |
| X-axis Travel (Longitudinal) | 30” |
| Y-axis Travel (Cross) | 18” |
| Z-axis Travel (Vertical) | 18” |
| Spindle Nose To Top Of Table | 5”-23” |
| Spindle Speeds | 20-10,000 RPM |
| Spindle Taper | CAT40 |
| Spindle Drive | 15 HP |
| ATC | 20-Positions |
| Approximate Dimensions | 102” x 98” x 104” Height |
| Approximate Weight | 11,000 lbs. |
| *Specifications Subject To Verification* | *Specifications subject to verification* |
|
EQUIPPED WITH:

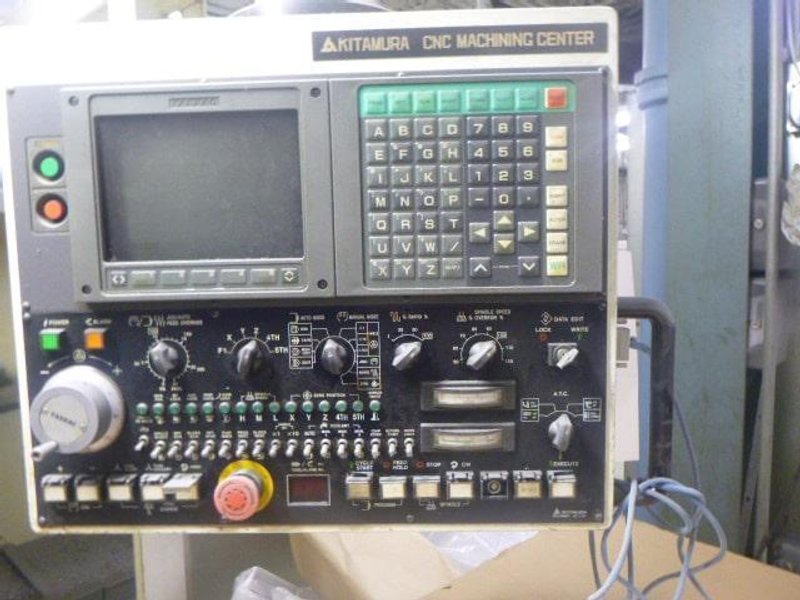

Kitamura Yasnac CNC Control. RS-232C Port. 20-Position Automatic Tool Changer. Chiller. Chip Conveyor. Coolant System. Worklight. Full Enclosure. Manuals and Drawings. |
|
