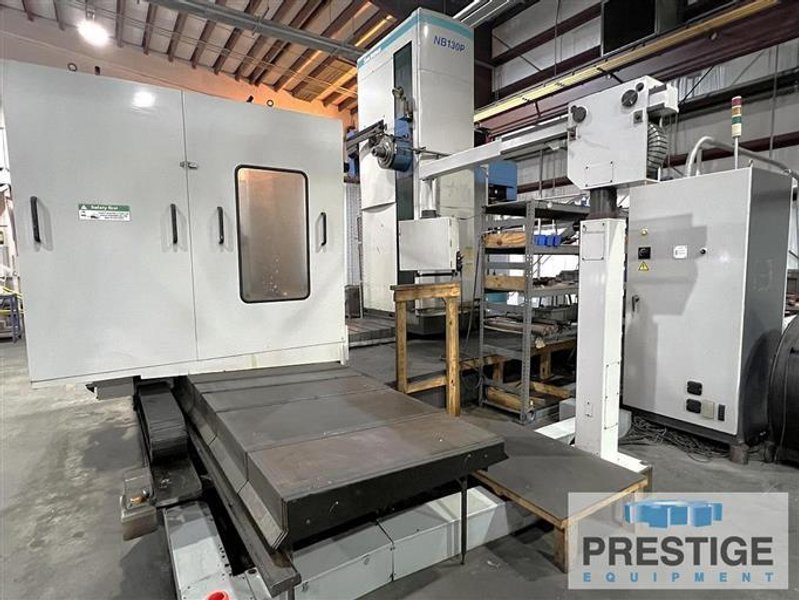

Boring Mills Horizontal Table Type CNC

CAPACITY:

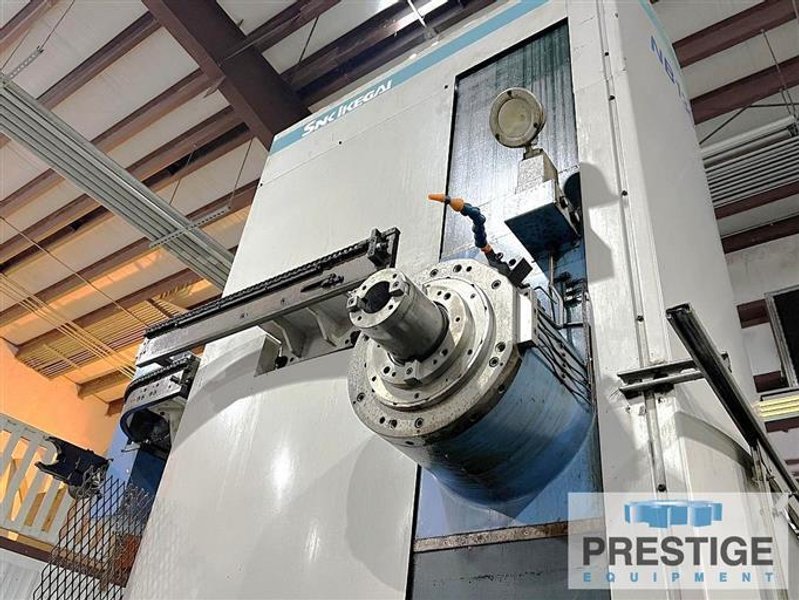

Spindle Diameter 5.12"
Spindle Taper......................... NT-50 NT-50
Vertical Head Travel, Y-Axis 98.42"
Table Travel, X-Axis 137.79"
Column Infeed Travel, Z-Axis 62.99"
Spindle Travel, W-Axis................ 27.55" 27.55"

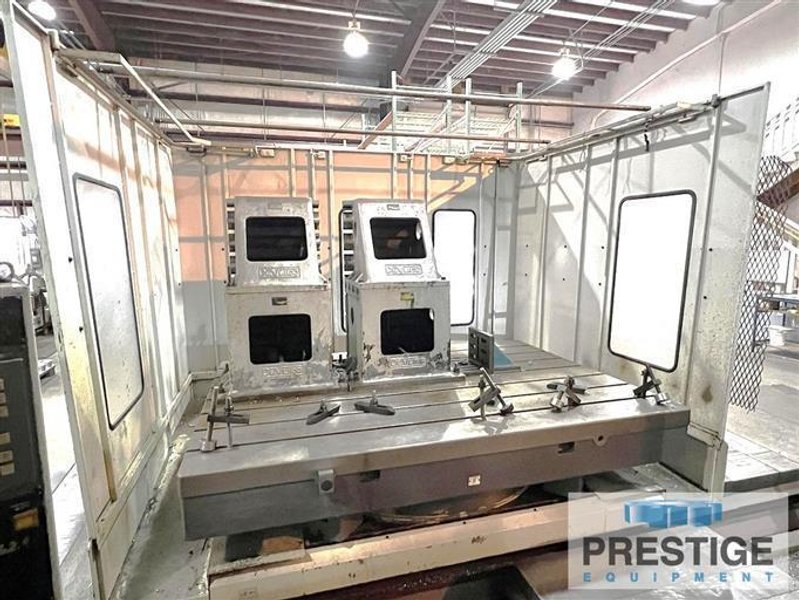

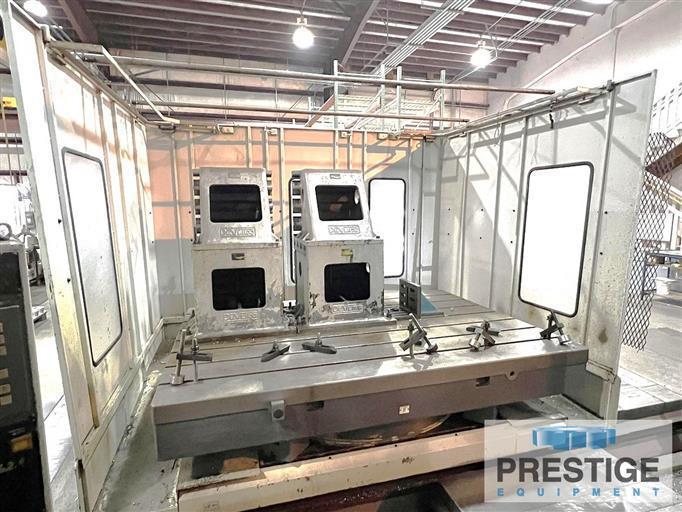

Rotary Table Size 62.99" x 86.61"
Rotary Table Index 0.001 Degree
Rotary Table Turning Speed 1 IPM
Rapid Traverse: y,z Axis 393.70 IPM
Rapid Traverse: X-Axis 314.96 IPM
Rapid Traverse: W-Axis 236.22 IPM
Table Load Capacity................... 22,046 LBS 22,046 LBS
Spindle Speeds 5-2500 RPM
Spindle Speeds Infinitly Variable 3-Ranges
Feeds, Rapid Y & Z Axes 393.70 IPM
Feeds, Rapid X-Axis 314.96 IPM
Feeds, Rapid W-Axis 236.22 IPM
Feeds, Cutting X,Y,Z,W Axes 196.85 IPR
Machine Floor Space: L x W 352" x 267"
Machine Height 167"
Machine Weight 79,366 lbs.



Equipped With:

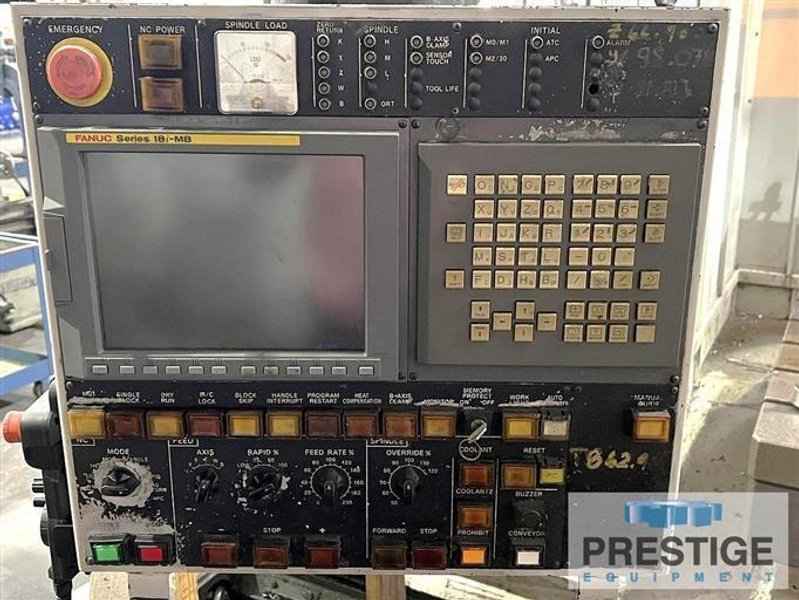

FANUC 18iMB CNC Control
60 Position Automatic Tool Changer
Coolant Through Spindle
Flood Coolant
Thread Cutting
Air Blow Device
Rigid Tapping
Helical Interpolation
Built-In "B" Axis Rotary Table
90 Degree Positive Shot Pin
Chip and Coolant Splash Guards
Telescoping Way Covers
Chip Conveyor
35 HP/ 30 HP Spindle Drive Motor 220/3/60
