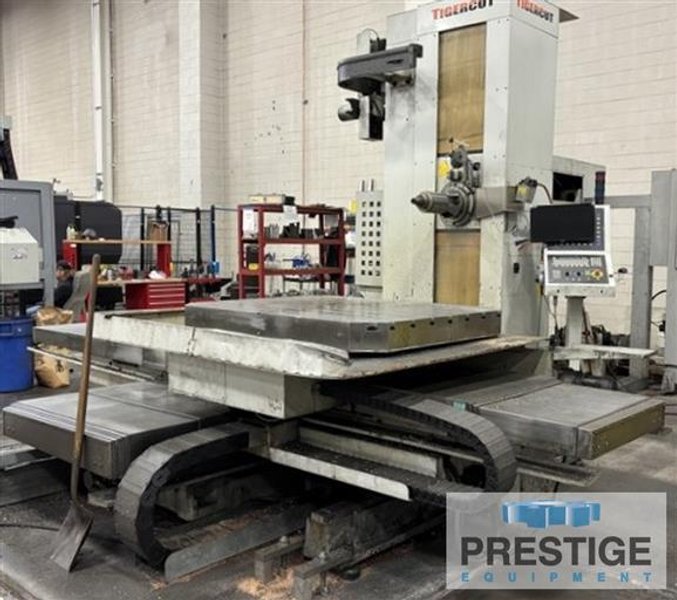

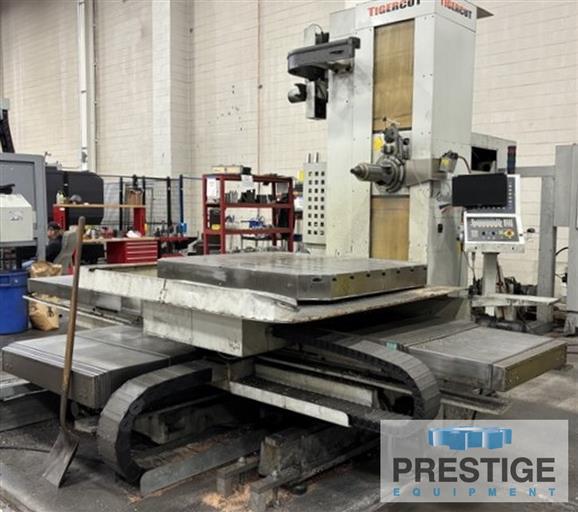

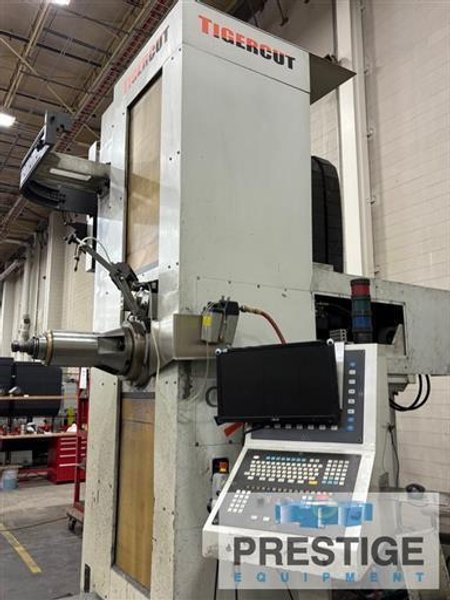

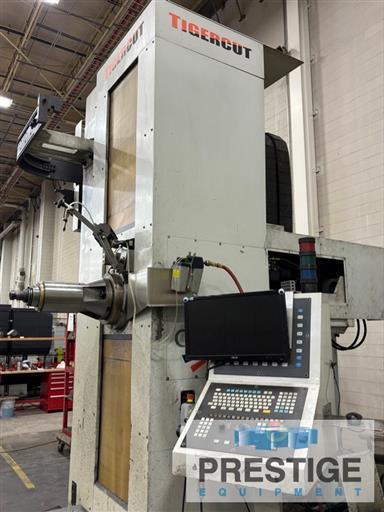

Boring Mills Horizontal Table Type CNC

CAPACITY:
Spindle Diameter...................... 4.3" 4.3"
Spindle Taper......................... ISO #50 ISO #50
Vertical Head Travel, y............... 63" 63"
Table Travel, x....................... 86.6" 86.6"
Spindle Travel, w..................... 21.65" 21.65"
Saddle Travel, z...................... 63" 63"
Distance Spindle To Table Center...... 0-63" 0-63"
Built in Rotary Table................. 47.2" x 59" 47.2" x 59"
Table Index........................... 1 Degree 1 Degree
Rapid Traverse: x,y,z Axis............ 472.5 IPM 472.5 IPM
Feed Rates: x,y,z Axis................ .04-196.6 IPM .04-196.6 IPM
Table Load Capacity................... 11,000 LBS 11,000 LBS
Spindle Speeds (2 Ranges)............. 35-3000 RPM 35-3000 RPM
Tool Change Time (Tool to Tool)....... 9 Seconds 9 Seconds
Maximum Tool Weight in Tool Changer... 55 LBS 55 LBS
Approximate Dimensions 308" x 197" x 146"
Approximate Machine Weight 49,600 Lbs.



Equipped With:
FANUC 18i MB CNC Control
Built-In Rotary Table
60 Position Automatic Tool Changer
Steel Telescoping Way Covers
Auto Power Off
Auto Lubrication System
Auger Style Chip Conveyor
25 HP Spindle Drive Motor
