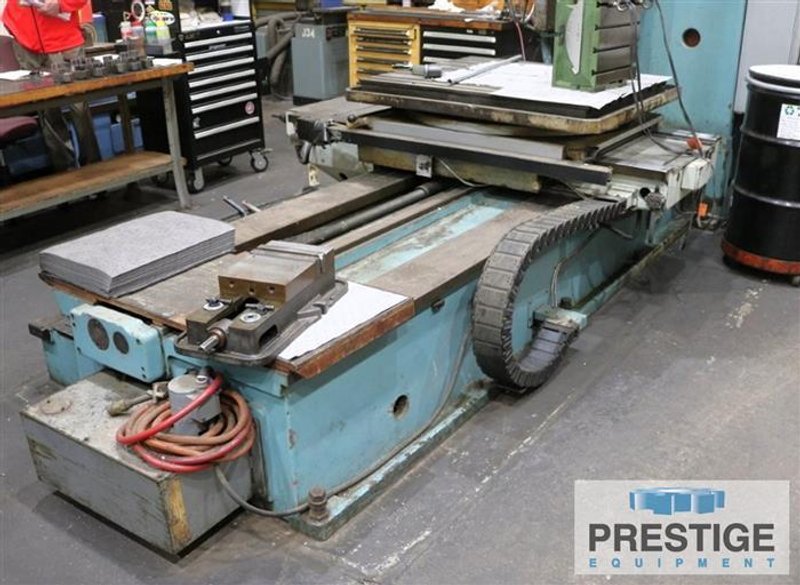

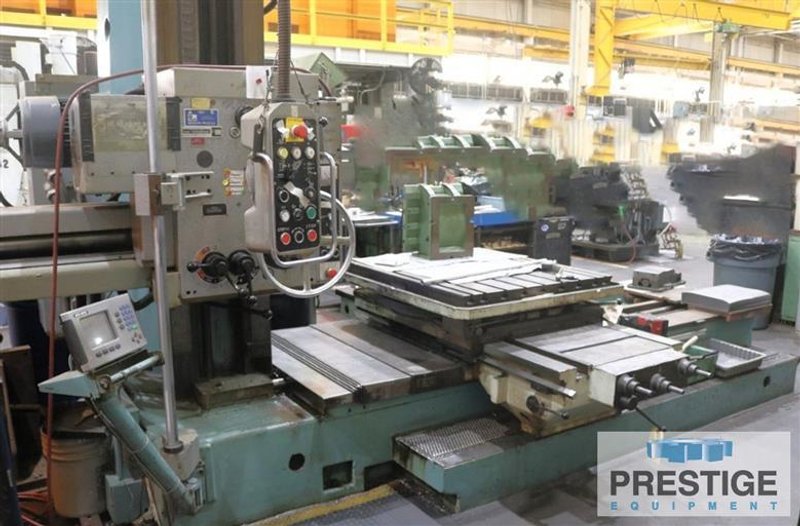

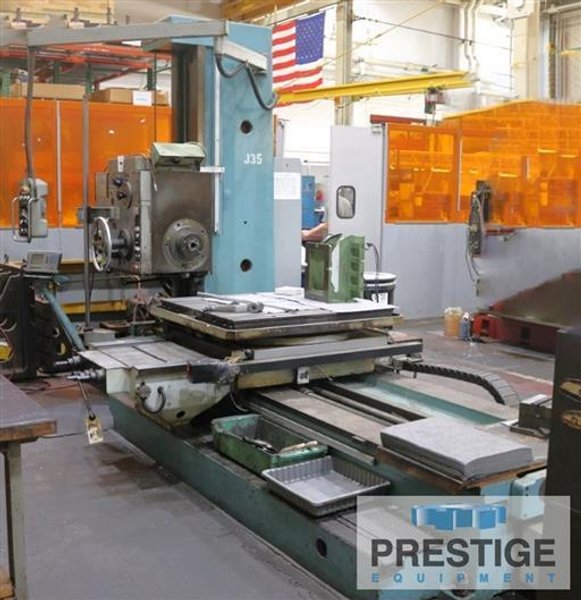

Boring Mills Horizontal Table Type Manual

SPECIFICATIONS:
Spindle Diameter 3.5"
Spindle Taper #40
X-Axis, Table Travel 49"
Y-Axis, Headstock Vertical Travel...... 44" 44"
W-Axis, Saddle Travel 55"
Spindle Speed 28-1400 RPM
Built-In Power Feeding Rotary Table 39" x 44"
Rotary Table, Optical Positioning 4 x 90 Degree
Rapid Feed Rotary Table 2.6 RPM
Rapid Traverse, All Axes 94 IPM
Range of Boring Feeds .0006 to .03 IPR
Number of Boring Feeds 18
Range of Milling Feeds .5-24 IPM
Number of Milling Feeds 18
Threads Per Inch, 24 Step 2-120 TPI
Spindle Motor 10 HP
Weight of Workpiece 6,600 LBS
Approx. Machine Footprint 210" x 100"
Approx. Machine Height 114"
Approx. Machine Weight 24,300 Lbs



Equipped With:
Operator Pendant Control
Acu-Rite Digital Readouts
Power Draw Bar
39" x 44" Built-In Power Rotary Table


NOTE: Machine on the Way to Our Philadelphia Warehouse.
