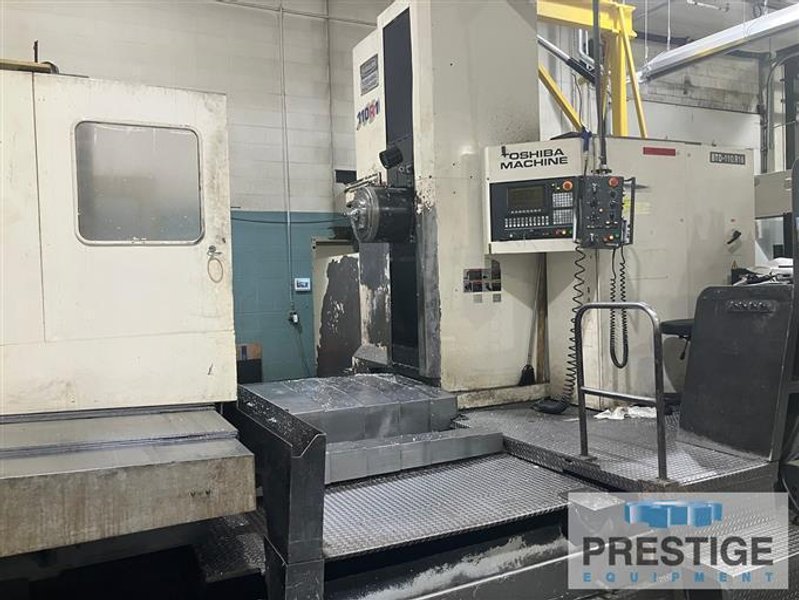

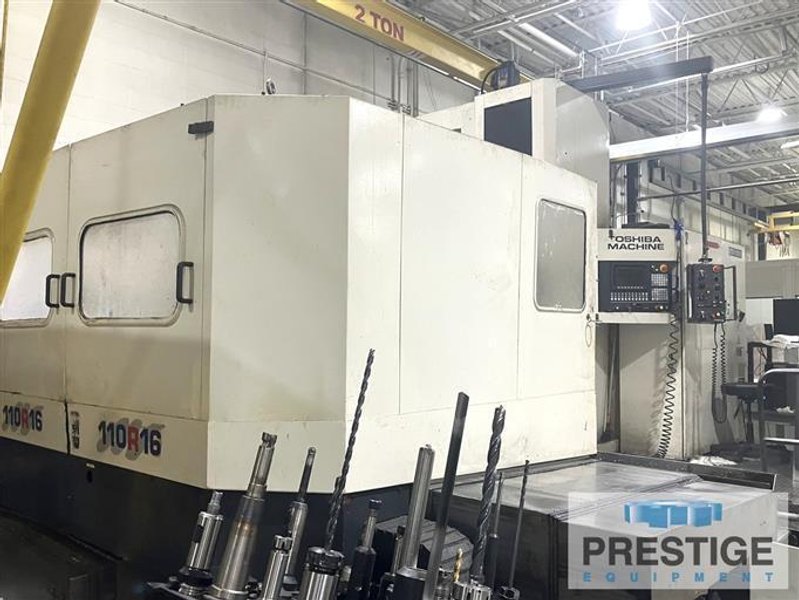

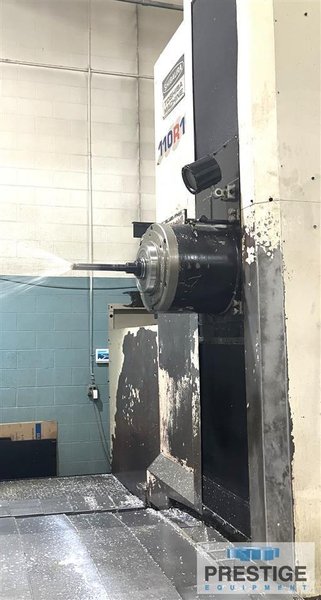

Boring Mills Horizontal Table Type CNC
Brand
Category
Model
BTD-110.R16
Stock #
45177
Year
2000
Condition
Not specified
Location
Not specified
|
CAPACITY:

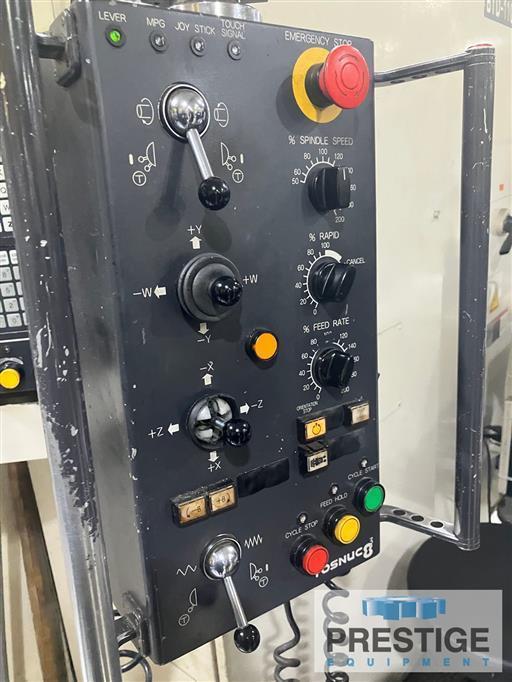

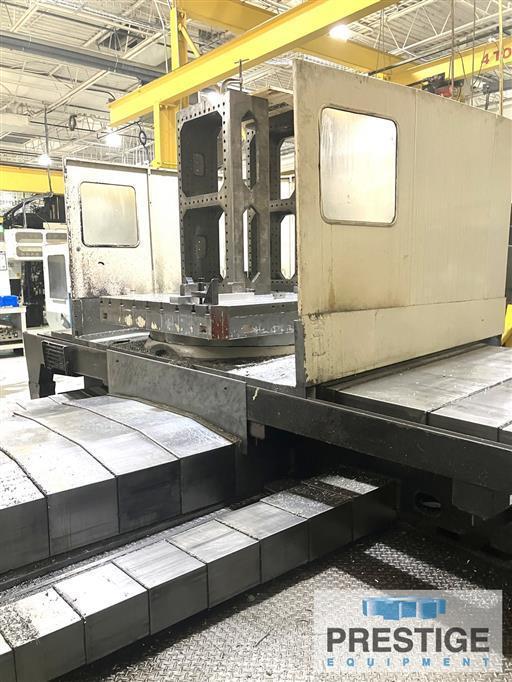

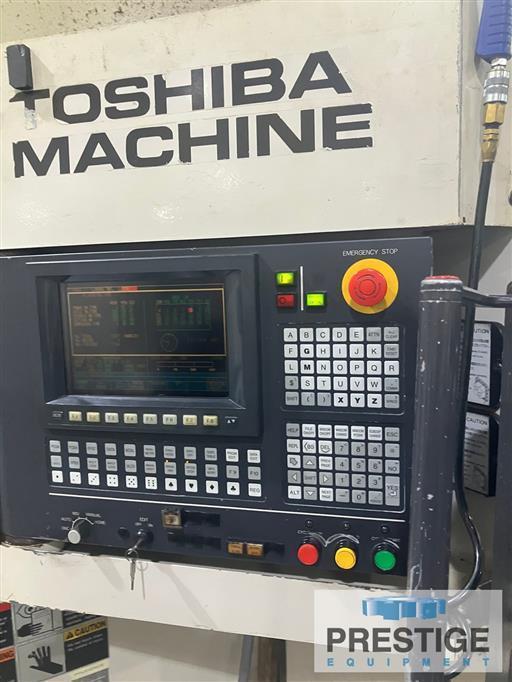

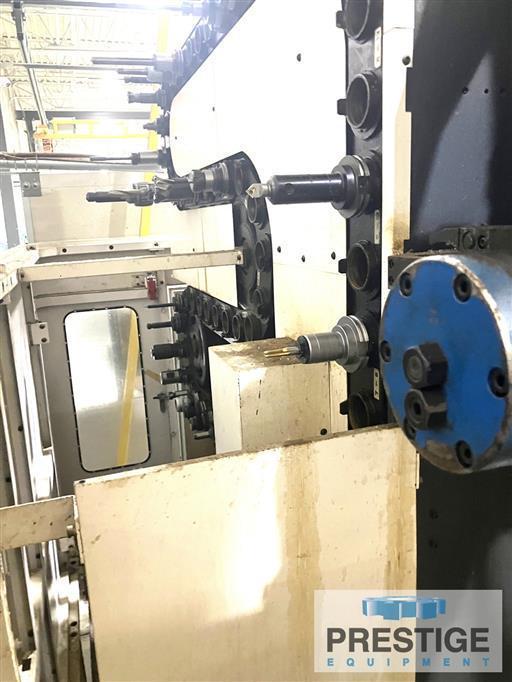

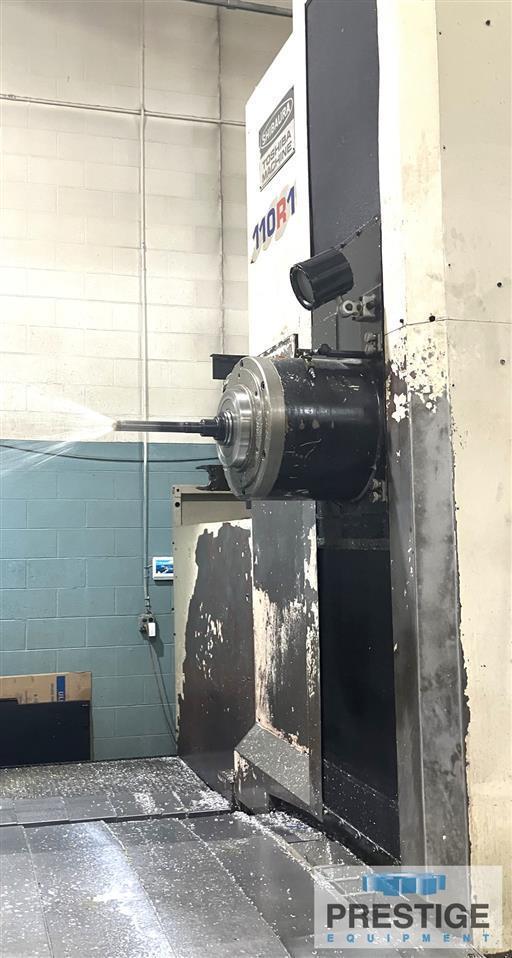

Spindle Diameter 4.33" Taper In Spindle #50 Milling Spindle Diameter 8.86" Vertical Head Travel, y 59.05" Table Cross Travel, x 78.74" Spindle Travel, z 19.69" Saddle Travel, w 57.08" Spindle Speeds 2-3000 RPM Rotary Table Size 55" x 63" Table Index 0.001 degrees Table Load Capacity 20,000 Lbs. Cutting Feed Rates .04-393 IPM Rapid Traverse 472.4 IPM Spindle Motor 40 HP / 30 HP Equipped With: Tosnuc 888 CNC Control w/ MPG Thru Spindle Coolant 55" X 63" Built in B-Axis Rotary Table 90 Station Automatic Tool Changer Chip Conveyor NOTE: Inspect In Plant Under Power! |
