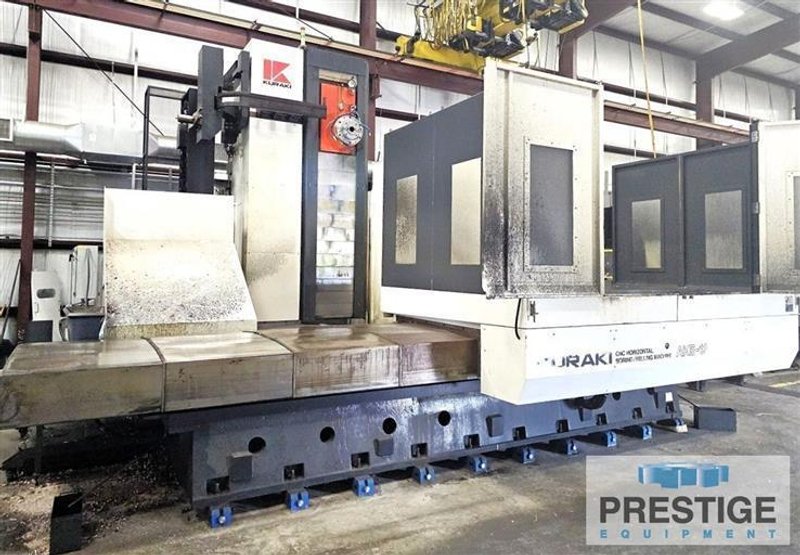

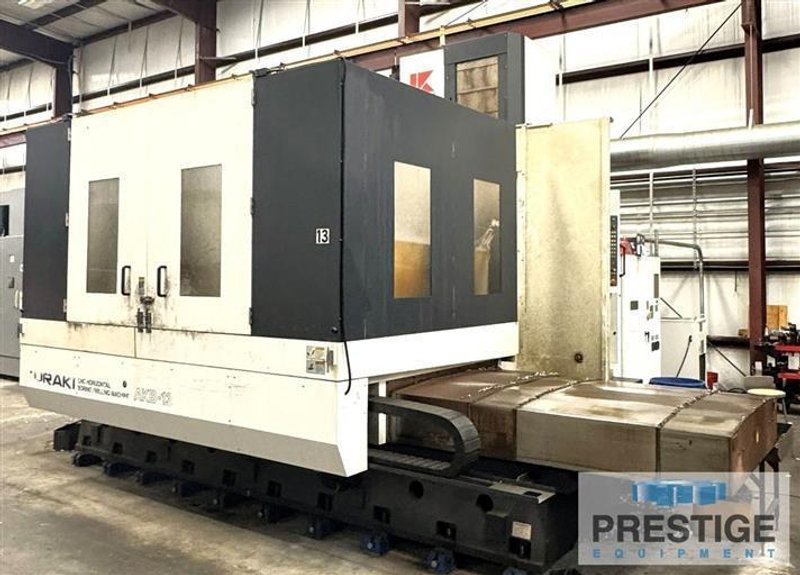

Boring Mills Horizontal Table Type CNC

SPECIFICATIONS:

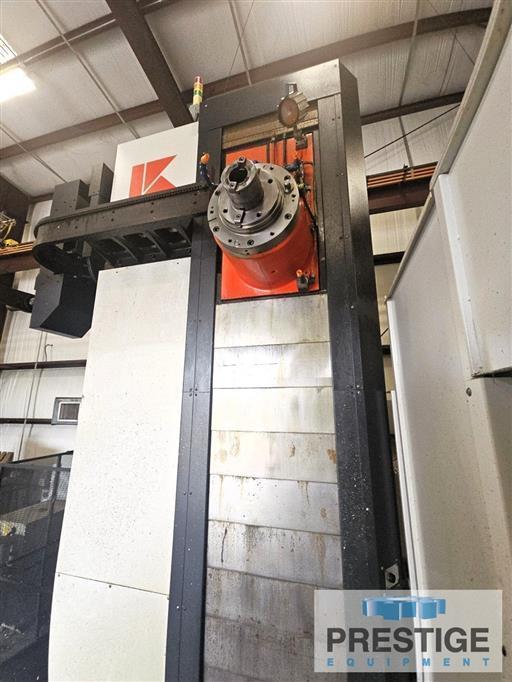

Spindle Diameter 5.12"
Spindle Taper CAT #50 Big Plus
Vertical Travel, Y-Axis 78.74"
Table Travel, X-Axis 118.11"
Column Infeed Travel, Z-Axis 62.99"
Spindle Axial Travel, W-Axis 27.56"
Built in Rotary Table 62.99" x 78.74"
Table Loading Capacity 22,000 Lbs.
Table Indexing 0.001 Deg.
Distance from Spindle to Table 0-78.74"
Distance from Table Center to Spindle . 31.50"-94.49"
Spindle Speeds 5-3000 RPM
Rapid Traverse, X,Y,Z Axes 393.70 IPM
Feed Rate 0.04-157.48 IPM
Approximate Floor Space 296" x 280" x 189"
Approximate Machine Weight 77,000 Lbs.



Equipped With:

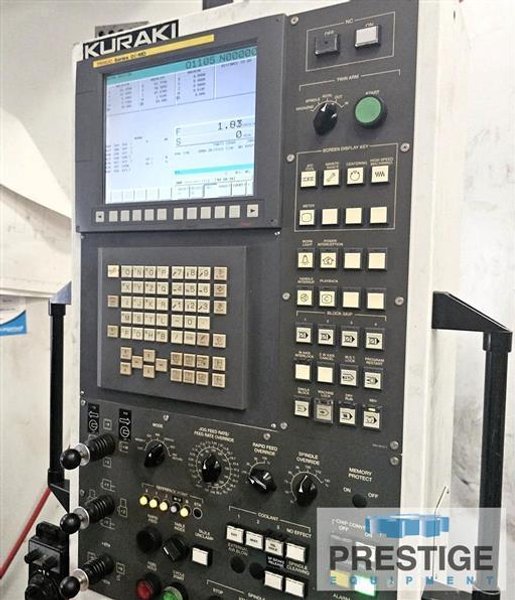

Fanuc Oi-MD CNC Controls
60 Station Automatic Tool Changer

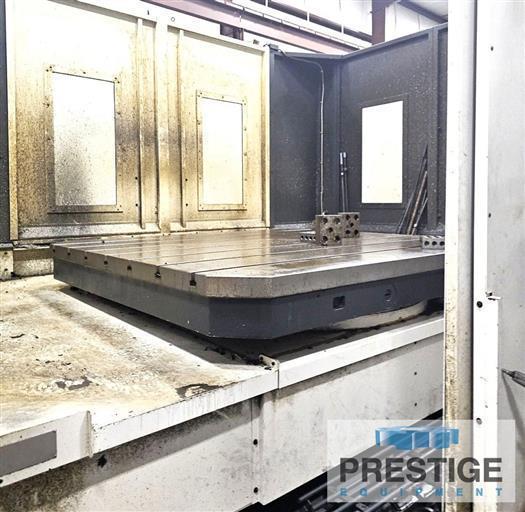

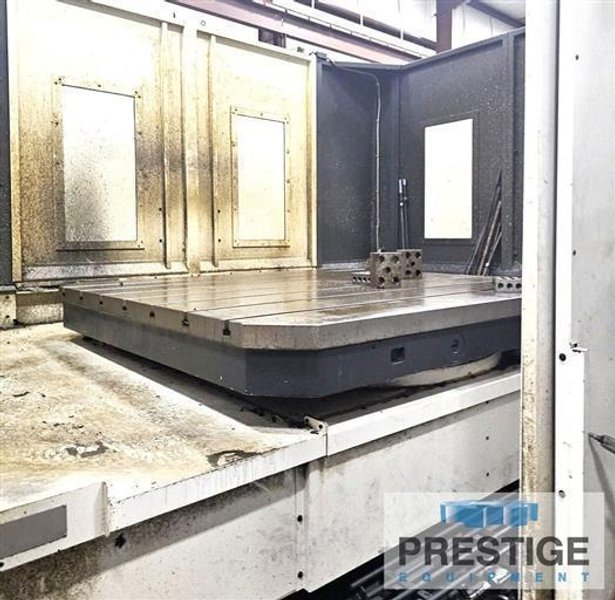

62.99" x 78.74" Built in B-Axis Rotary Table
Thru Spindle Coolant

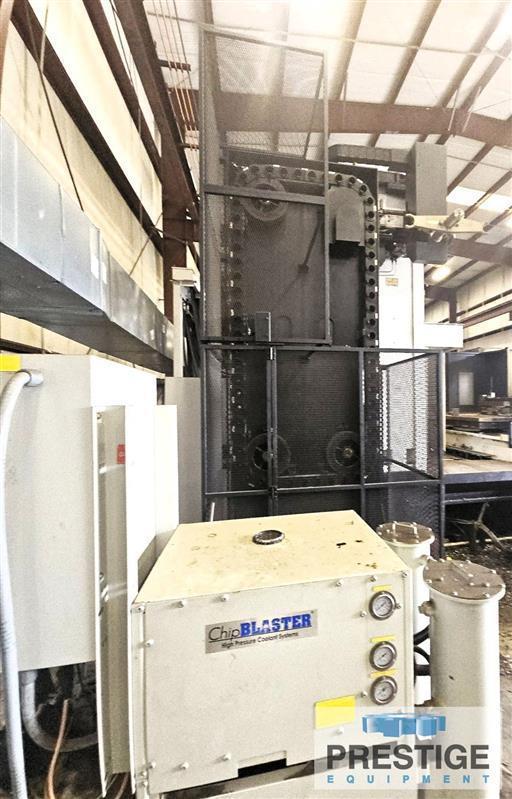

Chip Blaster 1000 PSI

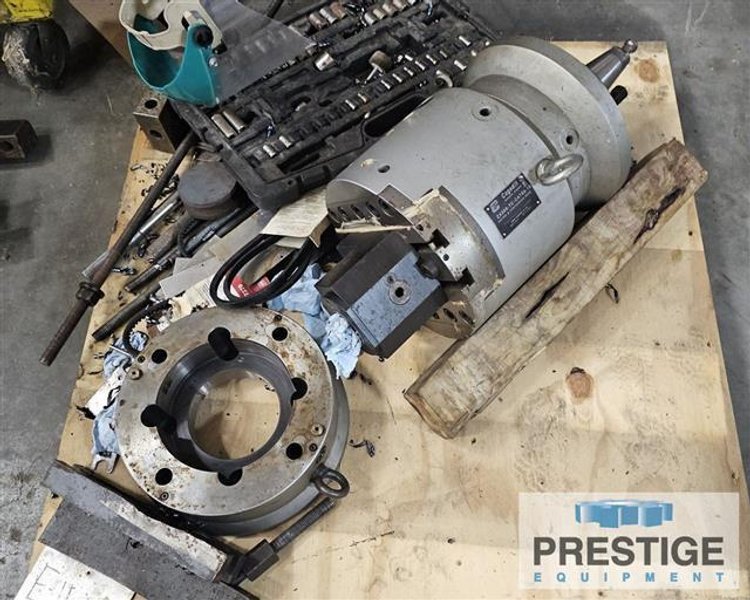

Cogsdill ZX300-TC CAT #50 Facing & Boring Tool
Rigid Tapping
Helical Interpolation
High Splash Guards
Barnes Chip/Coolant Separator

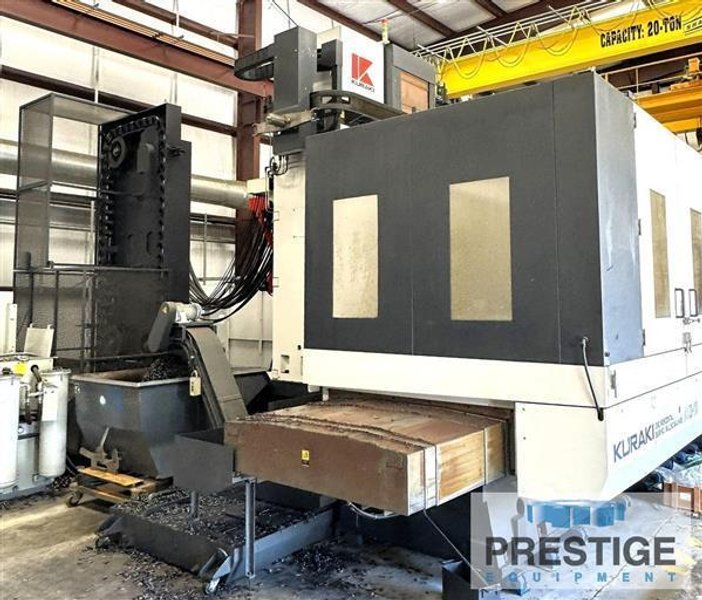

Chip Conveyor
40 HP Main Spindle Motor


NOTE: Inspect in Plant Under Power, (2) Available
