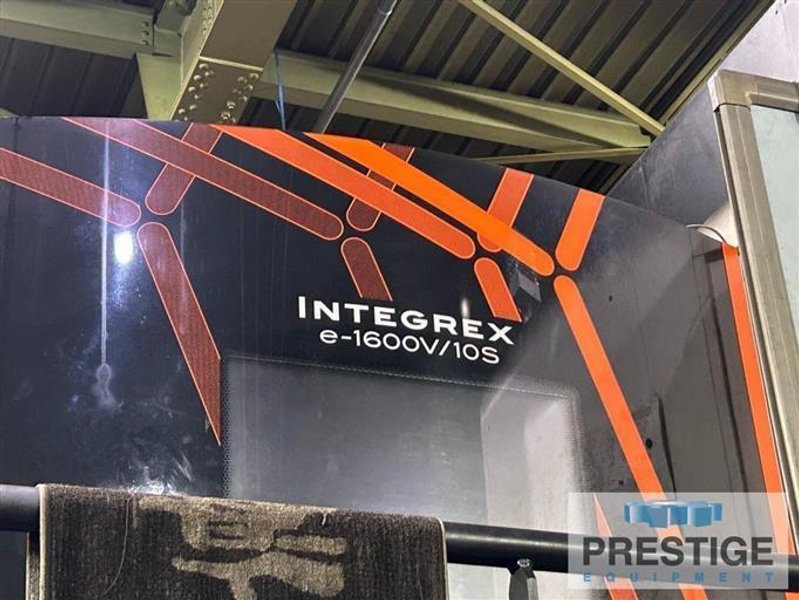

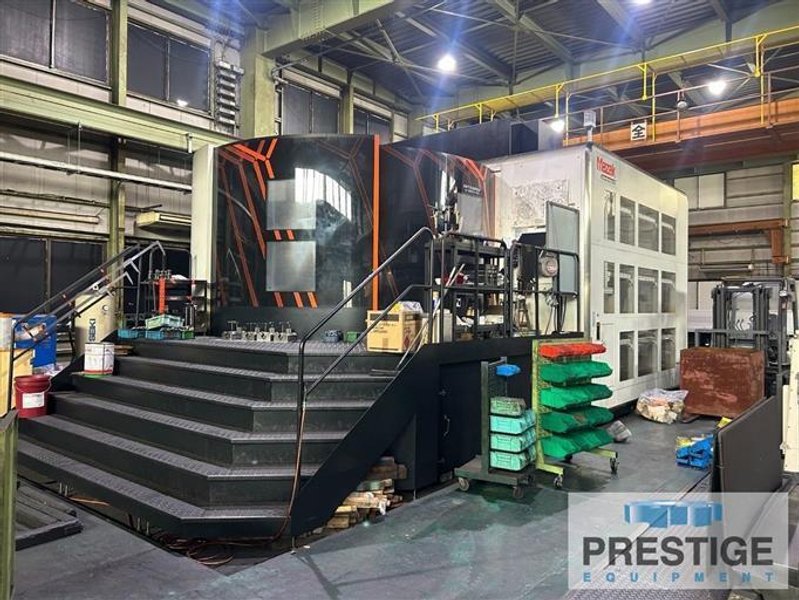

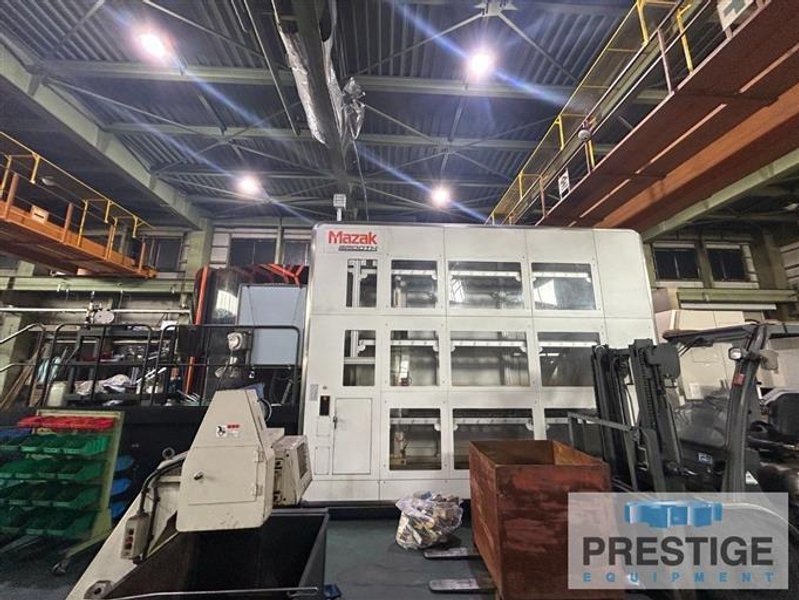

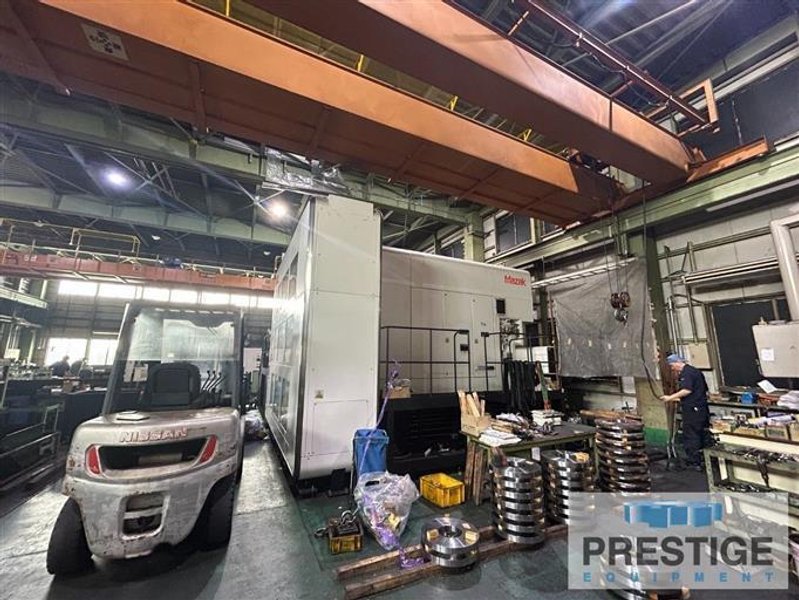

Boring Mills Vertical CNC

CAPACITY:
Maximum Machining Diameter 90.55"
Maximum Workpiece Size 90.55" x 66.29"
Table Load Capacity 15,400 Lbs.
Spindle Speeds 300 RPM
Main Motor 53 HP
C-Axis Table Rotation .001 Degree
Milling Spindle Speed 10,000 RPM
Spindle Taper #50
X-Axis Travel 85.23"
Y-Axis Travel 62.99"
Z-Axis Travel 52.95"
B-Axis Travel 150 Deg.
C-Axis Travel 360 Deg.
Rapid Traverse (X,Y,Z) 1,653 IPM
Milling Spindle Motor 50 HP
Approximate Machine Dimensions 275" x 343" x 179"
Approximate Machine Weight 103,700 Lbs.



Equipped With:

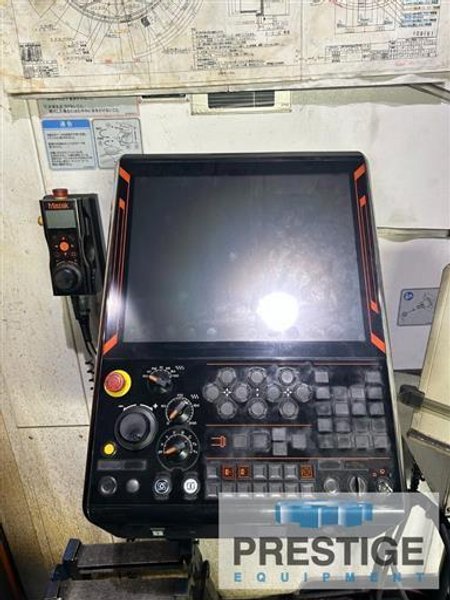

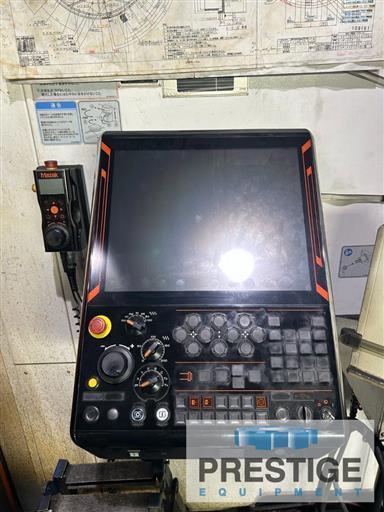

Mazatrol Matrix SmoothX CNC Control with 19" LCD
Full C-Axis Contouring Table
Full B-Axis 150 Degree Tilt Spindle
120-Station Automatic Tool Changer
Thru Spindle Coolant
Air Thru Milling Spindle
Spindle Chiller Unit

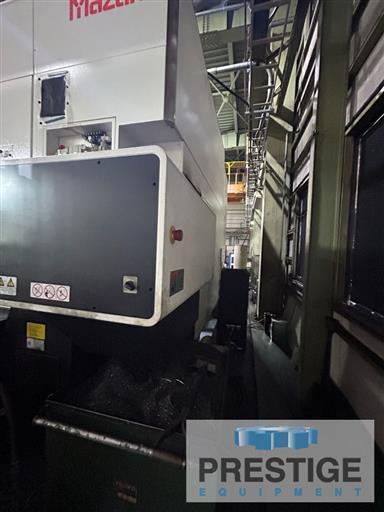

Chip Conveyor
