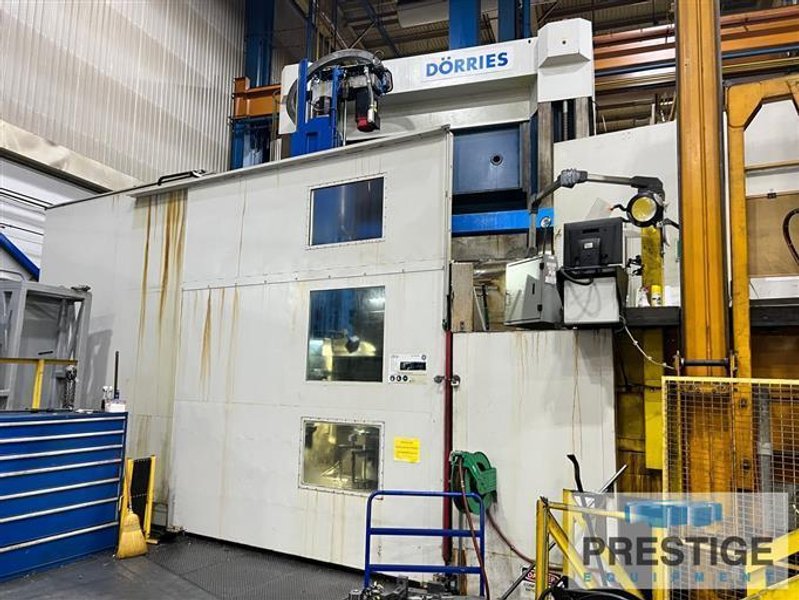

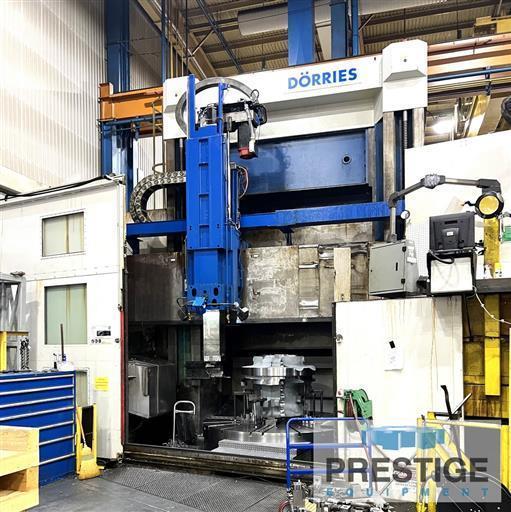

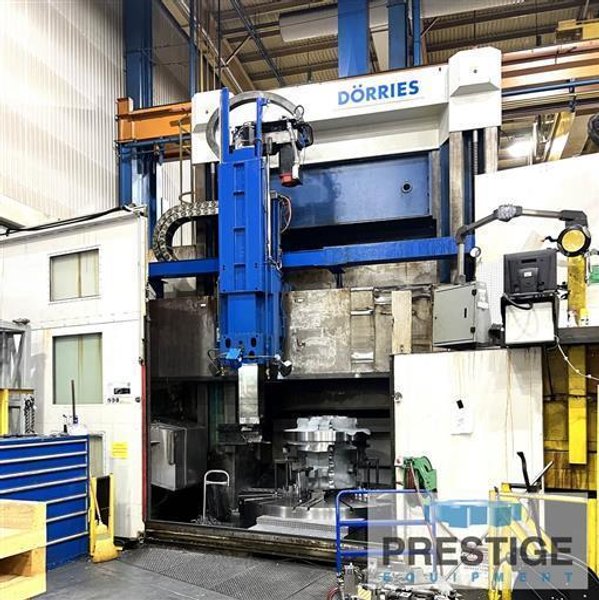

Boring Mills Vertical CNC

Brand
Model

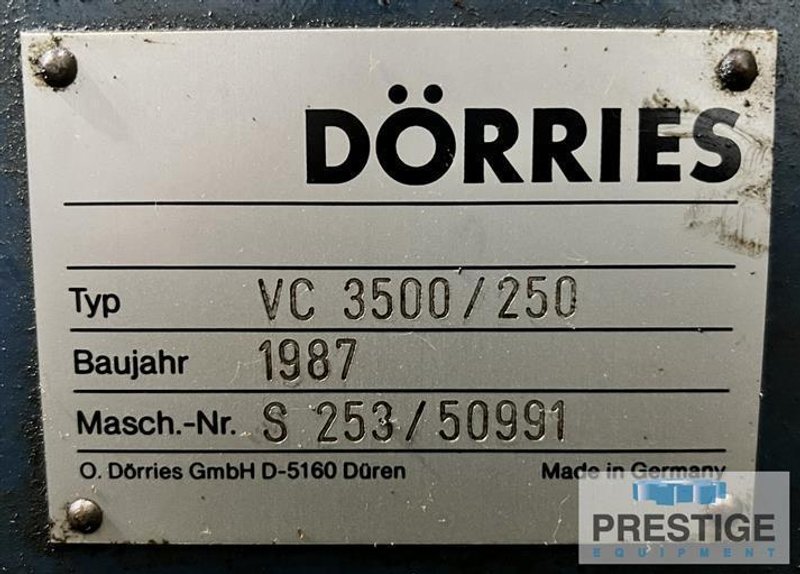

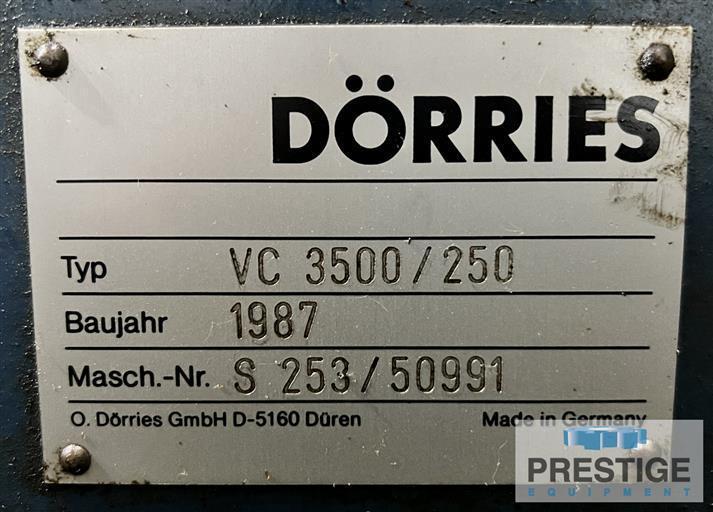

VC3500/250
Stock #
45113
Year
1987
Condition
Not specified

Location

Not specified
Specifications:

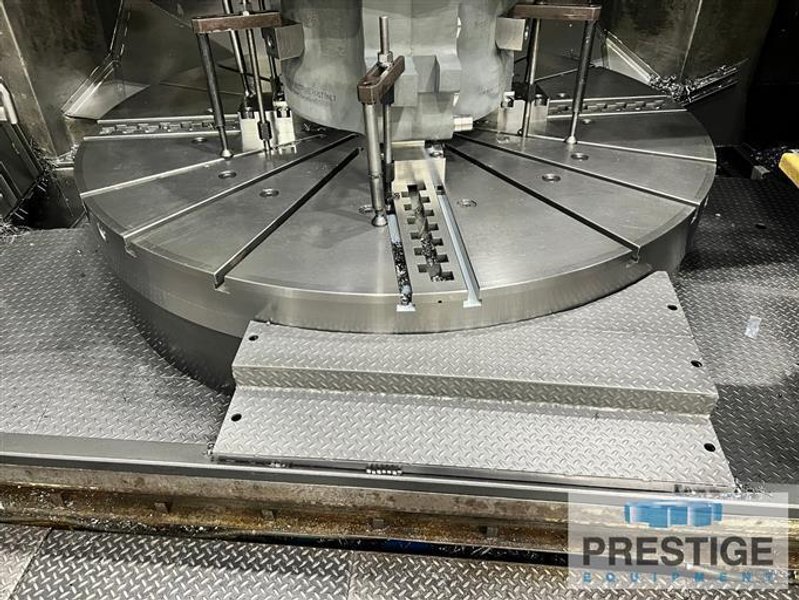

Table Diameter 98.42""
Maximum Swing 137.79"
Maximum Working Height 129.92"
Vertical Rail Travel, W 86.61"
Horizontal Ram Travel, X 66.29"
Ram Stroke 78.74"
Ram Cross Section 11.81" x 11.81"
Table Rotation, C 360,000 Positions
Table Speeds 1-100 RPM
Milling Spindle Motor 33 HP
Milling Spindle Speeds 0-1500 RPM



Equipped With:

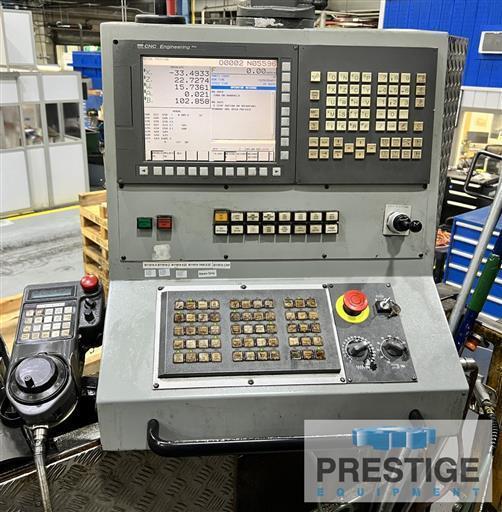

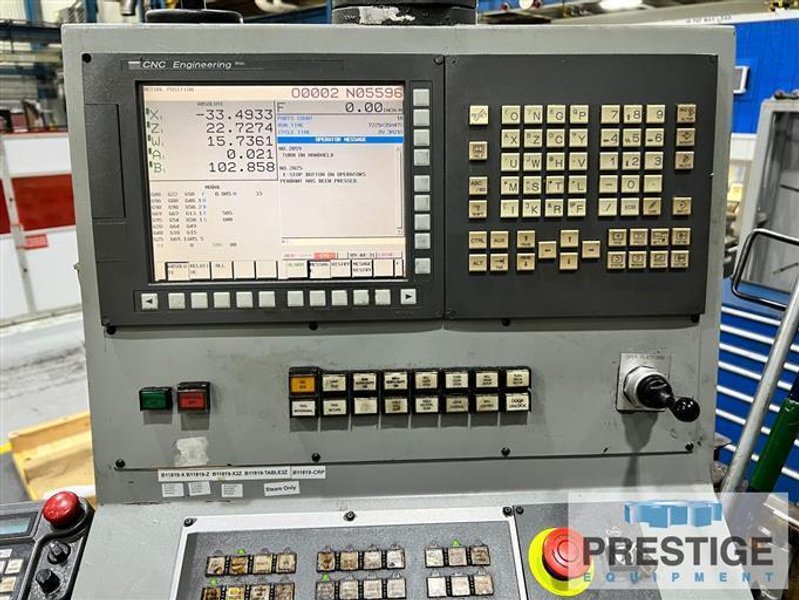

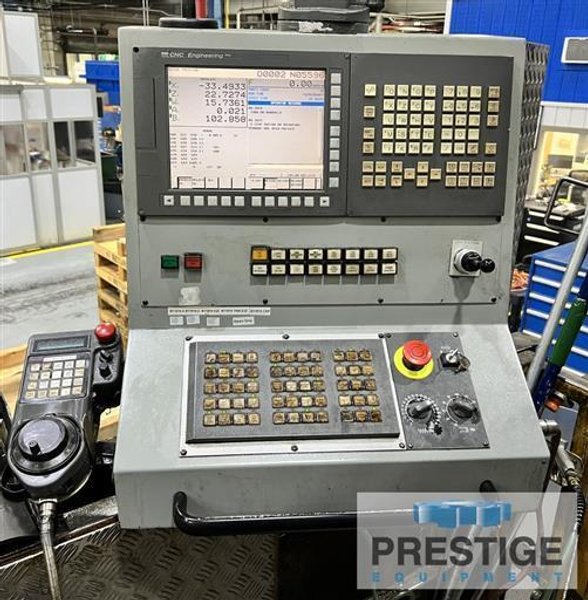

Fanuc 30i CNC Control (retrofit 2007)

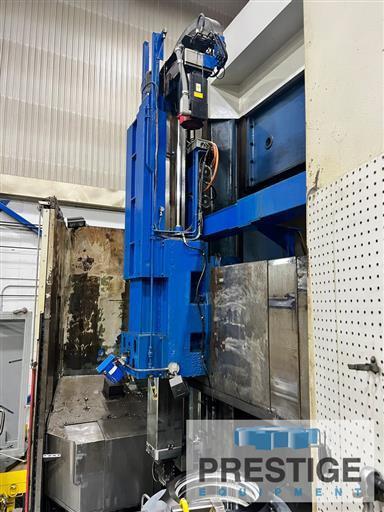

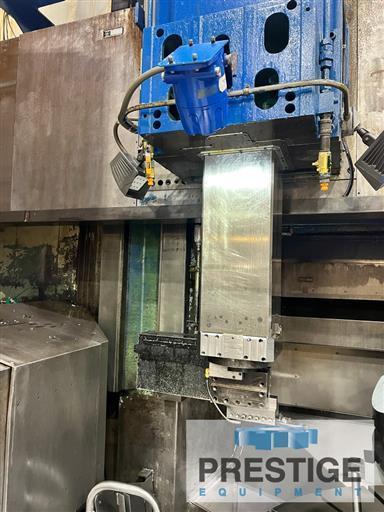

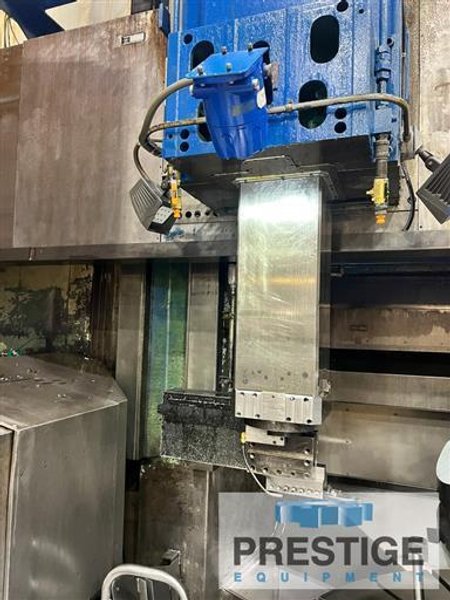

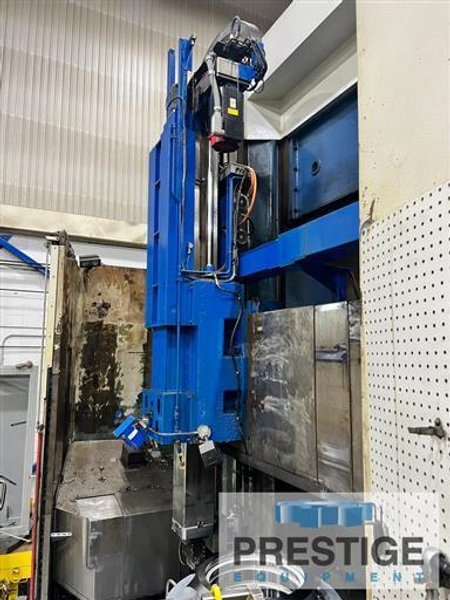

Vertical Ram With Live Milling

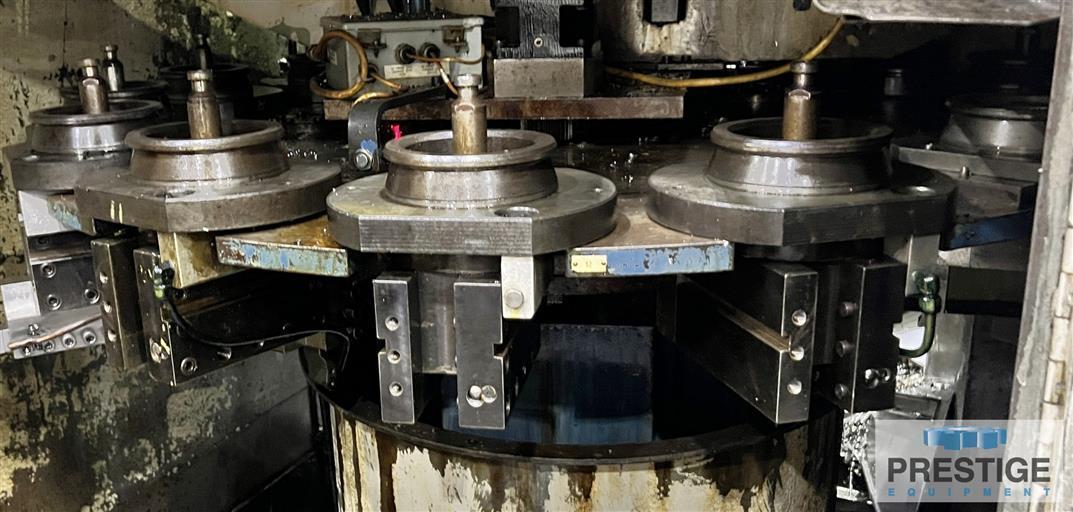

(2) Automatic Tool Changes (Turning and Milling)
Coolant Thru Spindle
90 HP Table Drive Motor
