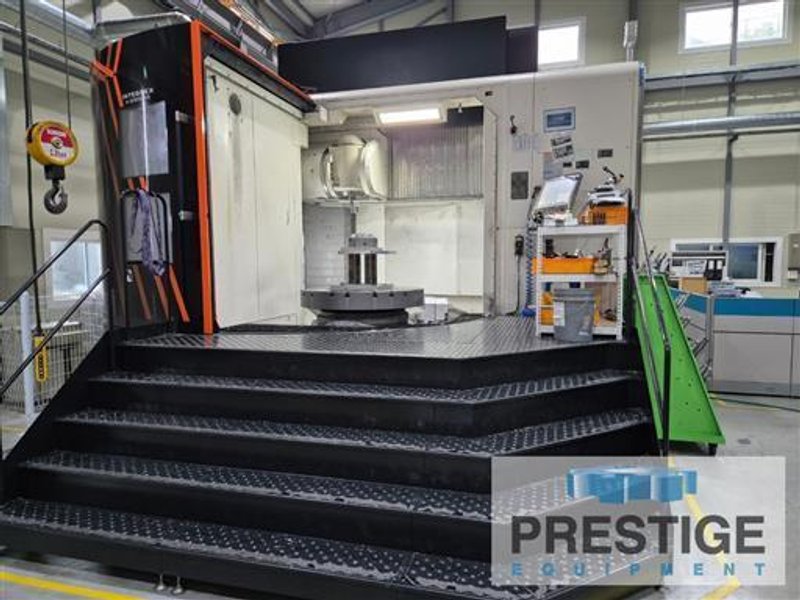

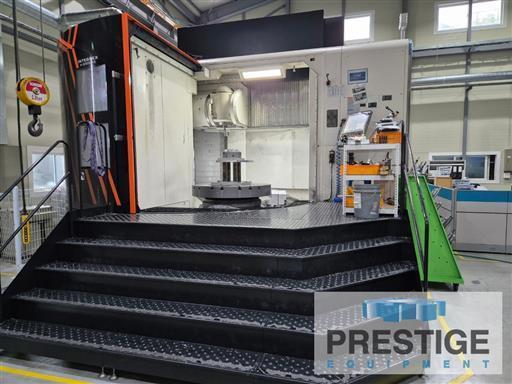

Boring Mills Vertical CNC

Specifications:
Maximum workpiece diameter 59.06"
Maximum workpiece height 65.00"
X-axis stroke 73.82"

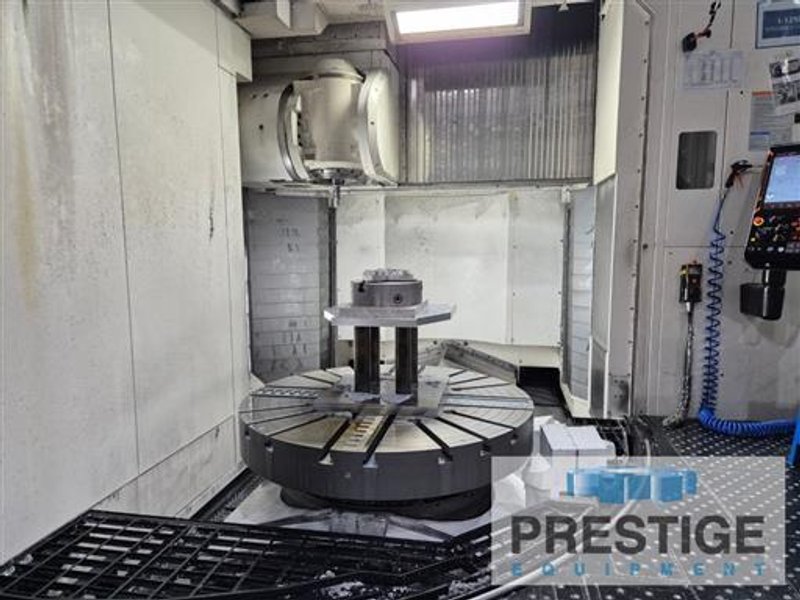

Table Diameter 39.37"
Y-axis stroke 49.21"
Z-axis stroke 52.95"
Spindle Tilt, B-Axis -30 / +120 degree
Table Indexing, C-axis 0.001 degree
Table Speeed 500 RPM
Milling Spindle speed 10,000 RPM
Spindle Taper BT 50
Main Motor 49 HP
Rapid traverse, X, Y & Z 1,653 IPM
Automatic Tool Changer 42-Stations



Equipped With:
Mazatrol SmoothAi CNC Controls

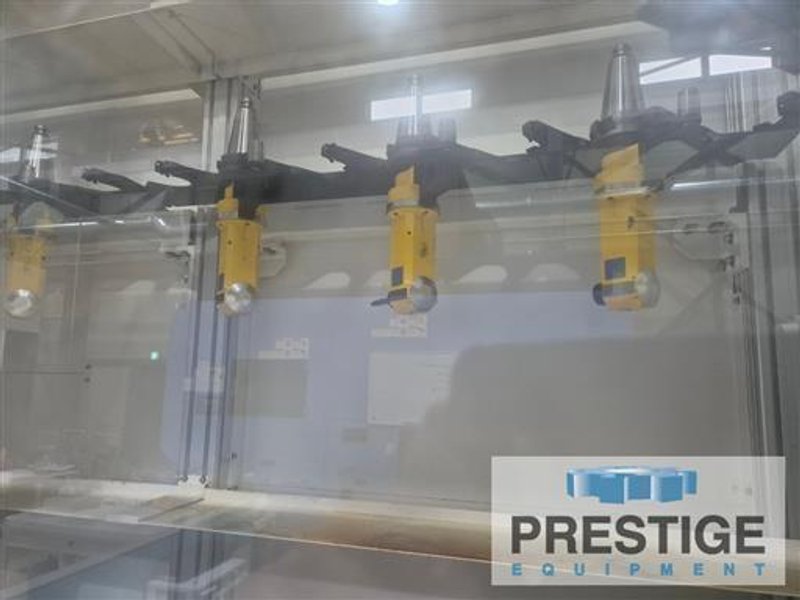

42-Station Automatic Tool Changer
Scales
Through Spindle Coolant
Chip Conveyor


Approximate Footprint:


Floor Space
346" x 140"







Machine Height
141"







Weight
101,000 lbs.
