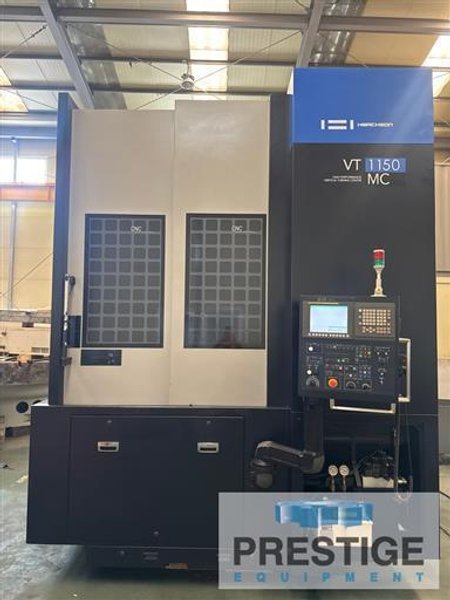

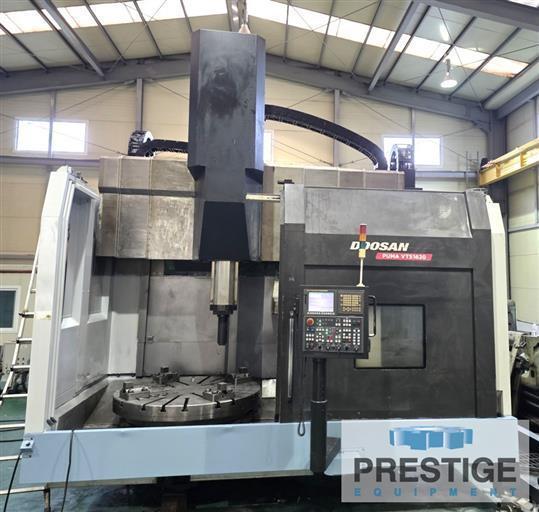

Boring Mills Vertical CNC

CAPACITY:
Table Diameter 40.0"
Maximum Swing over Bed 53.15"
Maximum Cutting Diameter 51.96"
Maximum Cutting Height 37.40"
Table Weight Capacity 6,600 Lbs.
Spindle Motor 73.5 HP/60 HP
Spindle Speeds 4-630 RPM
Spindle Bearing Diameter 7.87"
X-Axis Travel 24.02"
Z-Axis Travel 37.40"
Rapid Speed (X/Z)...................... 944.88" 944.88"
C-Axis Indexing 0.001 Deg.
Live Milling Speed 3,000 RPM
Live Milling Motor 10 HP/7.5 HP
Approximate Floor Space 110.67" x 155.63"
Approximate Machine Height............. 139.45" 139.45"
Approx. Weight 53,131 Lbs



Equipped With:

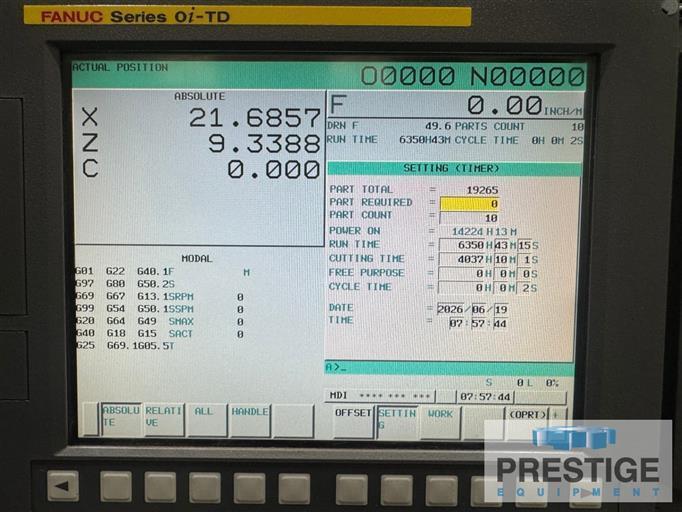

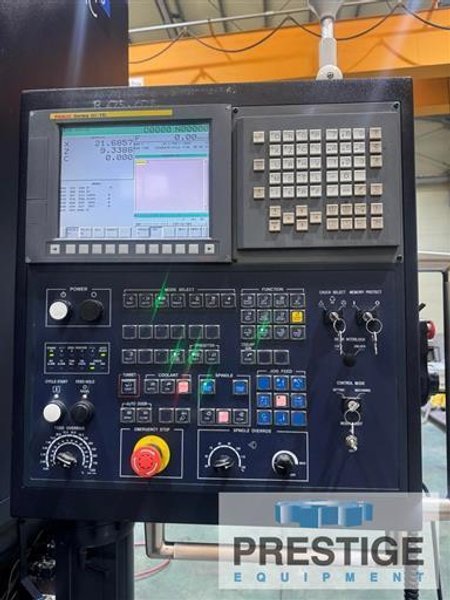

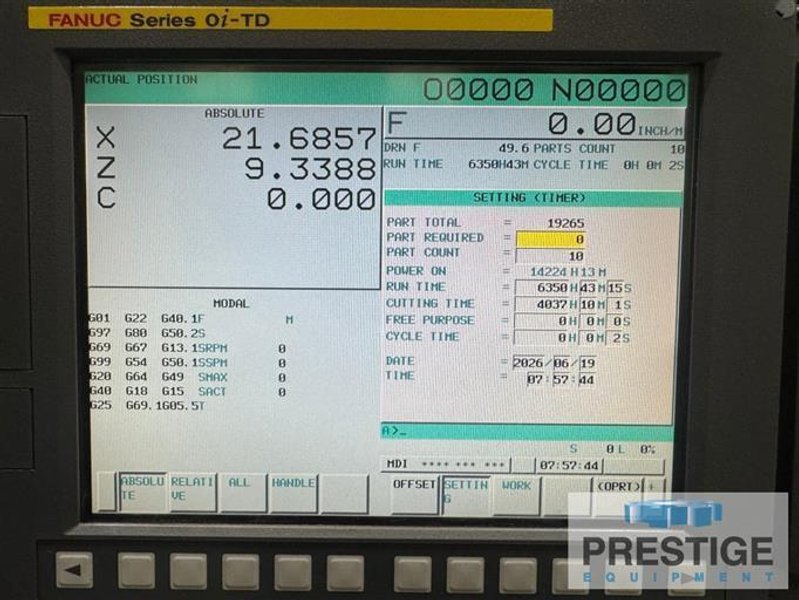

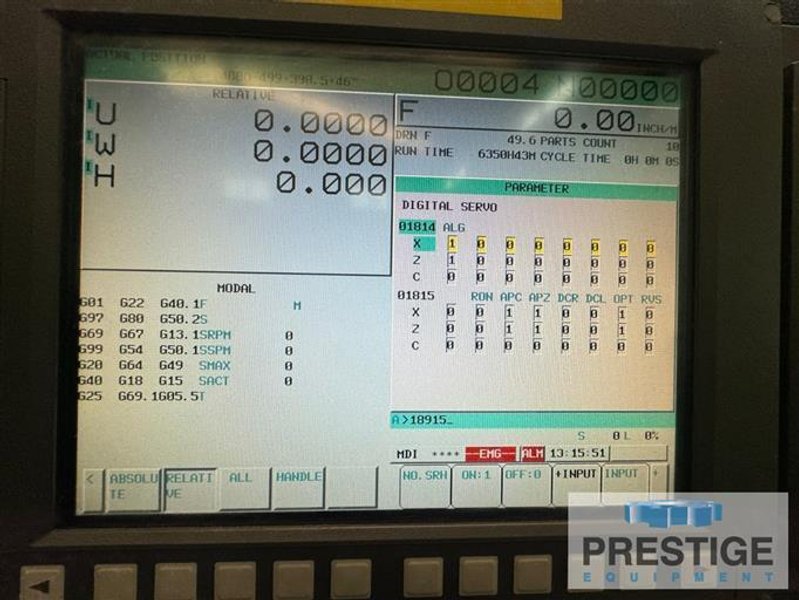

Fanuc Oi-TD CNC Control

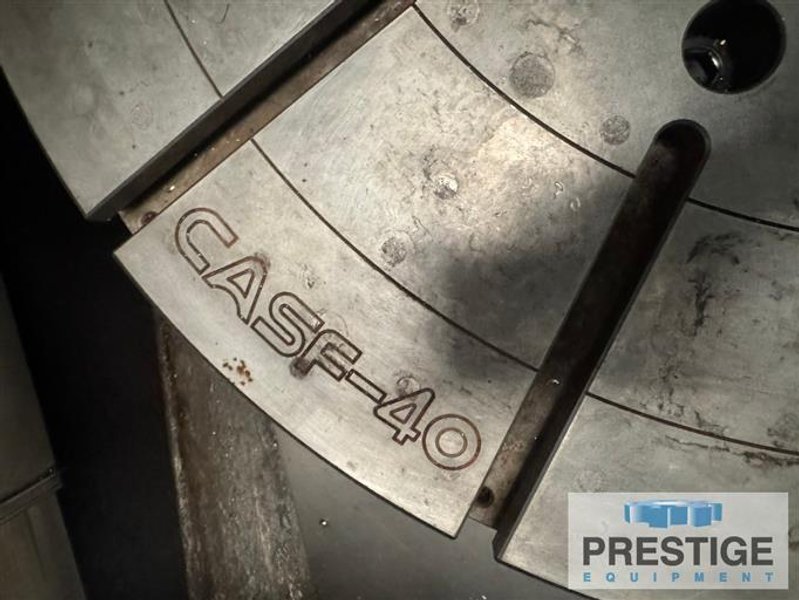

40" Hydraulic Chuck
Live Milling
C-Axis (0.001 Deg.)
12-Station Turret w/ ATC
73.5 HP Motor
Tool Setter
Chip Conveyor
(1) Angular Mill/Drill Holder
(1) Straight Mill/Drill Holder
X/Z Axis Scales
