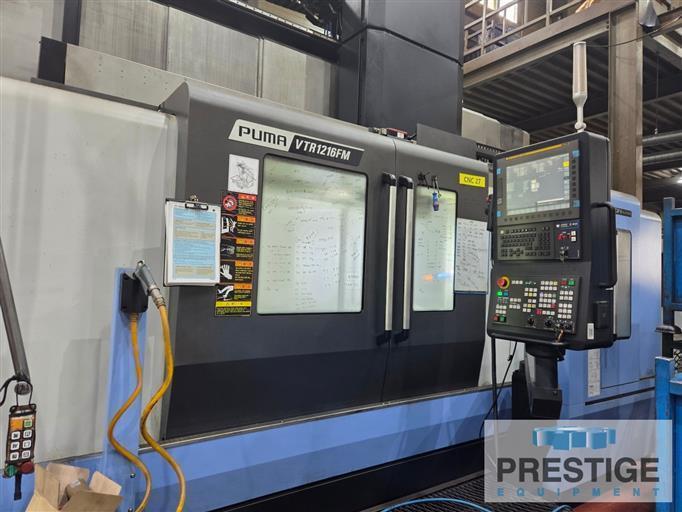

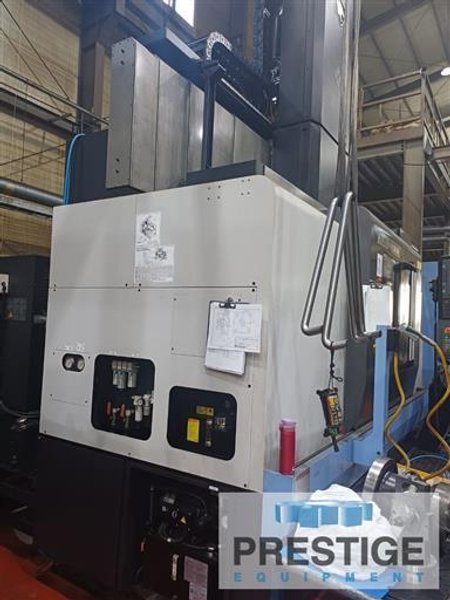

Boring Mills Vertical CNC

CAPACITY:
Table Diameter 55"
Maximum Cutting Diameter 62.99"
Maximum Cutting Height 37.40"
Ram Stroke (Z-Axis) 35.43"
Ram Cross Section 10.23" x 10.23"
Rail Travel (X-Axis) 66.92"
Table Speeds 1-400 RPM
Table Capacity 17,600 Lbs.
Table Indexing 0.001 Deg.
Table Motor 49.6 HP / 60.3 HP
Milling Spindle Speeds 1-3000 RPM
Milling Spindle Taper BT 50
Milling Spindle Motor 14.6 HP / 20.1 HP
Approximate Dimensions 220" x 199" x 160"
Approximate Weight 61,729 Lbs.



Equipped With:

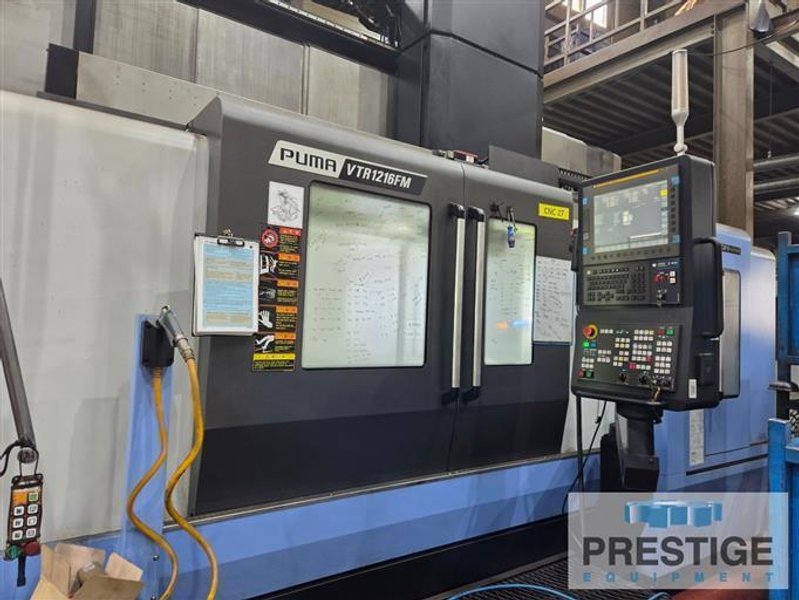

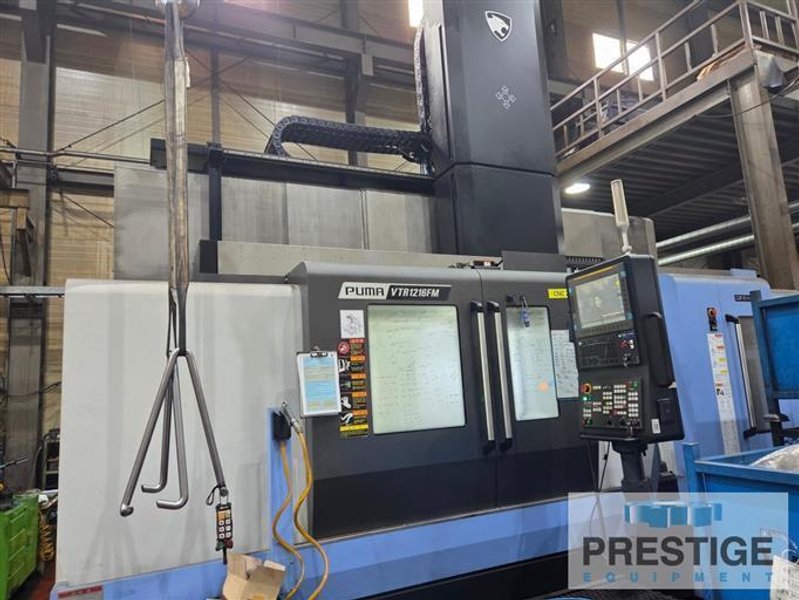

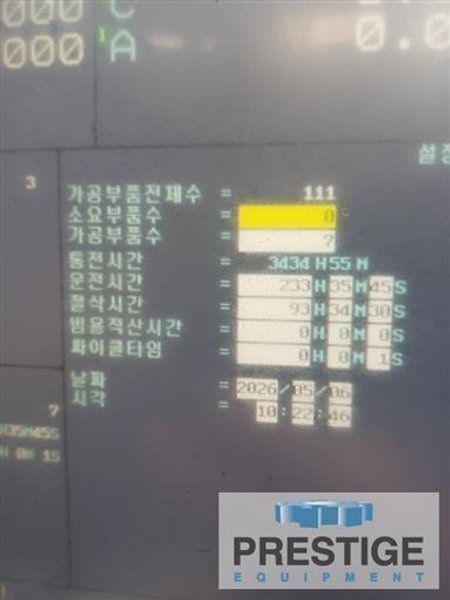

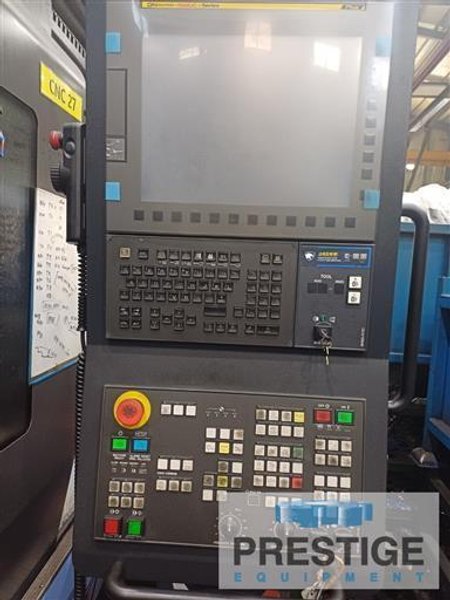

Fanuc i Series CNC Control

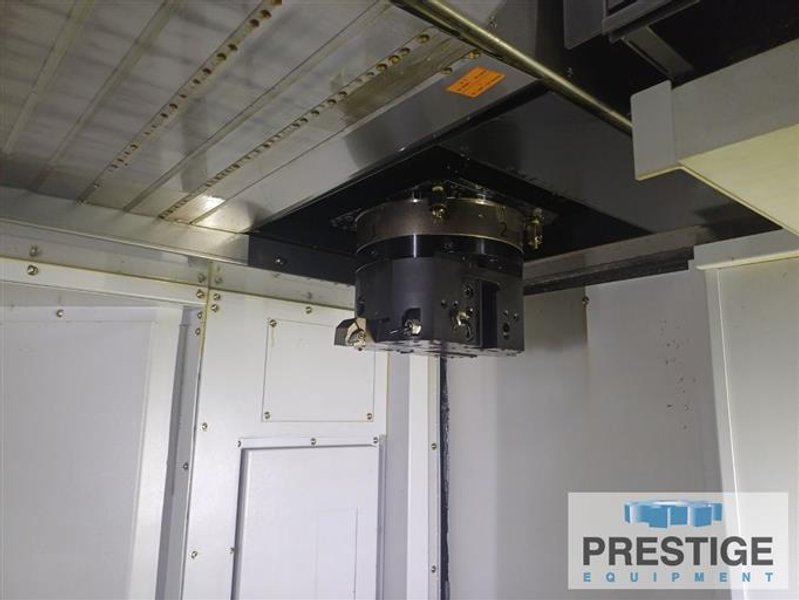

Ram W/ Live Milling Spindle
C-Axis Table for Milling & Drilling Operations

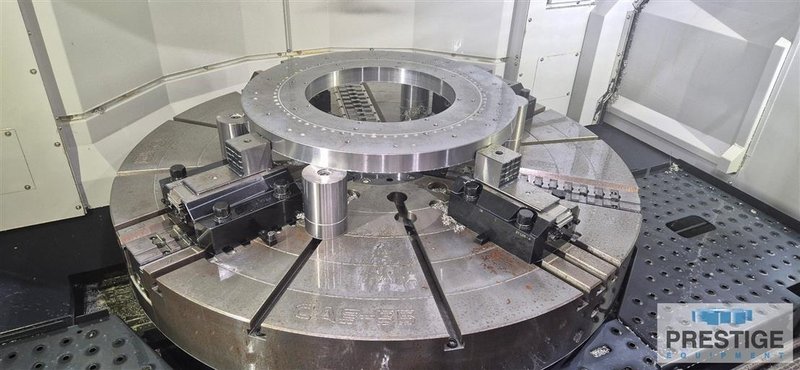

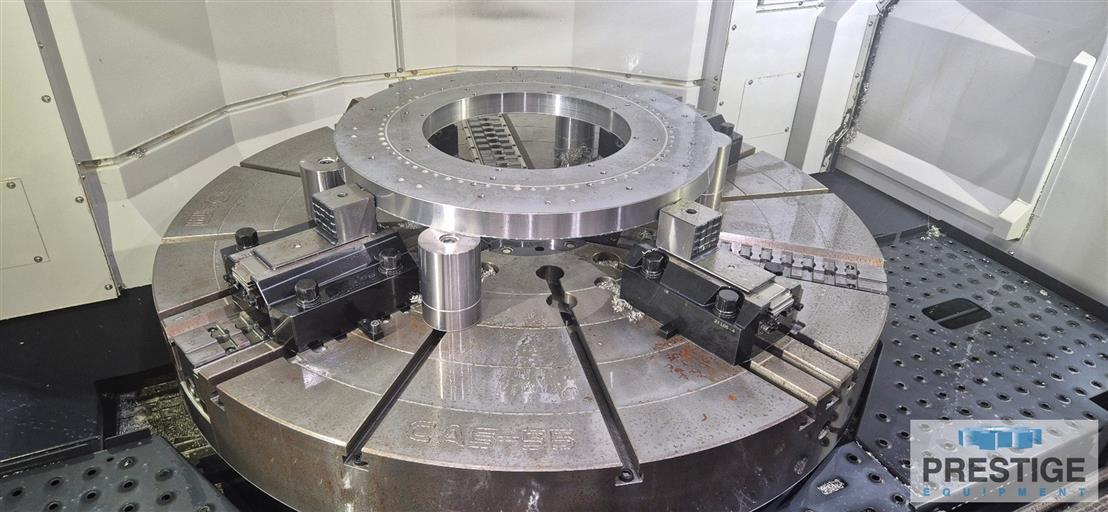

55" Combination Chuck (Hydraulic & Manual)

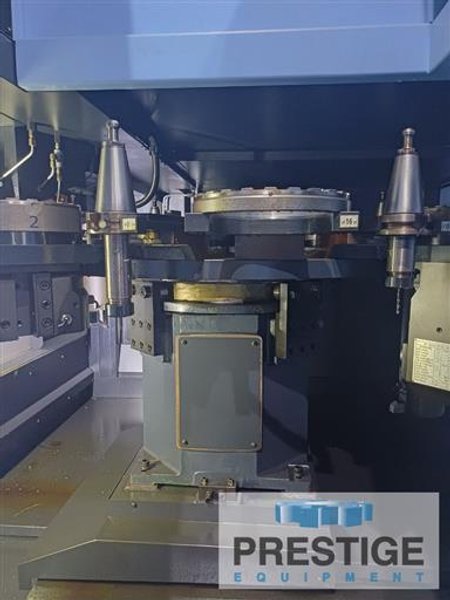

15-Station Automatic Tool Changer

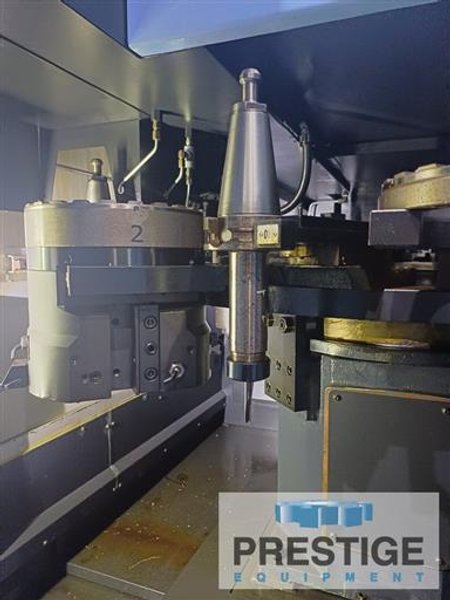

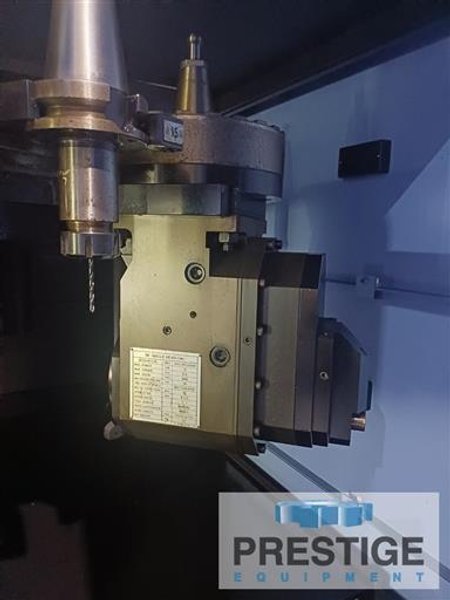

90 Degree Angle Head
Coolant Thru Spindle
Chip Conveyor
