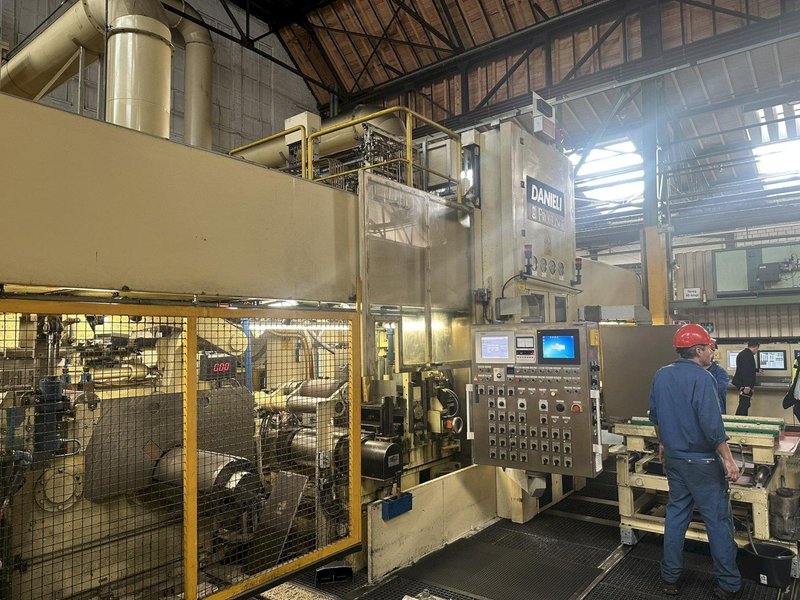

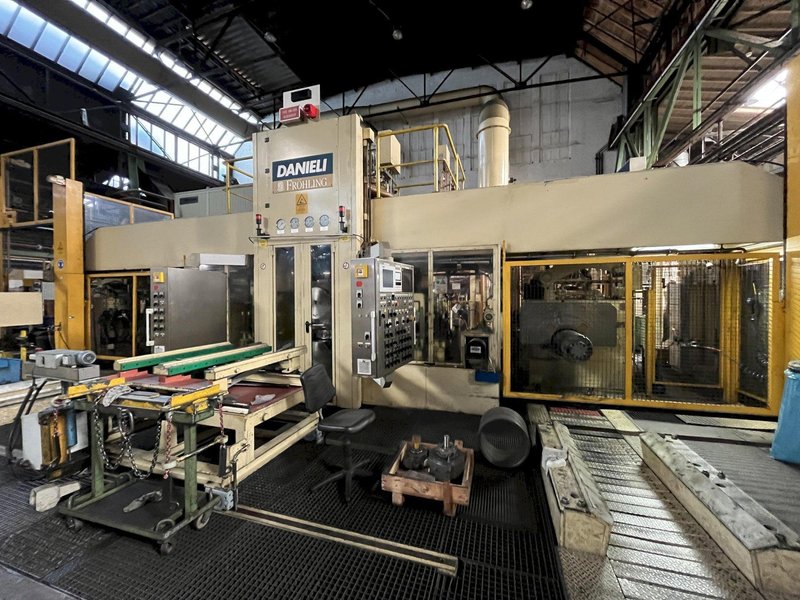

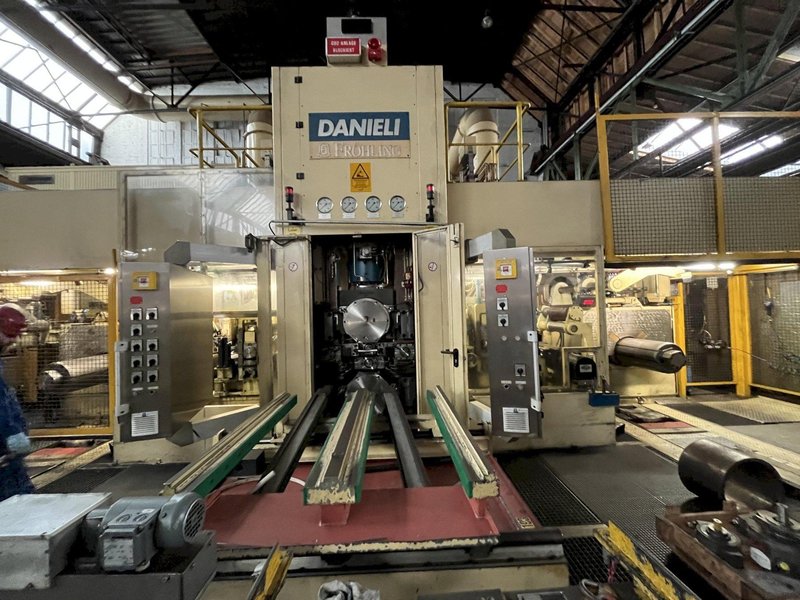

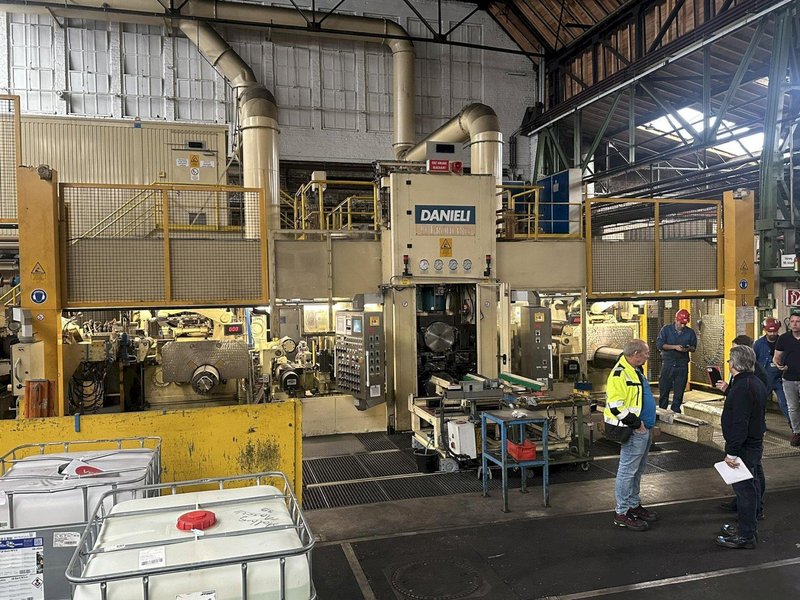

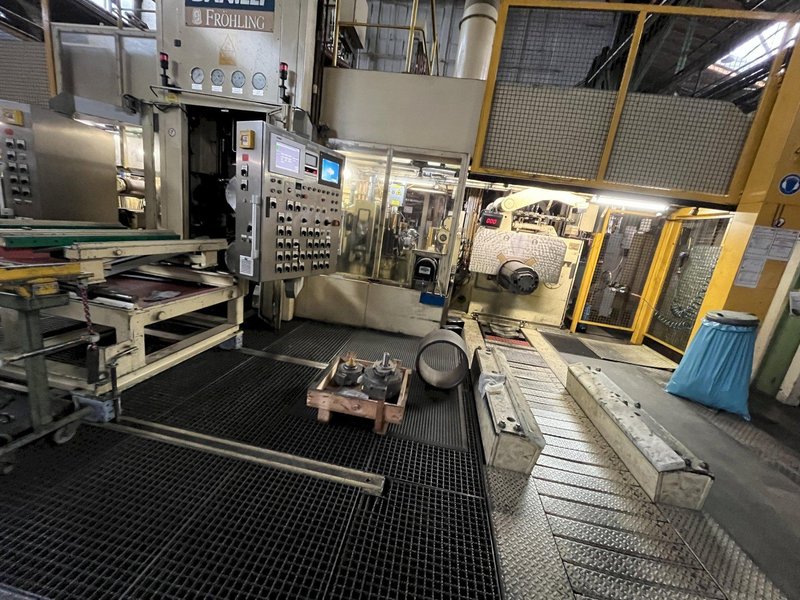

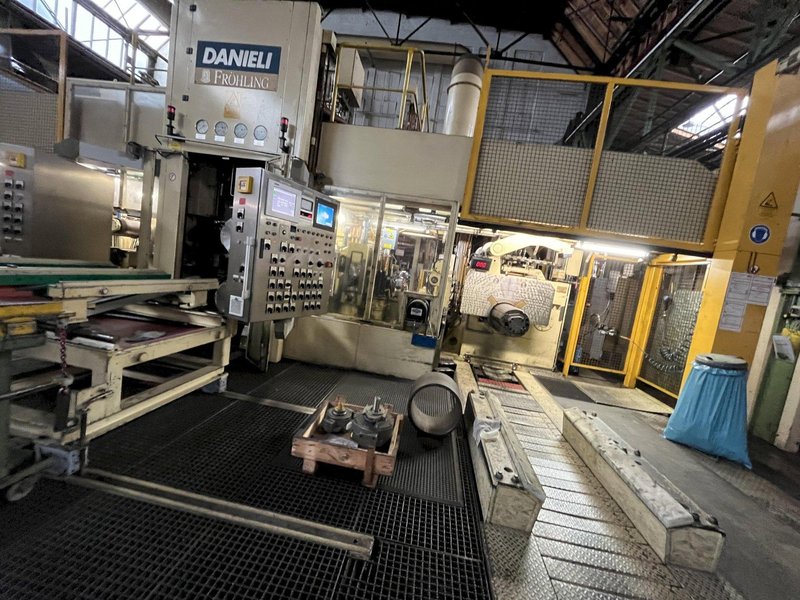

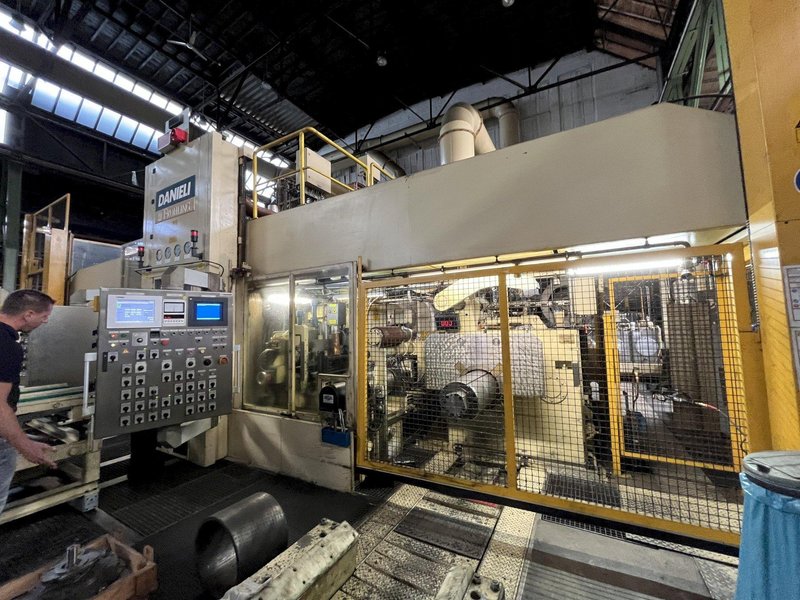

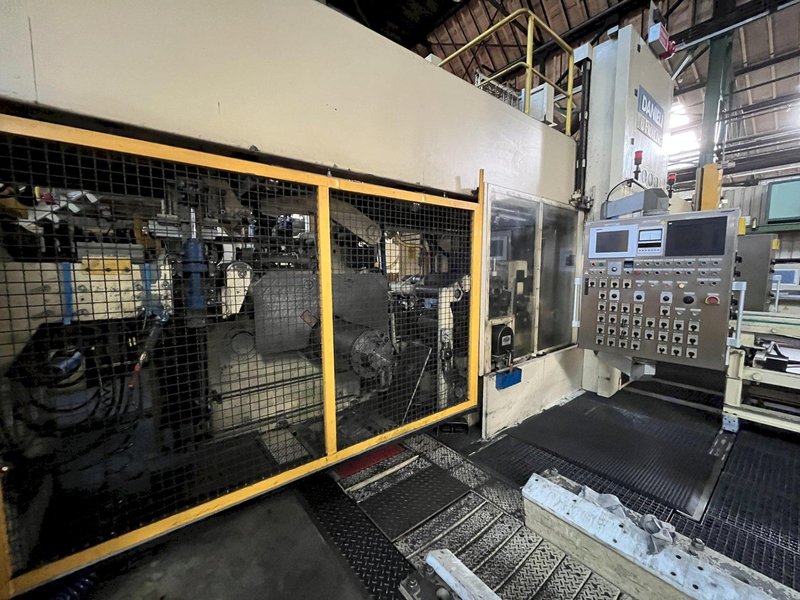

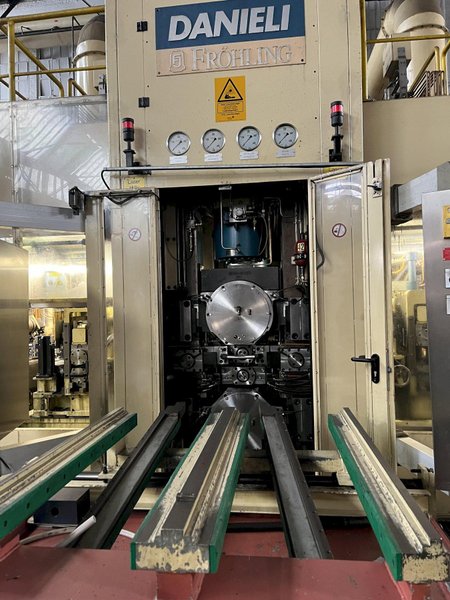

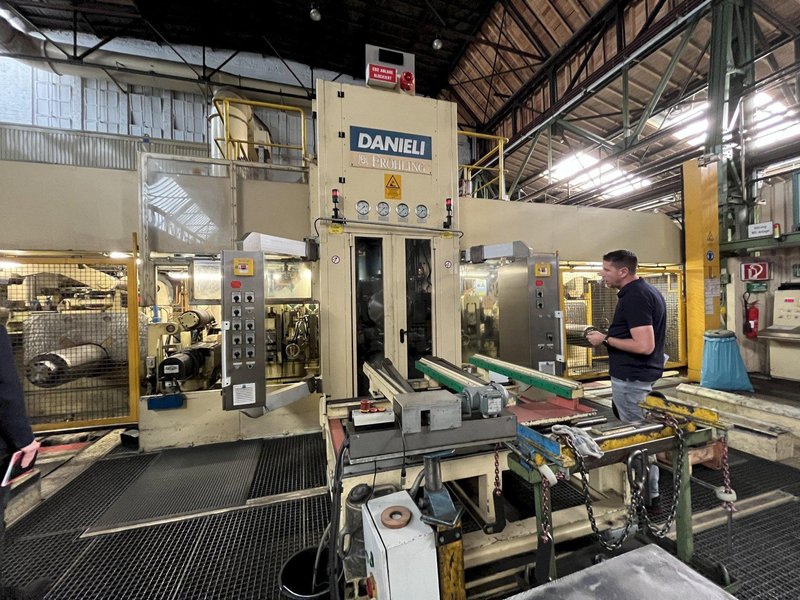

DANIELI FROHLING 350MM 4-HIGH REVERSING MILL
Brand
Category
Type
Model
Not specified
Stock #
117312
Year
Not specified
Condition
Used
Location
Not specifiedGermany
|

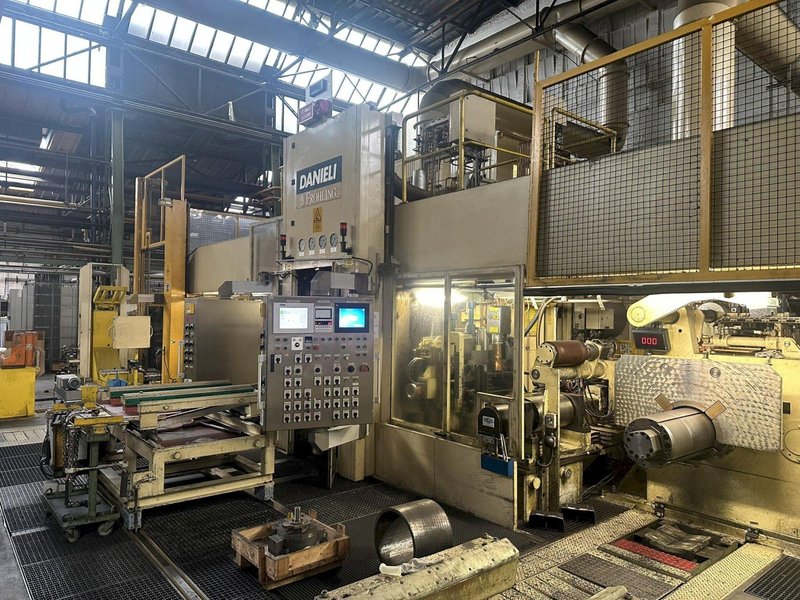

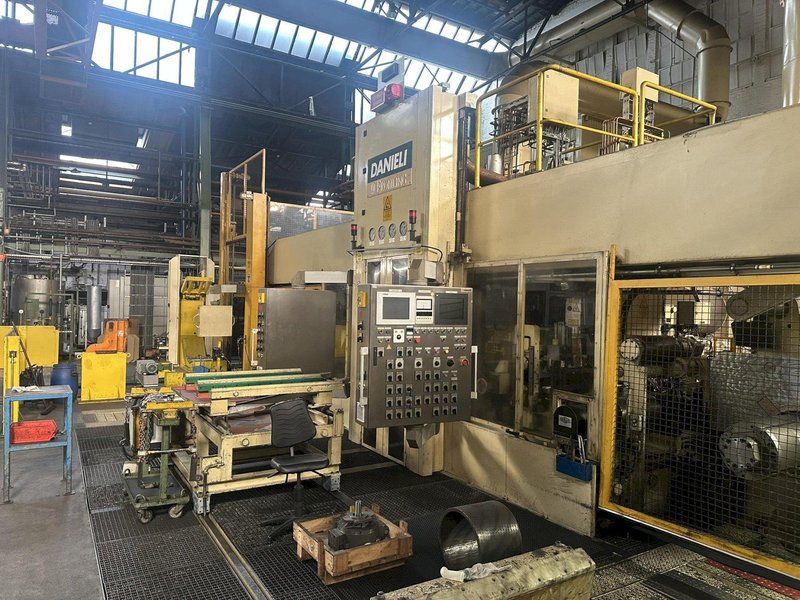

ROLLING MILL
YOM: 2004, Re-Commissioning 2021

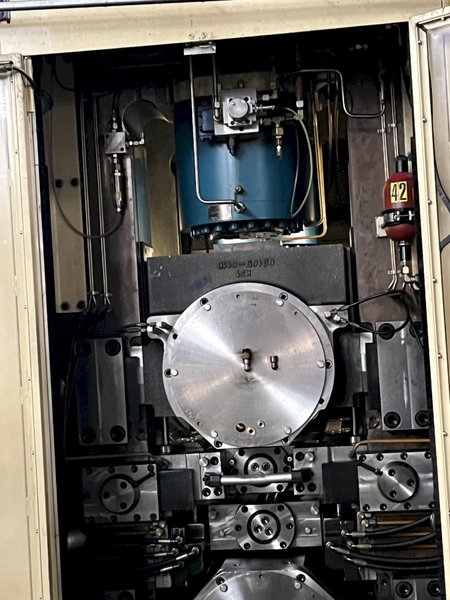

ROLL DIMENSION

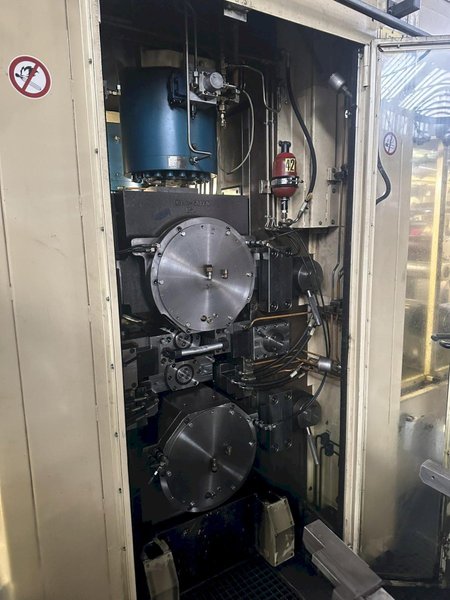

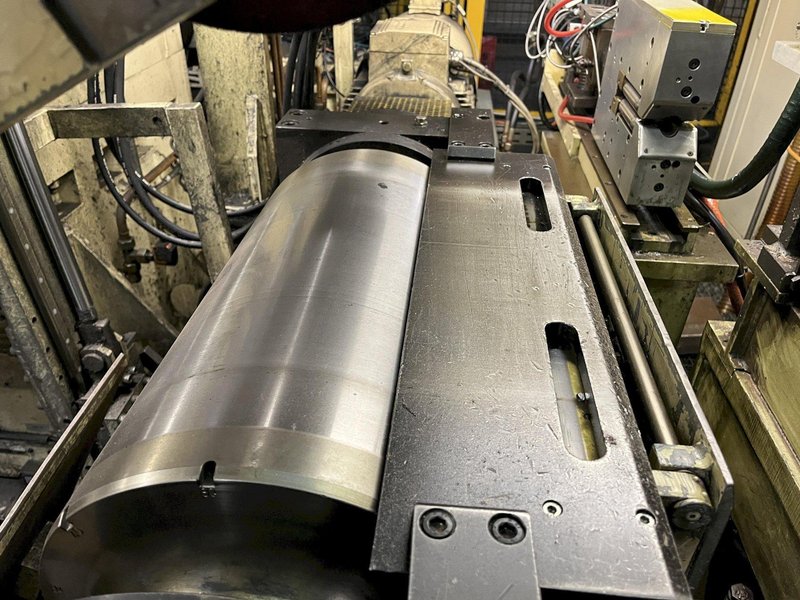

Roll Dimensions
BU Roll – 480 mm Dia x 460mm Face
Work Roll – 150mm Dia x 420 Face
Speed: max. 700 M/min
Back Up Roll Driven

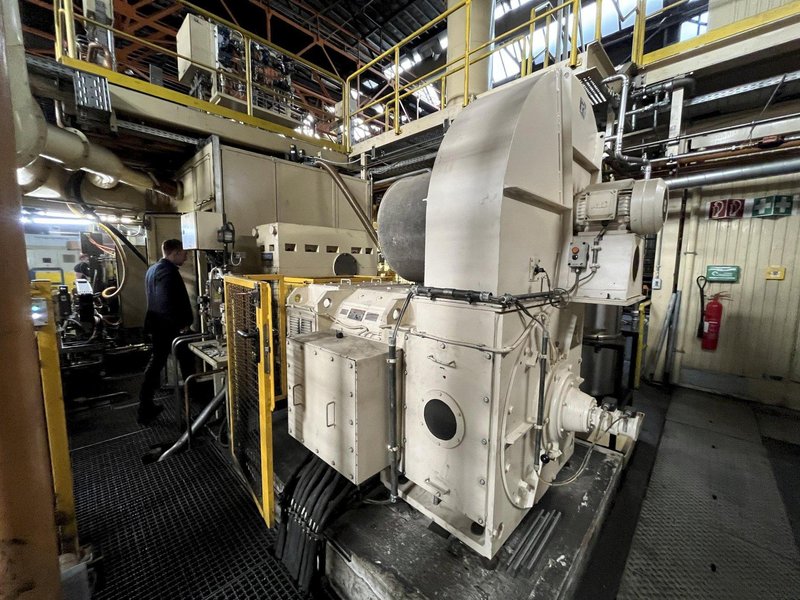

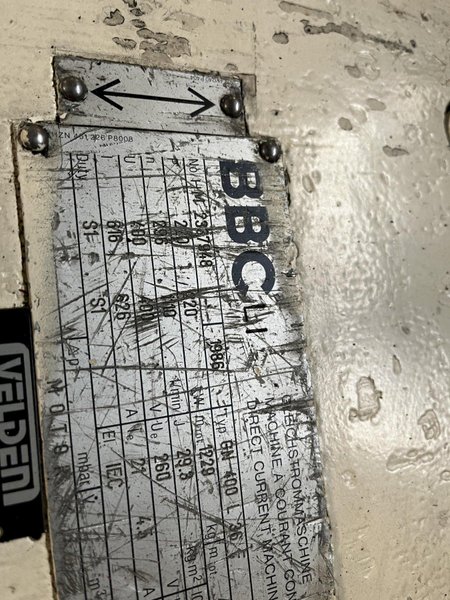

Main mill drive: 553 Kw DC
Strip thickness range: 3mm – 0.07mm
Strip width range: 250mm – 350mm
Roll change station
Rolling force: 2500KN
Max. Strip tension: Gear 1: 320 – 3200kp Gear 2: 160 – 1600kp
Max. coil weight: 5 tons
Max. coil OD: 1600mm
Coil ID: 400/500mm

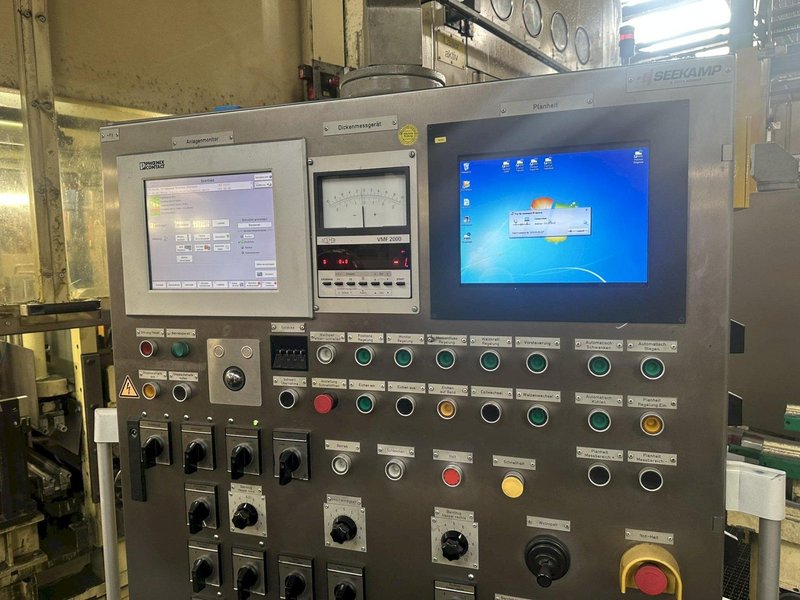

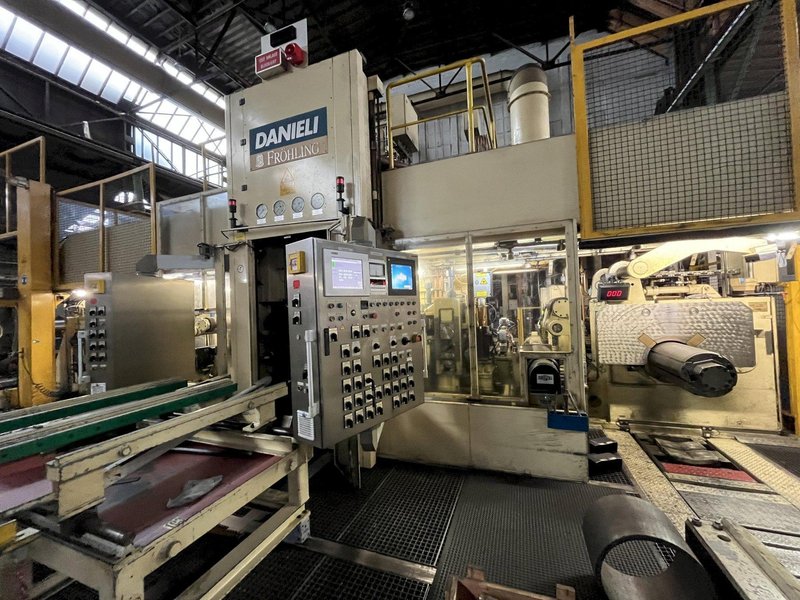

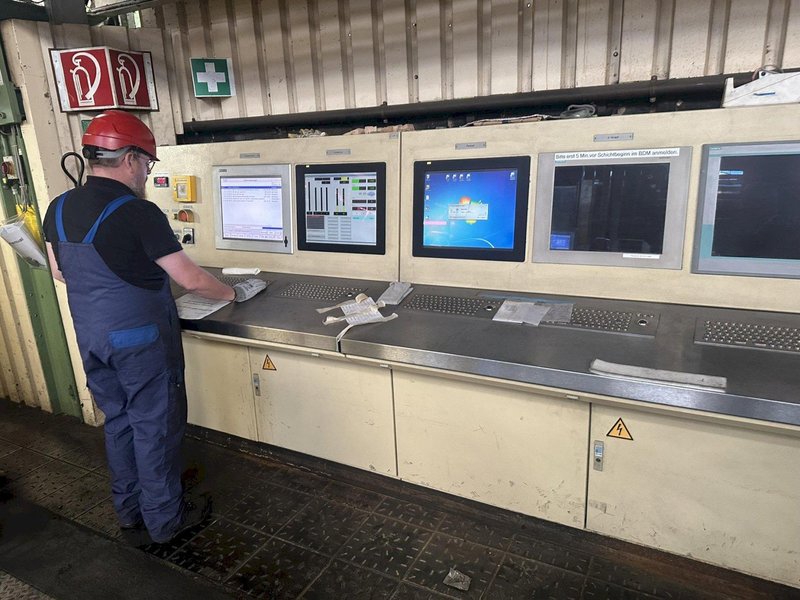

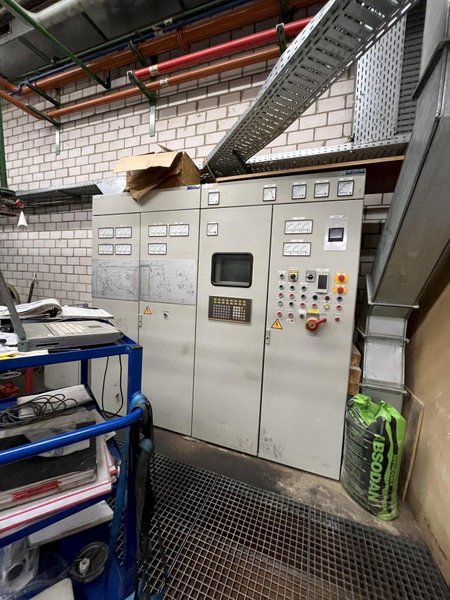

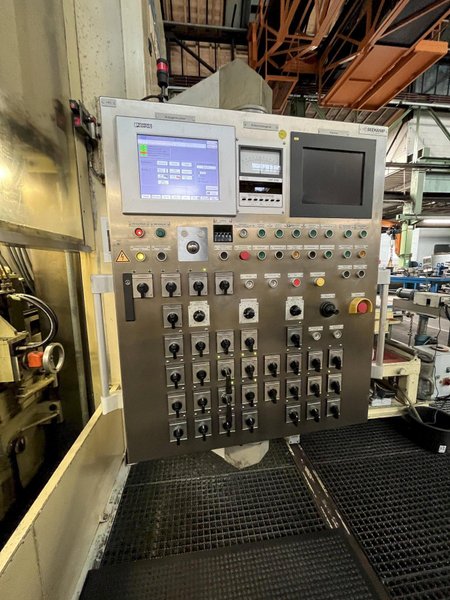

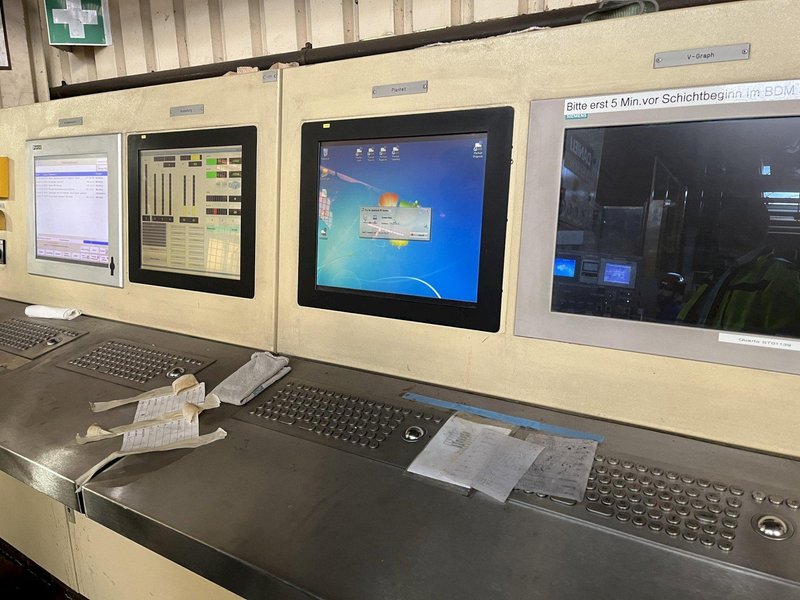

Controls: SPS S7 400
Shape control
Roll bending
AGC
Fume exhaust system

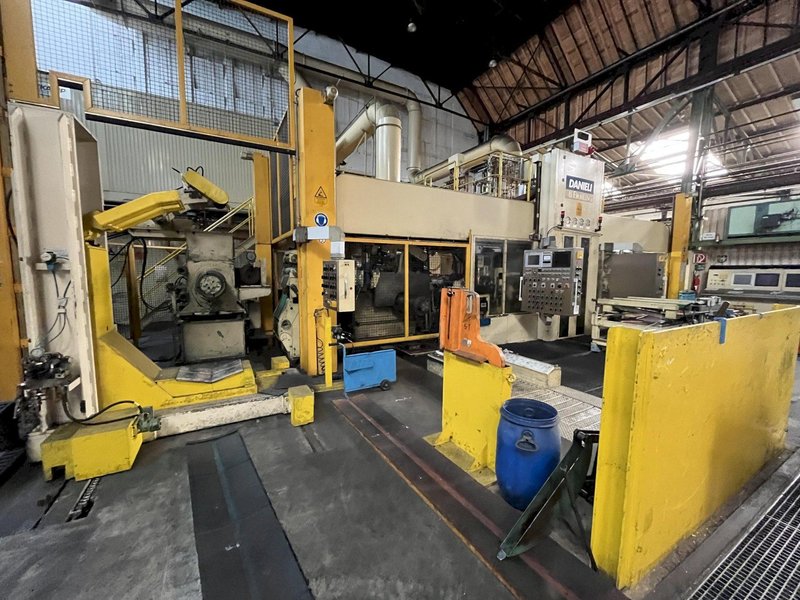

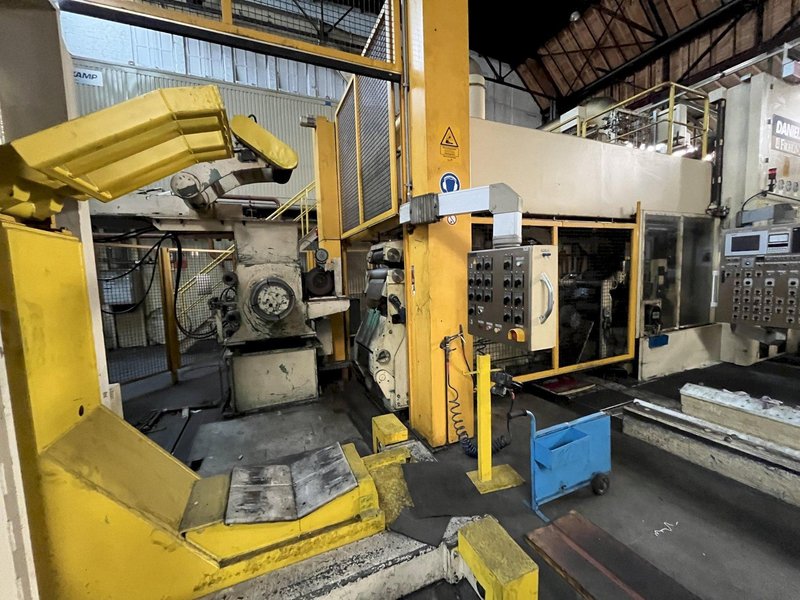

PAY-OFF
Ground level “L” shape coil car with hold down arm
Uncoiler with snubber roll arm
Uncoiler drive: Hydraulic motor
Seekamp edge control unit
3-roll leveler stand with Peeler table + snubber roll, side guides and hydraulic strip clamp – NEW 2007

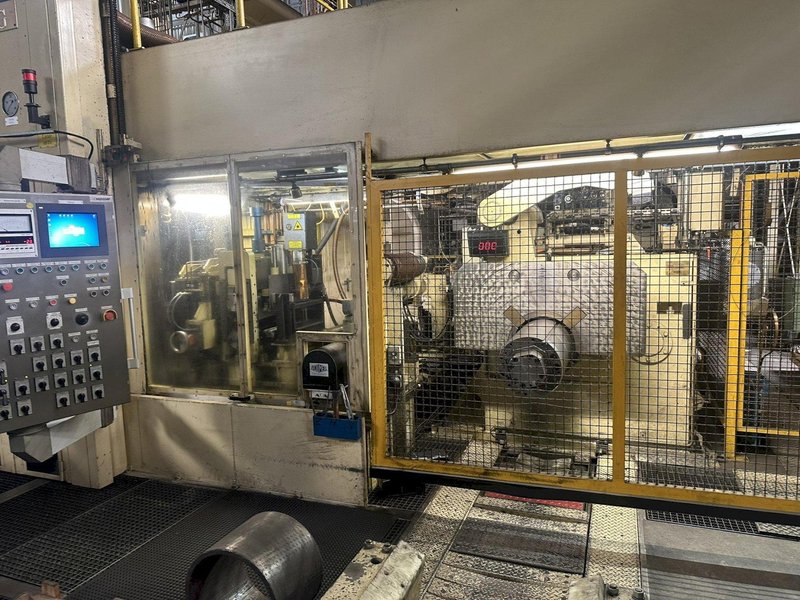

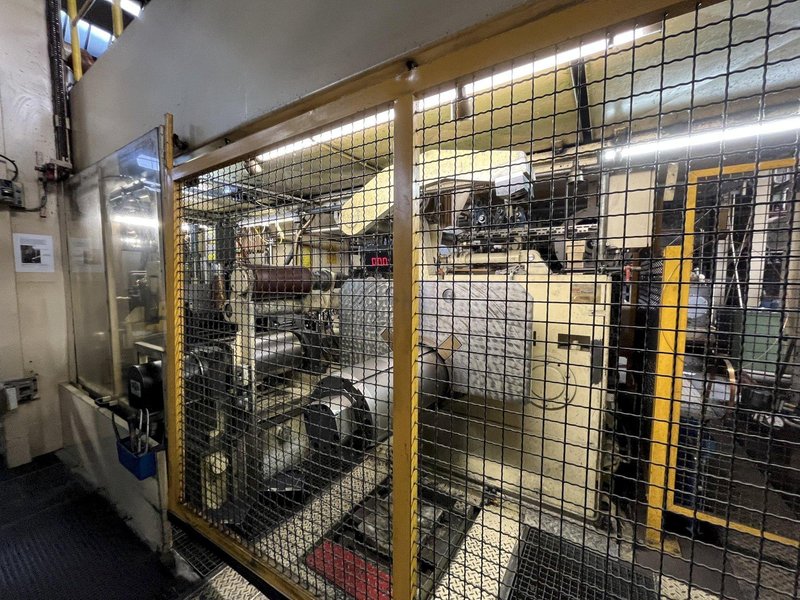

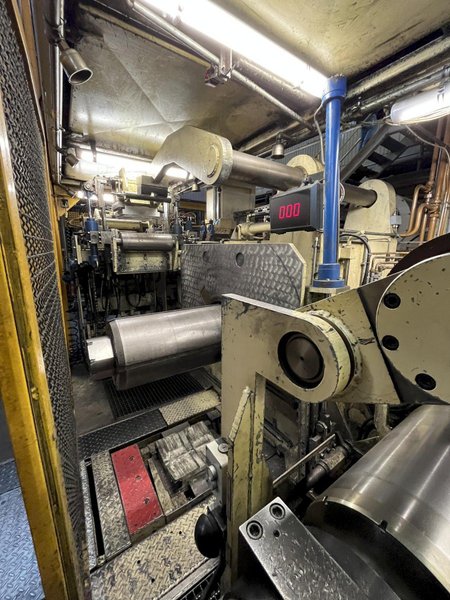

LEFT & RIGHT WINDERS

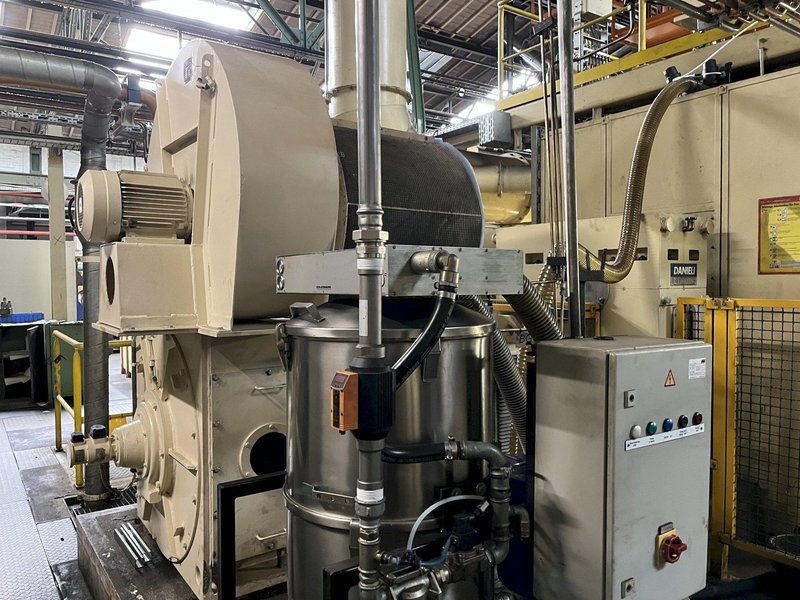

Winder drive: 220kW DC (ea)
Coil Stand / In-ground coil car
Winder with hold down arm

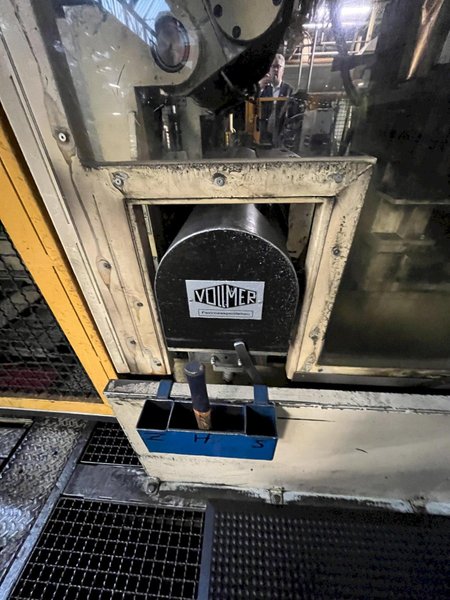

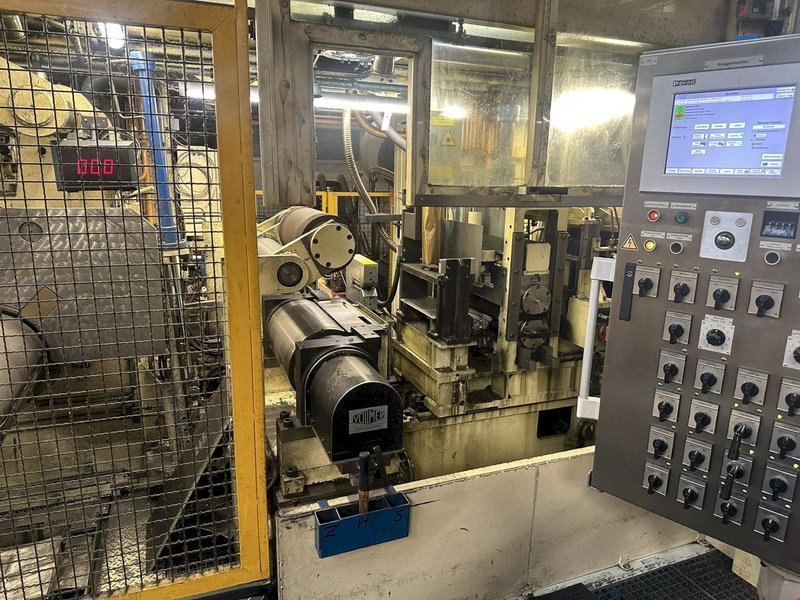

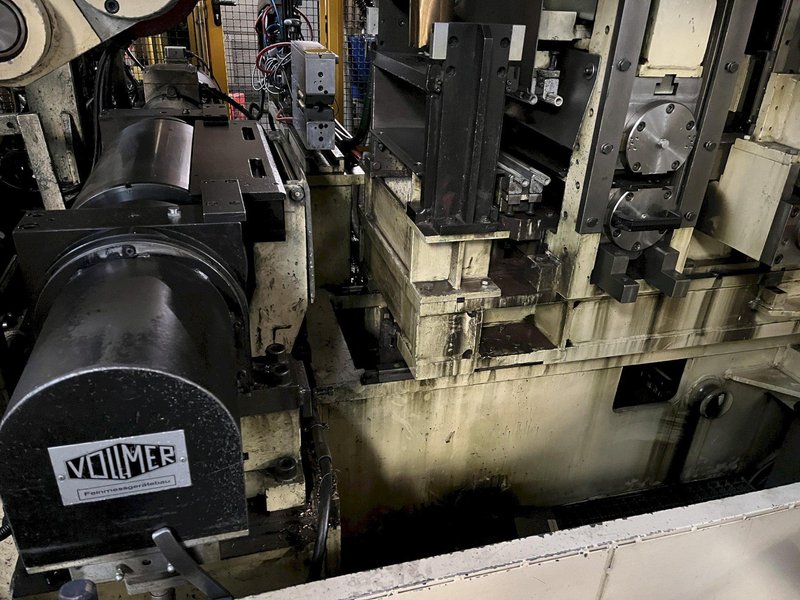

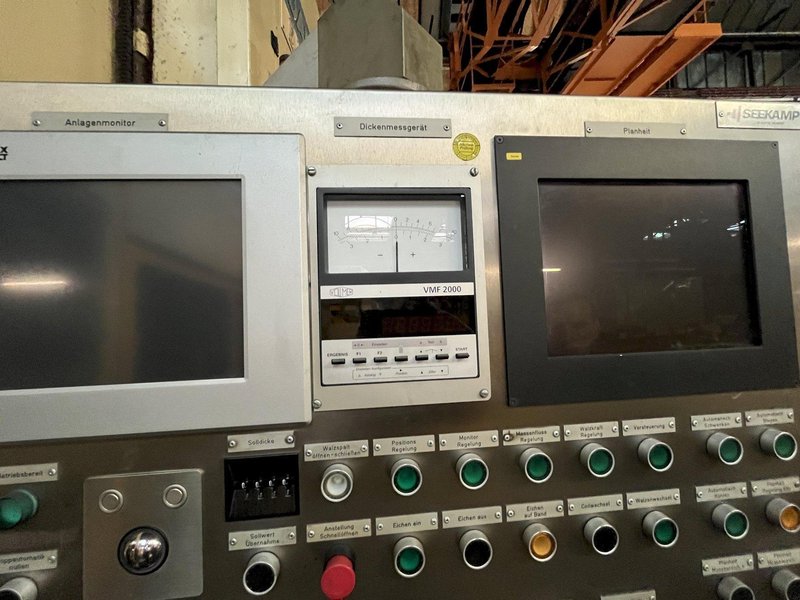

Vollmer shape roll with analog VMF 2000

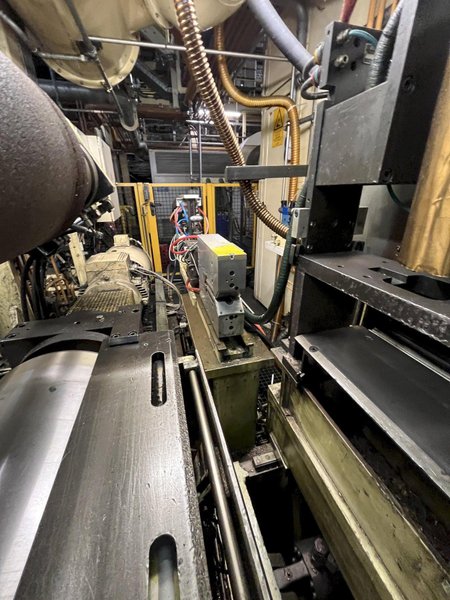

Thickness measurement: Vollmer contact gauge + laser gauge
Oil separation: 2 sets of rubbers + 1 set of oil separation rolls (felt)
Edge guides + strip clamp
3x Metal oil separation rolls

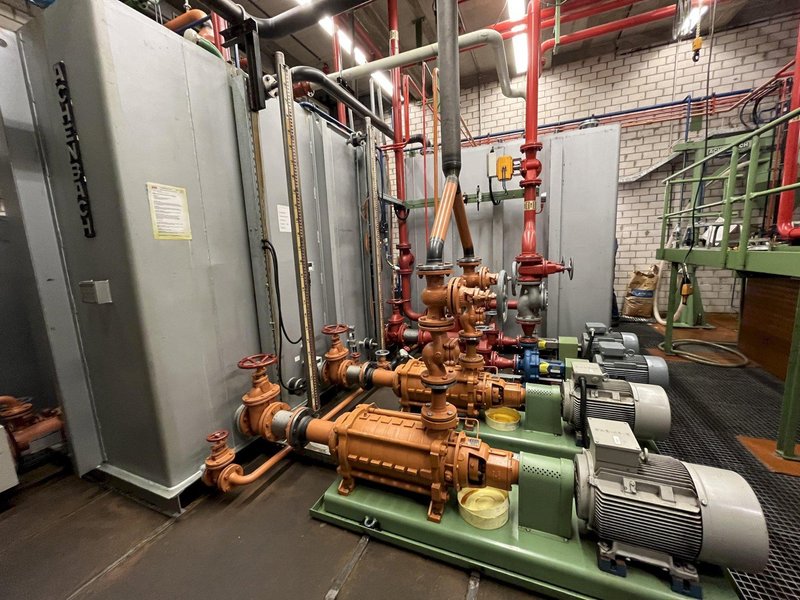

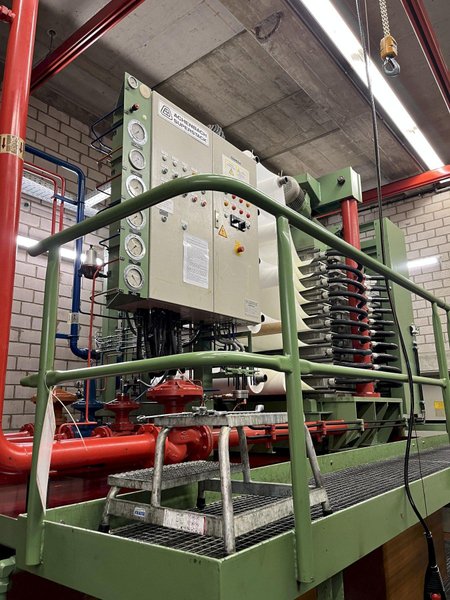

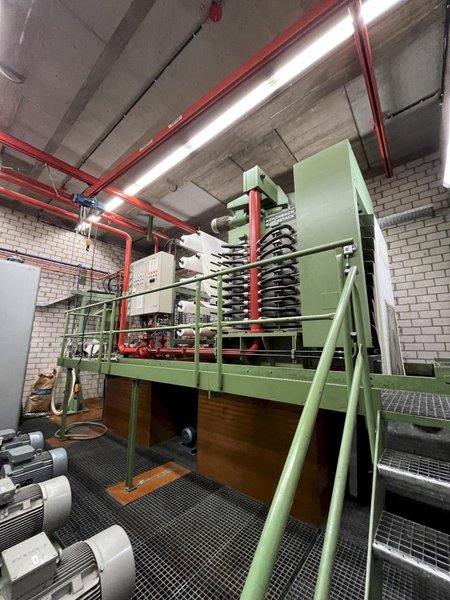

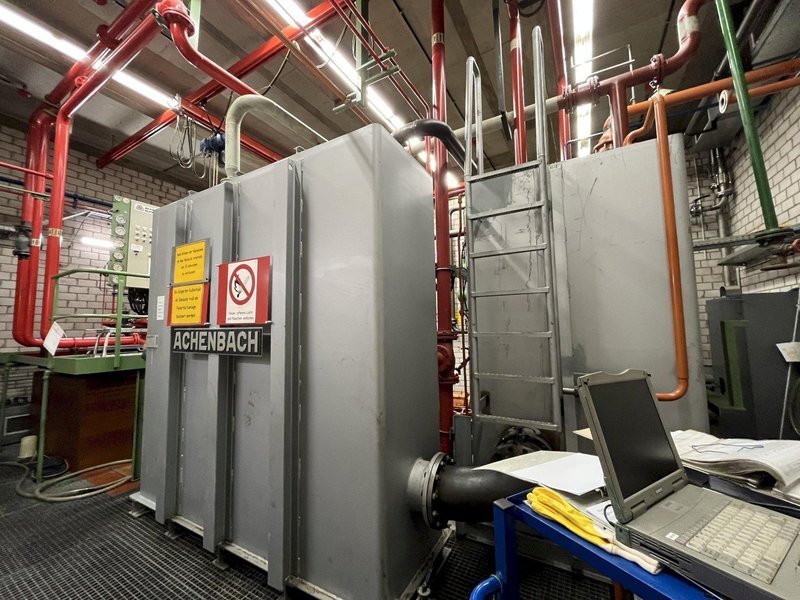

Oil filtration:

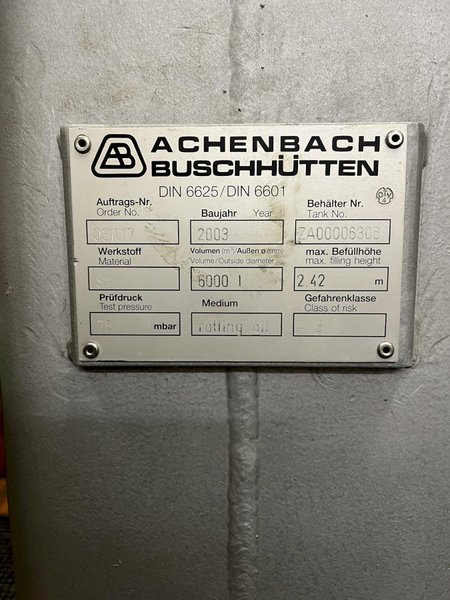

Manufacturer: Achenbach Buschhuetten
Type: Superstack
YOM: 2003
Mounted production floor level |
