72" x 9.00" x 50,000# Braner Slitting Line

72" x 9.00" x 50,000# Braner Slitting Line

Material Width: 12" - 72"
Material Thickness: 0.020" - 0.187"
Coil Weight: 50,000#
Coil ID: 20" - 24"
Coil OD: 72"
Direction: Right to Left

Consisting of the following:

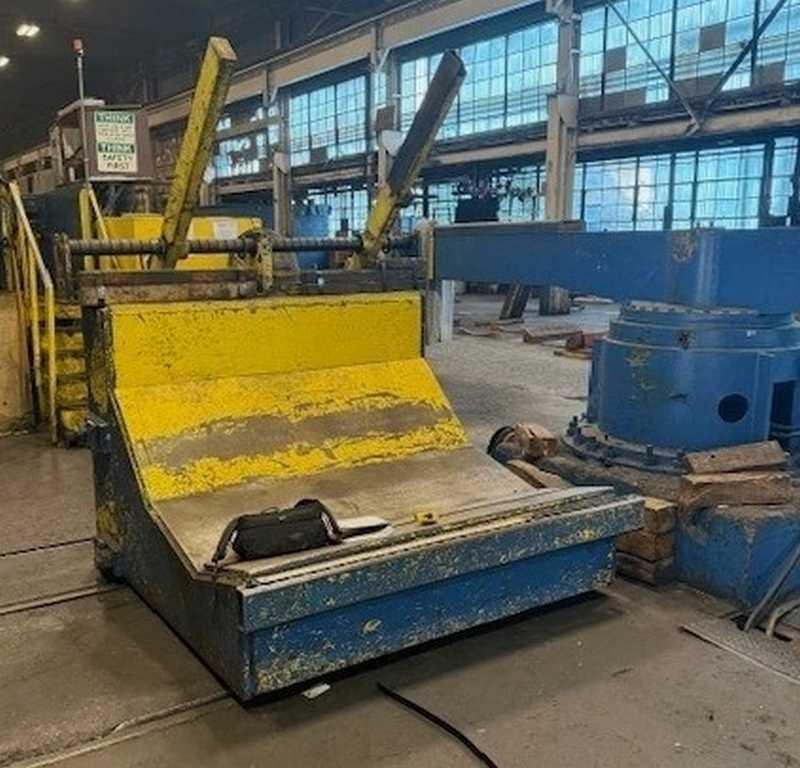

-Entry Turnstile:
Powered Rotation

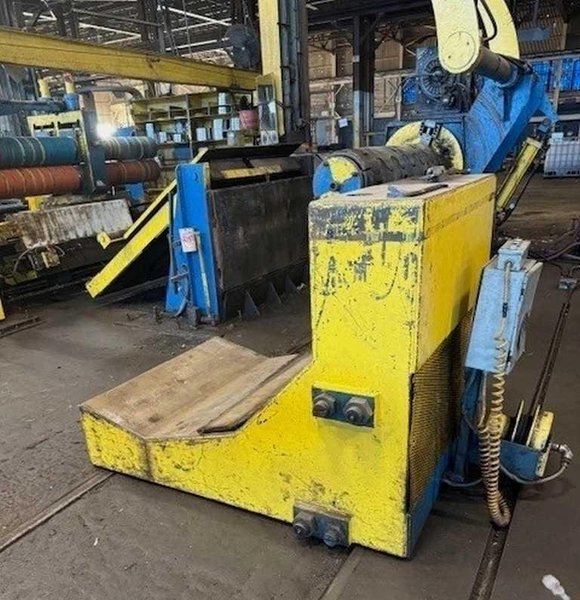

-Entry L Type Coil Car:
Hydraulic Lift and Traverse

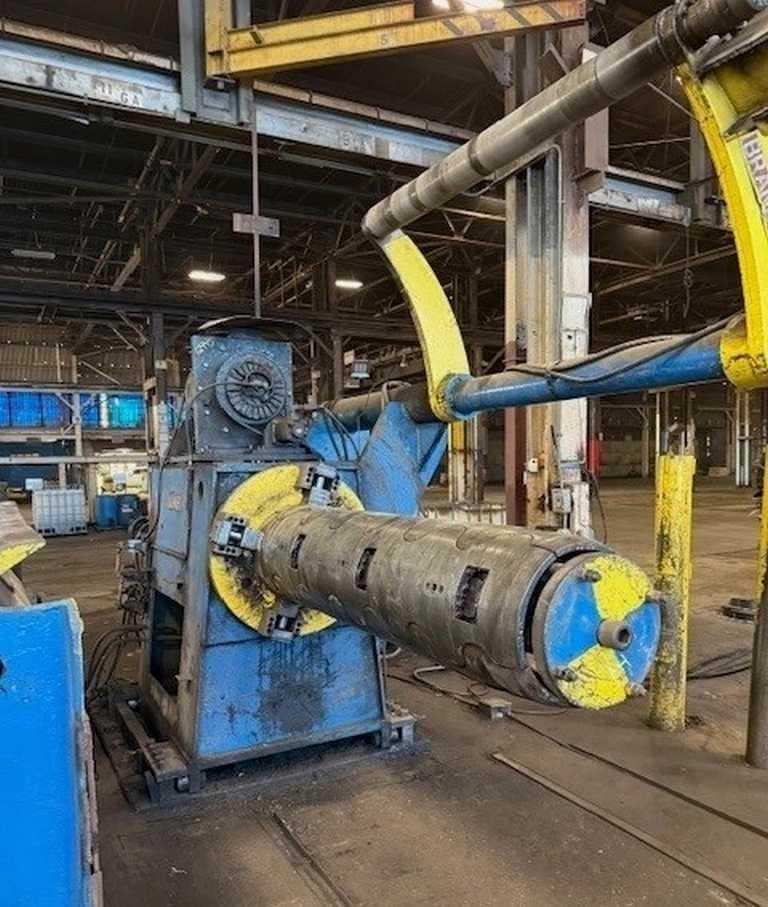

-Mandrel Uncoiler:
Powered Holddown Roll
Hydraulic Mandrel Expansion
Air Cooled Brake
Feedup Motor
Sliding Base
Hydraulic Peeler Table

-Driven Entry Pinch Rolls:
Adjustable Edge Guides

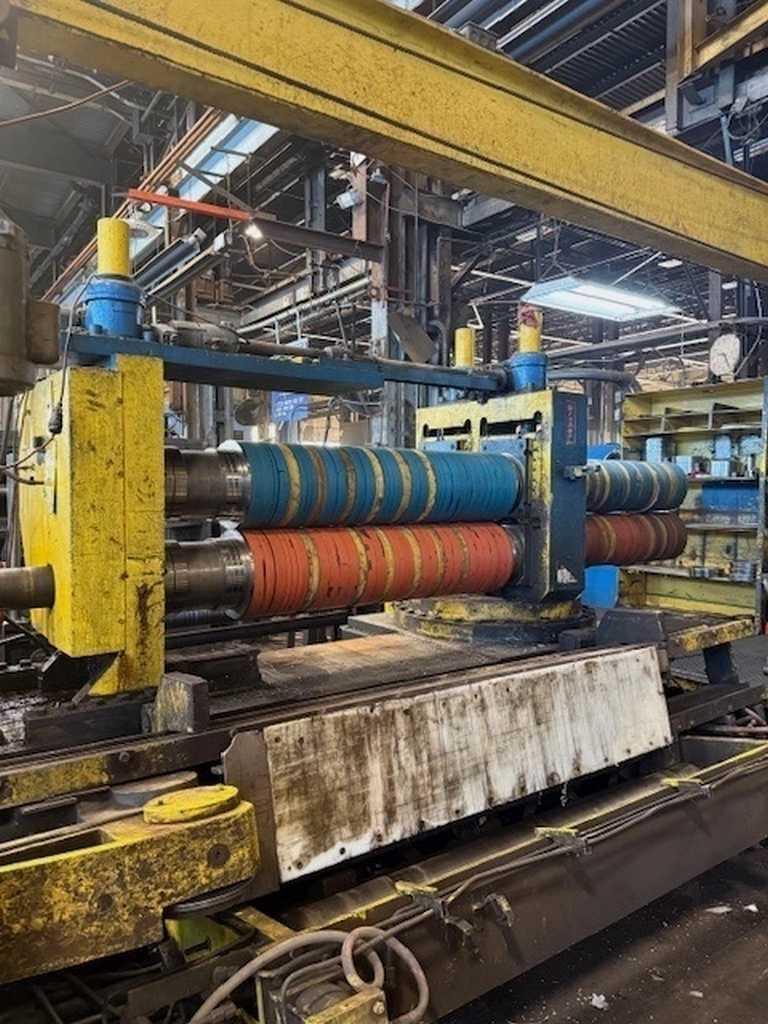

-Two Slitter Heads:
Turret Type Slitter Base
Arbor Diameter: 9"
Powered Head Rotation
Powered Arbor Adjustment
Motor: 100 HP DC
Pit Cross Over Table

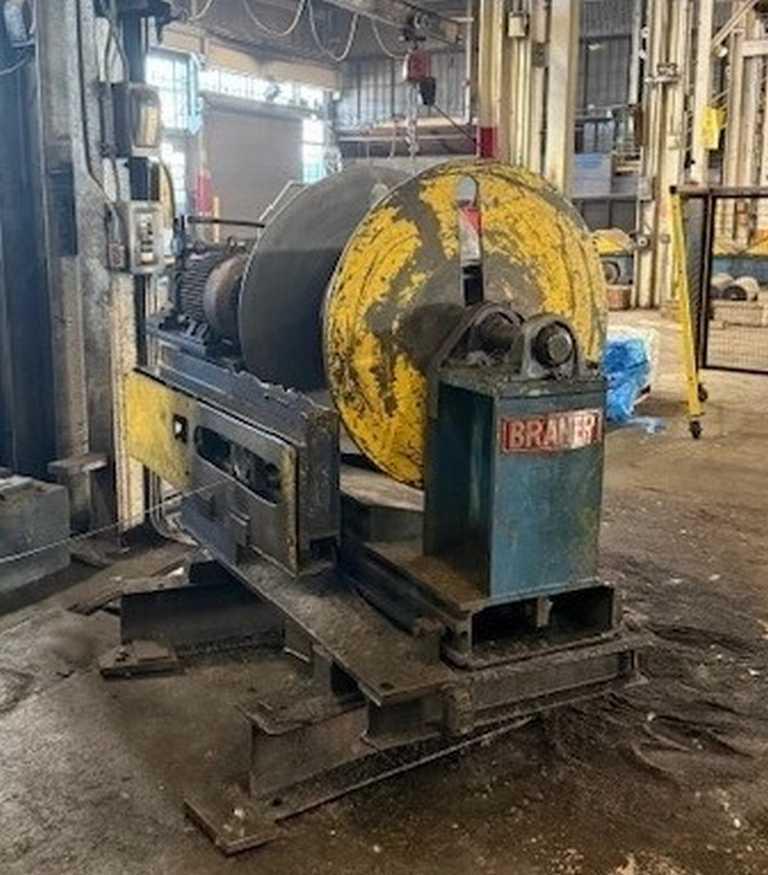

-Two Scrap Winders:
Powered Open / Close
Heavy Duty Design

-Tension Stand:
Combo Tensioning Design
Pneumatic Tension Pads
Coated Tension Rolls
Wichita Tension Brake

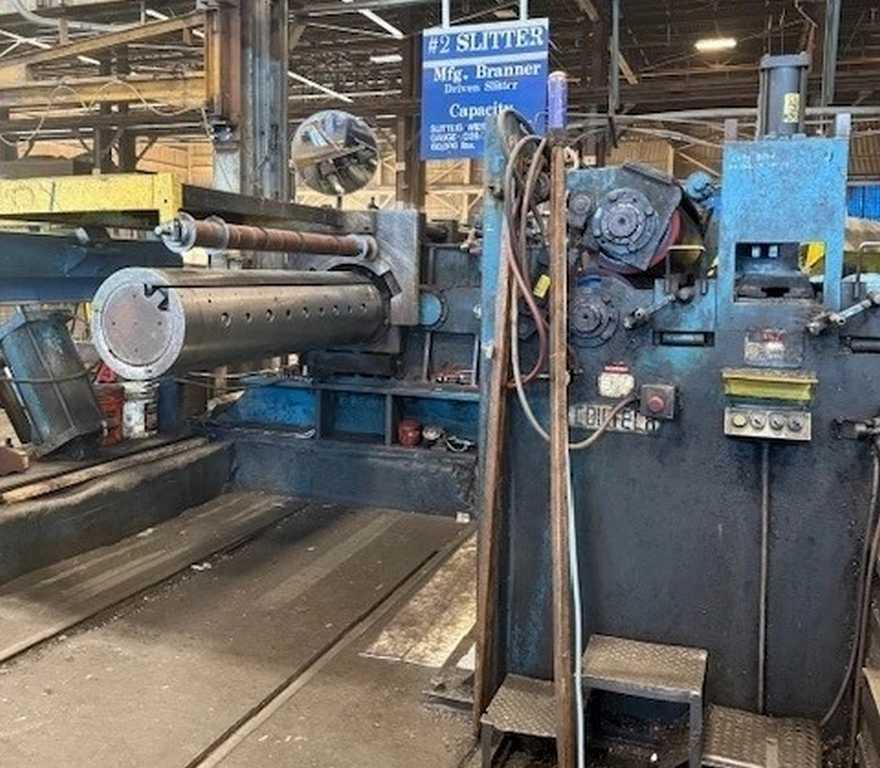

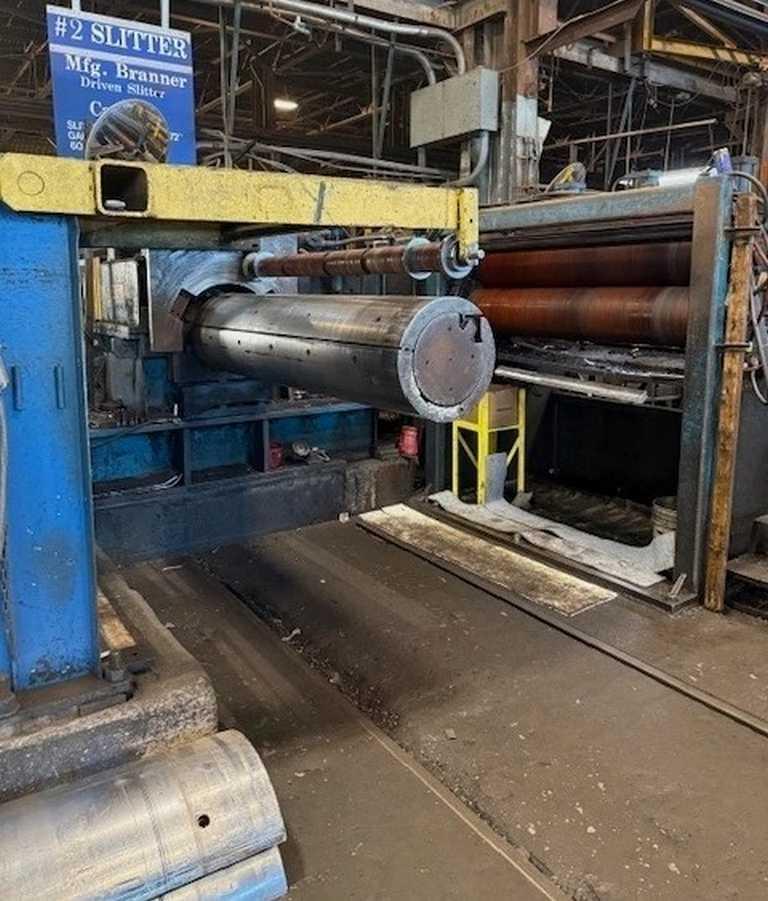

-Recoiler:
Powered Gripper
Hydraulic Overarm Separator
Powered Pushoff
Motor: 250 HP DC

-Exit L Type Coil Car:
Hydraulic Lift and Traverse

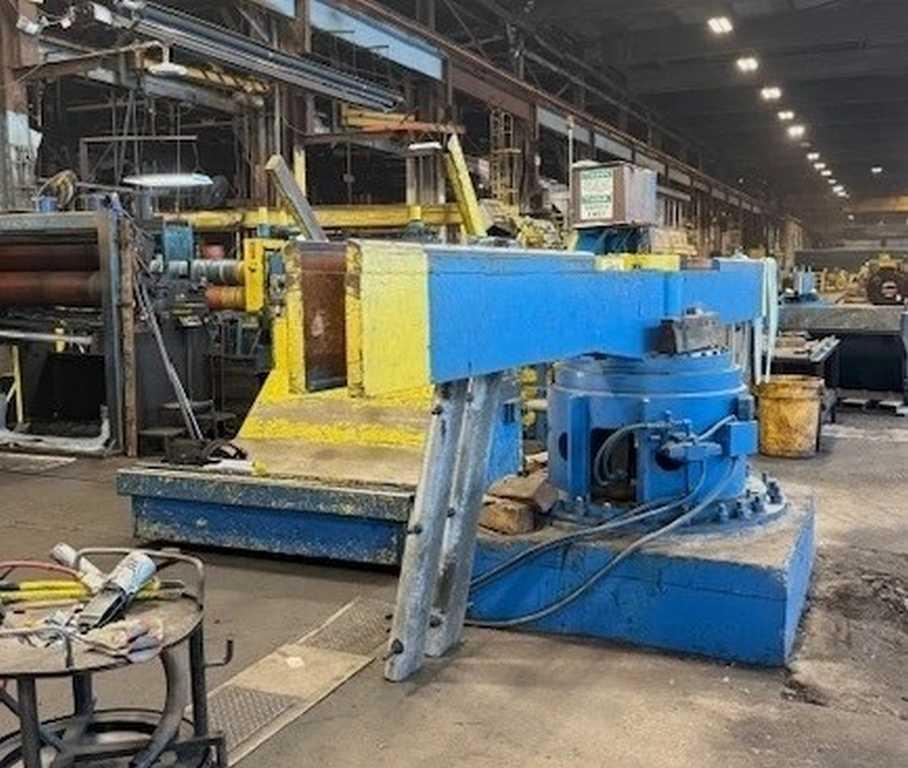

-Exit 2 Arm Turnstile:
Powered Rotation

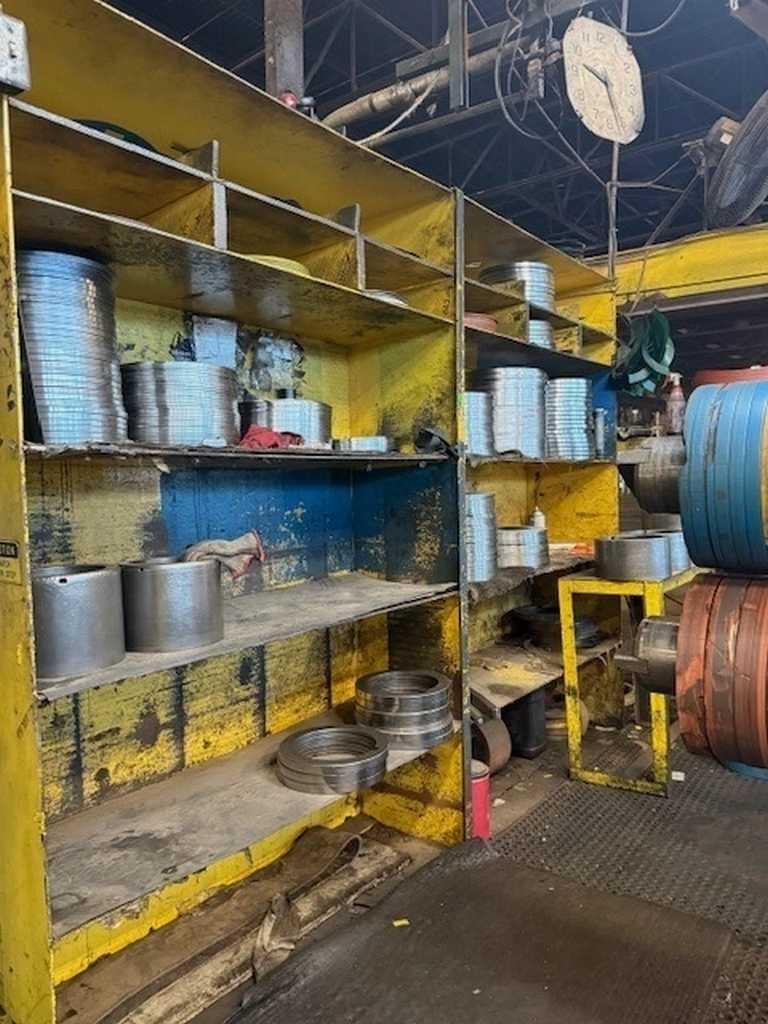

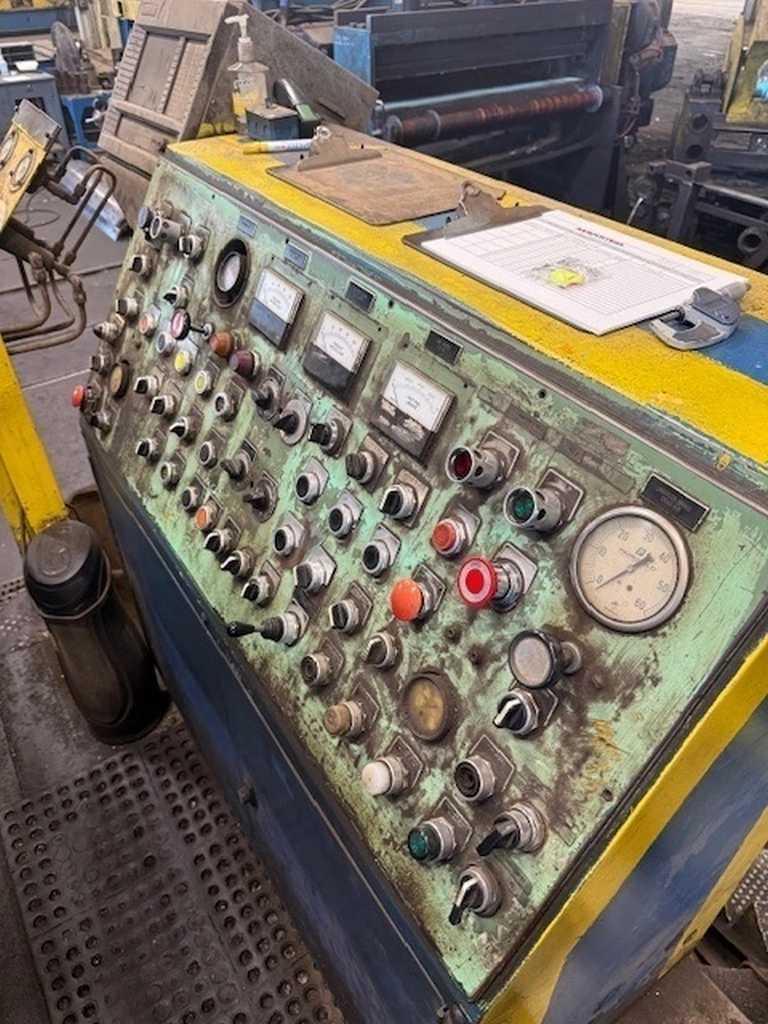

-Electrics, Hydraulics, Control, and Tooling
