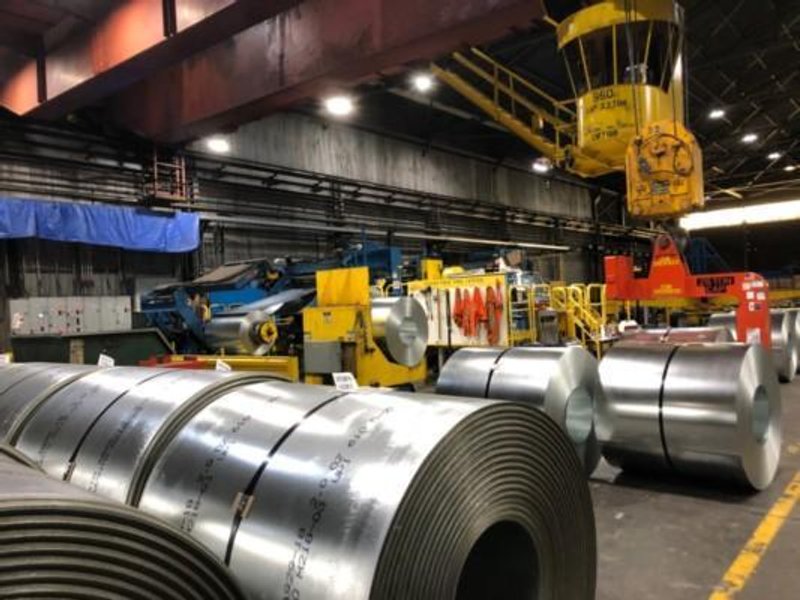

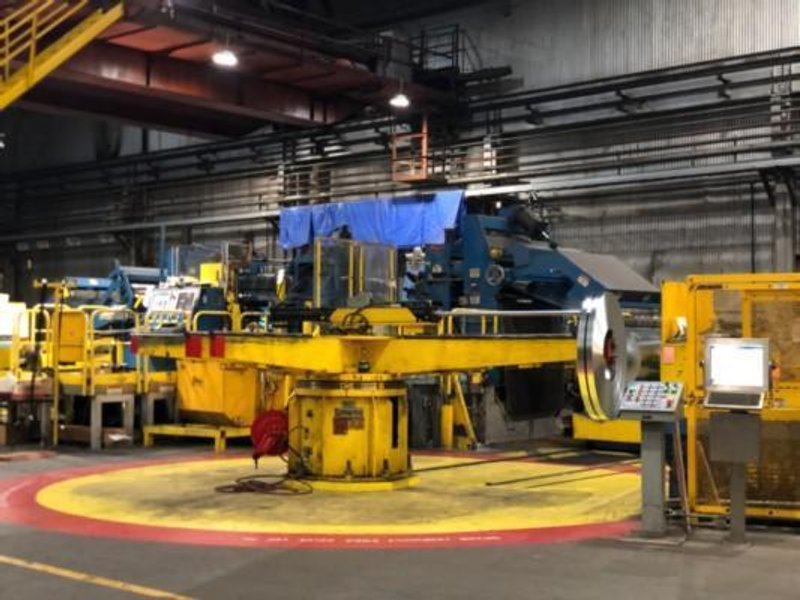

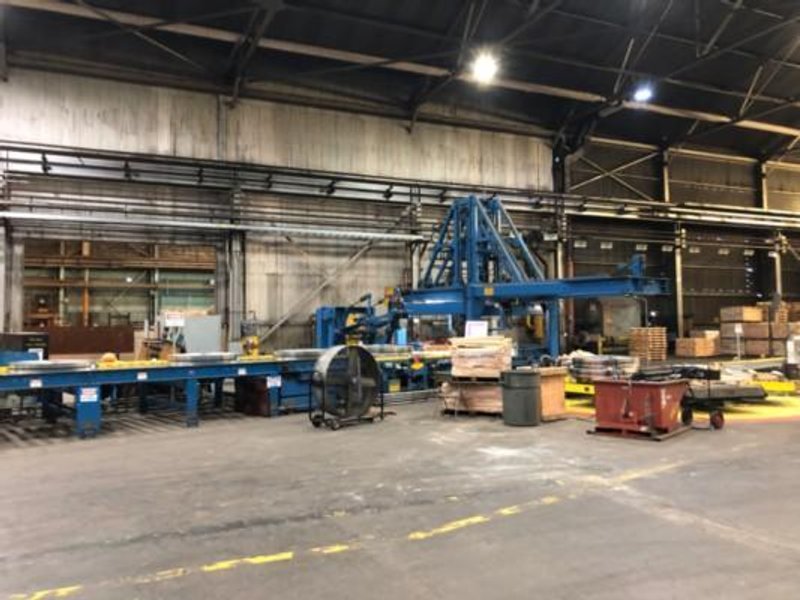

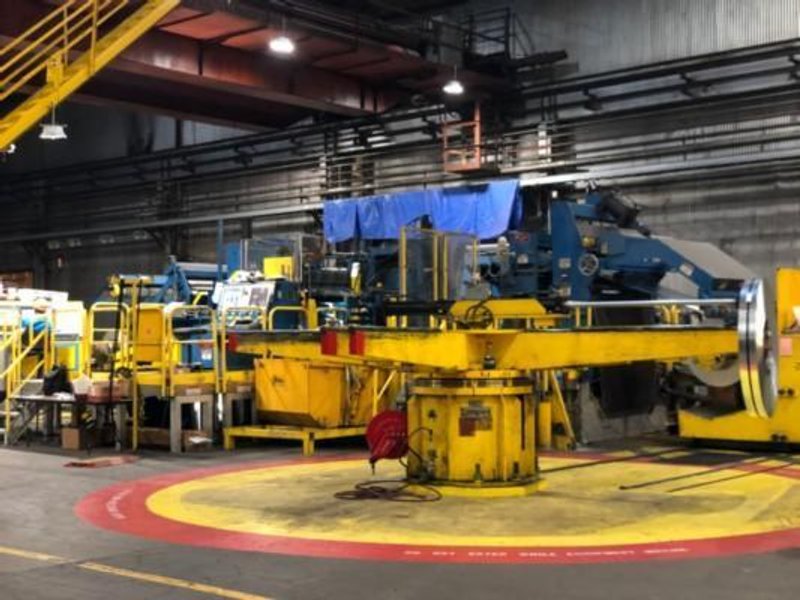

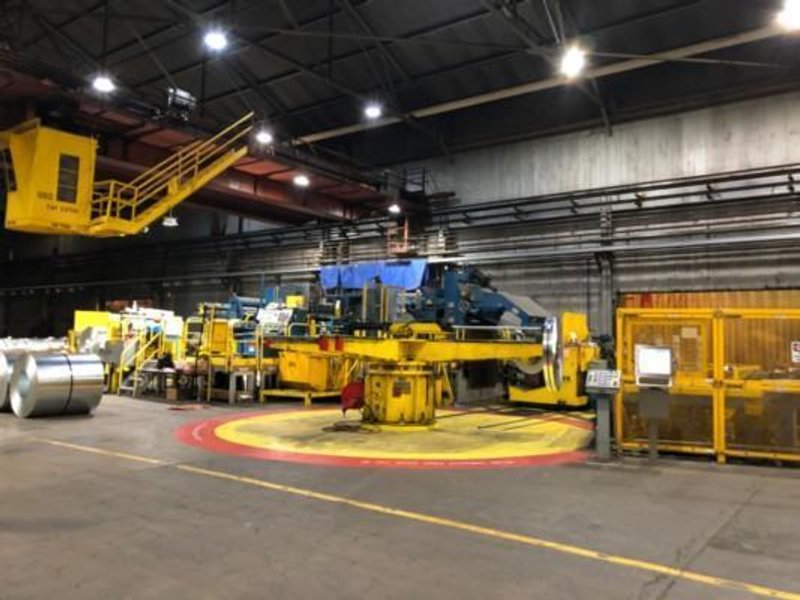

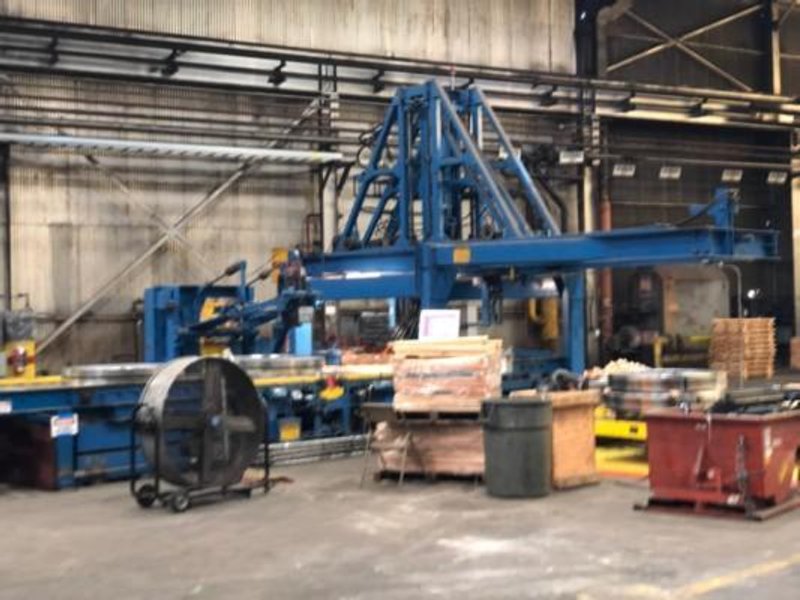

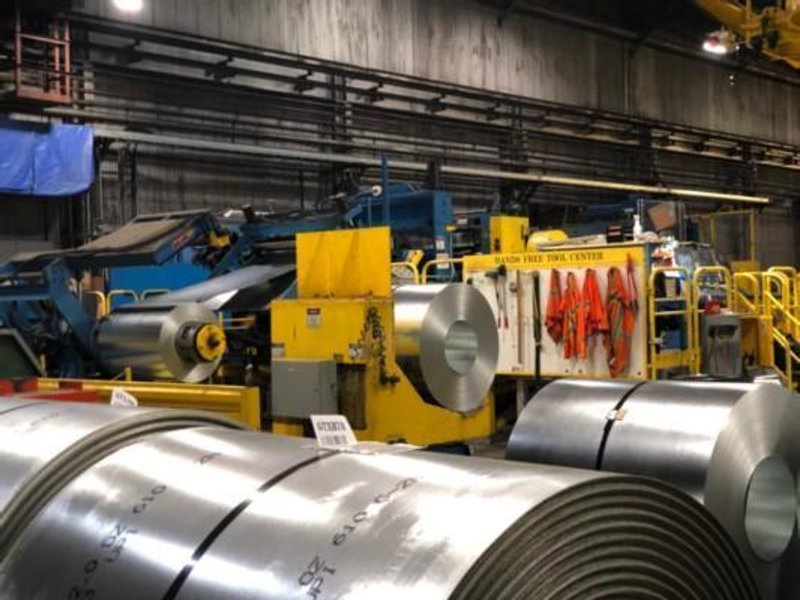

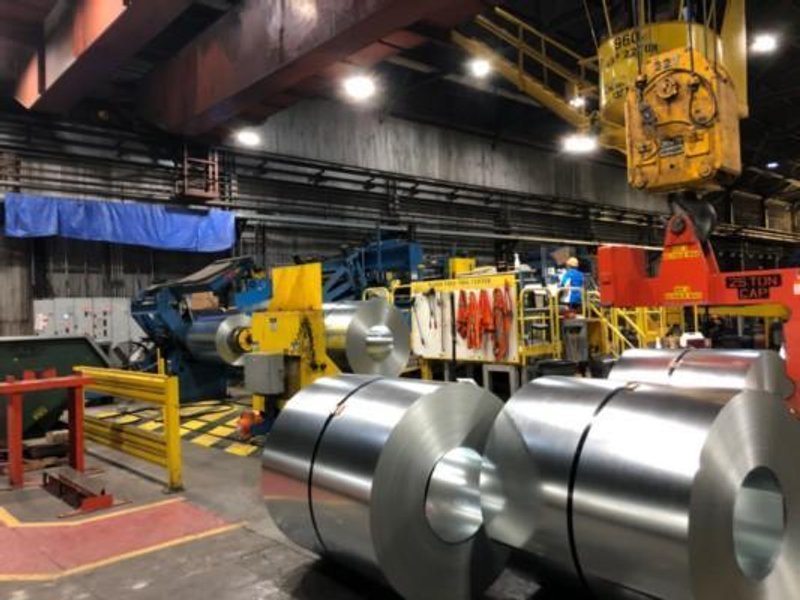

60" X .187" X 40,000# BRANER TURRET SLITTING LINE w/ 72" X 10K STAMCO PACKAGING LINE

Brand
Model
Not specified
Stock #
115467
Year
Not specified
Condition
Used
Location
Not specified
60" x .187" x 40,000 Braner Slitting Line
Manufacturer - Braner
Type - Turret Head Slitting Line
Year of Manufacture - 1993
Material - Low Carbon, HRPO, Cold Rolled Bare, Galvanized, Coated
Max Coil Weight - 40,000#
Coil Width - 62"
Strip Thickness Range - 0.012" - 0.187"
Coil OD - 72"
Coil ID Range - 20" - 24"
Shear Strength - 50,000# & 60,000#
Slitter Arbor Diamter - 8"
Number of Heads - 2
Knife Size - 11" Min - 13" Max
Spacer Size - 10" Diameter
Slitter Motor - 100 HP DC, 1150/2550 RPM
Recoiler Motor - 100 HP DC, 850/2550 RPM
Line Speed - 0 - 900 FPM (Low & High Speed Capable)
Power - 460 V, 3 PH, 60 Hz
Line Direction - Left to Right

72" x 10,000# Stamco Packaging Line
Manufacturer - Stamco
Type - Turntable Packaging Line
Max Coil Weight - 10,000#
Max Coil OD - 72"
Coil ID Range - 16", 20", 24"
Max Stack Height - 36" (Including Pallet)
Entry Conveyor Passline - 36 5/8"
Exit Conveyor Passline - 18 5/8" (After Stacking)
Max Skid Turntable Weight - 15,000#
Turntable Rotation - 360 Degrees Continuous Rotation

Braner Slitting Line Components:

4-Arm Entry Turnstile

L-Shaped Coil Car

Mandrel Uncoiler w/ Holddown Arm

Hydraulic Peeler Table

Articulating Pinch Rolls

Side Guides

Automatic Gauge Guide W/ Coil Position Indicator

Crop Shear

Turret Slitting Head

Crossover Table/Looping Pit

Scrap Winders

Drag Pad Tension Stand

Exit Thread Table

Seperator Roll

Deflector Roll

Mandrel Recoiler W/ Pushoff

Exit L-Shaped Coil Car

Exit 4 Arm Turnstile

Electrics, Operators Stand, Self Contained Hydraulics and Controls

Stamco Packaging Line Components:

Downlayer

20' Conveyor

6' 6" Coil Scale

7' 11' Banding Table

Stacking Unit

(6) Six Station Lazysusan Turntable

6' 6" Skid Conveyor

5' 11" Skid Scale

Electrics, Operators Stand, Self Contained Hydraulics and Controls
