Max Width of Workpiece | 54 inches |
Max Thickness of Workpiece (in.) | 7.00 inches |
Weight | 30000 ounces |
Material Width: 12" - 54"
Material Thickness: 0.010" - 0.187"
Weight Capacity: 30,000 lbs.
Coil ID: Entry 18 to 24"
Exit 16"
Coil OD: 72"
Line Direction: Right to Left
Consisting of the following:
-Entry 3 Arm Turnstile:
Power Rotation
-Entry Coil Car:
L Type
Self Contained
-Mandrel Uncoiler:
Hydraulic Expansion 18" to 20" I.D.
4 Leaf Mandrel
Sliding Base
Hydraulic Feedup Motor
Water Cooled Brake
Powered Overarm Holddown
-Entry Unit:
Peeler Table - Hydraulic Lift & Expand
Hydraulic Motor Drive Pinch Rolls
Hydraulic Adjusted Side Guides
Photo Electric Edge Control

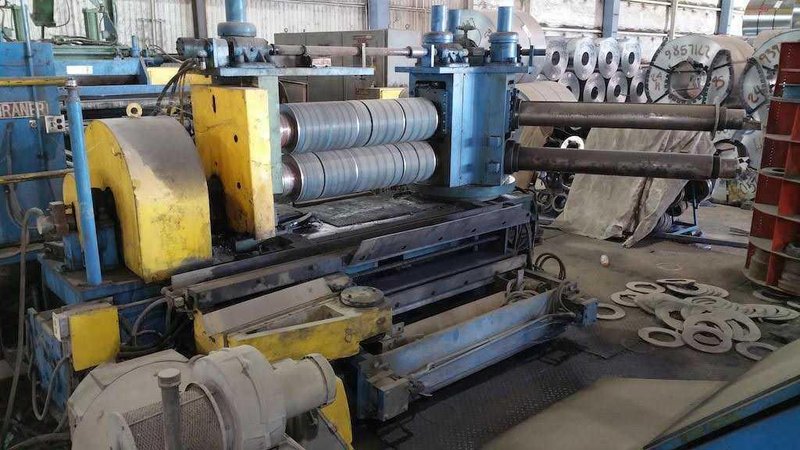

-Slitter: Turret Head
(3) Heads with 7" Diameter Arbors
Parallel Arbor Adjustment
DC Motor Driven
Tooling
-(2) Scrap Winders:
Hydraulic Level Wind
Hydraulic Auto Dump
-Pit Cross Over Table:
-Combination Tension Stand:
Entry Separator Tooling Shaft
Drag Board Unit
Tension Rolls
Independent 16" Water Cooled Brakes
-Recoiler:
Hydraulic Expansion
16" Drum Diameter with Filler Plates for 20" Diameter
Overarm Separator
Hydraulic Pushoff
125 HP DC Motor: 650 / 1950 RPM
CMC Solid State Drive
Drive-All 2 Speed Reducer w/2.143 & 1.063:1 Ratios
-4 Arm Turnstile:
Power Rotation
No Pushoff
-Removed and in storage |
