48" (1219mm) X 4.75" (121mm) BRANER SLITTING LINE (13786)

 MACHINE 13786

 48" x 4.75" x 20,000lb Slitting Line

 YEAR: 1965

 -48" Wide
 -20,000 lb. Capacity
 -Line Direction: Left to Right

 Consisting of the following:

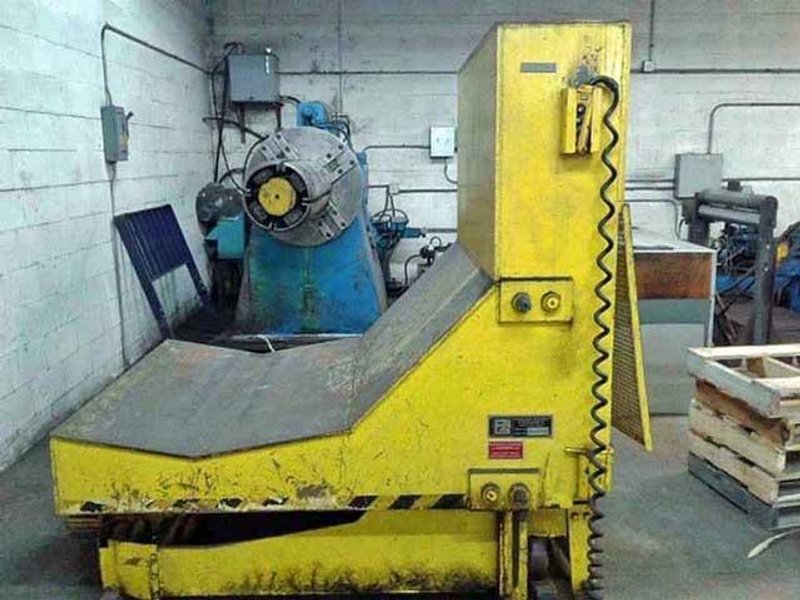

 -Entry Coil Car: Progressive, New in 1993
   Model: 82493
   S/N: 2952
   "L" Type Design
   49" Wide Bed
   72" O.D. Capacity
   Approx. 9" from Floor to bottom of "V" Cradle
   Self-Contained Hydraulics
   Hand Pendant Control
   Retractable Cable Reel
   Overall Size: 80" L x 53" W x 61" High

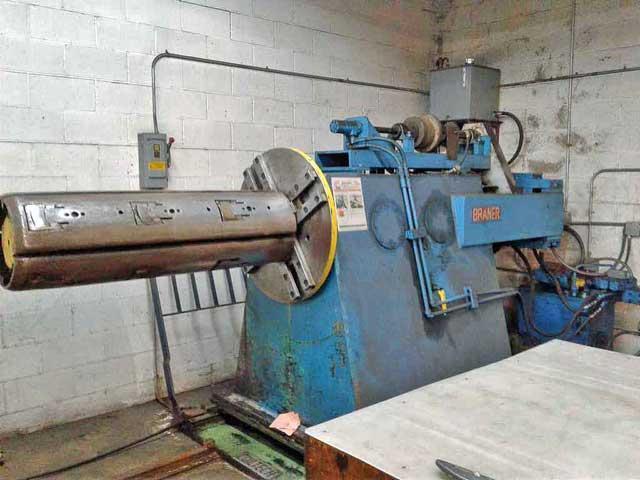

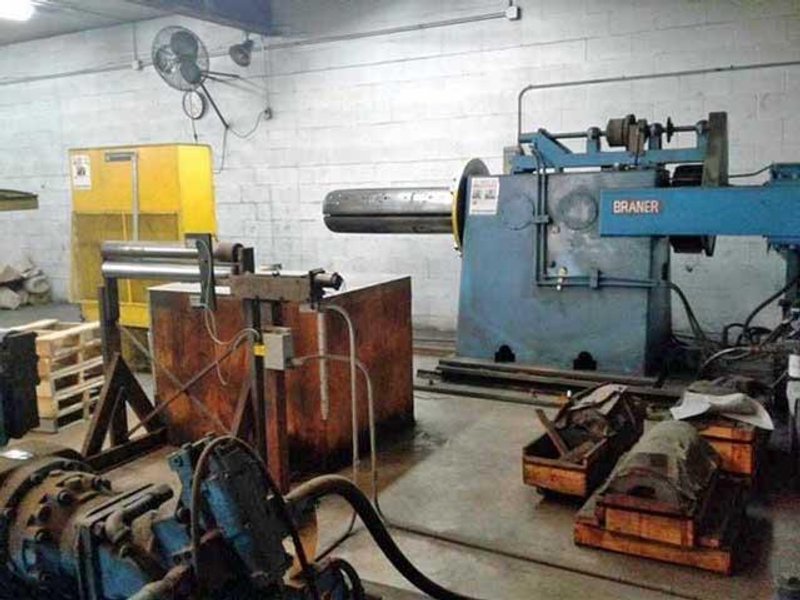

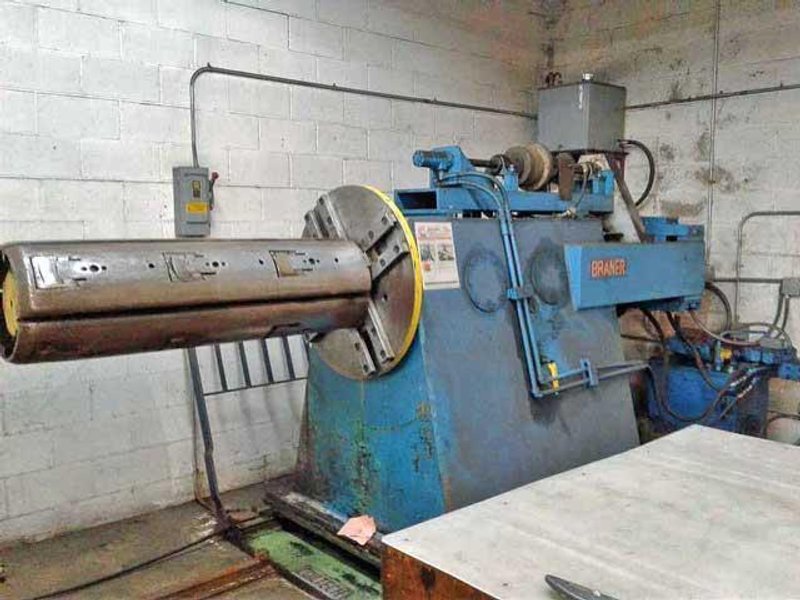

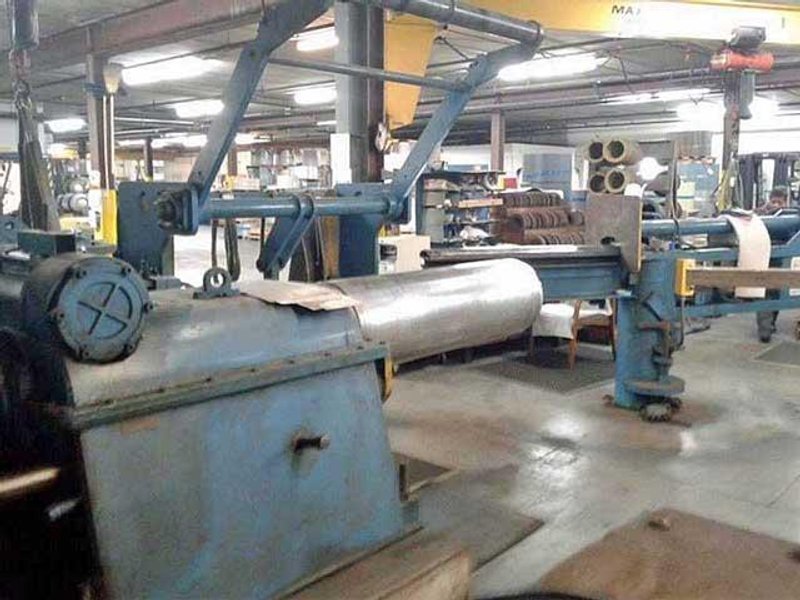

 -Mandrel Uncoiler: Braner
   (4) Segment Mandrel
   51" Face Mandrel
   Hydraulic Expansion Range: 15" - 20.5"
   Coil I.D. Range: 16" - 20"
   Sliding Base
   Hydraulic Motor Feedup w/Air Clutch
   Fawick Air Brake
   Passline: 51.5" from Floor to center of Mandrel
   Base Plate: 67" L - R x 78" F - B
   Overall Size: 161" L x 68" W x 78" High

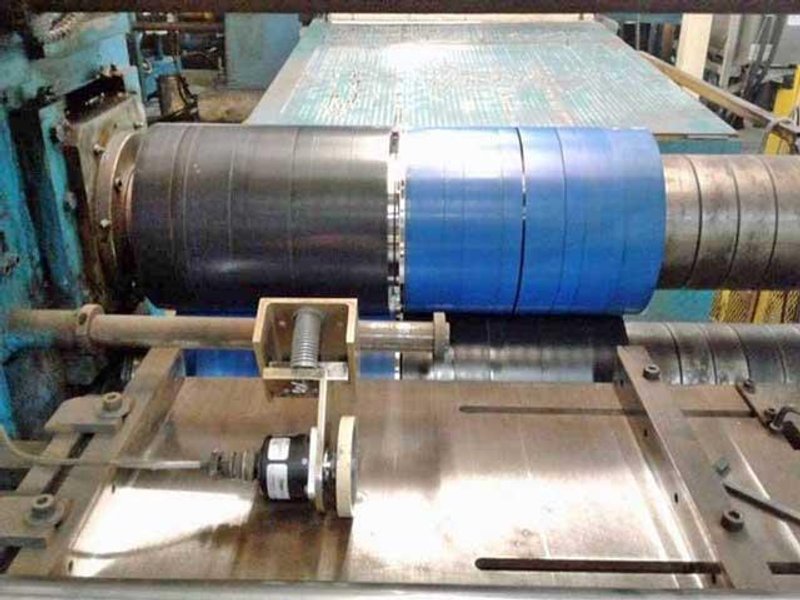

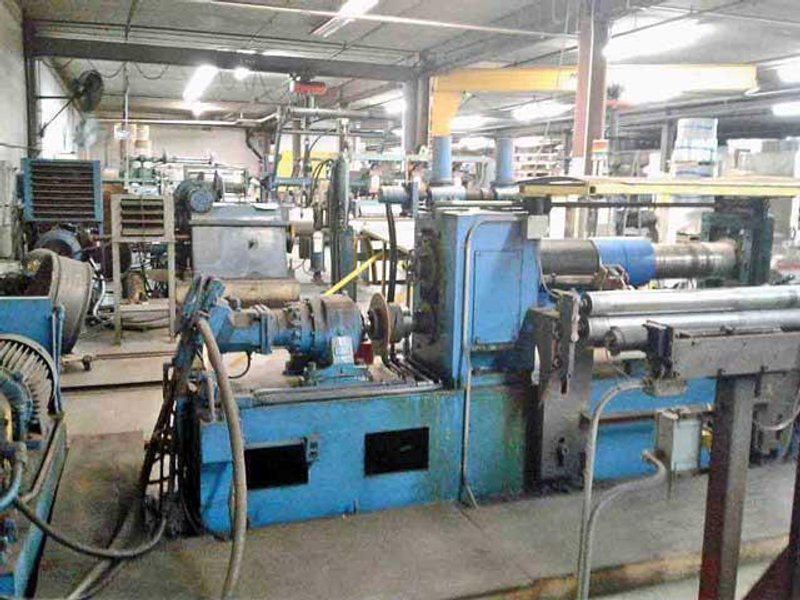

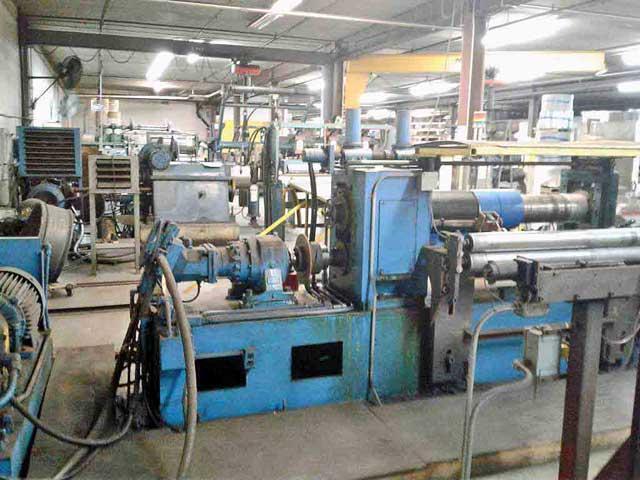

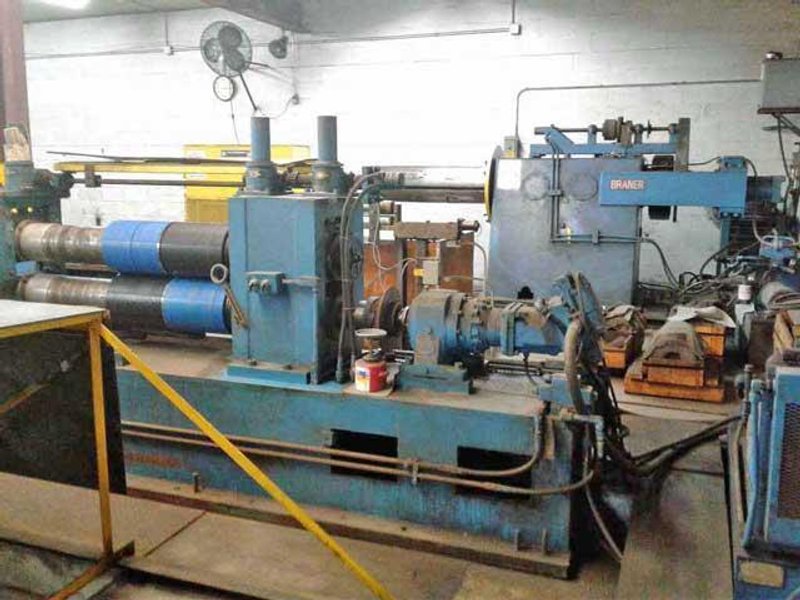

 -Slitter Head: New in 1985
   4.75" Dia. x 50" Face Arbors
   Outboard slides in to 24" wide
   Entry Passline Rolls
     4" Dia. x 56" Face
   Entry Side Guides
     Hydraulic Motor Adjustment
   Parallel Arbor Adjustment
   Hydraulic Motor Driven
   Passline: 38"
   Overall Size: 157" L x 48" W x 69" High

 -(2) Scrap Winders:
   Manual Scrap Ball removal
   Air Motor Driven
   Less Oscillate Wind Assembly

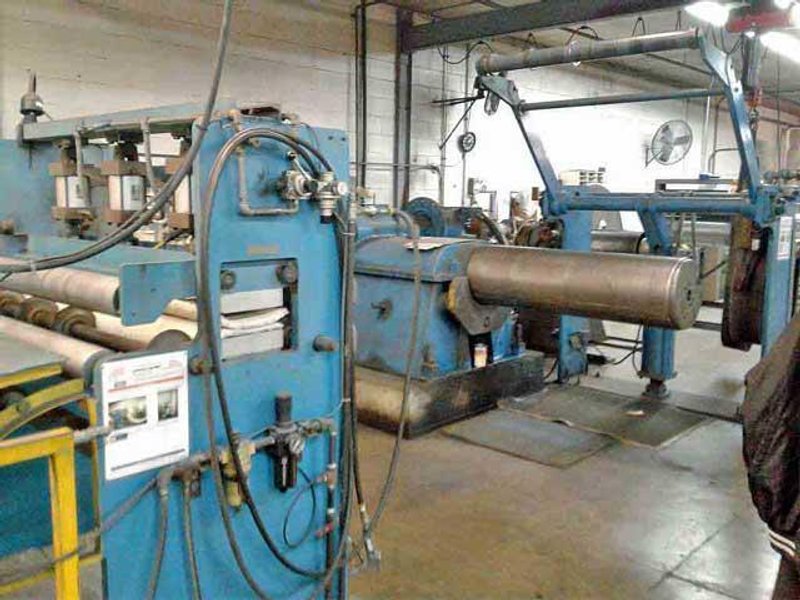

 -Pad Type Tension Stand: New in 1990
   Entry Catenary Rolls
   Entry Passline Rolls
     4" Dia. x 49.5" Face Width
   Entry Separator Tooling Bar
   (3) Air Cylinders for Pad Pressure
   Exit Passline Rolls
     6" Dia. x 50" Face Width
   Passline: Adjustable from 45" - 47"
   Overall Size: 65" L x 52" W x 70" High

 -Recoiler:
   16" Dia. x 52" Face Drum
   Hydraulic Grip and Expand (Gripper Bar Missing)
   Hydraulic Pushoff
   Hydraulic Drive Motor
   Reducer w/12.5:1 ratio
   Passline: 26" from Floor to center of Drum
   Overall Size: 134" L x 68" W x 48" High

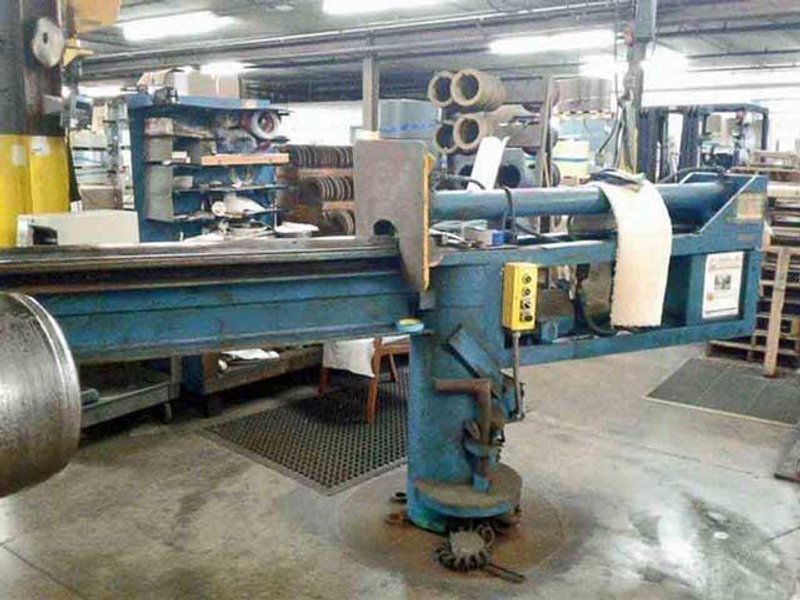

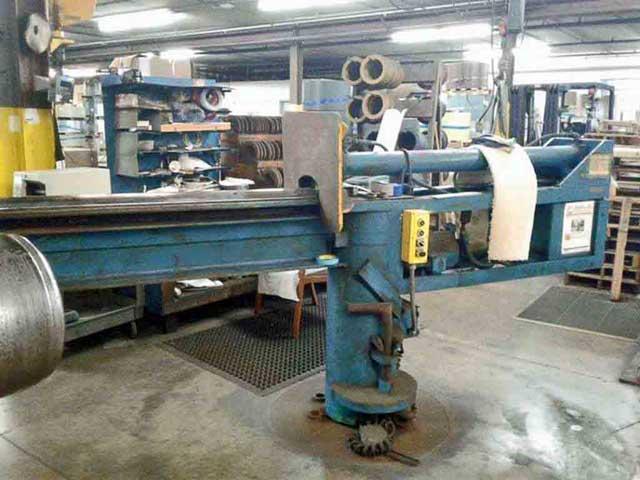

 -Free Standing Overarm Separator:
   49.5" L Tooling Bar
   Air Cylinder Operated
   Overall Size: 70" L x 32" W x 75" High

 -One Arm Turnstile:
   Manual Rotation
   Hydraulic Pushoff
   Self-Contained Hydraulics

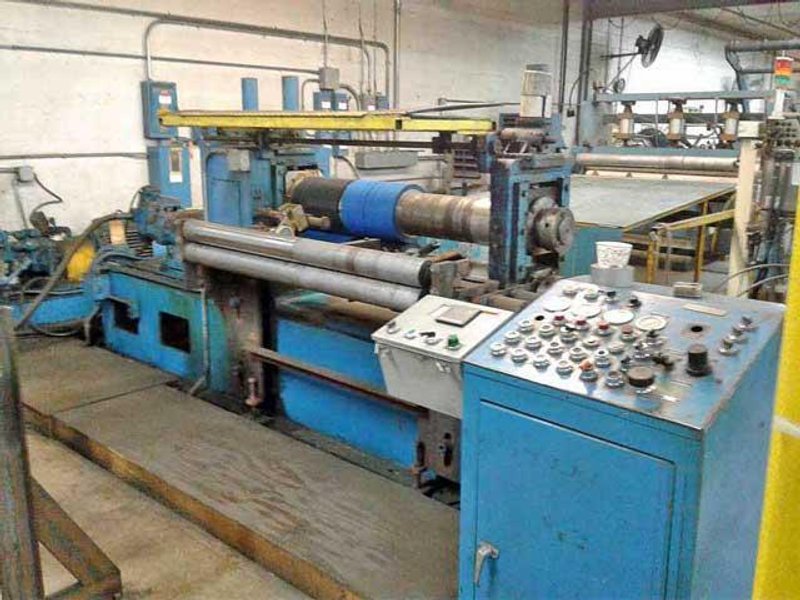

 -Main Operators Control Panel:

 -Main Hydraulic Unit #1:
   For use with Slitter Head Drive

 -Main Hydraulic Unit #2:
   For use with Recoiler Drive
   With Cooler

 -(2) Additional Hydraulic Units:

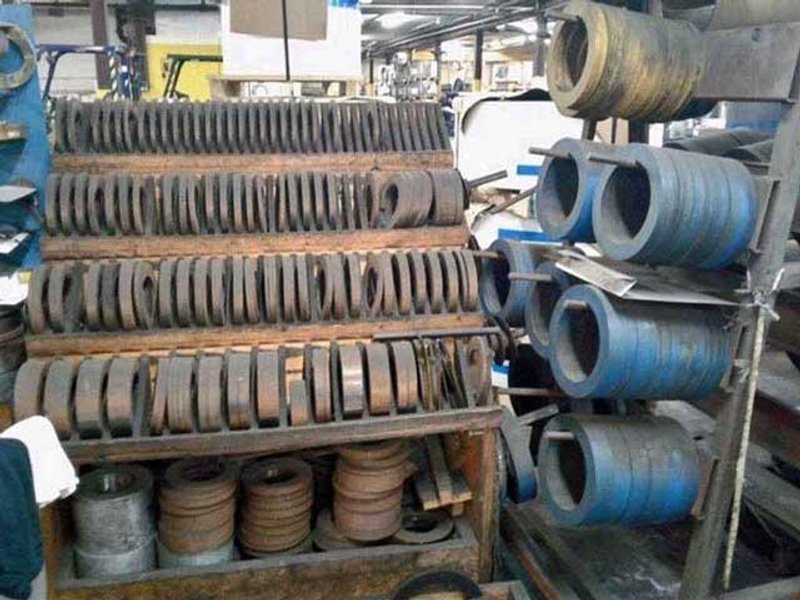

 -Slitter Tooling:

 **Temporary Specifications Subject to Revisions**

 **PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**

 **ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION BY PURCHASER**
