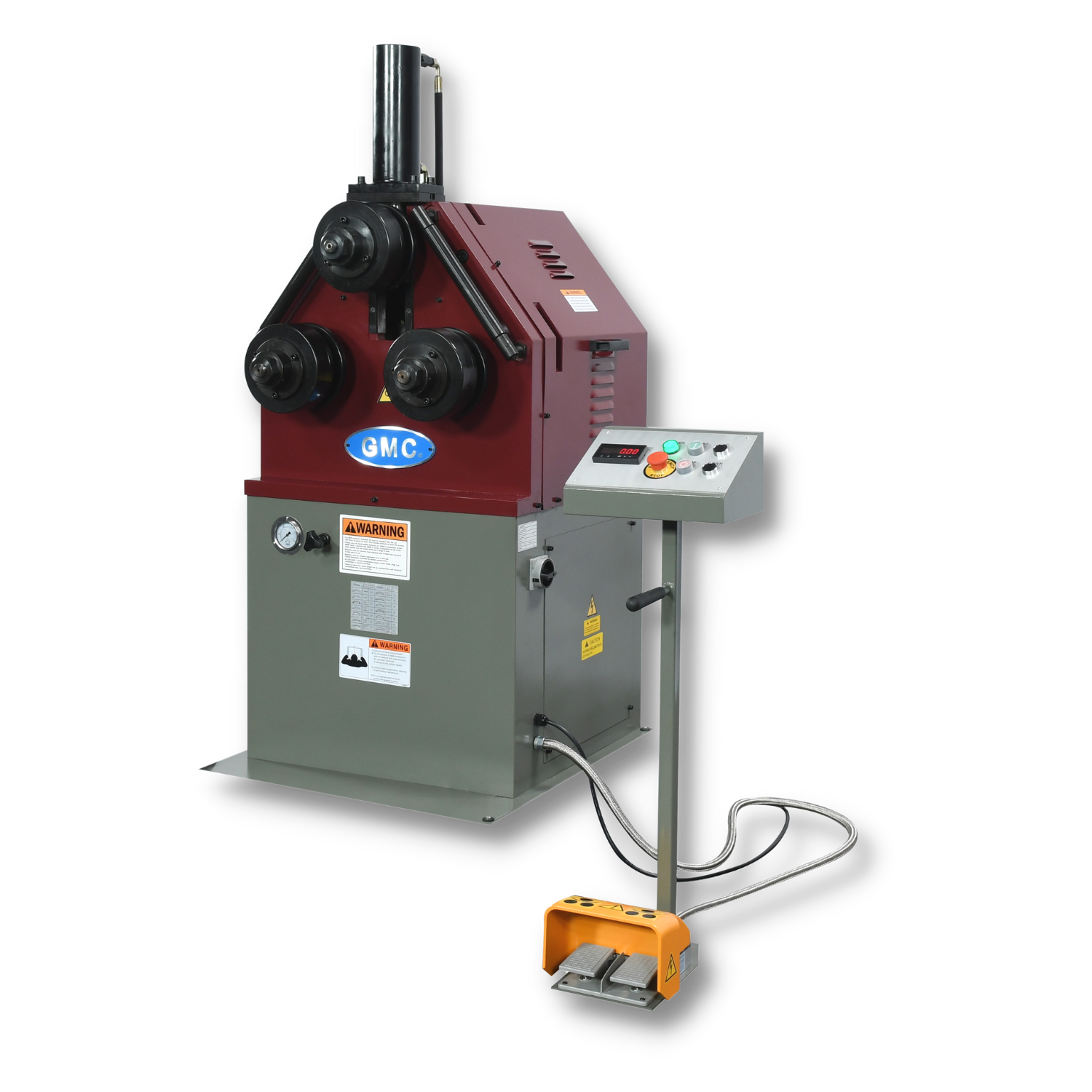

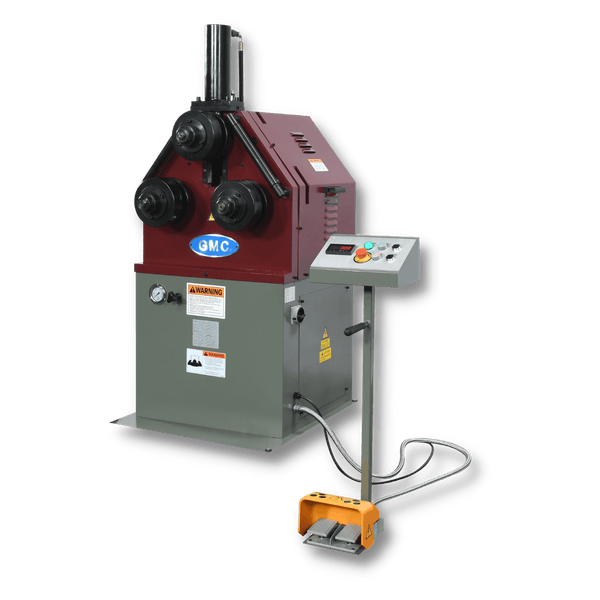

PRB-55H-3PH Angle Iron Ring Roller, Hydraulic Tube Bender

Model

PRB-55

Pipe Capacity

2” schedule 40 / Min. Dia.24”

Tube Capacity

2-1/2”x14 Ga. (wall) / Min. Dia. 24”

Solid Round Tube

1-3/8”  / Min. Dia. 24”

Square Tube

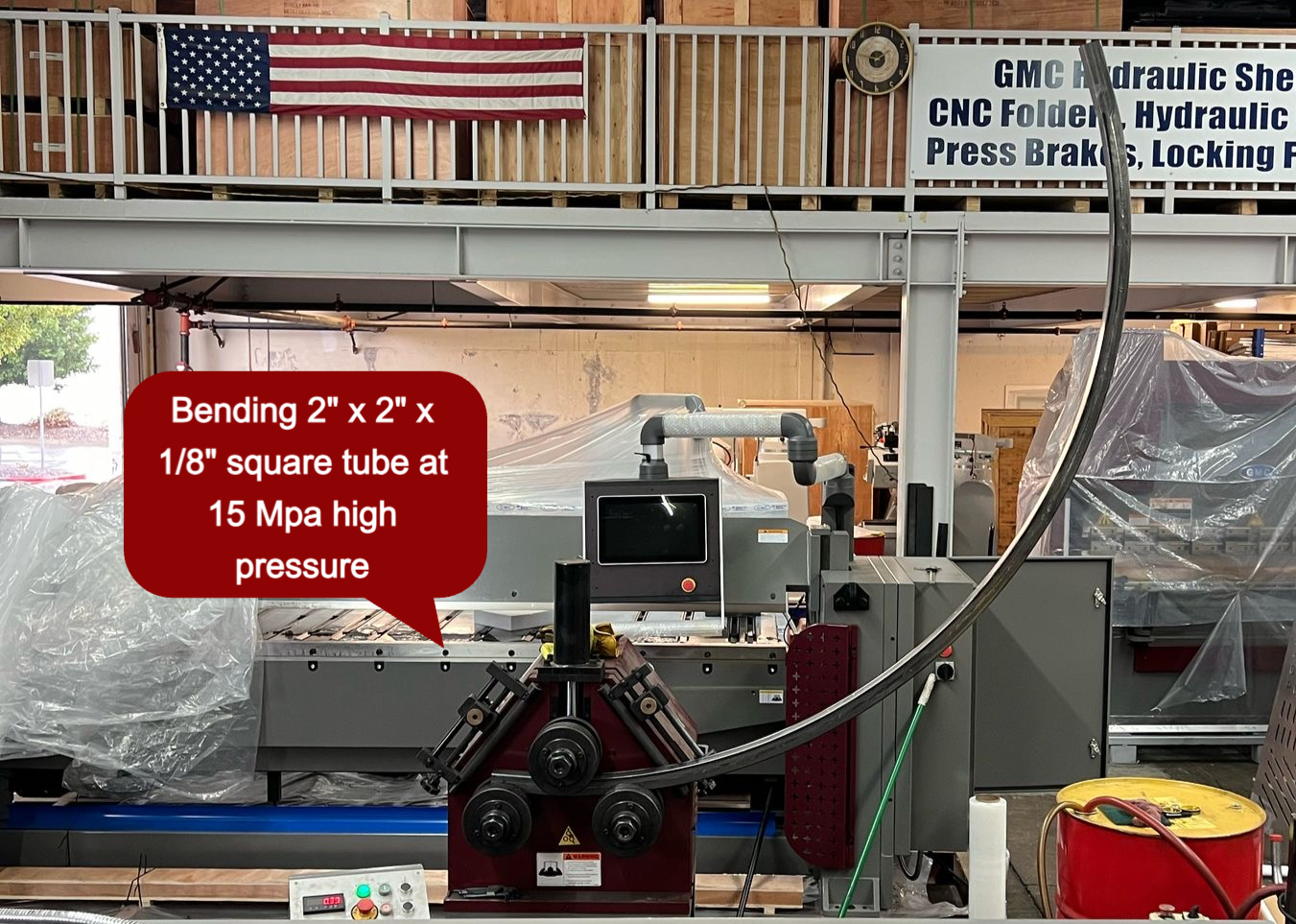

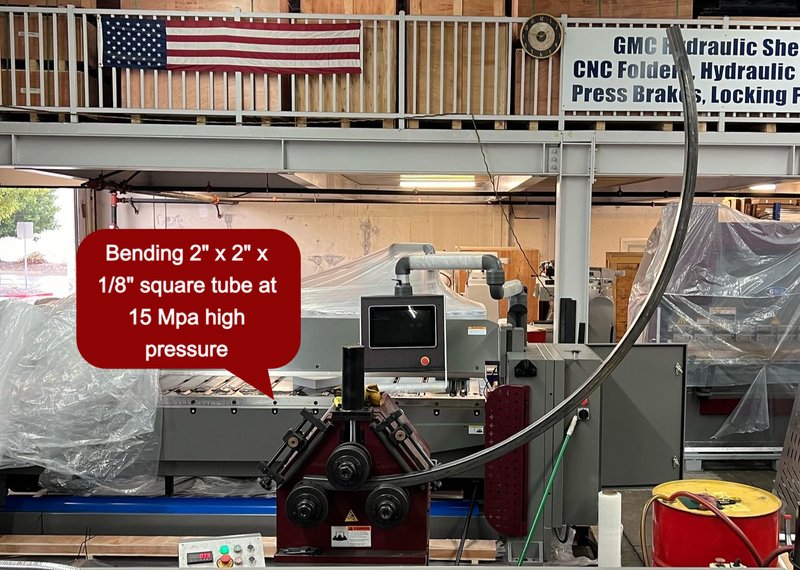

2”x2”x3/16” (wall) / Min. Dia. 24”

Solid Square Tube

1-3/8”x1-3/8” / Min. Dia. 24”

Solid Flat Bar

4”x9/16” (wall) / Min. Dia. 36”

Solid Flat Bar

2-3/8”x3/8” (wall) / Min. Dia. 20”

Angle Flat Bar

2-3/4”x2”x3/8” (wall) / Min. Dia. 47”

Angle Iron Leg-In

2”x3/16”(wall) / Min. Dia. 28”

Angle Iron Let-Out

2”x3/16”(wall) / Min. Dia. 20”

T-Iron Leg-In

2”x3/16” (wall) / Min. Dia. 28”

T-Iron Leg-Out

2”x3/16” (wall) / Min. Dia. 20”

Channel Leg-In

3-1/8”x1-3/4”x3/16” / Min. Dia. 26”

Channel Leg-Out

3-1/8”x1-3/4”x3/16” / Min. Dia. 24”

Dia. of Roller

7 1/2"

Dia. of Roller Shaft

2"

Roller Speed

16 RPM

Motor

3 HP, 220VAC 3-Phase
(Optional 440VAC)

Dimensions

40" x 35" x 65"

Weight

1,050 lbs.
