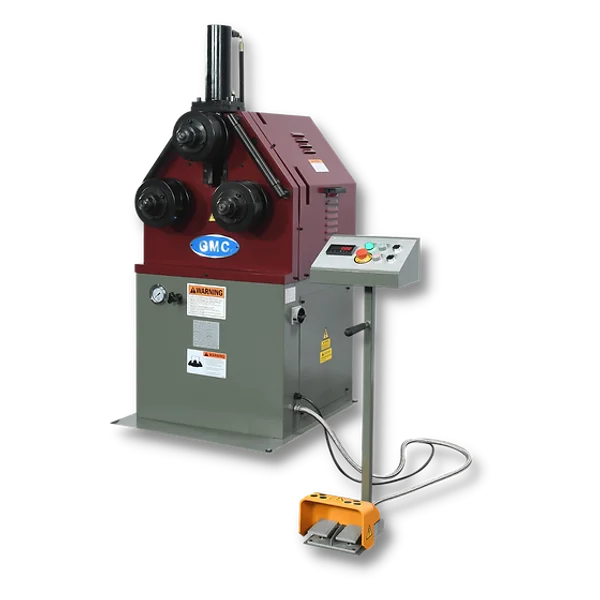

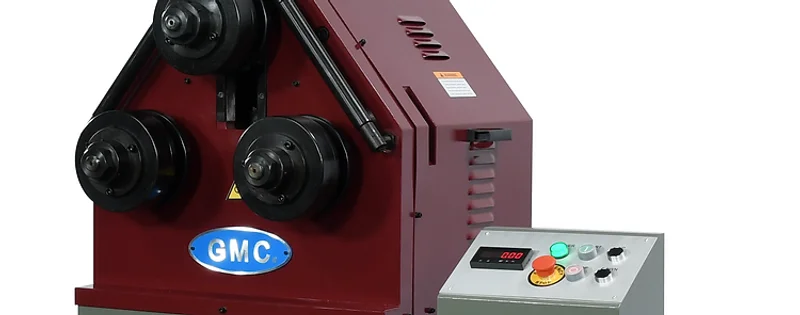

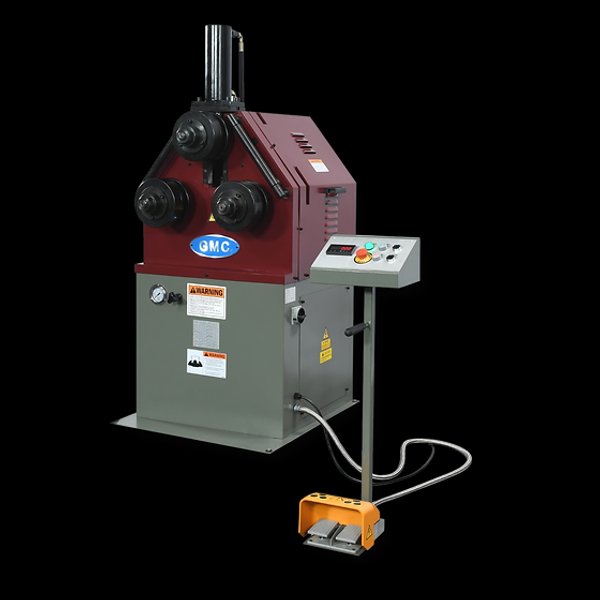

NEW GMC MODEL PRB-55H HYDRAULIC ANGLE ROLL BENDER WITH MANUAL POSITIONING

Brand
GMC
Category
Bending & Forming Equipment
Type
Rolls, Angle Bending
Model
PRB-55H
Stock #
19355
Year
Not specified
Condition
New

Location

Not specified
REQUEST FINANCING
NEW GMC MODEL PRB-55H HYDRAULIC ANGLE ROLL BENDER WITH MANUAL POSITIONING
  • ISO 9001 certified
  • 2” schedule 40 pipe is the maximum bending capacity, 2.5” round tube 14 Ga. and 2” square tube x 3/16" wall
  • Easy to operate in two positions; vertically and horizontally on its back
  • DRO -Digitally displays your exact position and ensures repeatability
  • Heavy Duty 3HP AC main motor
  • 1 - Top forming roll (hydraulic driven)
  • 2 - Driven bottom rolls
  • Robust, all steel and welded framework
  • Quiet, compact, hydraulic system that ensures precision and improves productivity
  • Adjustable pressure control valve
  • 1-year parts only warranty and lifetime tech support (by video and phone)


EQUIPPED WITH
  • One set of universal combination rollers can do most works except pipes &  round tubes (will need special dies)
  • Digital Readout (ensures repeatability and digitally displays your exact position)
  • Left and right guide rollers (easily adjustable)
  • Foot pedal (controls forward and reverse)
  • Digital Readout (digital display)
  • 4 - metal support legs for horizontal position

OPTIONAL ROLL SETS
  • One Roll Set (3 rolls) - for pipe & round tubing, any size -call for pricing
  • Anti-twisting attachment - $call for pricing


Roll Adjustment Hydraulic Driven
Dia. of roller 7.5"
Dia. of roller shaft 2"
Roller speed 16 RPM
Main Motor

3 HP 220VAC 3 Ph.

(Optional 440VAC)
Dimensions 40" x 35" x 65"
Weight 1,120 LBS

Oil Tank Capacity

(only fill up 90%)

 7 Gal.
Recommended Hydraulic Oil

Texaco-Rando HD-68 Hydraulic Oil

Shell AW-68 Hydraulic Oil
