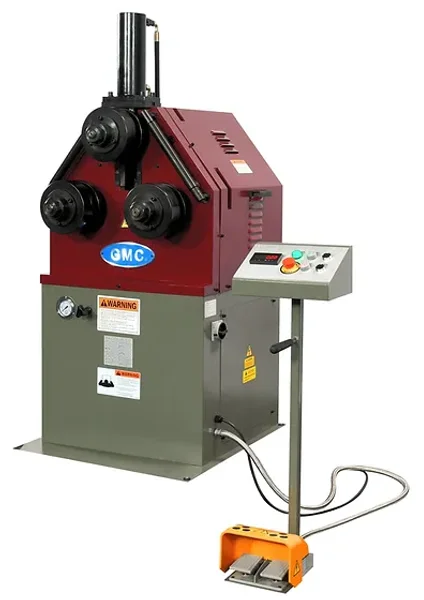

NEW GMC MODEL PRB-75H ANGLE ROLL BENDER WITH 3" SQUARE DIES

Brand
GMC
Category
Bending & Forming Equipment
Type
Rolls, Angle Bending
Model
PRB-75H
Stock #
19111
Year
Not specified
Condition
New
Location
Not specified
NEW GMC MODEL PRB-75H ANGLE ROLL BENDER WITH 3" SQUARE DIES
  • ISO 9001 certified
  • Hydraulic top roller positioning with digital readout
  • Max capacity: 4” tube and 3-1/2” pipe
  • Heavy Duty 5-1/2HP AC main motor
  • Heavy welded all steel construction
  • Quiet compact hydraulic system
  • Custom-made rollers are available per request, such as steel, nylon, etc.
  • One year industrial warranty for parts

  • One set of universal combination rollers can do most works, except round tubes & pipes
  • Foot pedal


  1. Optional roller sets for pipe & round tubing, any size, one set (3-rolls) - $1,495.00

  2. Optional anti-twisting attachment - $895.00


    Dia. of Roller 8 1/2"
    Dia. of Roller Shaft 3"
    Roller Speed 16 RPM
    Motor 5-1/2" HP, 220V/440V, 3 Phase
    Dimiensions 51" x 45" x 72"
    Weight (with top roller hydraulic positioning)

    2,450 lbs.



    Oil Capacity 28L =8 Gal

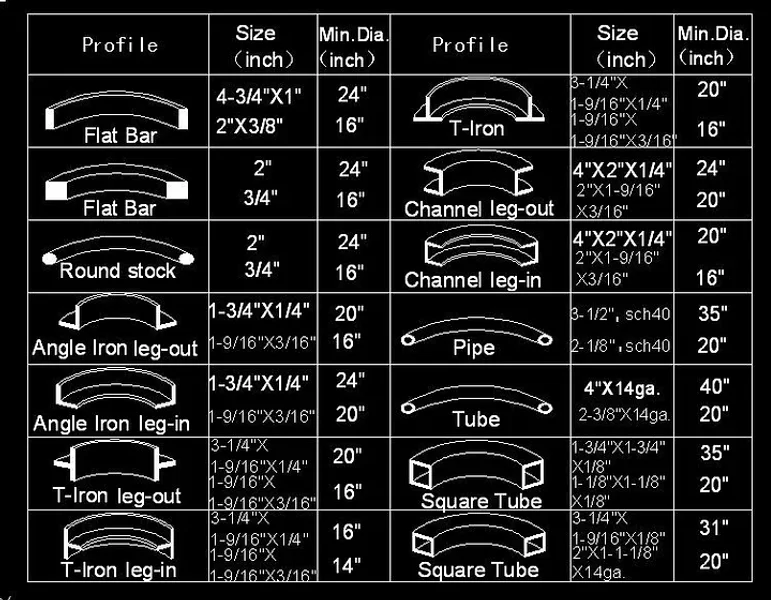

AVAILABLE ROLL SETS ($1,495.00/Set)
34T-PRB-75H ROLL SET FOR 3/4 INCH TUBING FOR GMC PRB-75H
1T-PRB-75H ROLL SET FOR 1 INCH TUBING FOR GMC PRB-75H
 114T-PRB-75H ROLL SET FOR 1-1/4 INCH TUBING FOR GMC PRB-75H
112T-PRB-75H ROLL SET FOR 1-1/2 INCH TUBING FOR GMC PRB-75H
2T-PRB-75H ROLL SET FOR 2 INCH TUBING FOR GMC PRB-75H

212T-PRB-75H



3T-PRB-75H

ROLL SET FOR 2-1/2 INCH TUBING FOR GMC PRB-75H



ROLL SET FOR 3 INCH TUBING FOR GMC PRB-75H
34P-PRB-75H ROLL SET FOR 3/4 INCH PIPE FOR GMC PRB-75H
1P-PRB-75H ROLL SET FOR 1 INCH PIPE FOR GMC PRB-75H
114P-PRB-75H ROLL SET FOR 1-1/4 INCH PIPE FOR GMC PRB-75H
112P-PRB-75H ROLL SET FOR 1-1/2 INCH PIPE FOR GMC PRB-75H
2P-PRB-75H ROLL SET FOR 2 INCH PIPE FOR GMC PRB-75H

212P-PRB-75H



3P-PRB-75H

ROLL SET FOR 2-1/2 INCH PIPE FOR GMC PRB-75H



ROLL SET FOR 3 INCH PIPE FOR GMC PRB-75H
