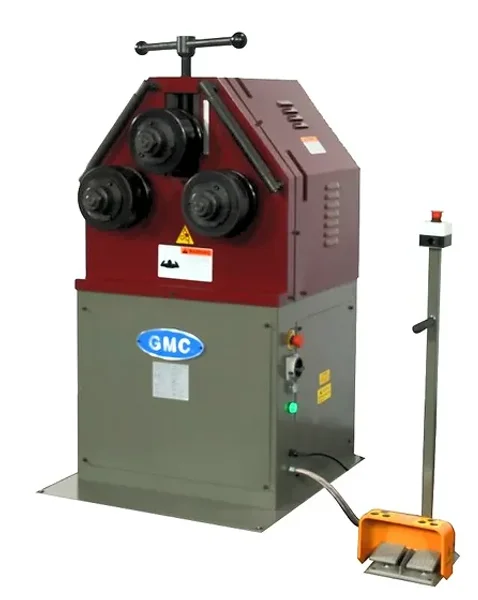

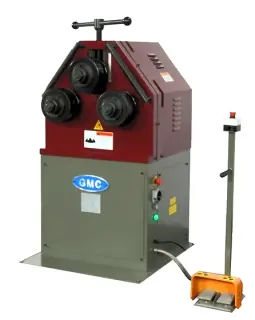

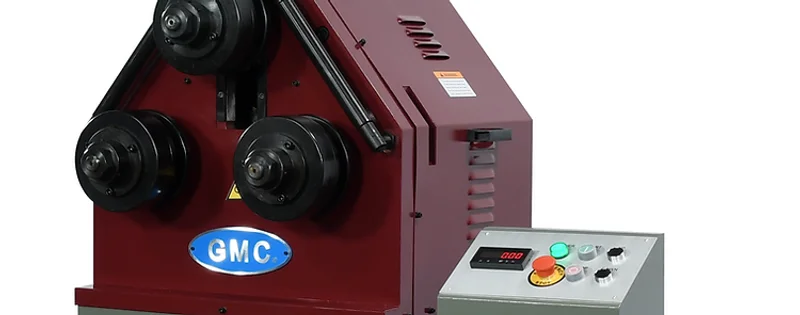

NEW GMC MODEL PRB-55-1PH ANGLE ROLL BENDER WITH MANUAL POSITIONING & SINGLE PHASE
- ISO 9001 certified

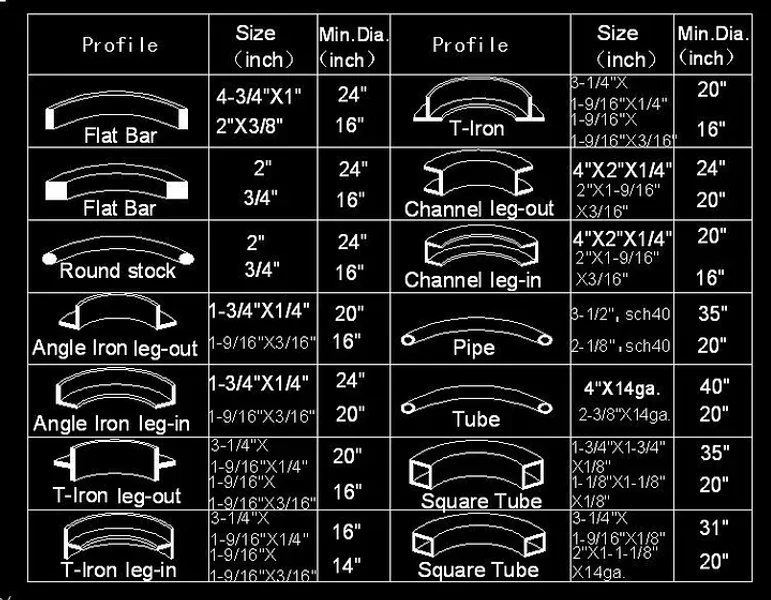

- 2” schedule 40 pipe is the maximum bending capacity, 2.5” round tube 14 Ga. and 2” square tube
- Easy to operate in two positions; vertically and horizontally on its back
- DRO - Digitally displays your exact position and ensures repeatability
- Heavy Duty 4HP AC main motor

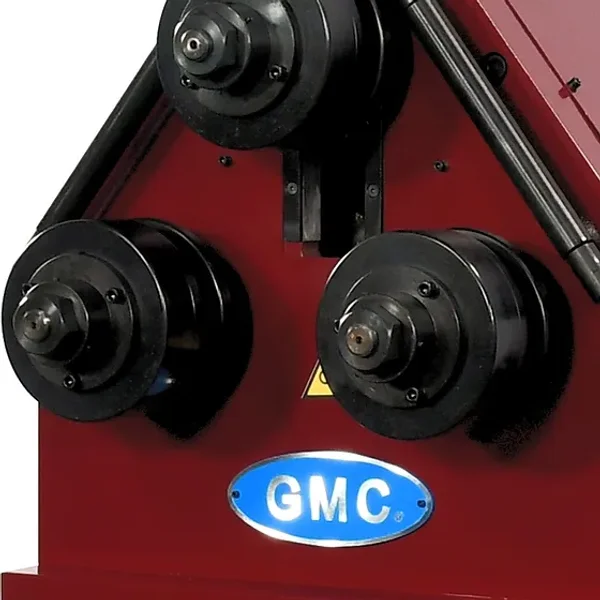

- 1 - Top forming roll (hydraulic driven)
- 2 - Driven bottom rolls
- Robust, all steel and welded framework
- Quiet, compact, hydraulic system that ensures precision and improves productivity
- Adjustable pressure control valve
- 1-year parts only warranty and lifetime tech support by video and phone
- Equipped with 1-set of universal forming rolls suitable for many applications
- Digital Readout (ensures repeatability and digitally displays your exact position)
- Left and right guide rollers (easily adjustable)
- Foot pedal (controls forward and reverse)
- Digital Readout (digital display)
- 4-metal support legs for horizontal position
- Optional roller sets for pipe & round tubing, any size, one set (3 rolls) - $995.00
- Optional anti-twisting attachment - $595.00
Specifications
|
Model
|
PRB-55H-1PH
|
Roll Adjustment
|
Hydraulic Driven
|
Dia. of roller
|
7-1/2”
|
Dia. of roller shaft
|
2”
|
Roller speed
|
16 RPM
|
Main Motor
|
4 HP Single Phase
Prewired: 220VAC | 15A
|
Dimensions
|
40in x 35in x 65in
|
Weight
|
1,120 LBS
|
Oil Tank Capacity
(only fill up 90%)
|
7 Gal.
|
Recommended Hydraulic Oil
|
Texaco-Rando HD-68 Hydraulic Oil
Shell AW-68 Hydraulic Oil
|
RECOMMENDED ROLL SETS
34T-PRB55 |
ROLL SET FOR 3/4 INCH TUBING FOR GMC PRB-55 OR 55H |
1T-PRB55 |
ROLL SET FOR 1 INCH TUBING FOR GMC PRB-55 OR 55H |
114T-PRB55 |
ROLL SET FOR 1-1/4 INCH TUBING FOR GMC PRB-55 OR 55H |
112T-PRB55 |
ROLL SET FOR 1-1/2 INCH TUBING FOR GMC PRB-55 OR 55H |
2T-PRB55 |
ROLL SET FOR 2 INCH TUBING FOR GMC PRB-55 OR 55H |
212T-PRB55 |
ROLL SET FOR 2-1/2 INCH TUBING FOR GMC PRB-55 OR 55H |
34P-PRB55 |
ROLL SET FOR 3/4 INCH PIPE FOR GMC PRB-55 OR 55H |
1P-PRB55 |
ROLL SET FOR 1 INCH PIPE FOR GMC PRB-55 OR 55H |
114P-PRB55 |
ROLL SET FOR 1-1/4 INCH PIPE FOR GMC PRB-55 OR 55H |
112P-PRB55 |
ROLL SET FOR 1-1/2 INCH PIPE FOR GMC PRB-55 OR 55H |
2P-PRB55 |
ROLL SET FOR 2 INCH PIPE FOR GMC PRB-55 OR 55H |
|
