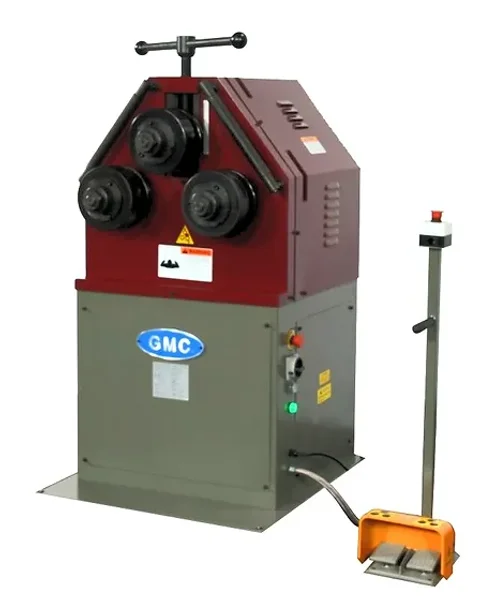

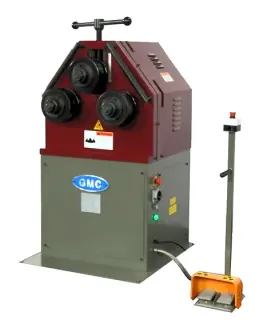

NEW GMC MODEL PRB-55 ANGLE ROLL BENDER WITH MANUAL POSITIONING

Brand
GMC
Category
Bending & Forming Equipment
Type
Rolls, Angle Bending
Model
PRB-55
Stock #
19110
Year
Not specified
Condition
New
Location
Not specified
NEW GMC MODEL PRB-55 ANGLE ROLL BENDER WITH MANUAL POSITIONING
  • ISO 9001 certified
  • 2” schedule 40 pipe is the maximum bending capacity, 2.5” round tube 14 Ga. and 2” square tube
  • Heavy Duty 3HP AC main motor

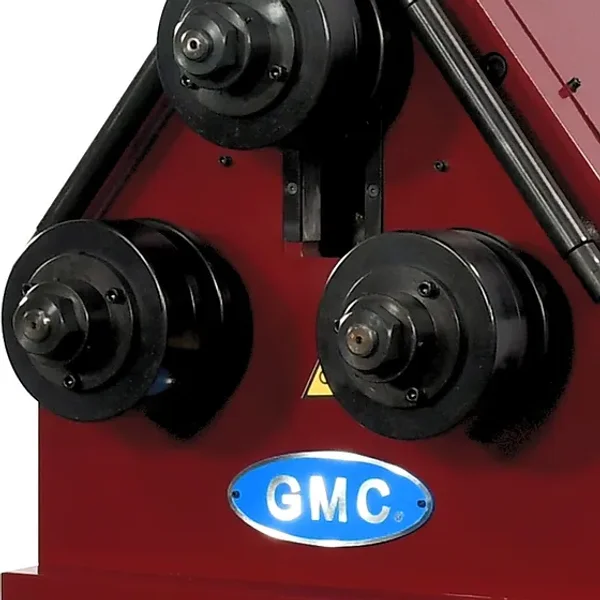

  • 1 top forming roll (manually driven)
  • 2 driven bottom rolls
  • Robust, all steel and welded framework
  • 1-year parts only warranty and lifetime tech support by video and phone

  • Equipped with 1-set of universal forming rolls suitable for many applications
  • Left and right guide rollers (easily adjustable)
  • Foot pedal (controls forward and reverse

  1. Optional roller sets for pipe & round tubing, any size, one set (3 rolls) - $995.00
  2. Optional anti-twisting attachment - $595.00

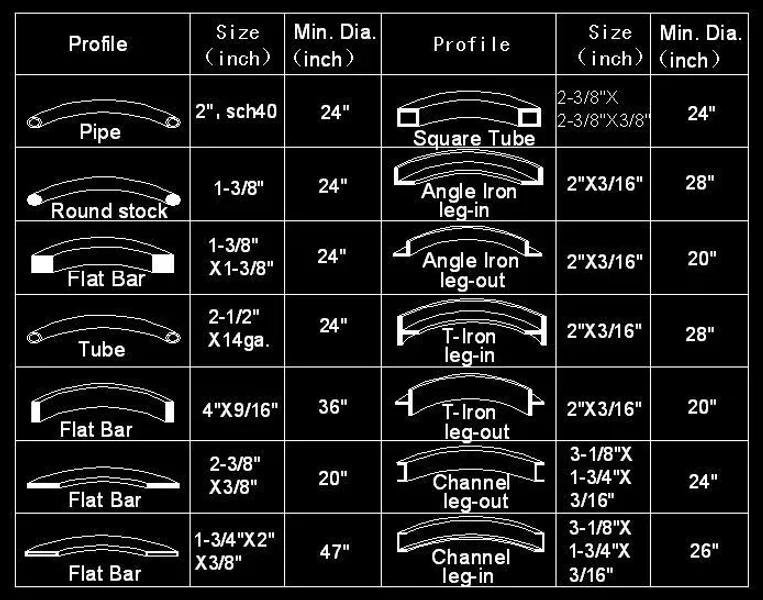

Model

PRB-55

Pipe Capacity

2” schedule 40 / Min. Dia.24”

Tube Capacity

2-1/2”x14 Ga. (wall) / Min. Dia. 24”

Solid Round Tube

1-3/8”  / Min. Dia. 24”

Square Tube

2”x2”x3/16” (wall) / Min. Dia. 24”

Solid Square Tube

1-3/8”x1-3/8” / Min. Dia. 24”

Solid Flat Bar

4”x9/16” (wall) / Min. Dia. 36”

Solid Flat Bar

2-3/8”x3/8” (wall) / Min. Dia. 20”

Angle Flat Bar

2-3/4”x2”x3/8” (wall) / Min. Dia. 47”

Angle Iron Leg-In

2”x3/16”(wall) / Min. Dia. 28”

Angle Iron Let-Out

2”x3/16”(wall) / Min. Dia. 20”

T-Iron Leg-In

2”x3/16” (wall) / Min. Dia. 28”

T-Iron Leg-Out

2”x3/16” (wall) / Min. Dia. 20”

Channel Leg-In

3-1/8”x1-3/4”x3/16” / Min. Dia. 26”

Channel Leg-Out

3-1/8”x1-3/4”x3/16” / Min. Dia. 24”

Dia. of Roller

7 1/2"

Dia. of Roller Shaft

2"

Roller Speed

16 RPM

Motor

3 HP, 220VAC 3-Phase
(Optional 440VAC)

Dimensions

40" x 35" x 65"

Weight

1,050 lbs.



AVAILABLE ROLL SETS
34T-PRB55 ROLL SET FOR 3/4 INCH TUBING FOR GMC PRB-55 OR 55H
1T-PRB55 ROLL SET FOR 1 INCH TUBING FOR GMC PRB-55 OR 55H
114T-PRB55 ROLL SET FOR 1-1/4 INCH TUBING FOR GMC PRB-55 OR 55H
112T-PRB55 ROLL SET FOR 1-1/2 INCH TUBING FOR GMC PRB-55 OR 55H
2T-PRB55 ROLL SET FOR 2 INCH TUBING FOR GMC PRB-55 OR 55H
212T-PRB55 ROLL SET FOR 2-1/2 INCH TUBING FOR GMC PRB-55 OR 55H
34P-PRB55 ROLL SET FOR 3/4 INCH PIPE FOR GMC PRB-55 OR 55H
1P-PRB55 ROLL SET FOR 1 INCH PIPE FOR GMC PRB-55 OR 55H
114P-PRB55 ROLL SET FOR 1-1/4 INCH PIPE FOR GMC PRB-55 OR 55H
112P-PRB55 ROLL SET FOR 1-1/2 INCH PIPE FOR GMC PRB-55 OR 55H
2P-PRB55 ROLL SET FOR 2 INCH PIPE FOR GMC PRB-55 OR 55H
