18" x 2.625" x 2,500# Waterbury Farrel Slitting Line

18" x 2.625" x 2,500# Waterbury Farrel Slitting Line

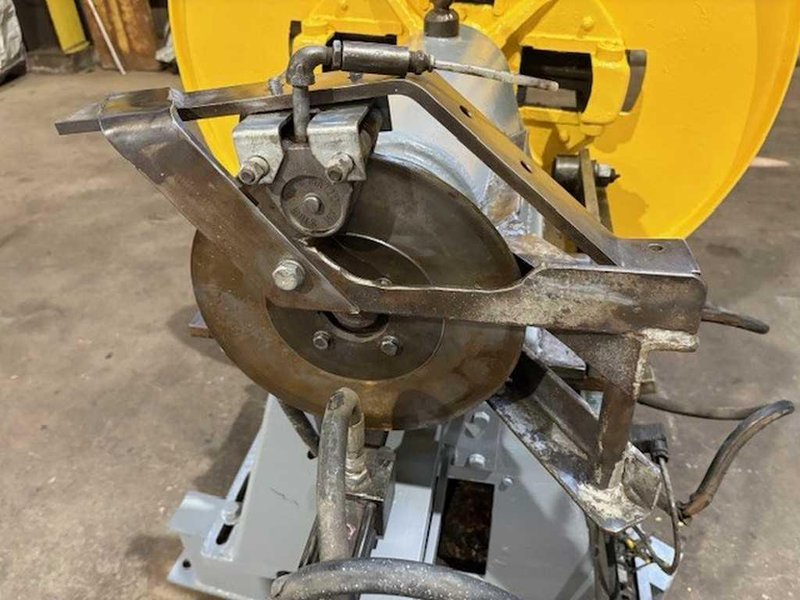

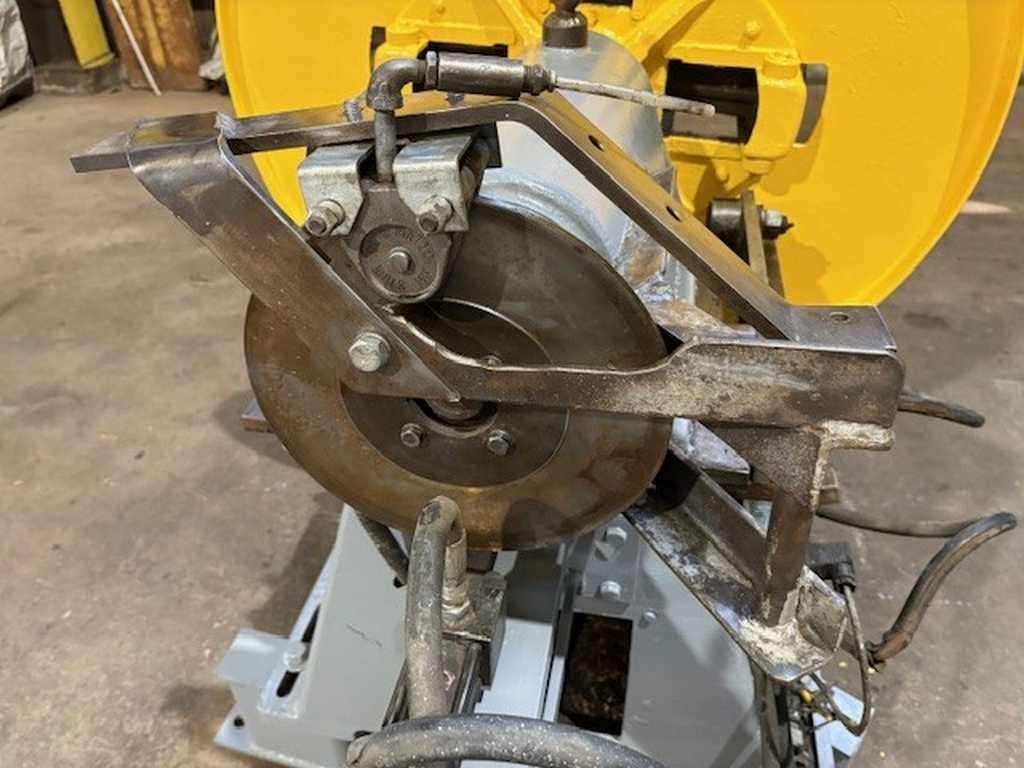

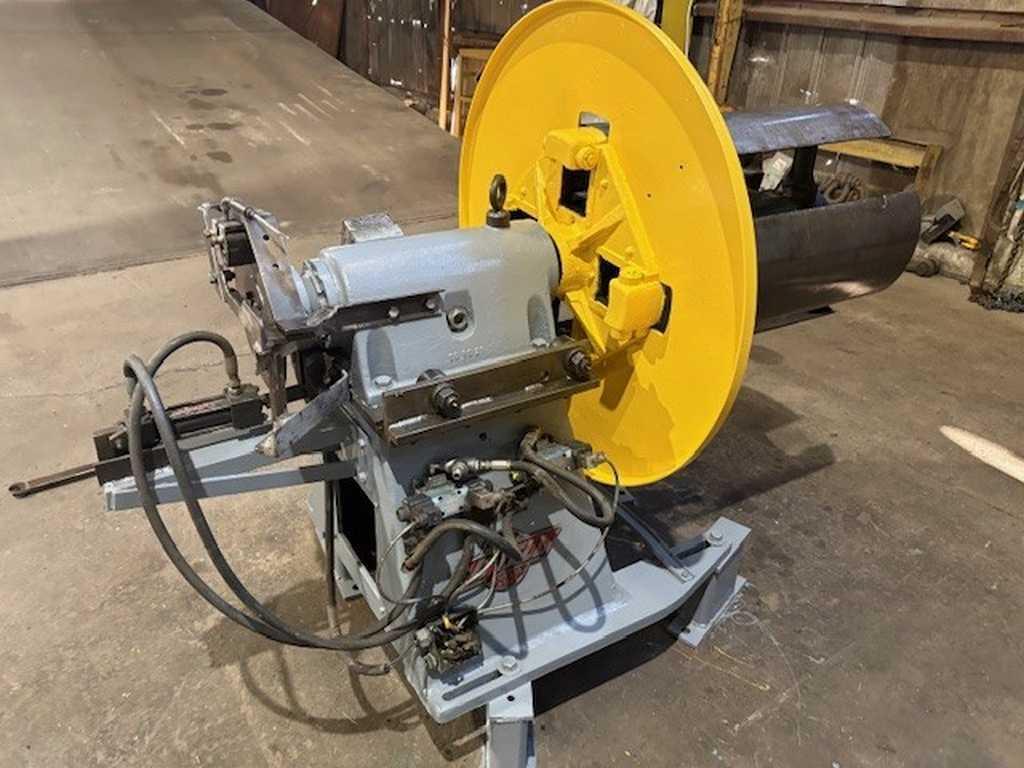

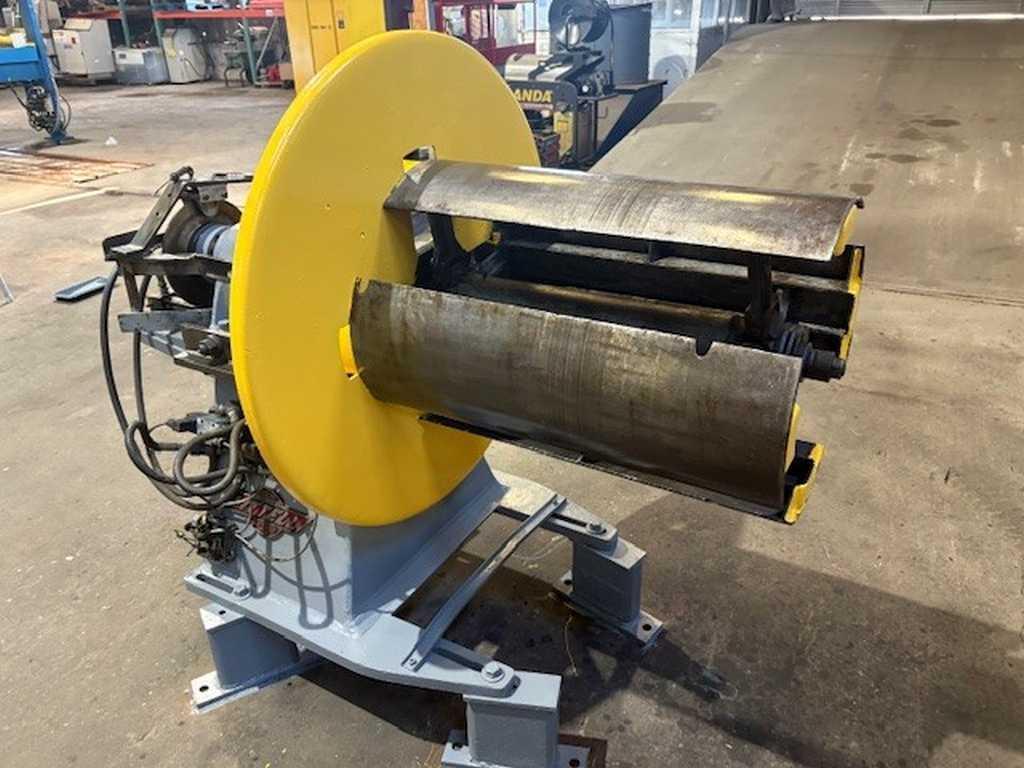

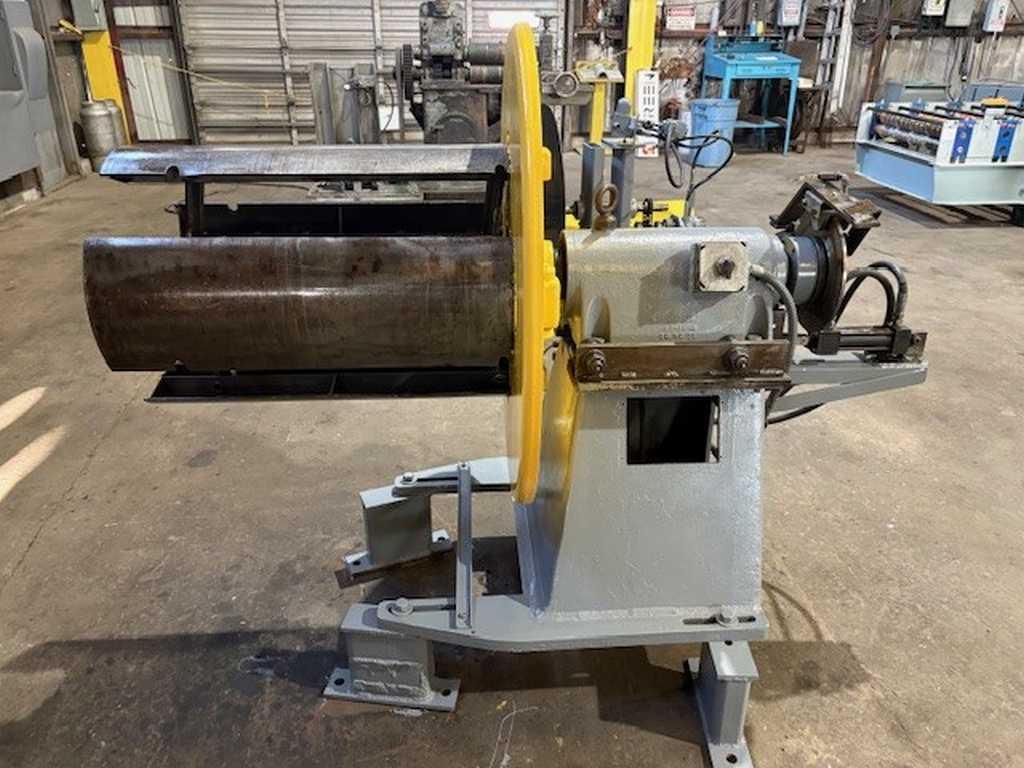

-Uncoiler: Littell
2,500 lb. Capacity
16" - 20" Coil I.D. Range
Manual "Link Type" Expansion
32.5" Mandrel Face Width
Air Operated Disc Brake
Sliding Base, Hydraulic Cylinder Actuated
42" Dia. Back Plate
39.5" Passline from floor to Center of Mandrel
Note: on 9" Riser Blocks
Overall Size: 80" L x 42" W x 60" High

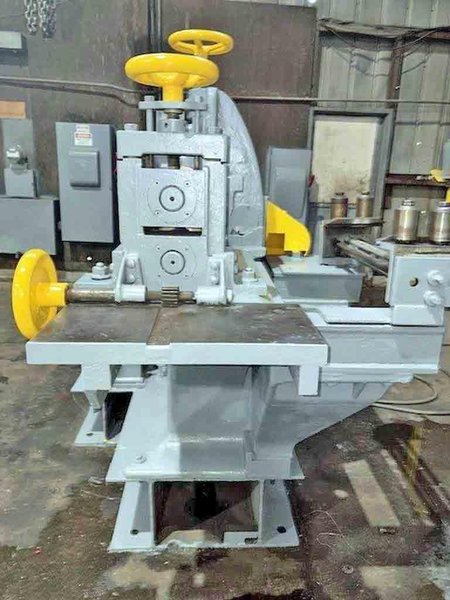

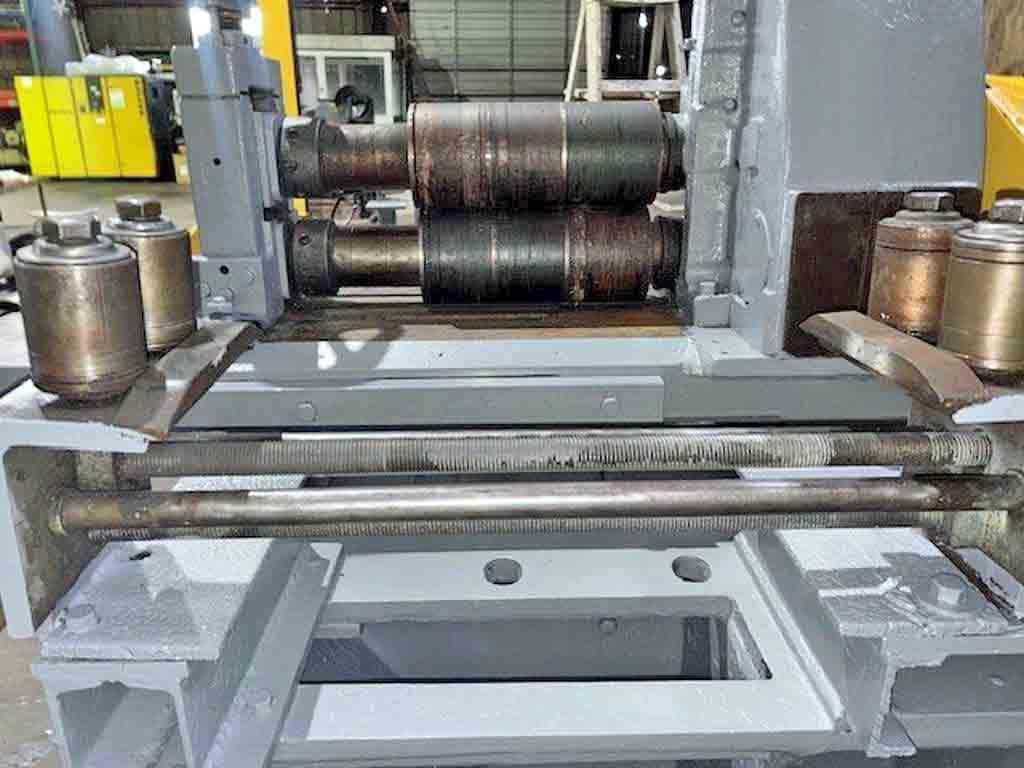

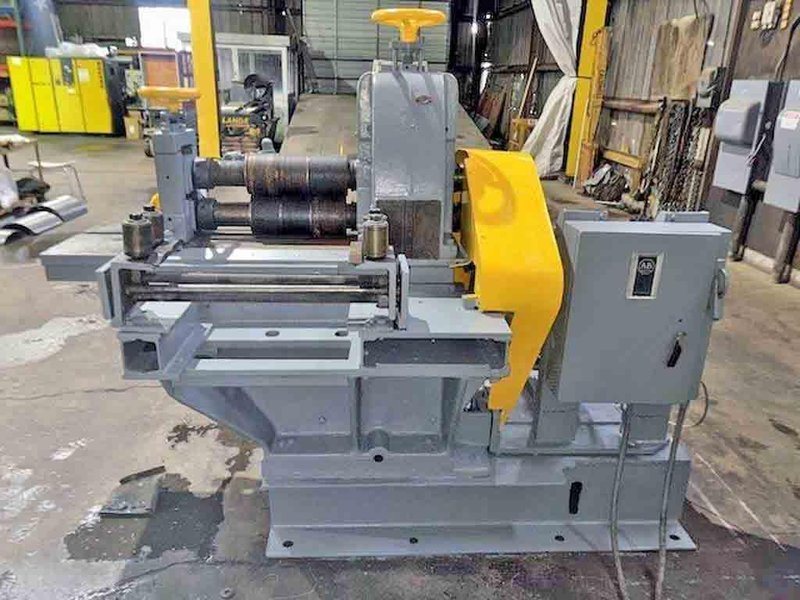

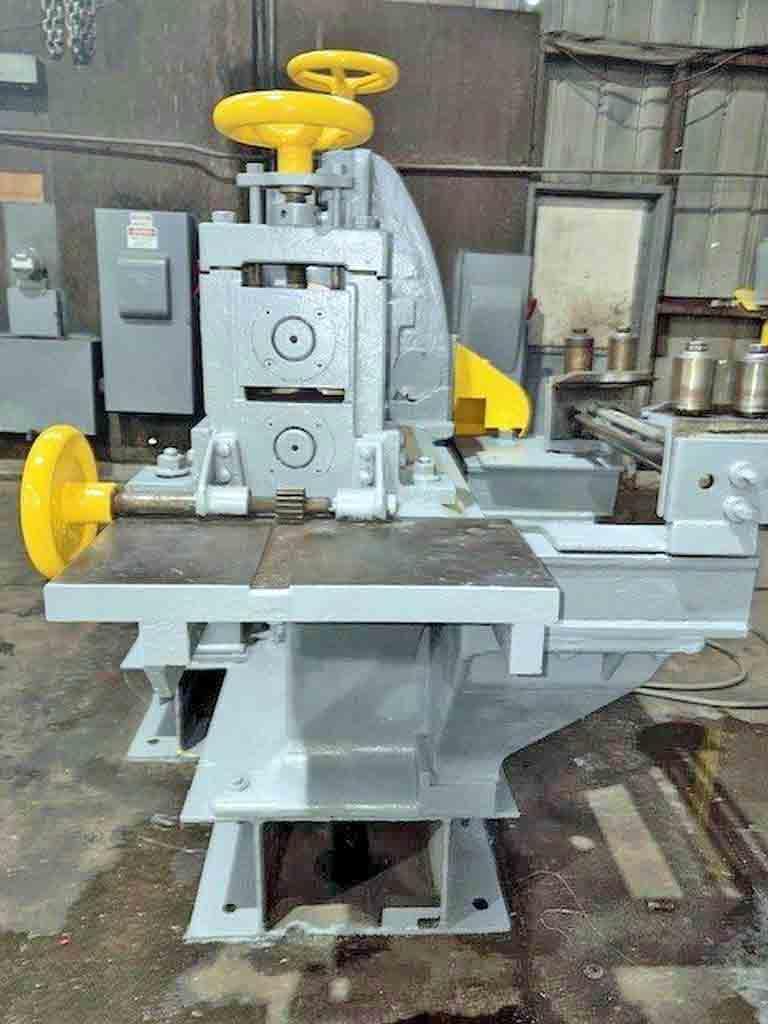

-Slitter Head: Waterbury Farrel
2.625" Dia. x 19" Face Arbors
Manual Parallel Arbor Adjustment
Bottom Arbor Driven
Entry Passline Rolls
Entry Side Guides
Manual Width Adjustment
49" Passline Height
Note: on 12" Beam Riser
0.75 HP Baldor AC Motor Threading Drive
1725 RPM, 115/208 - 230 V
Small amount of tooling
Overall Size: 80" L x 54" W x 72" High

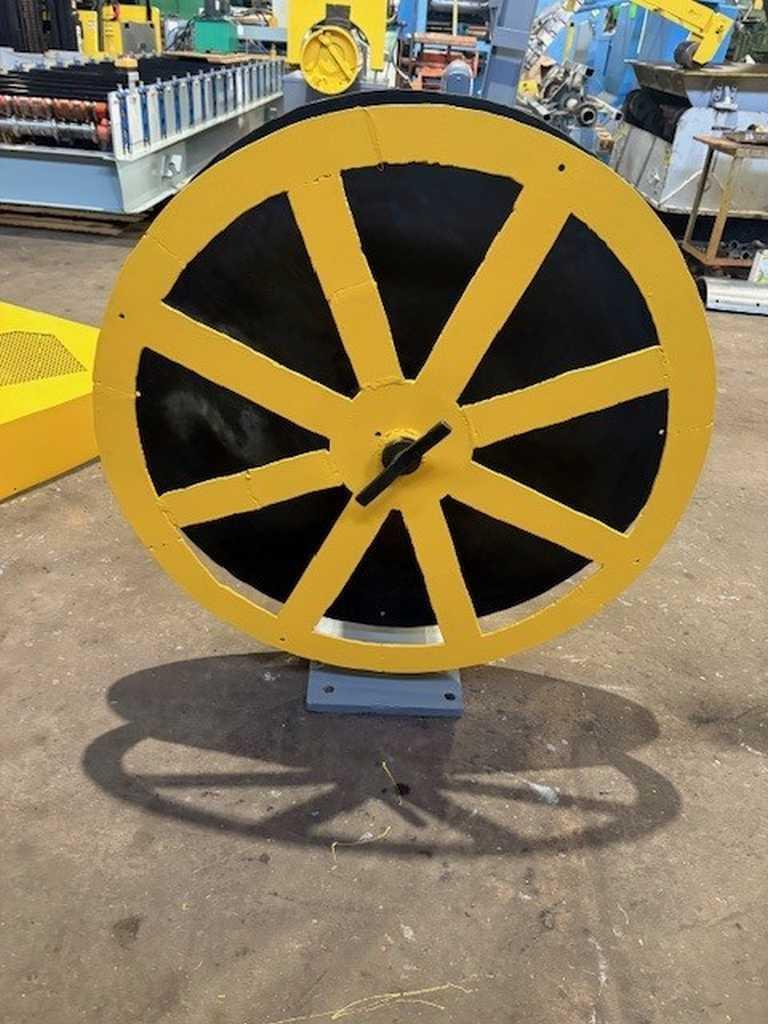

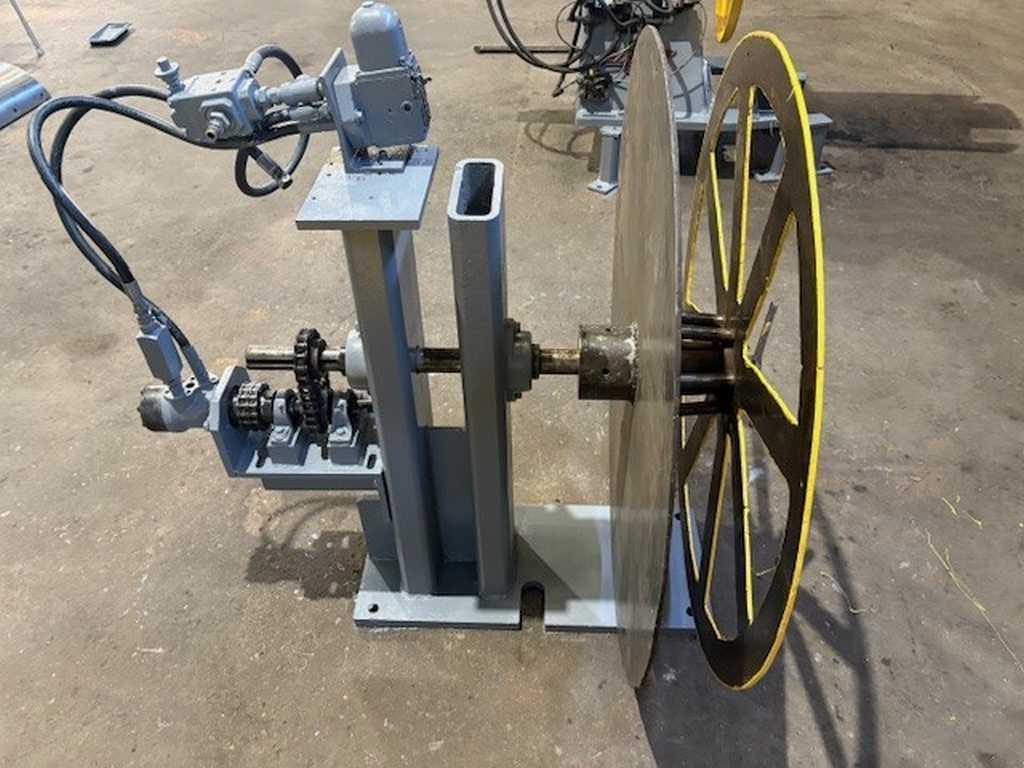

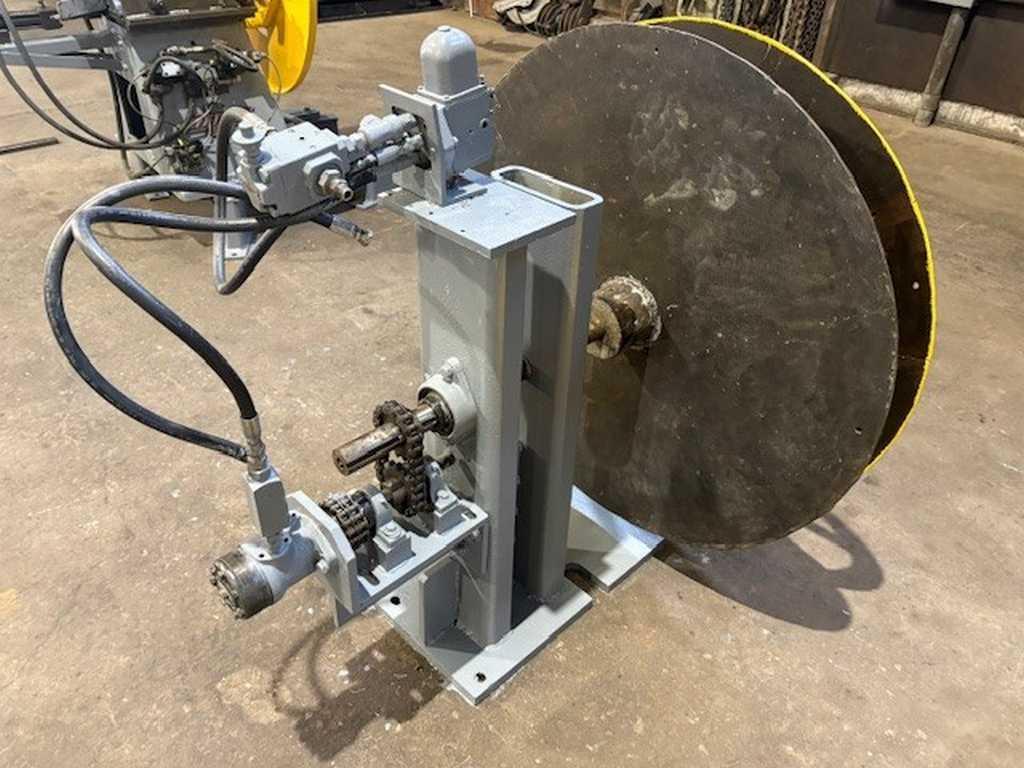

-Scrap Winder:
Hydraulic Motor Driven
6" Wide x 36" Dia. Scrap Ball Capacity (Approx.)
Manual Scrap Ball Removal
No Oscillate Wind Device
Overall Size: 44" L x 41" W x 47" High

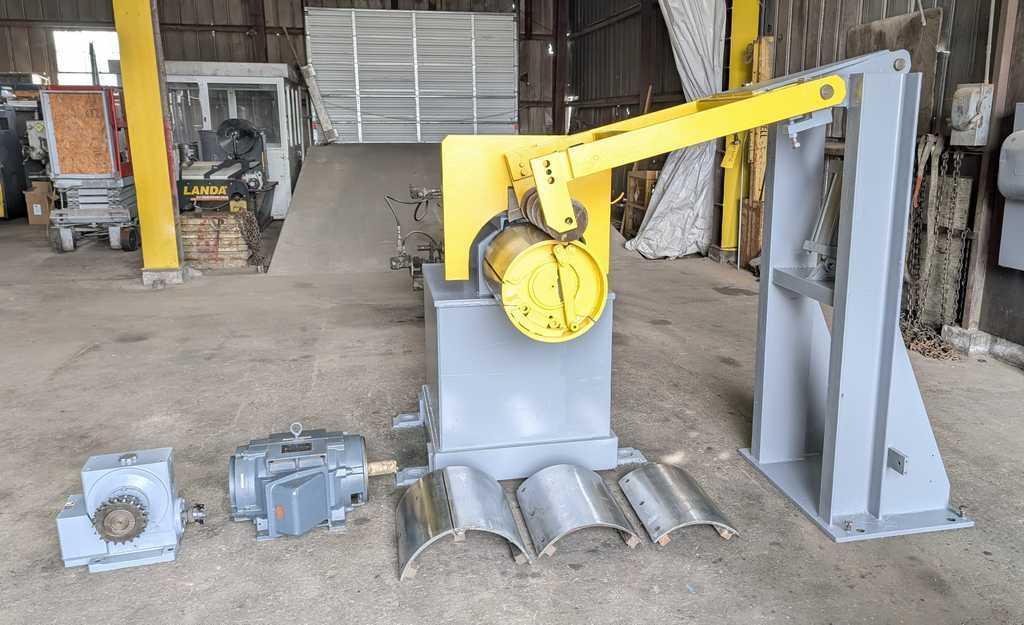

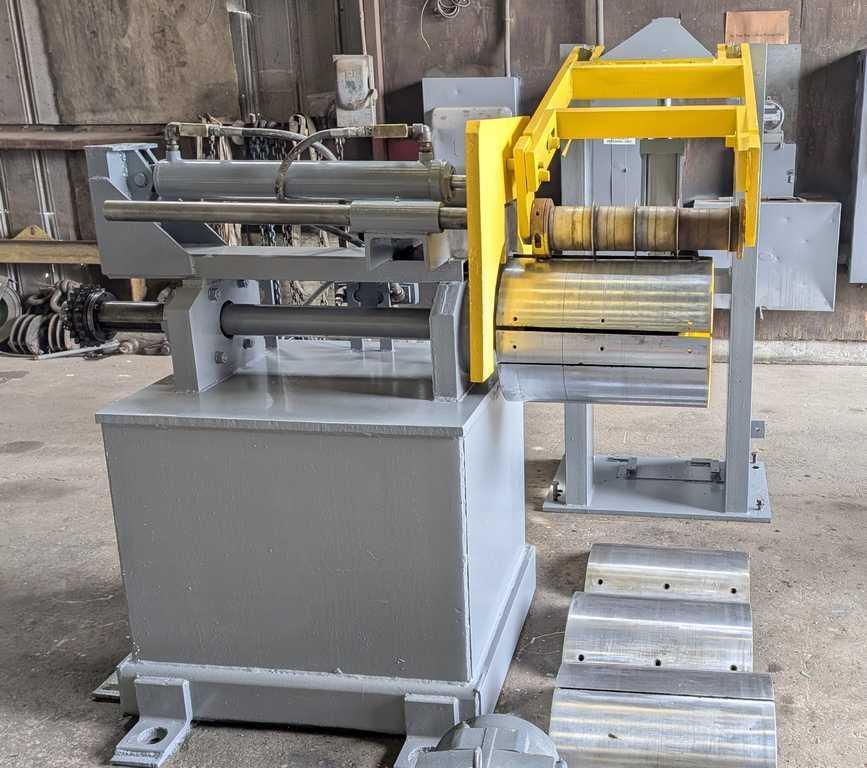

-Recoiler:
16" Dia. x 21" Face Drum
Manual Expansion
20" Dia. Bolt on Pads
Material Slot (No Gripper)
3.5" Dia. Main Shaft
39" Passline from floor to Center of Drum
Hydraulic Pushoff
20 HP Lincoln AC Drive Motor
1165 RPM, 230/460V
Link Belt Right Angle Reducer with 17.28:1 Ratio
Overall Size: 70" L x 48" W x 61" High

-Overarm Separator:
Free Standing
19.5" Long Tooling Shaft
Hydraulic Cylinder Operated
Overall Size: 70" L x 35" W x 73" High

-Line Direction: Right to Left

-In Storage: Toledo, OH
