18" X 2.625 X 2,500# WATERBURY FARRELL SLITTING LINE STOCK# 3436

Brand
WATERBURY FARREL
Category
Coil Handling Equipment
Type
Slitters & Slitting Lines
Model
Not specified
Stock #
3436
Year
Not specified
Condition
Good

Location

Ohio
REQUEST FINANCING
Max Width Of Workpiece 18 inches
18" x 2.625" x 2,500# Waterbury Farrel Slitting Line

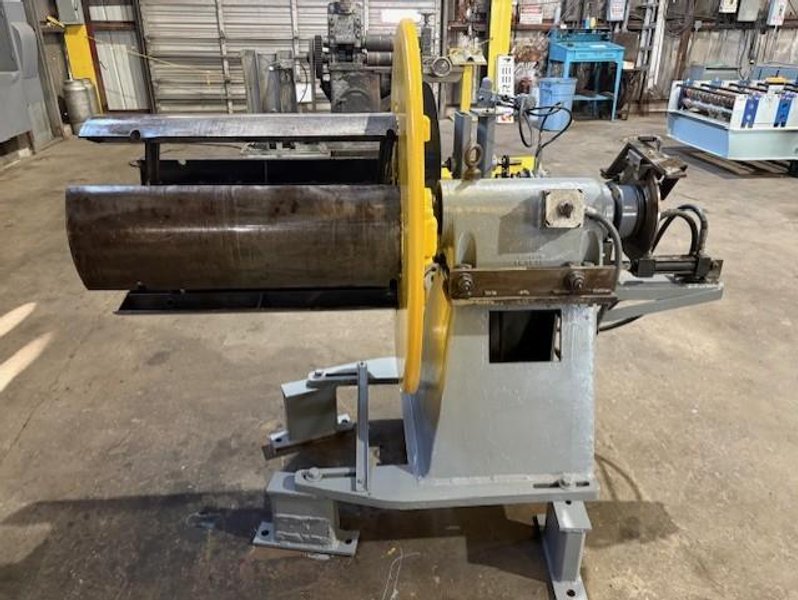

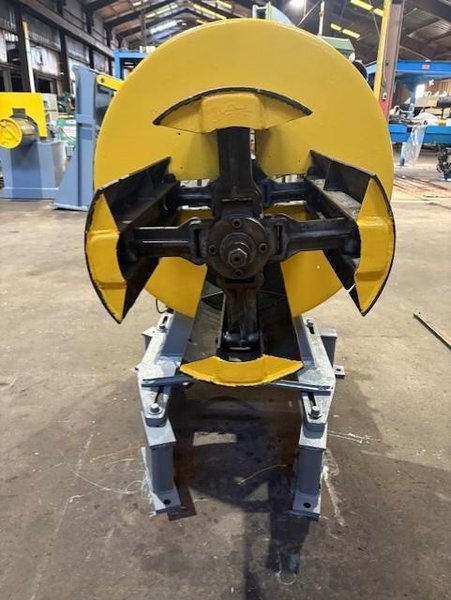

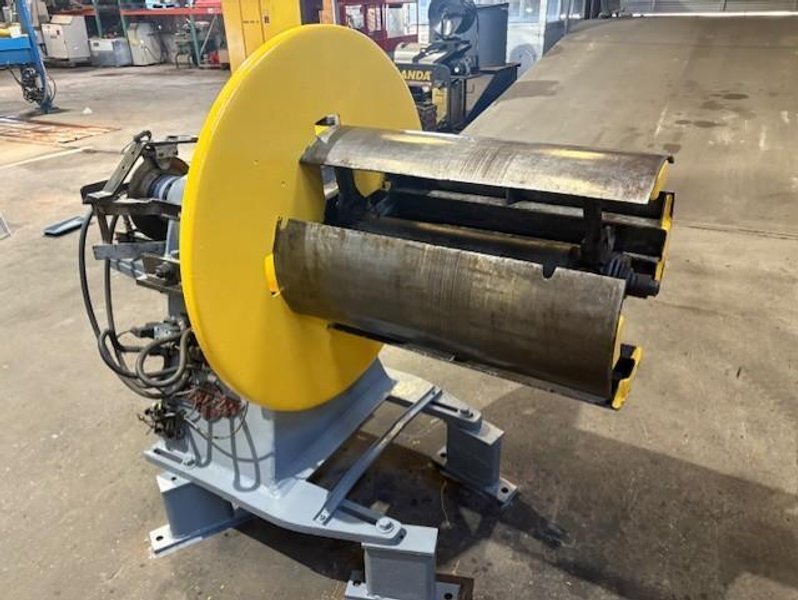

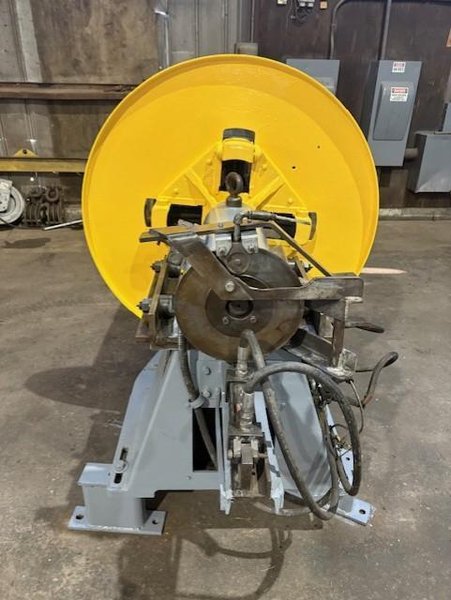

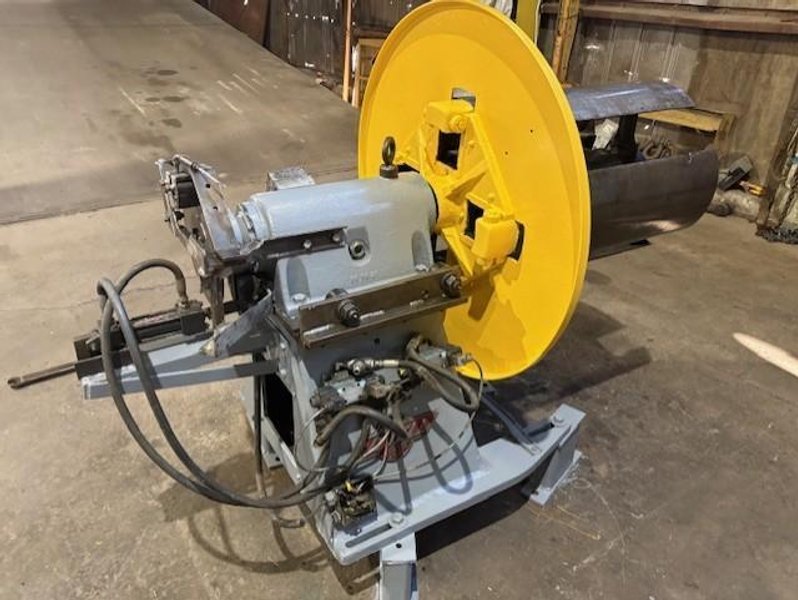

-Uncoiler:  Littell
Model 25-30

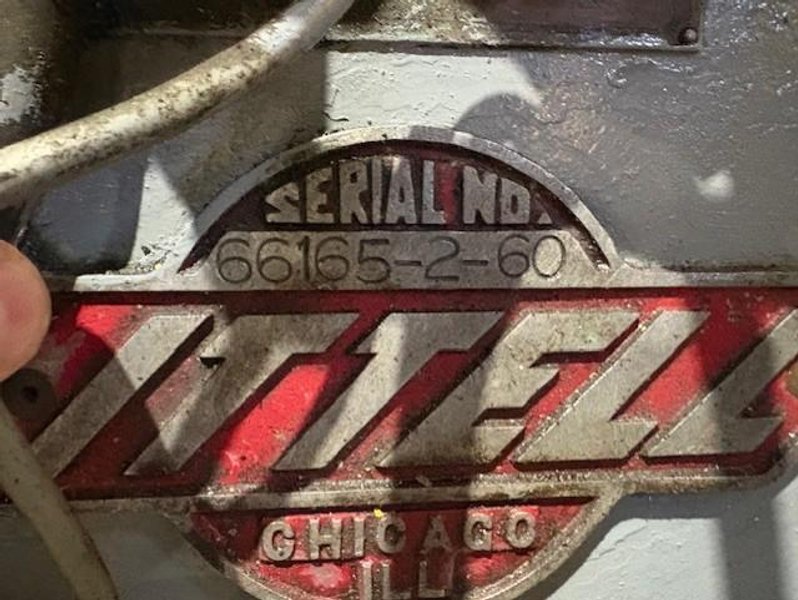

Serial 6616-59-2-60
  2,500 lb. Capacity
  16" - 20" Coil I.D. Range
  Manual "Link Type" Expansion
  32.5" Mandrel Face Width

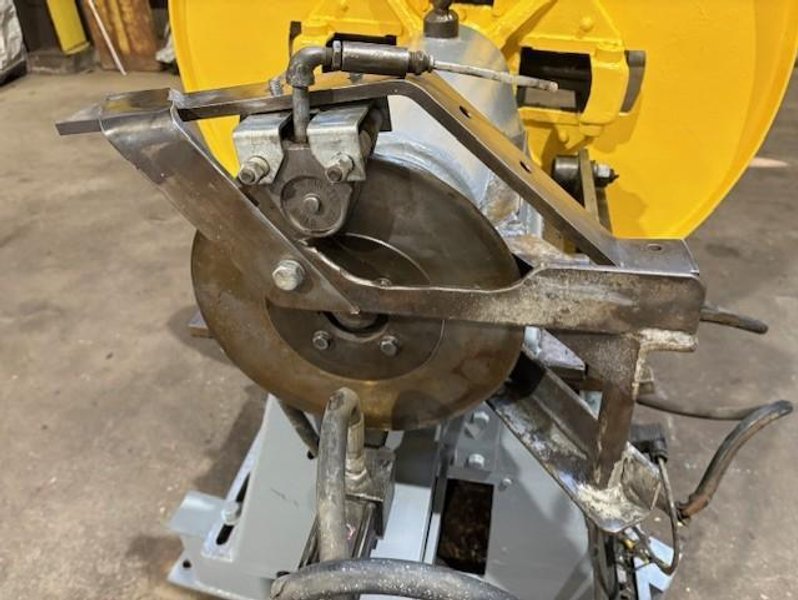

  Air Operated Disc Brake
  Sliding Base, Hydraulic Cylinder Actuated
  42" Dia. Back Plate
  39.5" Passline from floor to Center of Mandrel
    Note:  on 9" Riser Blocks
  Overall Size:  80" L x 42" W x 60" High

-Slitter Head:  Waterbury Farrel
  2.625" Dia. x 19" Face Arbors
  Manual Parallel Arbor Adjustment
  Bottom Arbor Driven
  Entry Passline Rolls
  Entry Side Guides
    Manual Width Adjustment
  49" Passline Height
    Note:  on 12" Beam Riser
  0.75 HP Baldor AC Motor Threading Drive
    1725 RPM, 115/208 - 230 V
  Small amount of tooling
  Overall Size:  80" L x 54" W x 72" High

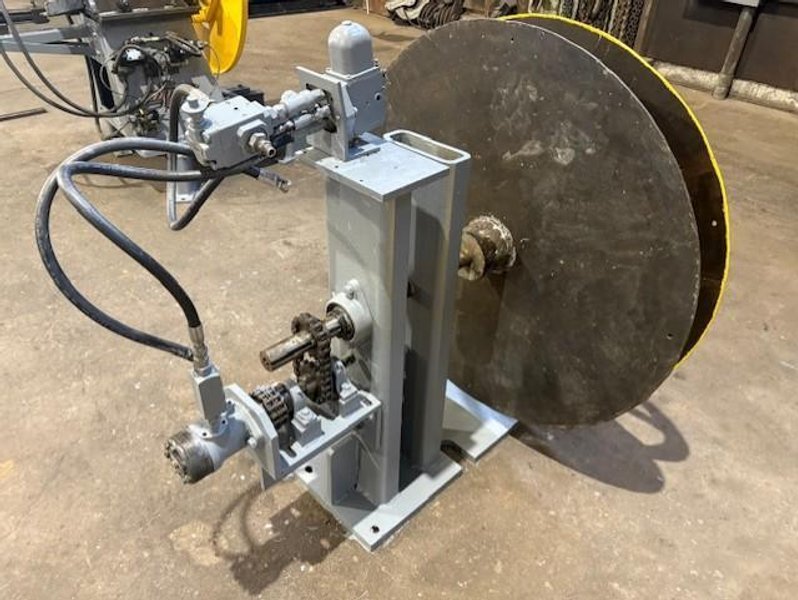

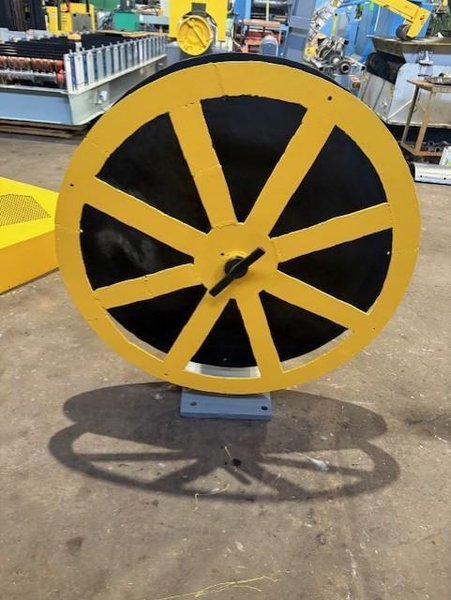

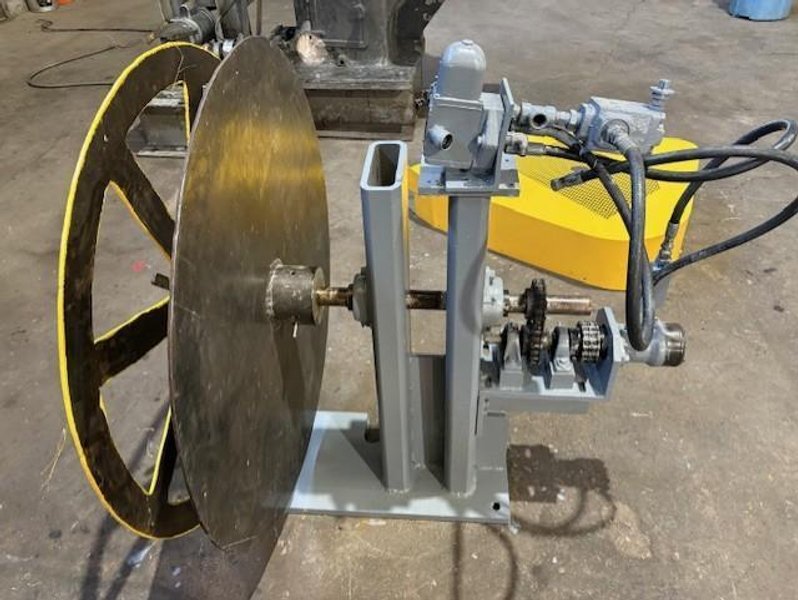

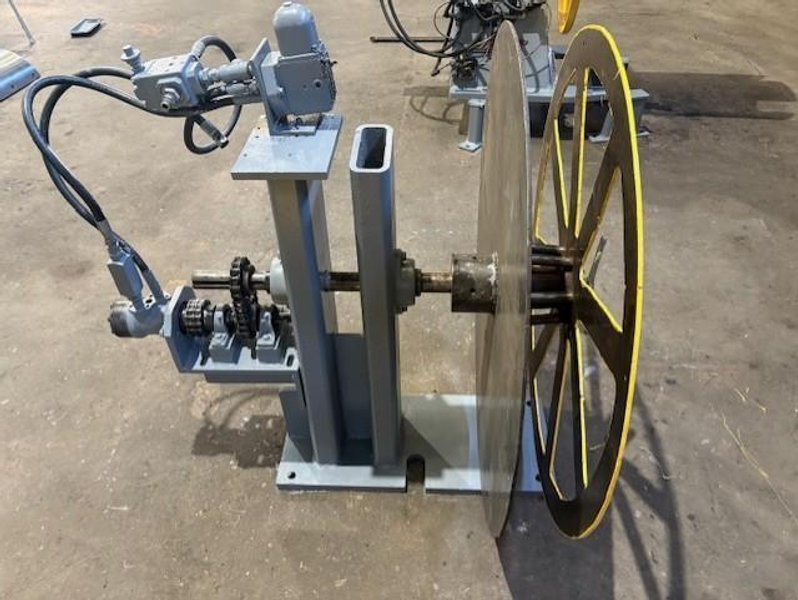

-Scrap Winder:
  Hydraulic Motor Driven
  6" Wide x 36" Dia. Scrap Ball Capacity (Approx.)
  Manual Scrap Ball Removal
  No Oscillate Wind Device
  Overall Size:  44" L x 41" W x 47" High

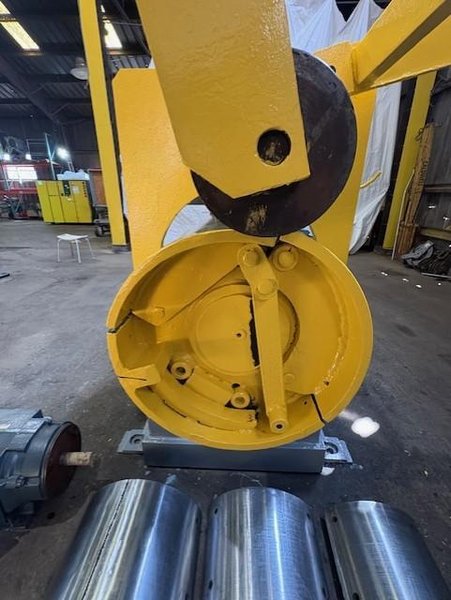

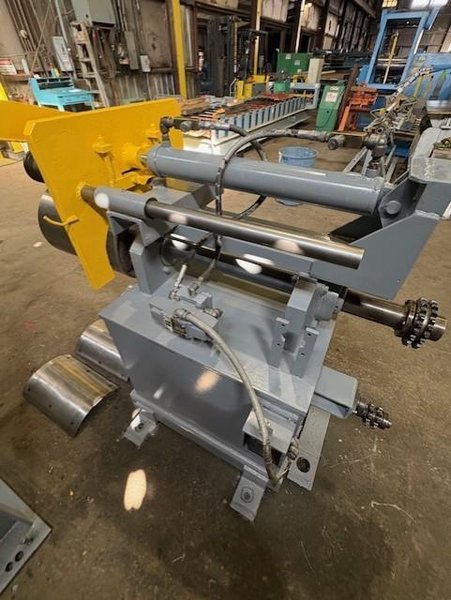

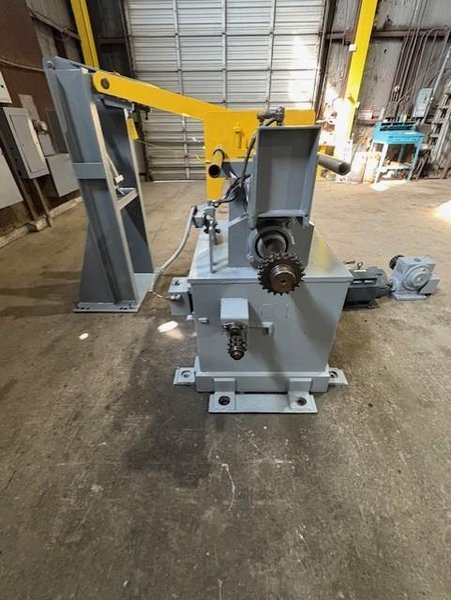

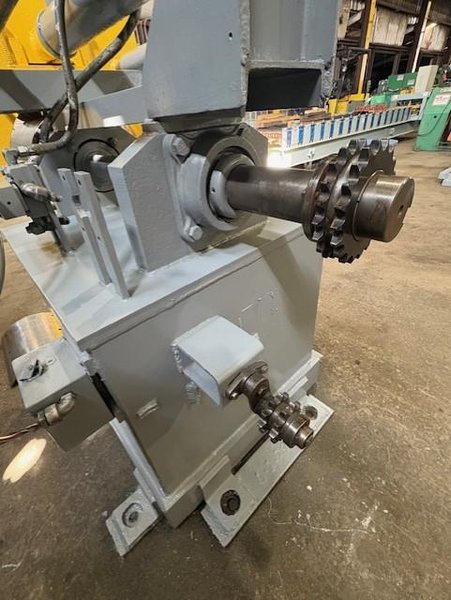

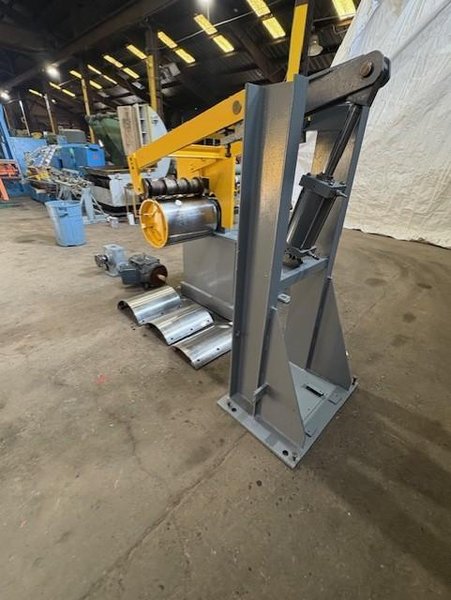

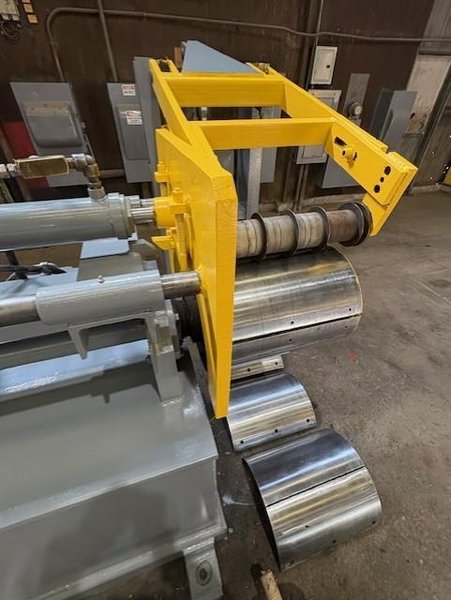

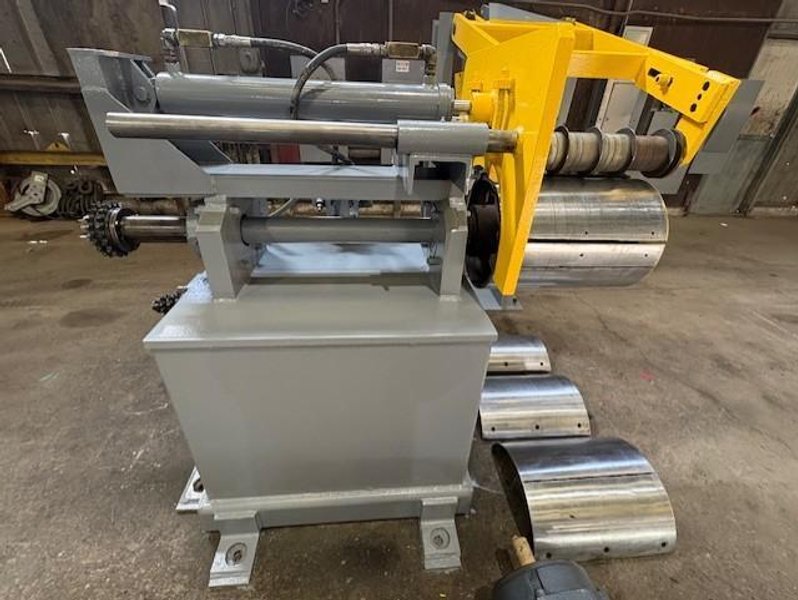

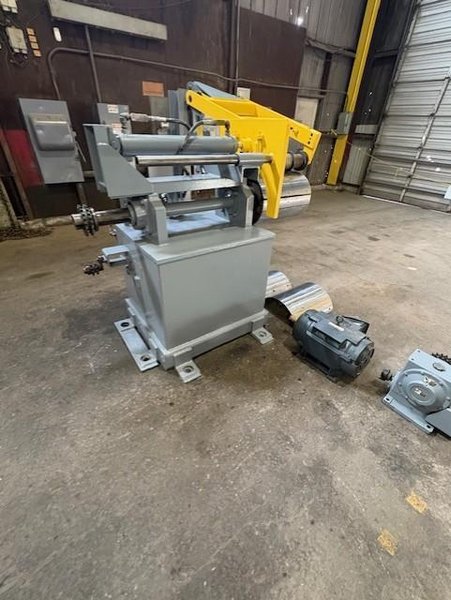

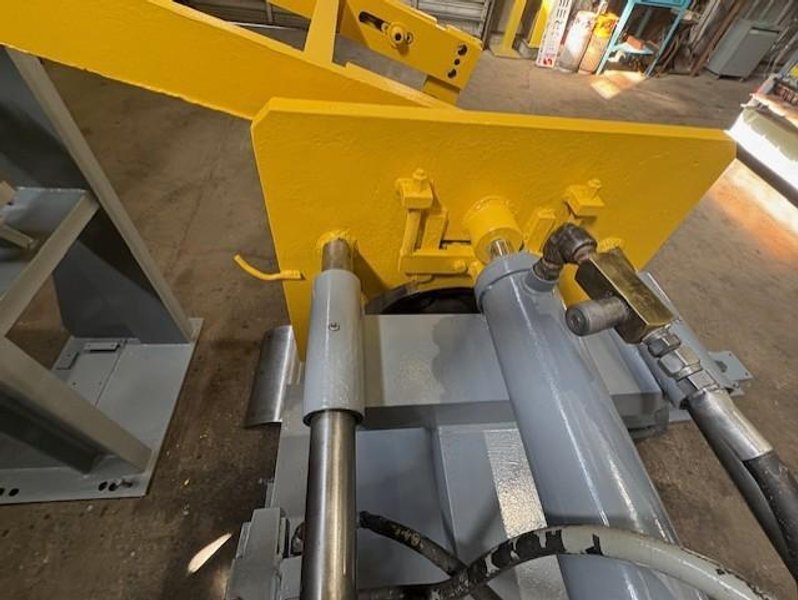

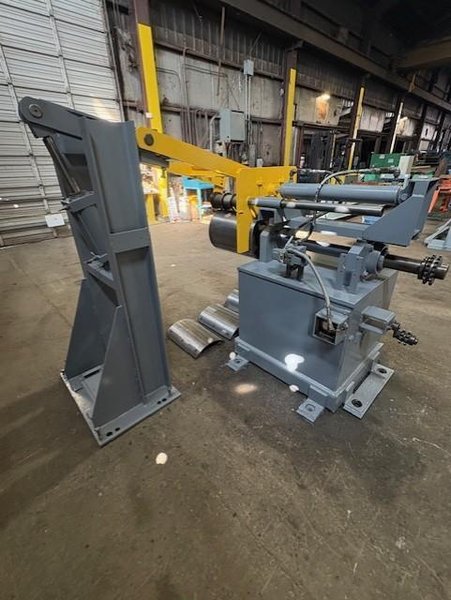

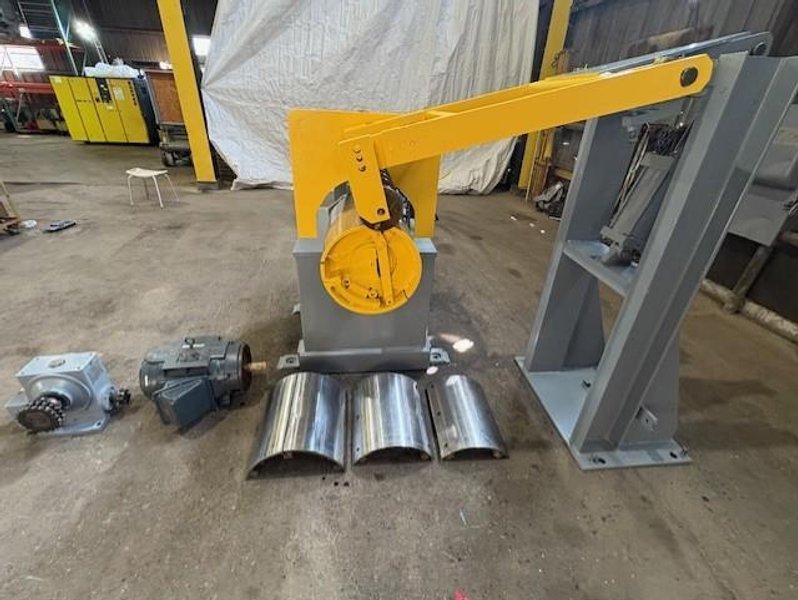

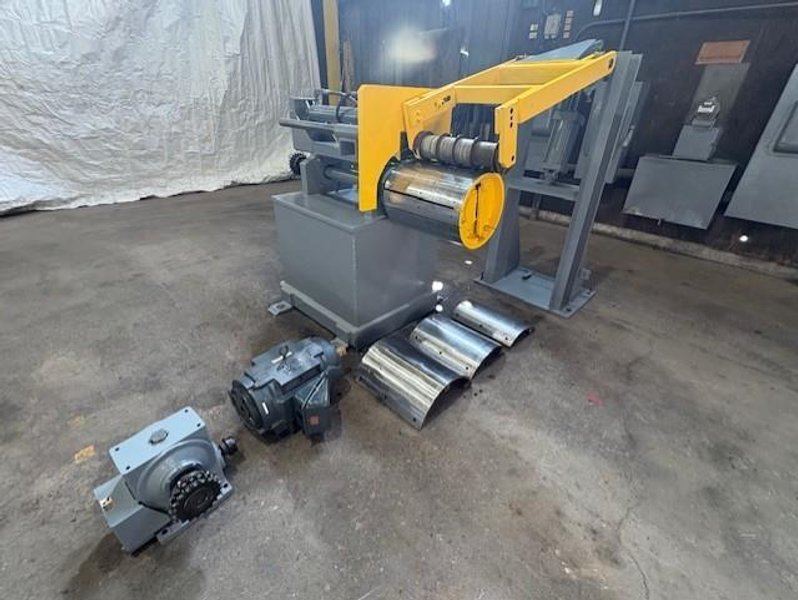

-Recoiler:

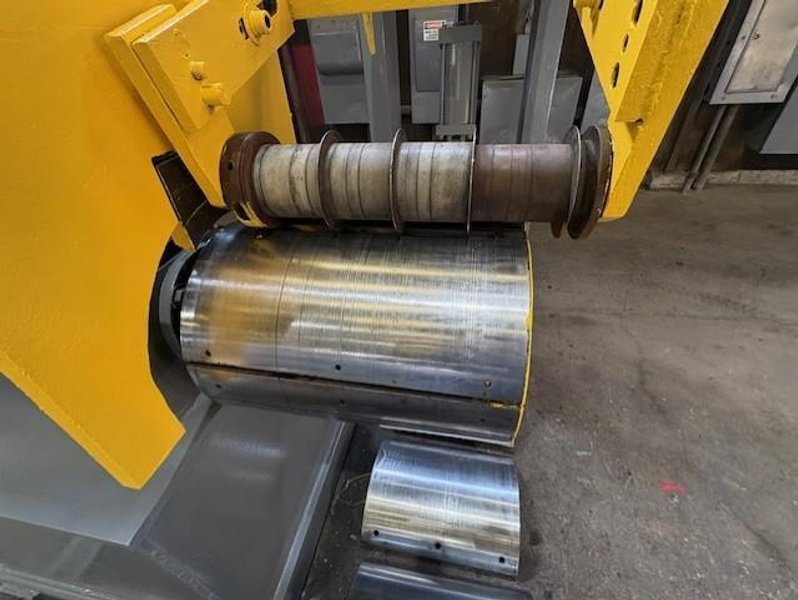

  16" Dia. x 21" Face Drum
  Manual Expansion
  20" Dia. Bolt on Pads
  Material Slot (No Gripper)
  3.5" Dia. Main Shaft
  39" Passline from floor to Center of Drum
  Hydraulic Pushoff

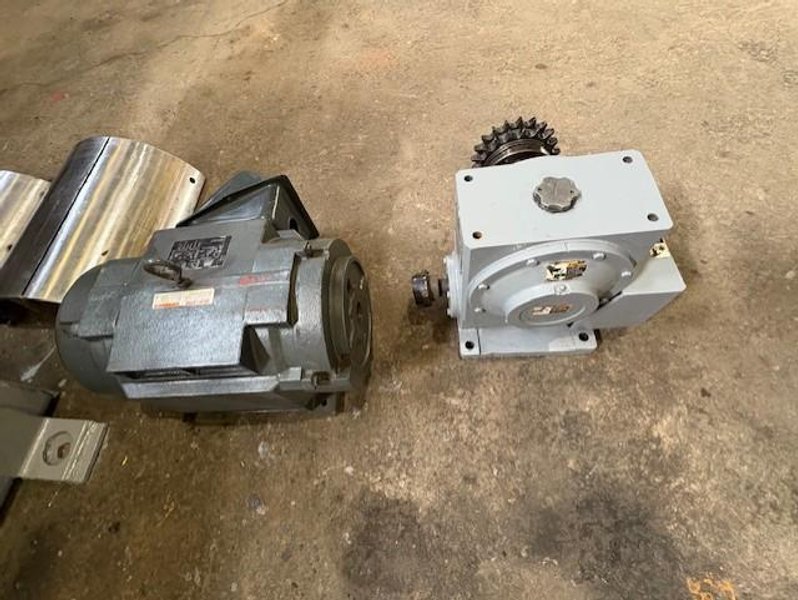

  20 HP Lincoln AC Drive Motor
    1165 RPM, 230/460V
  Link Belt Right Angle Reducer with 17.28:1 Ratio
  Overall Size:  70" L x 48" W x 61" High

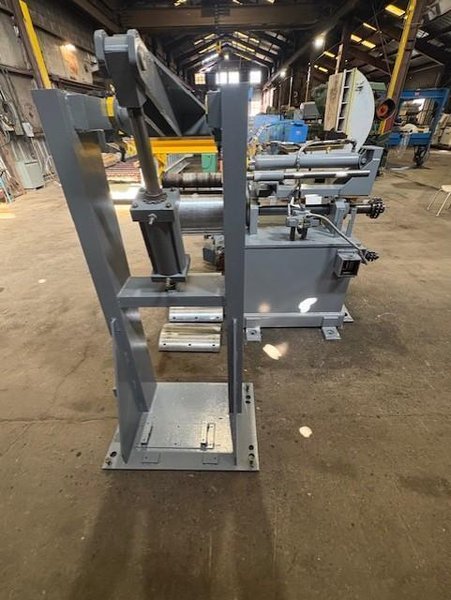

-Overarm Separator:
  Free Standing
  19.5" Long Tooling Shaft
  Hydraulic Cylinder Operated
  Overall Size:  70" L x 35" W x 73" High

-Line Direction:  Right to Left

-In Storage:  Toledo, OH
