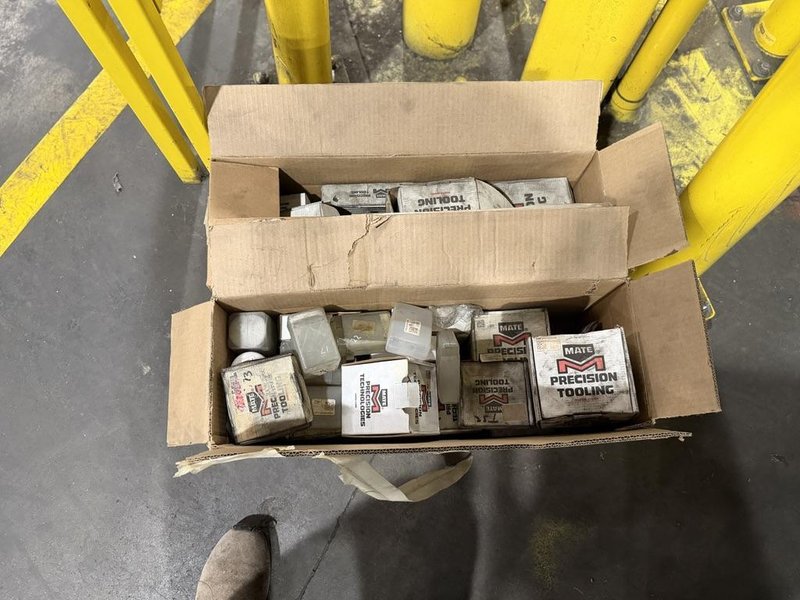

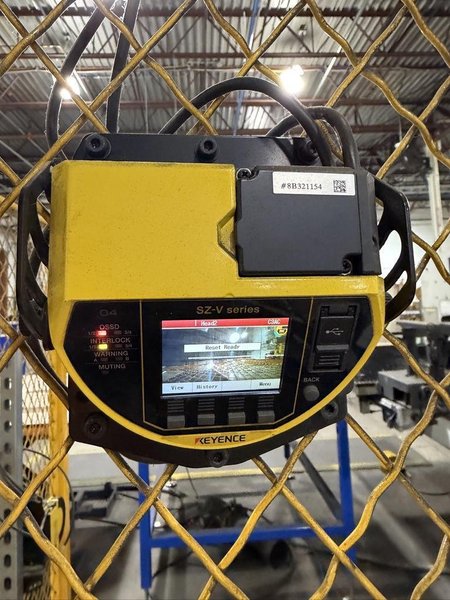

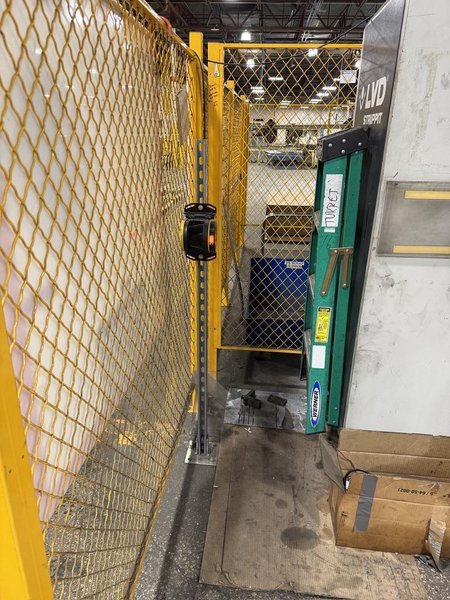

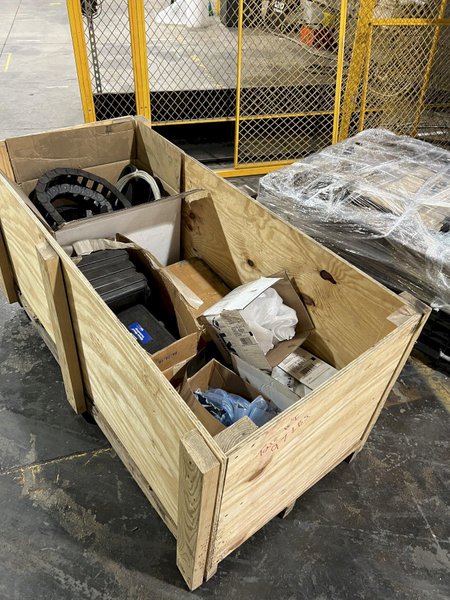

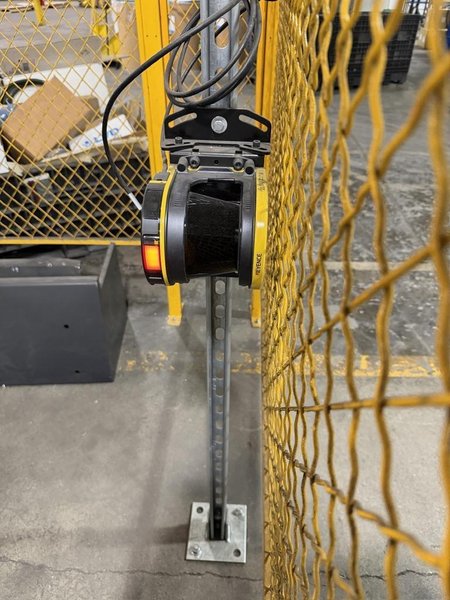

LVD STRIPPIT 30 TON TURRET PUNCH MODEL V30-1525, NEW 2011, 60" X 98.4" CAPACITY, FANUC 18i-PB CONTROL, TOOLING, SPARE PARTS , AND LASER LIGHT CURTAINS INCLUDED

LVD STRIPPIT 30 TON TURRET PUNCH MODEL V30-1525, NEW 2011, 60" X 98.4" CAPACITY, FANUC 18i-PB CONTROL, TOOLING, SPARE PARTS , AND LASER LIGHT CURTAINS INCLUDED

Name: LVD STRIPPIT 30 TON TURRET PUNCH MODEL V30-1525, NEW 2011, 60" X 98.4" CAPACITY, FANUC 18i-PB CONTROL, TOOLING, SPARE PARTS , AND LASER LIGHT CURTAINS INCLUDED
Brand: LVD STRIPPIT
SKU: 11333
Availability: PreOrder

Brand

LVD STRIPPIT

Location

Wisconsin

REQUEST FINANCING

Specifications
Files & Videos

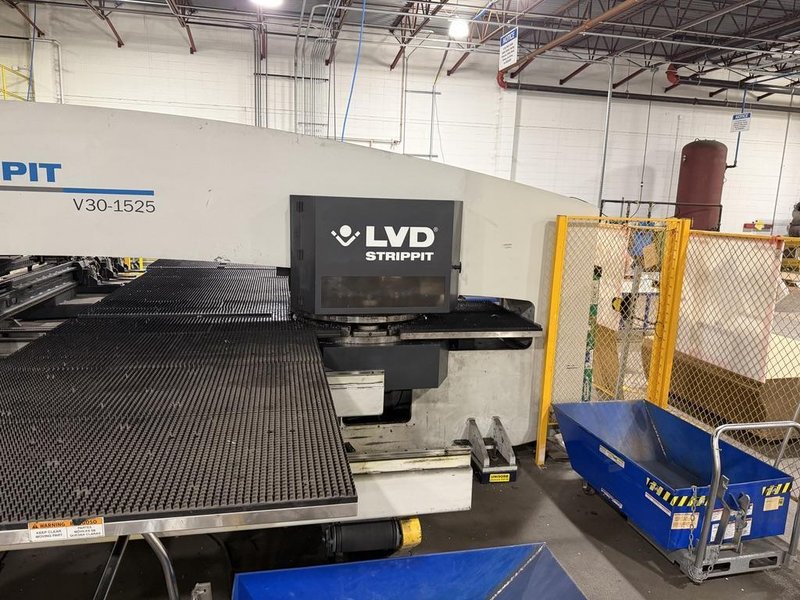

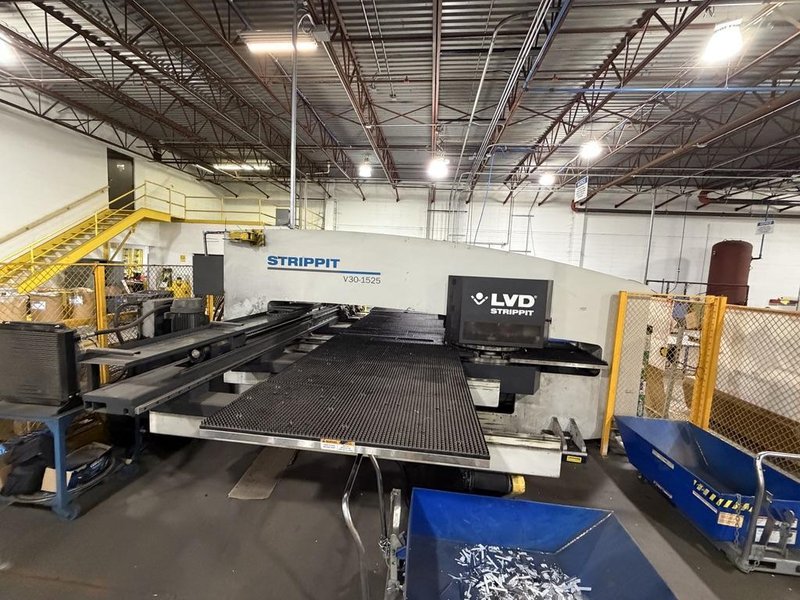

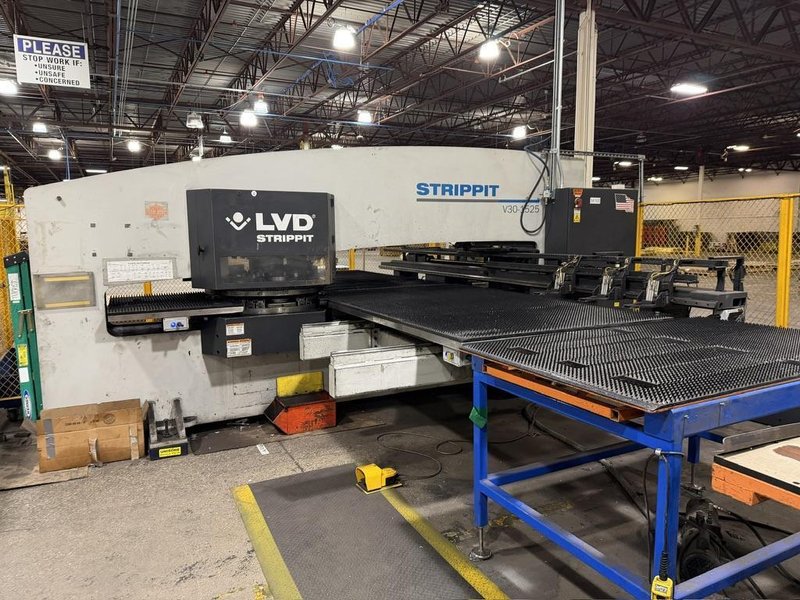

LVD Strippit V30-1525 New 2011

(often part of the Global 30 or V-Series) is a 30-metric-ton hydraulic CNC turret punch press designed for high-speed processing of large sheet metal.

Performance and Capacity

Punching Force: Delivers 30 metric tons (300 kN) of punching capacity.
Maximum Material Thickness: It can process mild steel up to 0.250 inches (6.35 mm) thick.
Worksheet Size: The "1525" designation typically refers to a nominal worksheet size of 1524 mm x 2500 mm (60" x 100").
Hit Rate: It achieves a maximum hit rate of up to 1,000 hits per minute (HPM) at a 1 mm pitch and approximately 440 HPM on 25.4 mm (1-inch) centers.
Accuracy: The machine offers a punching accuracy of ± 0.1 mm (± 0.004") and a repetitive accuracy of ± 0.05 mm (± 0.002").

Turret and Tooling

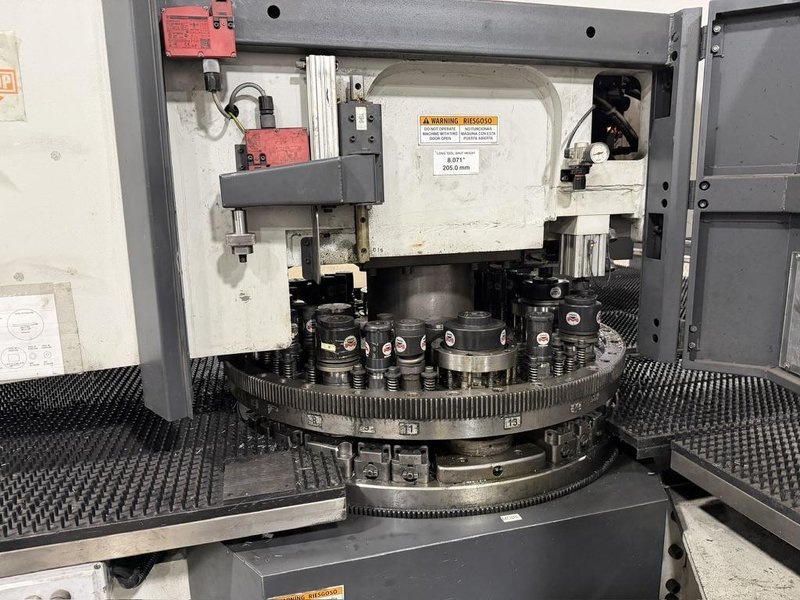

Turret Capacity: Typically features a 48-station thick-style turret, though some configurations may vary.
Auto-Index Stations: Usually includes three or four 3.5" (88.9 mm) auto-index stations to enhance flexibility for complex geometries.
Feed Clearance: Features a large feed clearance of 0.984" (25 mm) between the upper and lower turret, allowing for high forming operations like louvers and embossments.

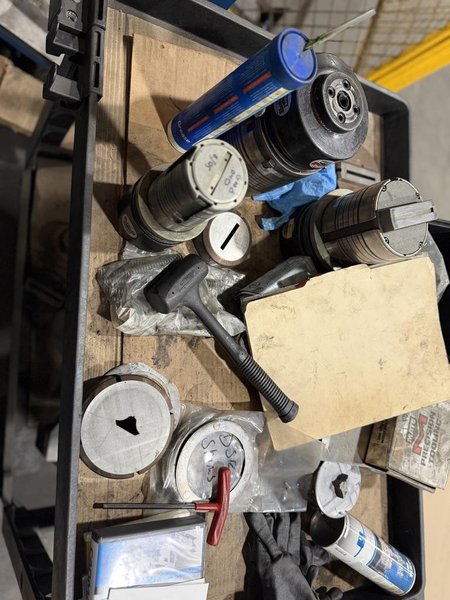

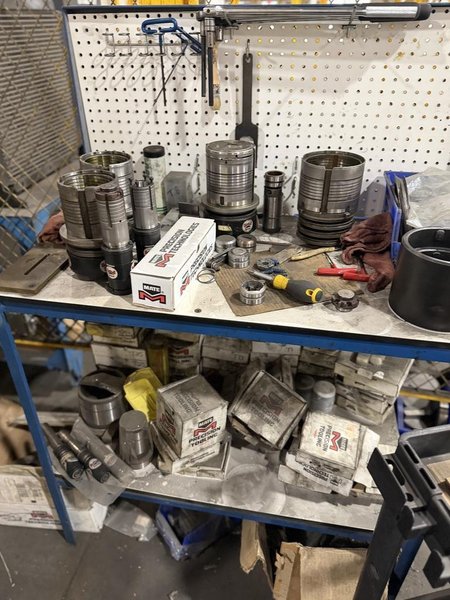

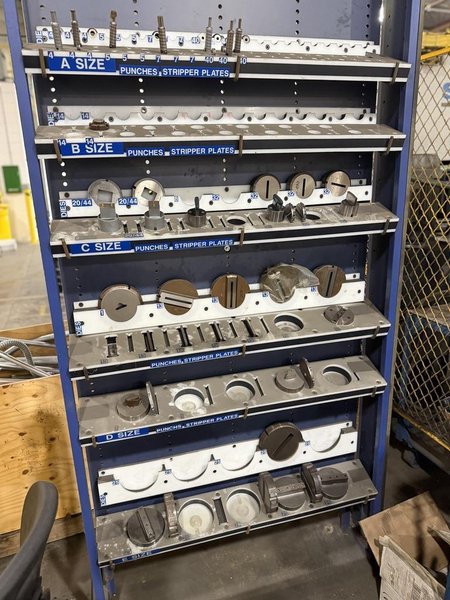

Tooling Style: Designed for thick-turret style tooling with hardened steel guide bushings for alignment.

Physical Specifications

Machine Weight: 40,000 lbs Approx.
Table Load: The table can support a maximum workpiece mass of 100 kg (220 lbs) at full speed.

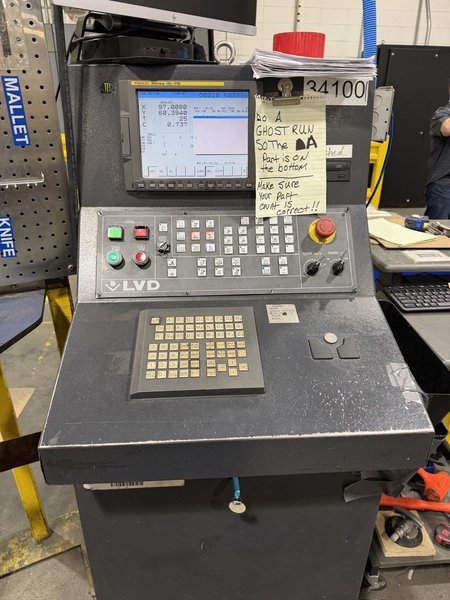

Control Unit:FANUC 18iPB CNC controls
