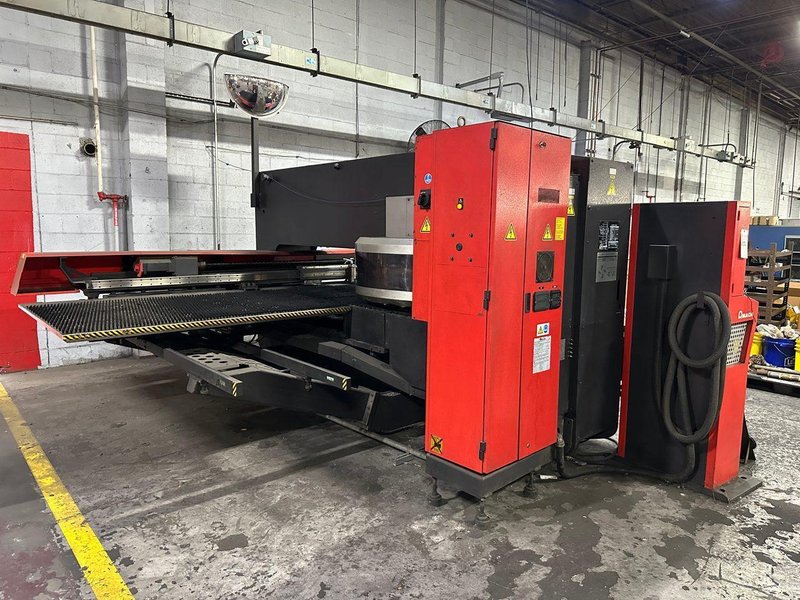

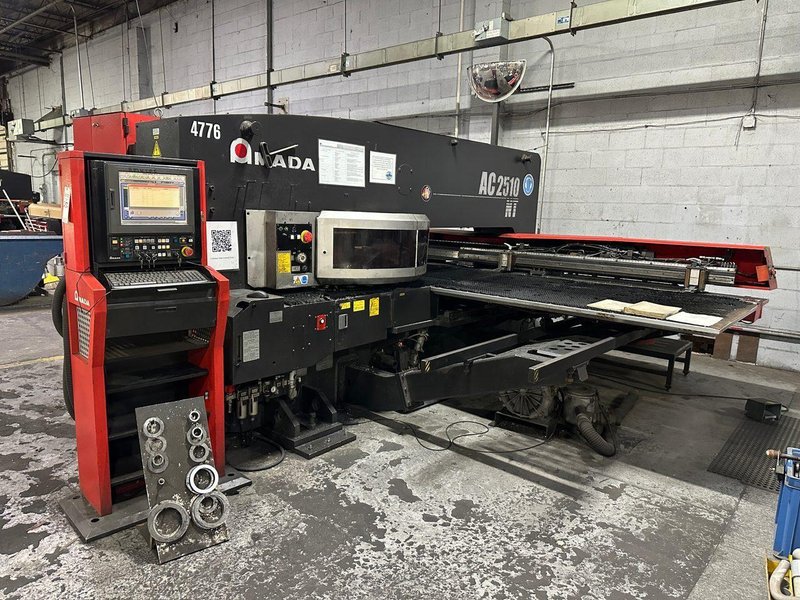

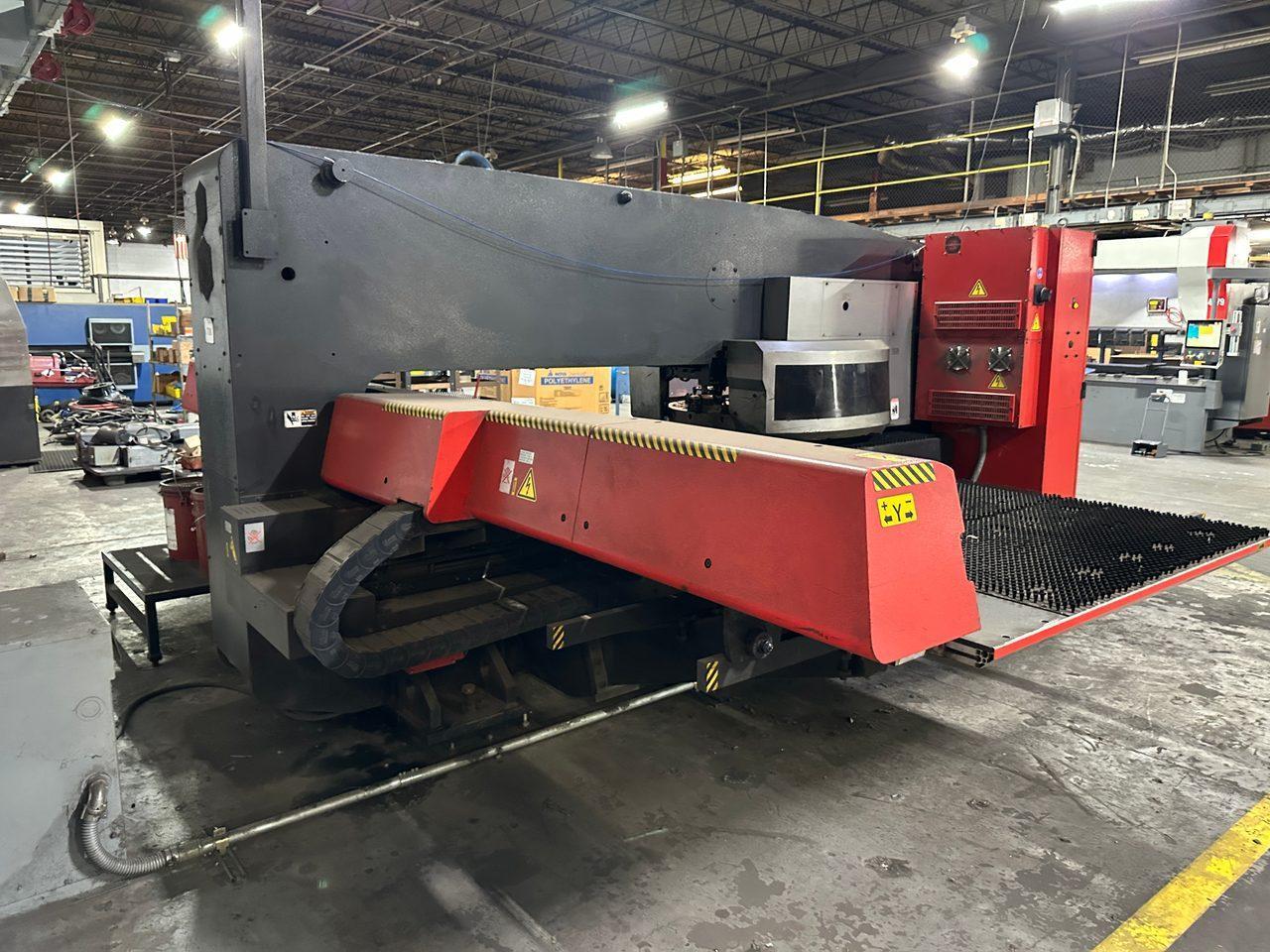

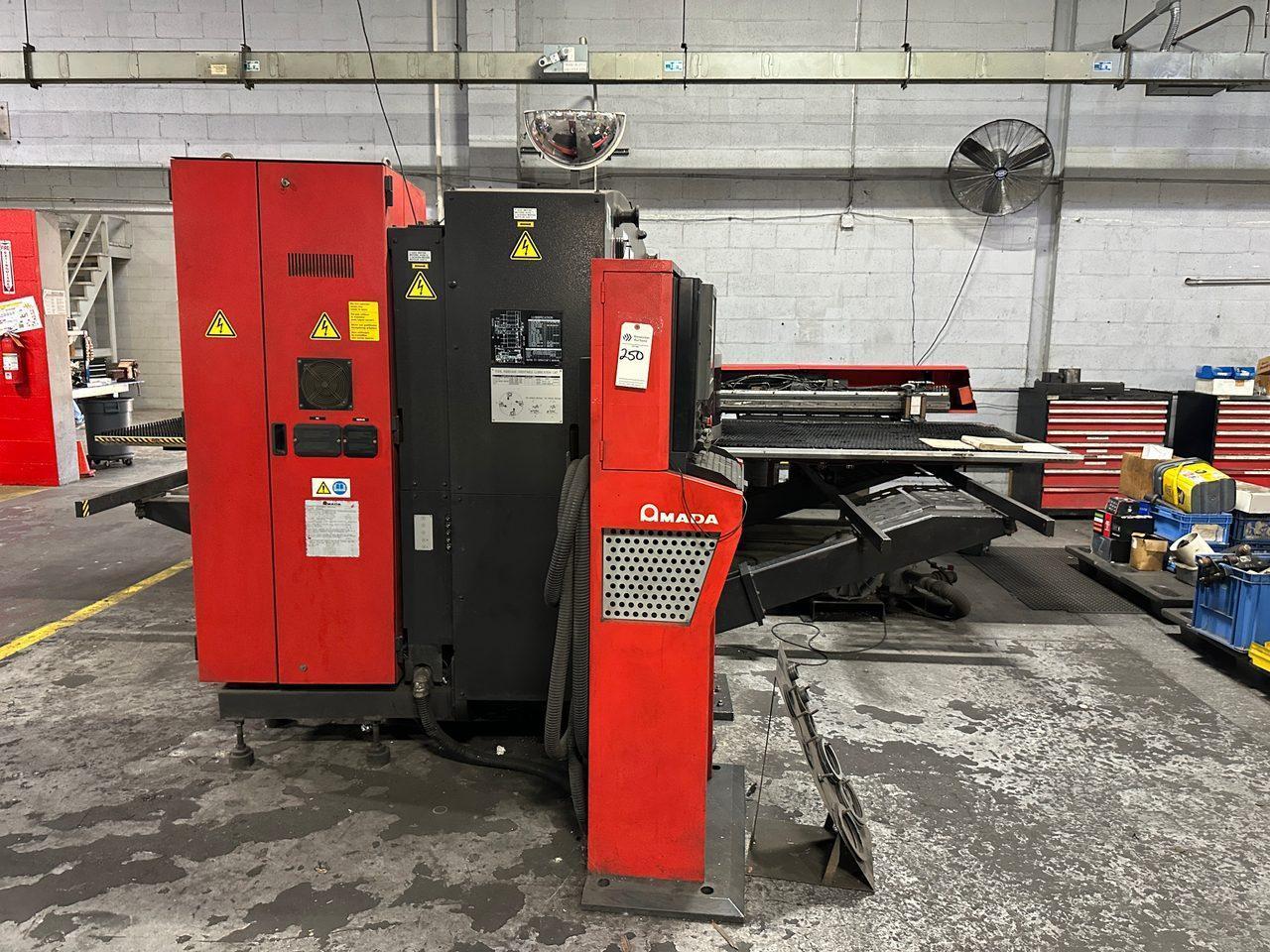

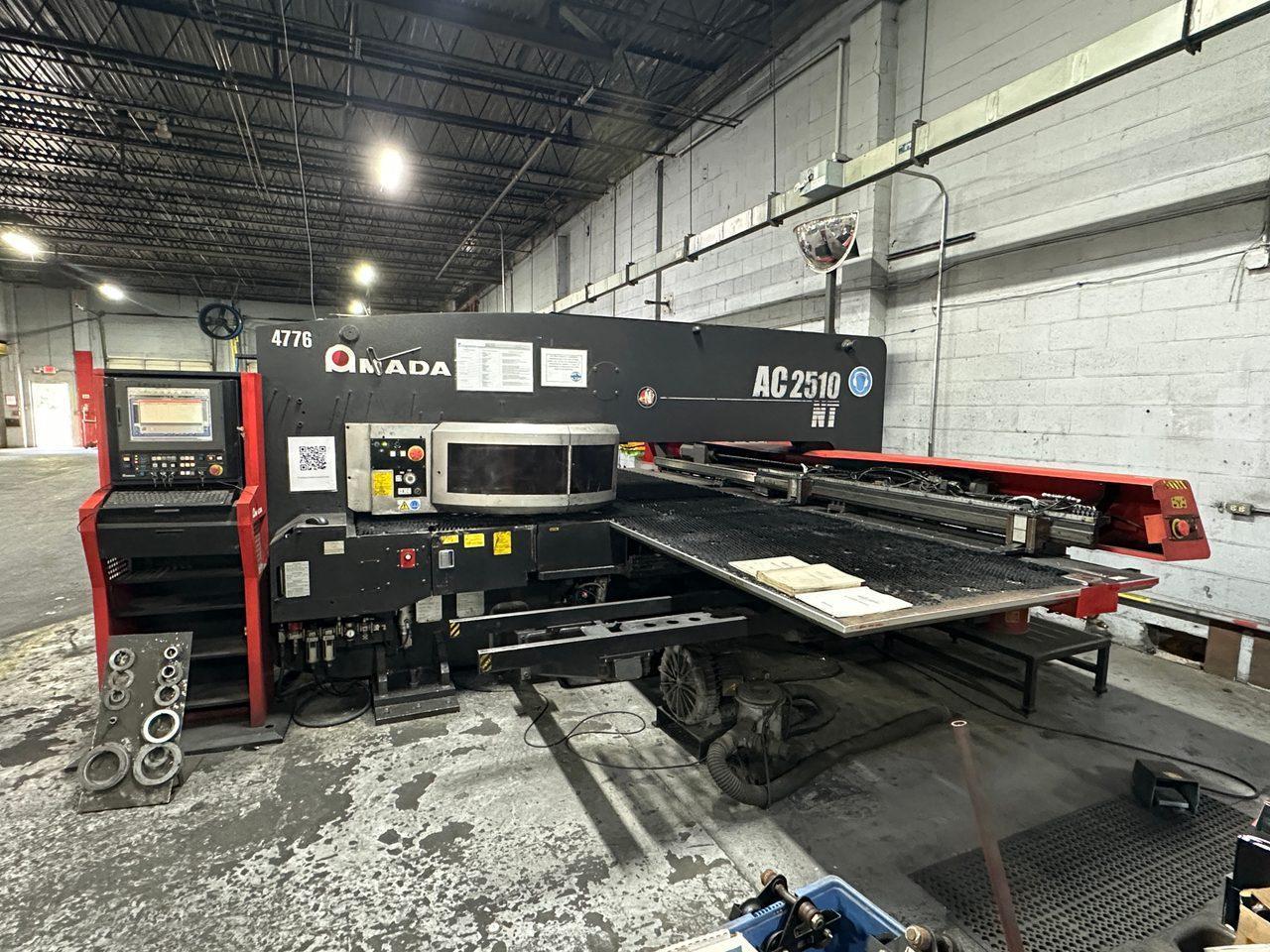

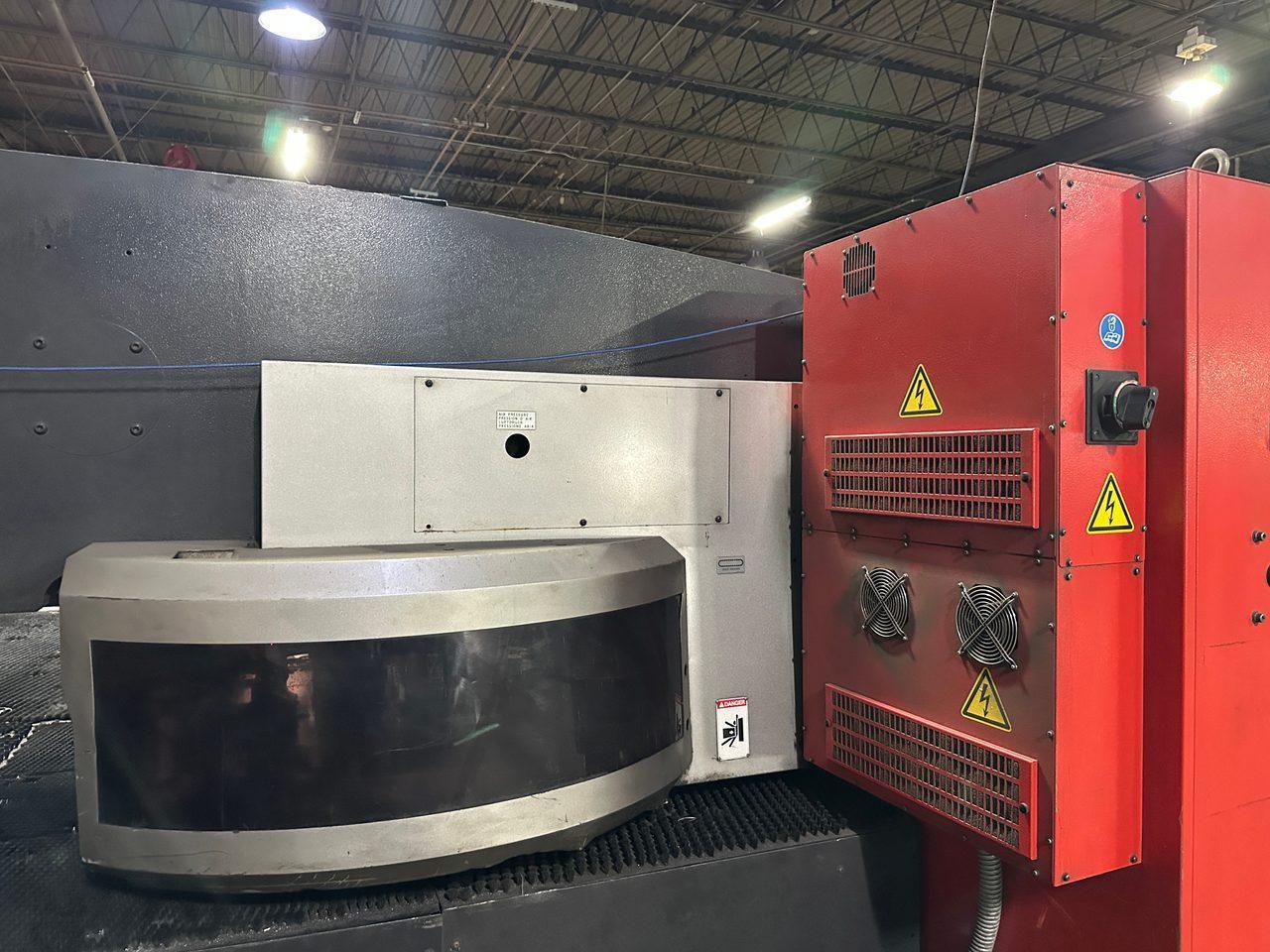

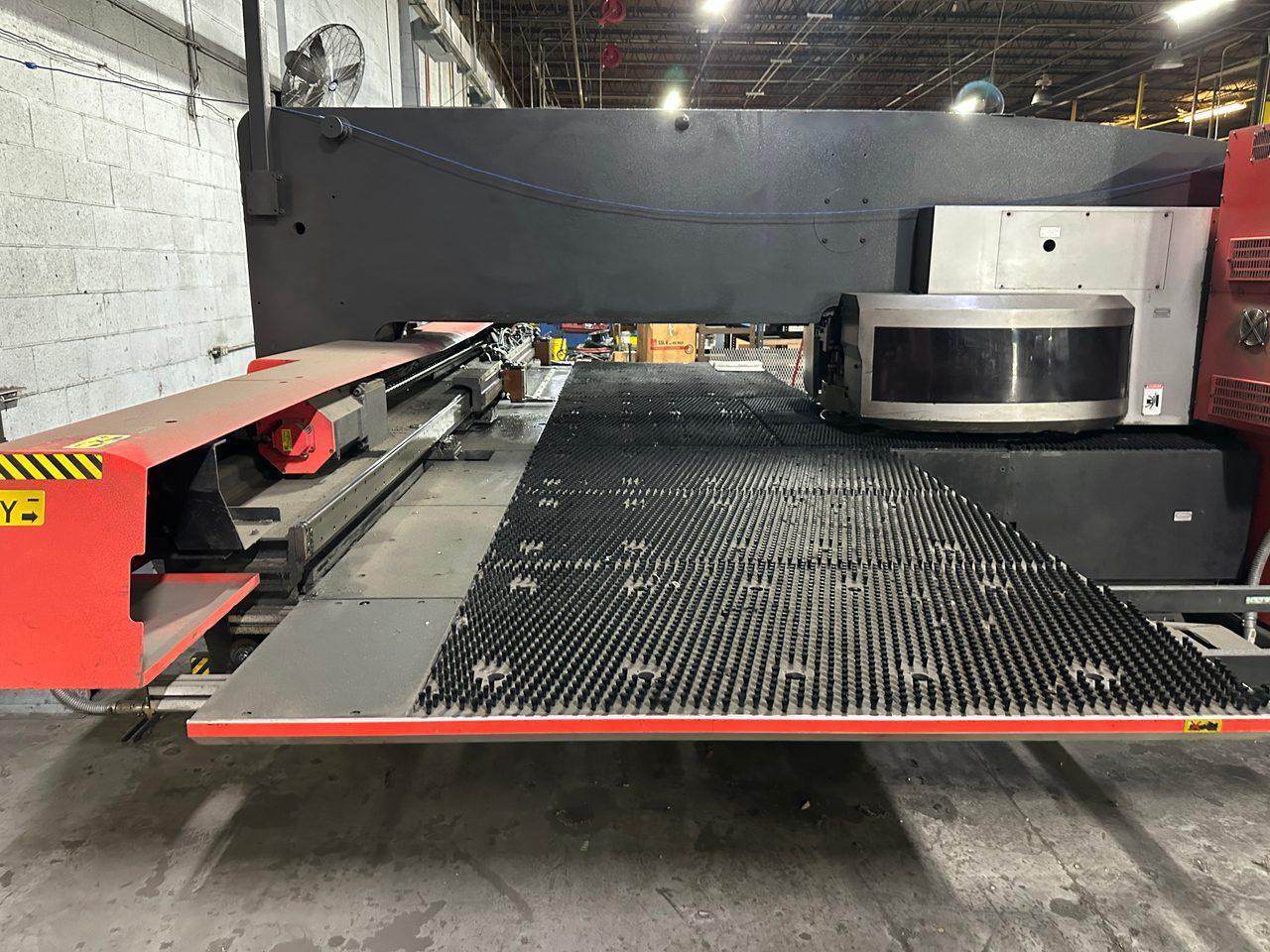

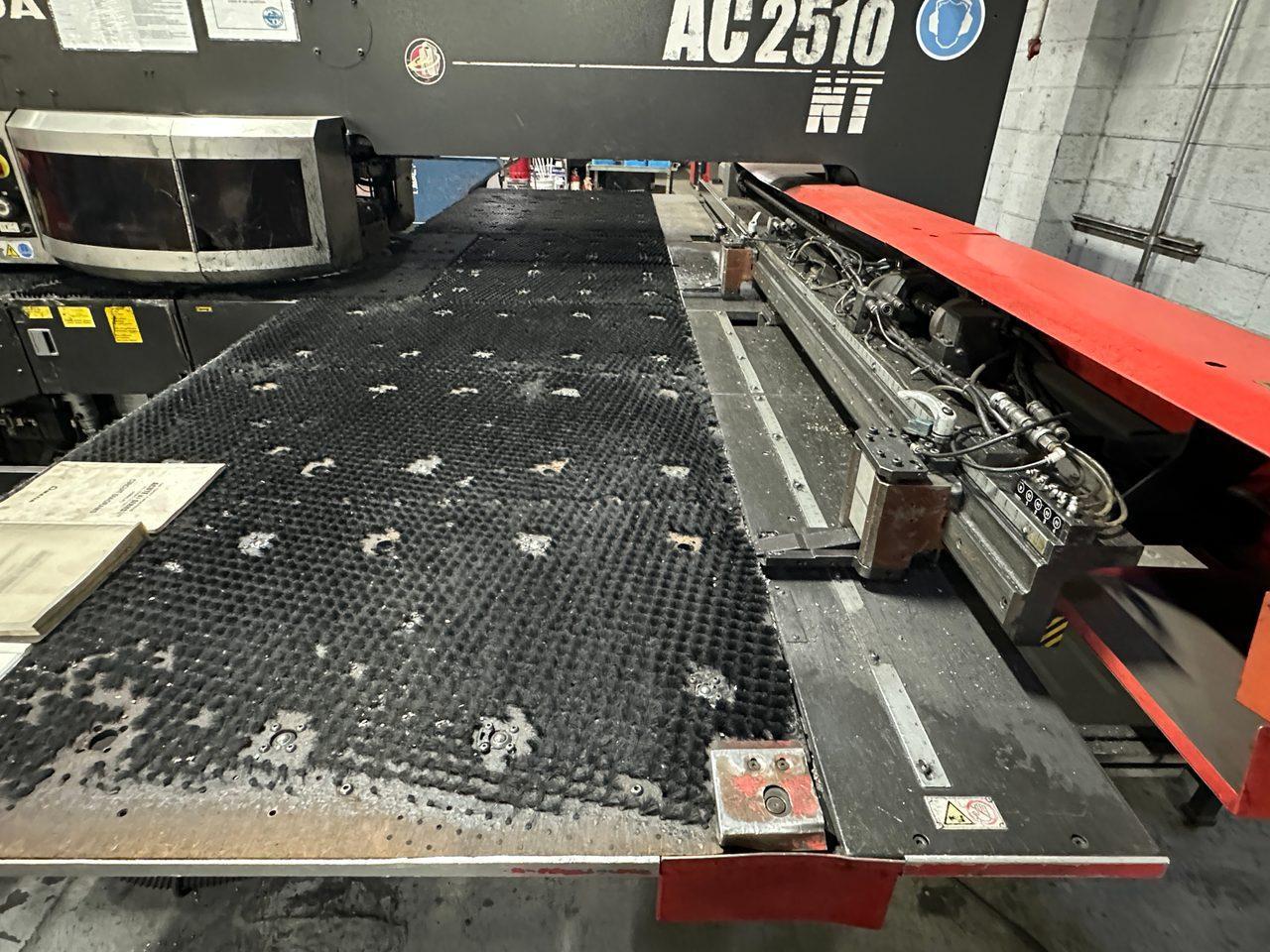

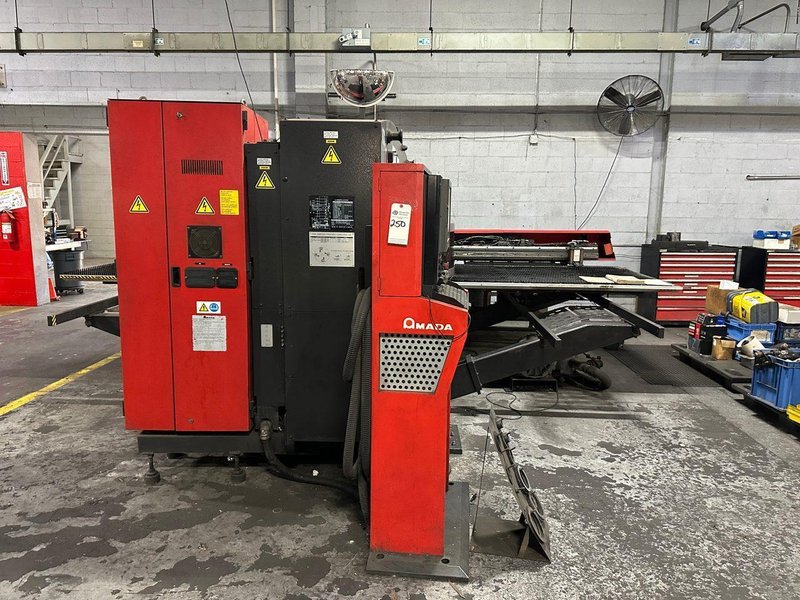

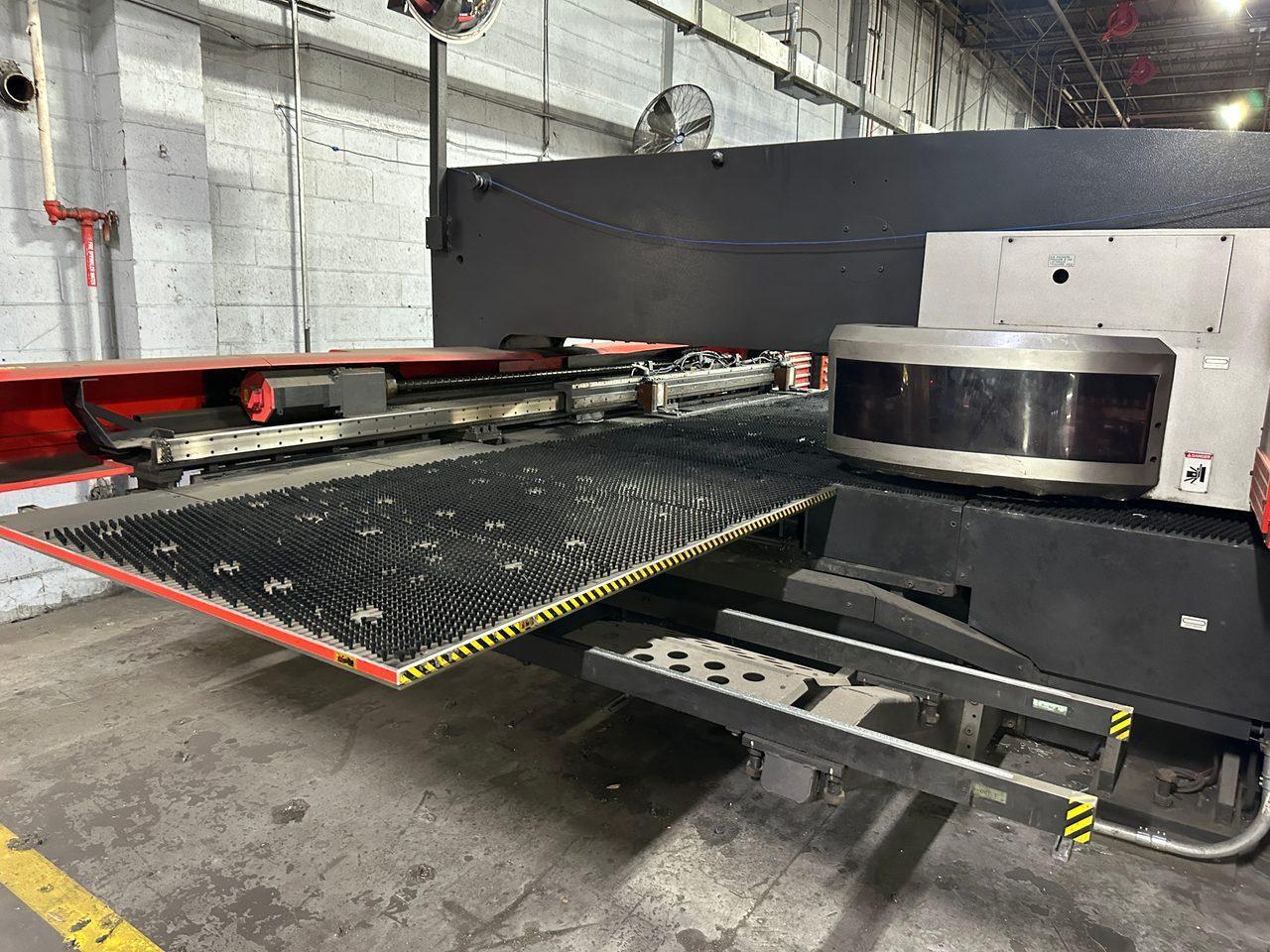

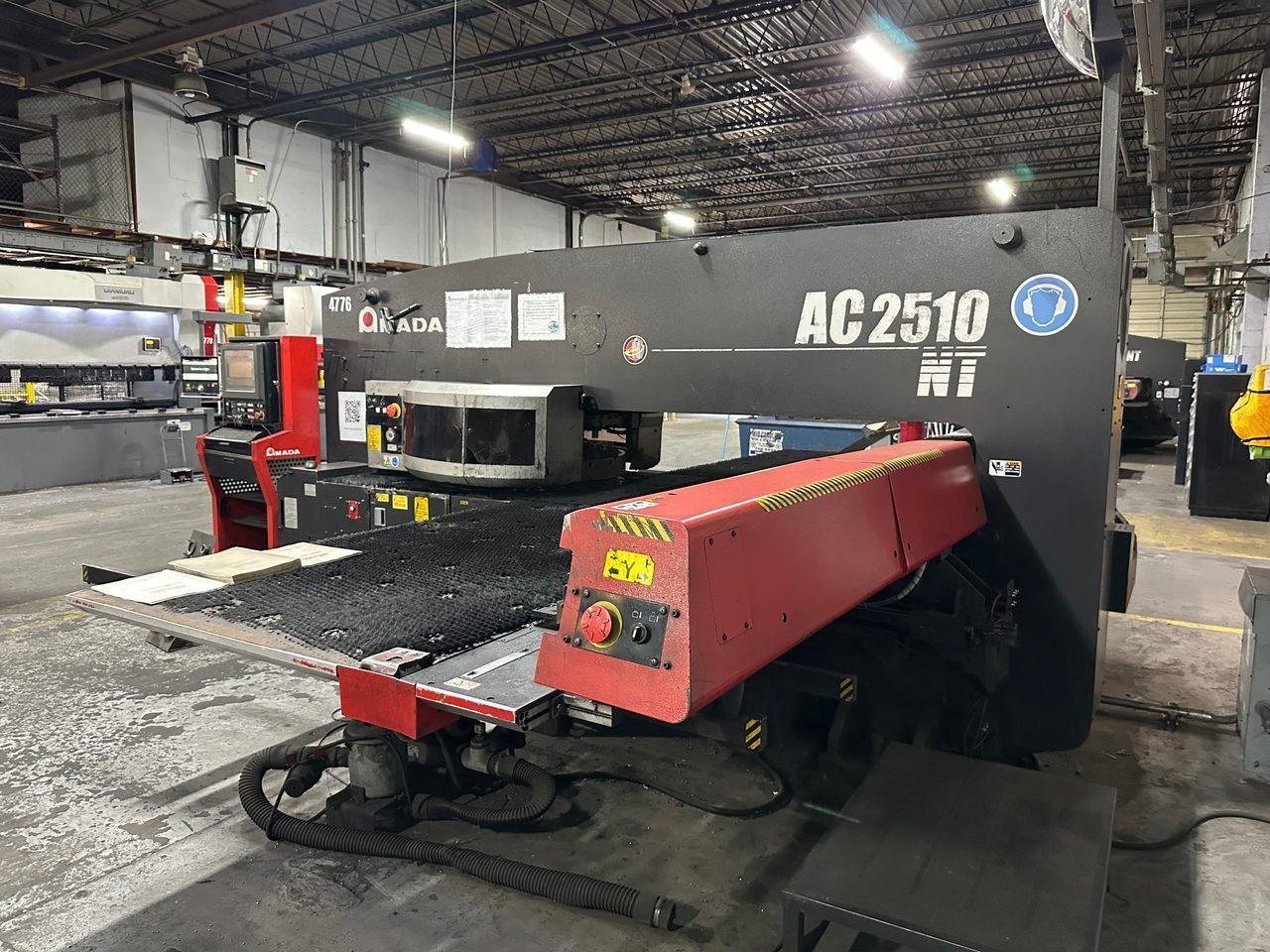

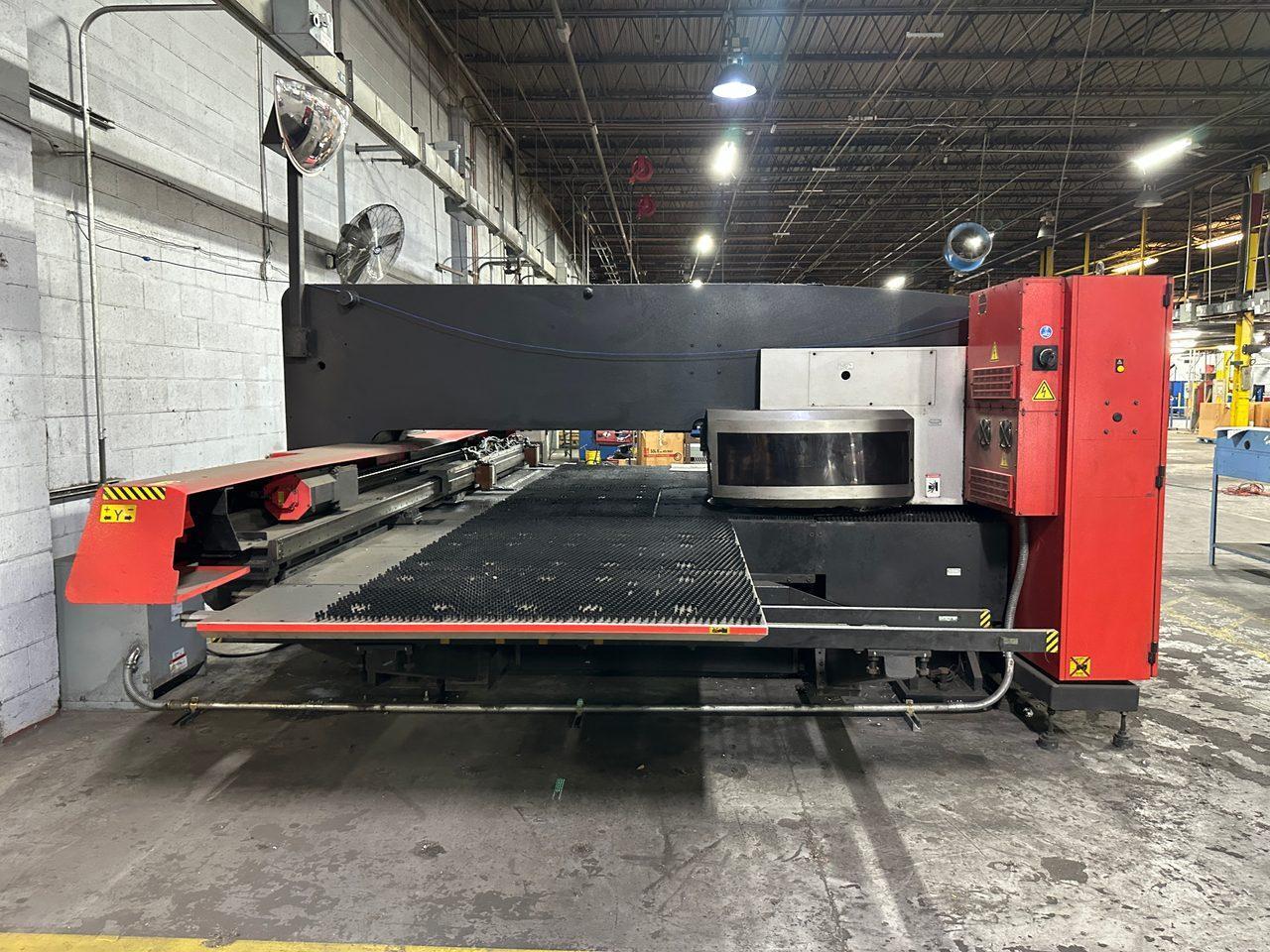

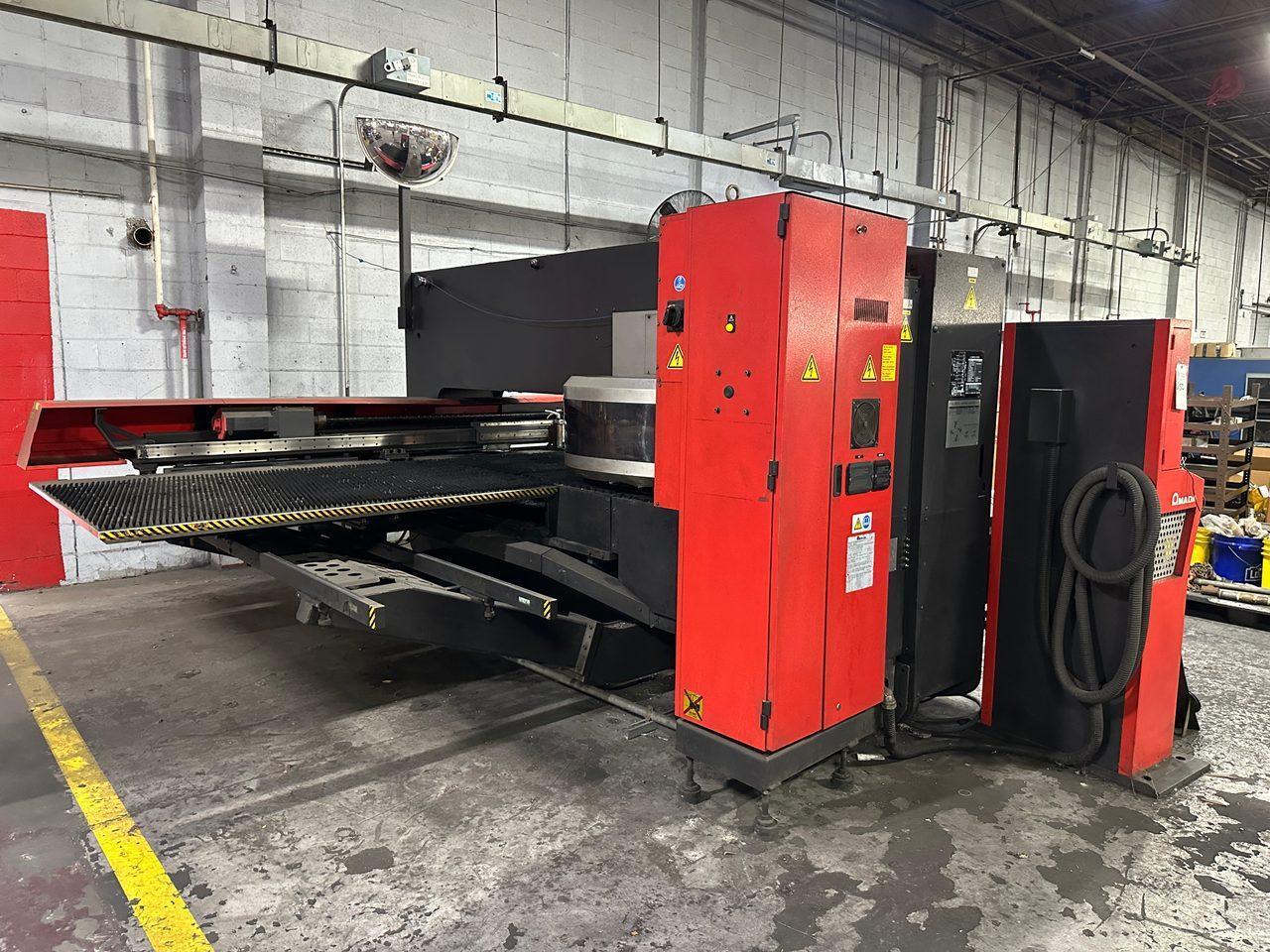

22 Ton Amada AC2510NT CNC Turret Punch, 2008

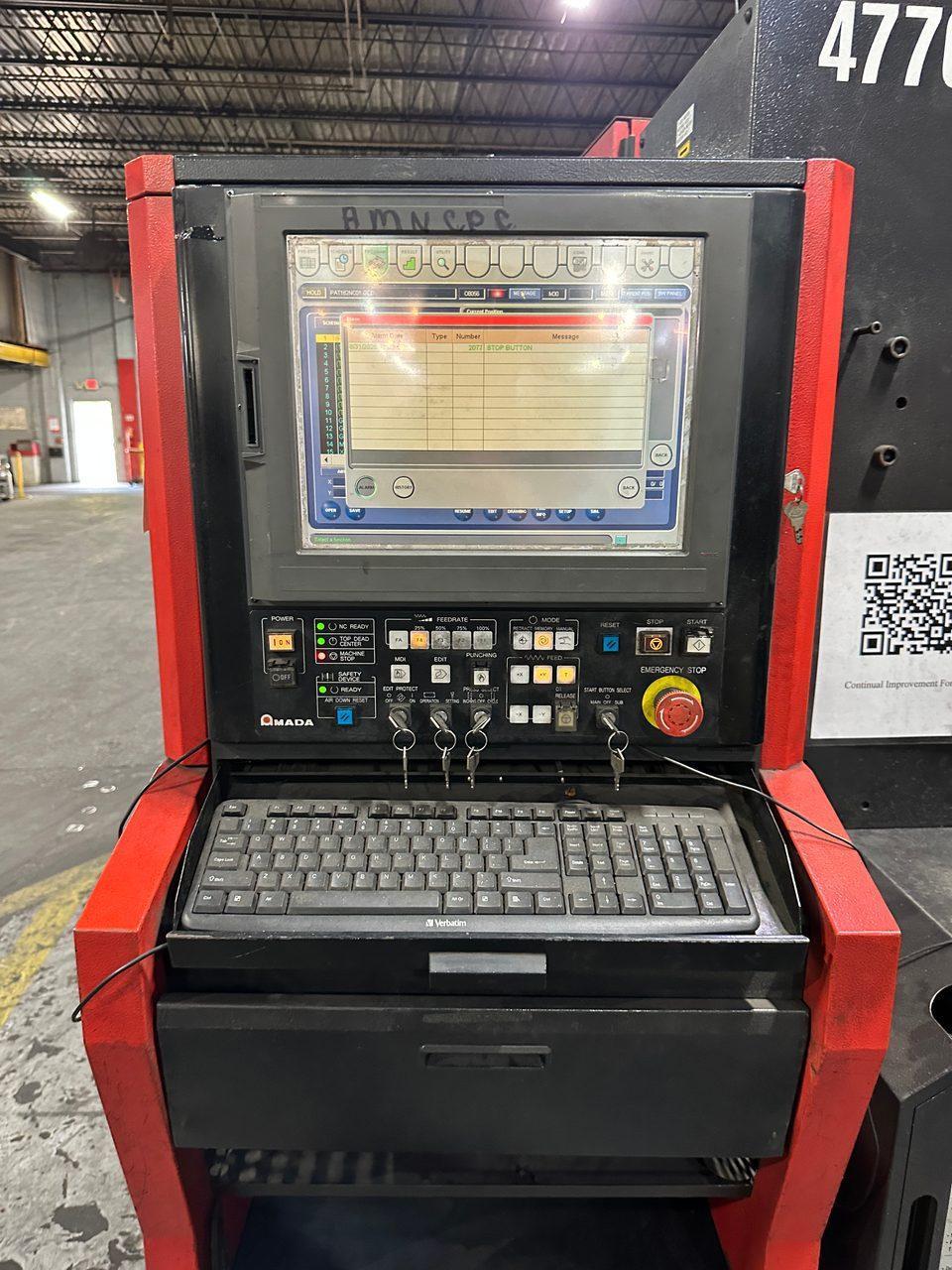

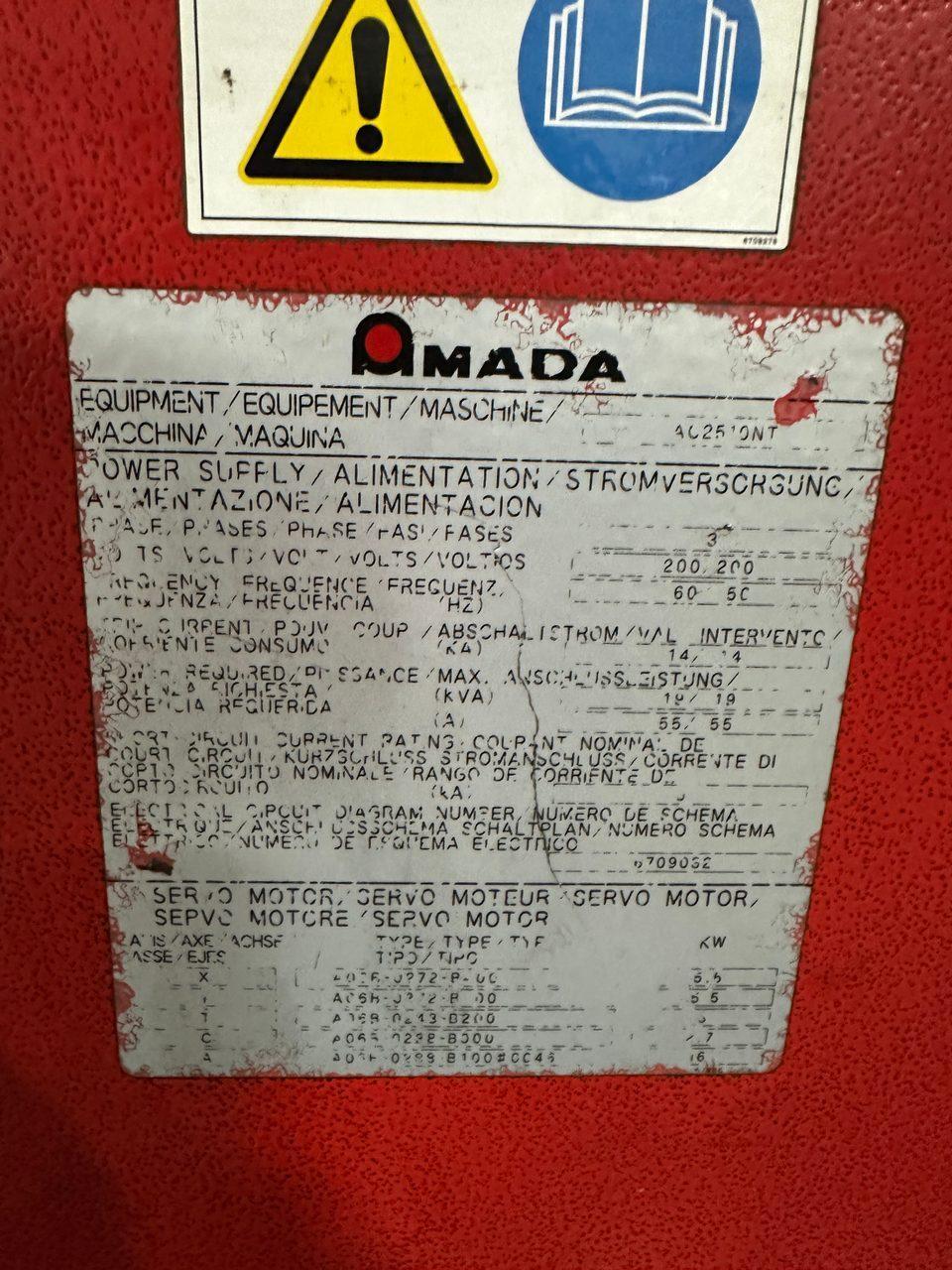

Press Capacity: 22 US Tons (200 kN) Max Sheet Size: 50″ x 196.85″ (1270 mm x 5000 mm) Max Sheet Thickness: 0.126″ (3.2 mm) / 0.252″ (6.4 mm) Max Sheet Mass: 110 lbs (50 kg) at F1 / 330 lbs (150 kg) at F4 X-Axis Travel: 98.425″ (2500 mm) Y-Axis Travel: 50″ (1270 mm) Punching Accuracy: ±0.004″ (±0.1 mm) Max Press Stroke Length: 1.654″ (42 mm) Max Feed Speed (X-Axis): 262 ft/min (80 m/min) Max Feed Speed (Y-Axis): 197 ft/min (60 m/min) Turret Speed: 30 RPM Turret Stations: 51 Stations Power On Hours: 99,954 Hours Operating Time: 17,207 Hours Cutting Time: 15 Hours Power Supply: 19 kVA, 3-Phase, 200V, 50/60 Hz Air Supply: 500 L/min, 72 PSI (0.5 MPa) Weight: 28,660 lbs (13,000 kg) Dimensions: 163.5″ x 201.6″ x 82″H (119.2″H with mirror installed) Control: AMNC-F (FANUC 180i-PB)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Operator’s, Accessory, and Circuit Diagram Manuals
