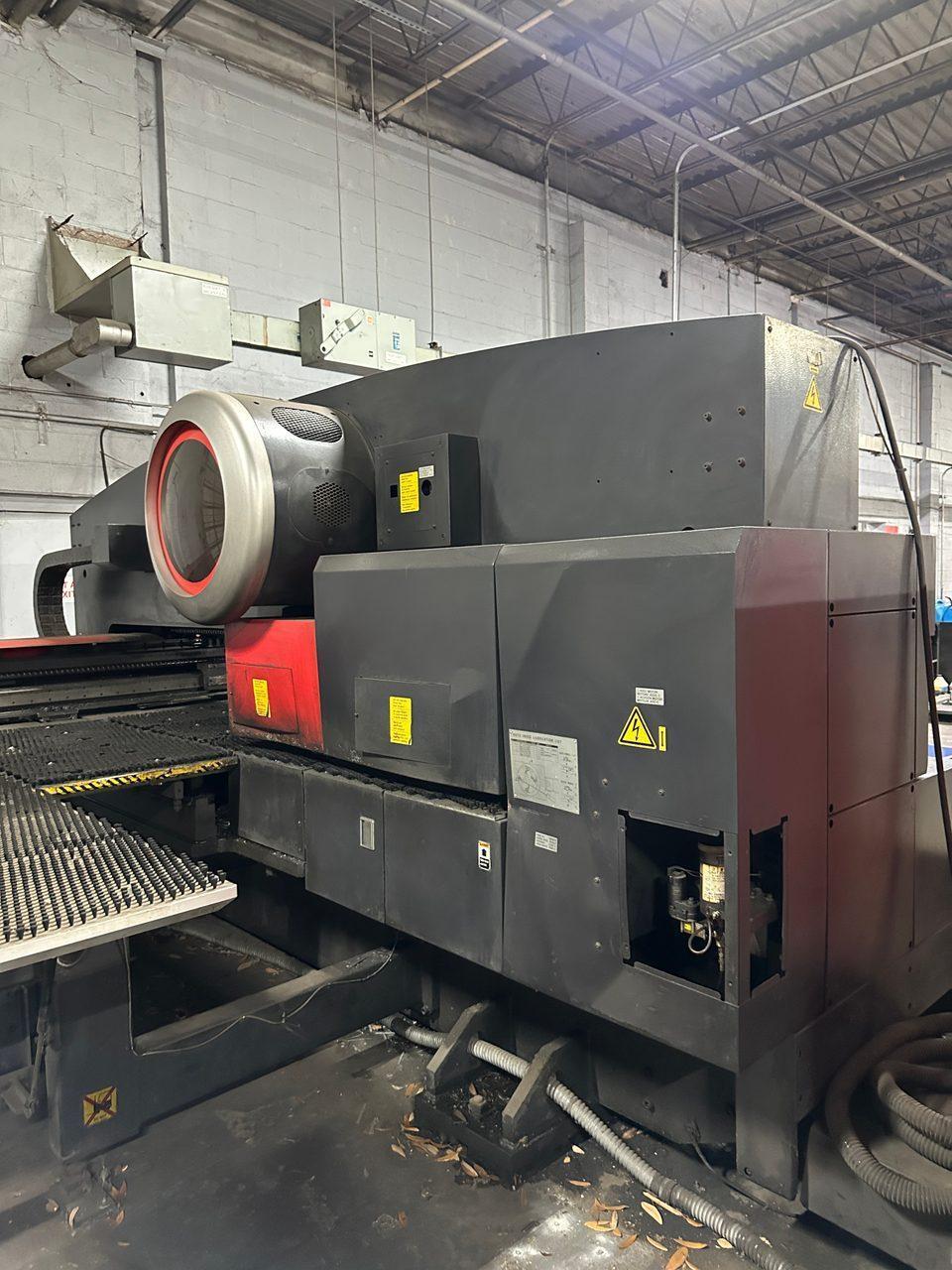

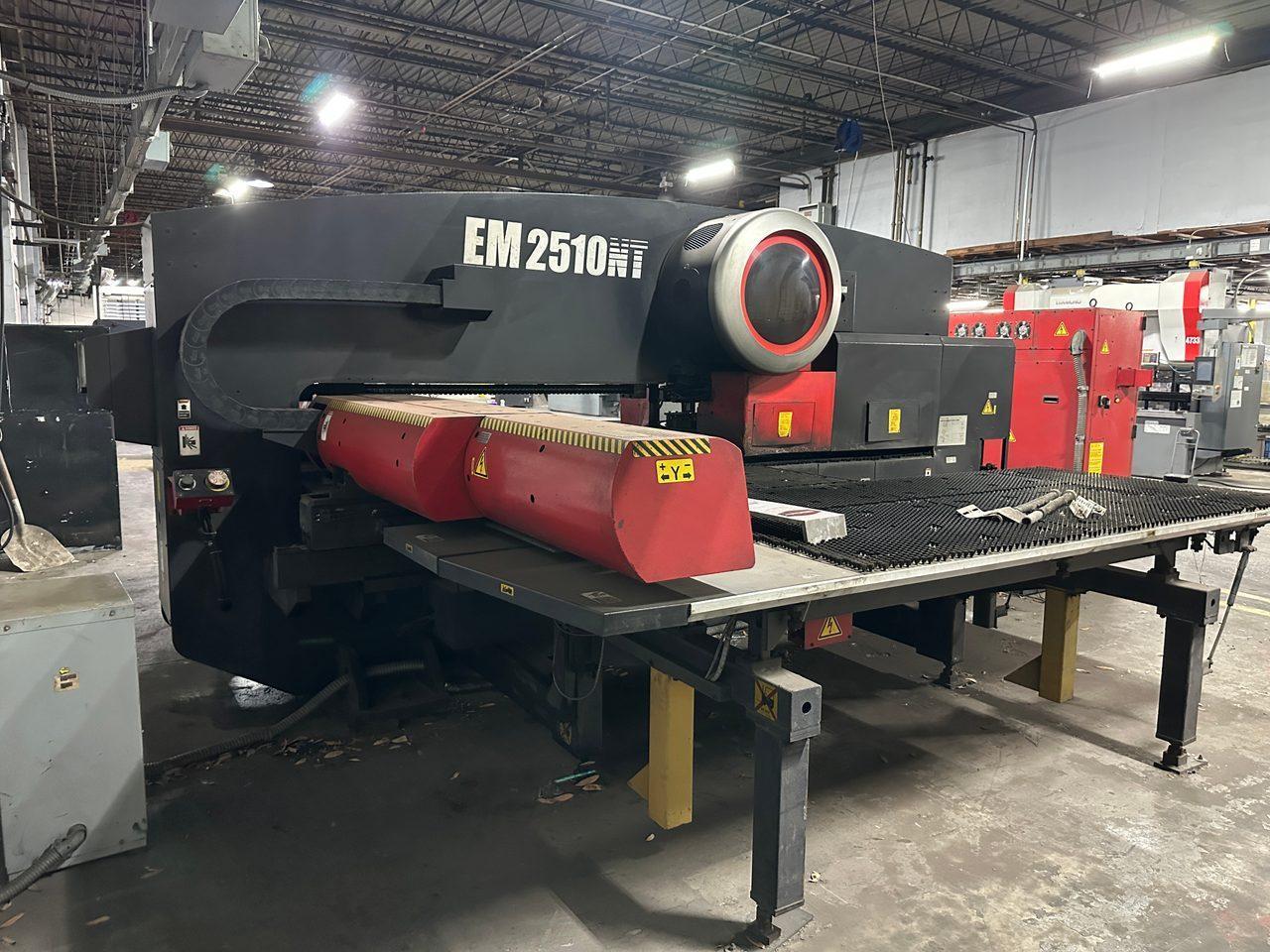

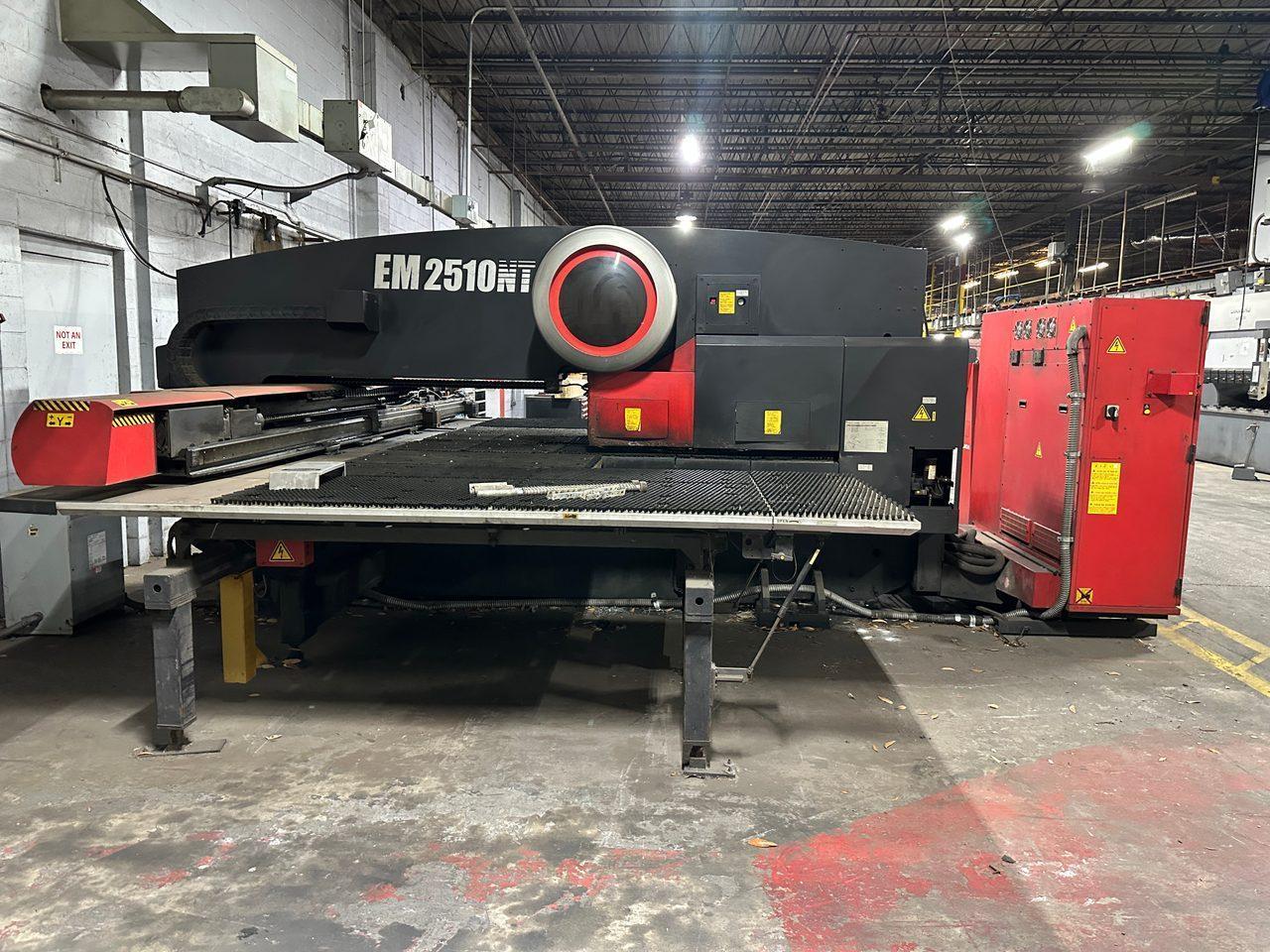

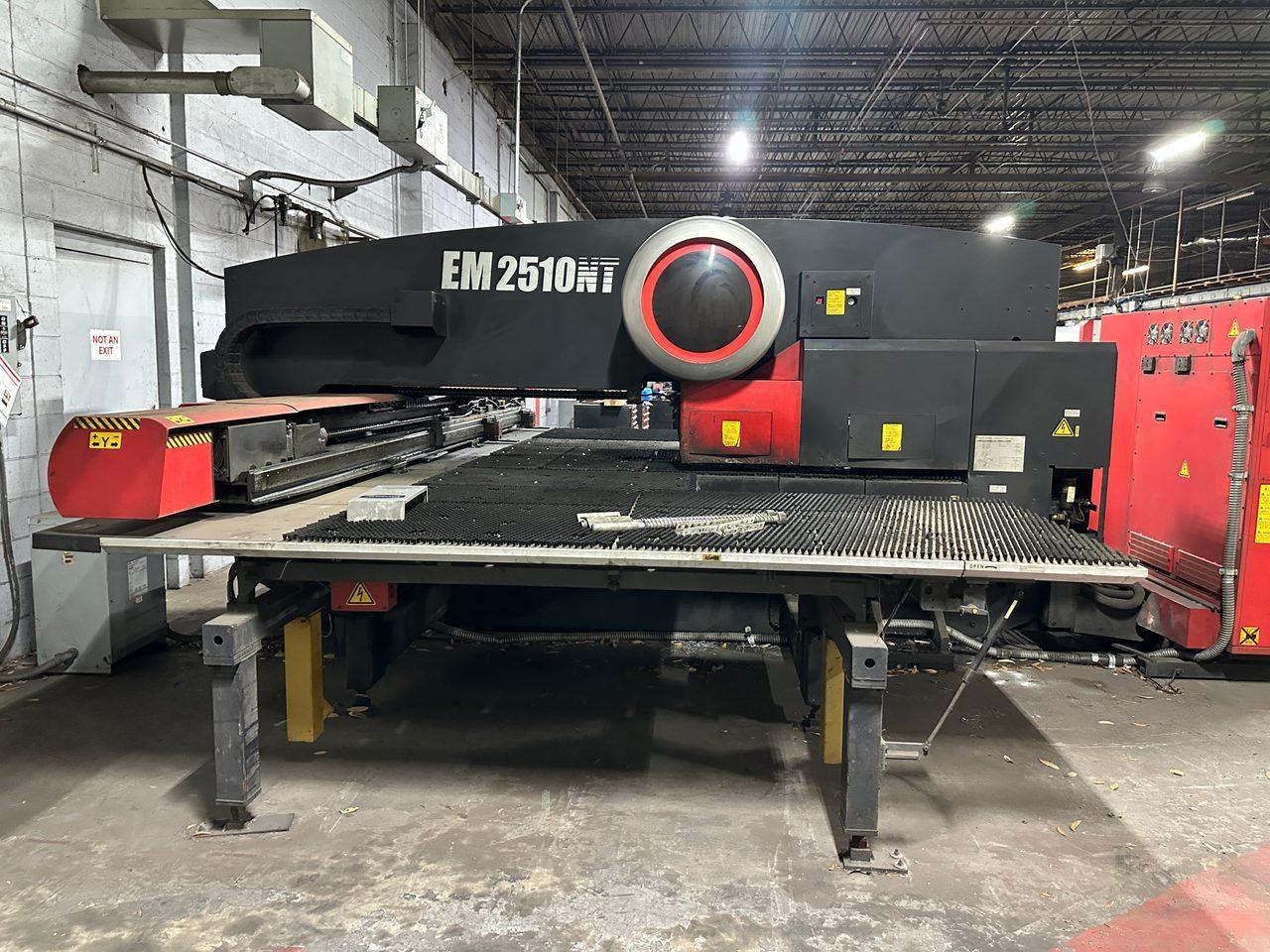

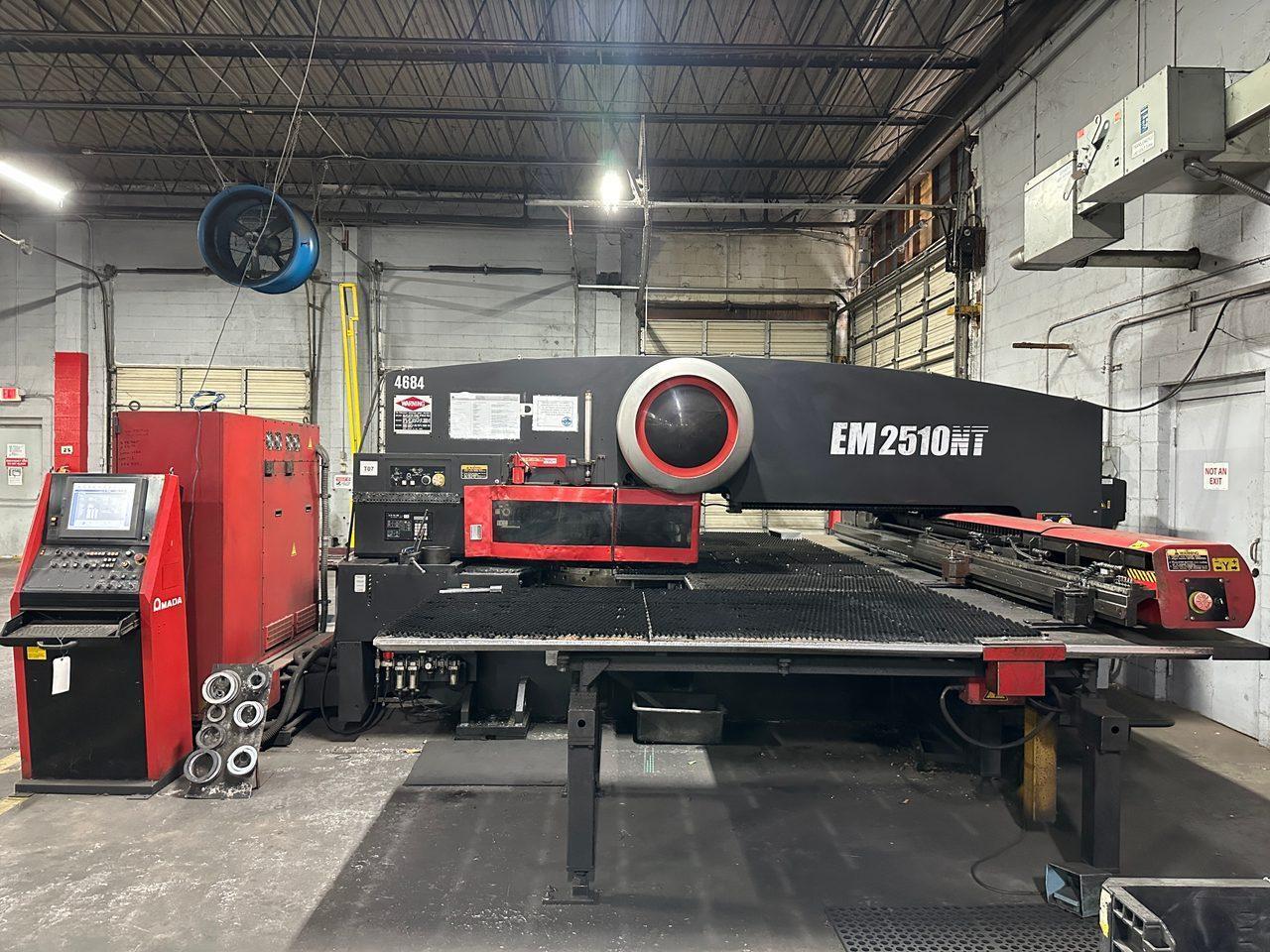

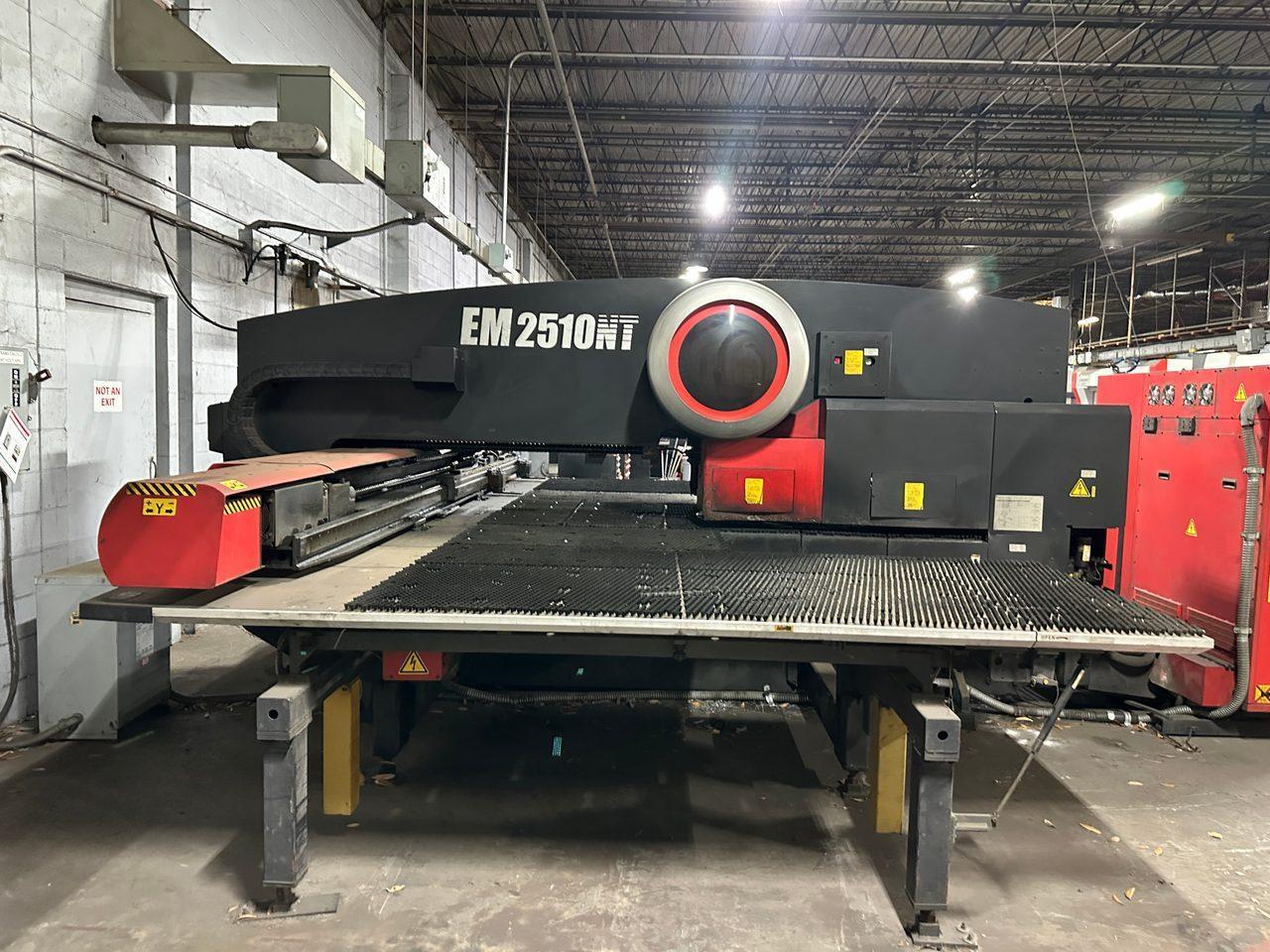

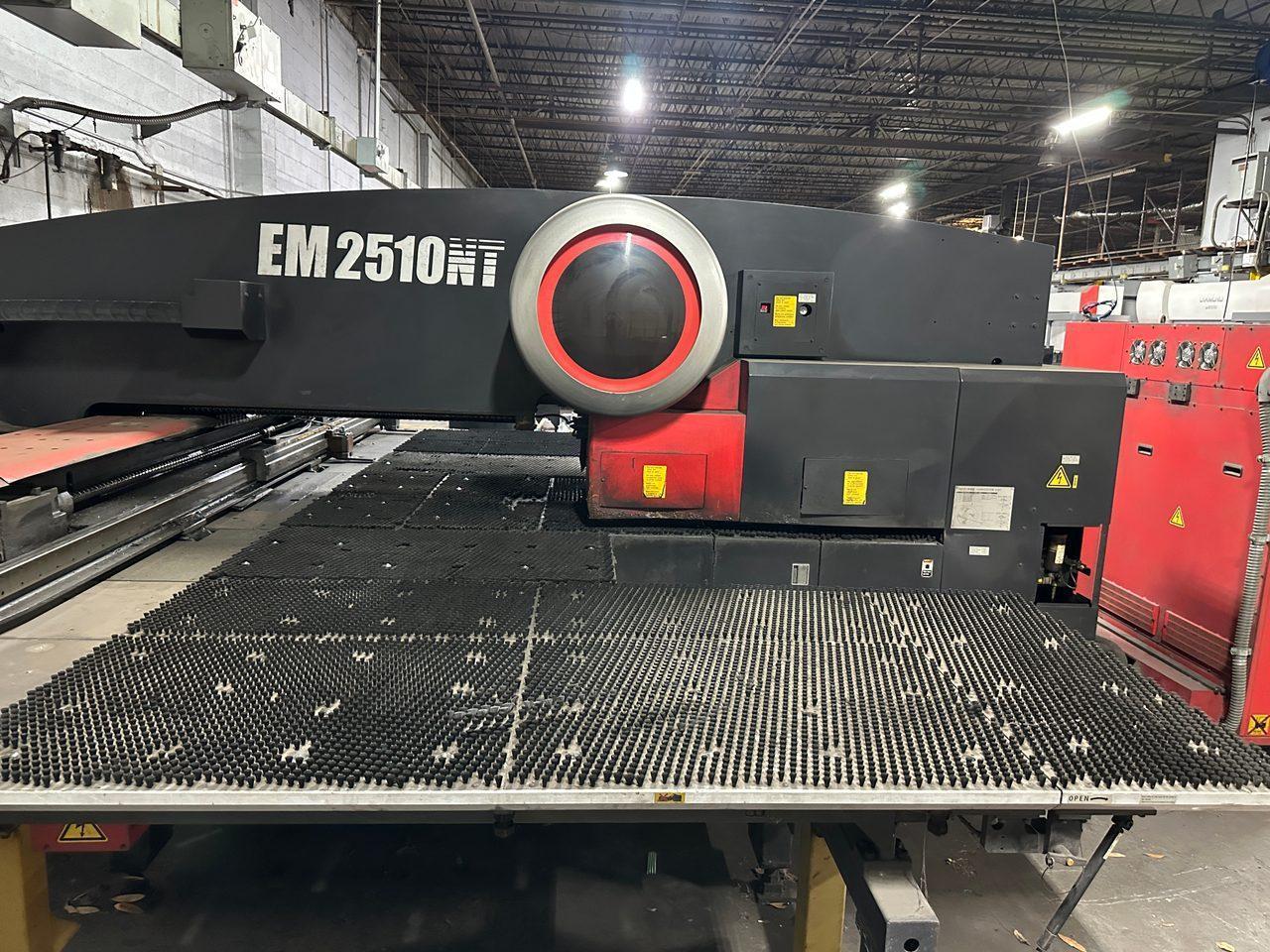

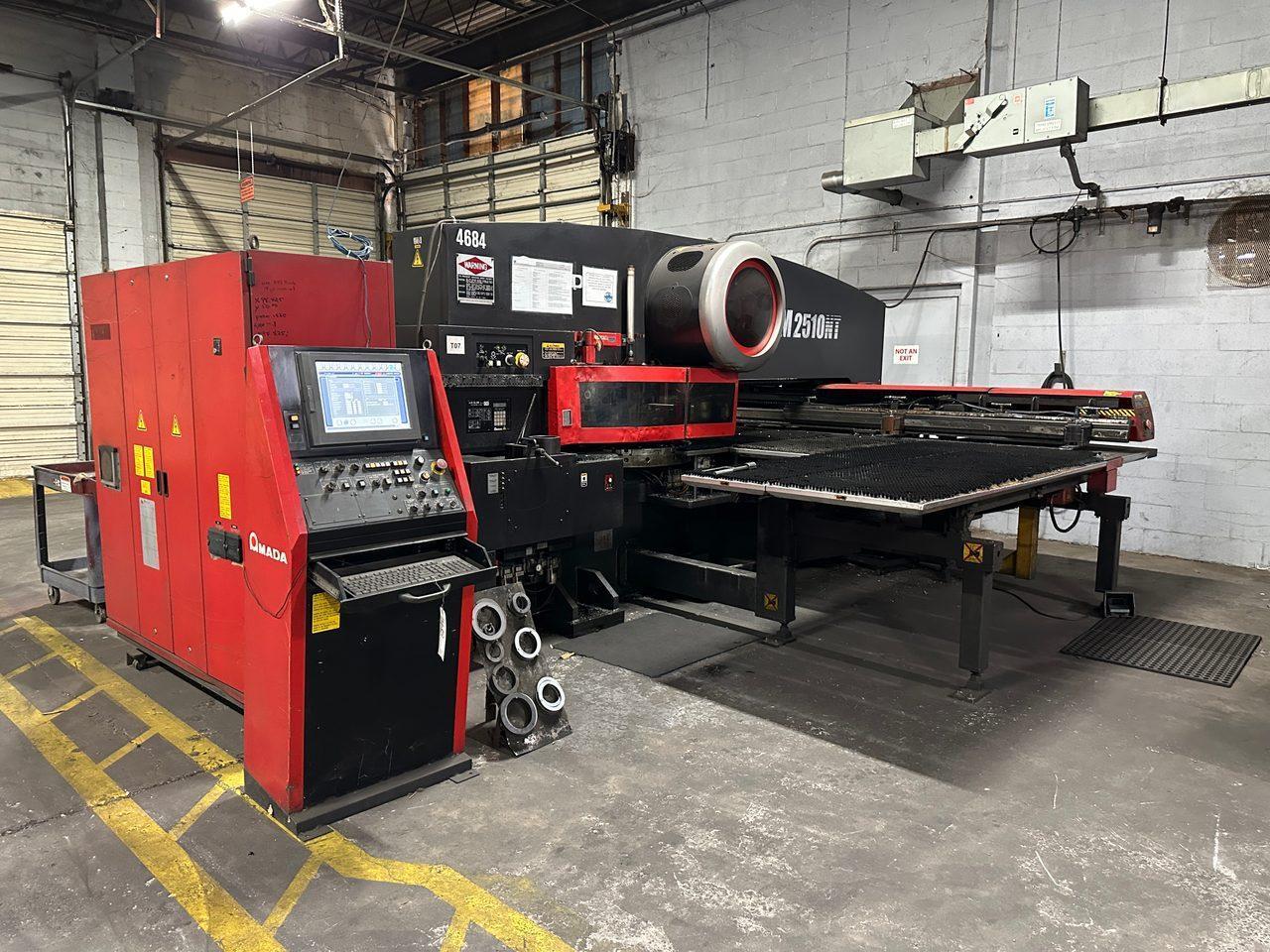

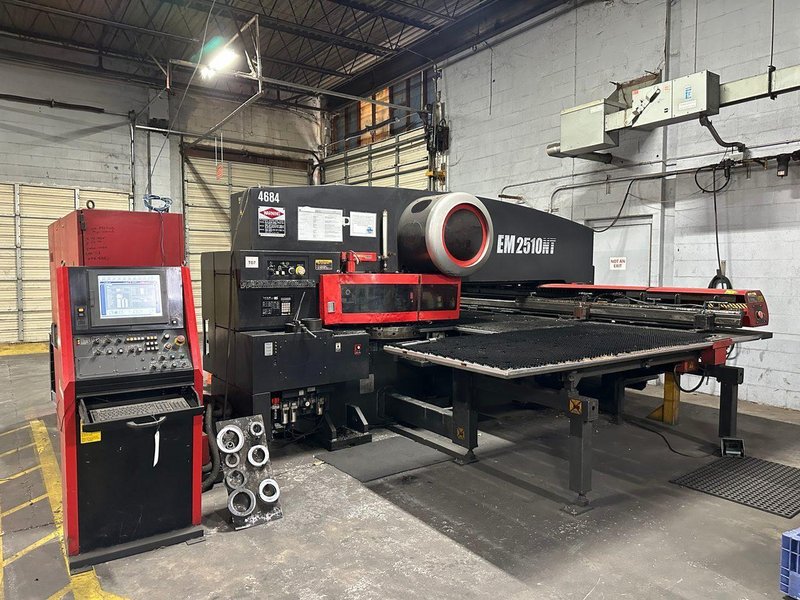

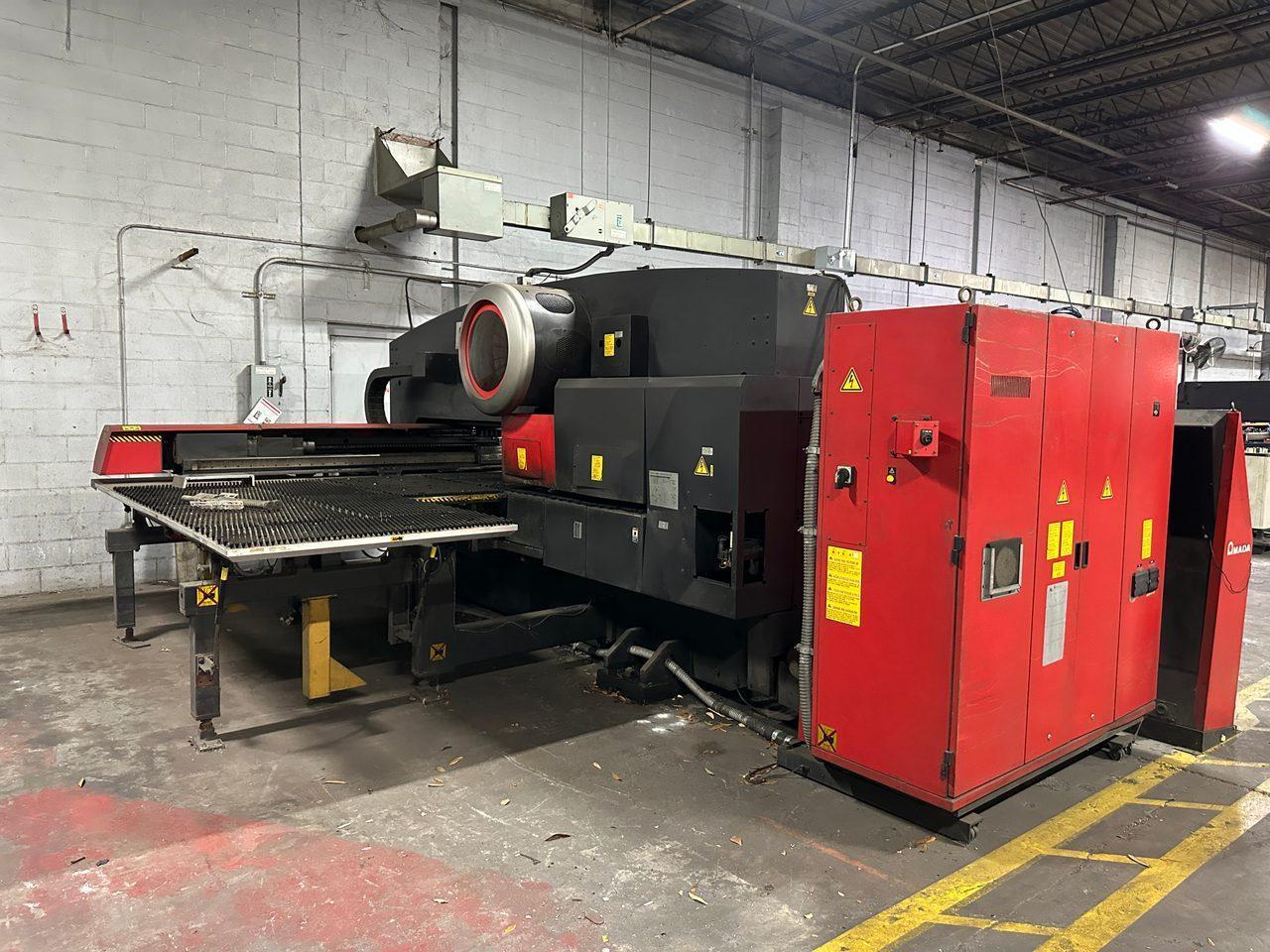

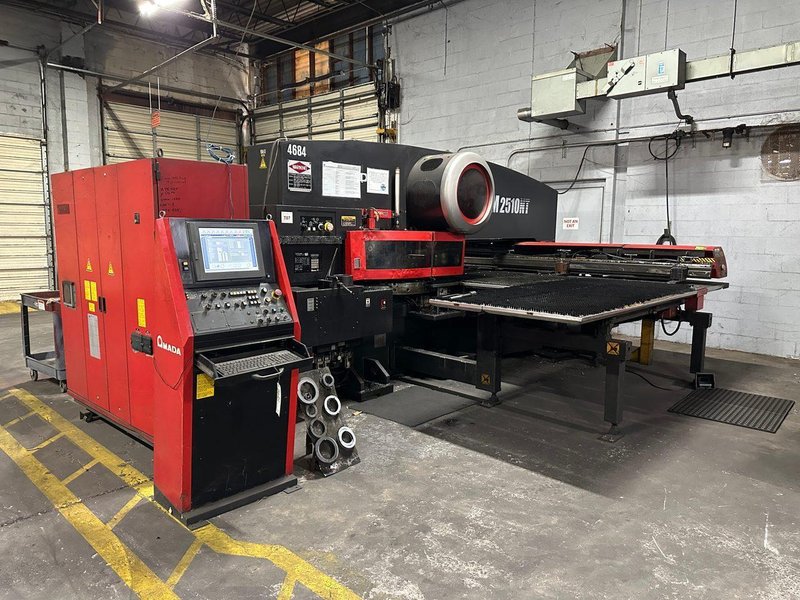

22 Ton Amada EM 2510NT CNC Turret Punch, 2004
Brand
Category
Type
Model
EM 2510NT
Stock #
826345
Year
2004
Condition
Not specified
Location
Not specified
|
Press Capacity: 22 US Tons (200 kN)
Max Sheet Size: 50″ x 98.4″ (1270 mm x 2500 mm)
Max Sheet Thickness: 0.126″ (3.2 mm)
Max Sheet Mass: 110 lbs (50 kg) / 330 lbs (150 kg) on F4
X-Axis Travel: 98.4″ (2500 mm)
Y-Axis Travel: 50″ (1270 mm)
Punching Accuracy: ±0.002″ (±0.07 mm)
Max Press Stroke Length: 1.456″ (37 mm)
Max Feed Speed (X-Axis): 328 ft/min (100 m/min)
Max Feed Speed (Y-Axis): 262 ft/min (80 m/min)
Turret Speed: 30 RPM
Power Supply: 27 kVA
Weight: 39,683 lbs (18,000 kg)
Dimensions: 218″ x 202″ x 92″H (125″H with mirror installed)

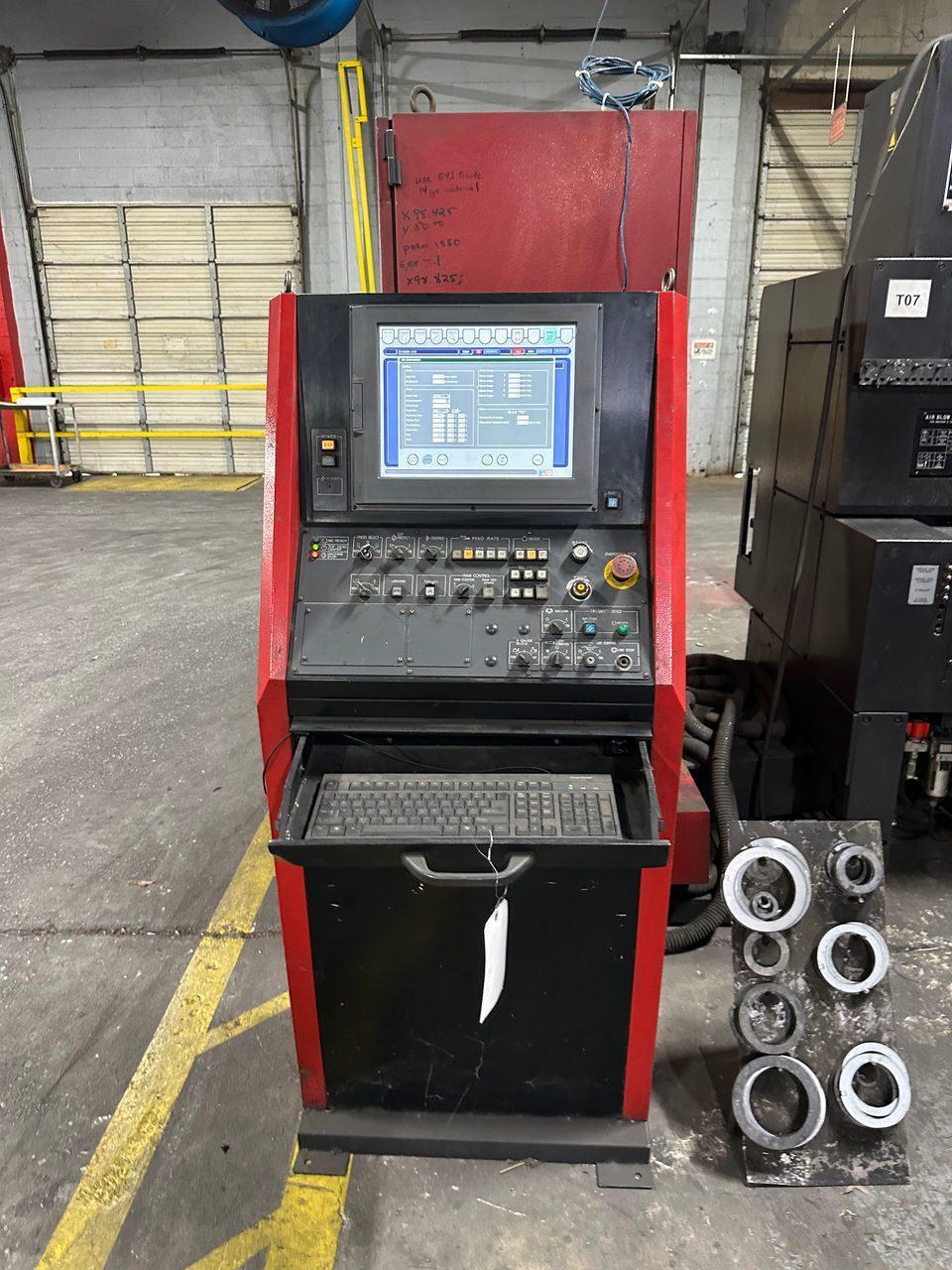

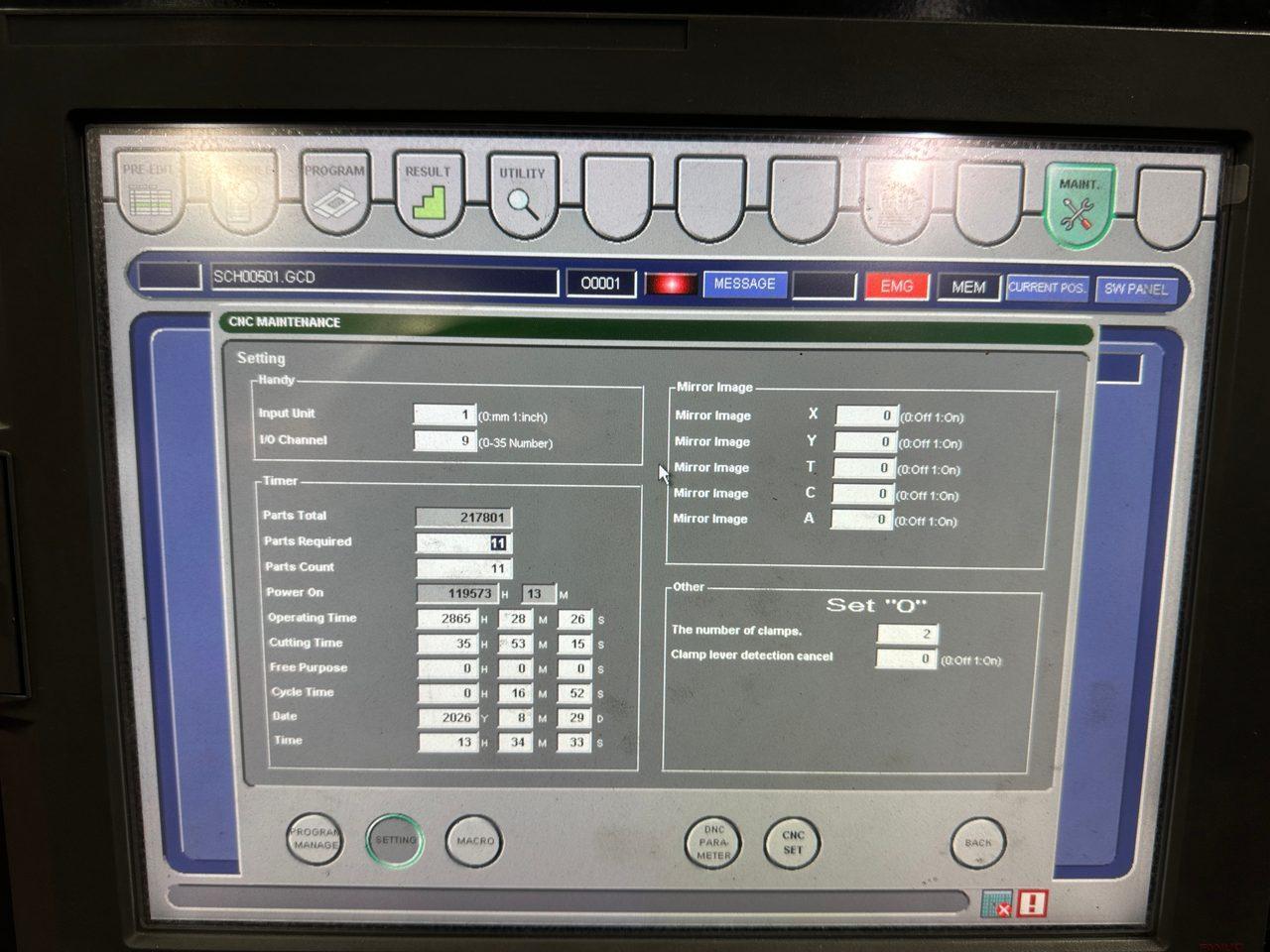

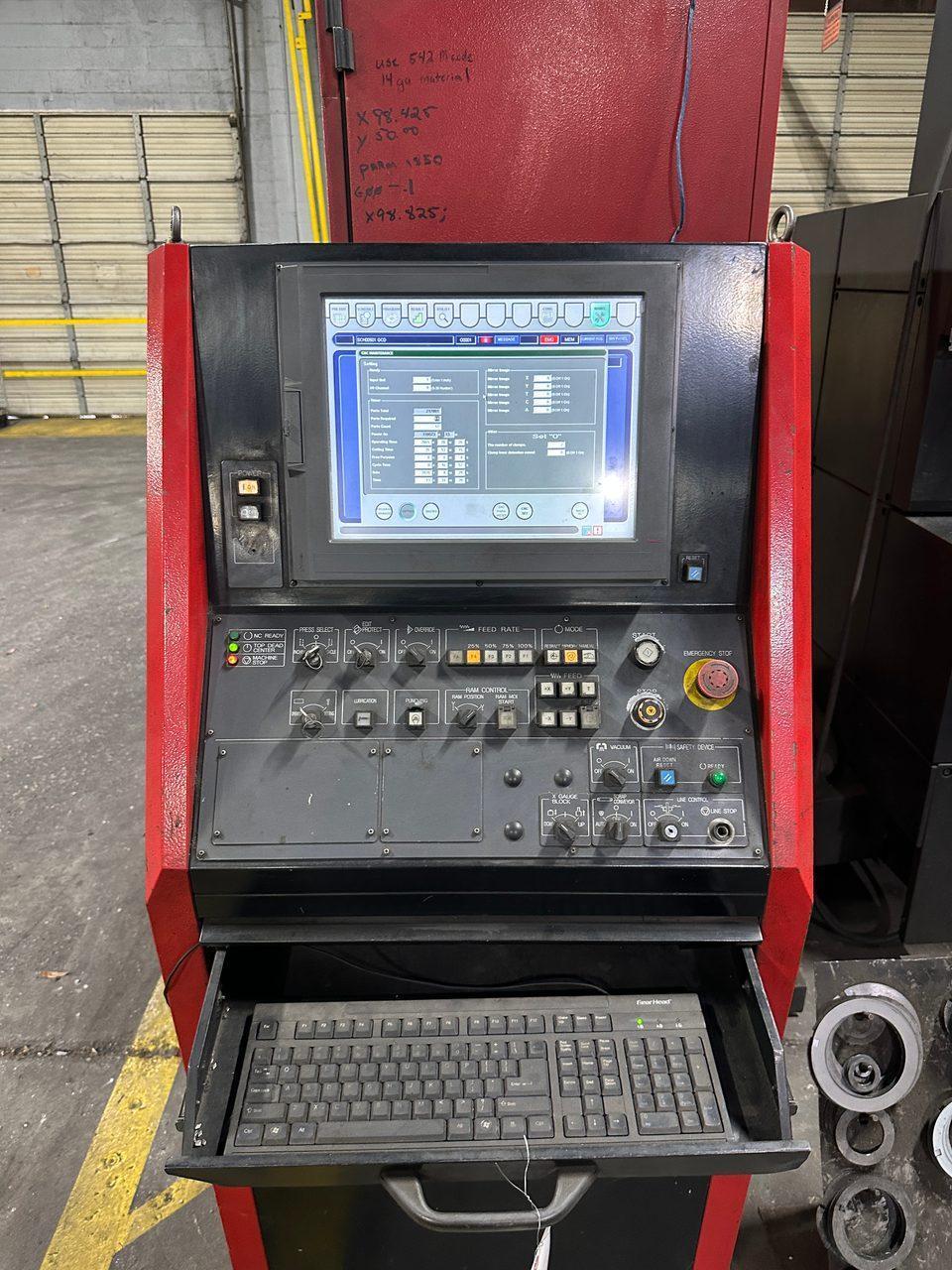

Control: AMNC-F (FANUC 180iPB)
All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
