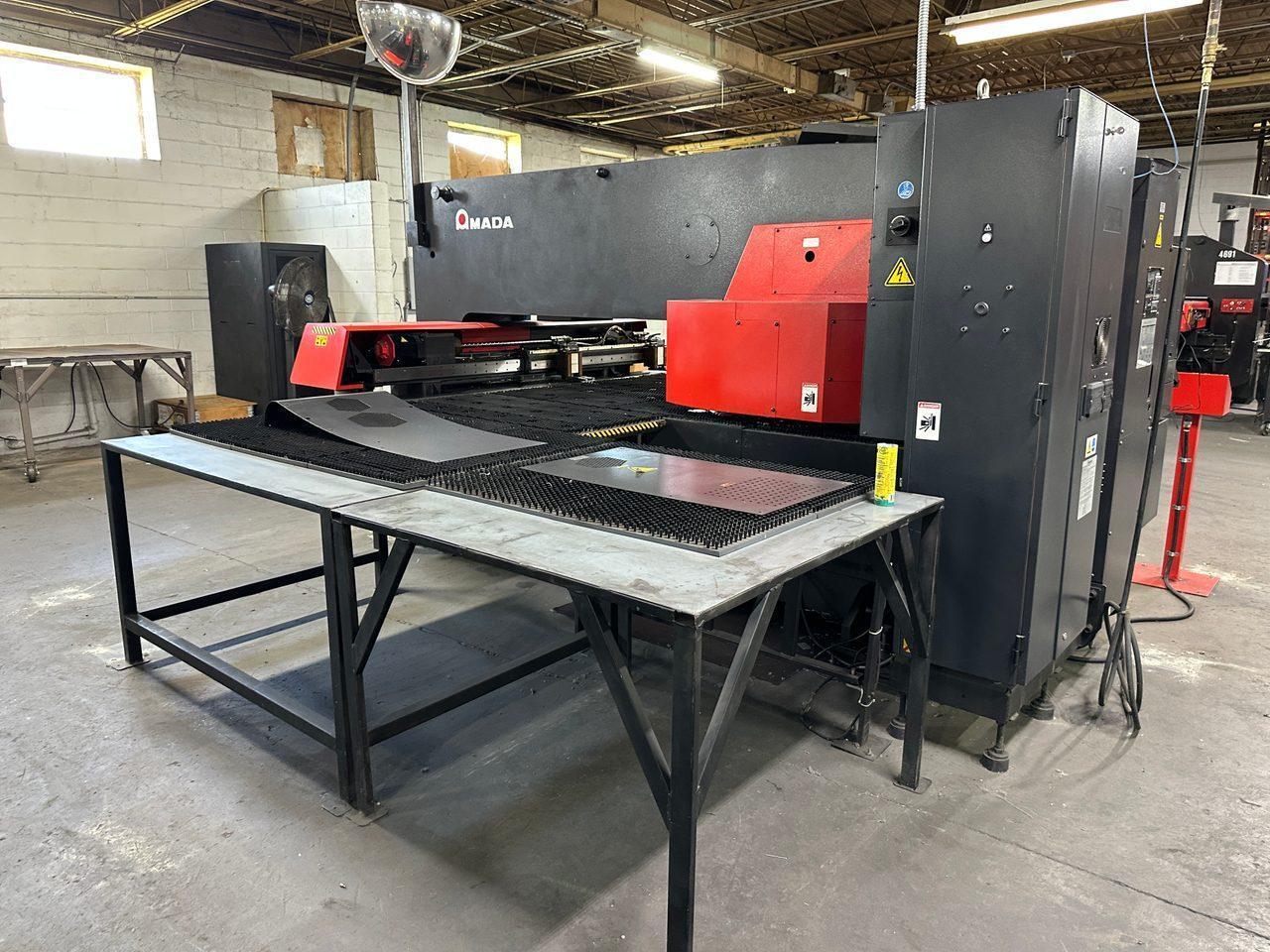

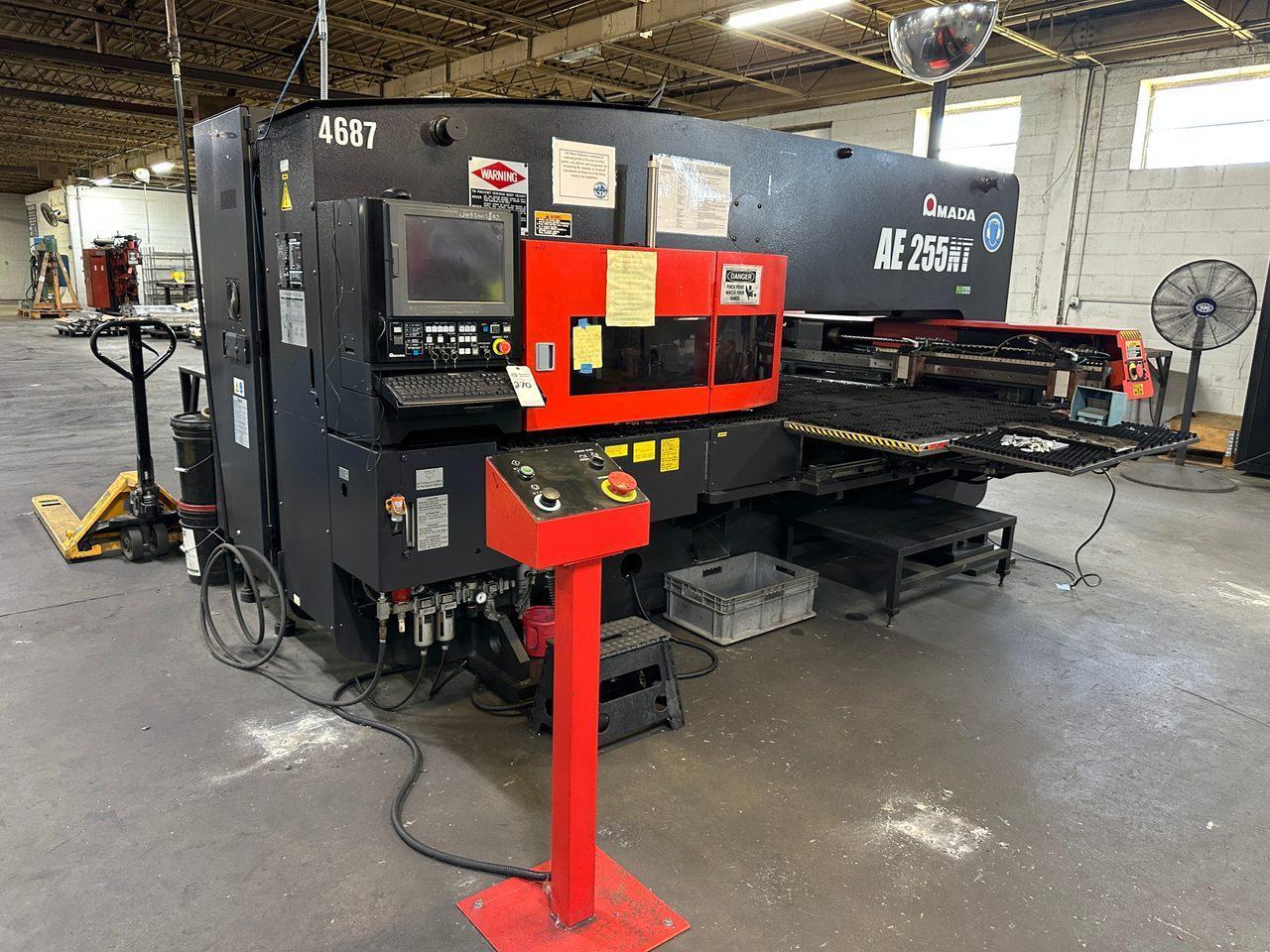

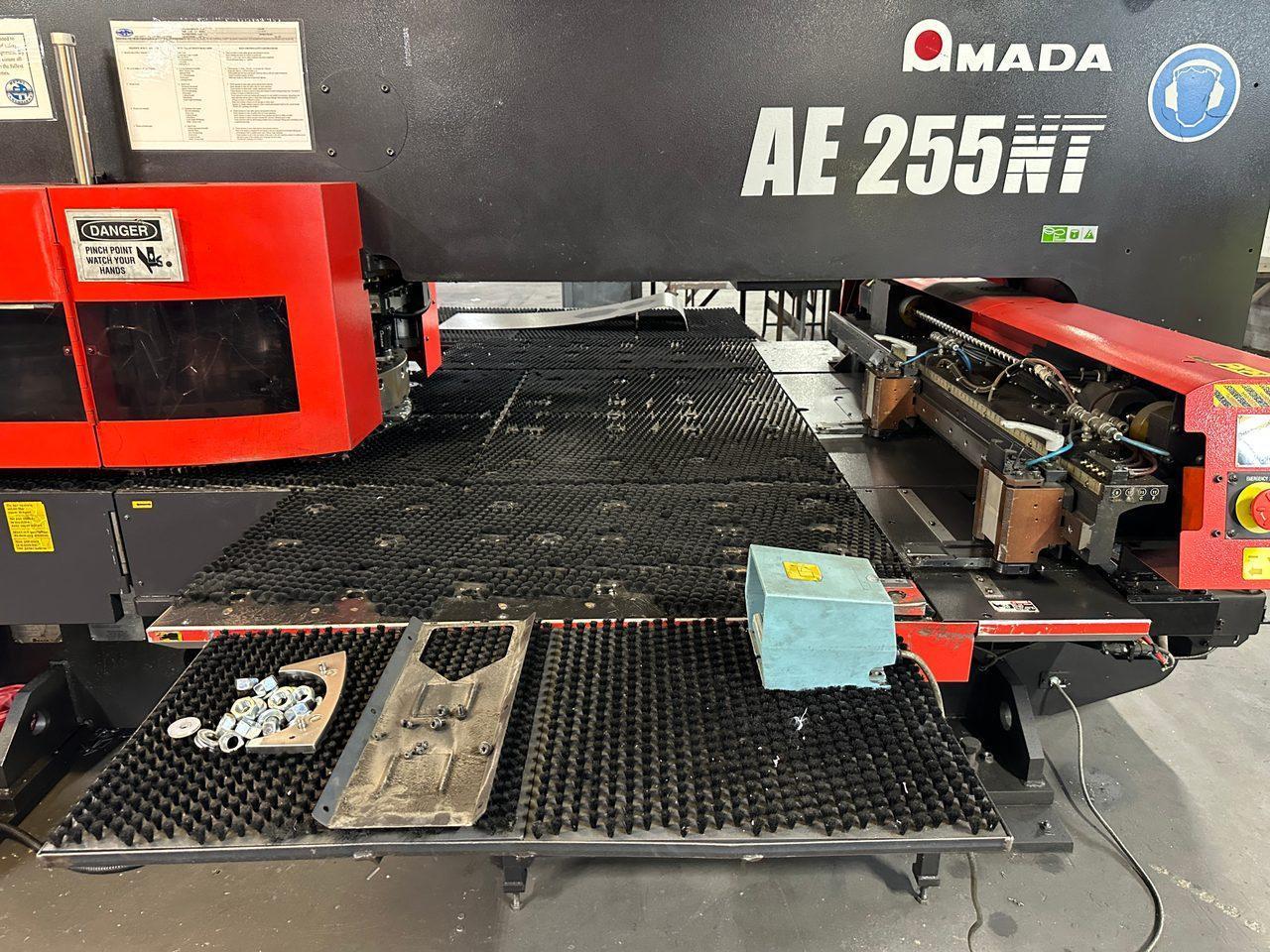

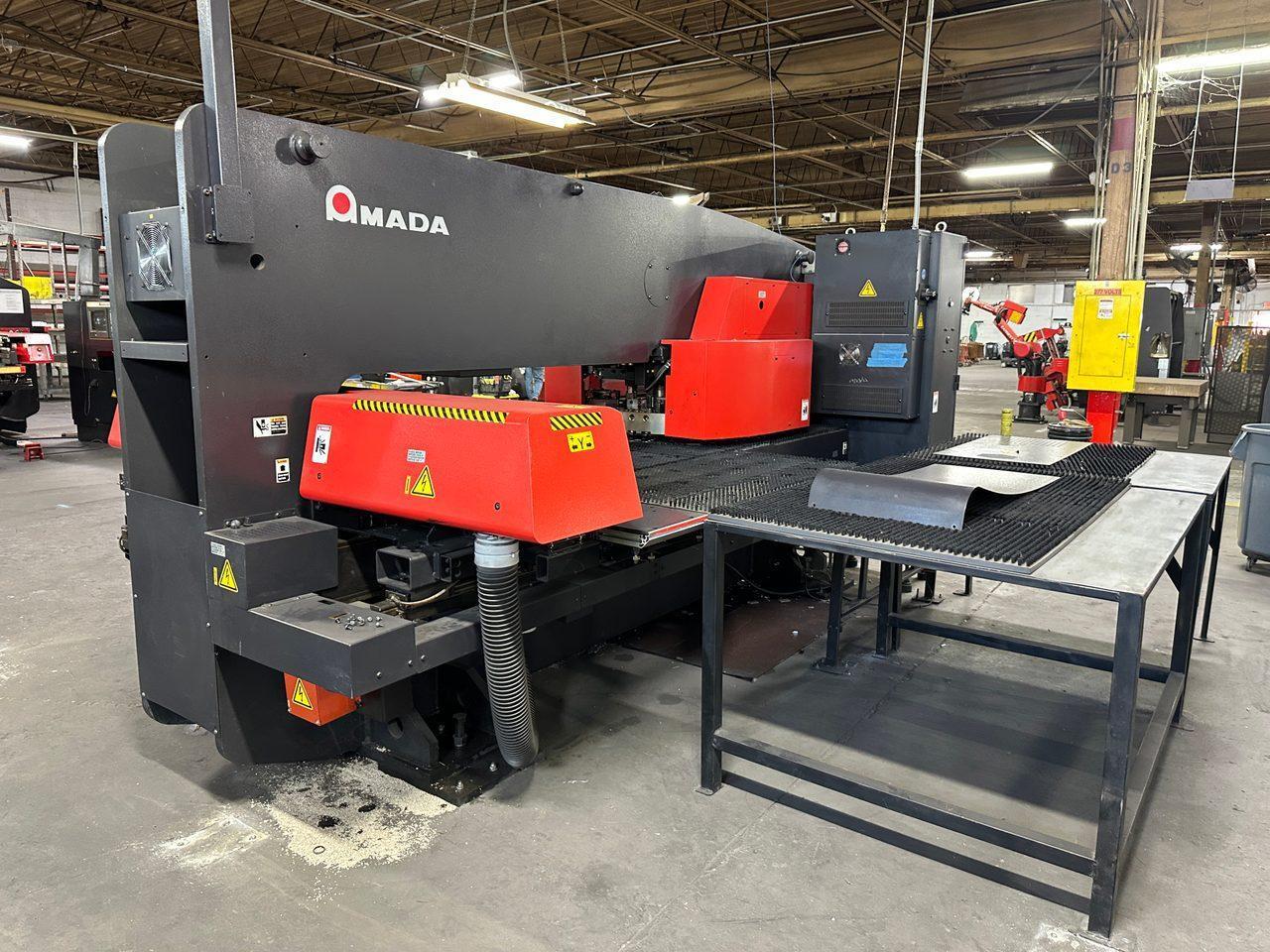

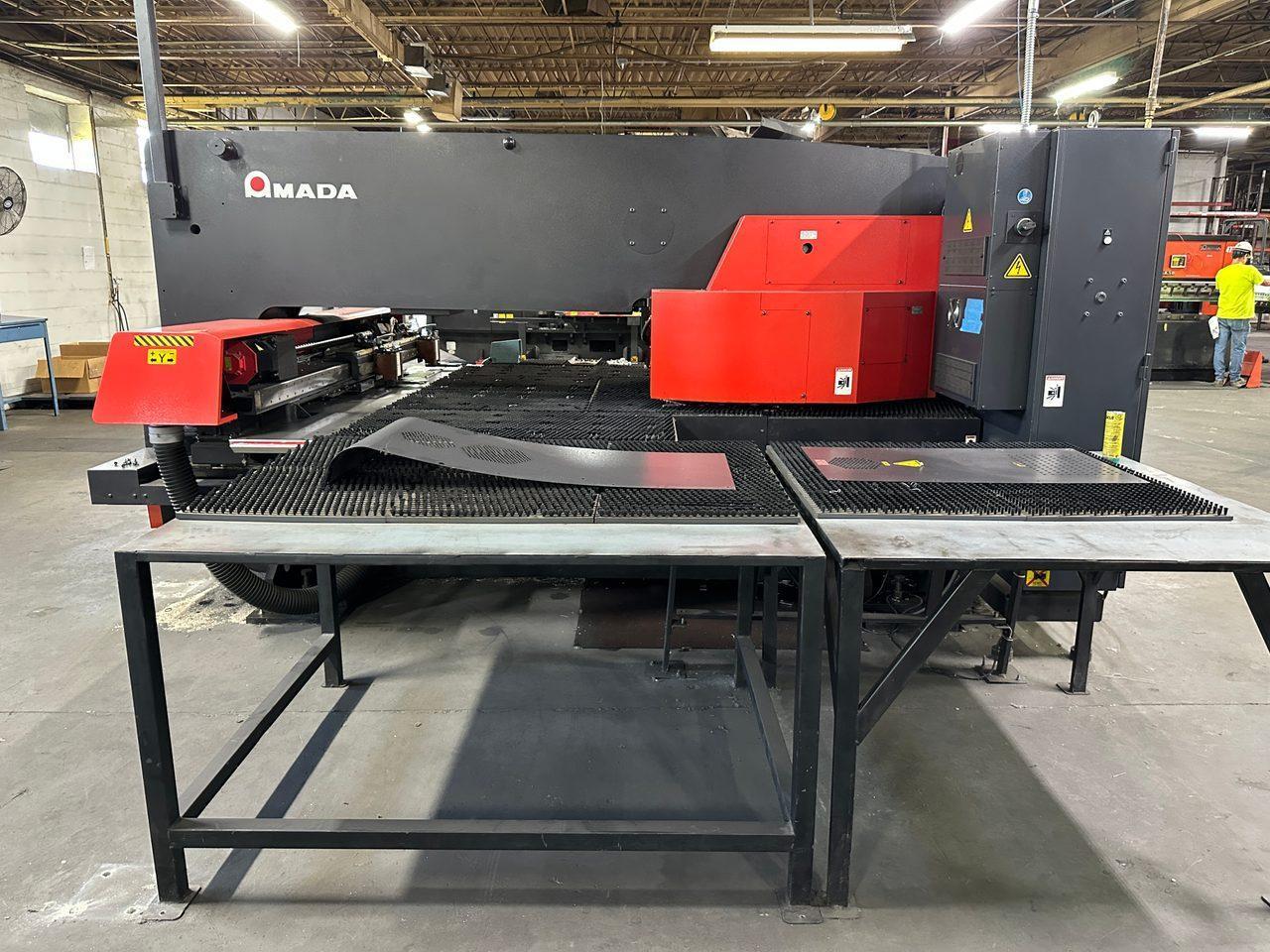

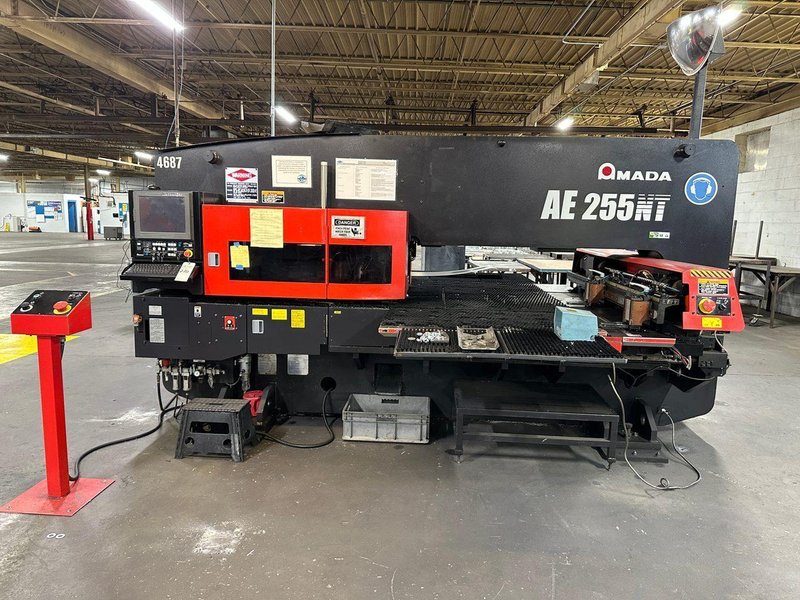

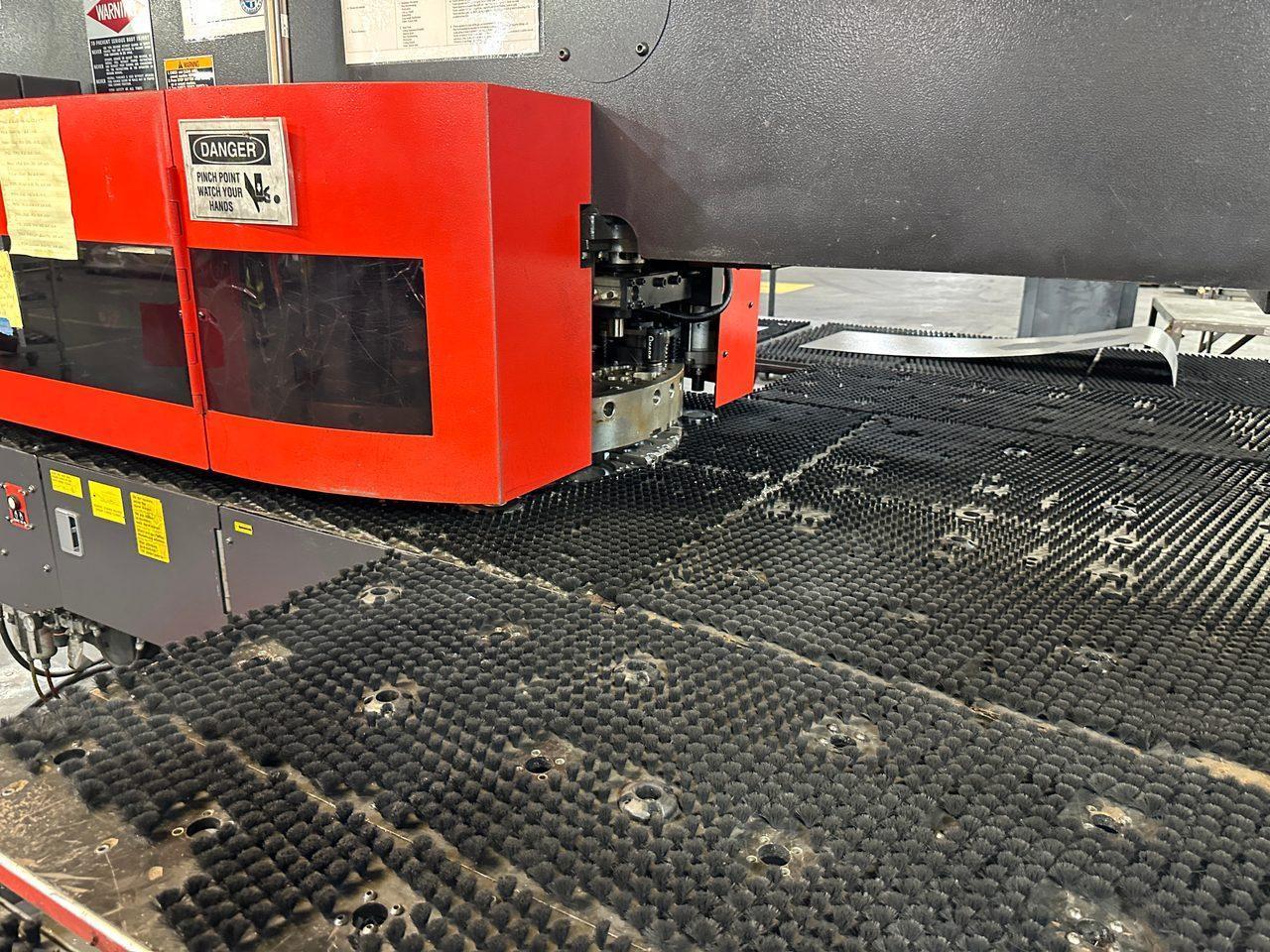

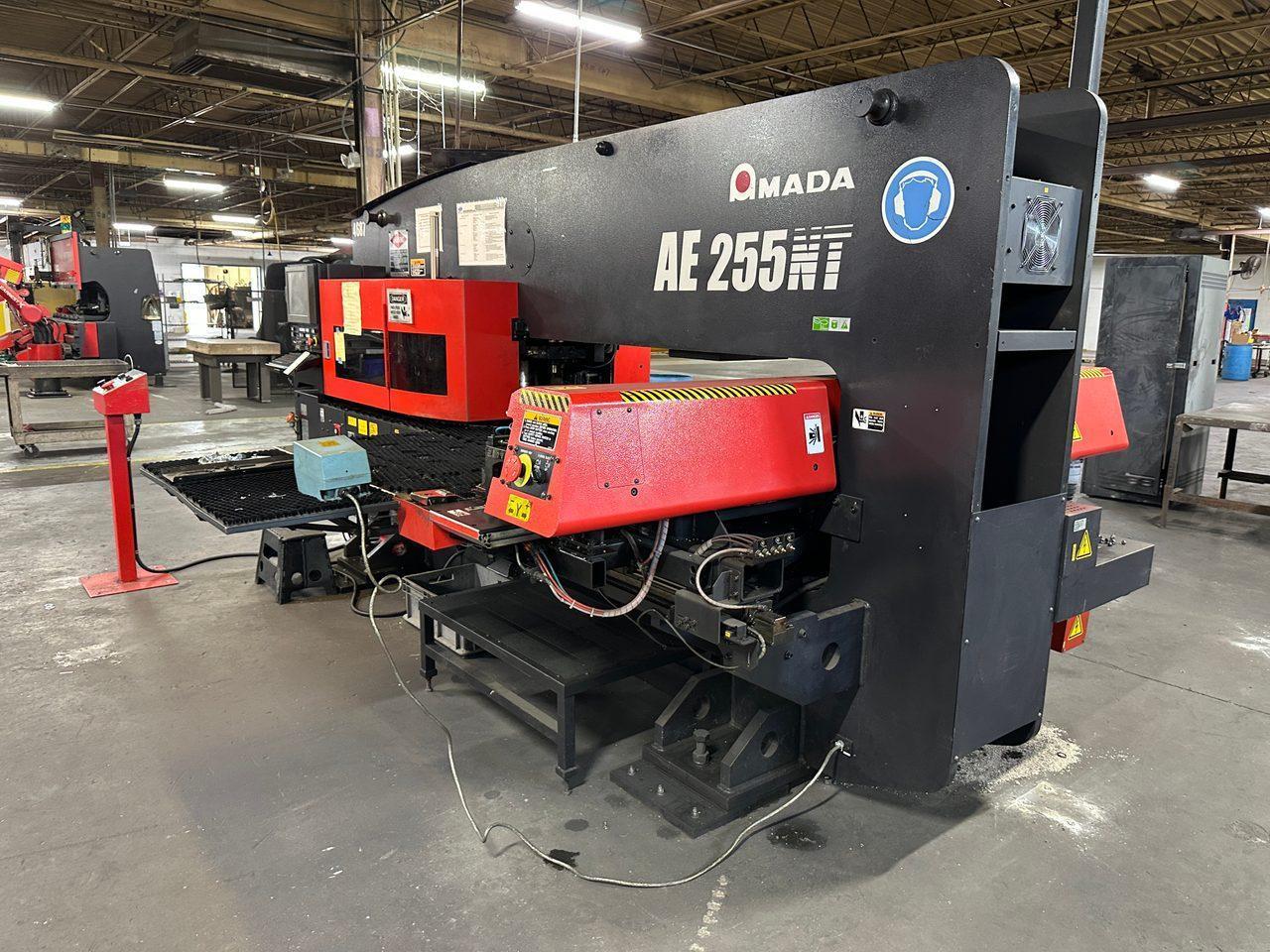

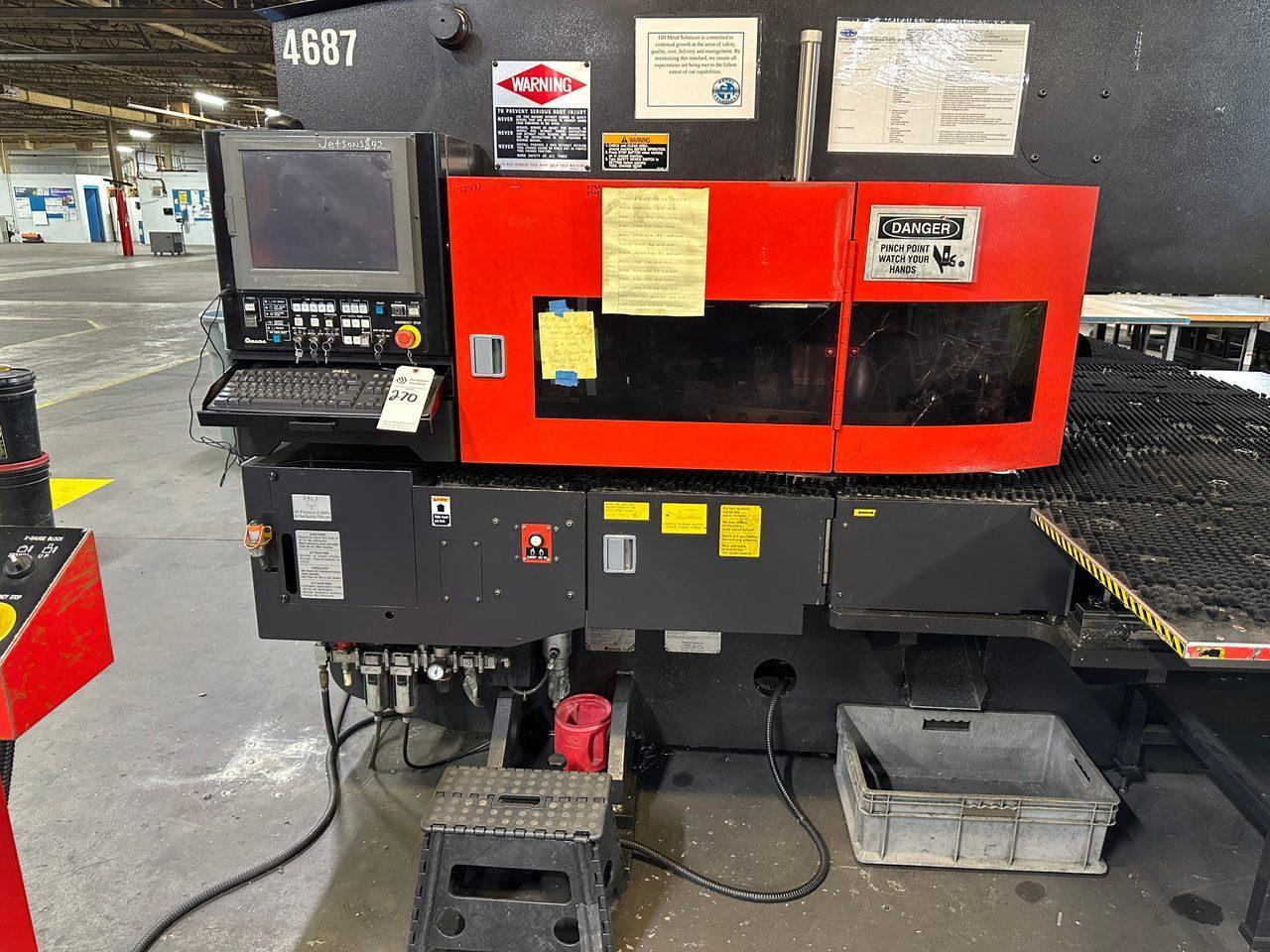

22 Ton Amada AE 255NT CNC Turret Punch, 2014

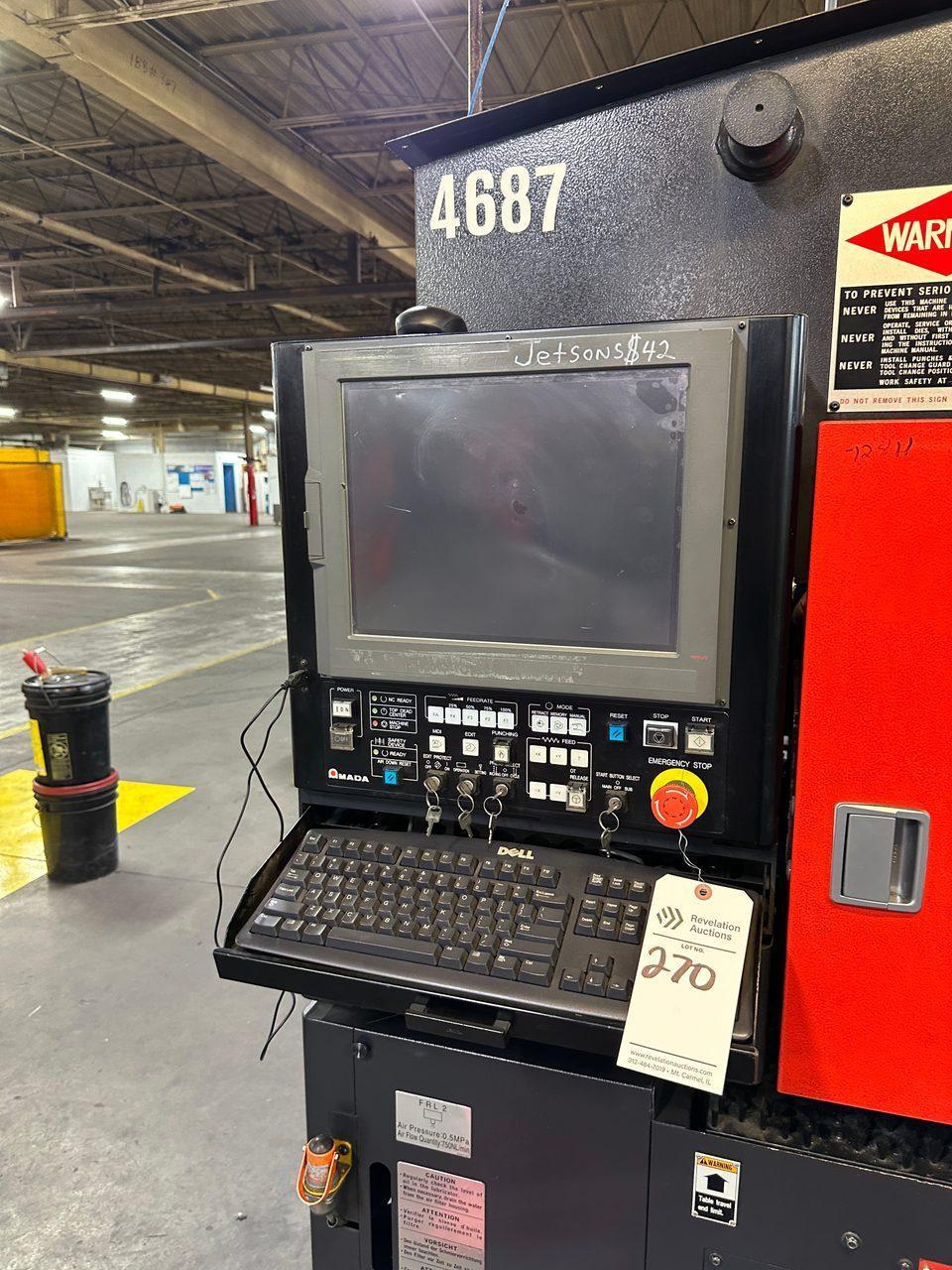

Press Capacity: 22 US Tons (200 kN) Max Sheet Size: 50″ x 98.425″ (1270 mm x 2500 mm) Max Sheet Thickness: 0.126″ (3.2 mm) / 0.252″ (6.4 mm) Max Sheet Mass: 110 lbs (50 kg) at F1 / 330 lbs (150 kg) at F4 X-Axis Travel: 50″ (1270 mm) Y-Axis Travel: 50″ (1270 mm) Punching Accuracy: ±0.004″ (±0.1 mm) / FA Mode: 0.003″ (0.07 mm) Max Press Stroke Length: 1.654″ (42 mm) Max Feed Speed (X-Axis): 262 ft/min (80 m/min) Max Feed Speed (Y-Axis): 197 ft/min (60 m/min) Turret Speed: 30 RPM Turret Stations: 45 Stations Power Supply: 19 kVA, 3-Phase, 200V, 60/50 Hz Air Supply: 26.49 ft³/min (750 L/min), 72 PSI (0.5 MPa) Weight: 26,455 lbs (12,000 kg) Dimensions: 161.4″ x 100.8″ x 82.0″H (119.2″H with option mirror installed) Control: AMNC-F (FANUC 180-PB)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Air Blow System Type V-EX Operator’s Manual & Documentation
