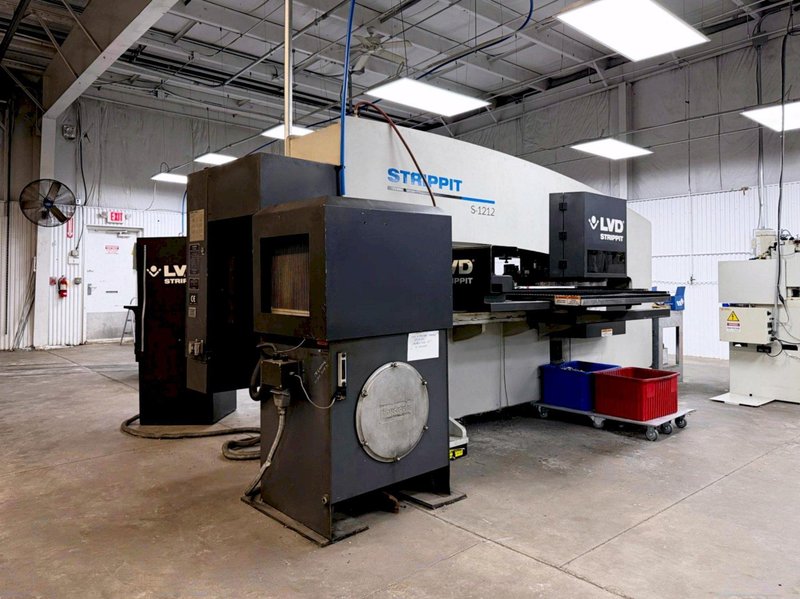

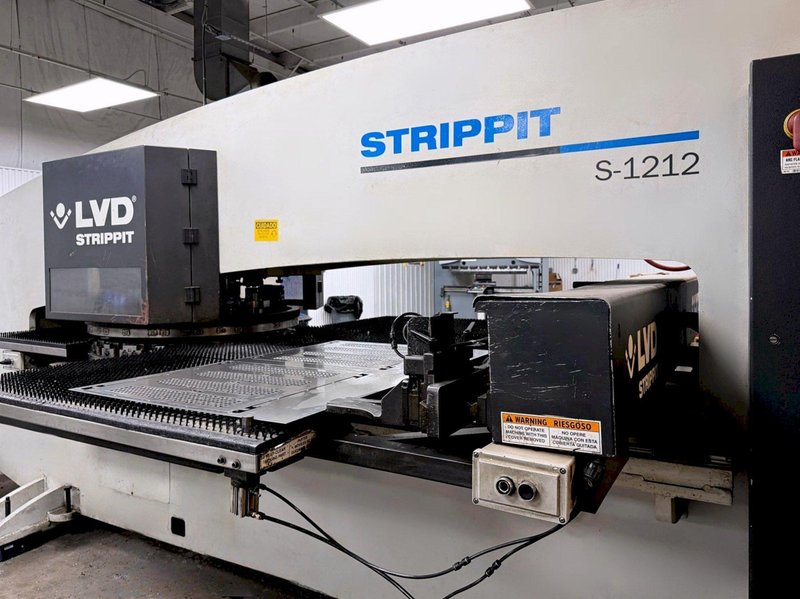

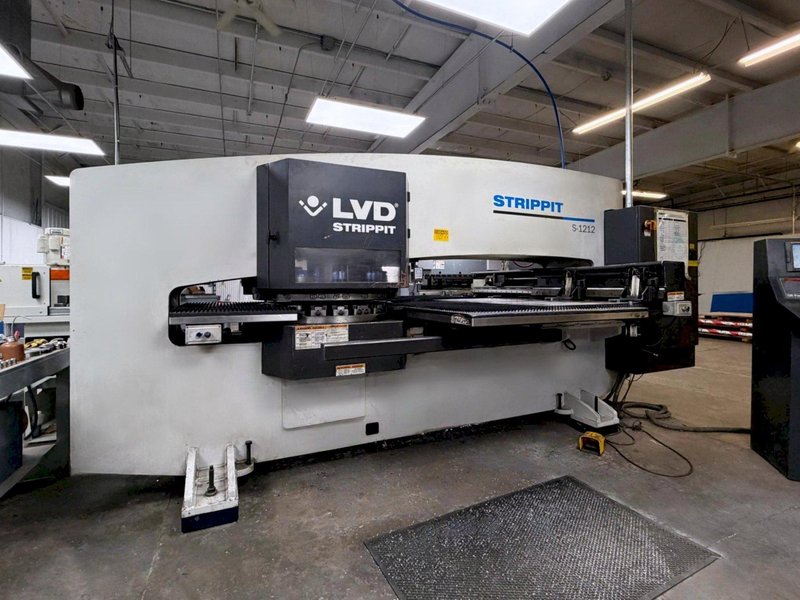

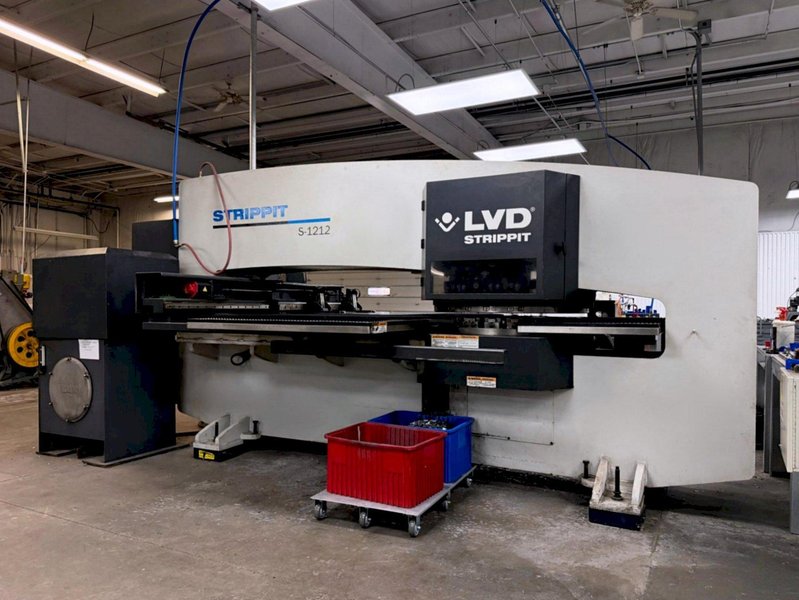

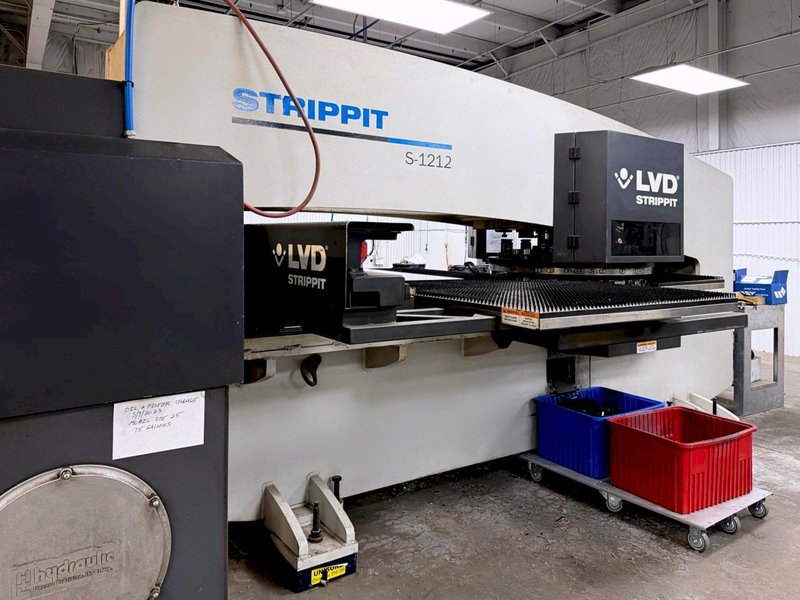

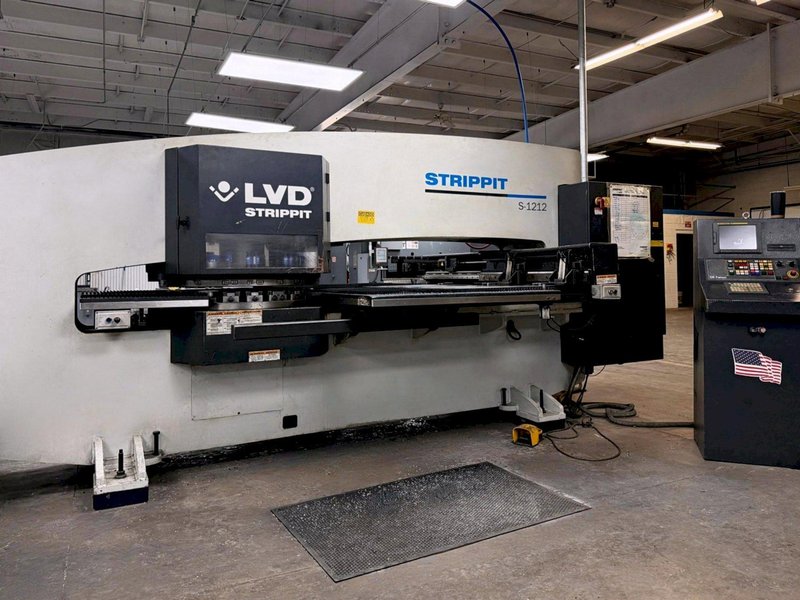

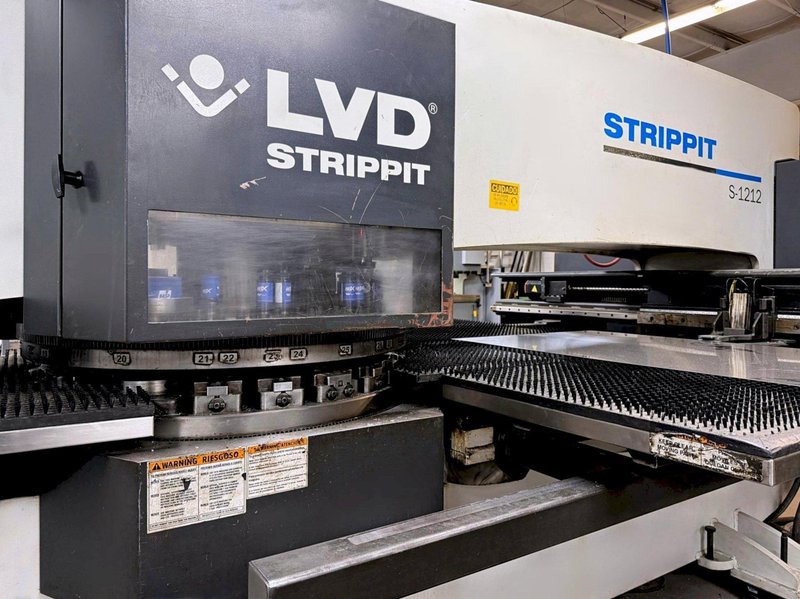

LVD Strippit S-1212 Turret Punch

Name: LVD Strippit S-1212 Turret Punch
Brand: LVD STRIPPIT
SKU: 100643
Availability: PreOrder

Brand

LVD STRIPPIT

Not specified

Control	Fanuc 180i
Capacity	20 Tons
Normal Workpiece Size	49.21” x 49.21”
Clamp Repositioning	49.21" x 98.4"
Max Thickness (Mild Steel)	0.250”

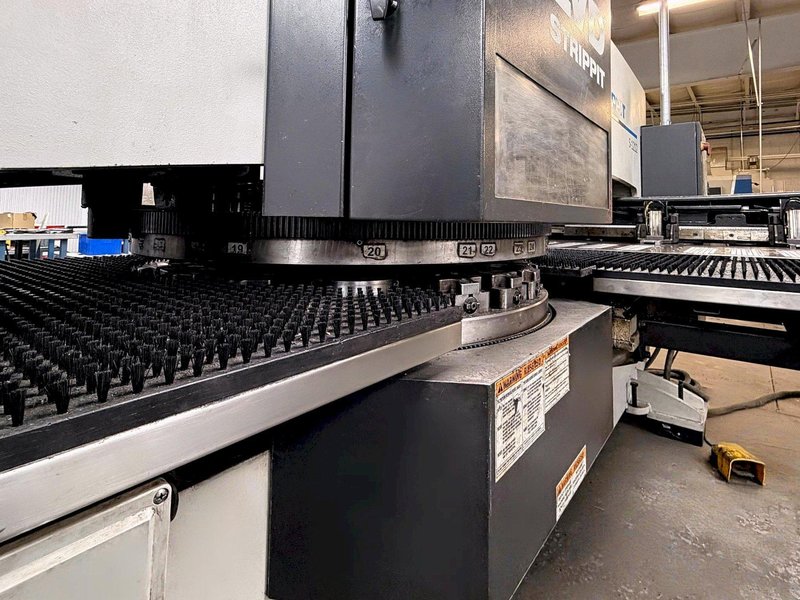

Turret Type	Thick
Turret Stations	31
Punching Accuracy	±0.004”

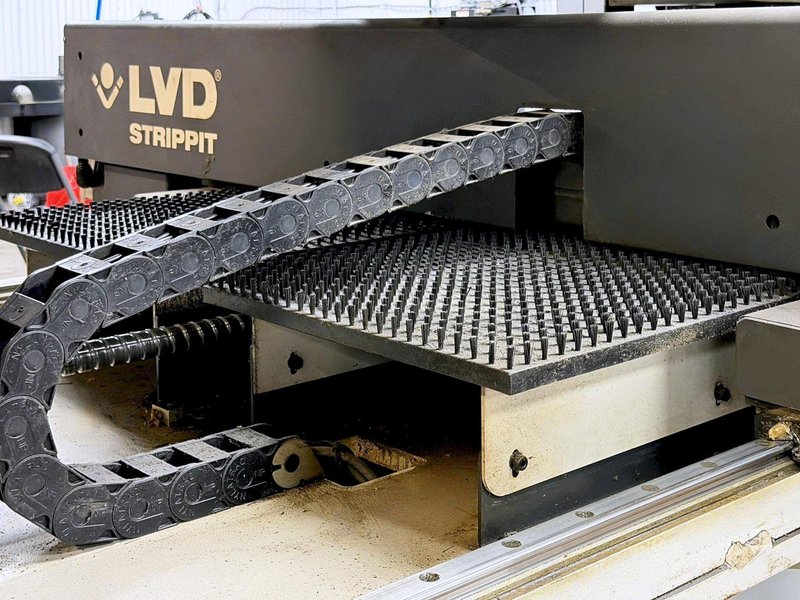

Table Type	Brush
Table Capacity	242 Lbs.

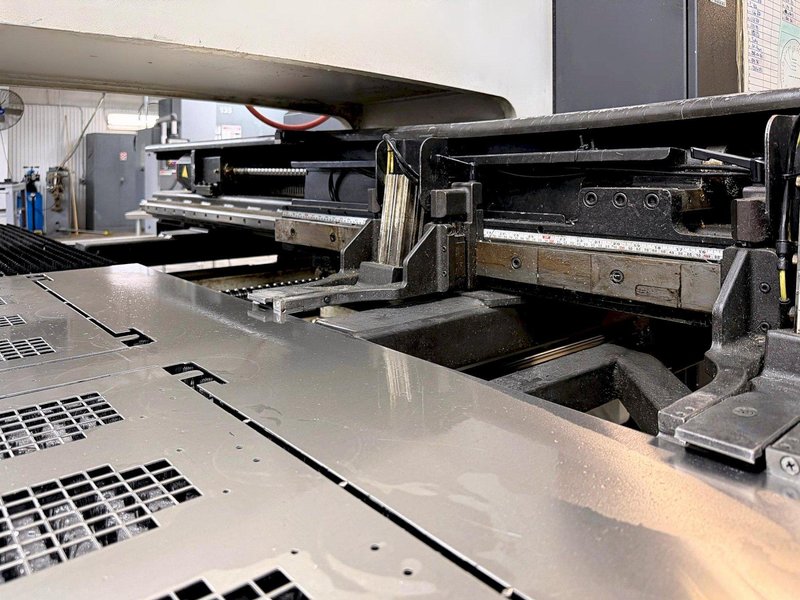

Floating Clamps	2 Manual Lock
Max Clamp Spread	39.37”
Feed Clearance	0.984”
Angular Pos. Accuracy	±0.05°
Axis Traverse Speed	4094 IPM Combined
Maximum Hit Rate @ 2mm Working Stroke (.04” Feedrate)	Up to 900 HPM
Maximum Hit Rate @ 2mm Working Stroke (1.0” Feedrate)	Up to 360 HPM

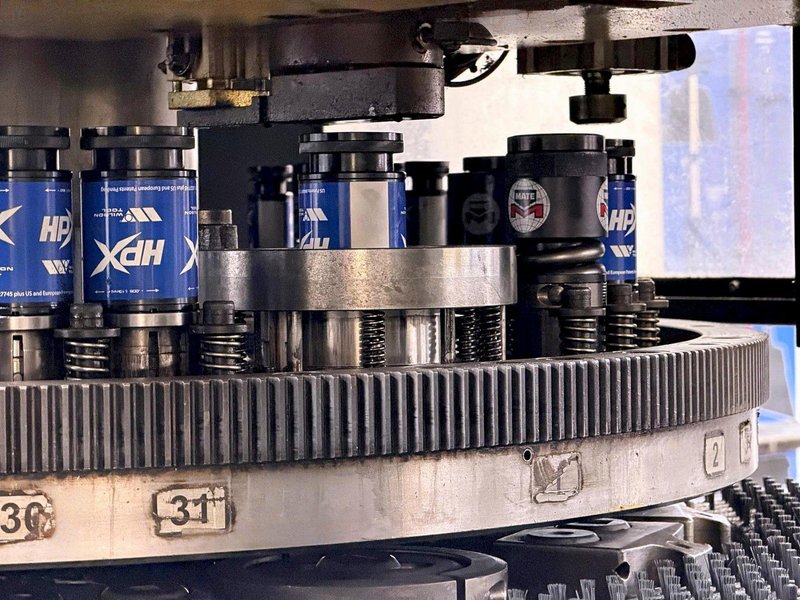

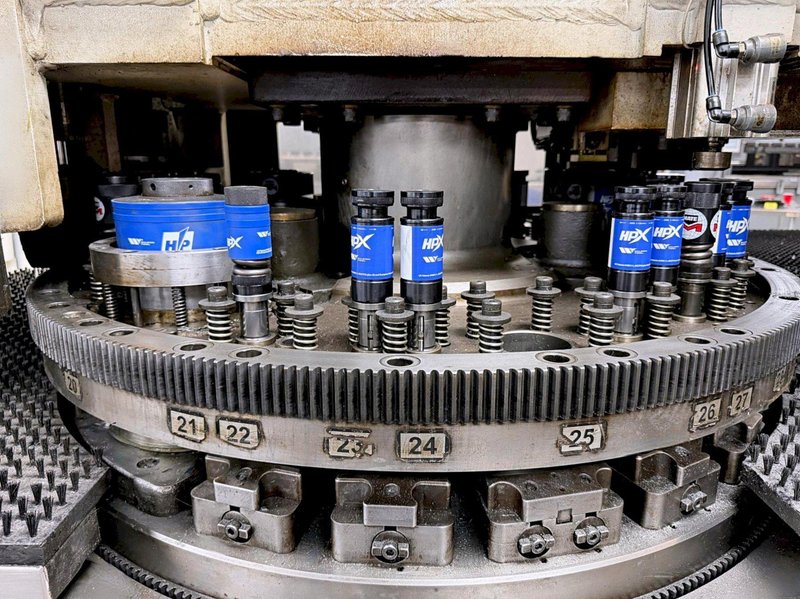

Turret Configuration	31 Stations
Turret Layout A	16’A’-0.5”
Turret Layout B	10’B’-1.25”
Turret Layout C	2’C’-2”
Turret Layout D	3’D’-3.5”
Number Of Auto-Index Stations	3
Auto-Index Stations	3’D’-3.5”
Dimensions	187” x 105” x 82”
Weight	20,200 Lbs.

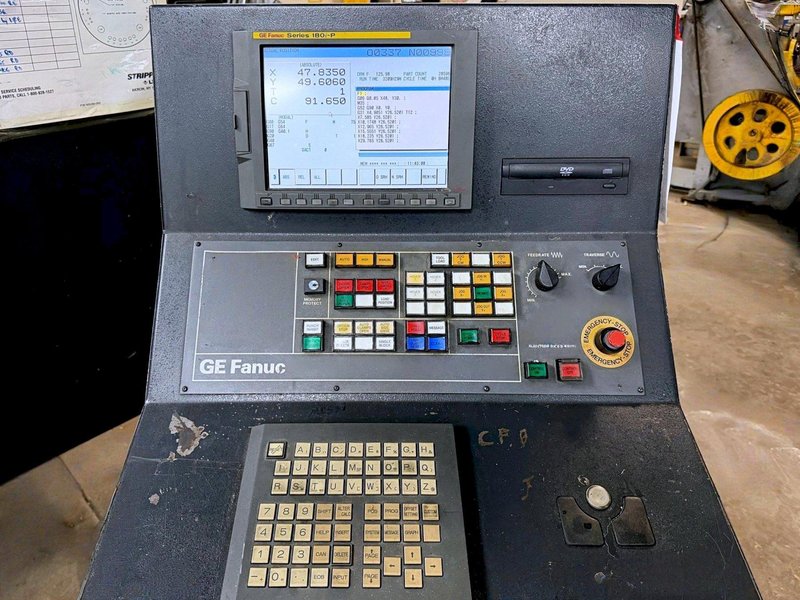

Equipped With: Fanuc 180i-P Control 1 GB Hard Drive Brush Table 31 Turret Stations 3 Auto-Index Turret Stations Advanced Hydraulic Press Drive Smart Stroke® Quick-Change Die Holders All Tooling Pictured
