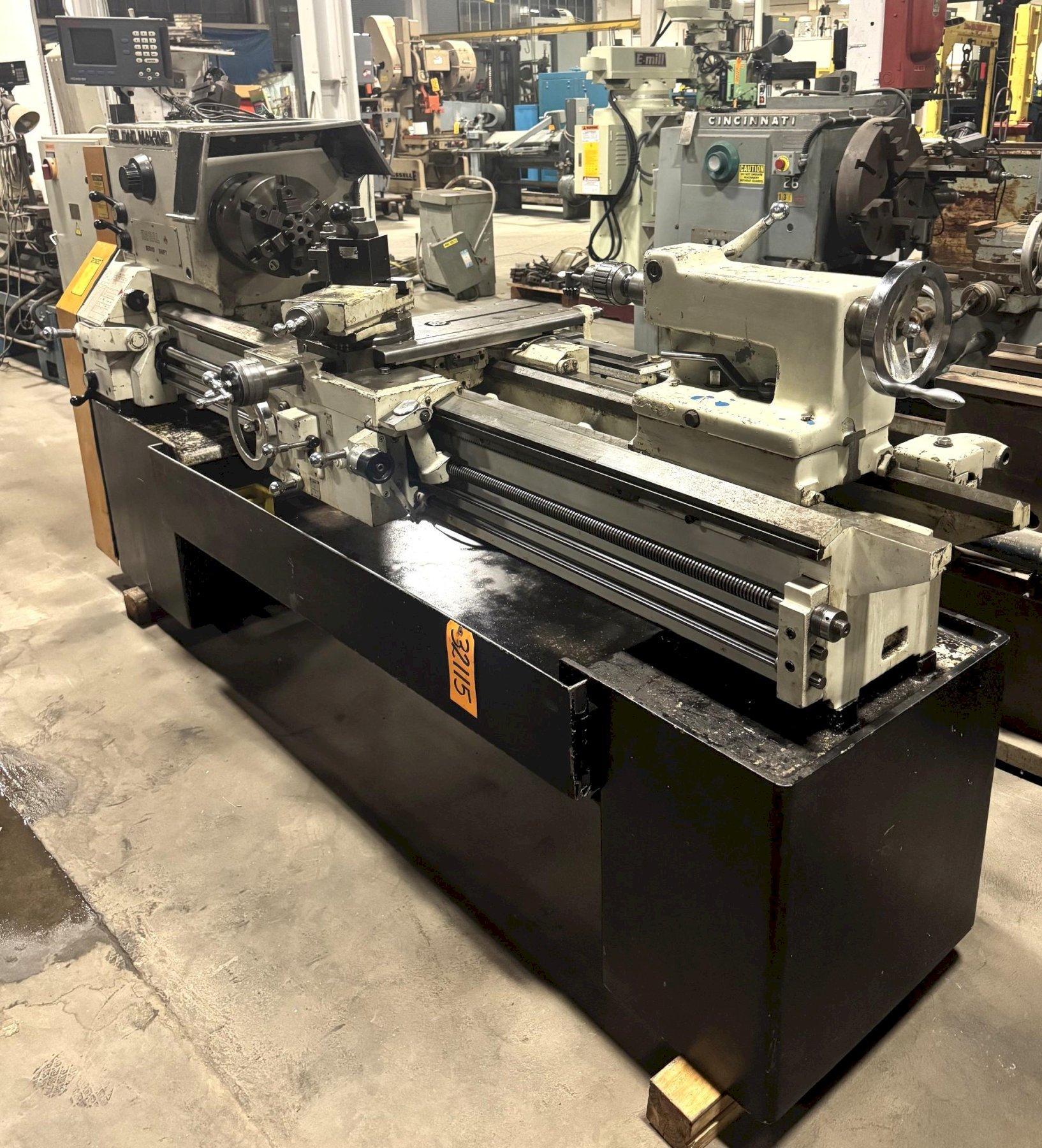

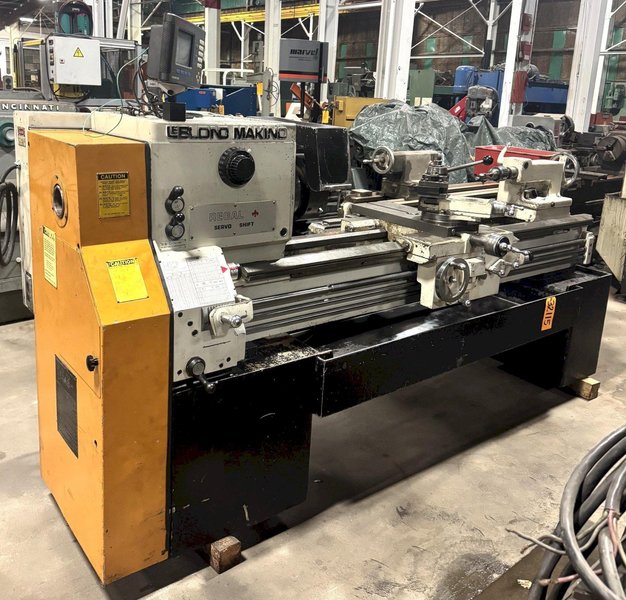

19" x 54" Leblond Makino Lathe Servo-Shift 25-1000 RPM, 3" Hole, Inch/mm, Taper, 10 HP

Name: 19" x 54" Leblond Makino Lathe Servo-Shift 25-1000 RPM, 3" Hole, Inch/mm, Taper, 10 HP
Brand: LEBLOND MAKINO
SKU: 32115
Availability: PreOrder

Brand

LEBLOND MAKINO

Location

Ohio

REQUEST FINANCING

Specifications
Files & Videos

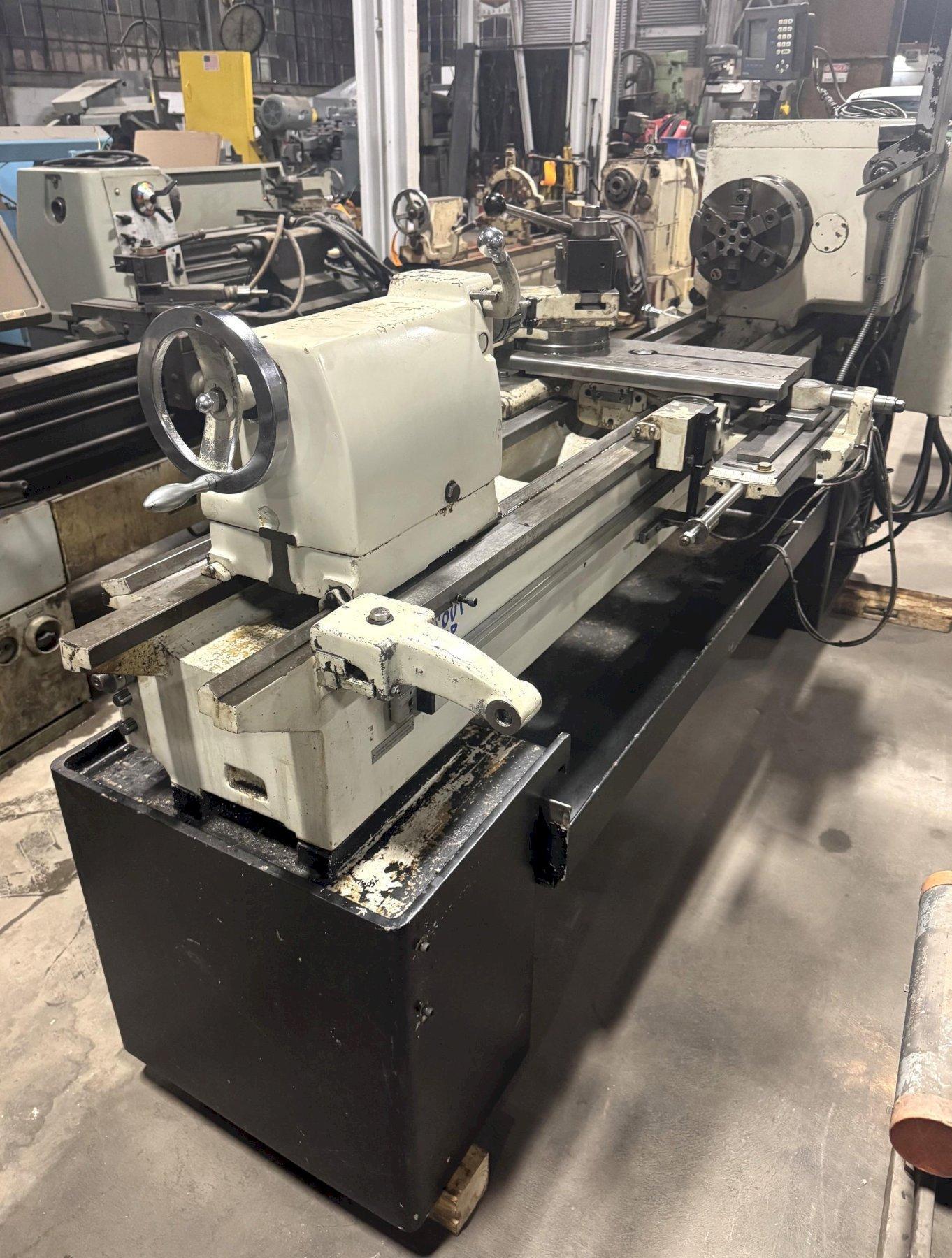

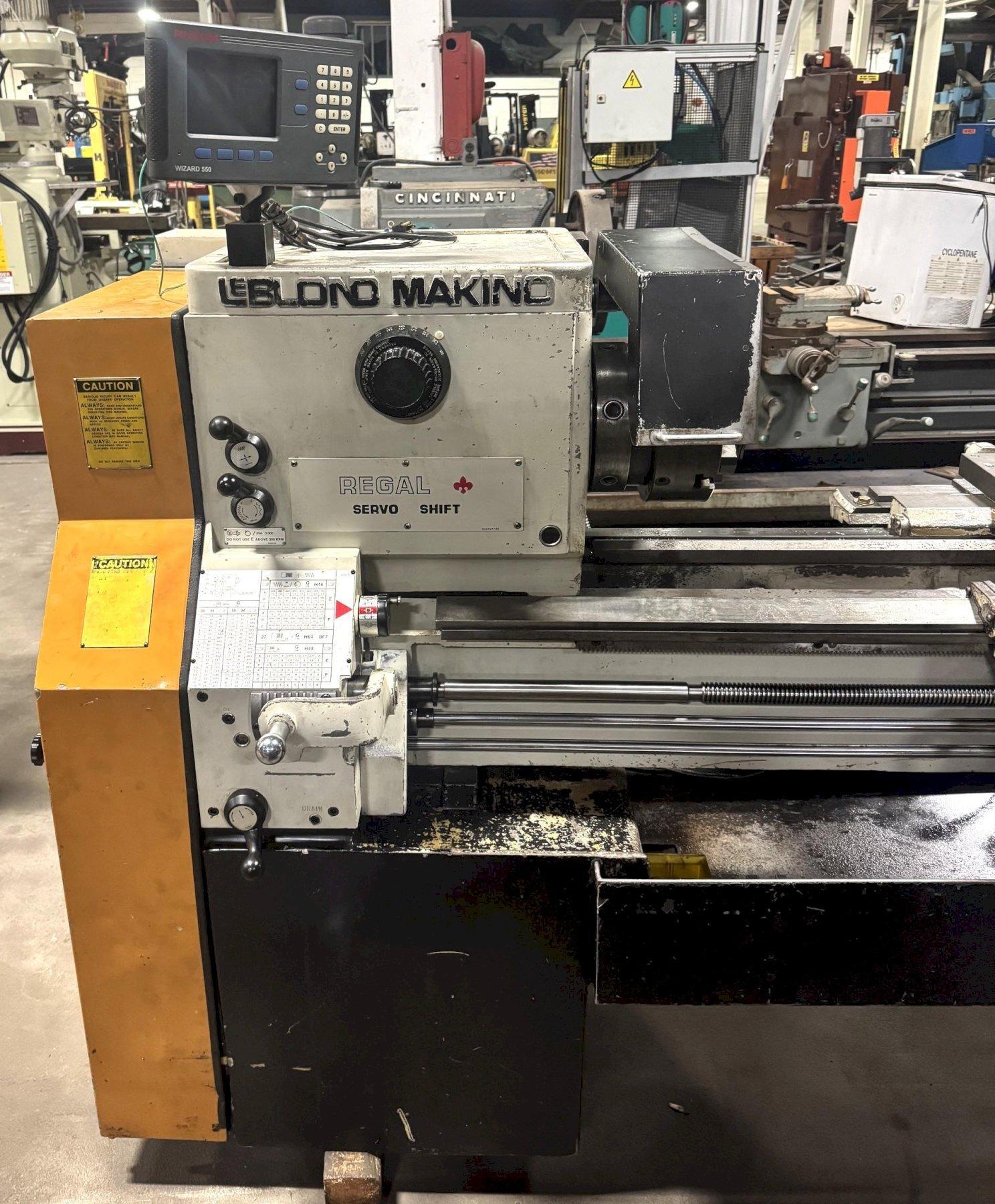

LEBLOND MAKINO ENGINE LATHE

MODEL: 19" Regal (Servo-Shift)
SERIAL NUMBER: 15E-352

GENERAL SPECIFICATIONS

Swing Over Bed: 19-1/4"
Swing Over Cross Slide: 12-1/4"
Distance Between Centers: 54"
Hole Thru Spindle: 3-1/16"

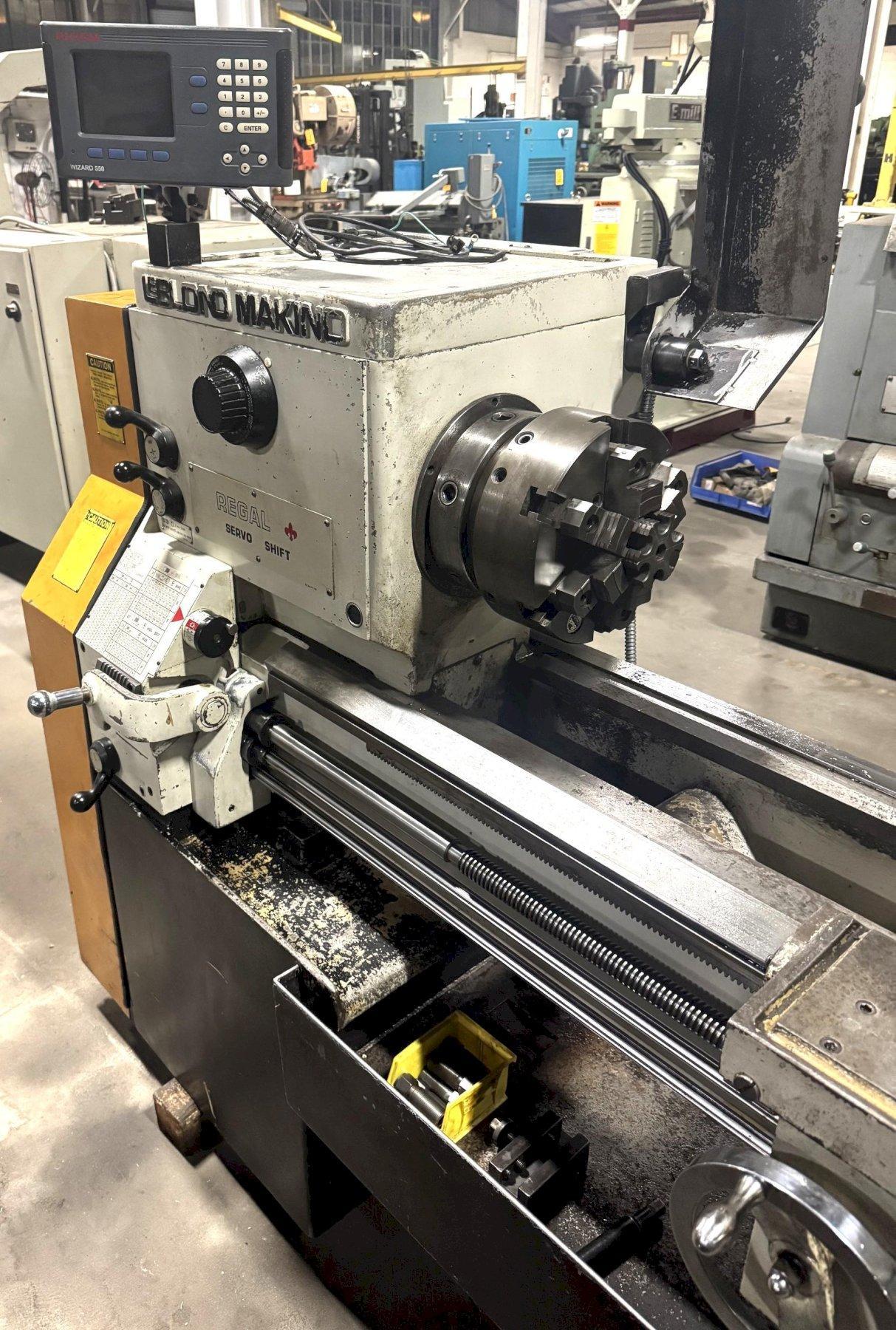

Spindle Nose: D1-8 Camlock
Spindle Speeds: (12) 25 to 1000 RPM
Feed Range, Inch: .0018 to .104 IPR
Feed Range, Metric: .05 to 2.6 mm/r
Thread Range: Inch: 2 to 112 TPI
Thread Range, Metric: .25 to 14 mm

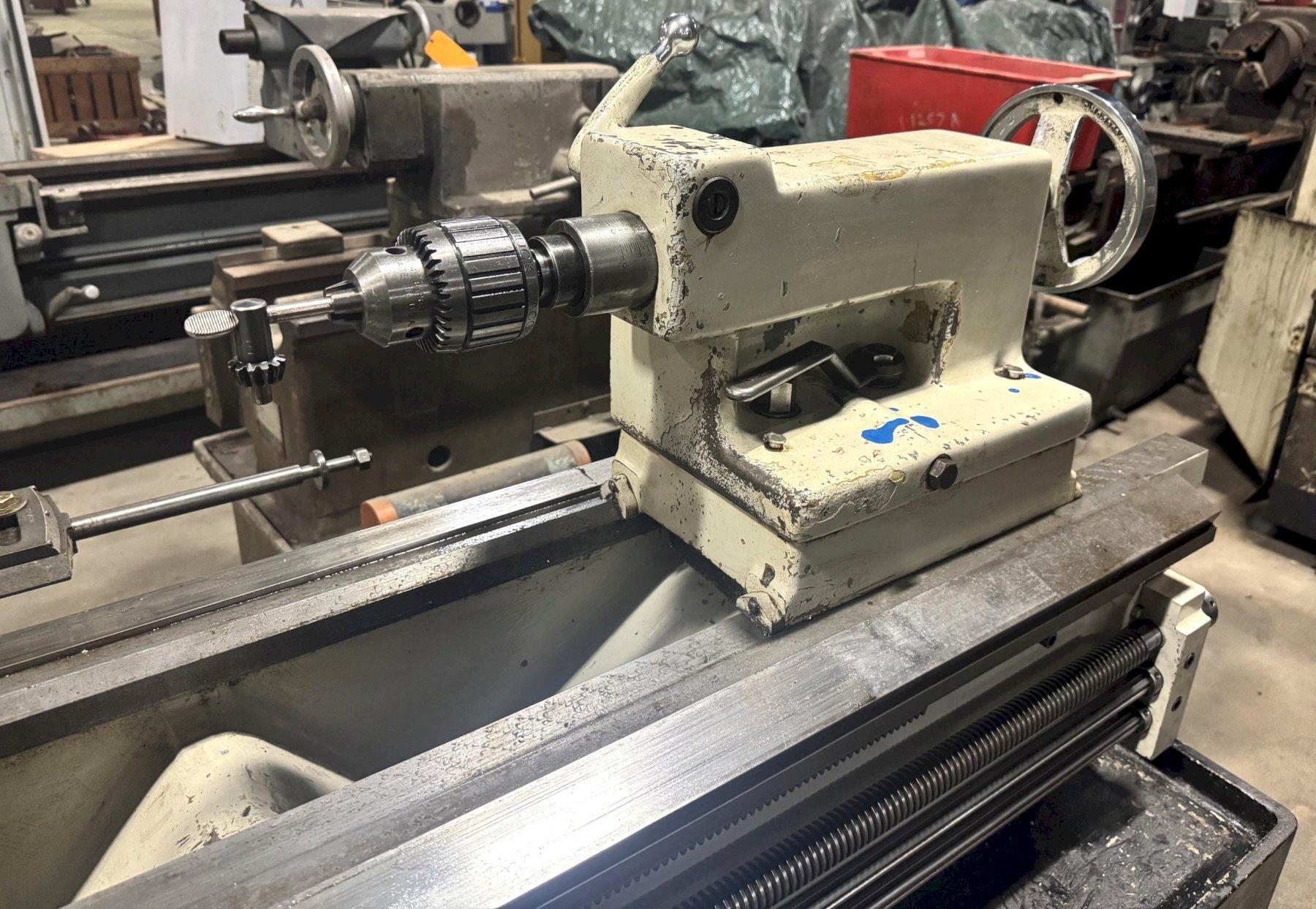

Tailstock Spindle Diameter: 2-7/16"
Tailstock Center: No. 4 M.T.

EQUIPPED WITH

10 HP Main Drive Motor

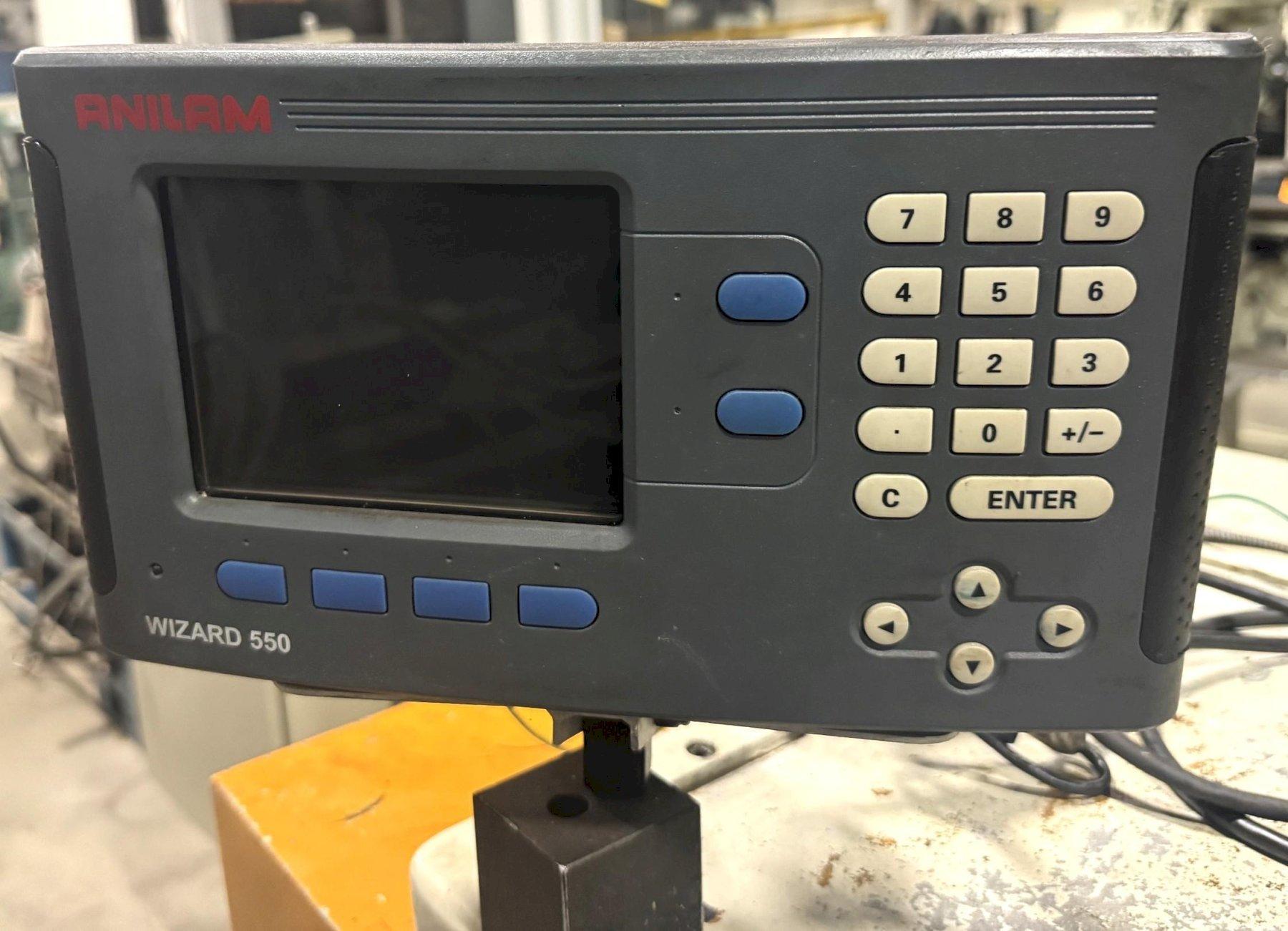

Anilam Wizard 550 Digital Readout
Inch/Metric Threading
Taper Attachment
Thread Dial
Inch/Metric Dials
Removable Chip Pan

Approximate Weight: 4500 Lbs.

F.O.B. Cincinnati, Ohio

ALL SPECIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER
