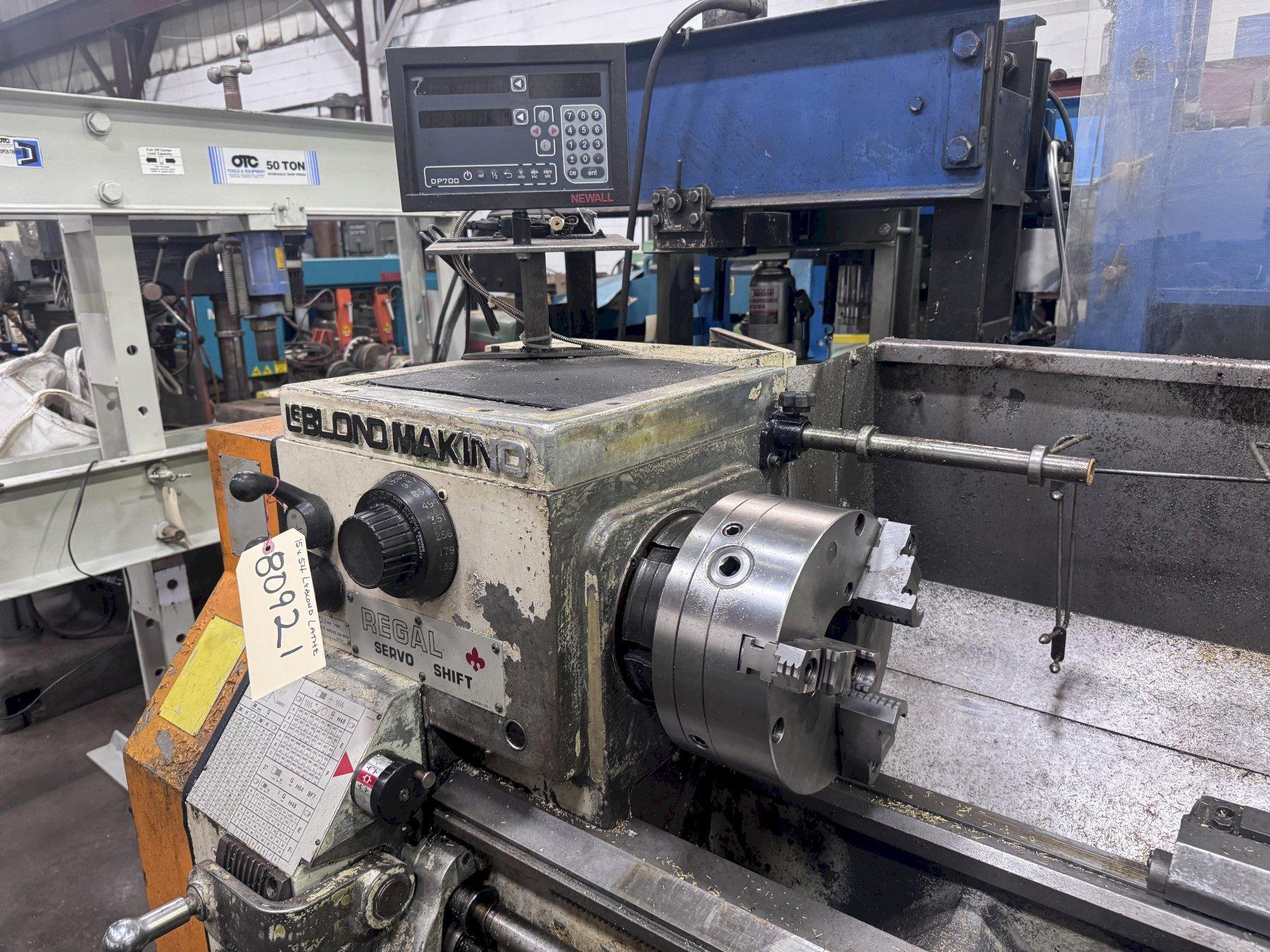

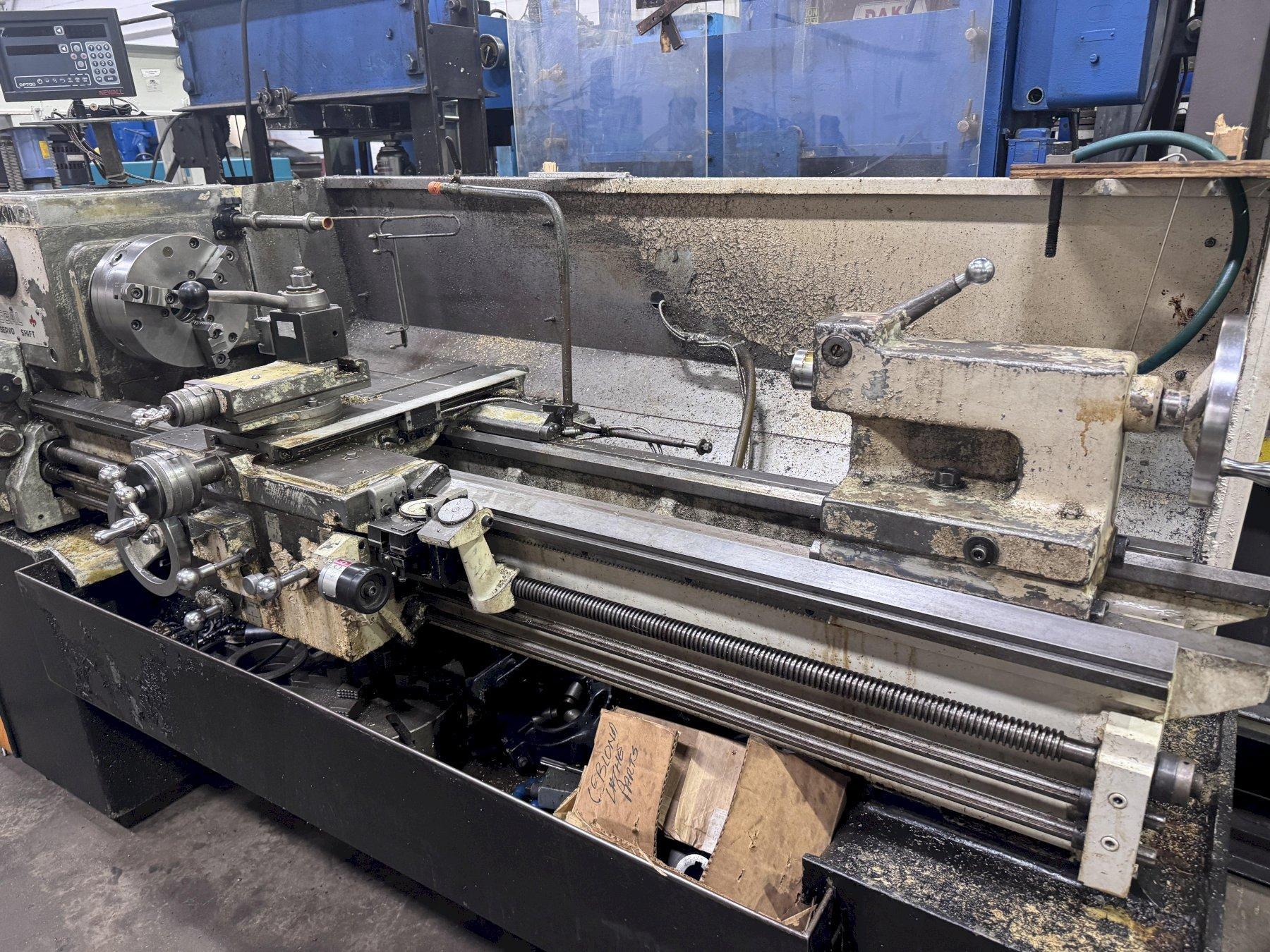

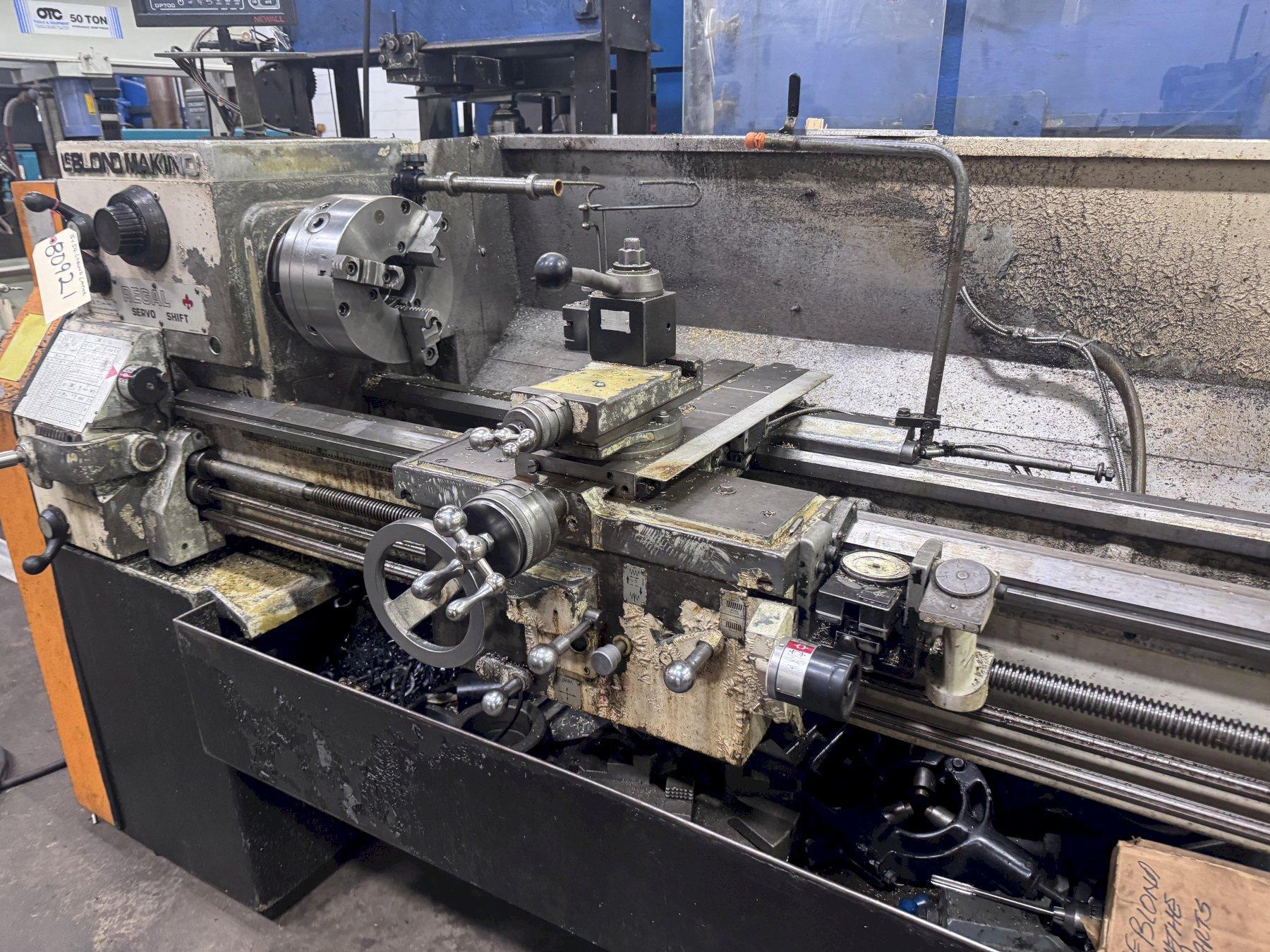

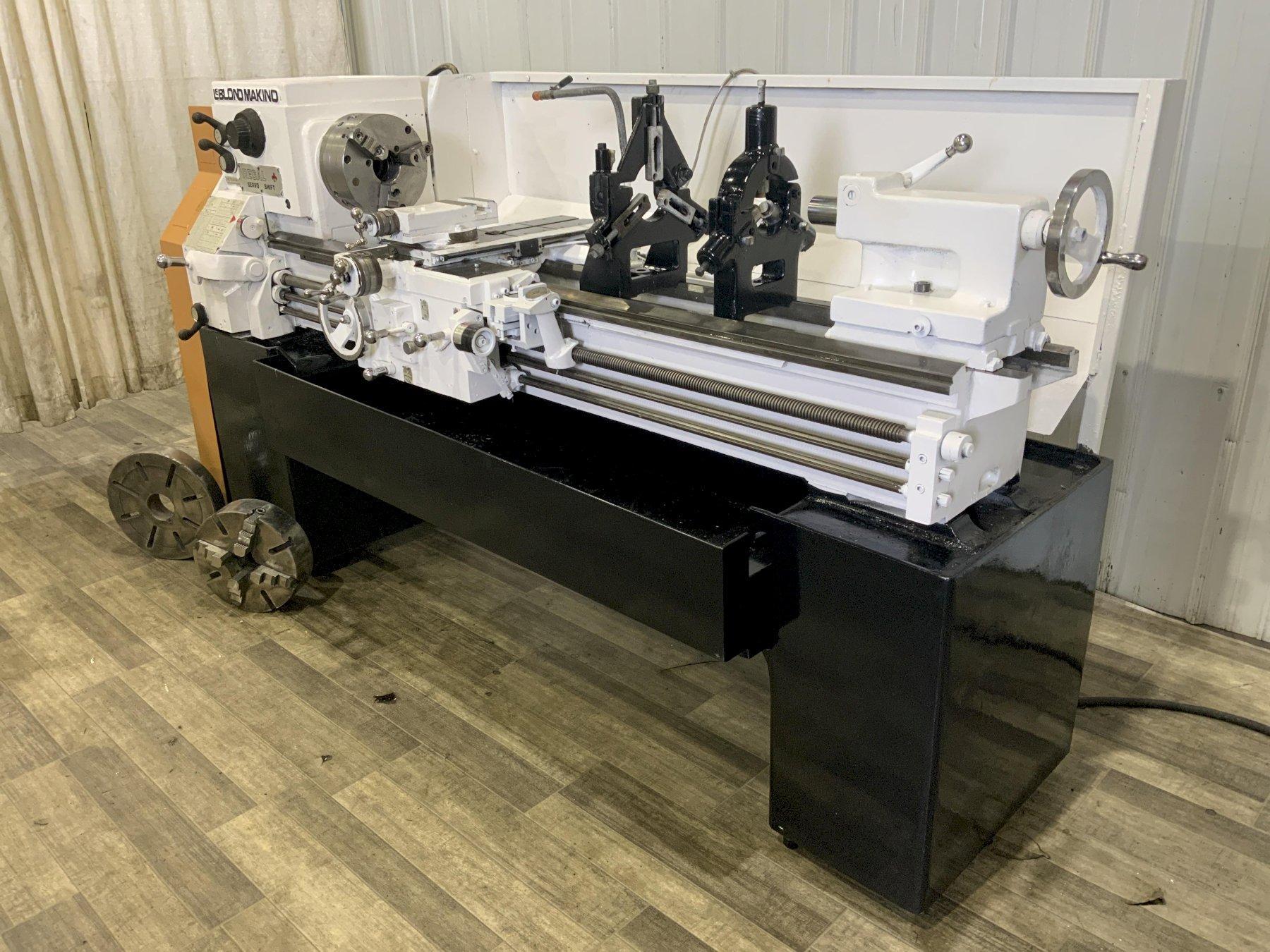

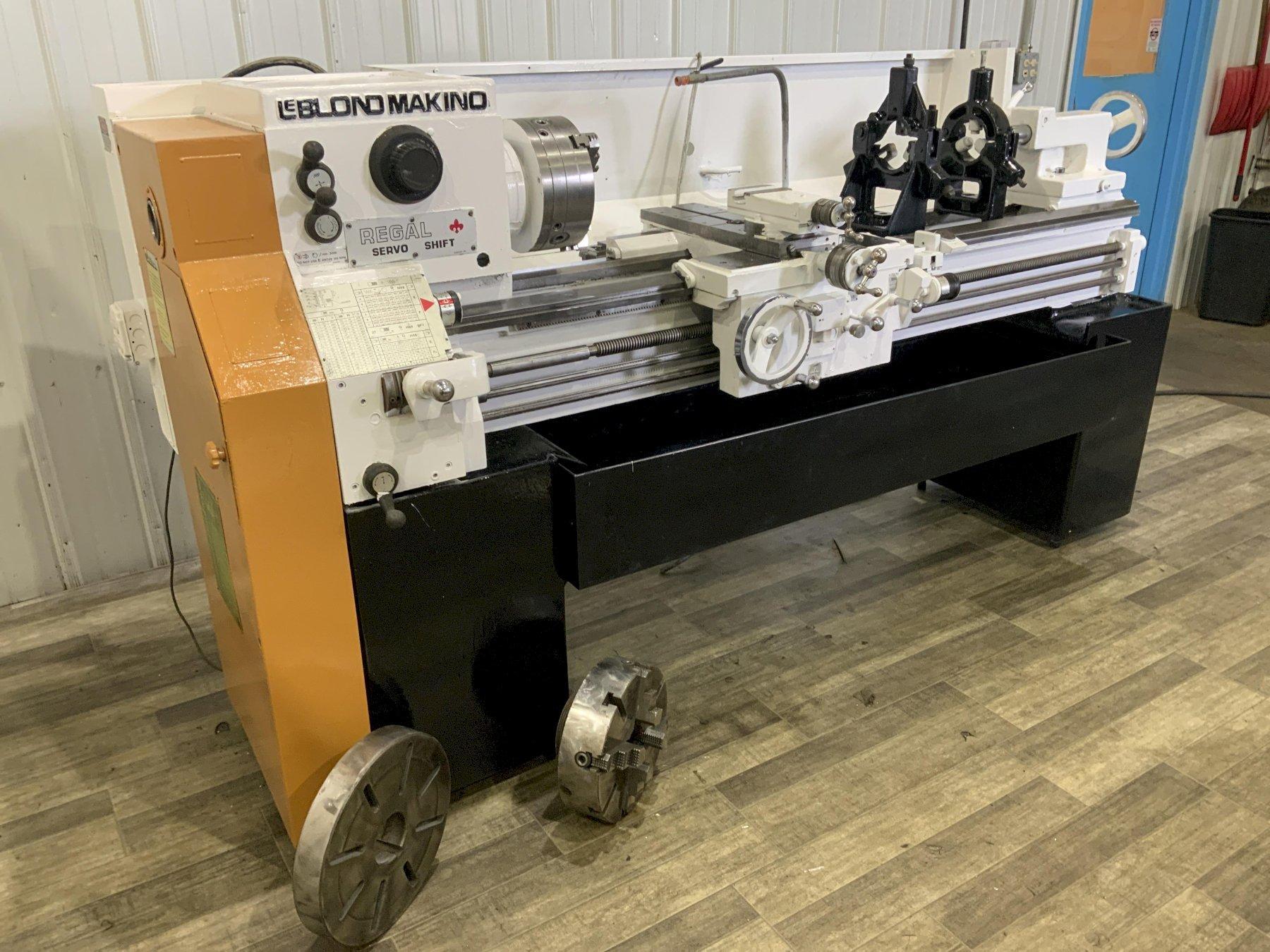

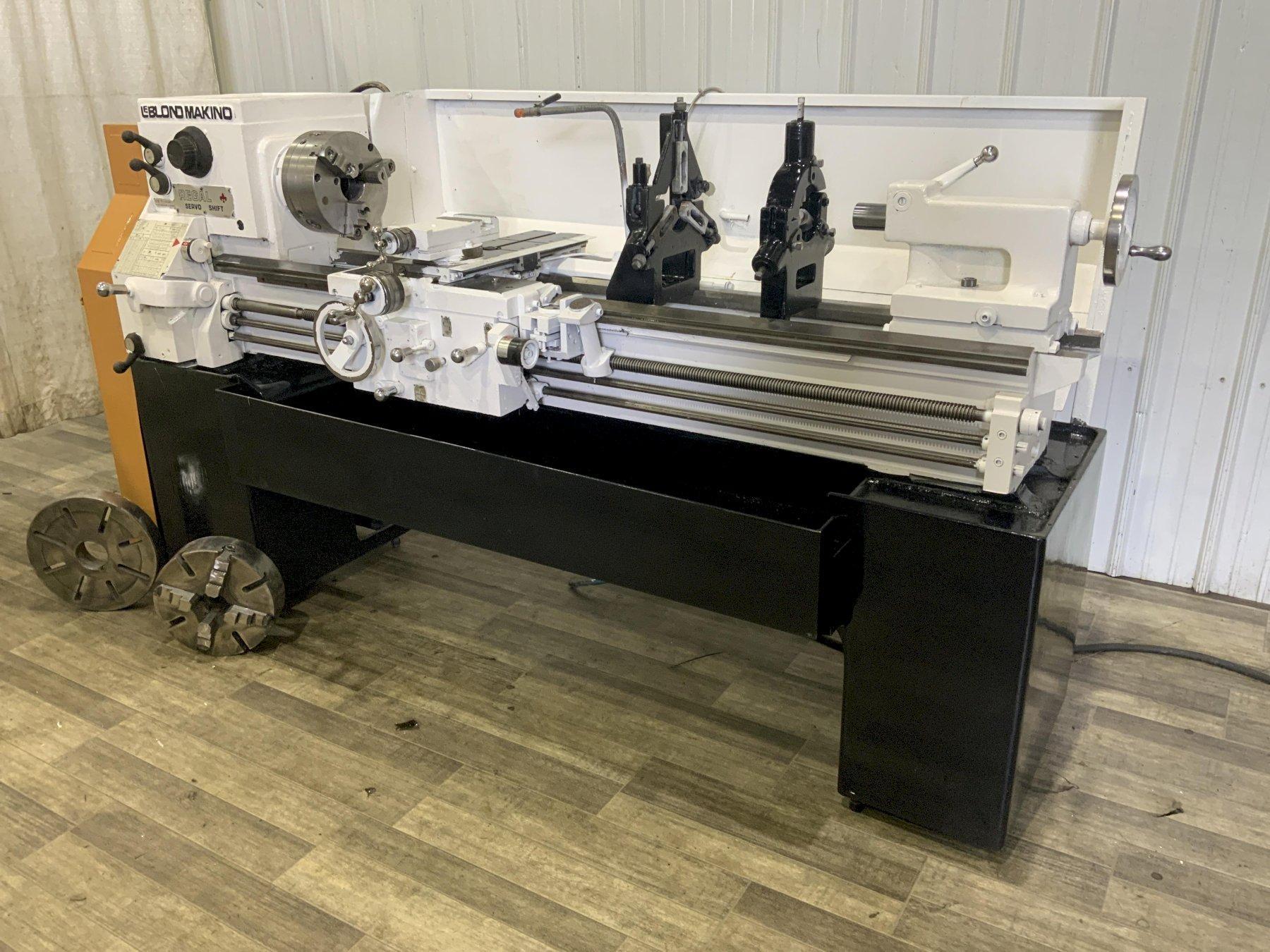

15" X 54" LEBLOND MAKINO SERVO SHIFT ENGINE LATHE: STOCK #80921

SERIAL ............................ 15C-576

MODEL ............................. MAKINO L

NEW IN ............................ 1992

SWING OVER WAYS ................... 15"

SWING OVER CROSS SLIDE ............ 9-1/2"

DISTANCE BETWEEN CENTERS .......... 54"

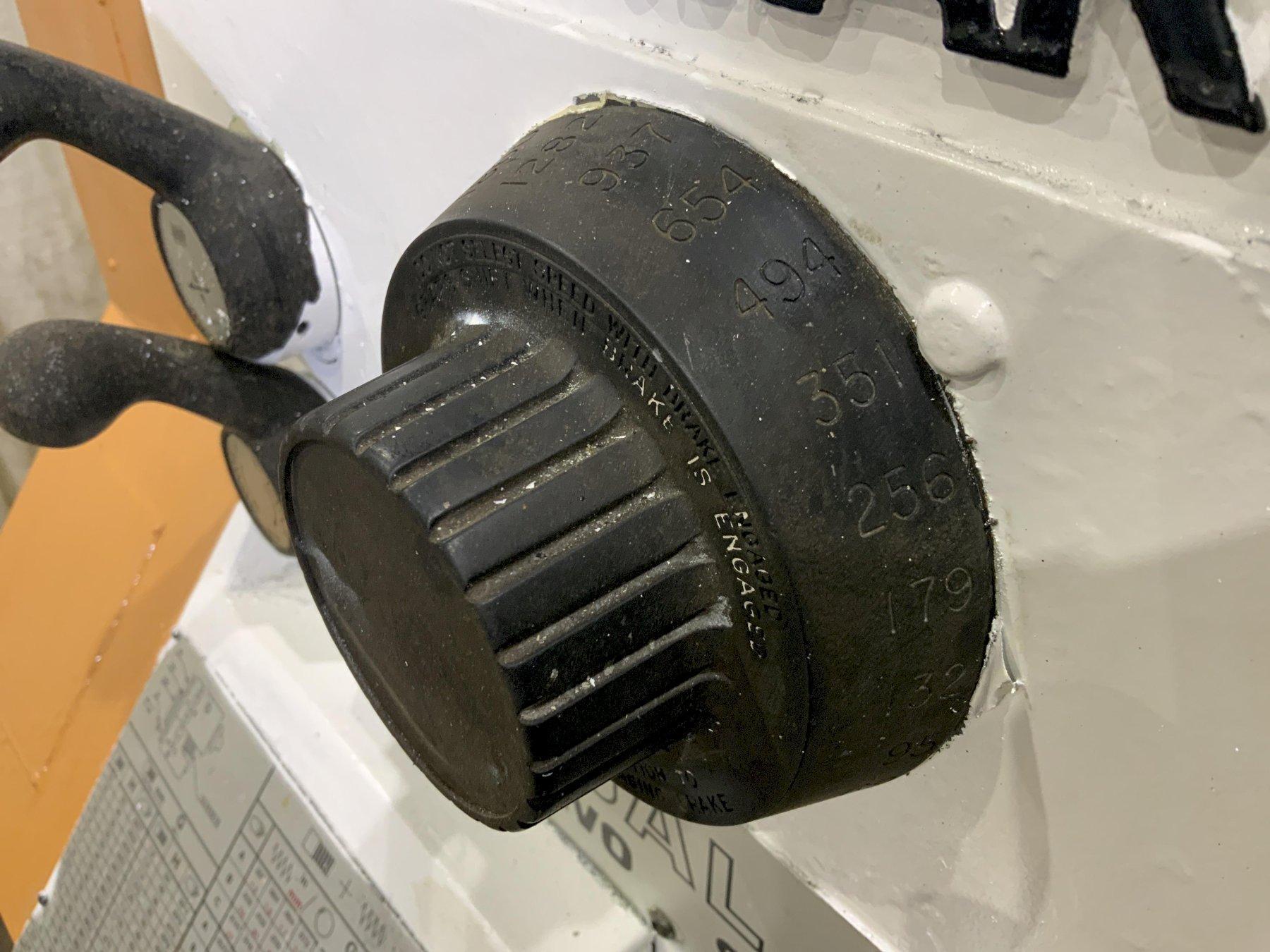

SPINDLE SPEEDS .................... (12) 30 TO 1200 RPM

FEEDS.............................. (48) .0018 TO .01049 IPR

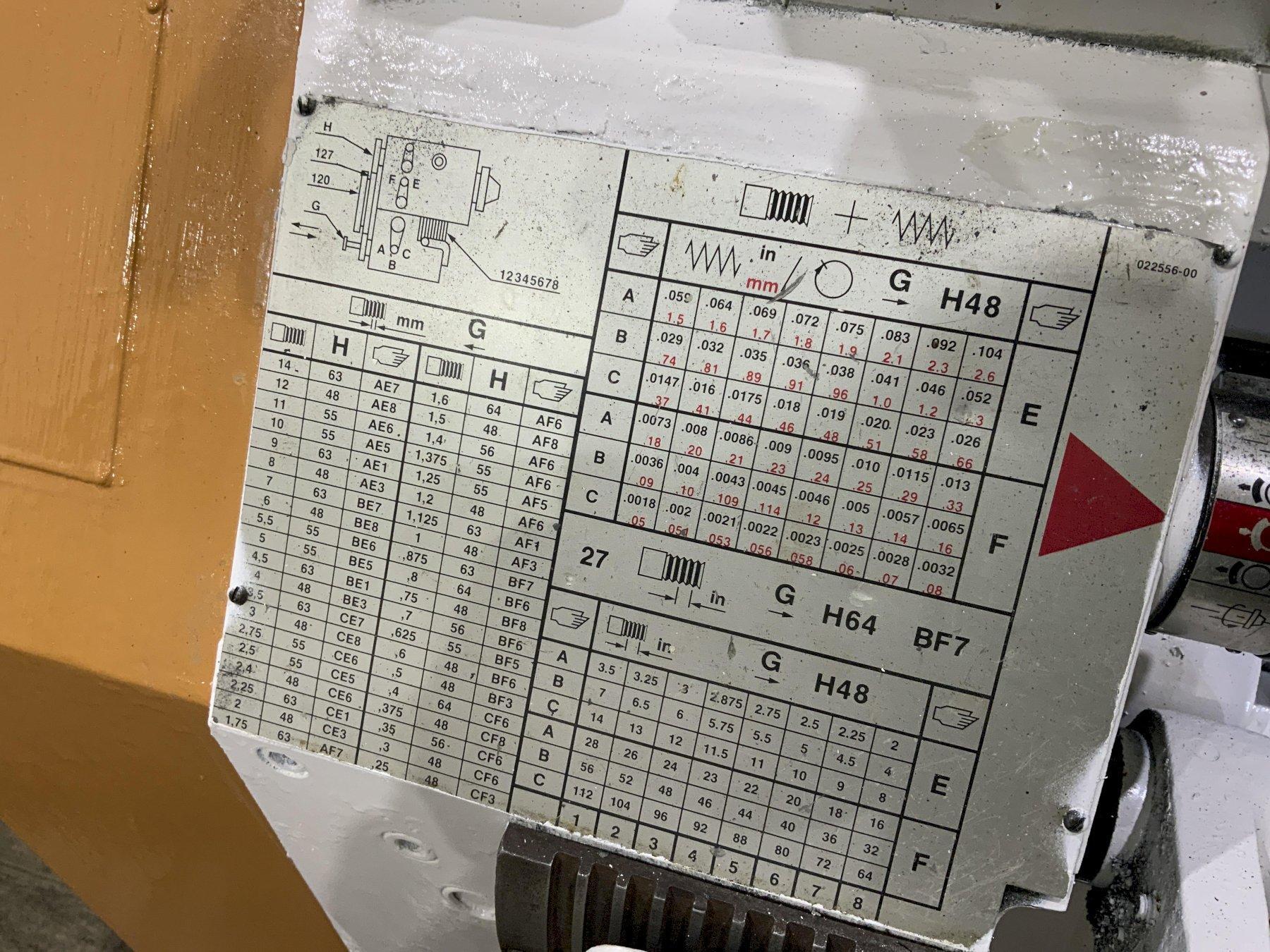

THREADS (INCH) .................... 2 TO 112 TPI

THREADS (METRIC) .................. .25 TP 14 MM PITCH

TAPER ATTACHMENT .................. YES

DIAMETER OF SPINDLE HOLE .......... 2-9/32"

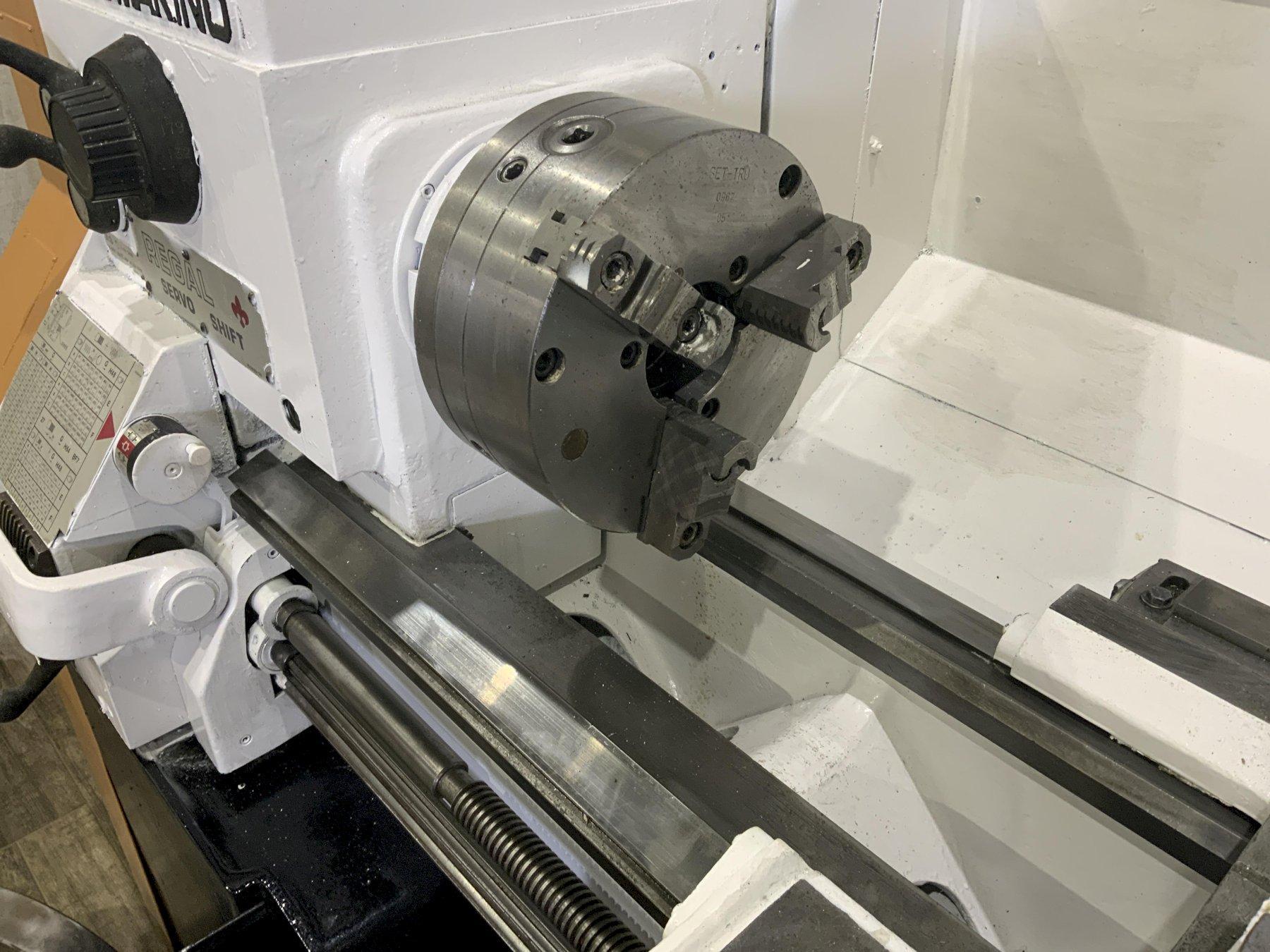

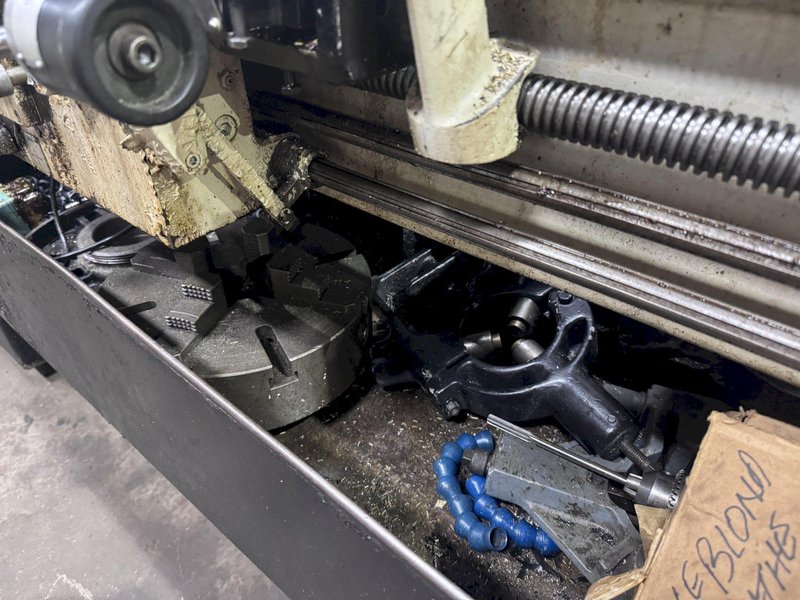

CHUCK 3 & 4 JAWS .................. 10" & 12"

CROSS FEED DIAL GRADUATIONS ....... INCH AND METRIC

LONGITUDINAL TRAVEL DIAL .......... YES

HARD WAYS ......................... YES

REMOVABLE CHIP PANS ............... YES

SPINDLE FORWARD AND REVERSE ....... YES

THREAD DIAL ....................... YES

2 AXIS NREALL DIGITAL READOUTS .... DP700

MOTOR ............................. 7-1/2 HORSEPOWER
