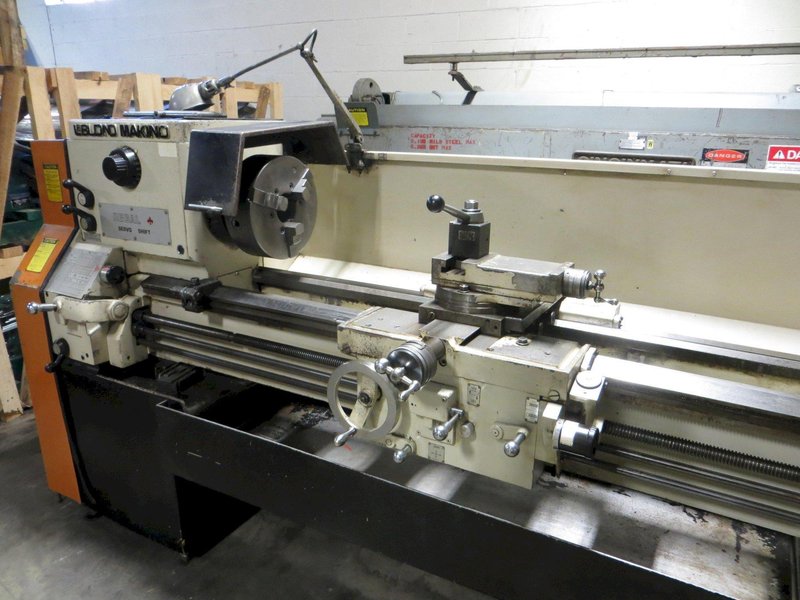

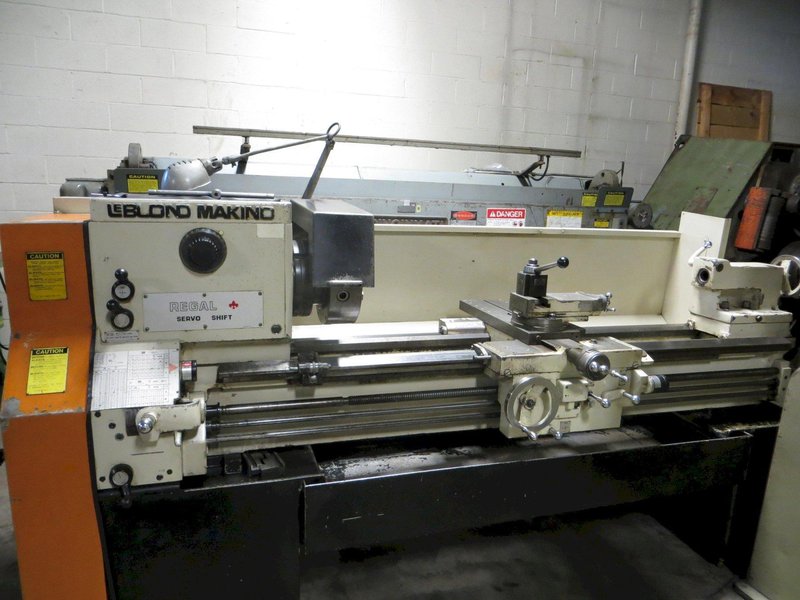

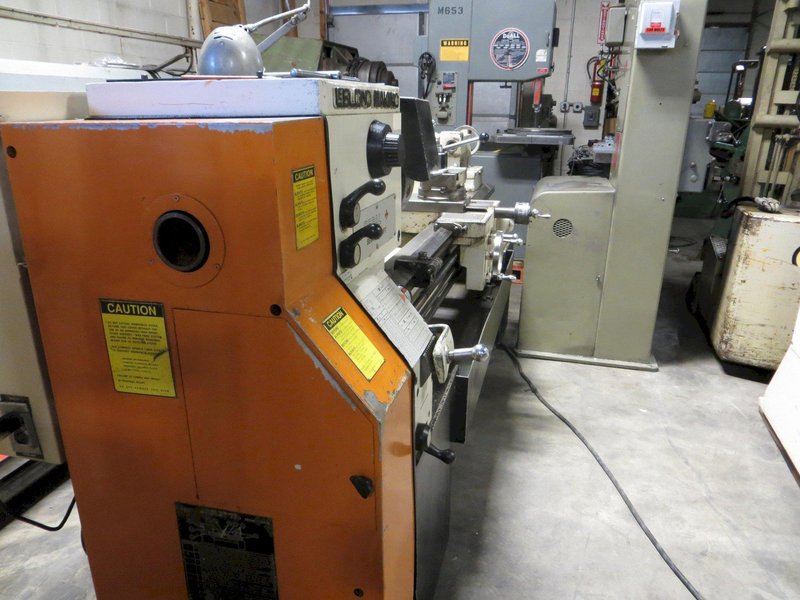

19" X 54" LEBLOND MAKINO REGAL INCH-METRIC SERVO SHIFT ENGINE LATHE
Brand
Category
Type
Model
Regal Servo Shift
Stock #
5124
Year
1988
Condition
Used
Location
Not specified
|

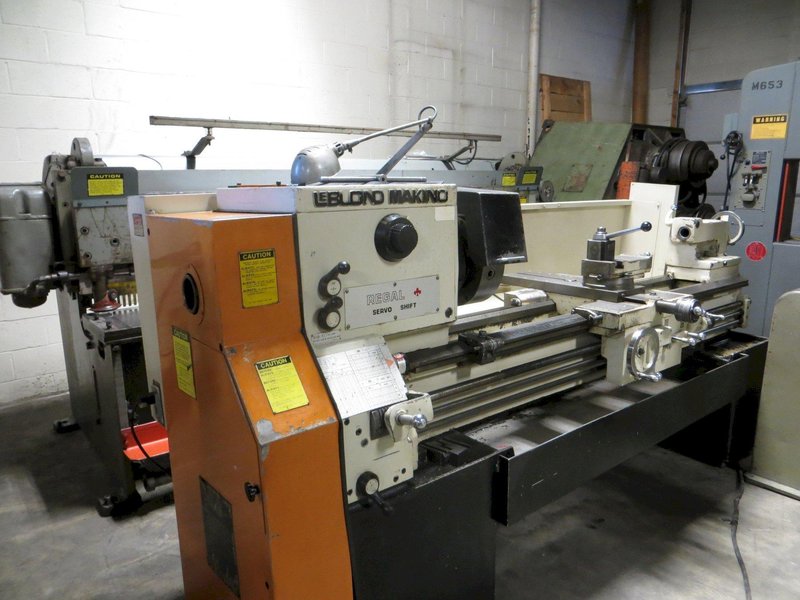

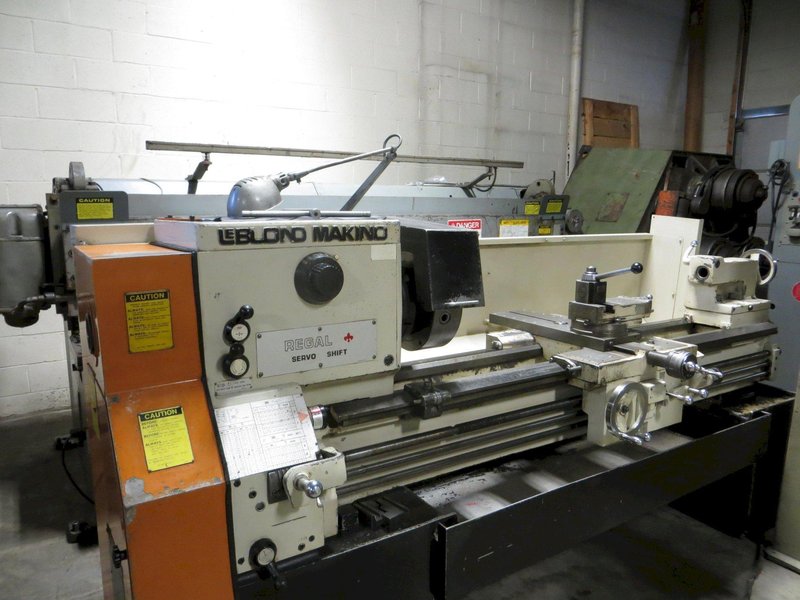

19" X 54" LEBLOND MAKINO REGAL INCH-METRIC SERVO SHIFT ENGINE LATHE
New 1988

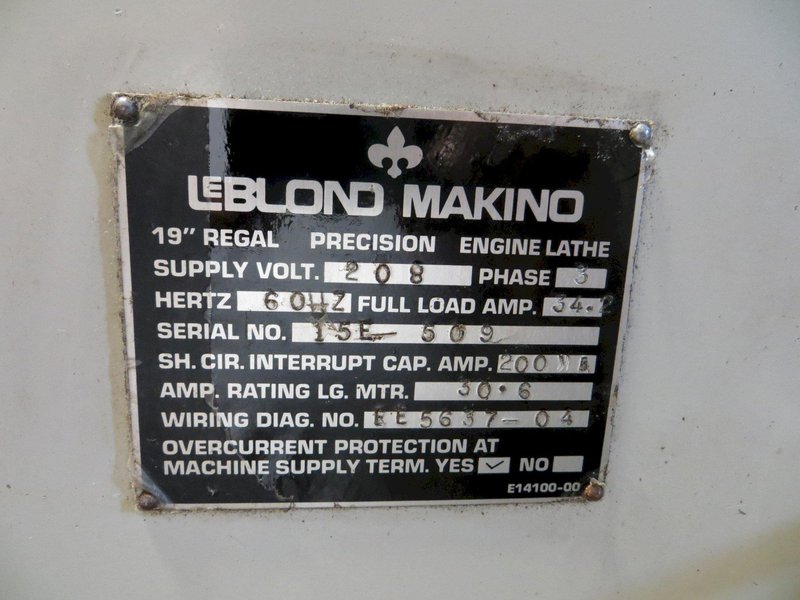

Serial # 15E-509
Specifications: Swing over bed and carriage wings- 19-1/4"
Swing over cross slide- 12-1/4"
Distance between centers- 54" cc

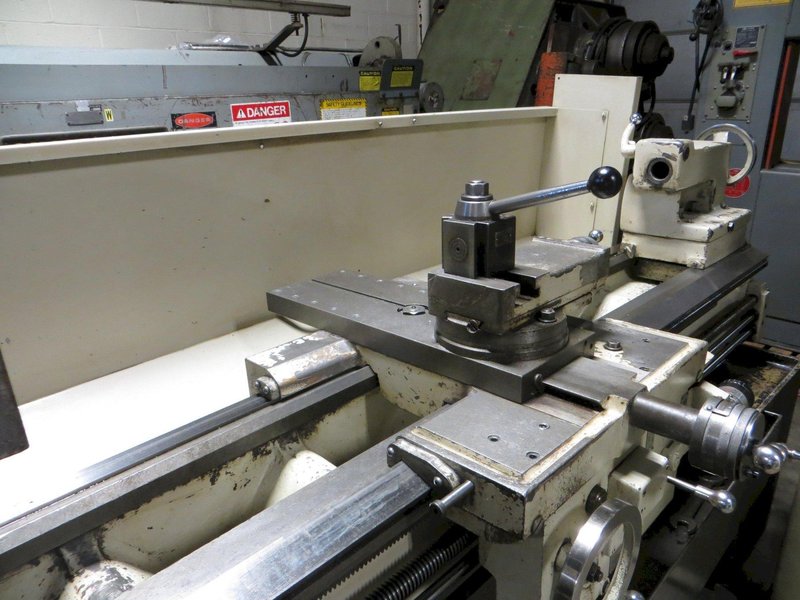

Cross slide travel- 9-5/8”
(12) Spindle speeds- 40 to 1,600 R.P.M
Spindle hole- 3-1/16"
Spindle nose- L-2
Headstock spindle center taper- #4 Morse
(48) Feed changes, longitudinal- .0018 -.104 T.P.I.
(48) Threads, American Standard- 2 -112 T.P.I.
Metric- .25-14 mm

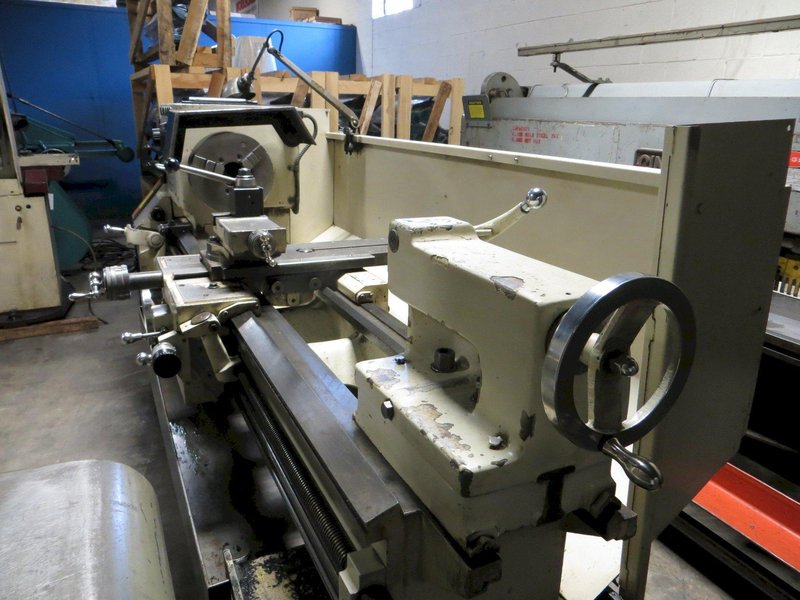

Tailstock spindle center taper- #4 Morse
Tailstock spindle diameter- 2-7/16"
Equipped With
Hydraulic preselection of next spindle speed during cutting operation through turning of Servo-Shift dial
Hardened and ground replaceable bedways
Inch/Metric switchable quick-change gearbox
Dual reading inch and metric handwheel dial
Spindle control dials on both headstock and apron

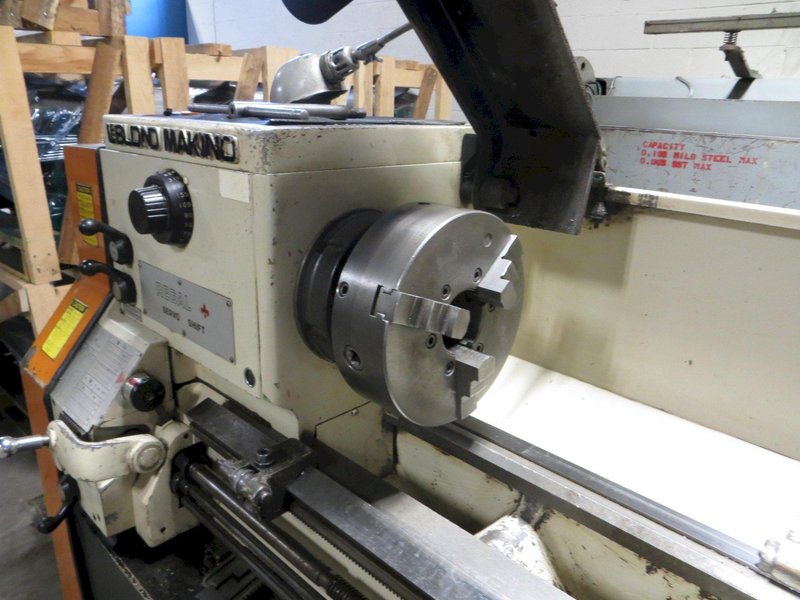

12" three-jaw chuck Adjust-Tru Style
Threading dial
Micrometer carriage stop

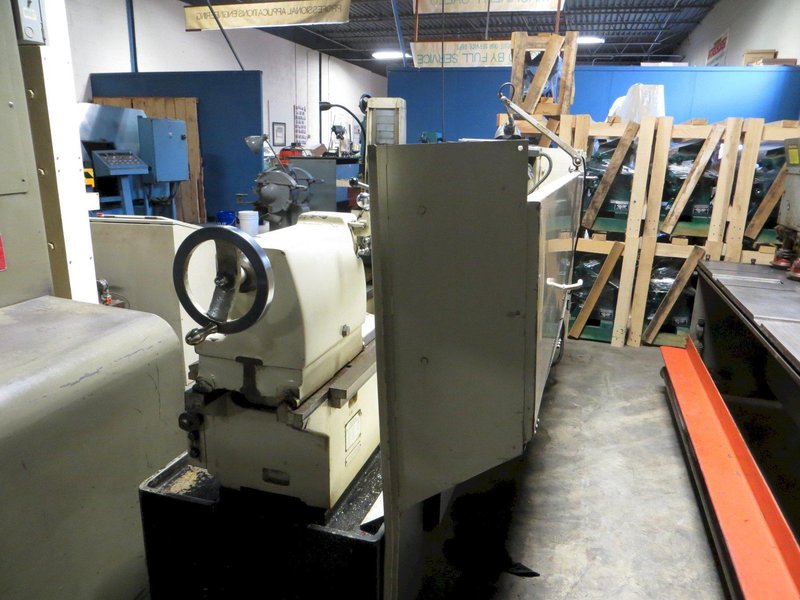

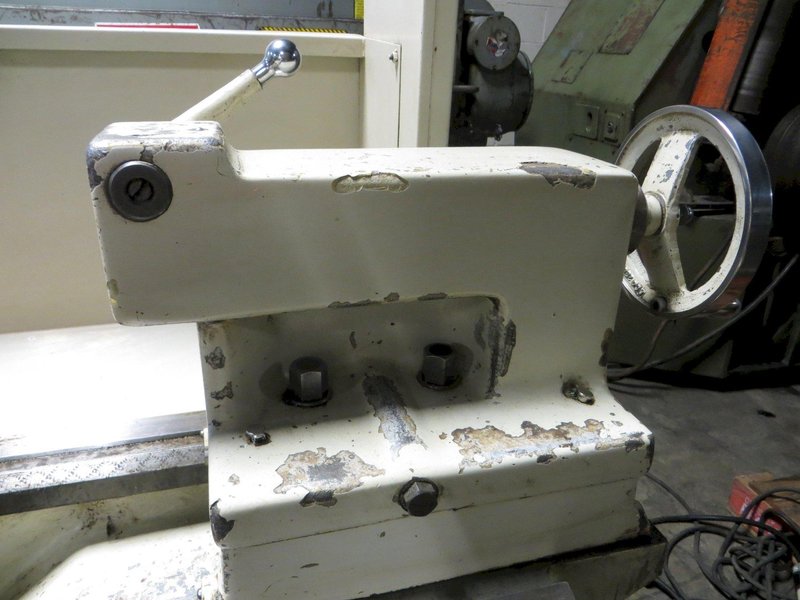

Tailstock with (1) center
Removable chip pan

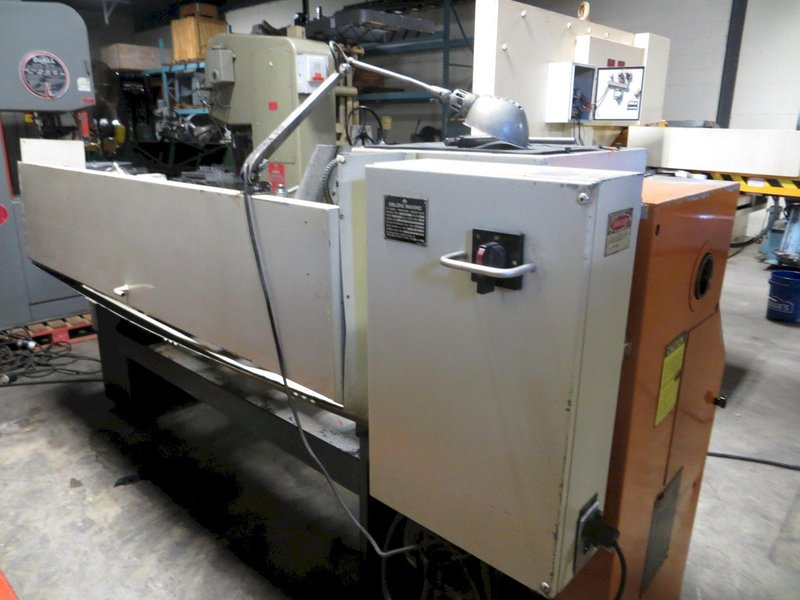

10 H.P. 3/60/230-460 Volt drive motor with electrical controls
Machine is wired for 230 Volt operation.
Machine dimensions- 120” L x 48” W x 70” H
Machine weight (approx.)- 4500 Lbs.
FOB: Ronkonkoma, NY |
