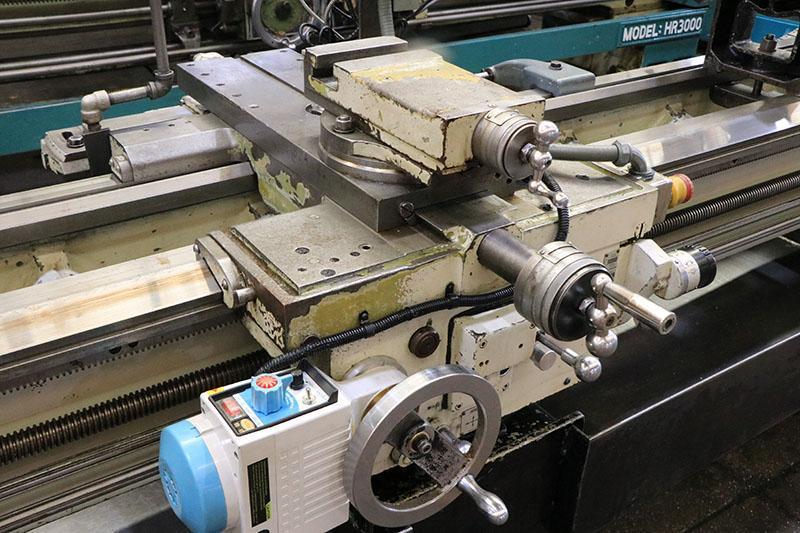

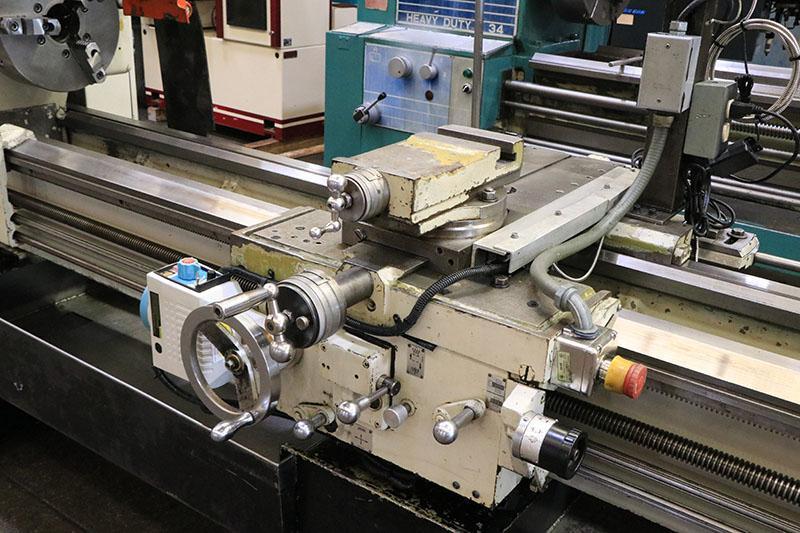

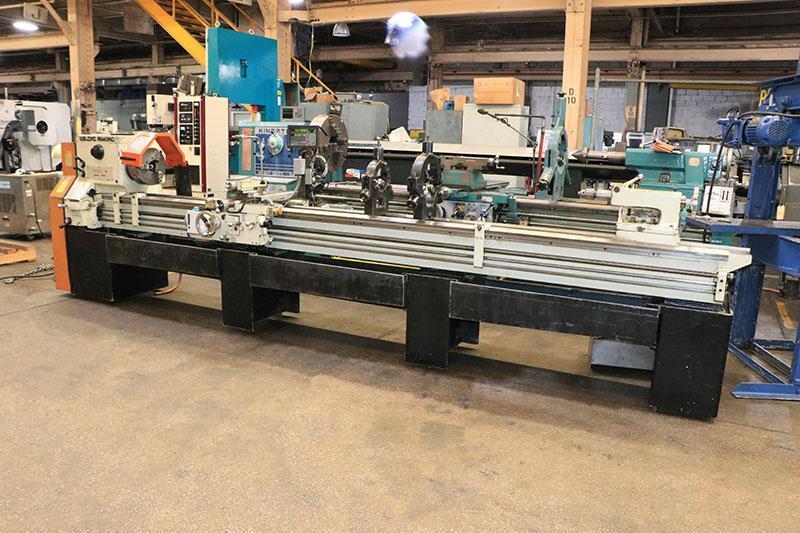

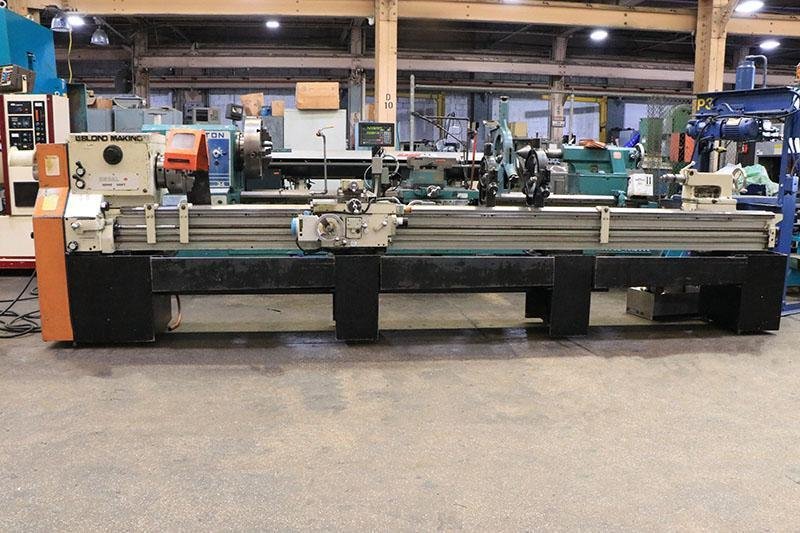

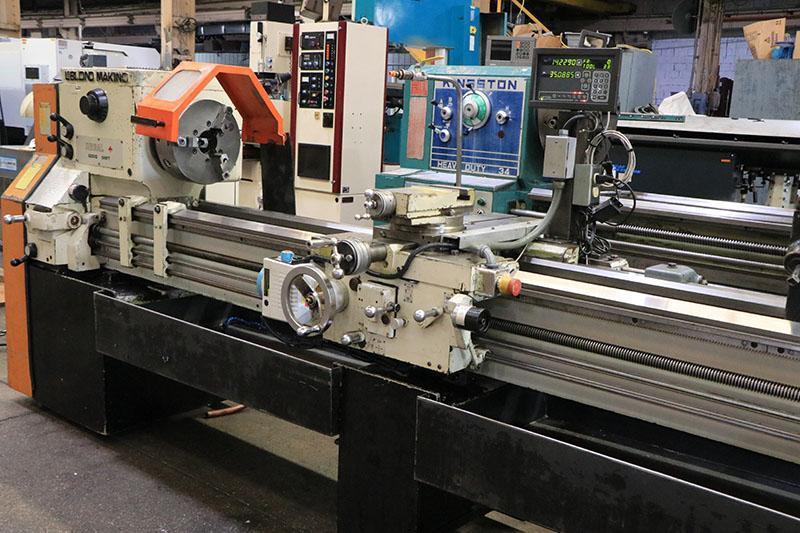

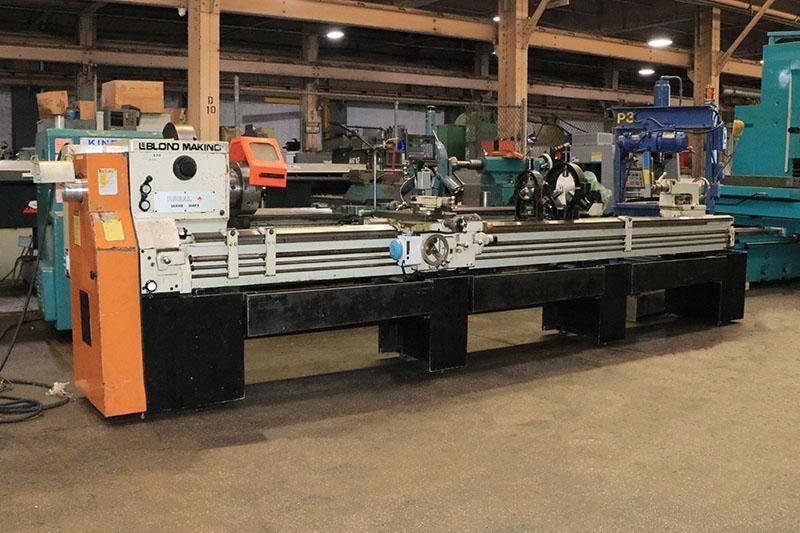

19" x 150" LEBLOND MAKINO Servo-Shift Engine Lathe, Model 19" REGAL

Brand
LEBLOND MAKINO
Category
Lathes & Turning Machines
Type
Lathes, Engine
Model
19" Regal
Stock #
5034
Year
1992
Condition
Used

Location

New Jersey
REQUEST FINANCING
19" x 150" LEBLOND MAKINO SERVO-SHIFT ENGINE LATHE
MODEL: 19" REGAL
NEW: 1992

SPECIFICATIONS:
SWING OVER BED ...................... 19-1/4"
SWING OVER CROSS SLIDE .............. 12-1/4"
DISTANCE BETWEEN CENTERS ............ 150"
SPINDLE NOSE ........................ D1-8" CAMLOCK
HOLE THRU SPINDLE ................... 3-1/16"
WIDTH OF BED ........................ 14-3/8"
SPINDLE SPEED RANGE (12) ............ 40 - 1600 RPM
LONGITUDINAL FEED RANGE (48) ........ .0018" - .104" IPR
CROSS FEEDS HALF THE VALUES OF LONGITUDINAL
THREADING RANGE ENGLISH (48) ........ 2 - 112 TPI
THREADING RANGE METRIC (40) ......... 0.25 - 12 mm
TAILSTOCK SPINDLE TRAVEL ............ 7"
TAILSTOCK SPINDLE TAPER ............. #4 MT
APPROX WEIGHT ....................... 6,500 LBS
APPROX DIMENSIONS ................... 214"L x 50"W x 51"H

EQUIPPED WITH:
- REPLACEABLE HARDENED BED WAYS
- INCH/METRIC THREADING
- TAPER TURNING ATTACHMENT

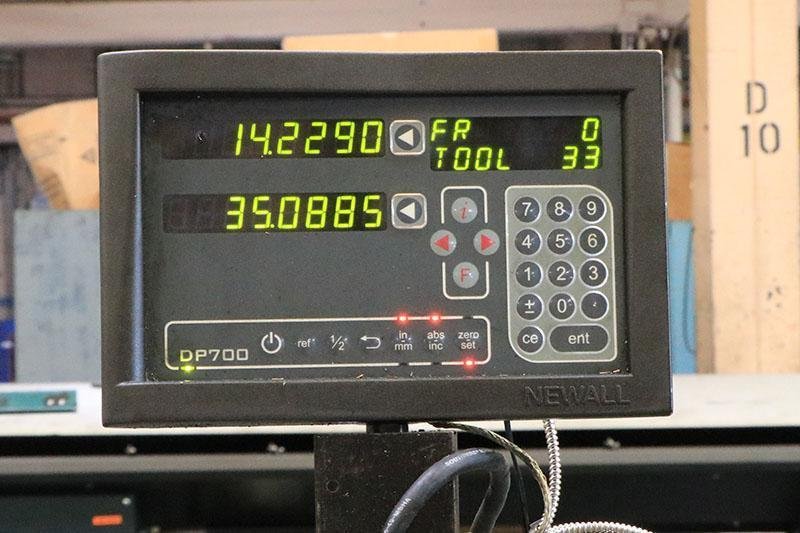

- NEWALL TOPAZ TWO AXIS DIGITAL READOUT

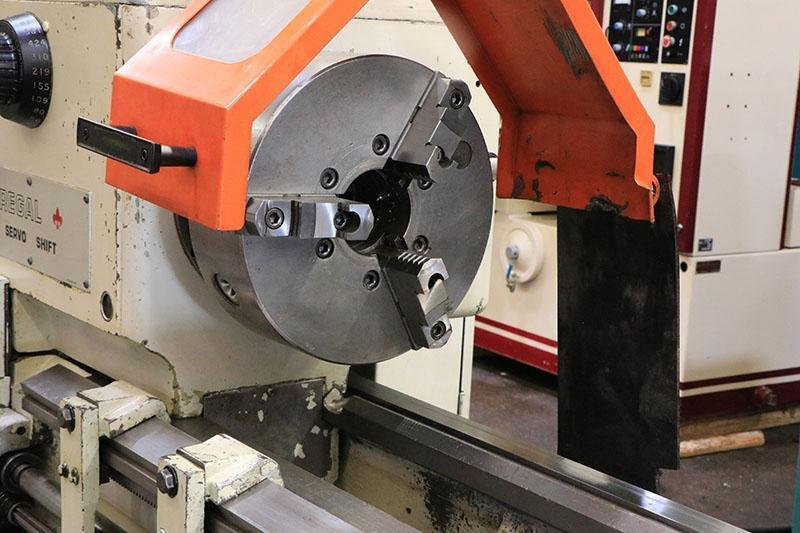

- 12" 3-JAW CUSHMAN CHUCK

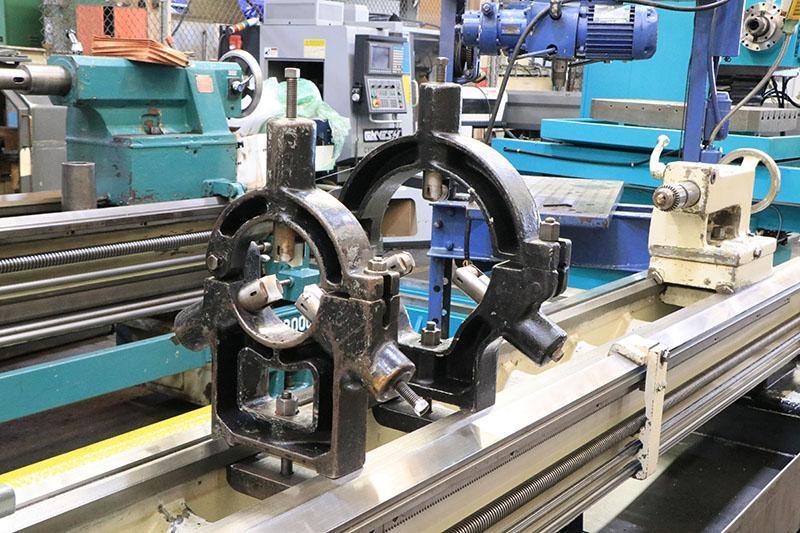

- (2) ROLLER TYPE STEADY RESTS
- THREAD DIAL
- MICROMETER CARRIAGE STOP
- COOLANT SYSTEM WITH REMOVABLE CHIP PANS
- 10 HORSE-POWER MAIN MOTOR

FOB: ORIGIN
No files or videos to display

Want to request a quote from the owner of this listing?

Similar Listings to - 19" x 150" LEBLOND MAKINO Servo-Shift Engine Lathe, Model 19" REGAL

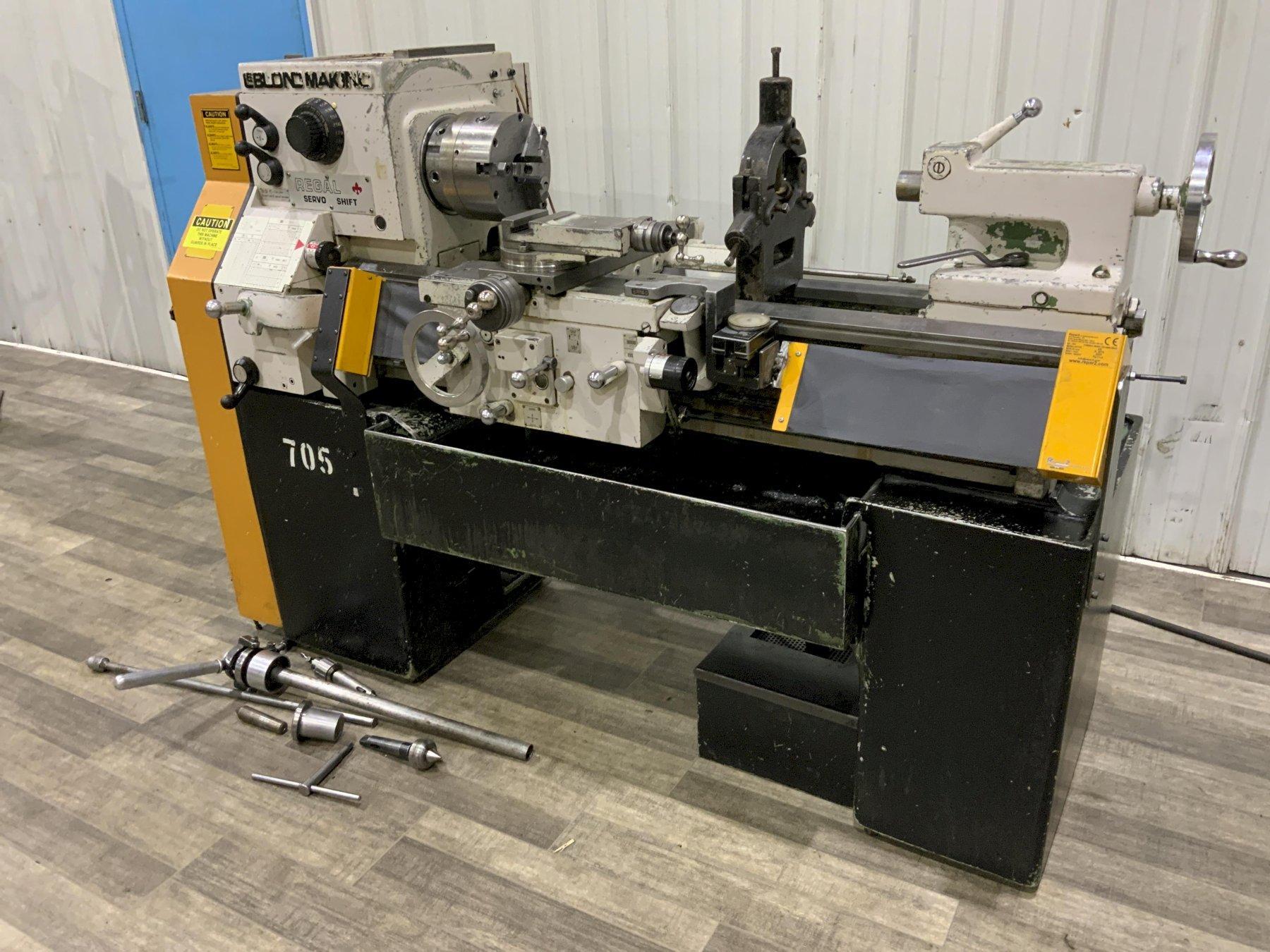

15"X 30" LEBLOND MAKINO SERVO ENGINE LATHE: STOCK #80597
LEBLOND MAKINO

Lathes, Engine

15"X 30" LEBLOND MAKINO SERVO ENGINE LATHE: STOCK #80597
PROMAX 26”/35” x 90”cc Gap Lathe DRO 4” Bore #8166


Lathes, Engine

PROMAX 26”/35” x 90”cc Gap Lathe DRO 4” Bore #8166
20" X 72" LEBLOND REGAL ENGINE LATHE. STOCK # 0223426.
LEBLOND

Lathes, Engine

20" X 72" LEBLOND REGAL ENGINE LATHE. STOCK # 0223426.

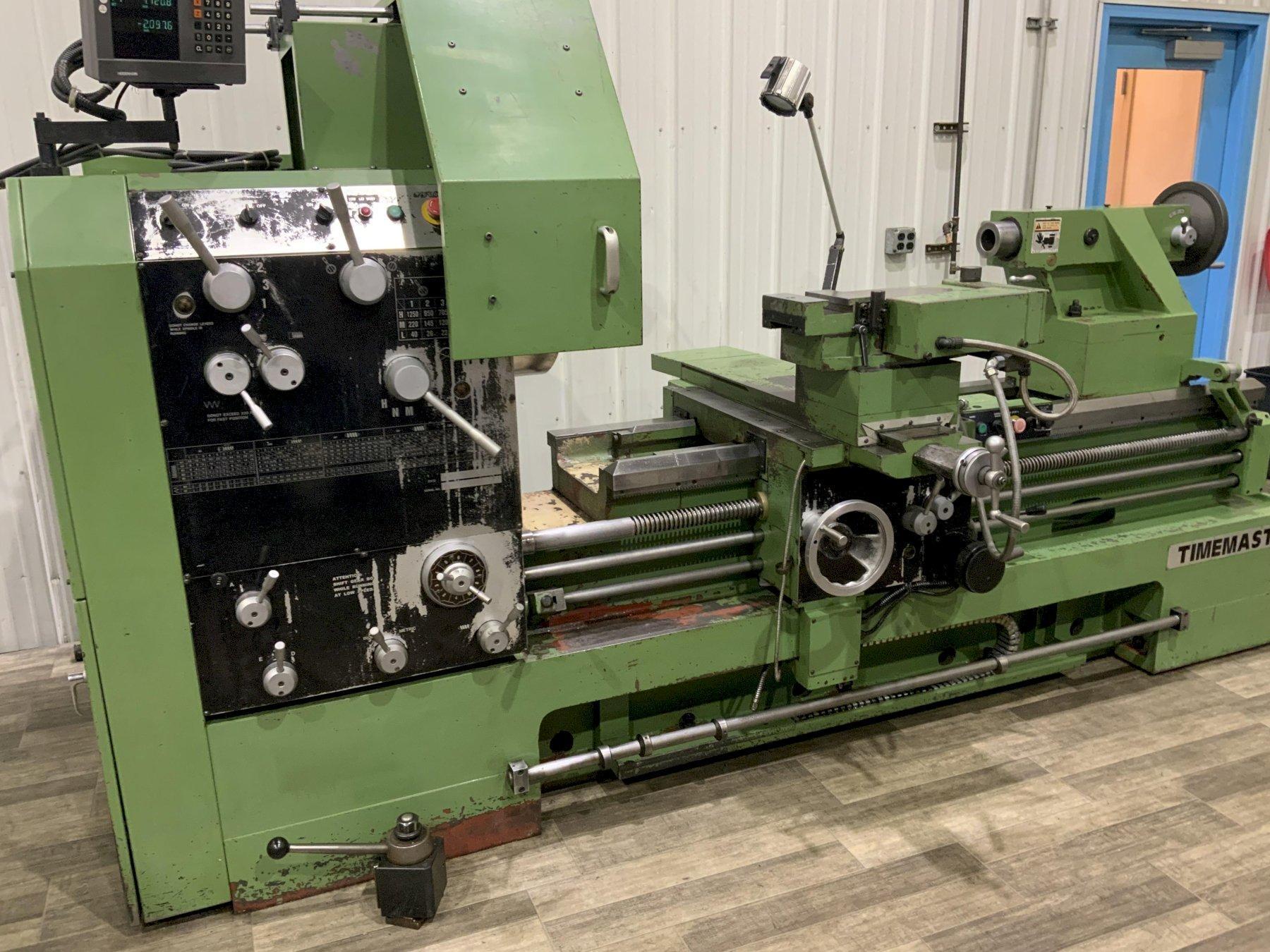

36" X 60" TIMEMASTER GAP BED ENGINE LATHE: STOCK #80849
