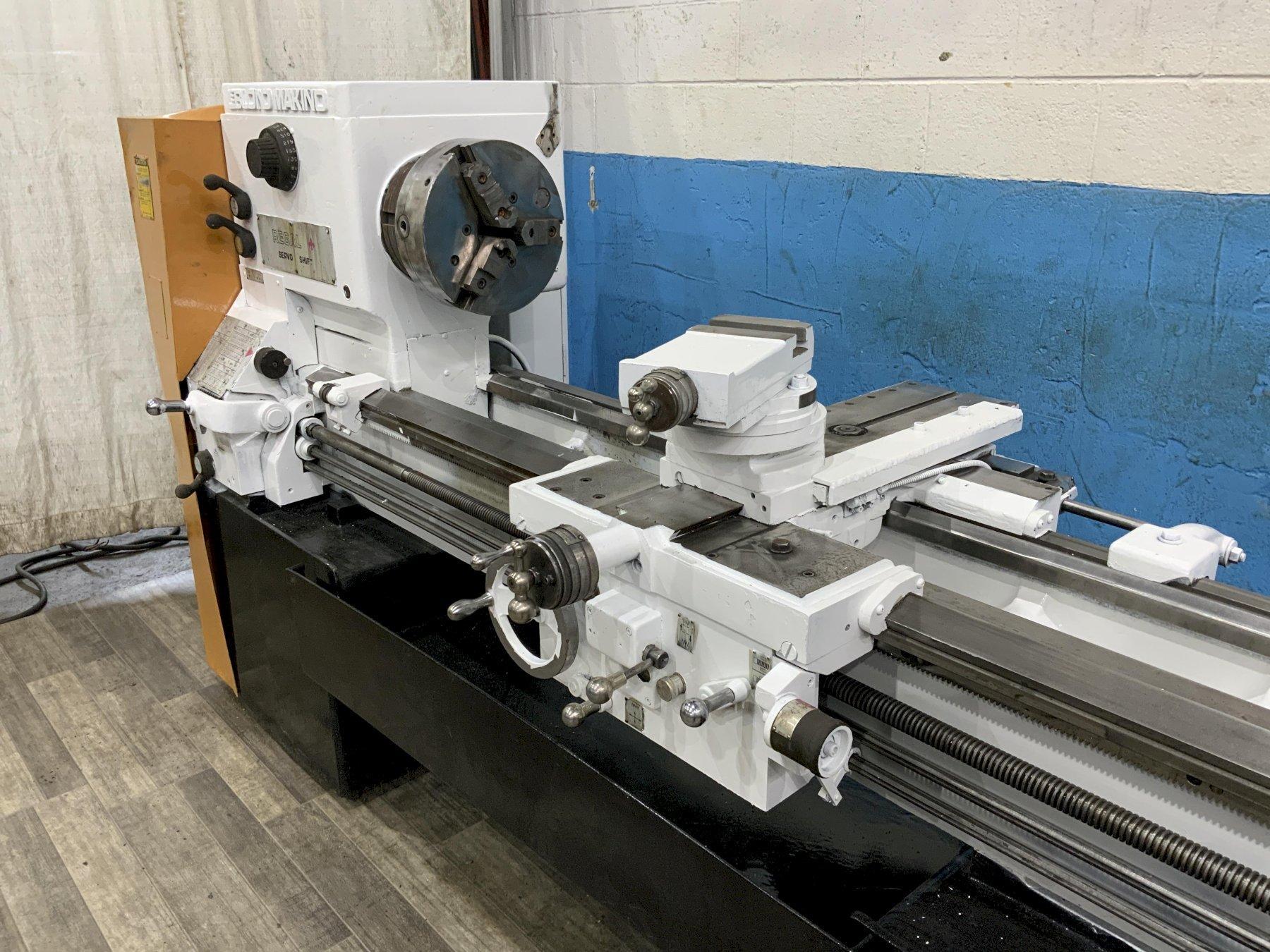

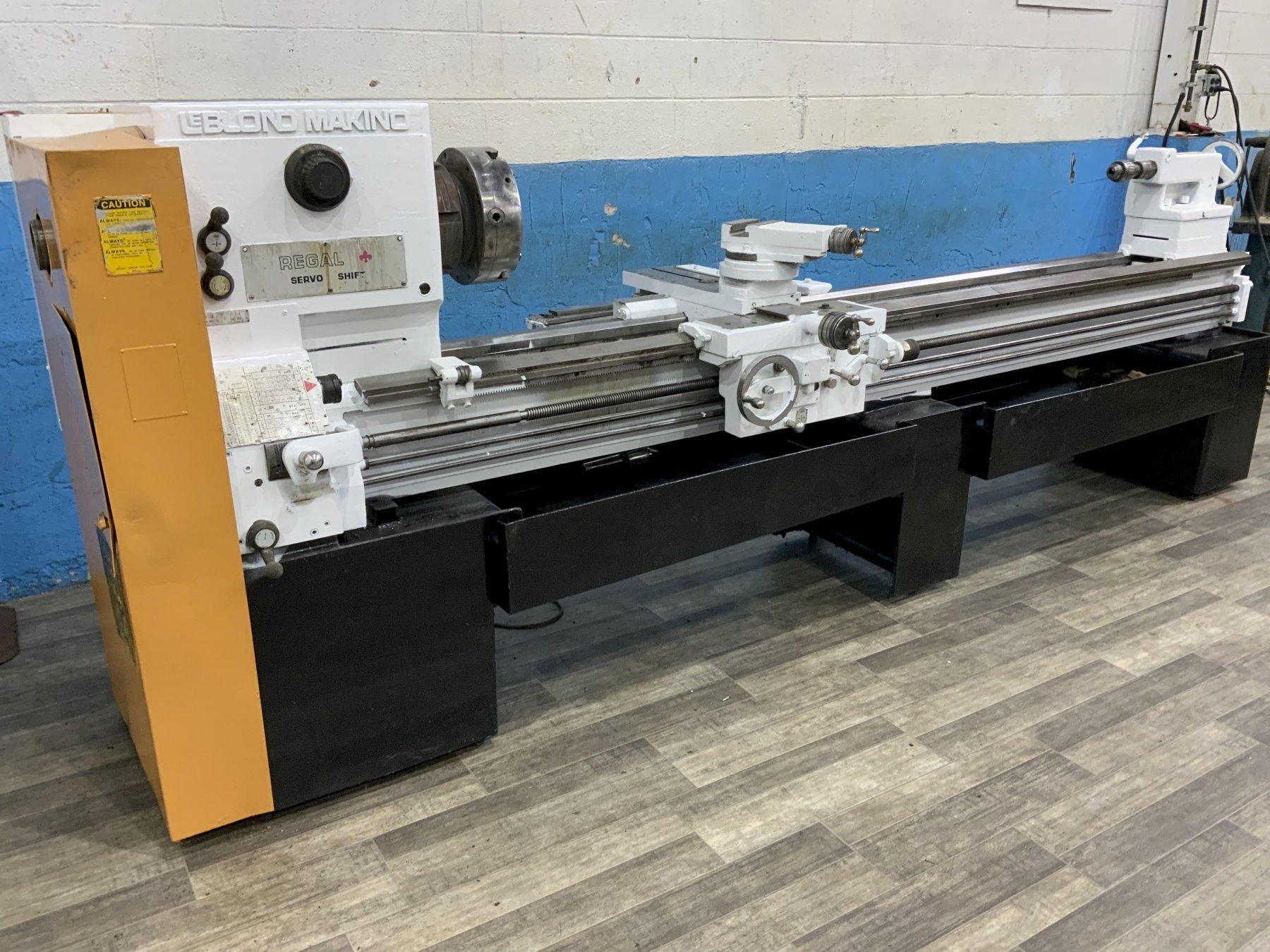

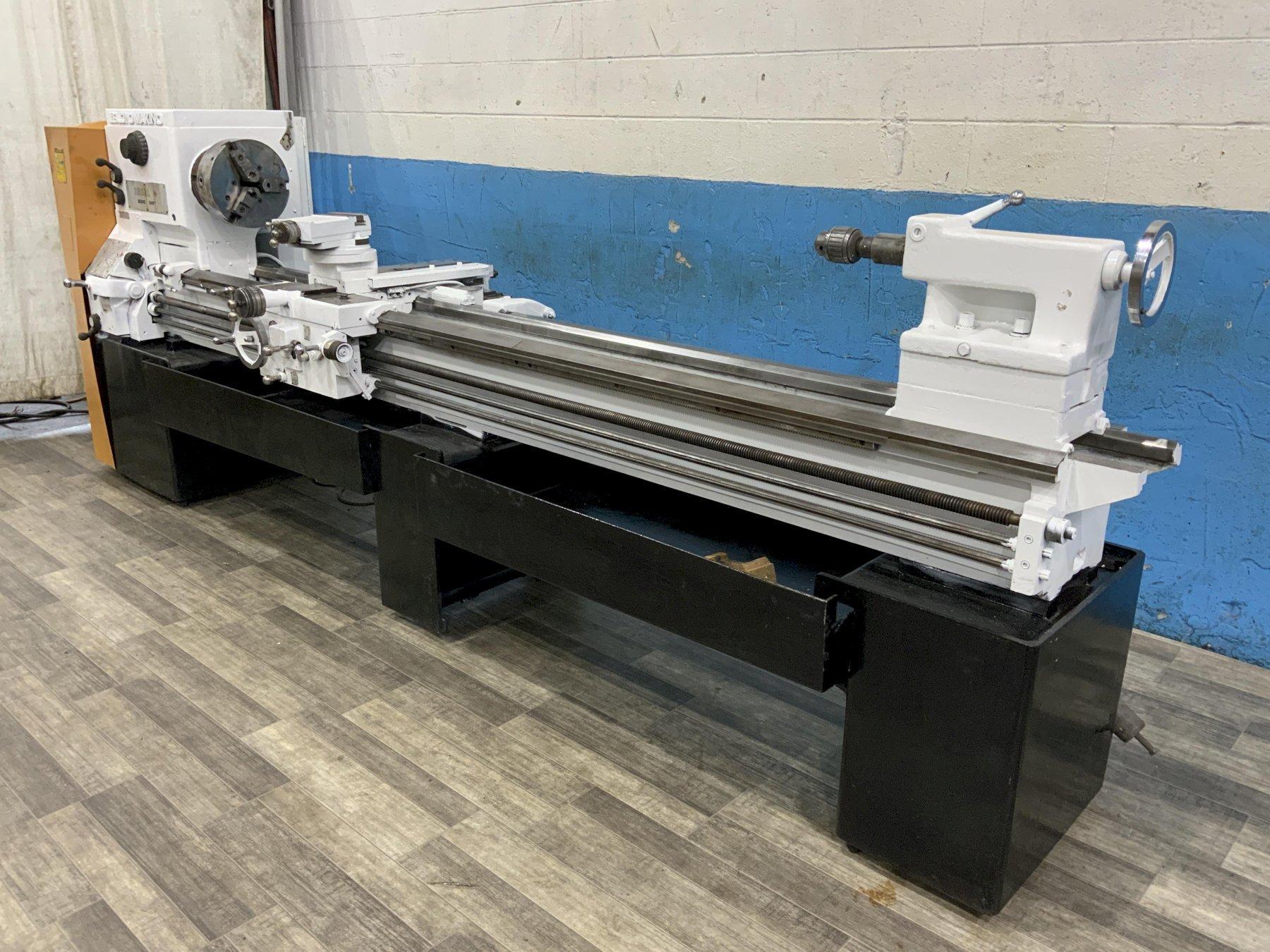

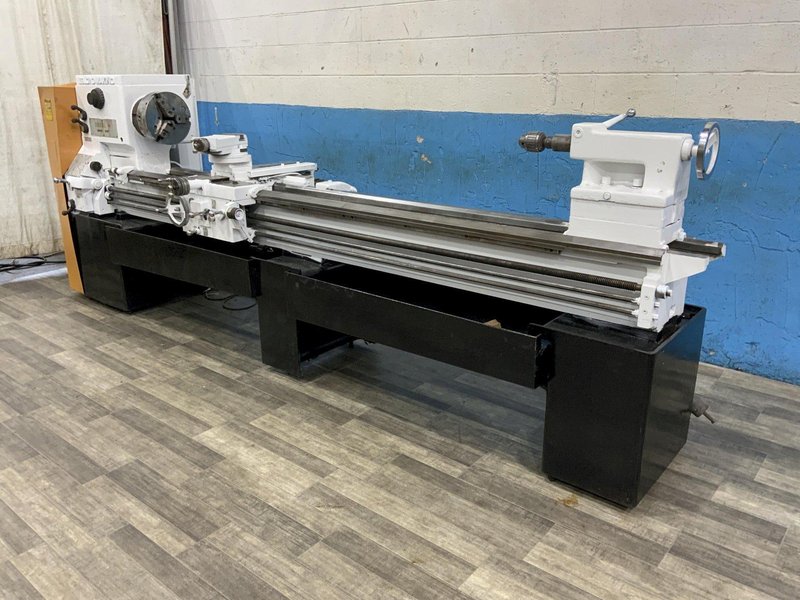

19" X 80" LEBLOND MAKINO ENGINE LATHE: STOCK #80827
Brand
Category
Type
Model
MAKINO
Stock #
80827
Year
Not specified
Condition
Not specified
Location
Not specified
|

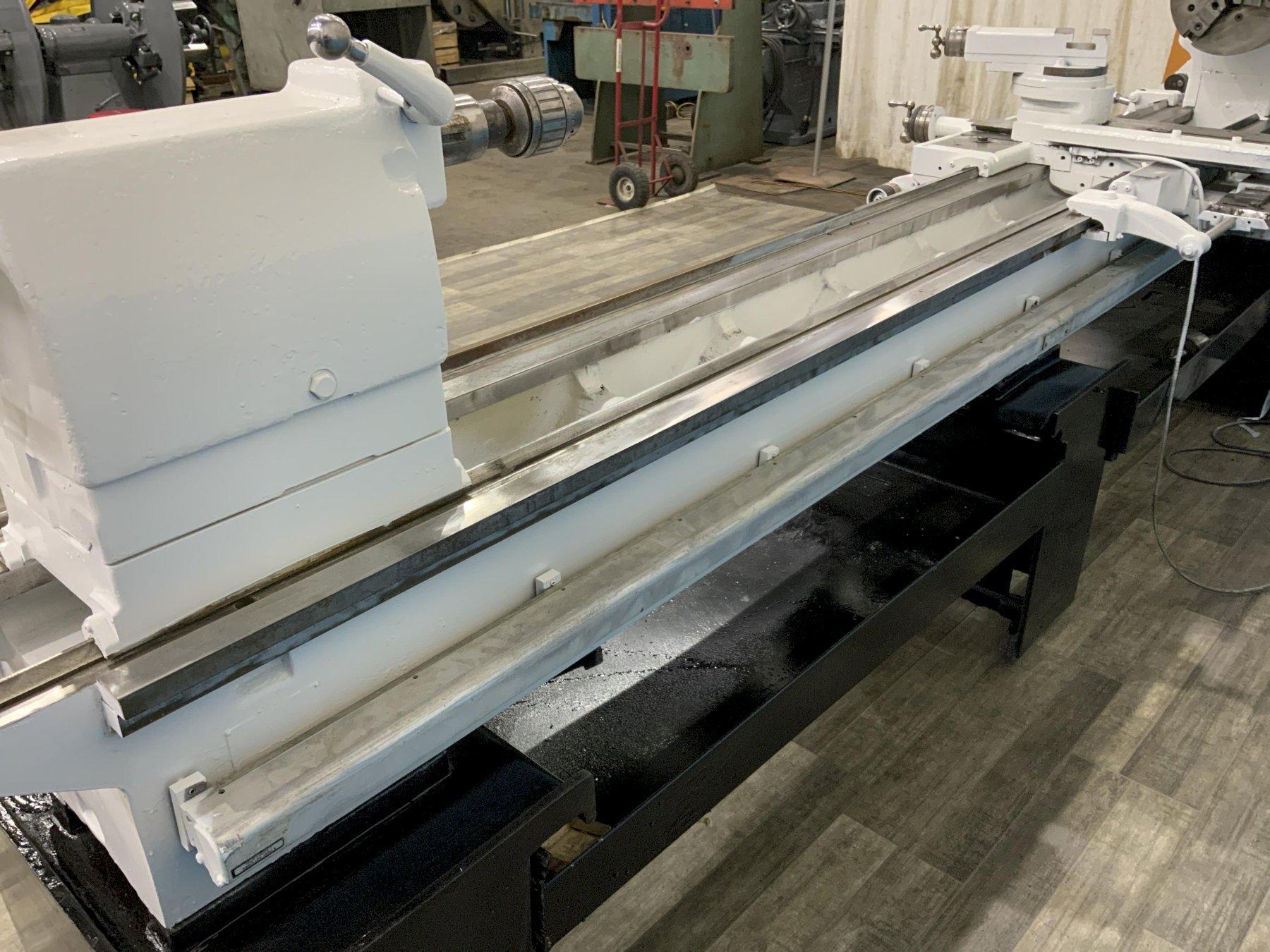

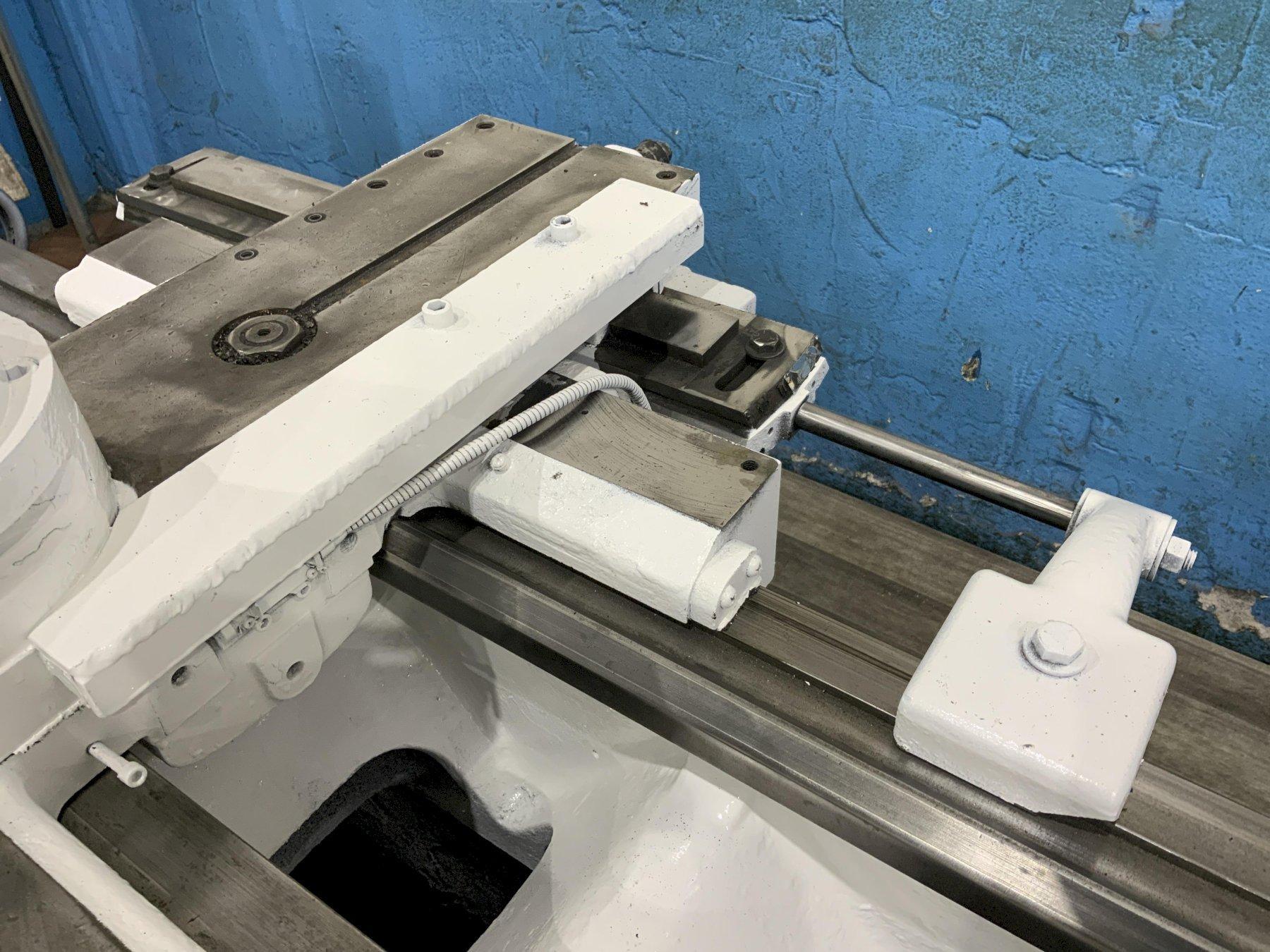

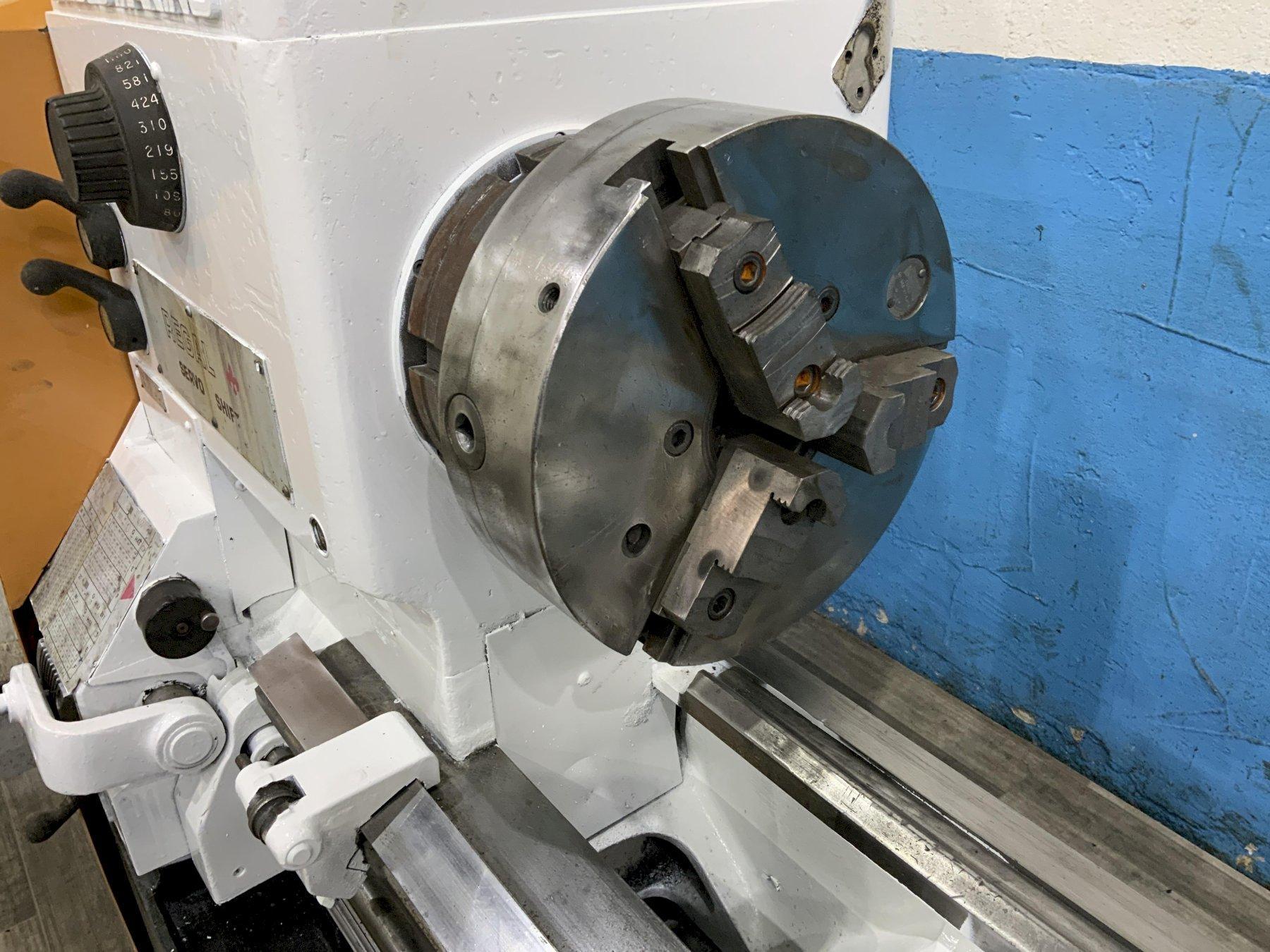

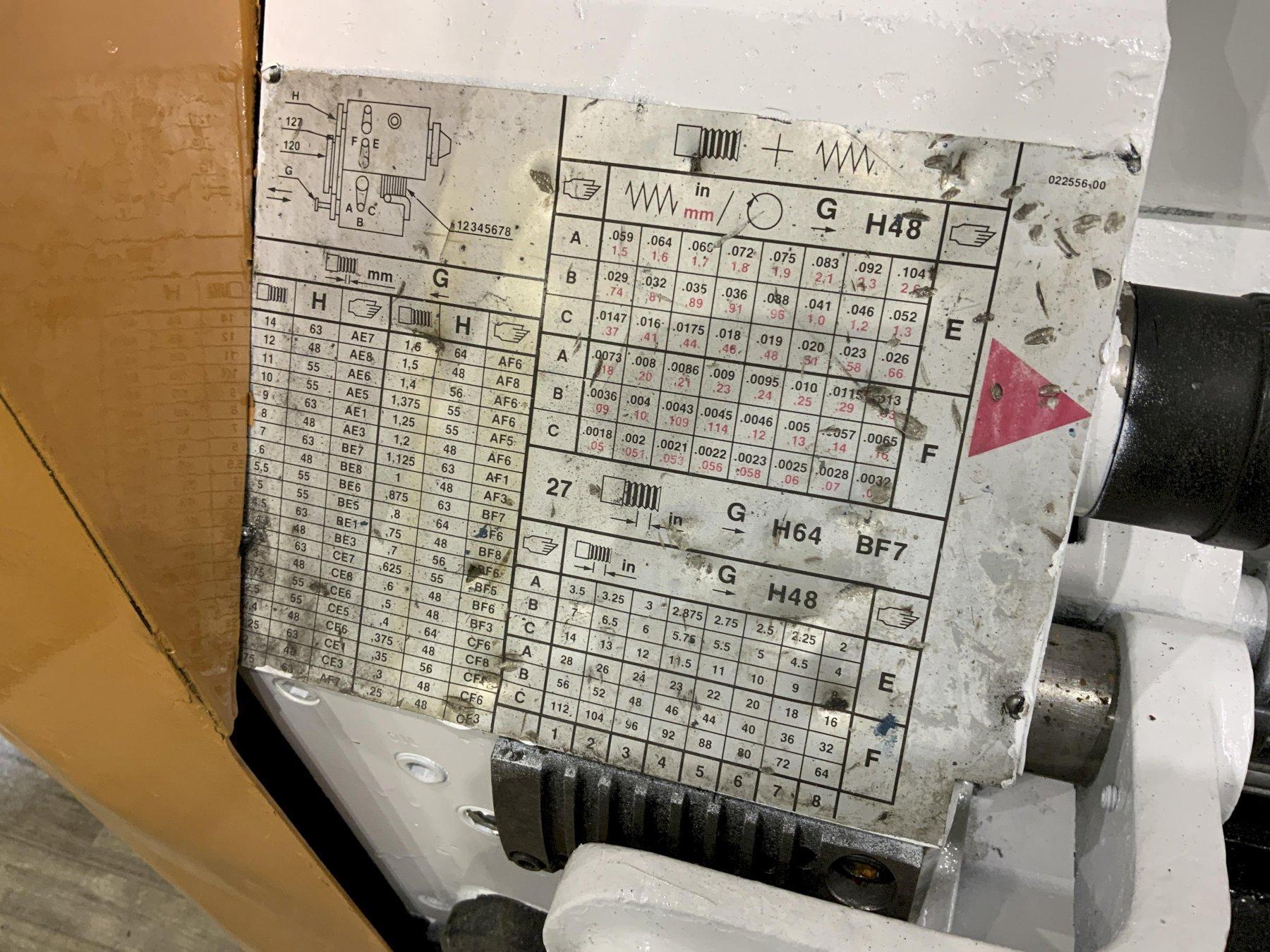

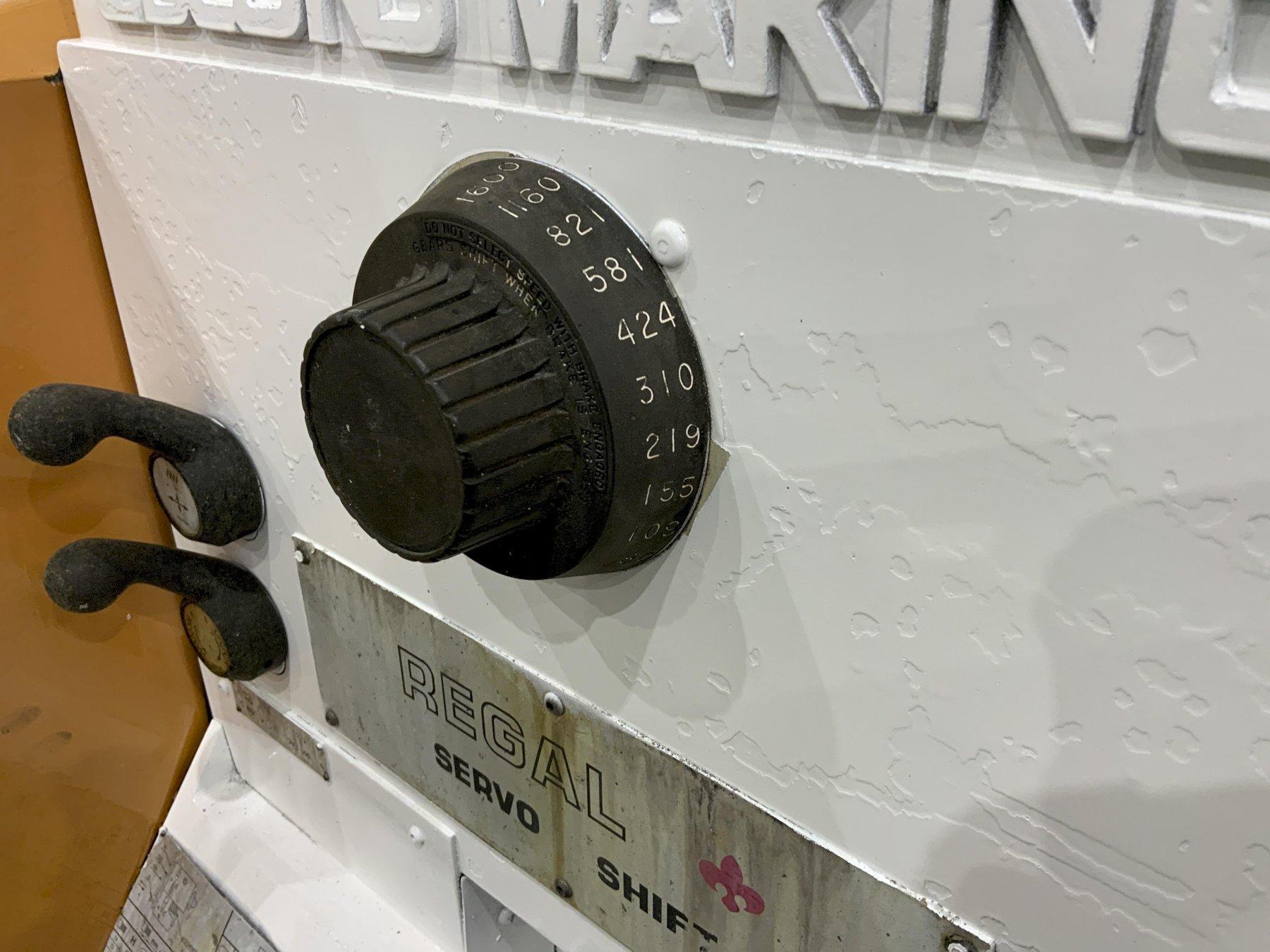

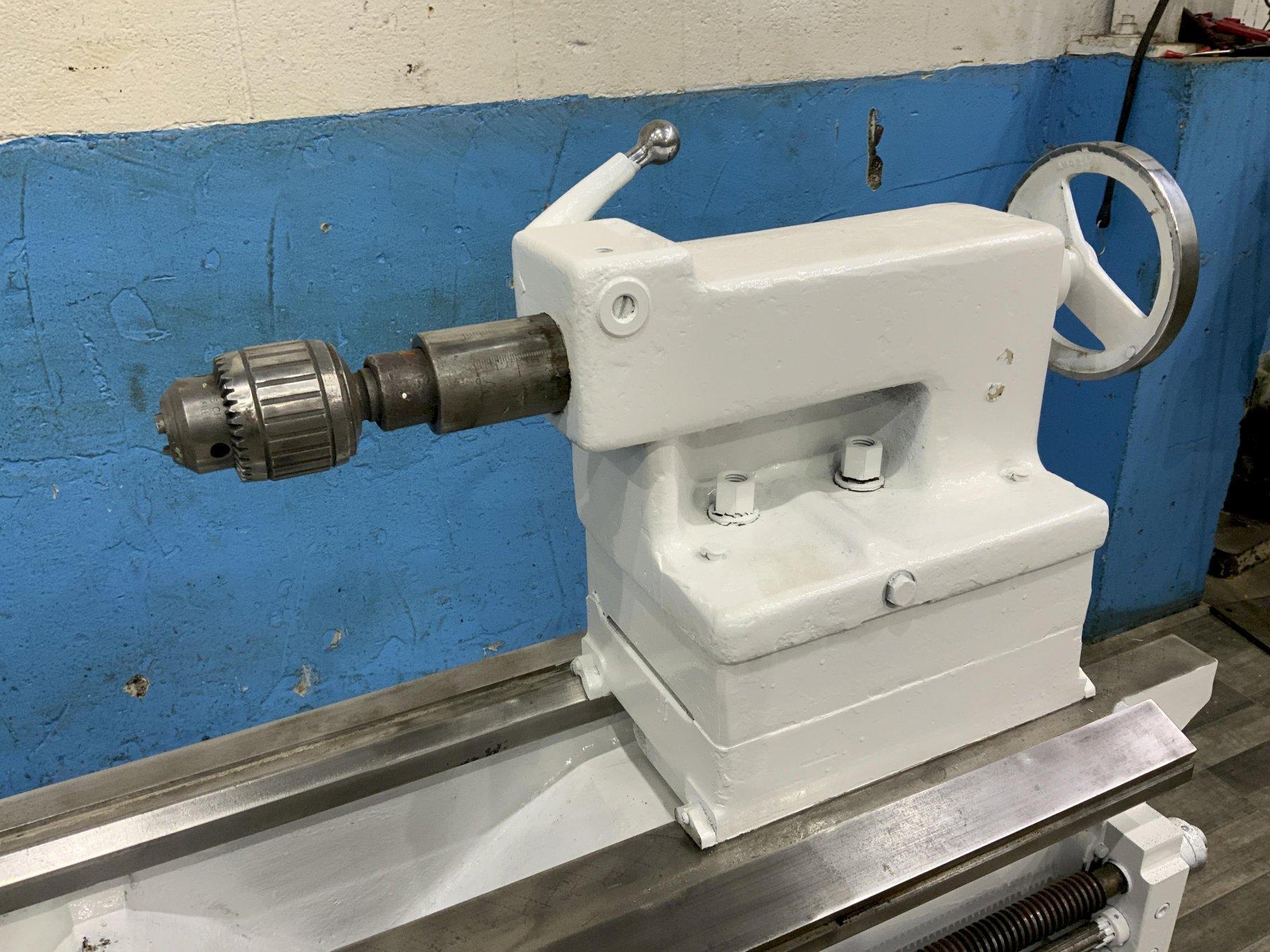

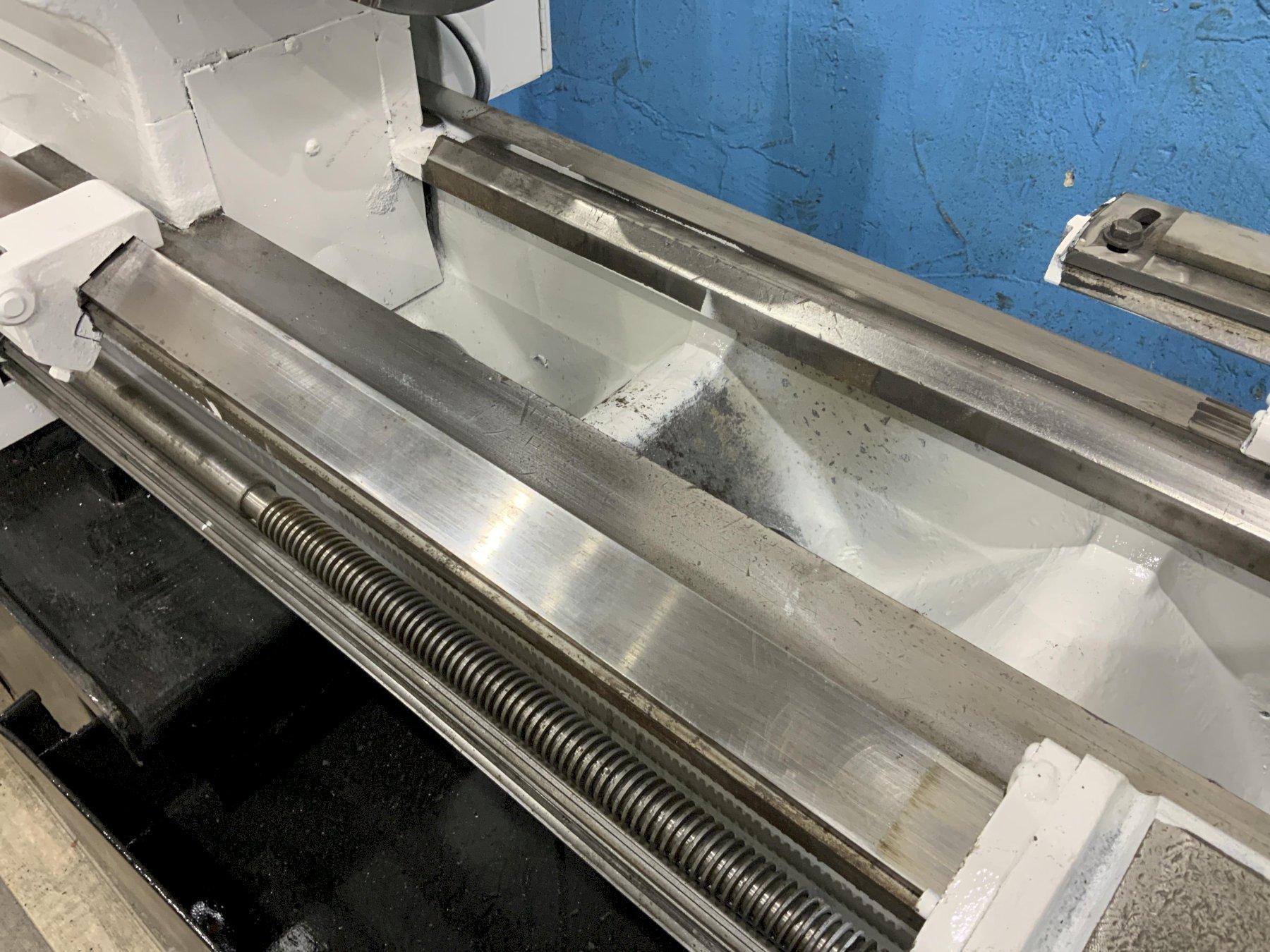

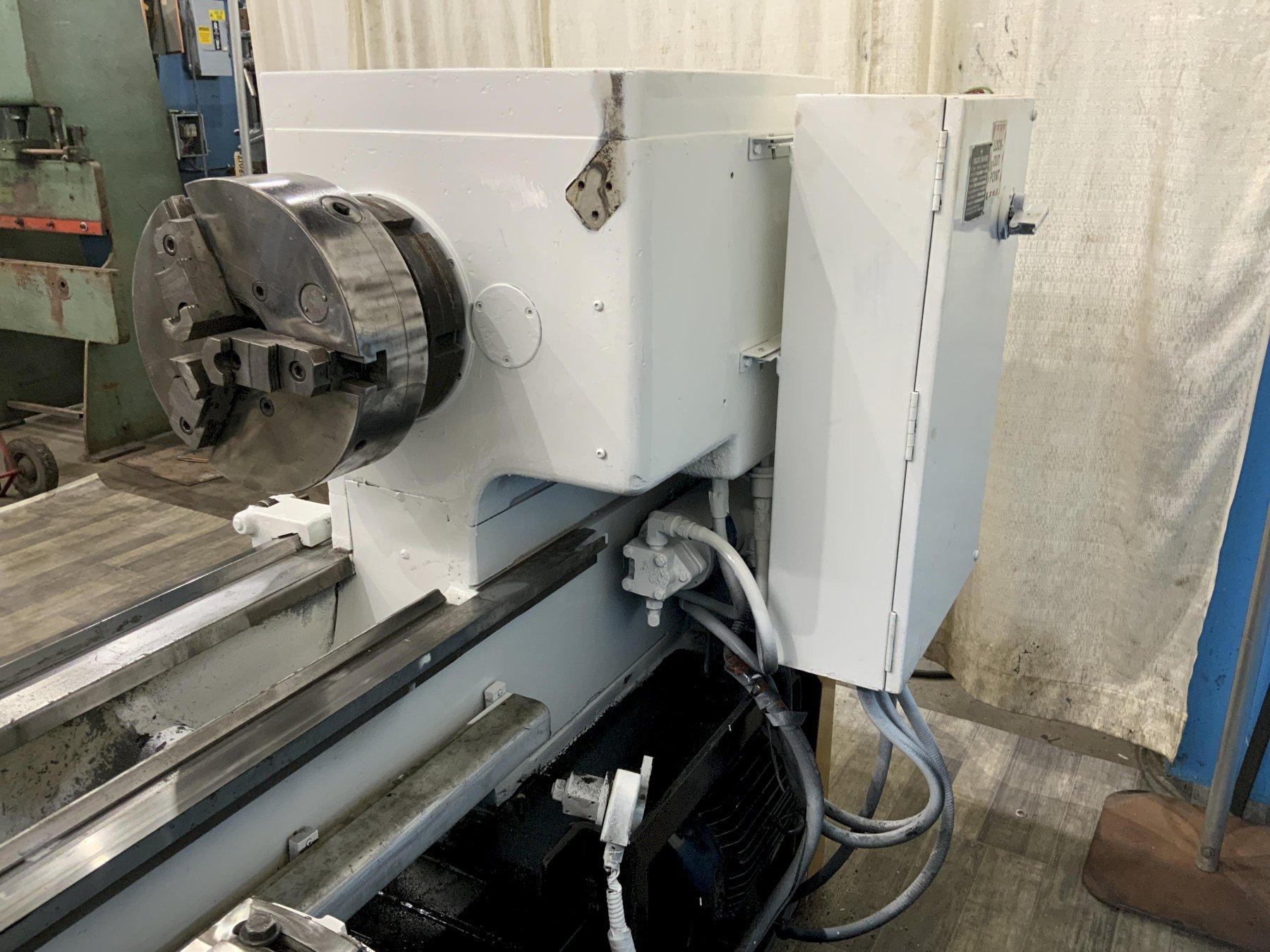

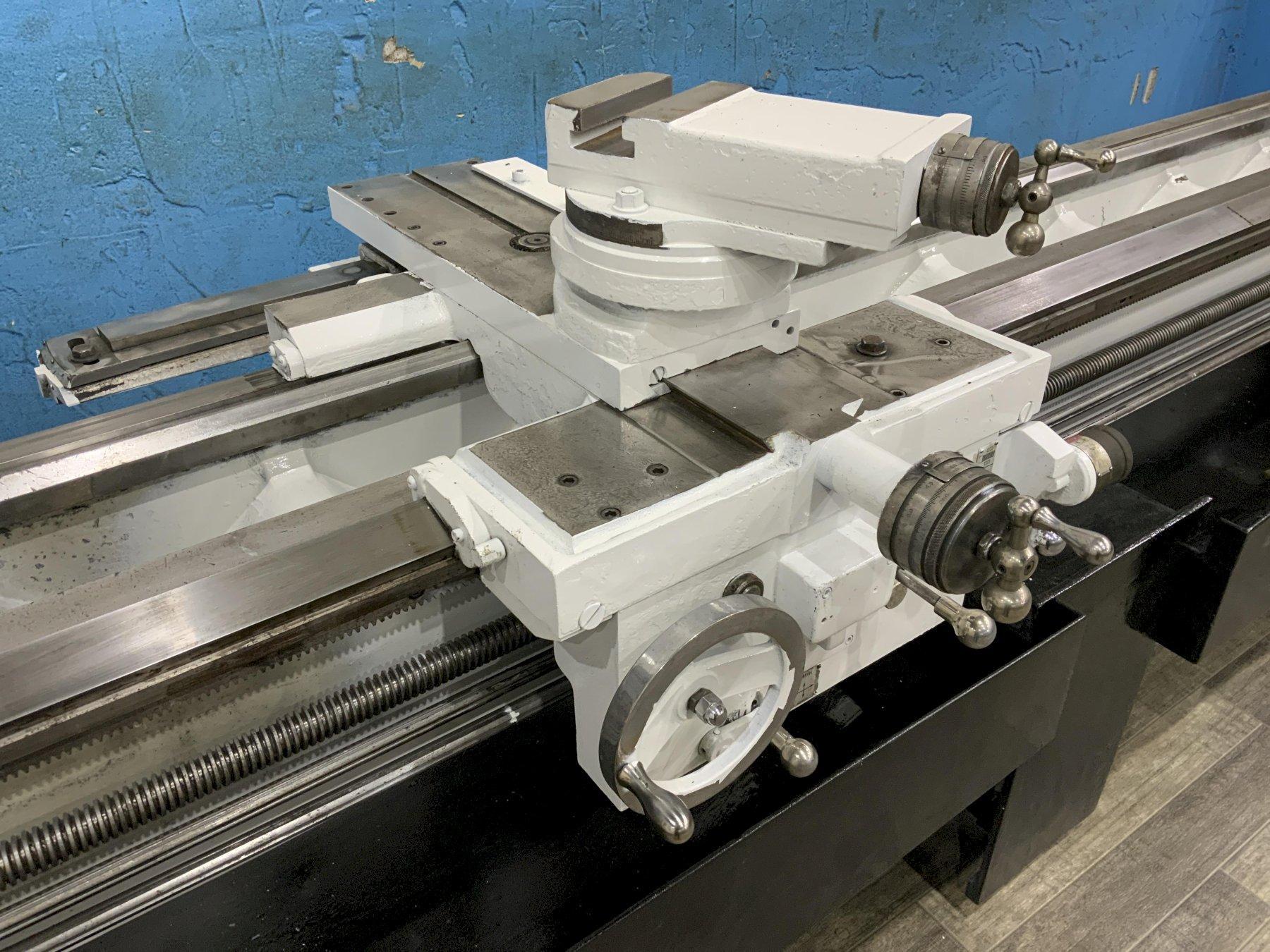

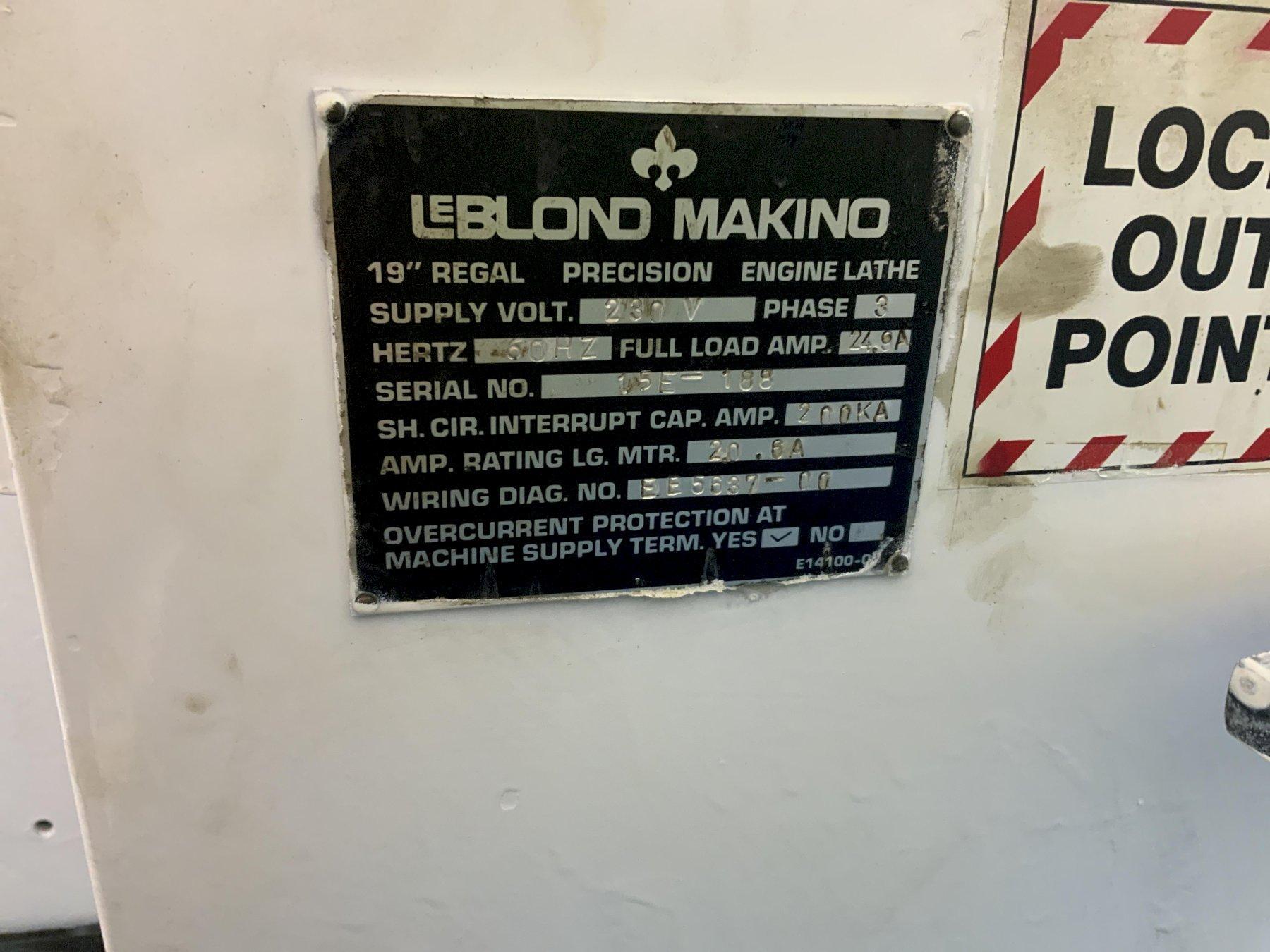

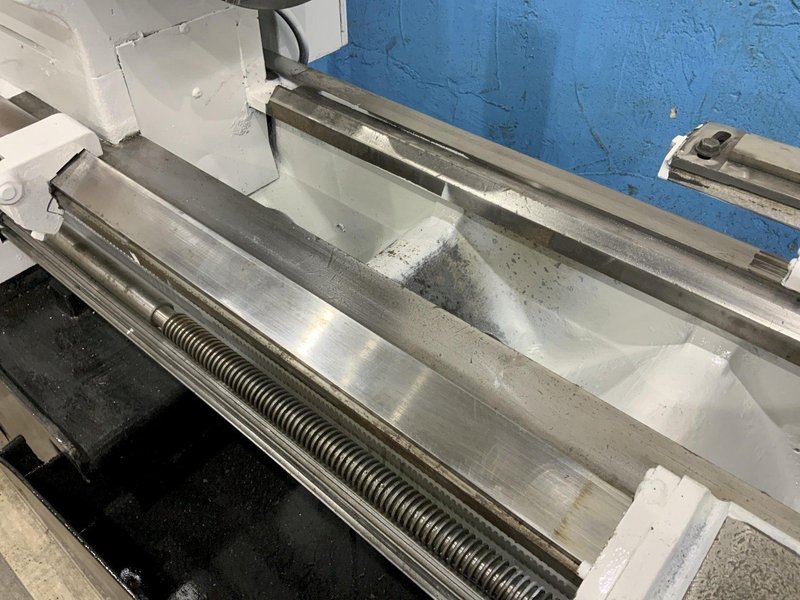

SERIAL ................................ 15E188 MODEL ................................. MAKINO NEW ................................... 2001 SWING OVER WAY ........................ 19-1/2" SWING OVER CROSS SLIDE ................ 12-1/4" DISTANCE BETWEEN CENTERS .............. 80" SPINDLE SPEEDS ........................ 30 TO 1600 RPM FEEDS ................................. .0018 TO .104 IPR THREADS ............................... 2 TO 112 TPI DIAMETER OF SPINDLE HOLE .............. 3" 3 JAW CHUCK ........................... 15" HARD WAYS ............................. YES TAPER ATTACHMENT ...................... YES 2 SPEED TAILSTOCK ..................... YES CHIP PAN WITH COOLANT ................. YES MOTOR ................................. 10 HORSEPOWER |
