Trumpf trumabend 230 ton x 3100 mm CNC

Name: Trumpf trumabend 230 ton x 3100 mm CNC
Brand: Unknown
SKU: O.01 16178
Availability: PreOrder

Brand

Not specified

Location

East Flanders, Belgium

REQUEST FINANCING

Specifications
Files & Videos

Located in Deinze, Belgium

Technical information

Capacity 230 ton x 3100 mm

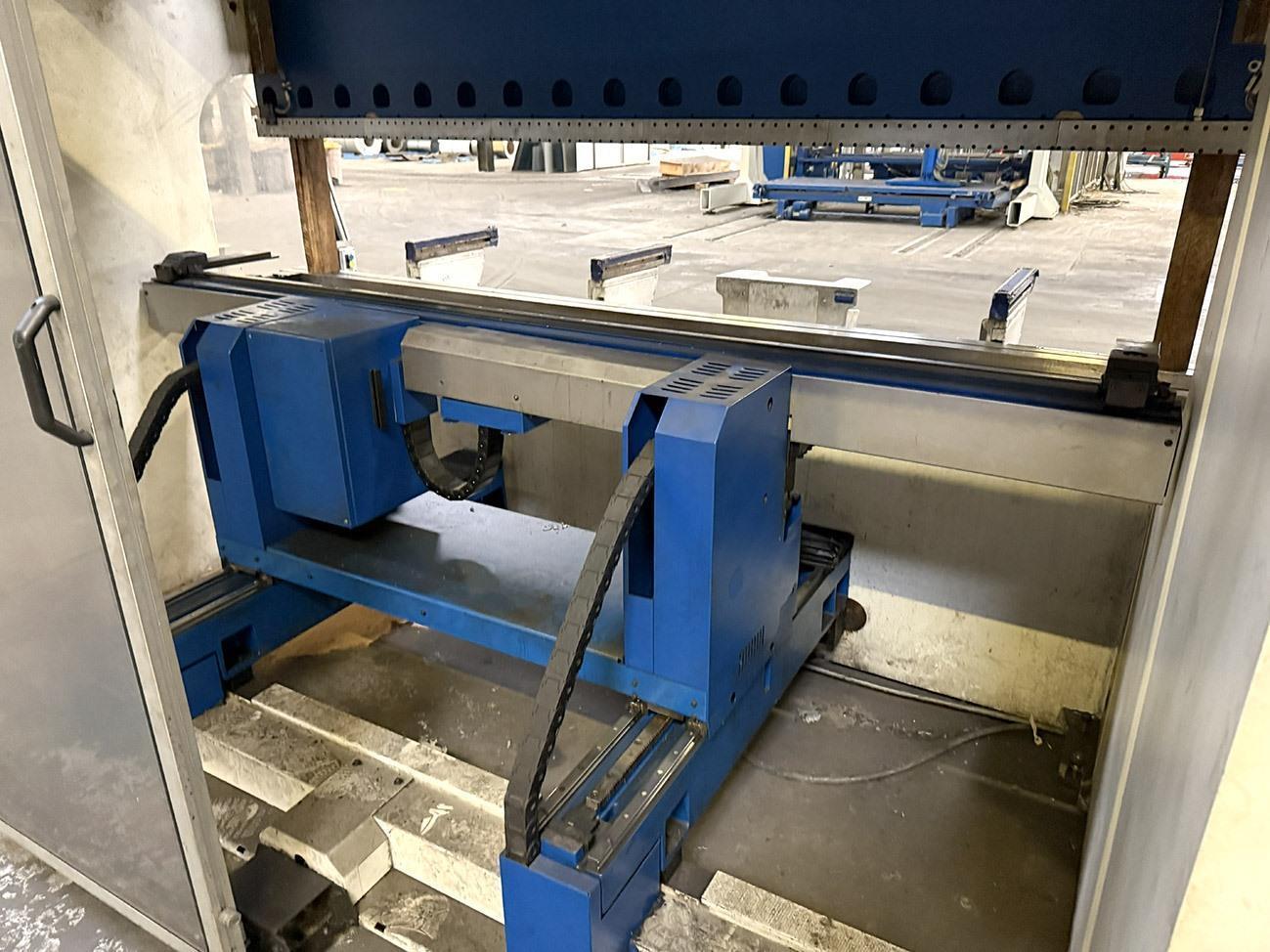

Backgauge CNC

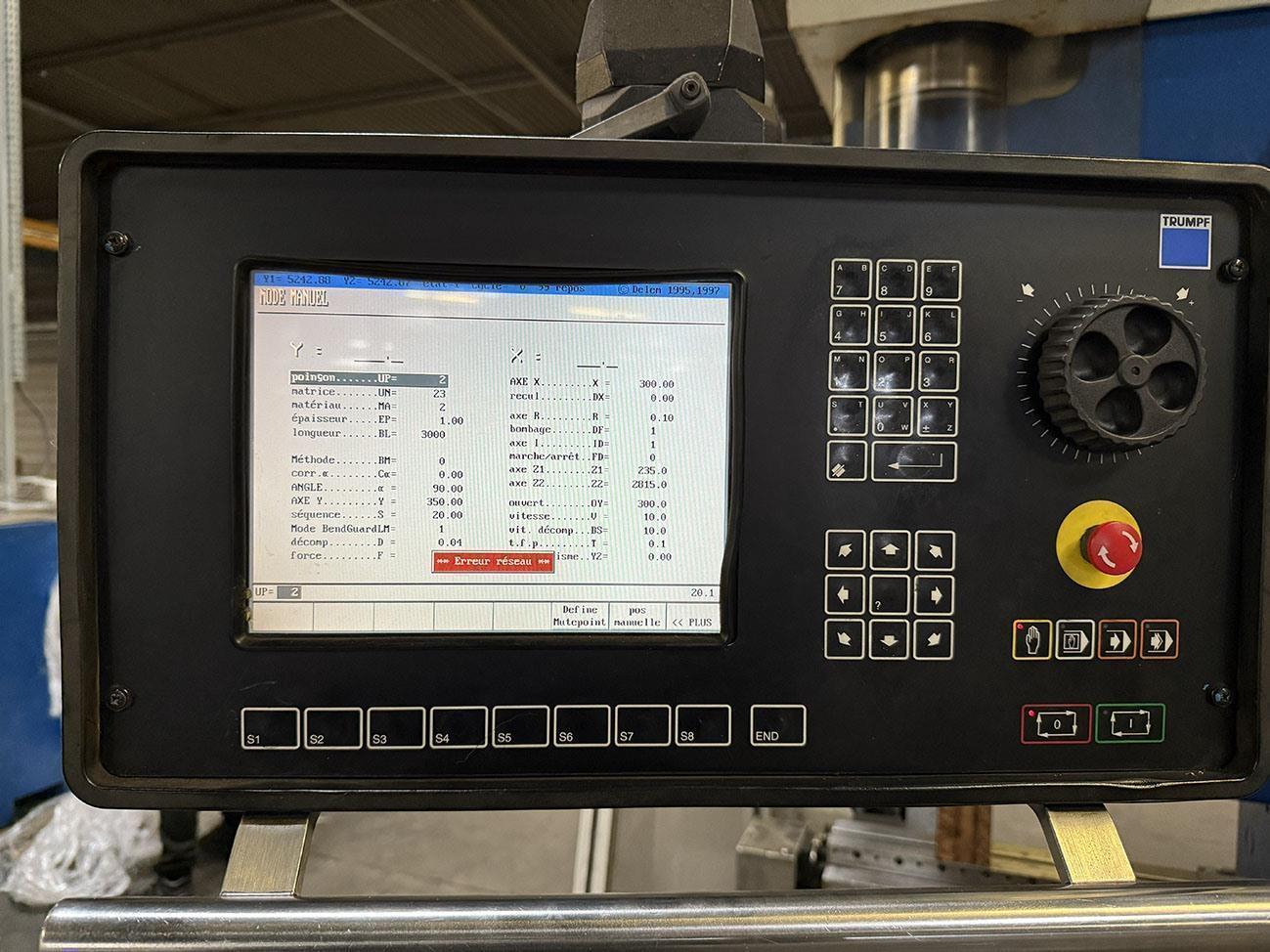

Control Delem
Passage between uprights 2690 mm
Max stroke 365 mm
Max distance between table -- ram 535 mm
Depth of throat 410 mm
Table width 200 mm
Locking speed 200 mm/sec
Working speed 1 > 10 mm/sec
Returning speed 135 mm/sec
Electric motor (power) 30 kW
Length 3660 mm
Depth 2310 mm
Height 3095 mm
Weight 17,7 ton

Additional info

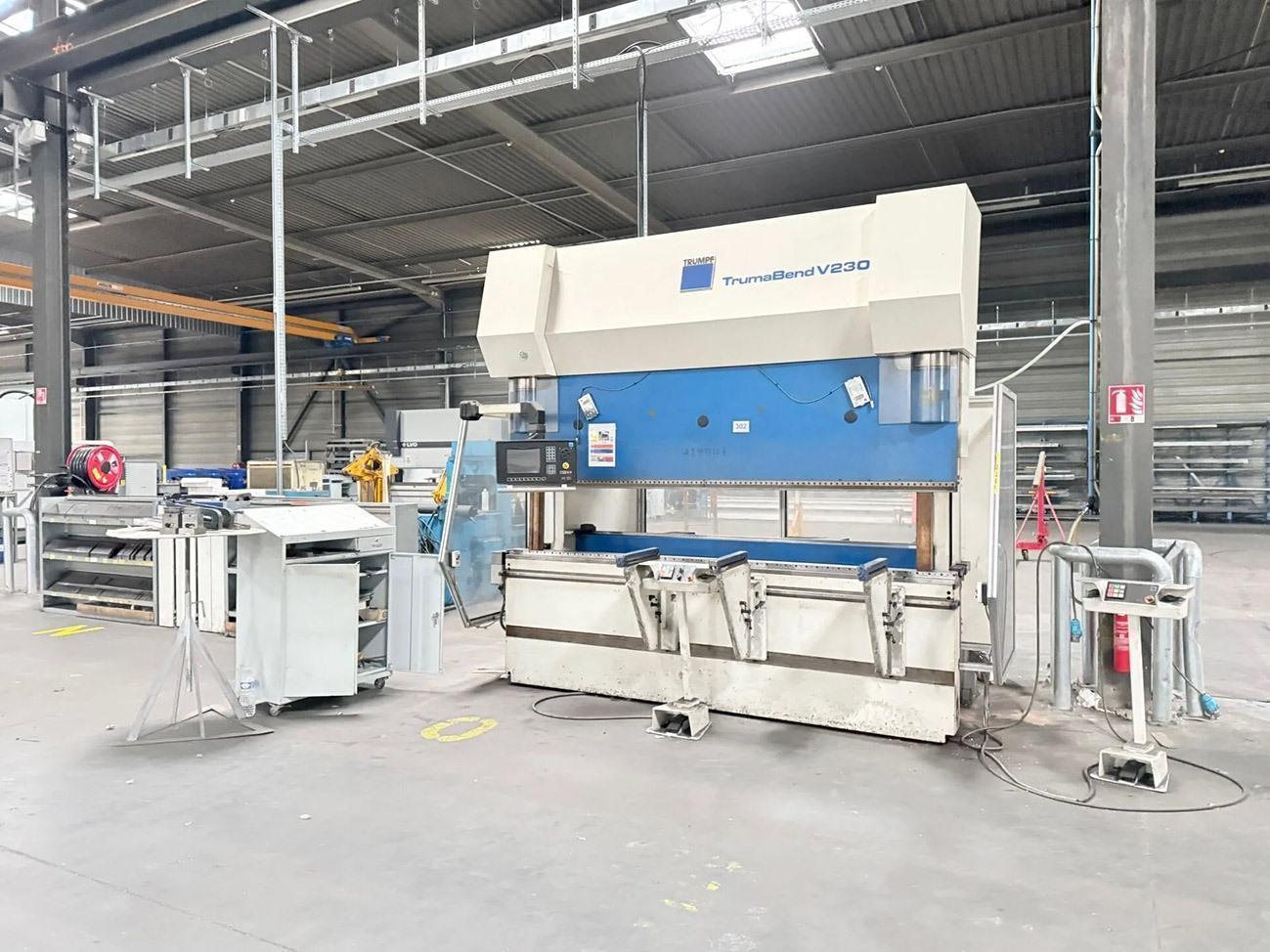

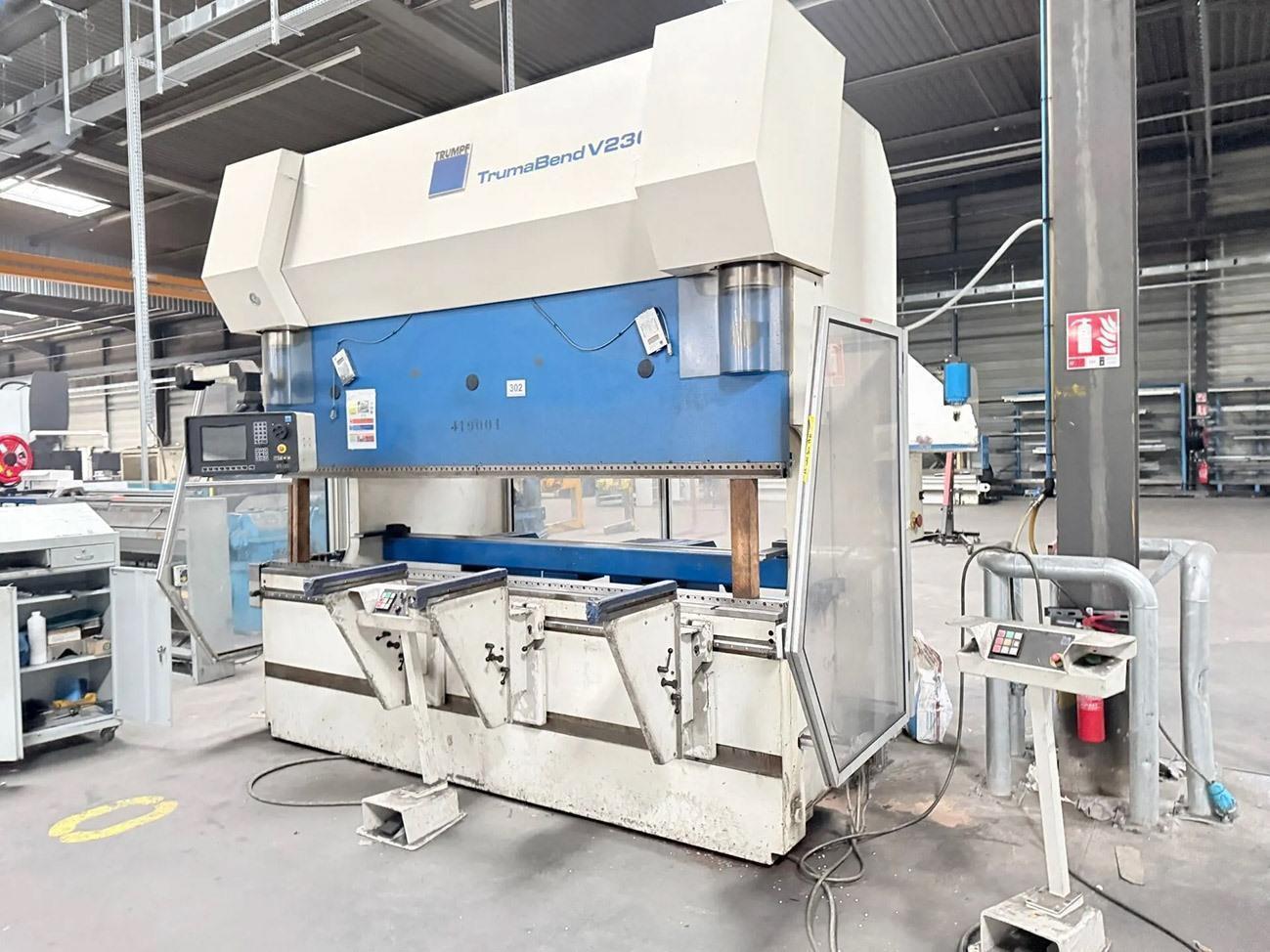

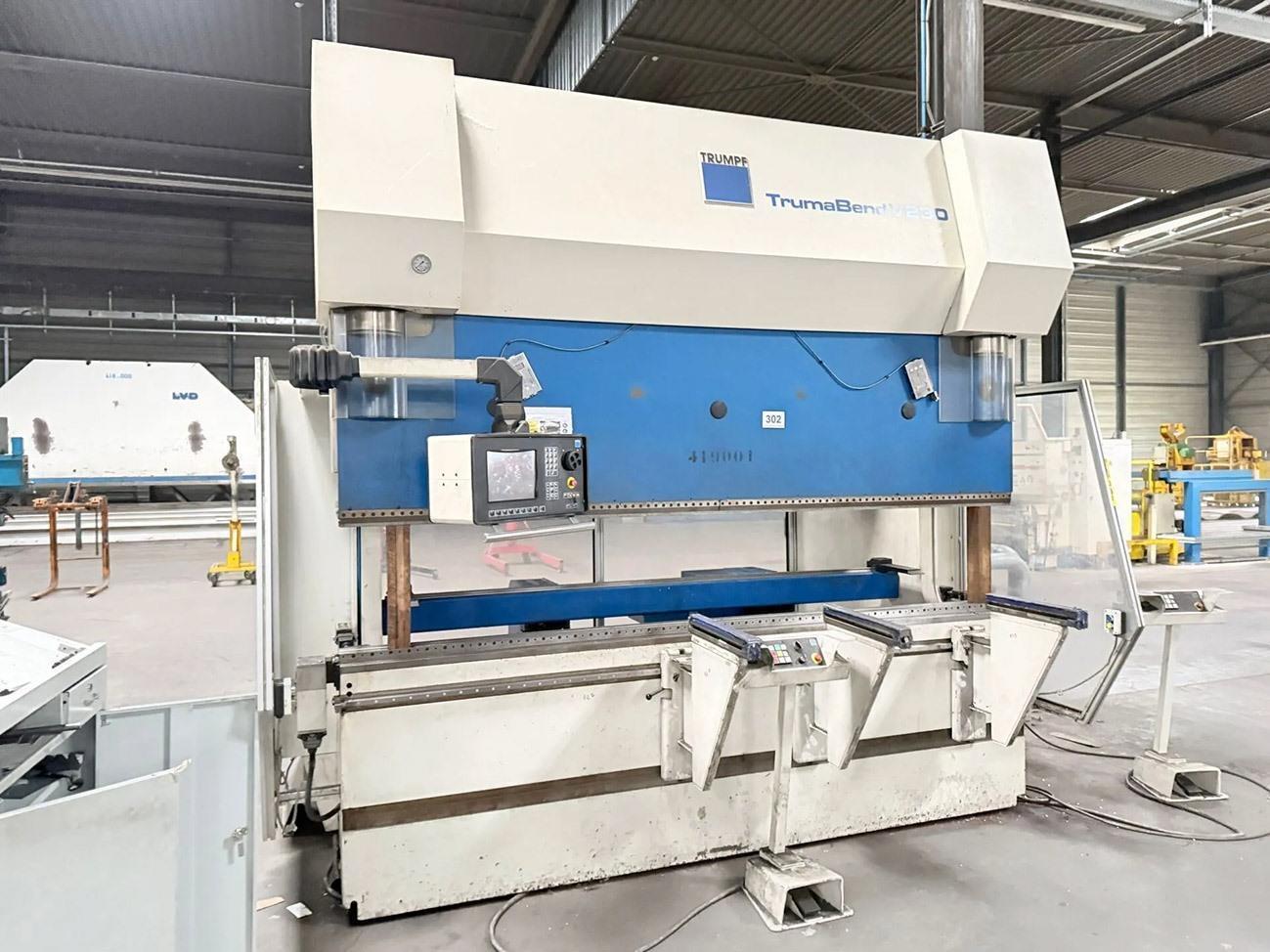

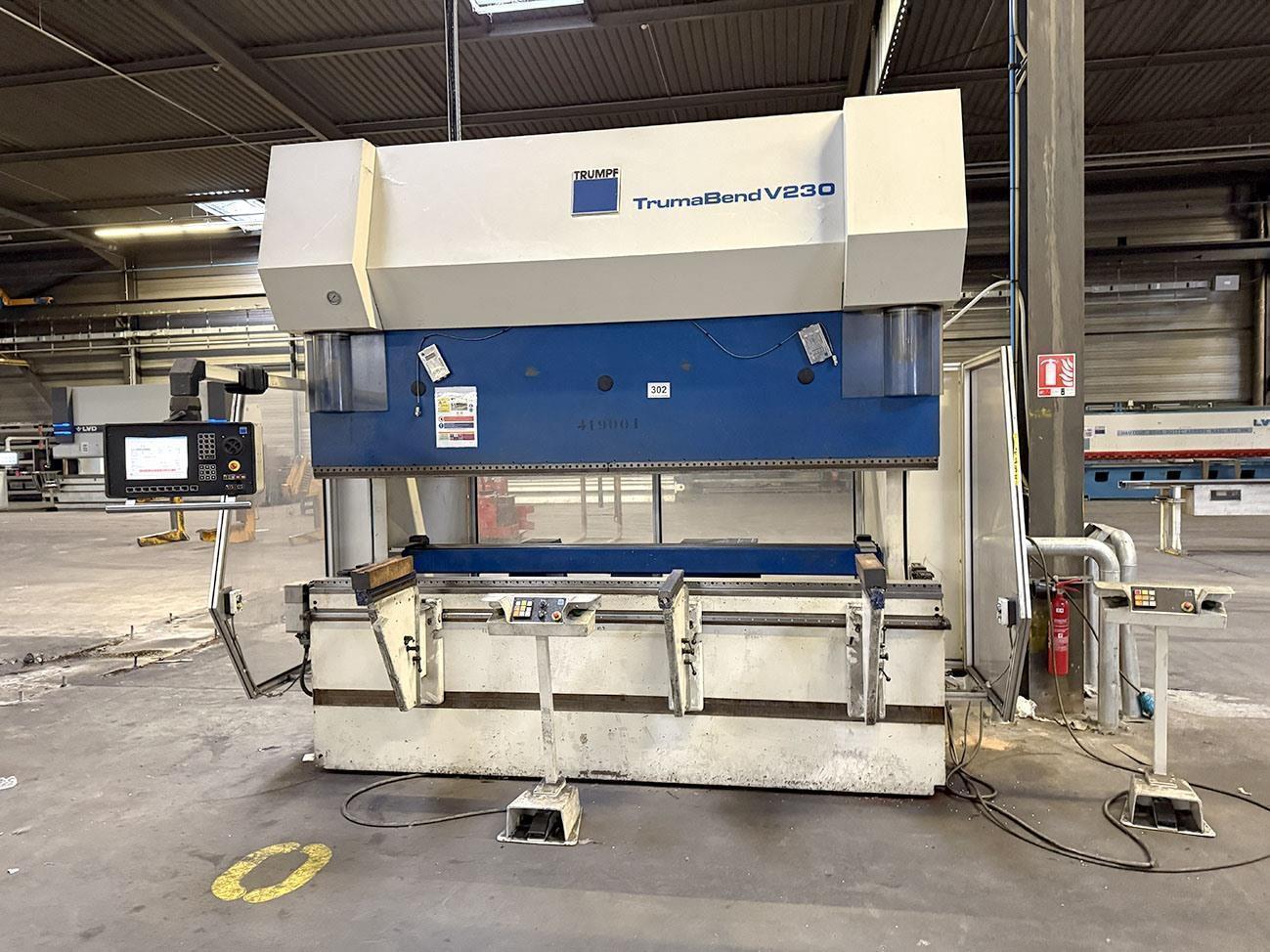

Trumpf TrumaBend V230
8 axes: Y1 / Y2 / X / R / Z1 / Z2 / V / W
upper and lower Willa hydraulic tooling

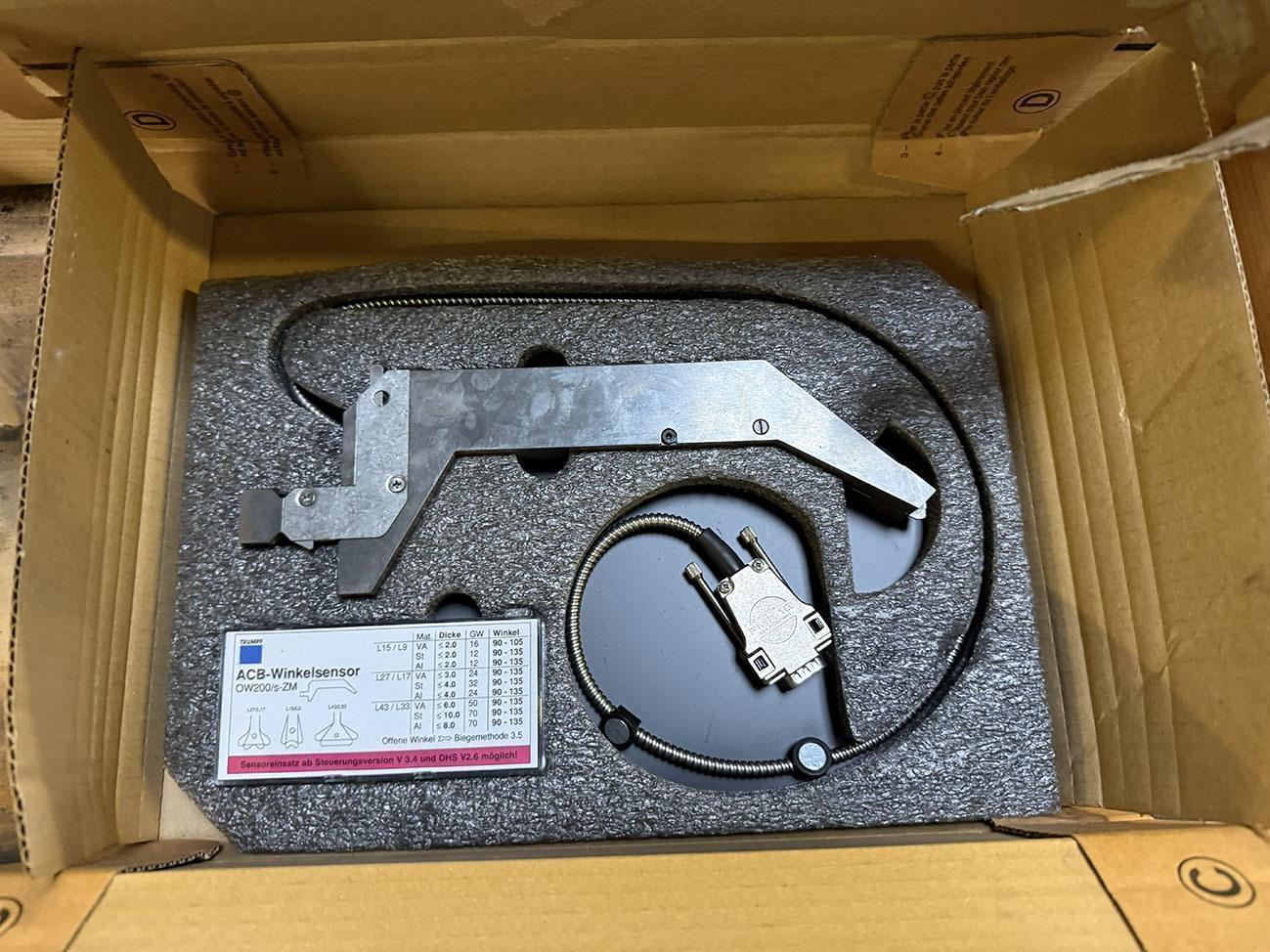

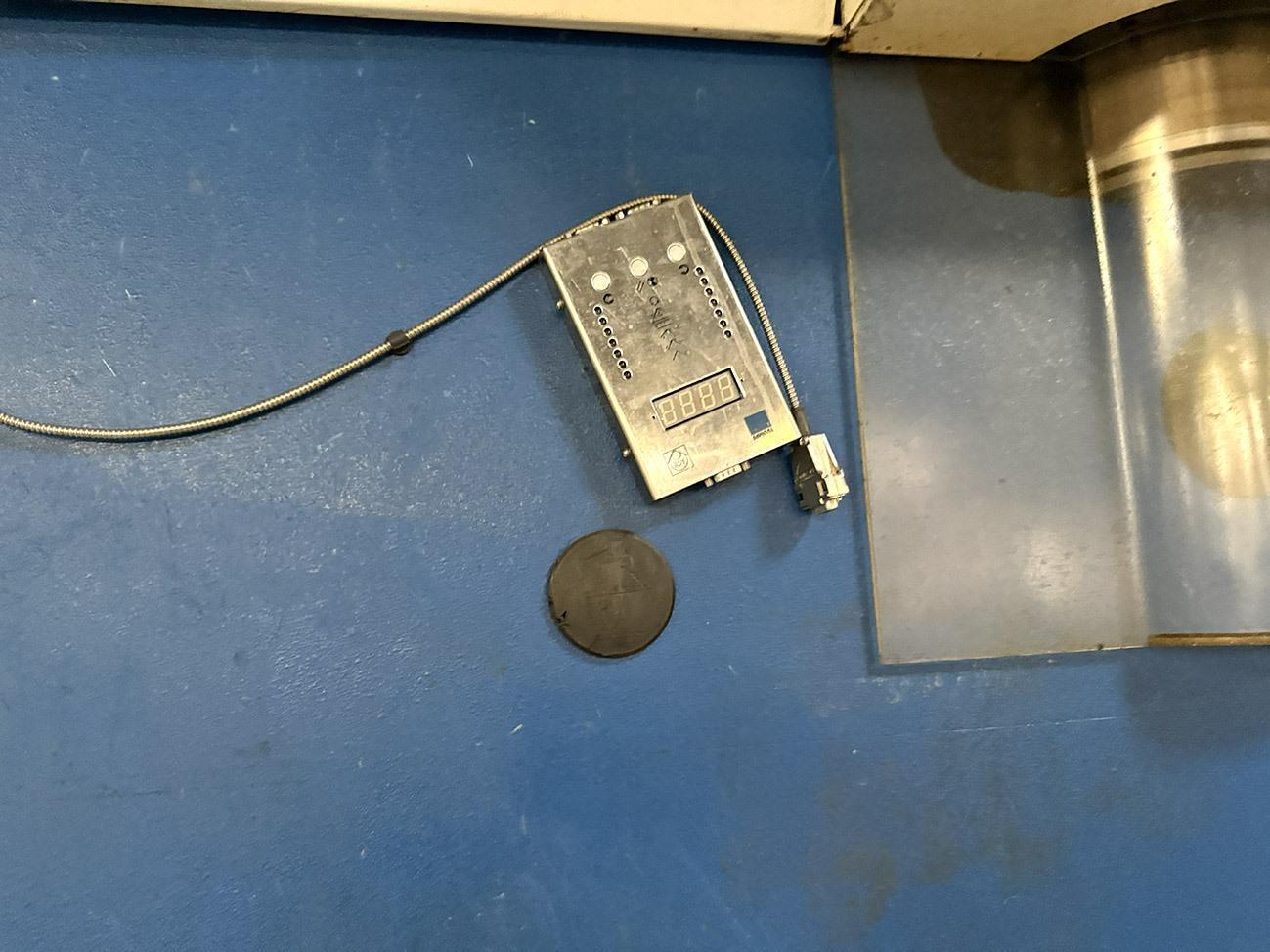

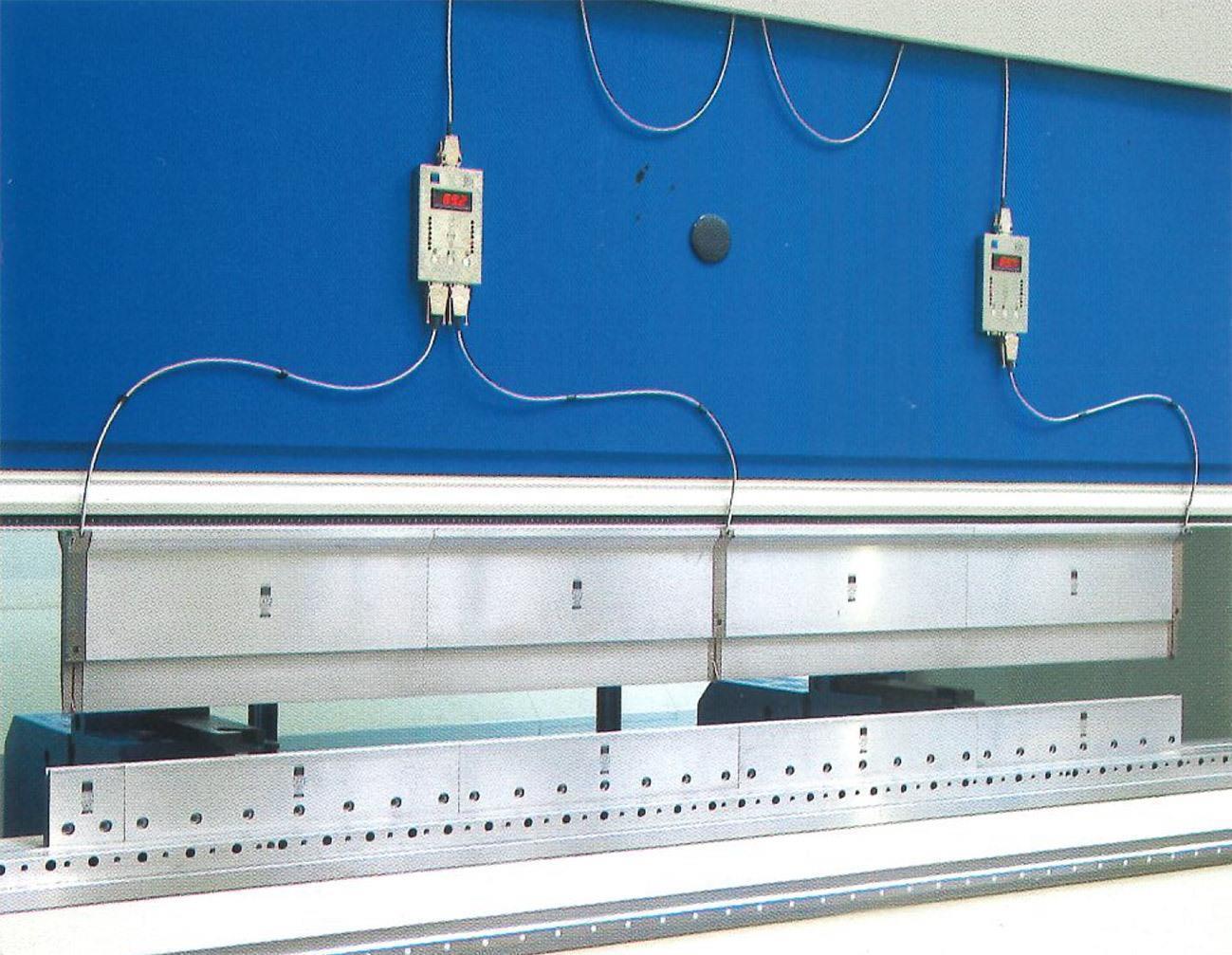

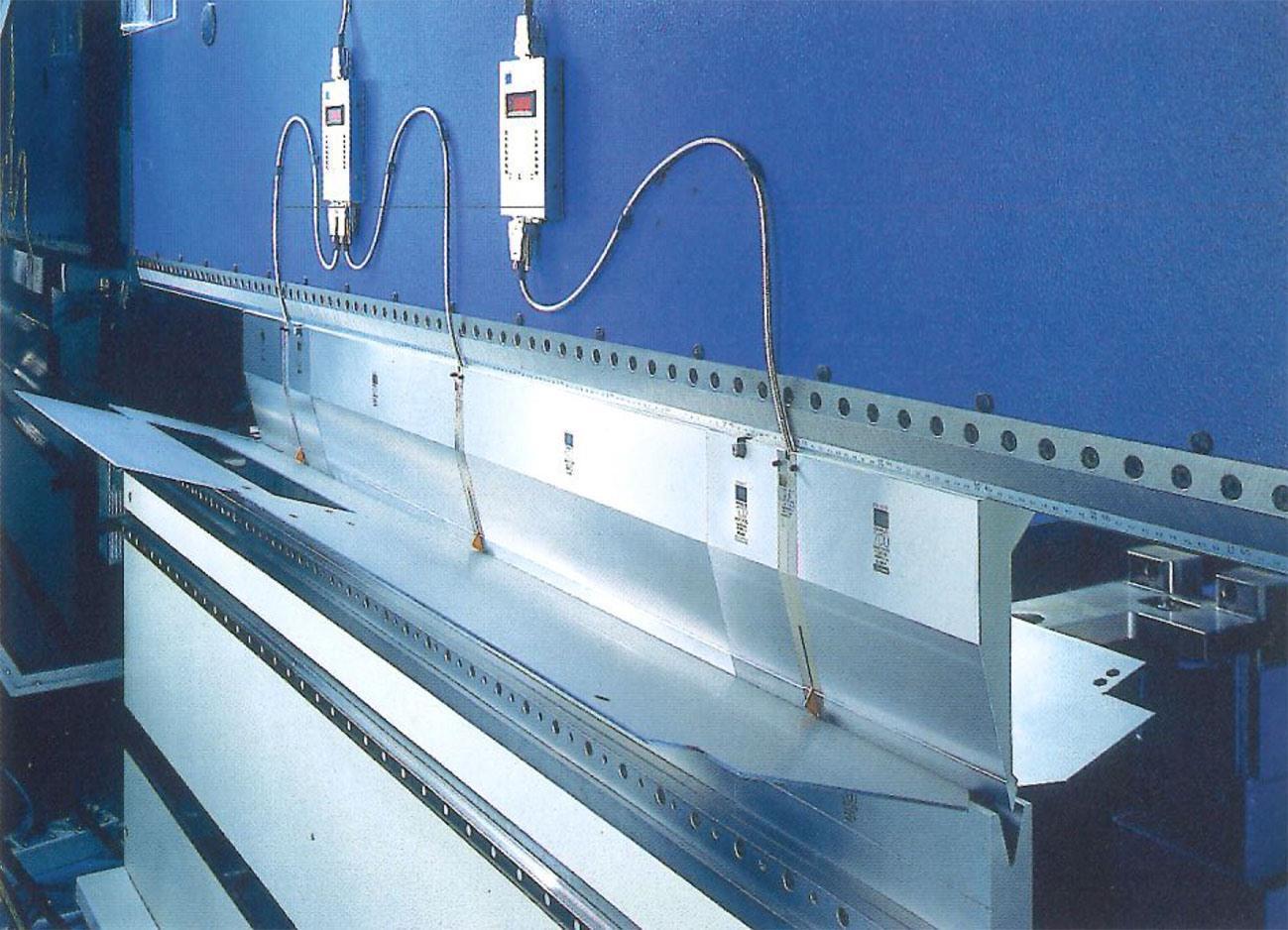

with Trumpf ACB option; automatically controlled bending
3 movable plate supports at the front

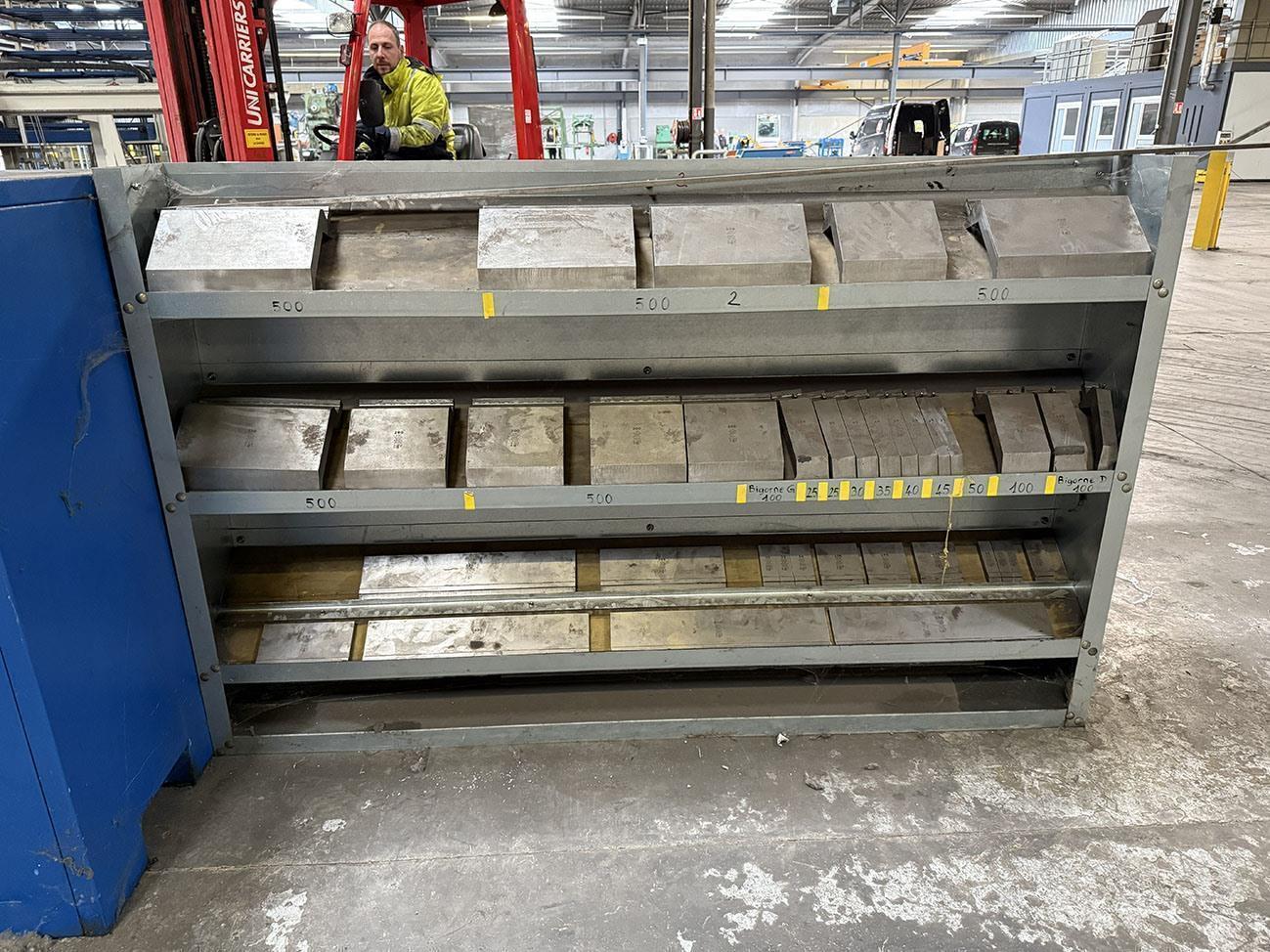

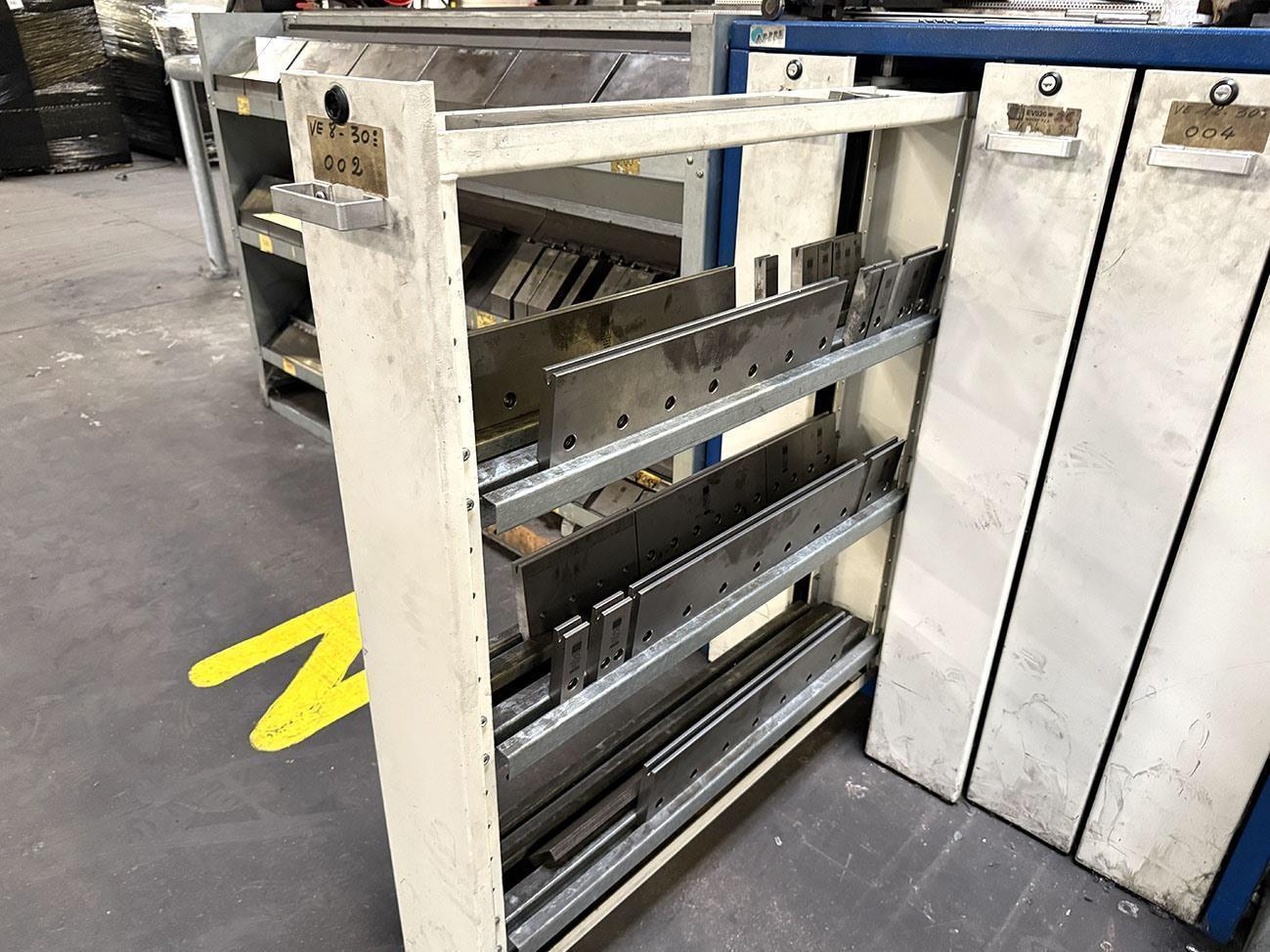

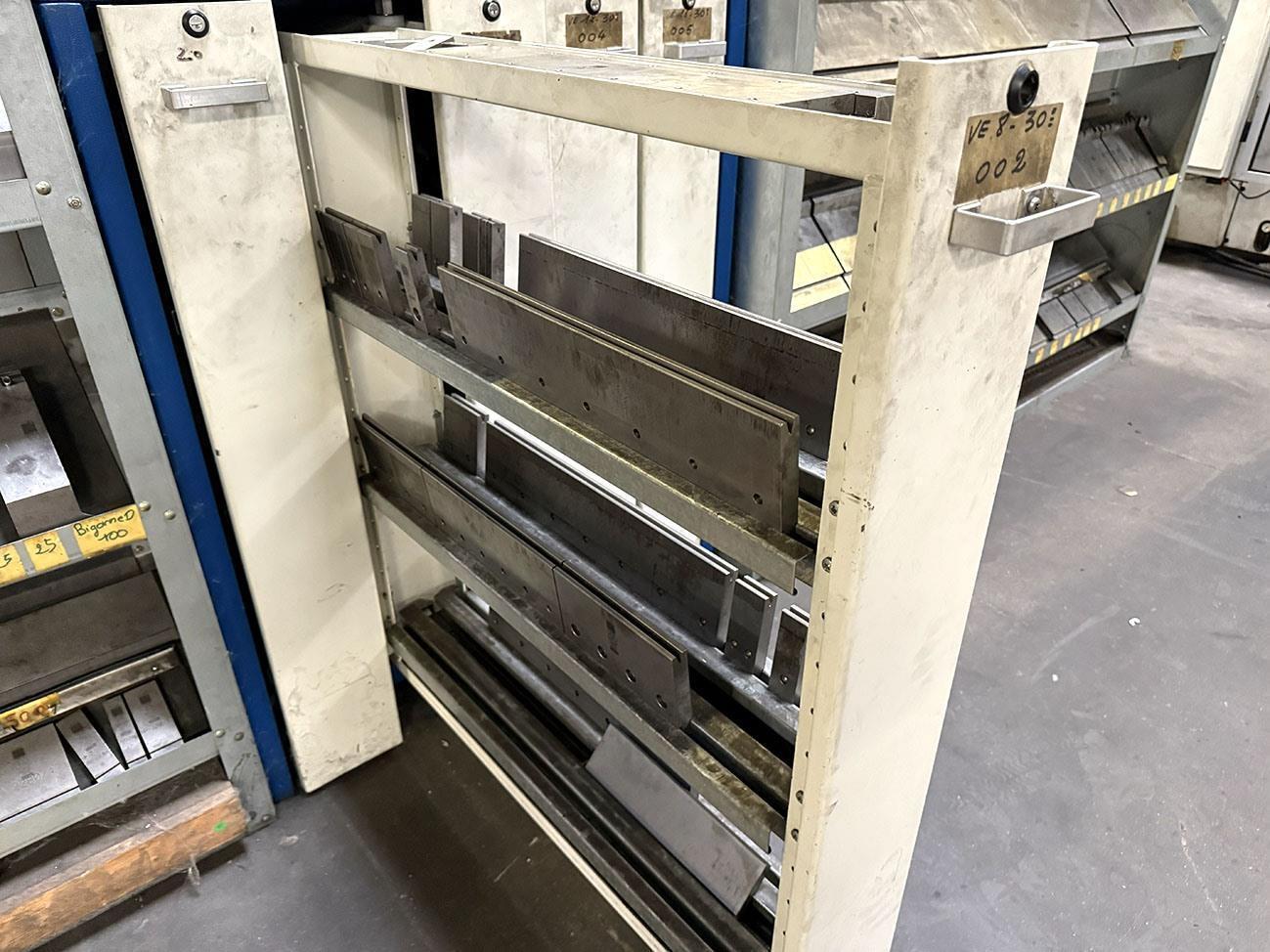

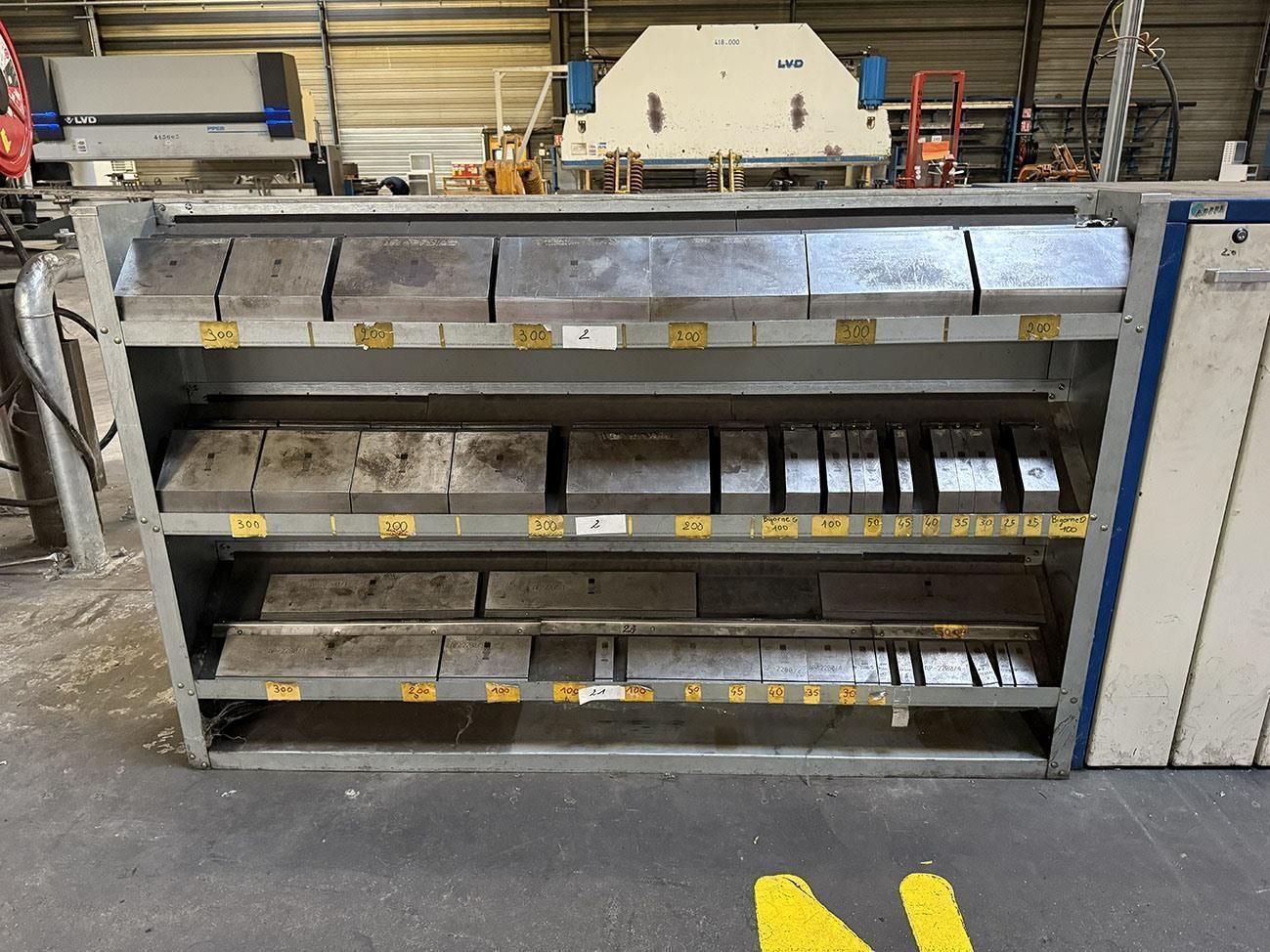

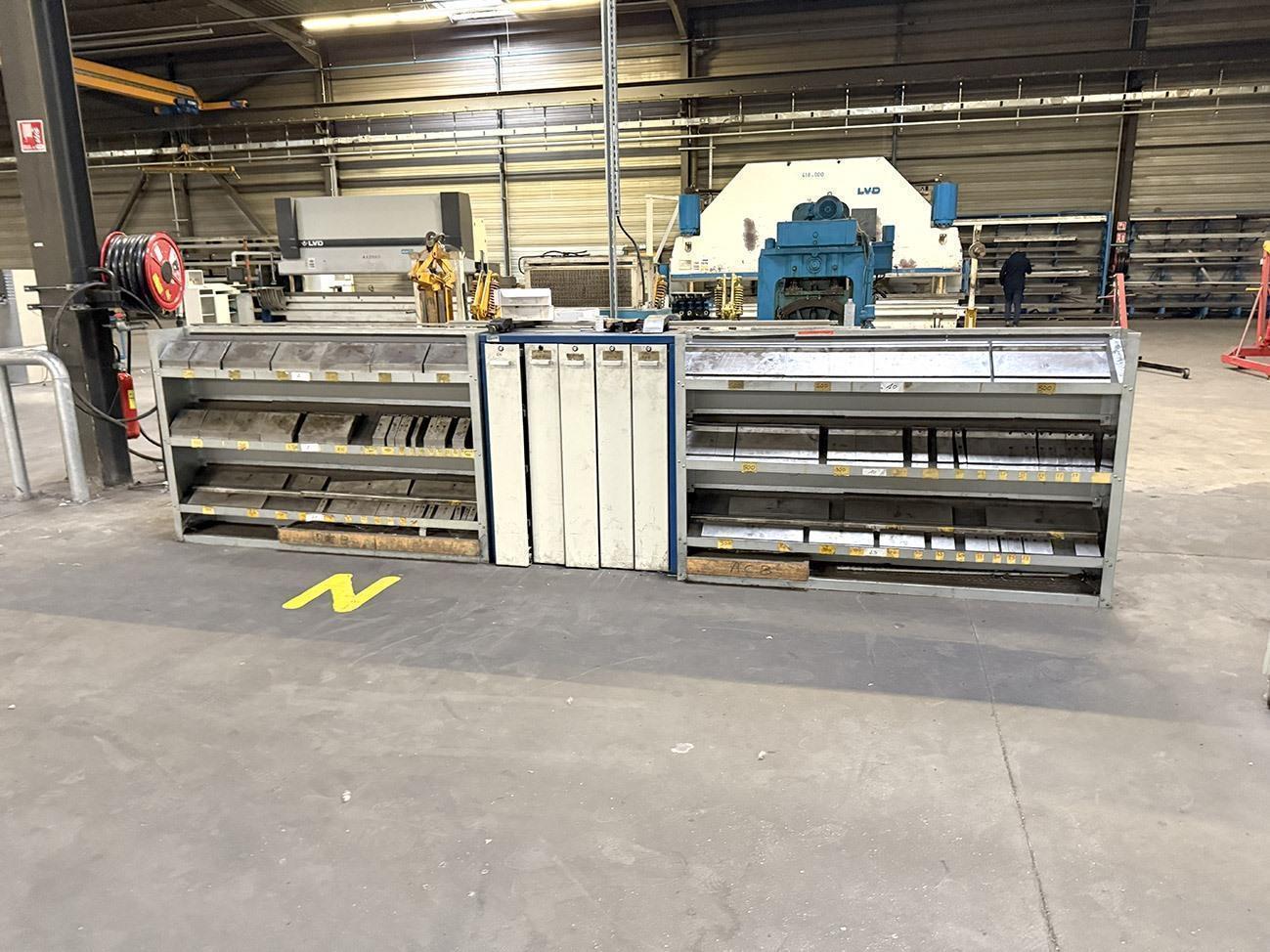

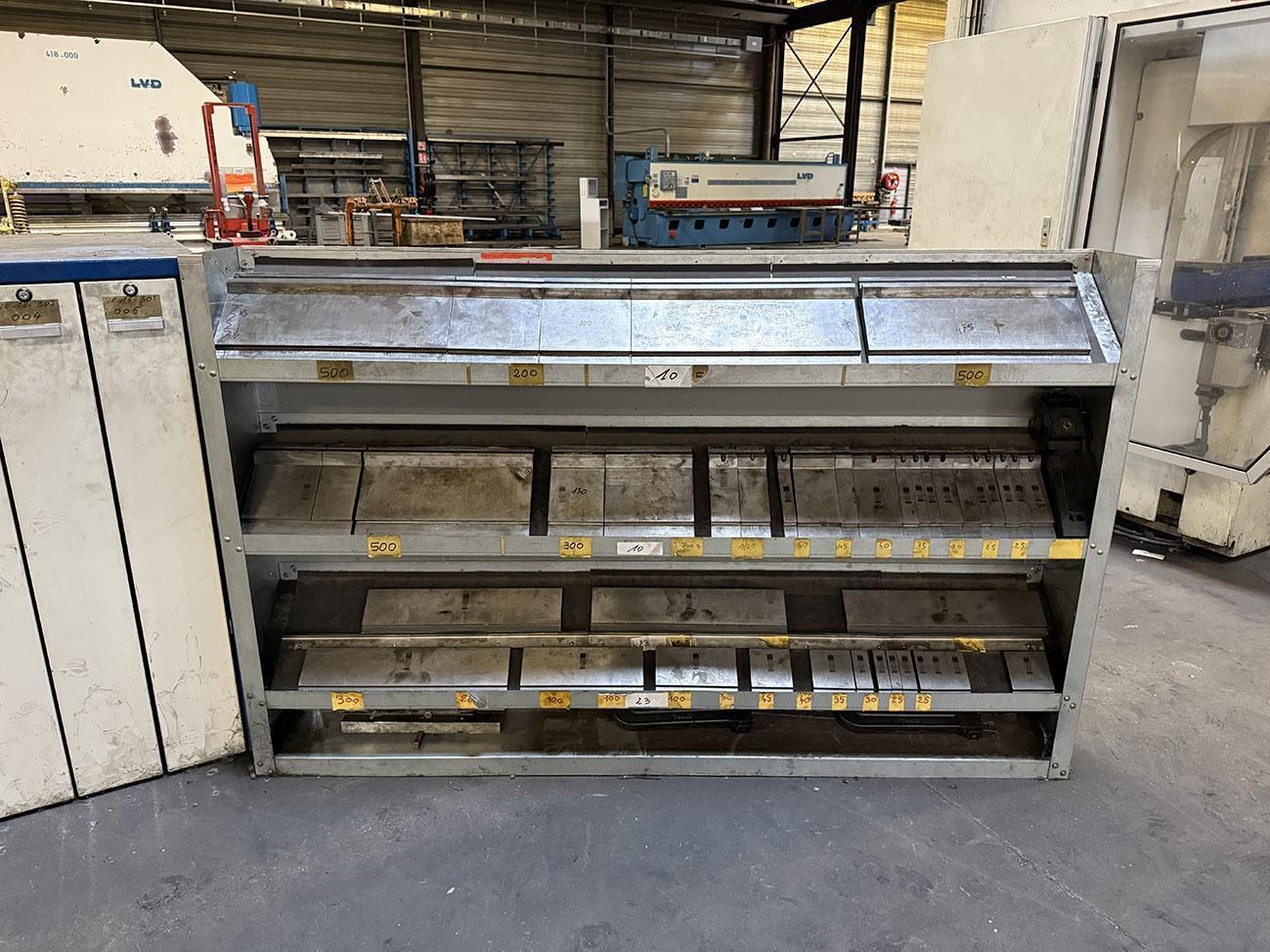

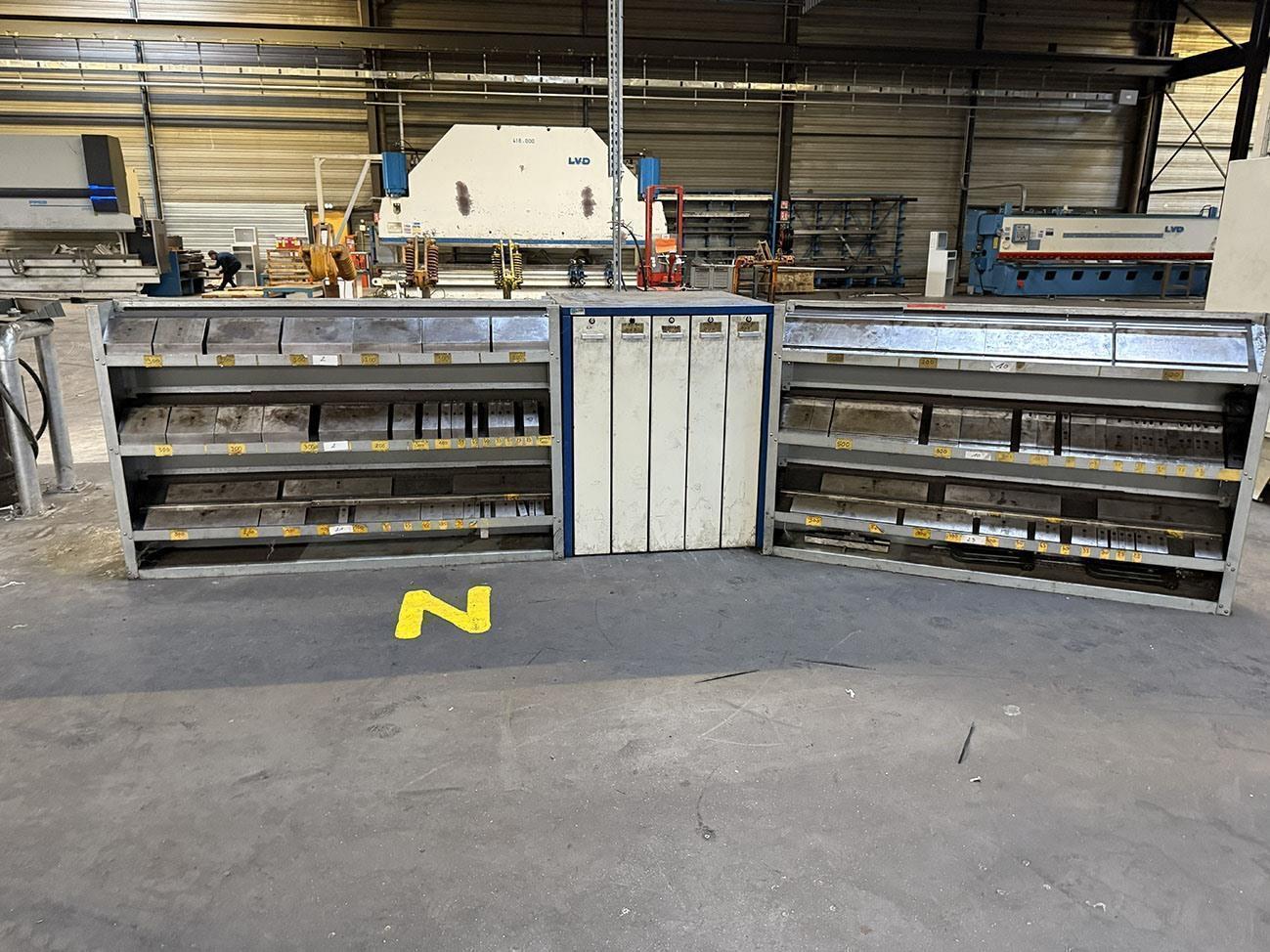

many tools included
