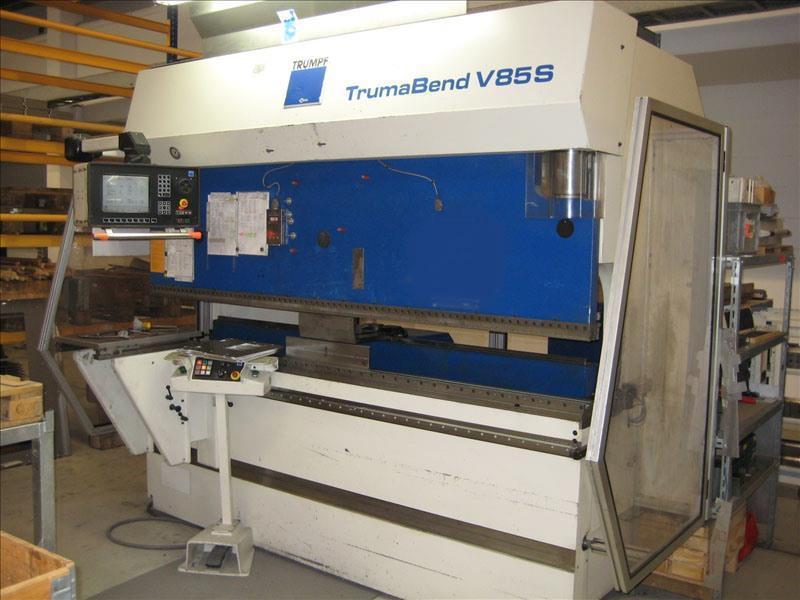

Trumpf Trumabend 85 ton x 2050 mm CNC

Brand
TRUMPF
Category
Bending & Forming Equipment
Type
Brakes, Hydraulic
Model
Trumabend 85 ton x 2050 mm CNC
Stock #
O.01 13129
Year
Not specified
Condition
Not specified

Location

Not specified
REQUEST FINANCING
Located in Deinze, Belgium

Technical information

  • Capacity 85 ton x 2050 mm

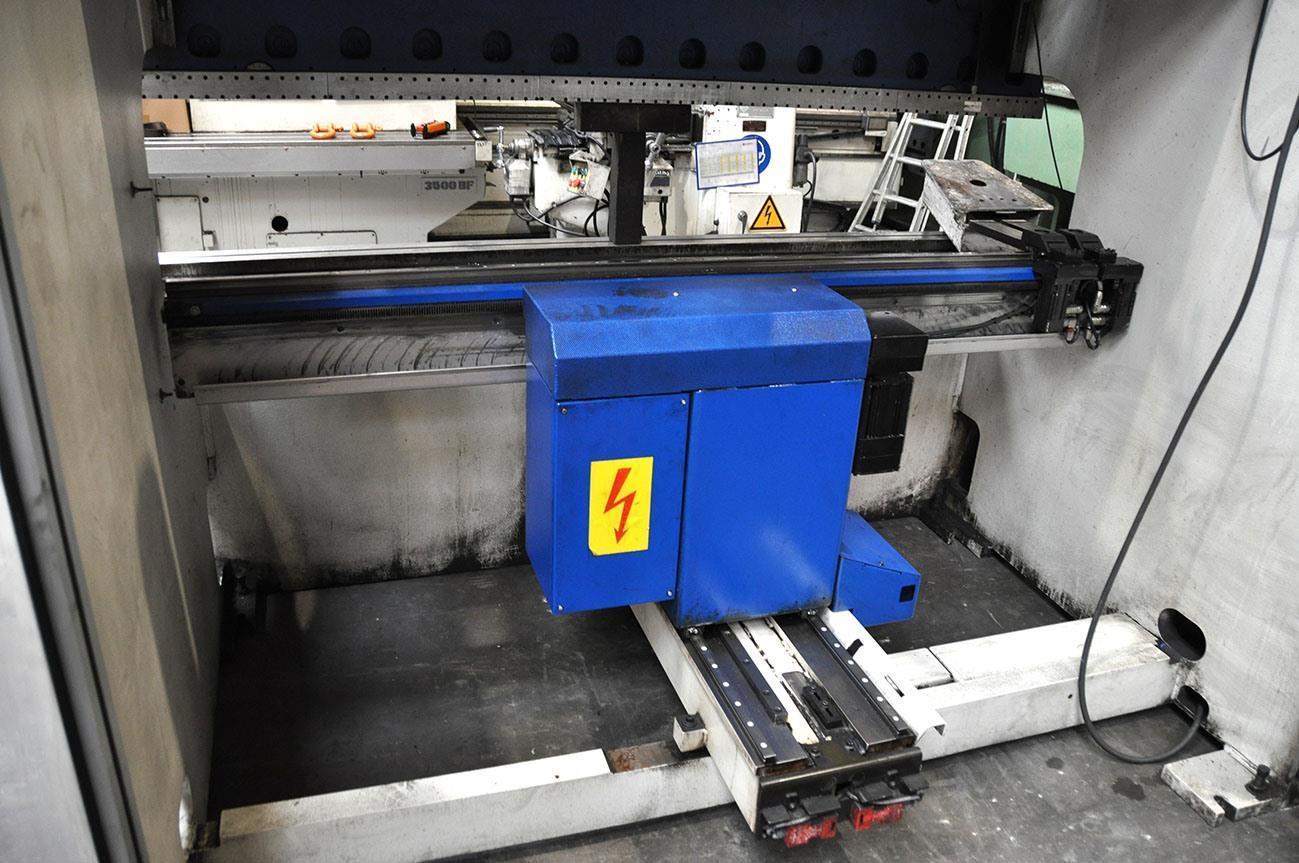

  • Backgauge CNC

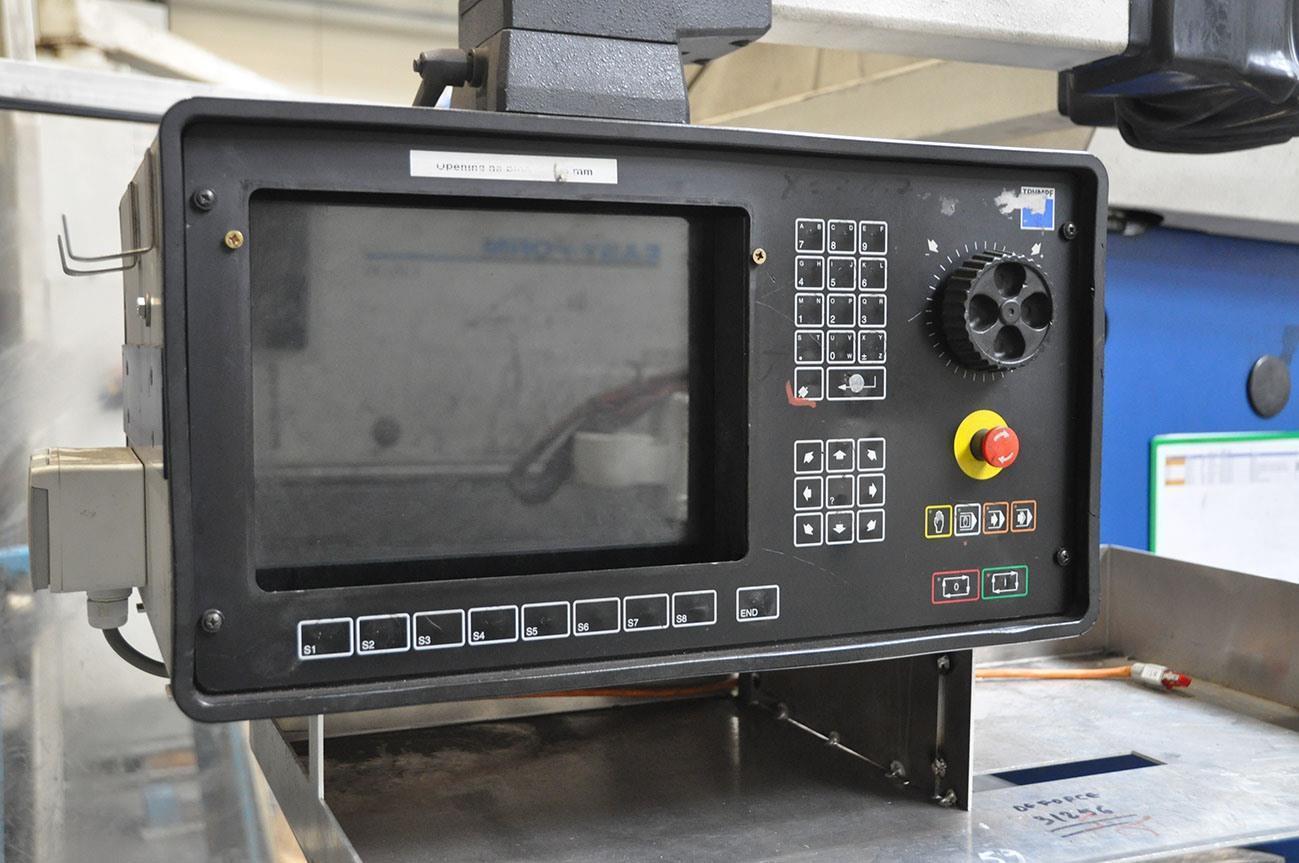

  • Control Delem
  • Passage between uprights 2260 mm
  • Max stroke 215 mm
  • Max distance between table -- ram 385 mm
  • Depth of throat 410 mm
  • Table width 120 mm
  • Locking speed 200 mm/sec
  • Working speed 1 > 10 mm/sec
  • Returning speed 135 mm/sec
  • Electric motor (power) 7,5 kW
  • Length 3190 mm
  • Depth 2100 mm
  • Height 2375 mm
  • Weight 9 ton

Additional info

  • Type: V85S
    8 axes: Y1 / Y2 / X / R / Z1 / Z2 / V / W
    upper and lower hydraulic clamping Willa
