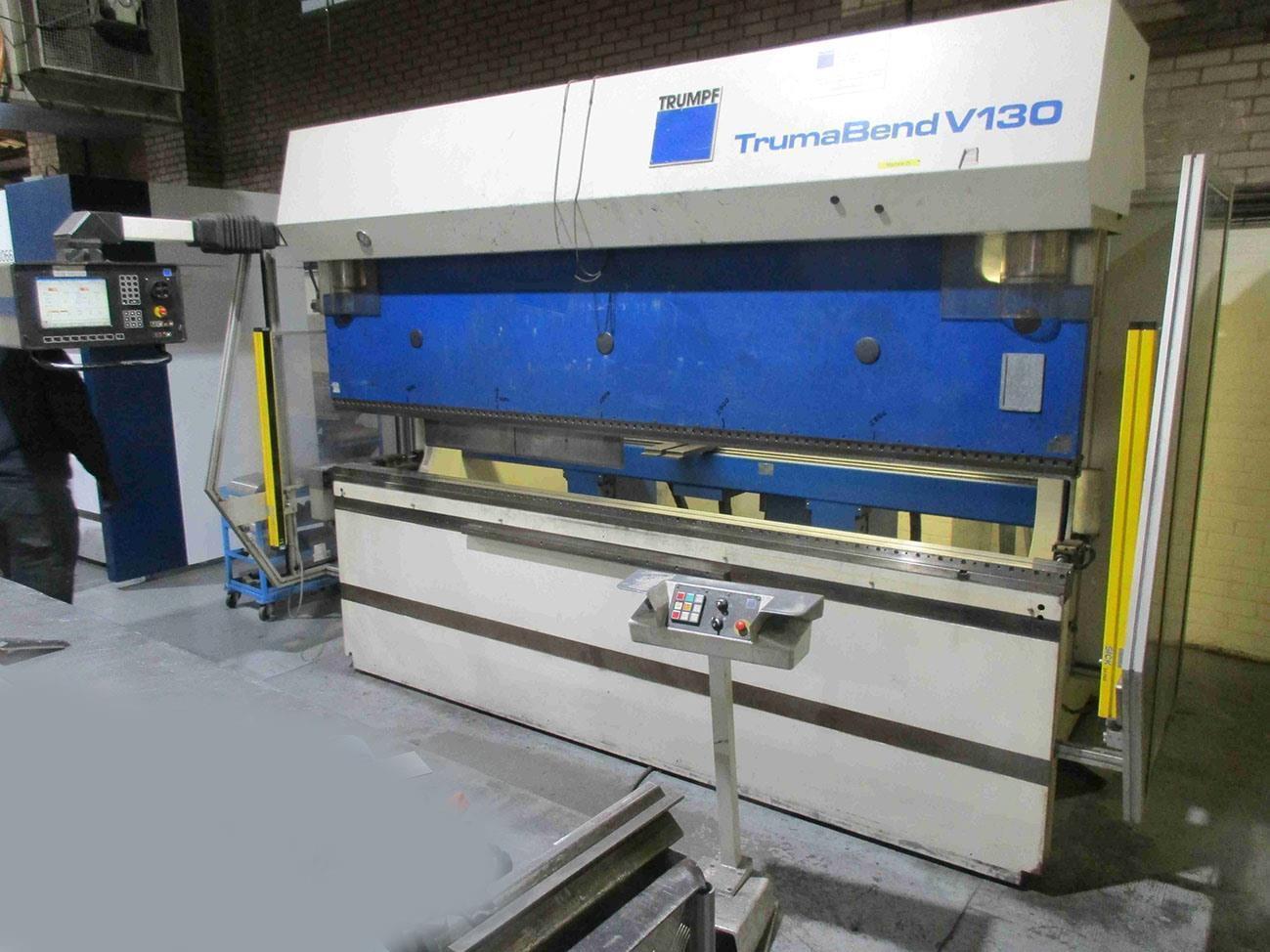

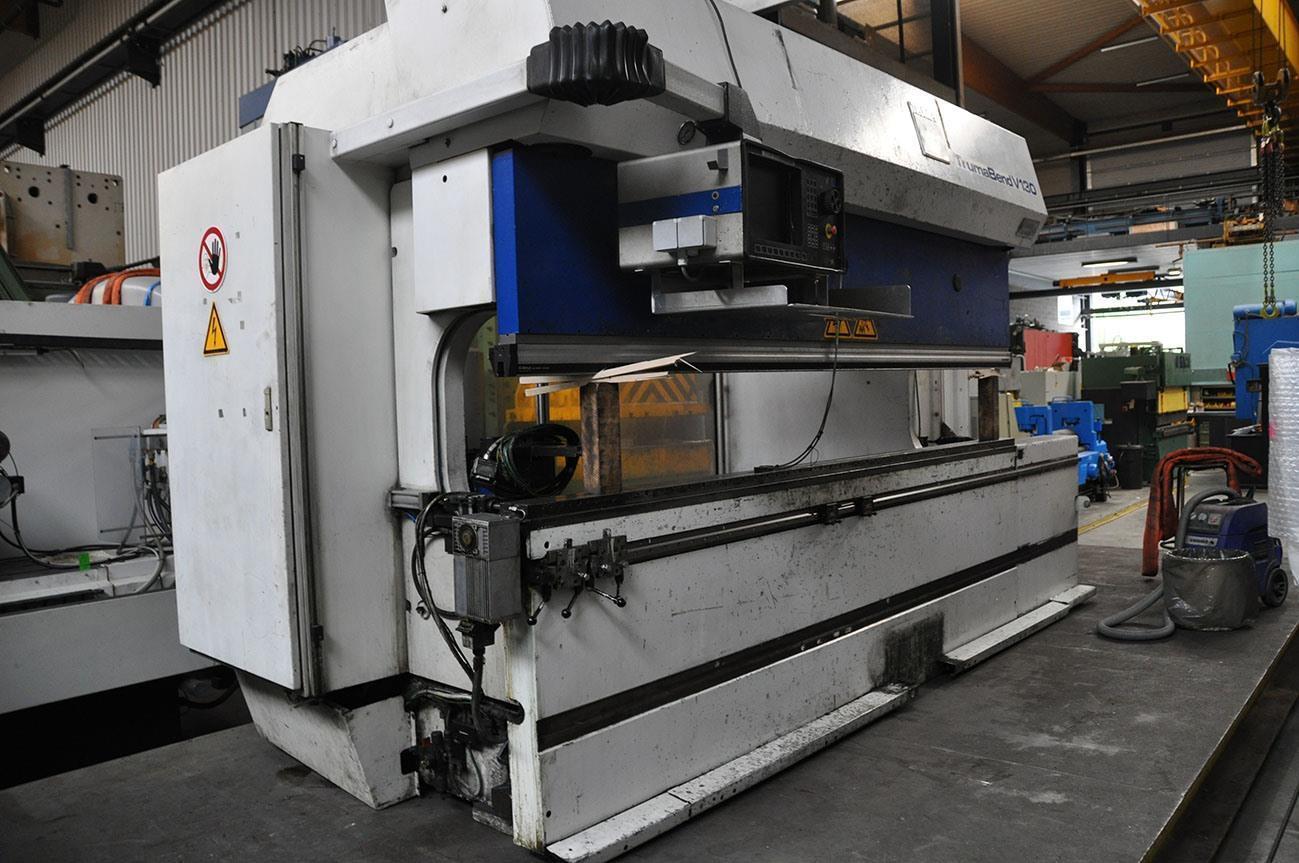

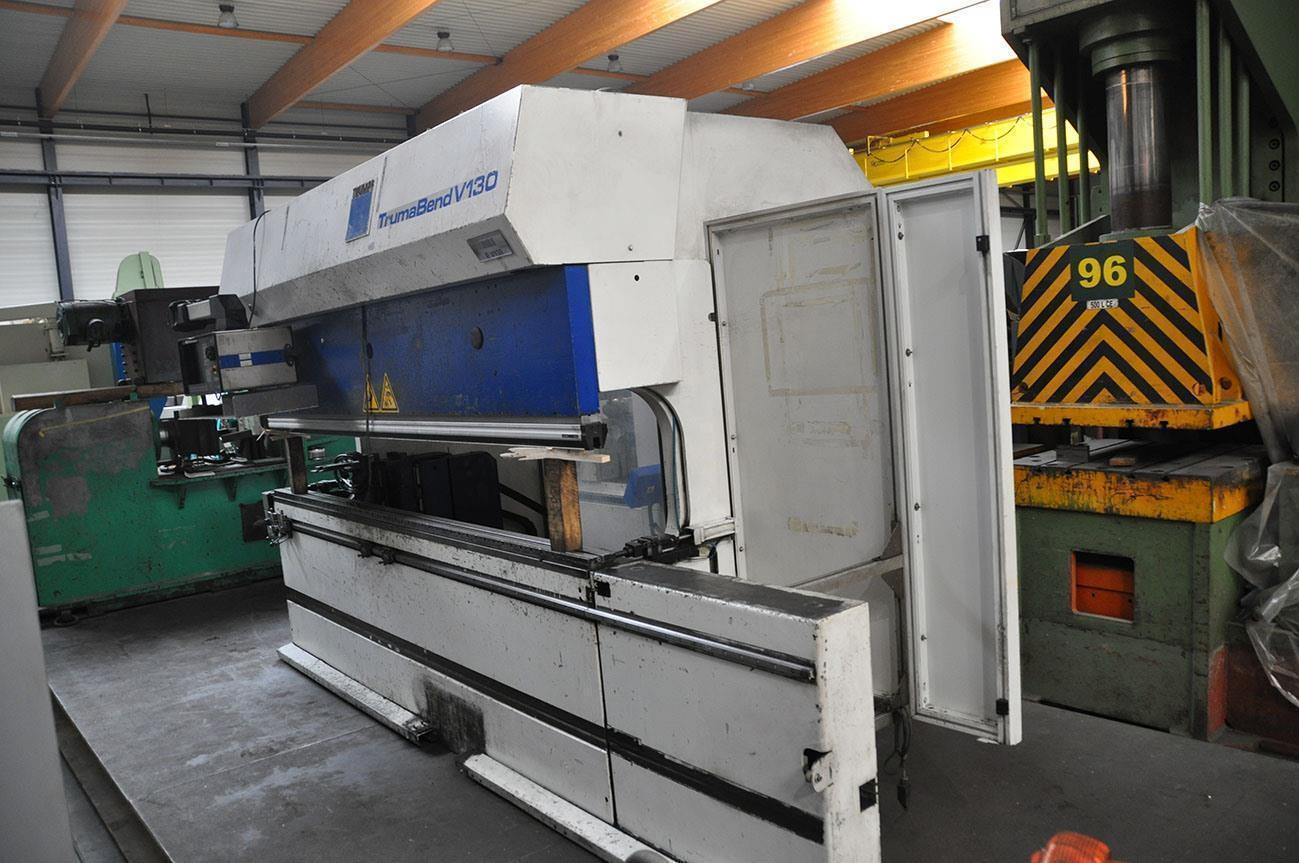

Trumpf TrumaBend V130 130 ton x 3100 mm CNC

Brand

TRUMPF

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Located in Deinze, Belgium

Technical information

Capacity 130 ton x 3100 mm

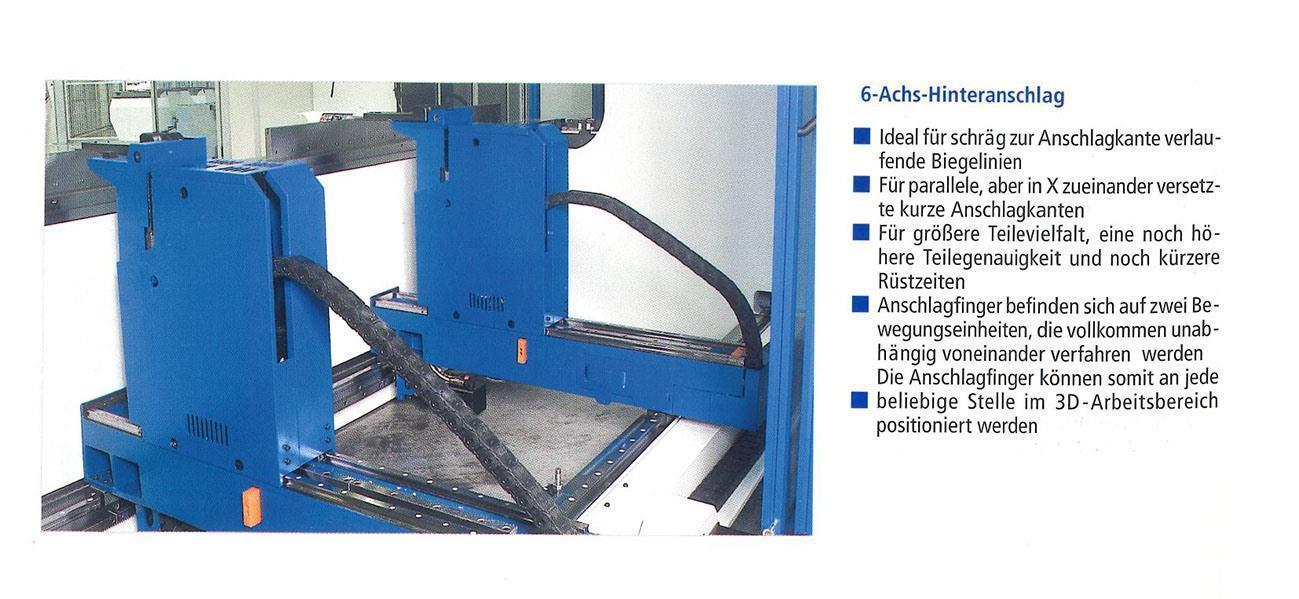

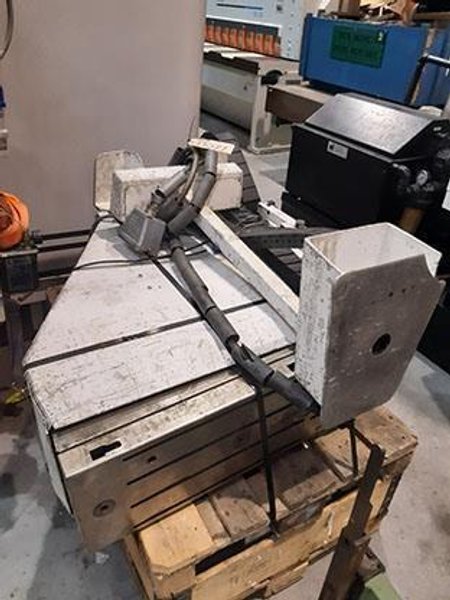

Backgauge CNC

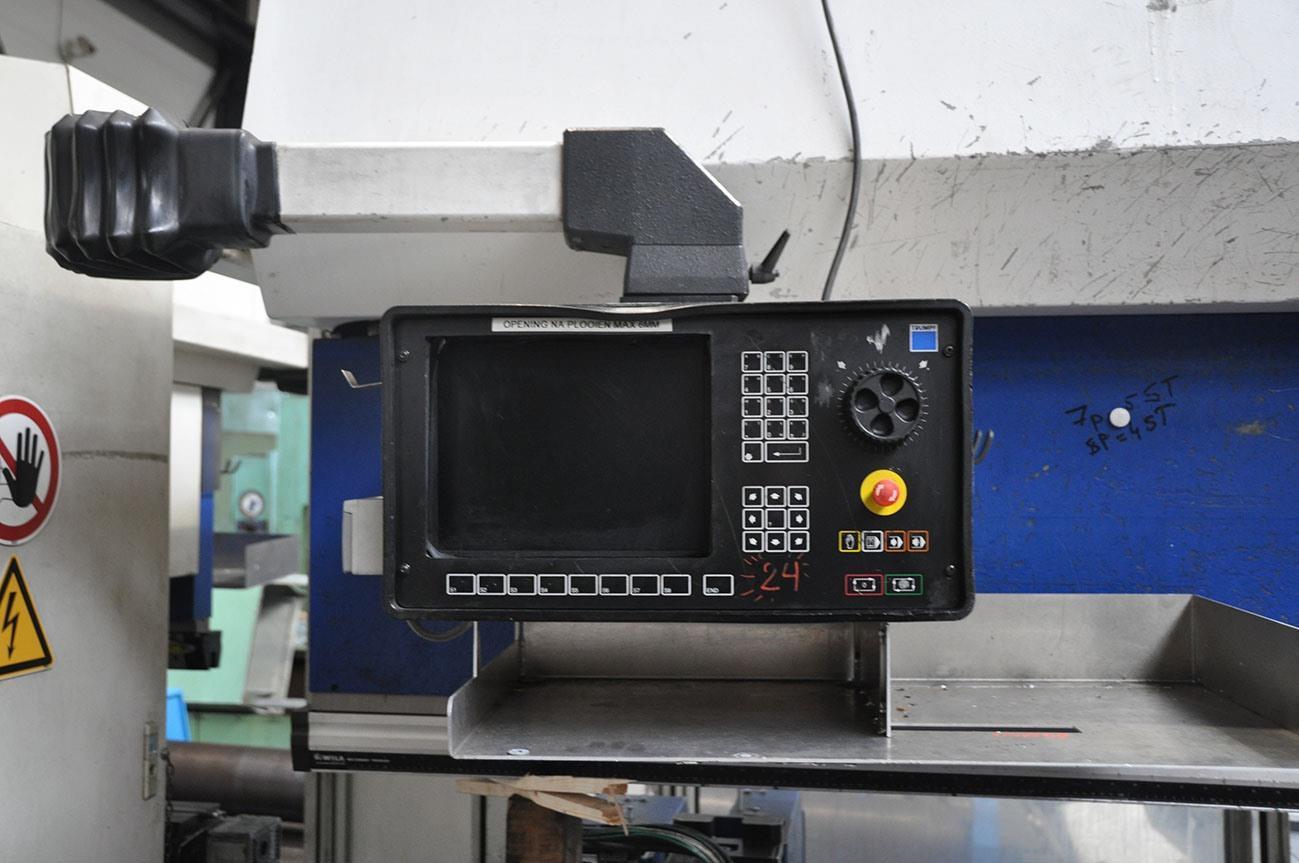

Control Delem
Passage between uprights 2690 mm
Max stroke 365 mm
Max distance between table -- ram 632 mm
Depth of throat 410 mm
Table width 120 mm
Locking speed 200 mm/sec
Working speed 10 mm/sec
Returning speed 135 mm/sec
Electric motor (power) 19 kW
Power needed 380 V
Length 3640 mm
Depth 2060 mm
Height 2375 mm
Weight 11,5 ton

Additional info

11 axes: Y1 / Y2 / X1 / X2 / R1 / R2 / Z1 / Z2 / T1 / V / I (= movement of table)

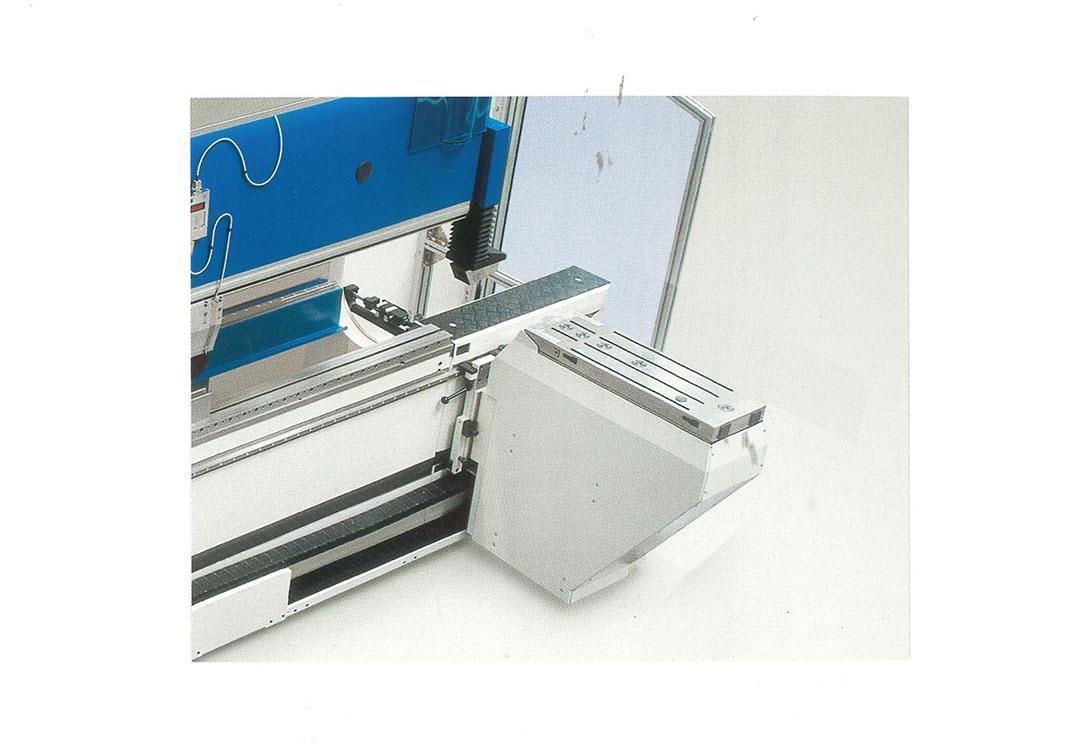

T1 CNC controlled bending aids
Wila Modufix tooling
