73 TON X 80" TRUMPF HYDRAULIC PRESS BRAKE MODEL TRUBEND 3066
Brand
Category
Type
Model
TRUBEND 3066
Stock #
4896
Year
2006
Condition
Used
Location
Not specified
|

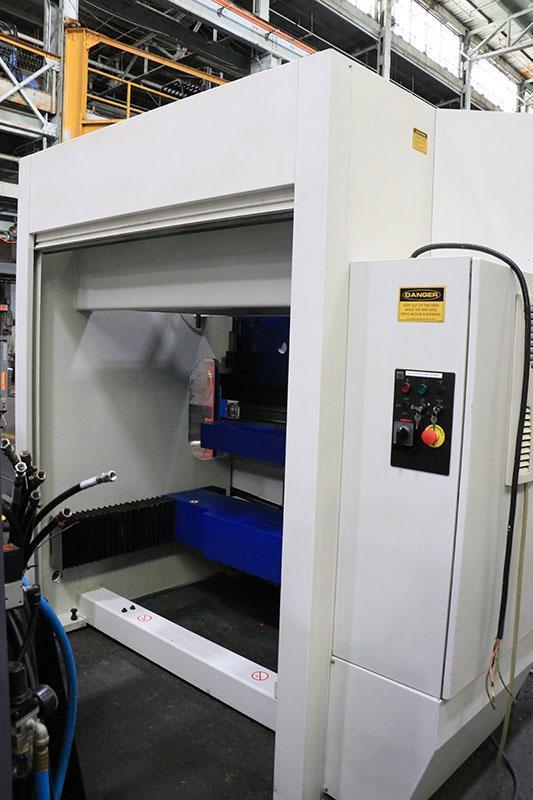

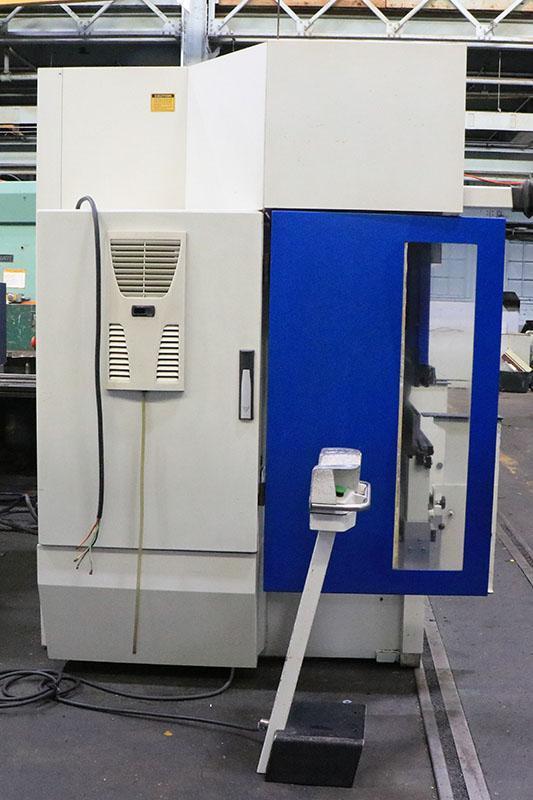

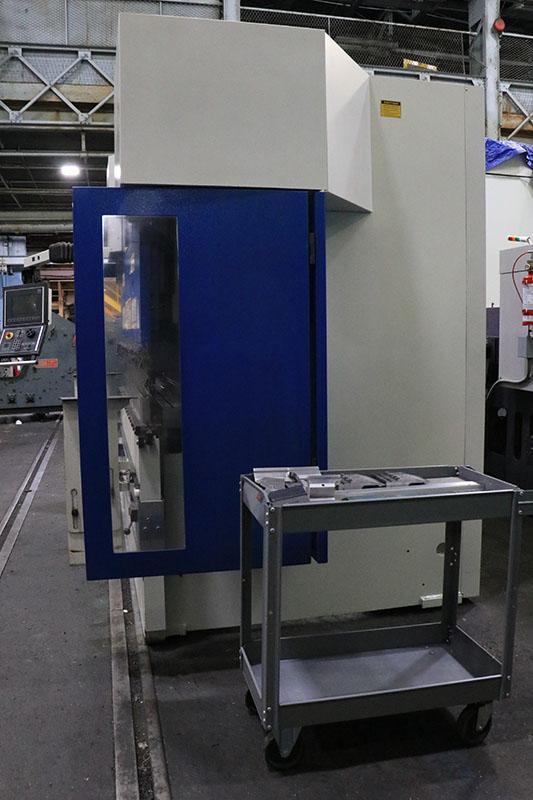

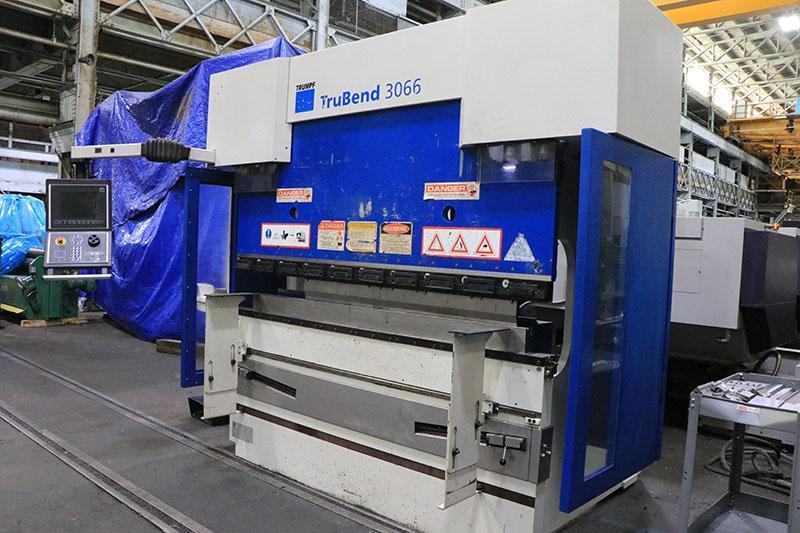

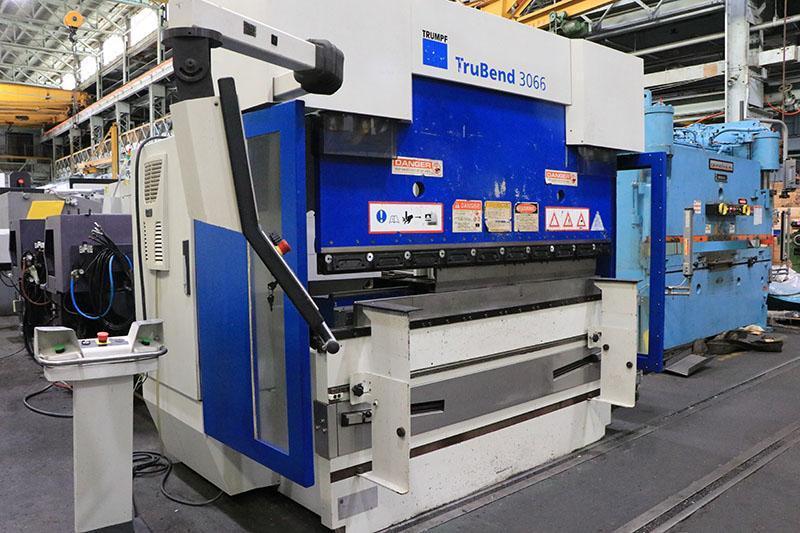

73 TON X 80" TRUMPF HYDRAULIC PRESS BRAKE
MODEL TRUBEND 3066
NEW 2006 TONNAGE ......................... 73
BED LENGTH .................... 80"
DISTANCE BETWEEN HOUSINGS ....... 69"
LENGTH BETWEEN THE HOUSINGS ..... 93"
STROKE .......................... 7.87"
OPEN HEIGHT ..................... 14"
CLOSED HEIGHT ................... 5.9"
Y-AXIS RAPID DOWNWARD MOVEMENT .. 200 MM / SEC.
Y-AXIS OPERATIONAL SPEED MAX .... 15 MM /SEC.
PRESS SPEEDS: RAPID ADVANCE ..... 472 IPM
BENDING ........... 35 IPM
RETURN ............ 472 IPM
MAIN MOTOR HP ................... 10
MAX OPERATING PRESSURE ......... 4,466 PSI
MOTOR SPECS ..................... 3 PH / 460 V
APPROX. WEIGHT: 12,500 LBS.
APRROX DIMENSIONS: 102" X 69" X 92" H
EQUIPPED WITH:

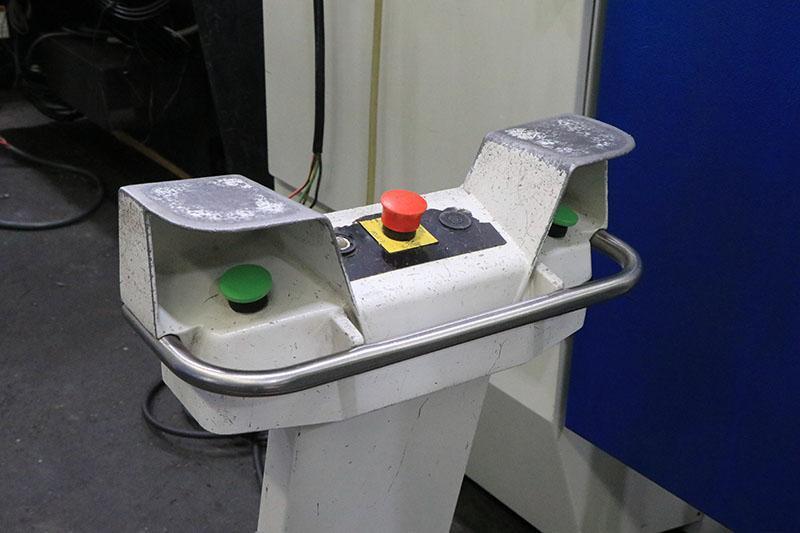

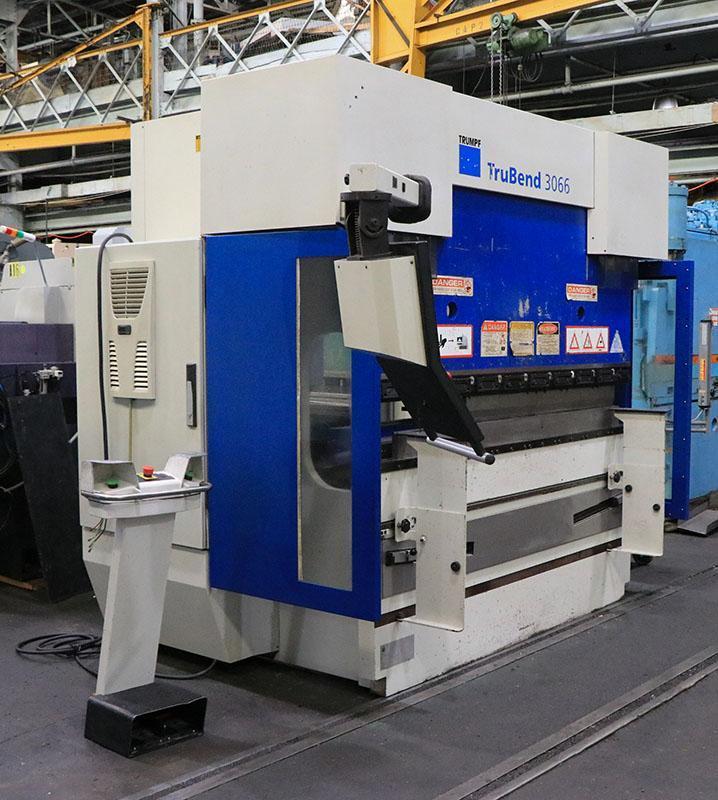

- PALM BUTTONS MOUNTED ON PEDISTAL STATION WITH FOOT PEDAL
- DELEM DA-65TW GRAPHIC CONTROL

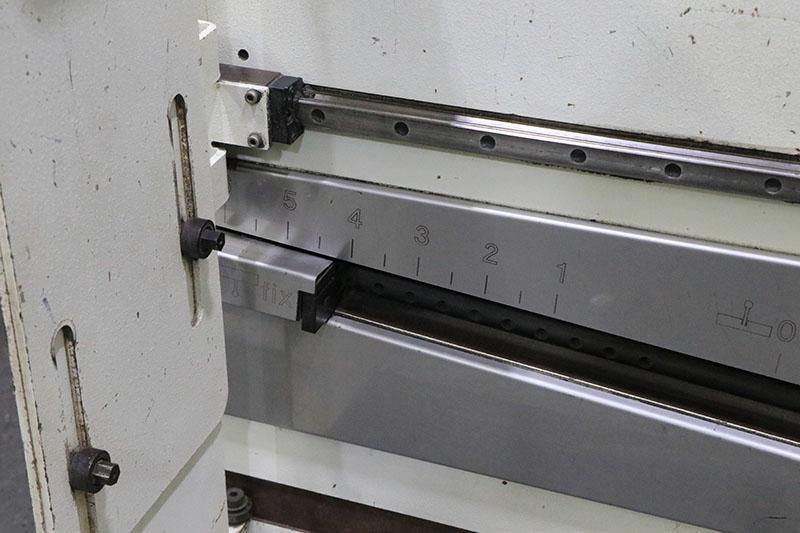

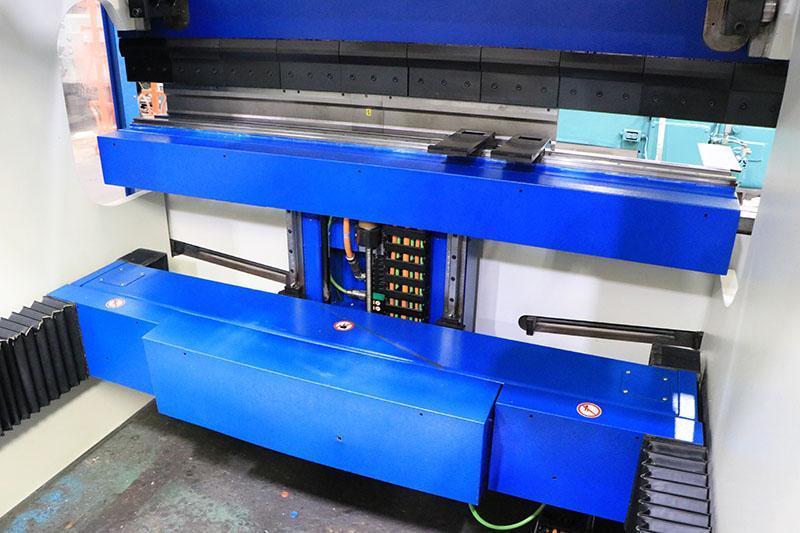

- TRUMPF CNC MULTI-AXIS BACK GAUGE (X, Y, R, Z1, Z2)

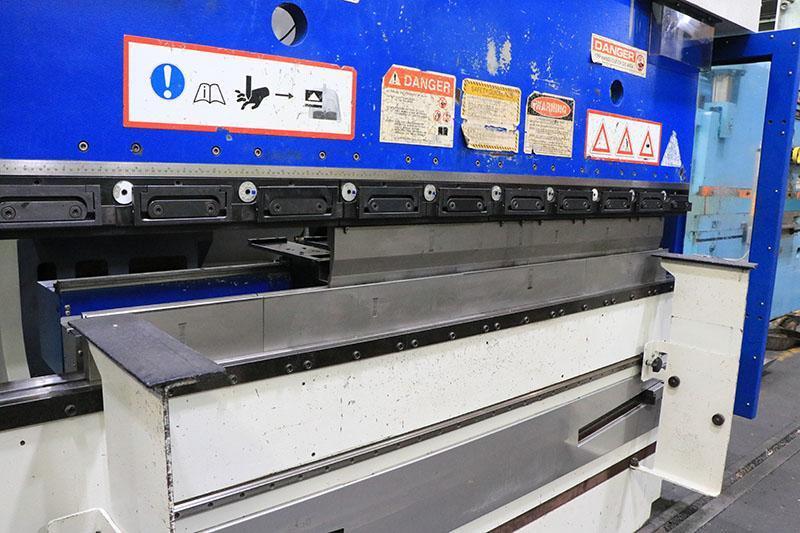

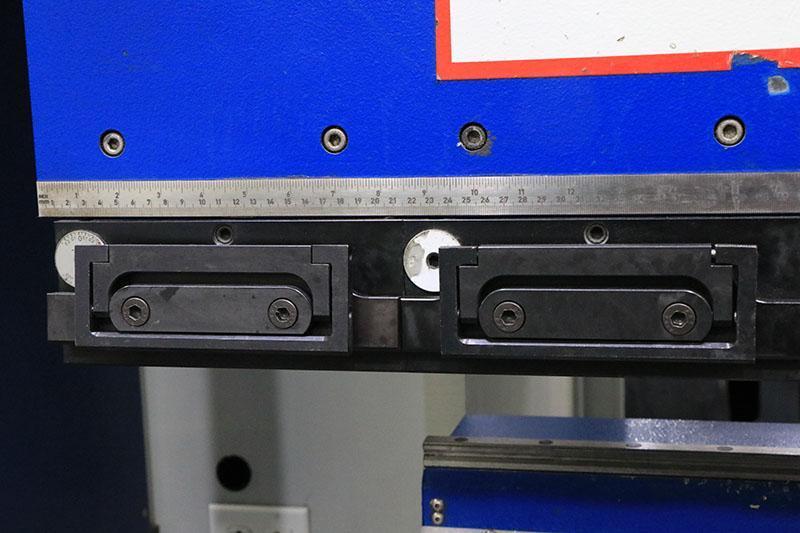

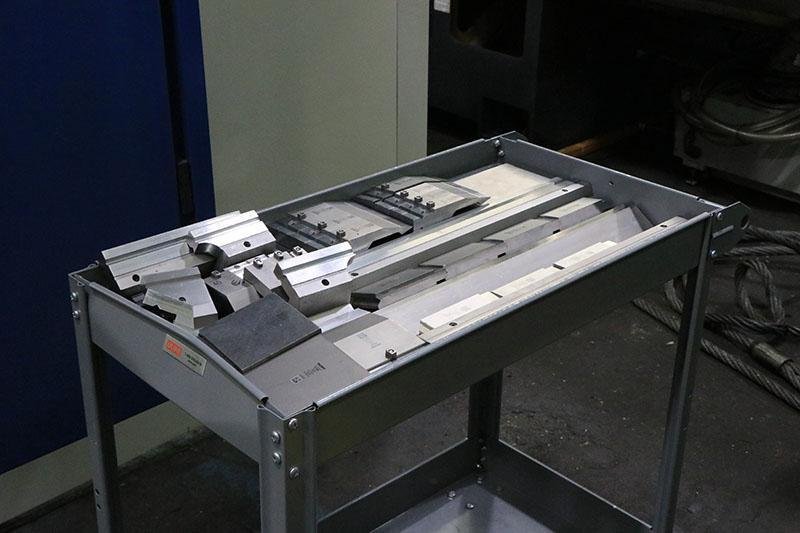

- MISC. TOOLING
FOB: ORIGIN |
