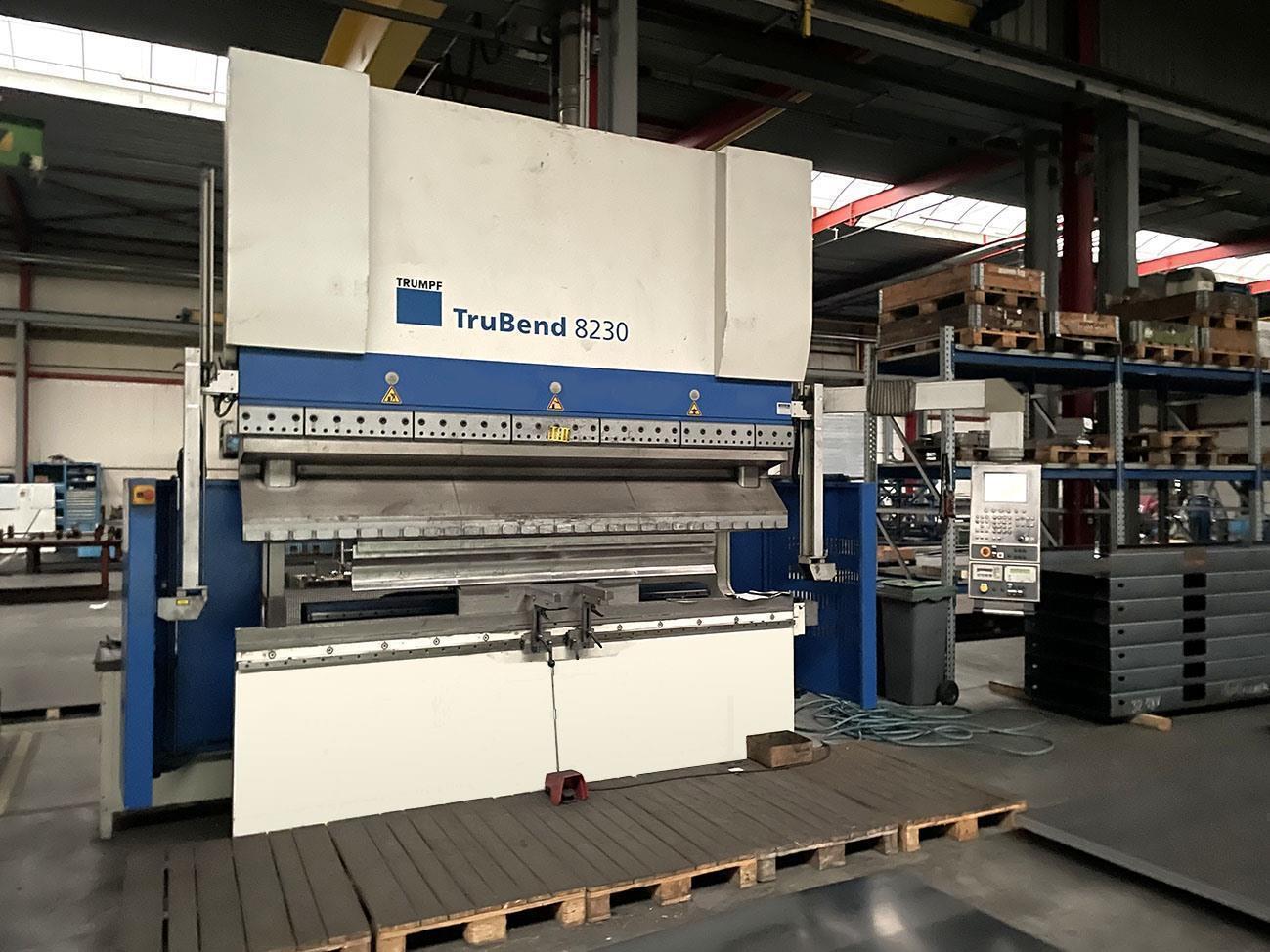

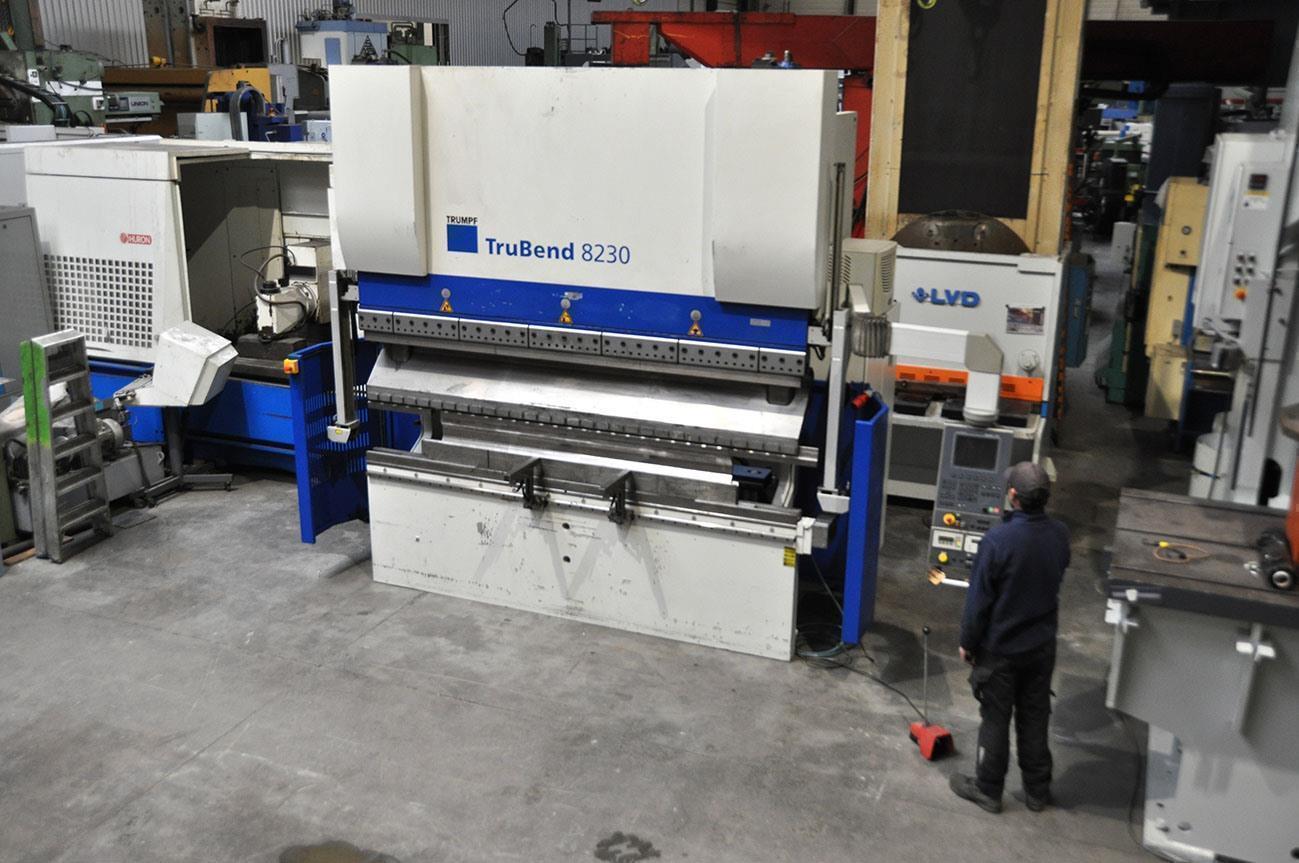

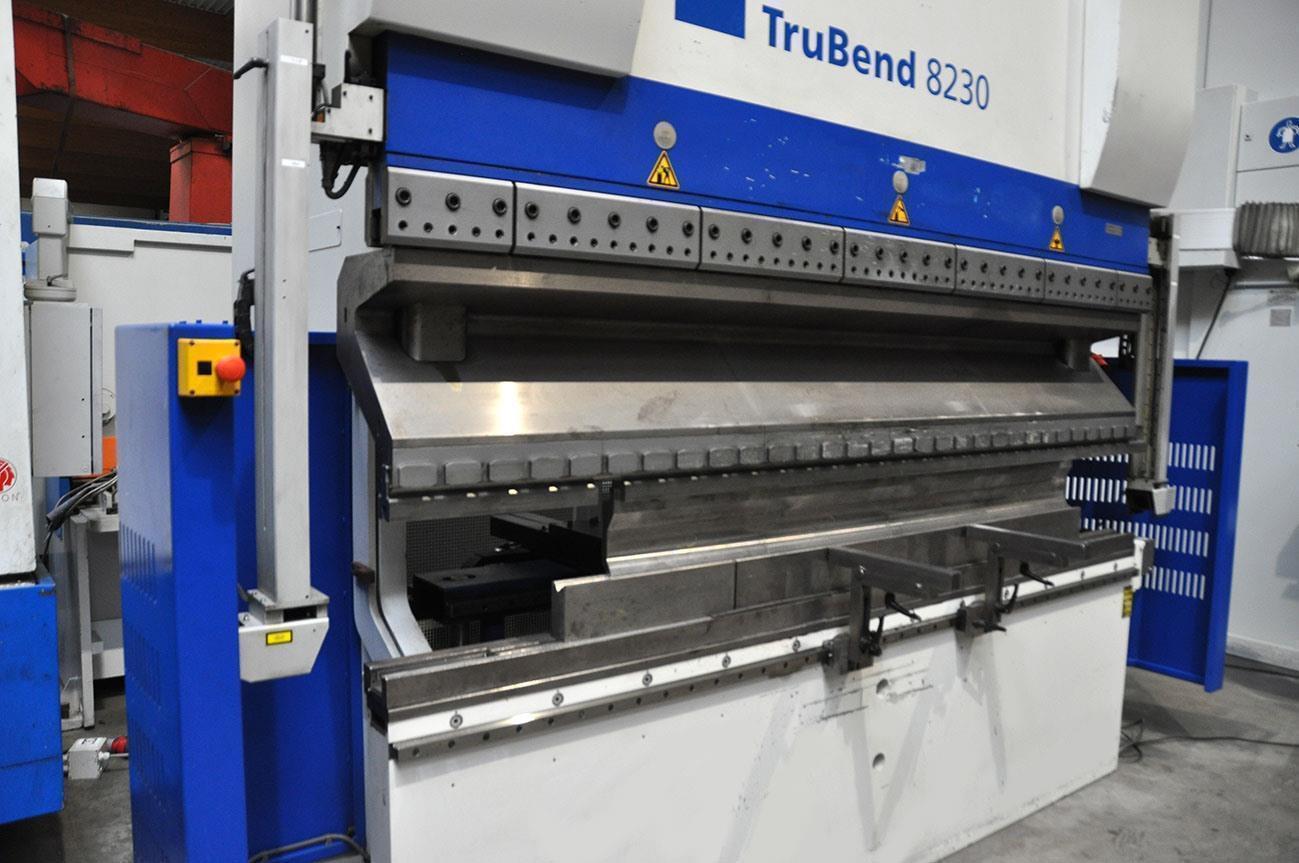

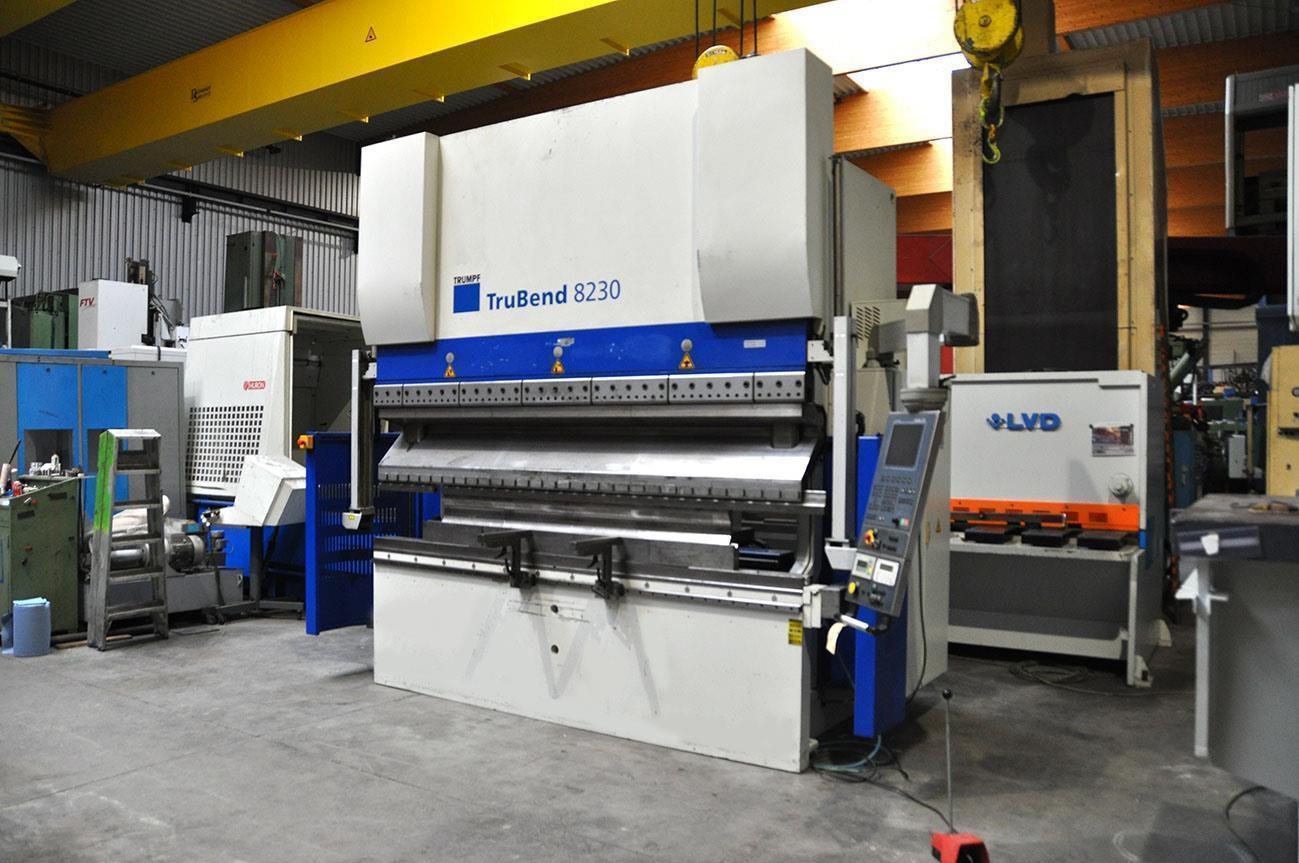

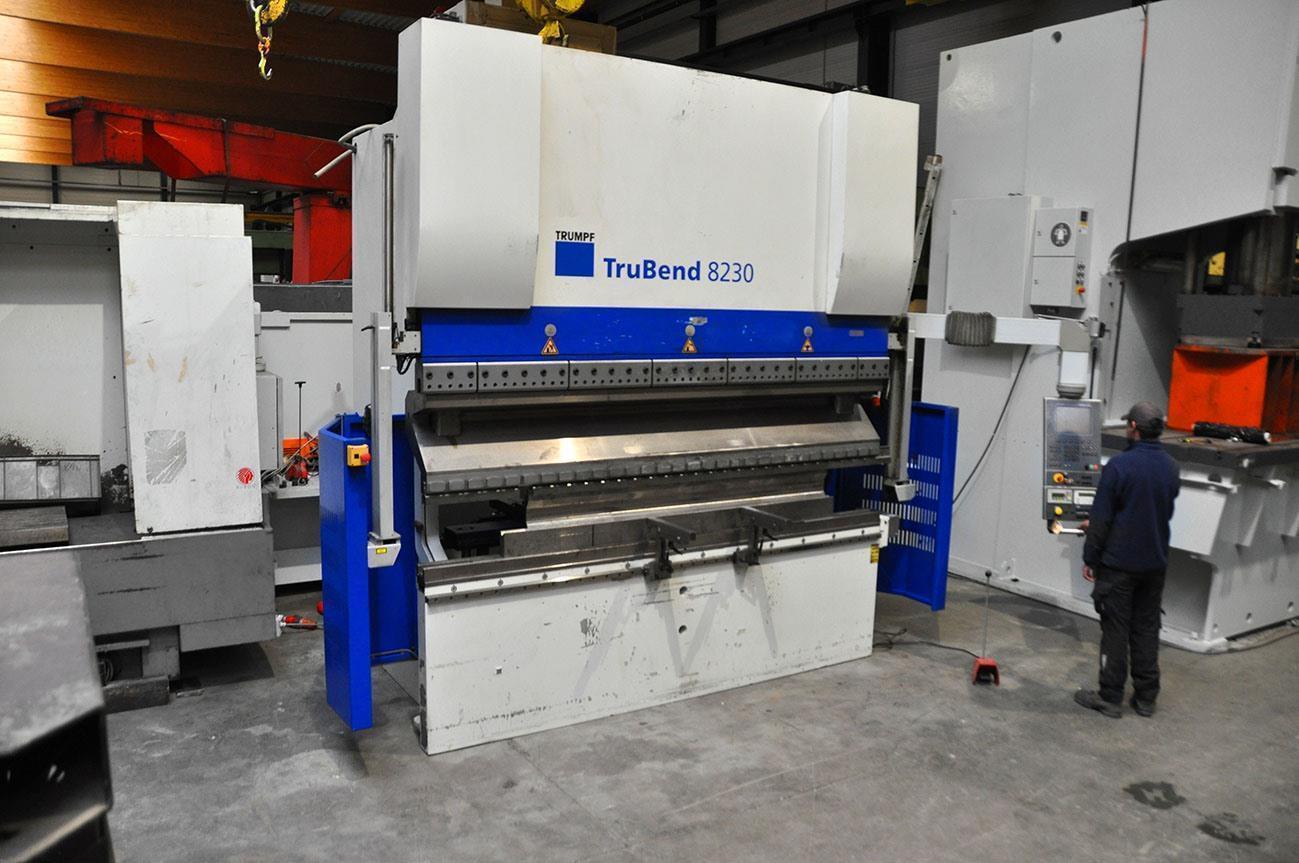

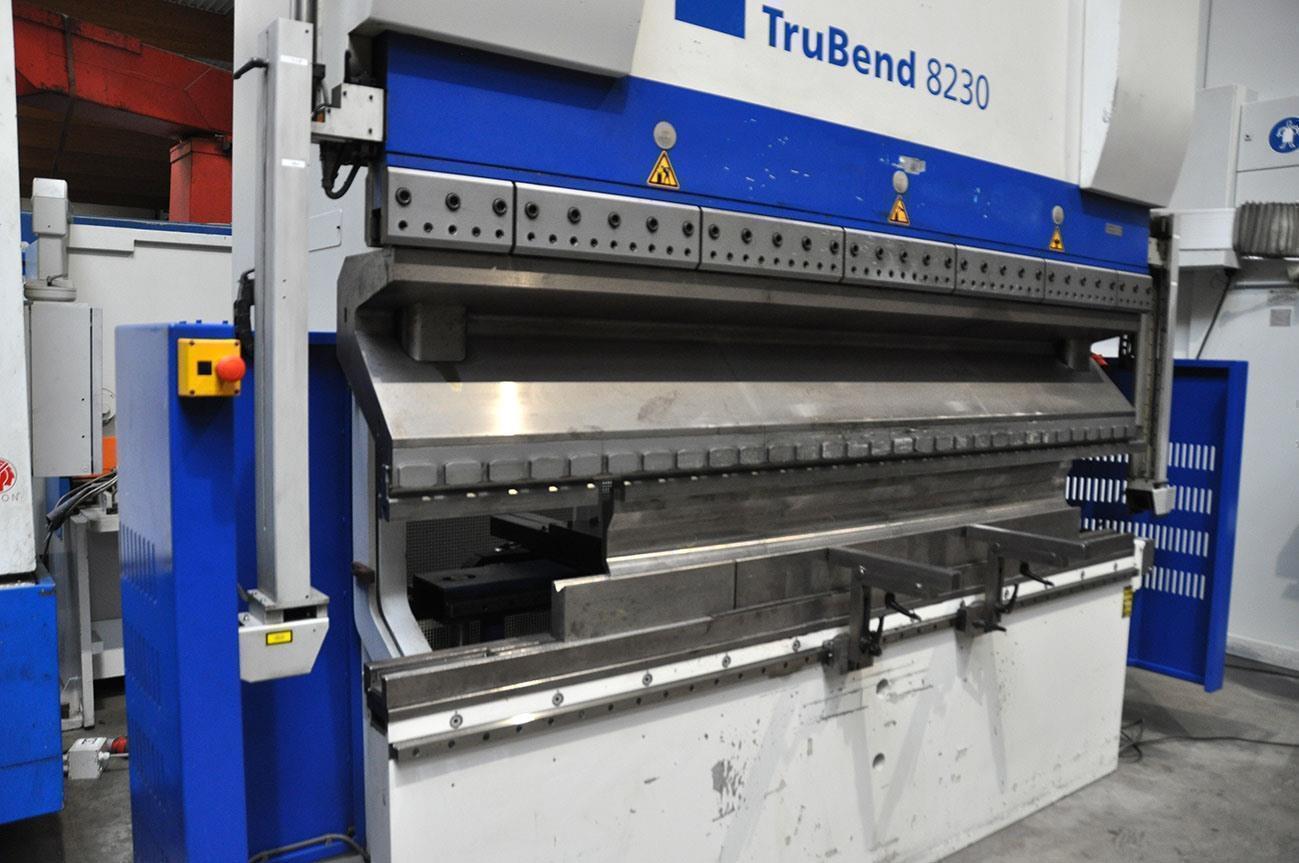

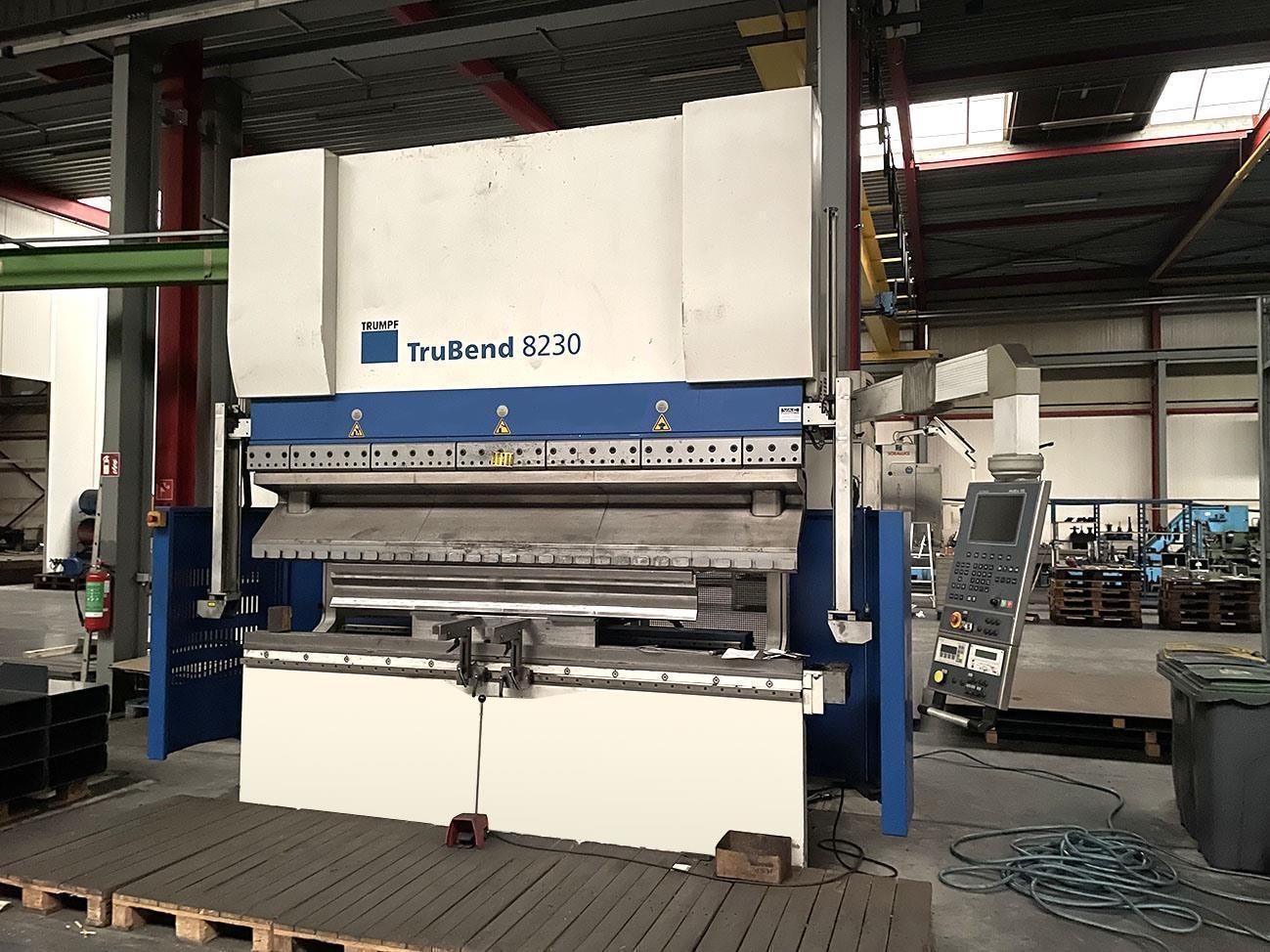

Trumpf trumabend 230 ton x 3050 mm CNC

Brand
TRUMPF
Category
Bending & Forming Equipment
Type
Brakes, Hydraulic
Model
230 ton x 3050 mm CNC
Stock #
O.01 15075
Year
Not specified
Condition
Not specified

Location

Not specified
REQUEST FINANCING
Located in Deinze, Belgium

Technical information

  • Capacity 230 ton

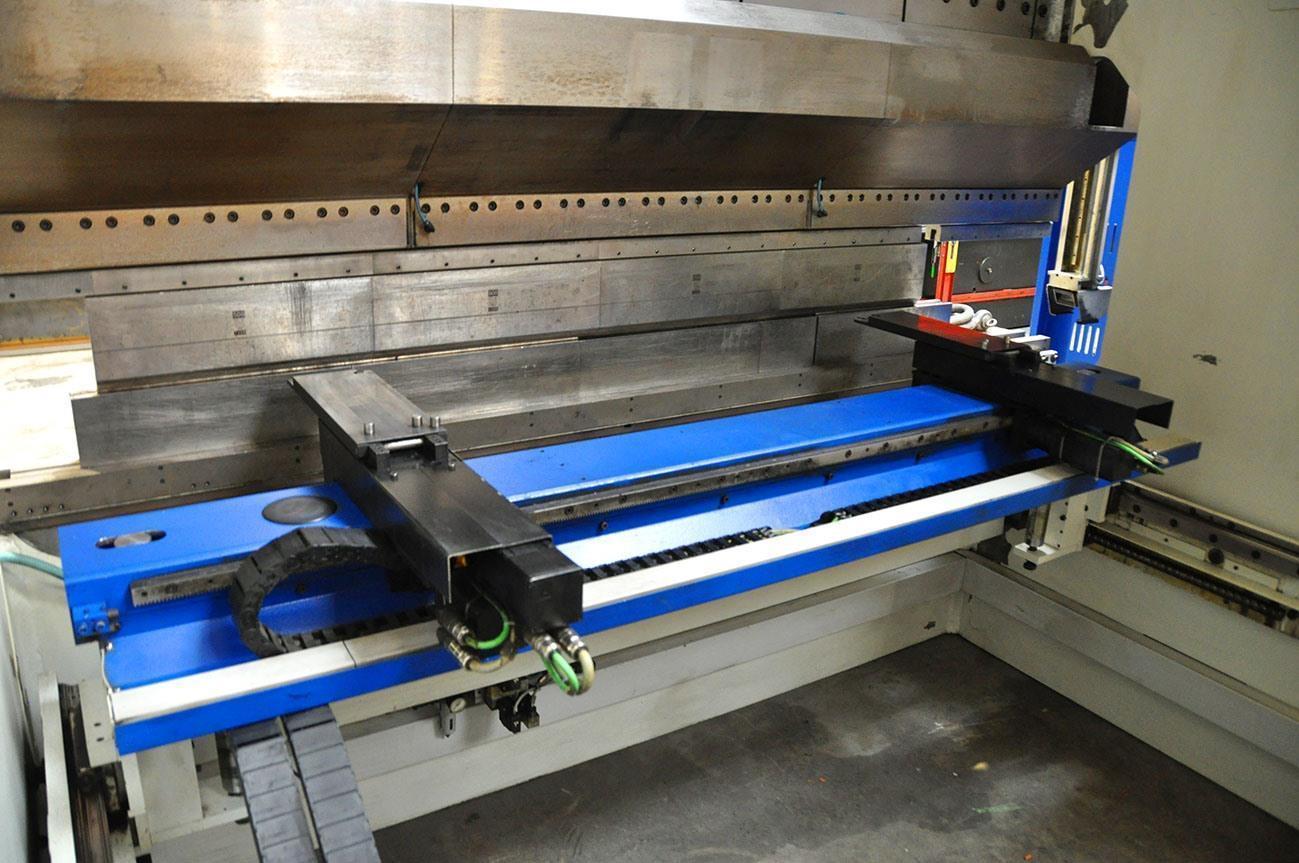

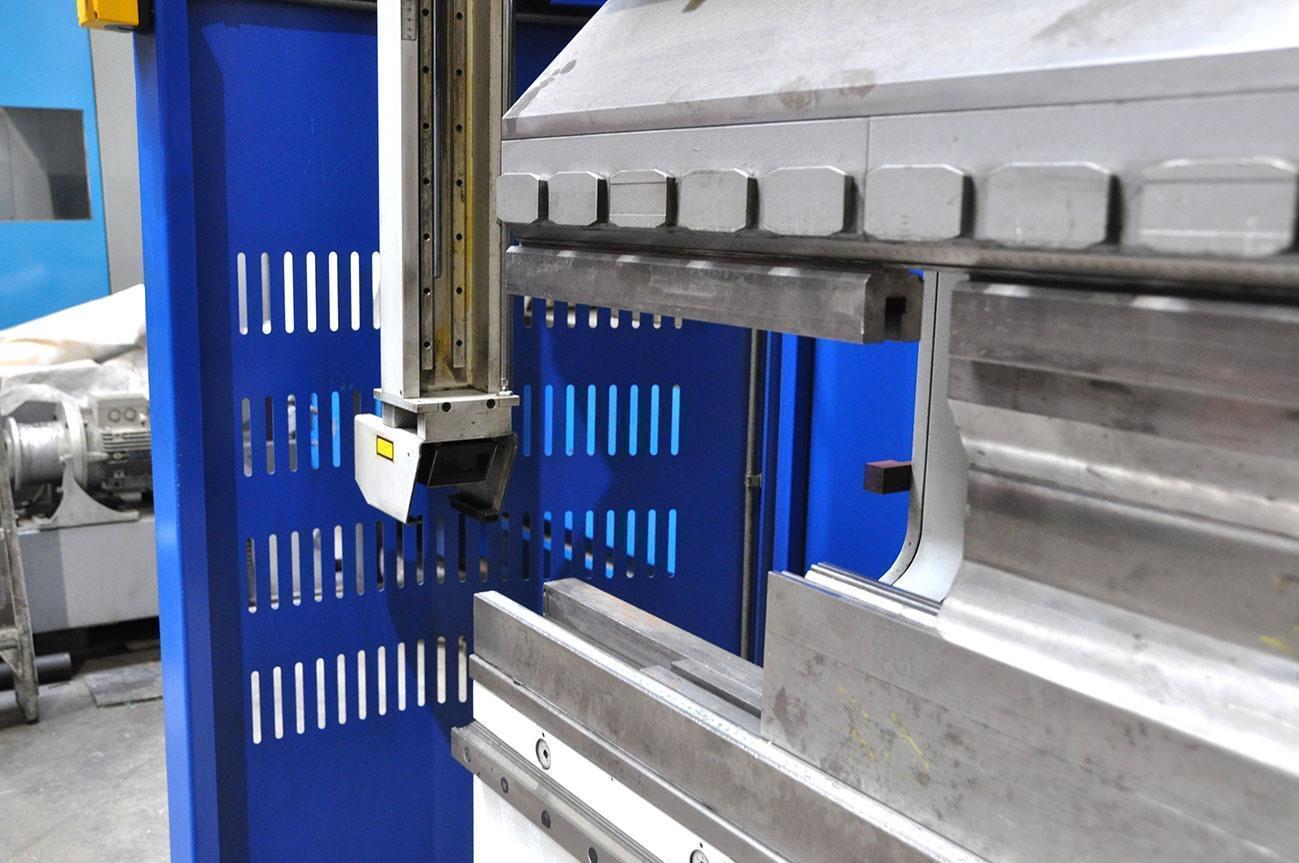

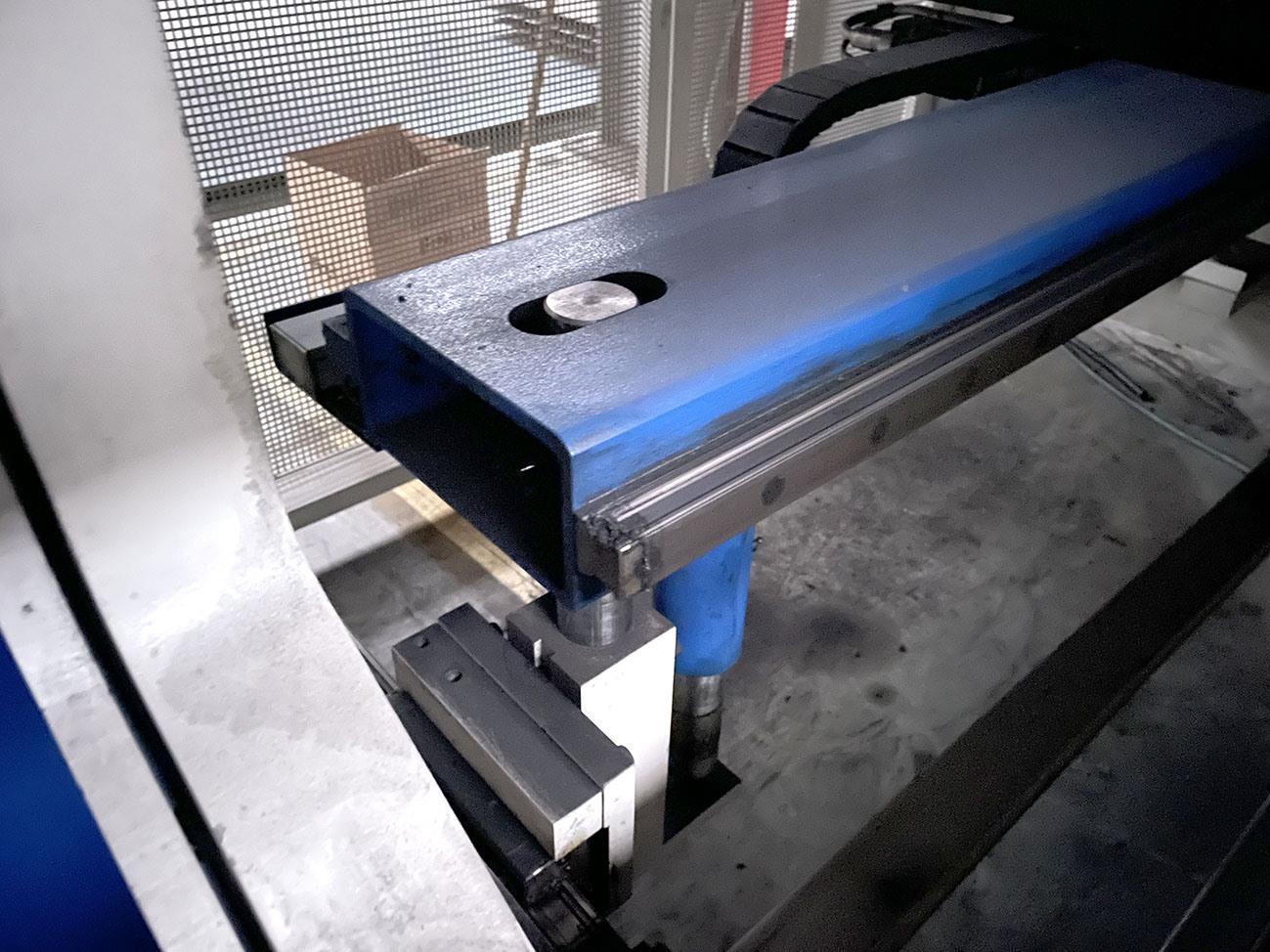

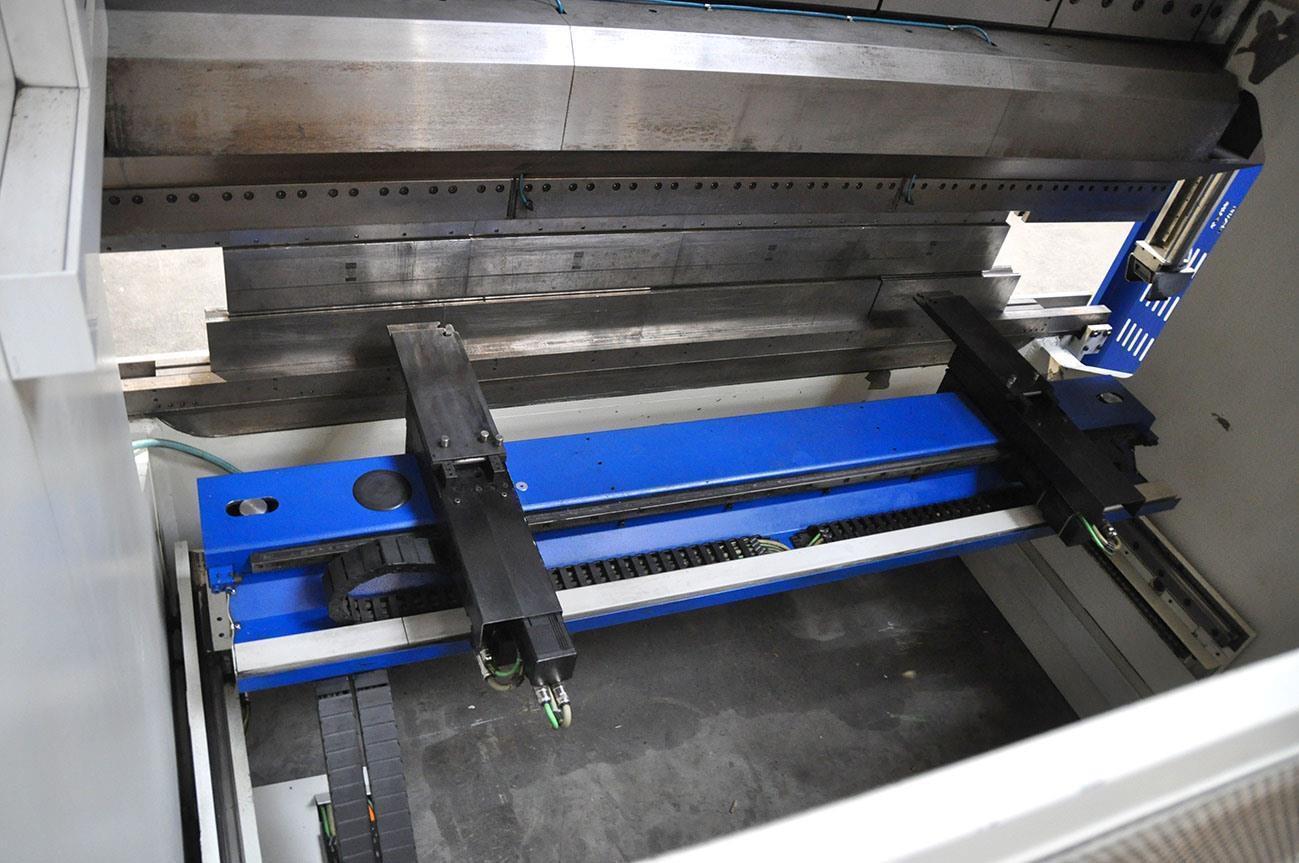

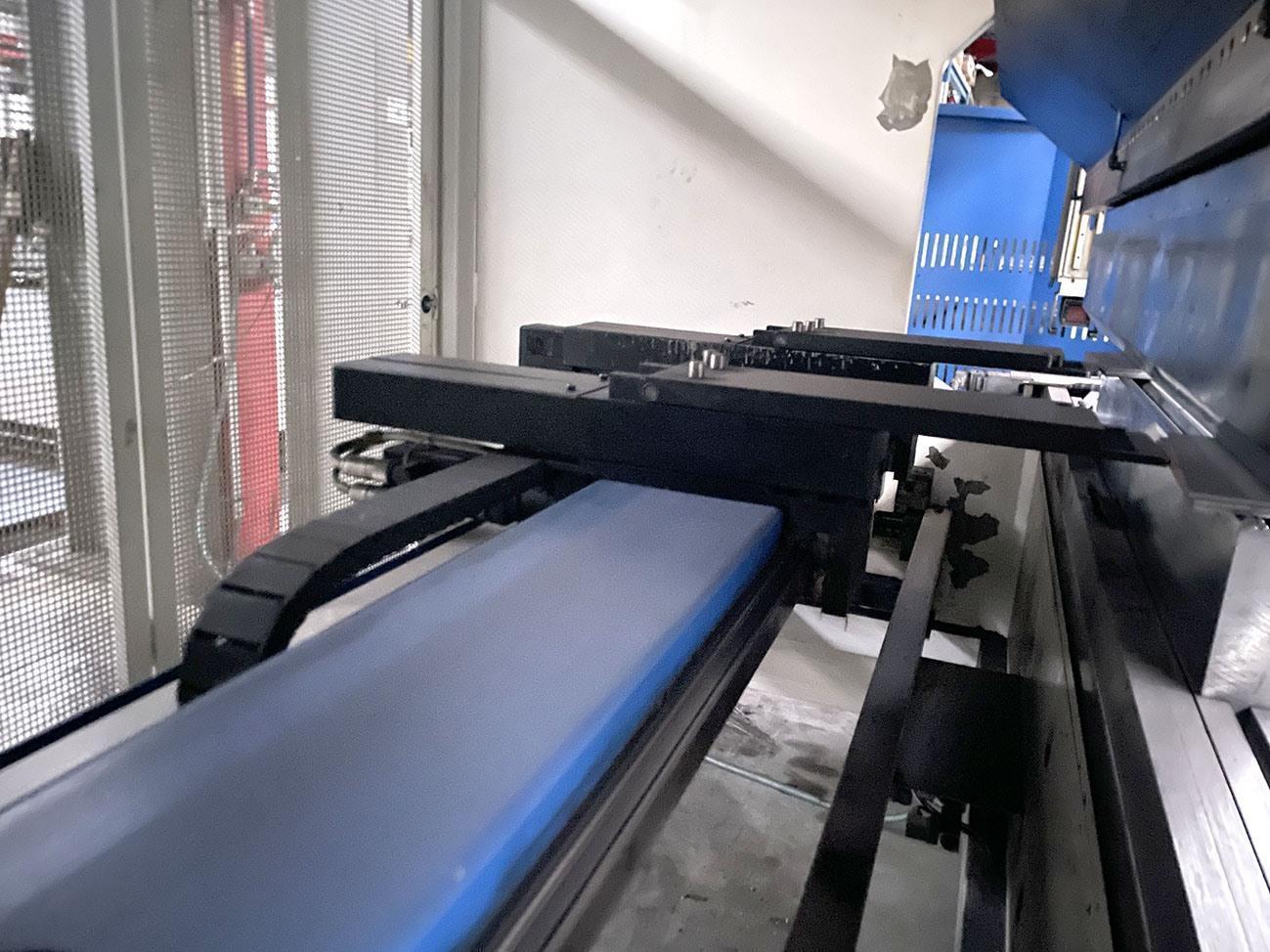

  • Backgauge CNC

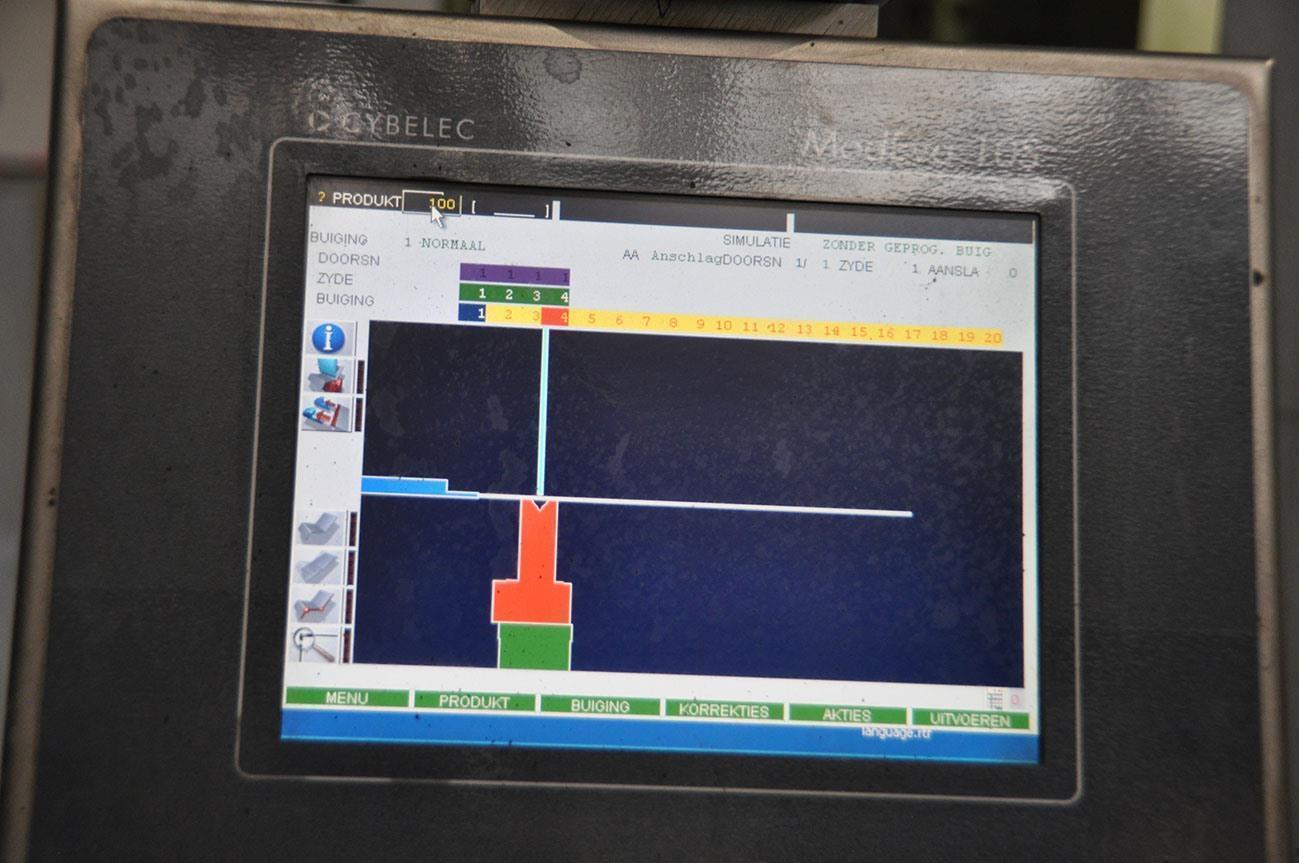

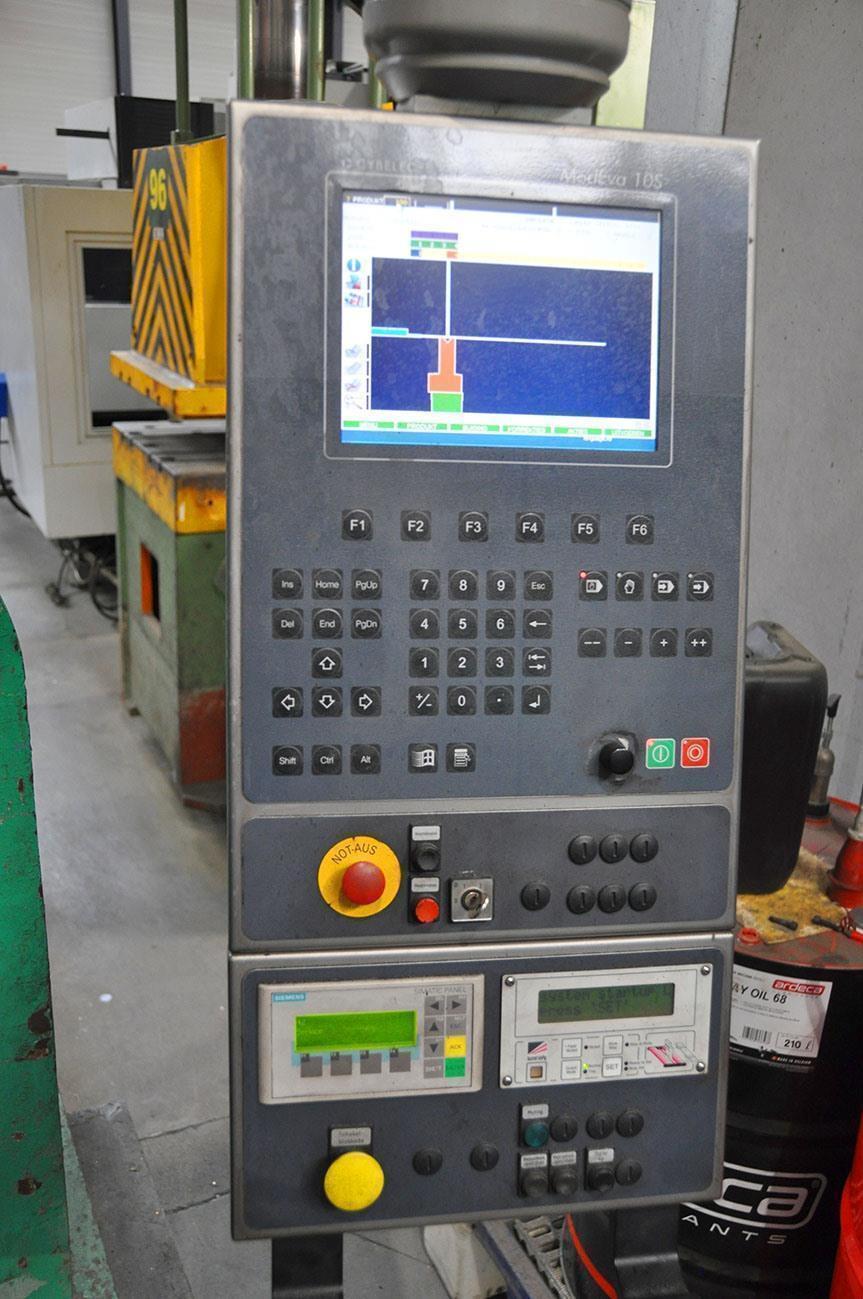

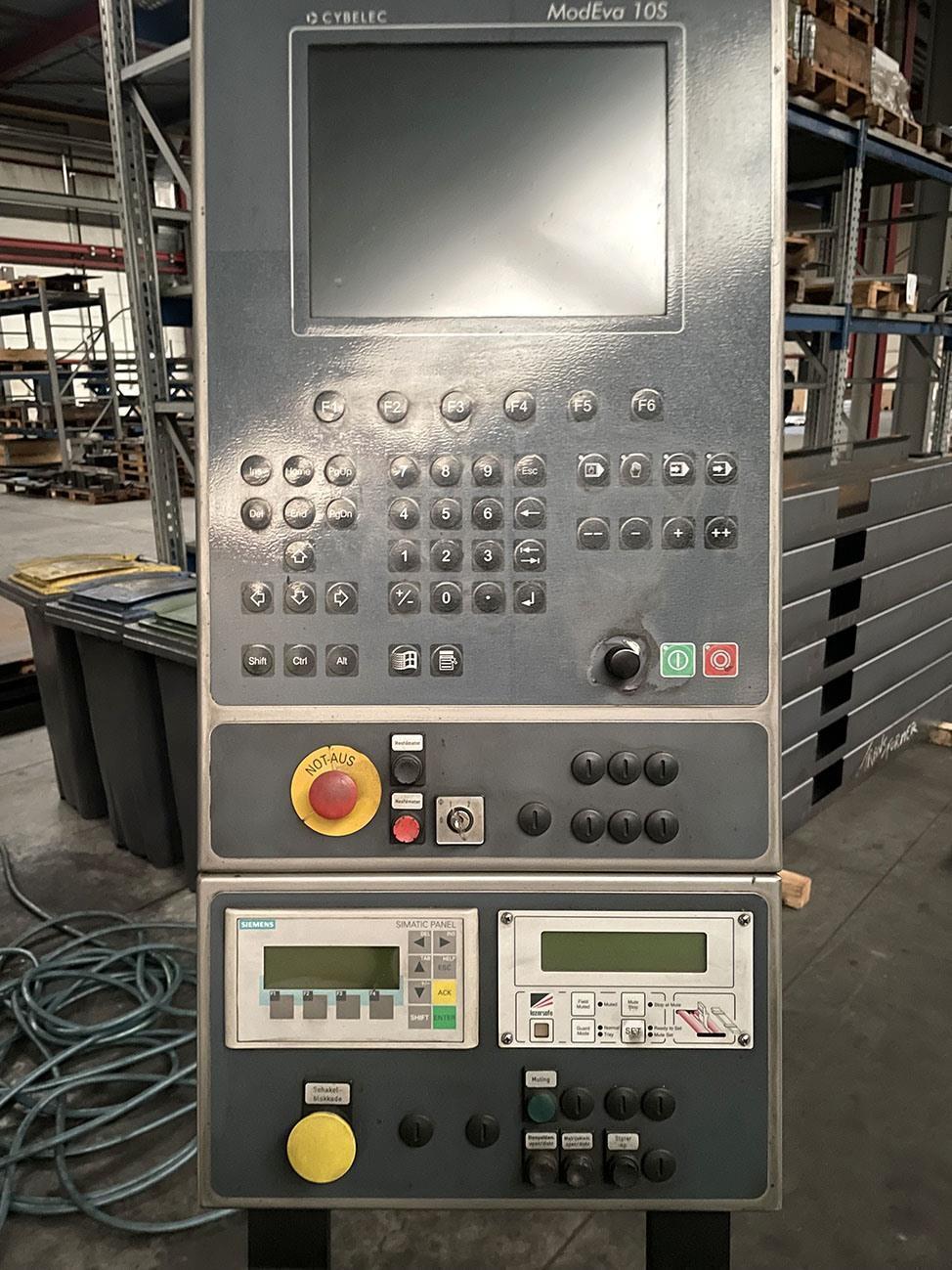

  • Control Cybelec ModEva 10S
  • Passage between uprights 2550 mm
  • Max stroke 400 mm

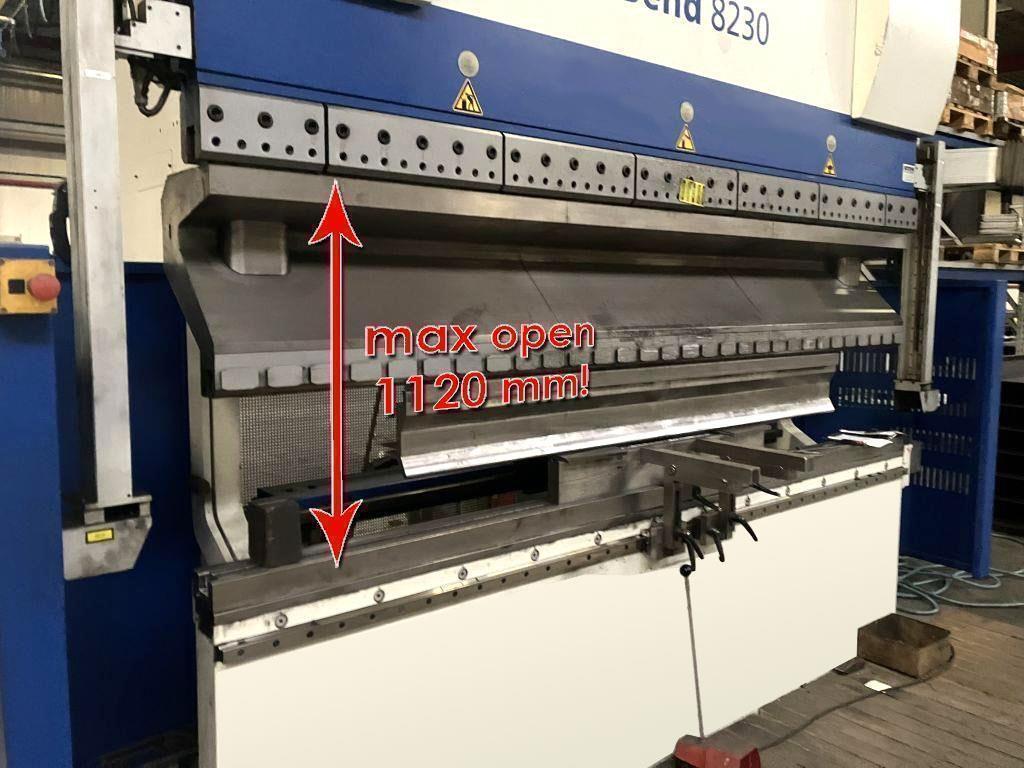

  • Max distance between table -- ram min 720 / max 1120 mm

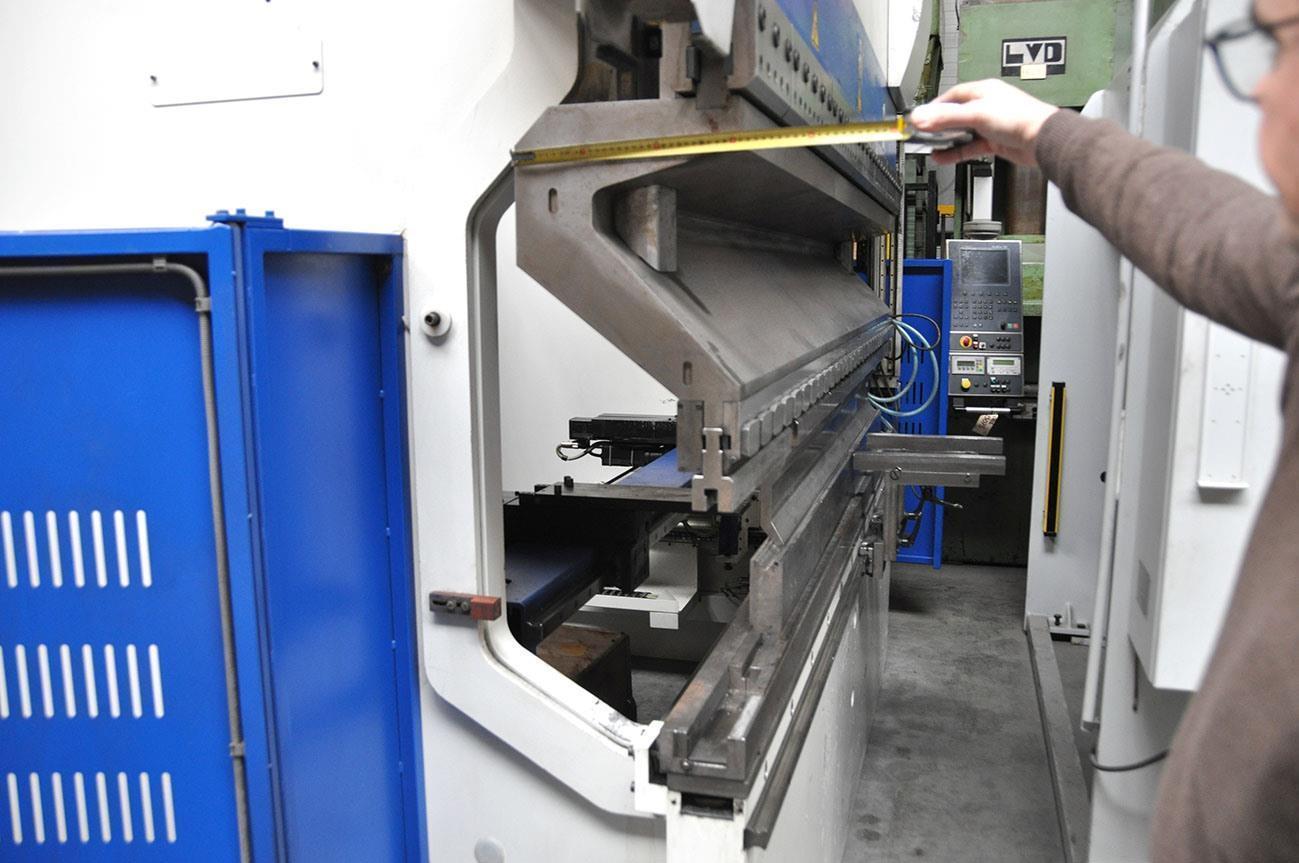

  • Depth of throat 405 mm
  • Locking speed 220 mm/sec
  • Working speed 10 mm/sec
  • Returning speed 220 mm/sec
  • Electric motor (power) 30 kW
  • Length 5250 mm
  • Depth 3750 mm
  • Height 3650 mm
  • Weight 15 ton

Additional info

  • 8 axes: Y1 / Y2 / X / X' / Z1 / Z2 / R / V
    Ram is capable of handling 300 tons per meter!

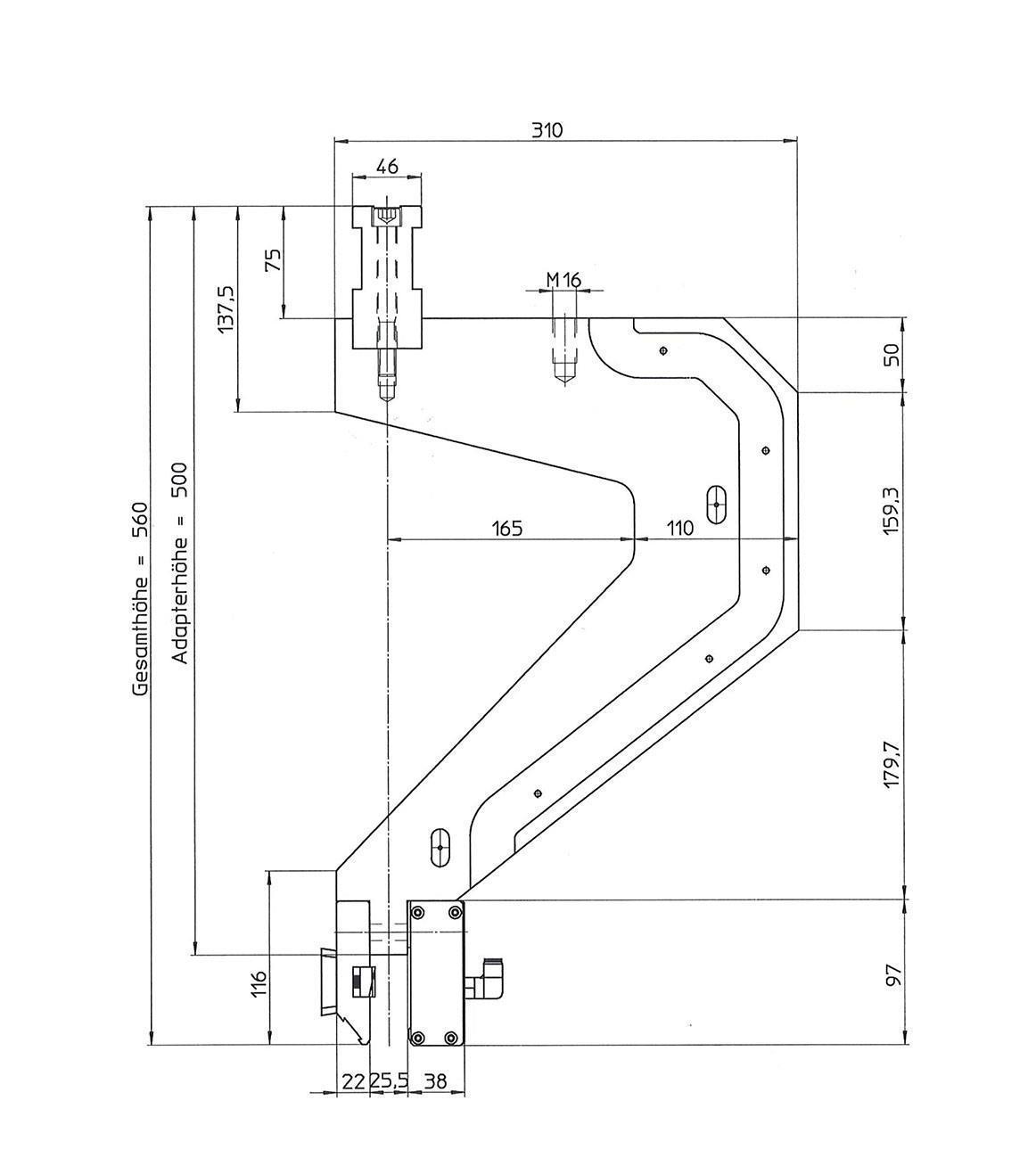

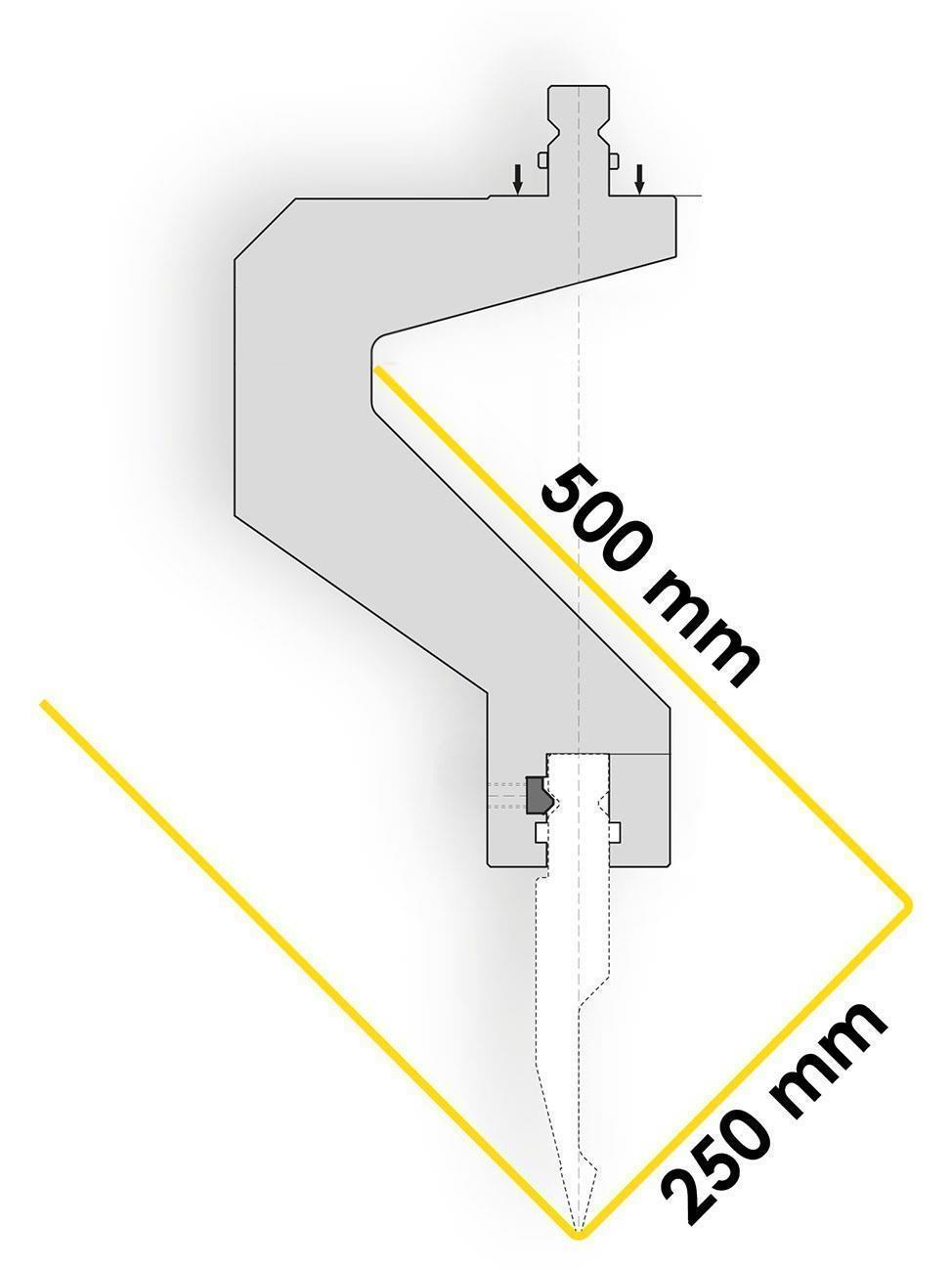

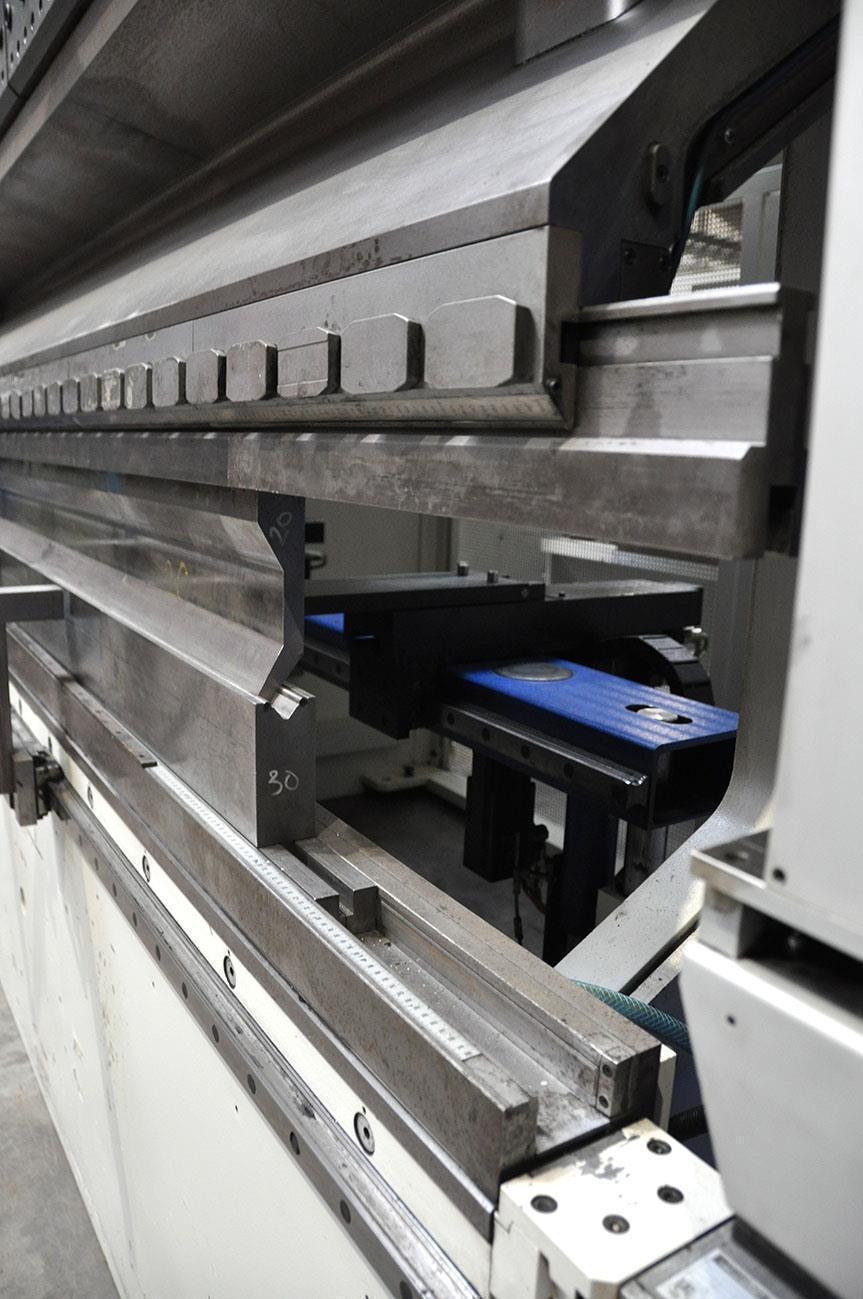

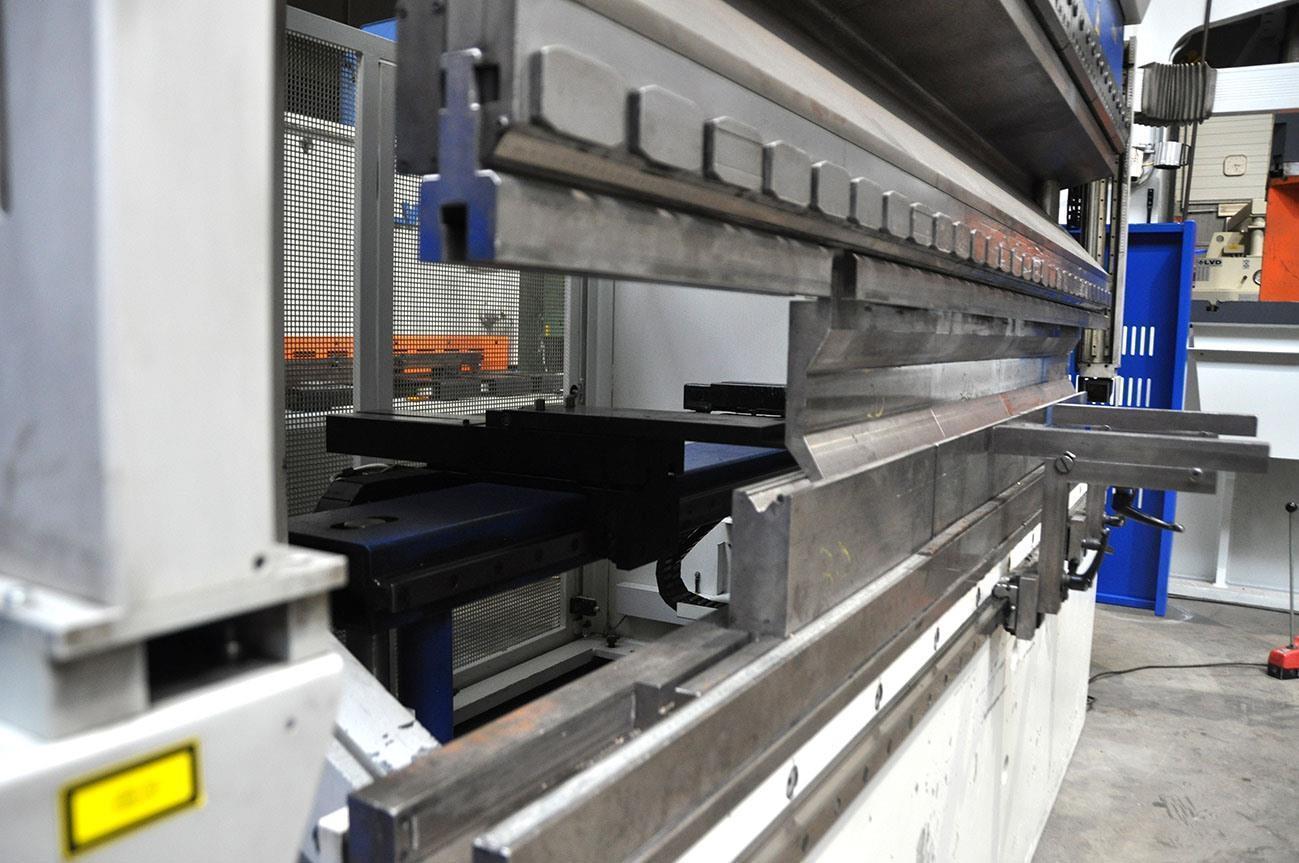

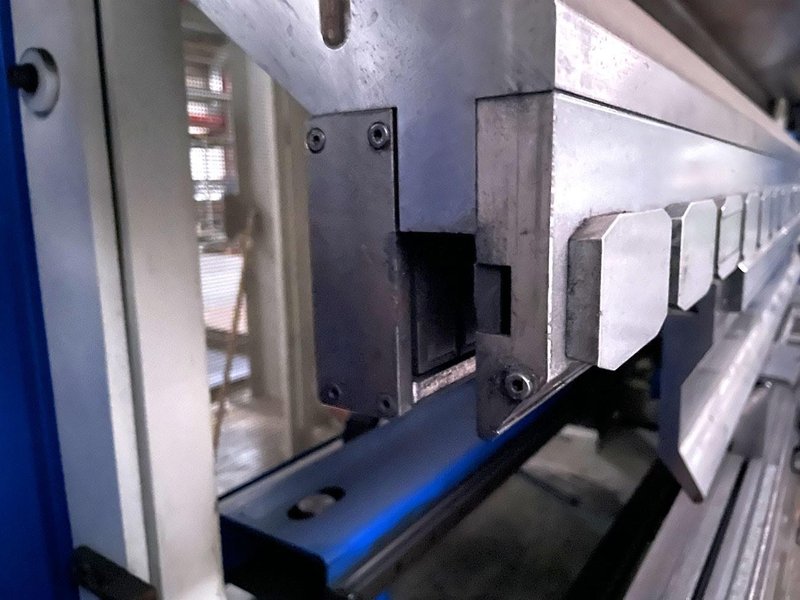

    Willa tool holder
    LVD tool adapter also present

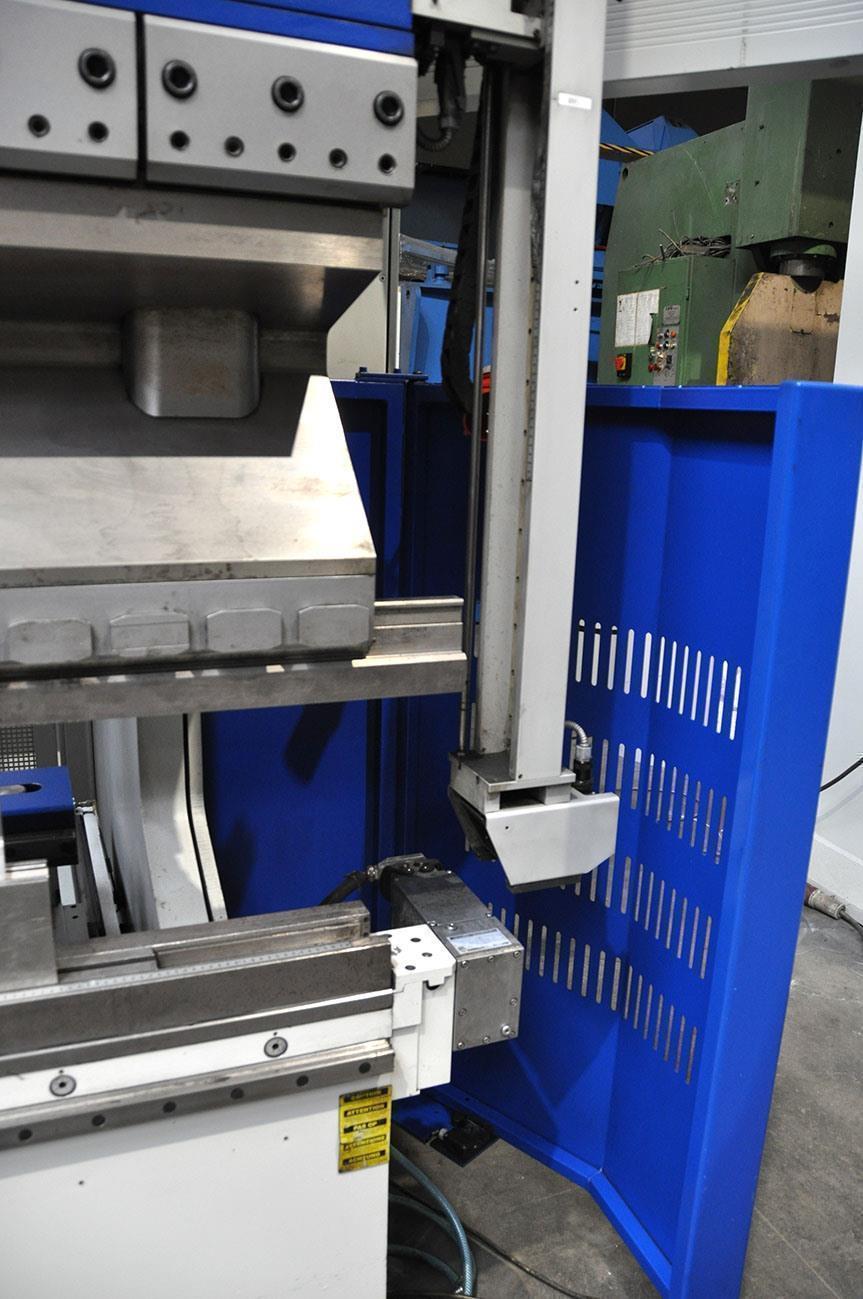

    Lasersafe security
