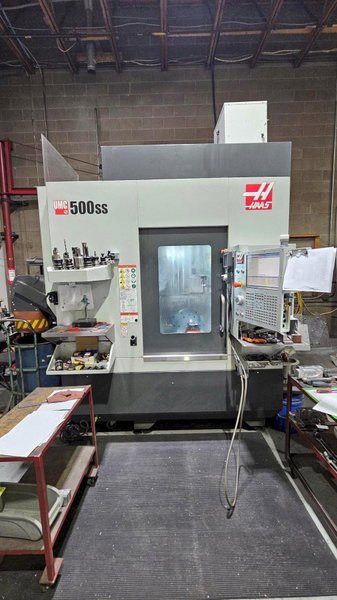

HAAS UMC-500SS 5 Axis horizontal machining Center

New: 11/2021; installed 01/2022

Specifications:
 Travels:
  X-Axis:                       24"
  Y-Axis:                       16"
  Z-Axis:                       16"
  Spindle Nose-Platter:            4" - 20"
  B-Axis - Tilt:   120° to 35-°
  C-Axis - Rotation:      360°
 Platter Diameter:       15.7"
 Spindle Speed:                        12,000 RPM
 Spindle Taper:                        #40
 Spindle Motor:                       30 HP

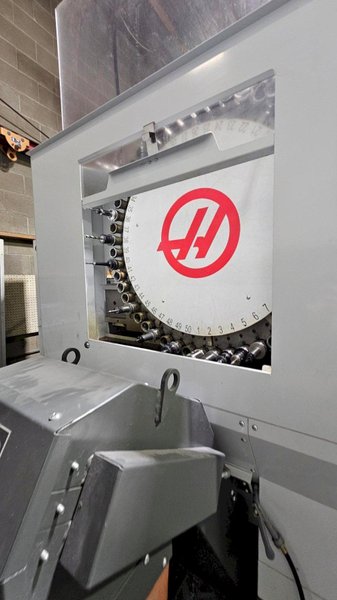

 Tool Changer:                        50+1 Side Mount
 Max Weight on Platter:         500 Lbs
 Max Cutting Feedrate:           650 IPM
 Rapid Feedrate:         900 IPM

Equipped With:
 Haas CNC Control
 12,000 30 HP Direct Drive Spindle
 50+1 Side Mount Tool Changer
 Wireless Intuitive Probe System
 300 PSI Thru Spindle Coolant
 Belt-Type Chip Conveyor
 Programmable Coolant Nozzle
 Chip Strainer
 Mist Away Mist Extractor
 Part Pick Up Probe
 Tool Length Measurement
 55 Gallon Coolant Tank
 Dynamic Work Offsets & Tool Center Point Control
 Rigid Tapping
 M-Code
 Remote Jog Handle
