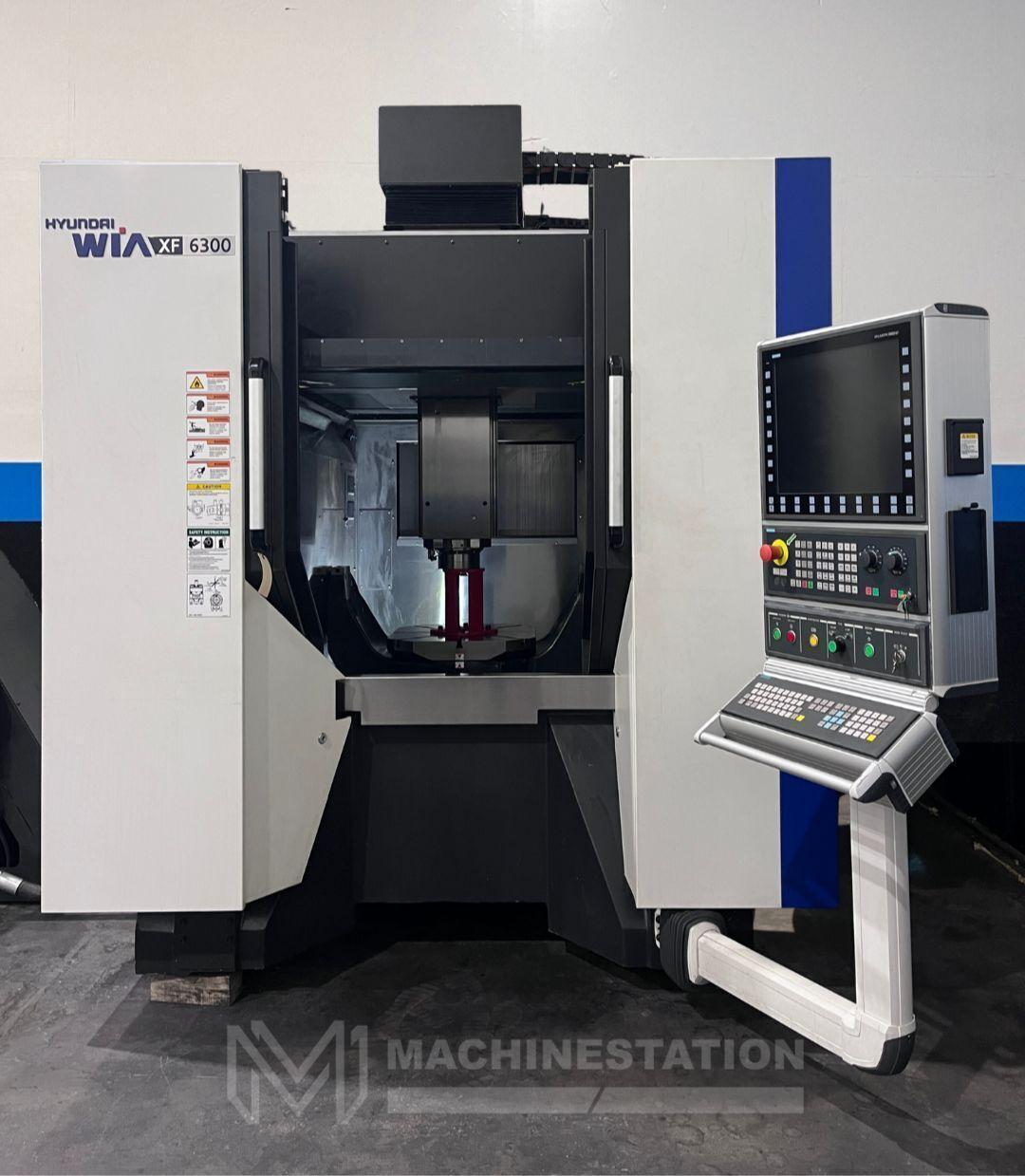

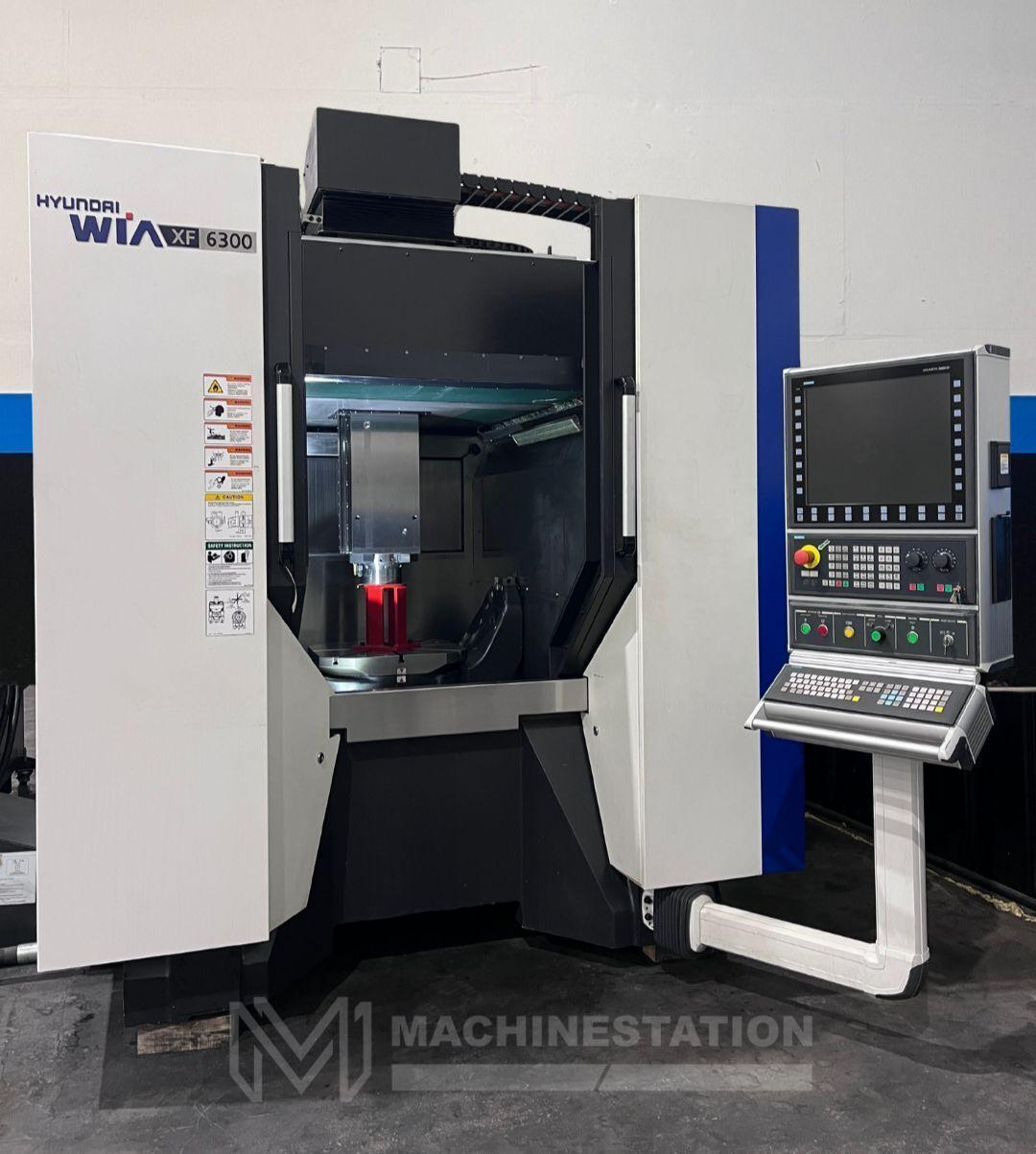

Hyundai Wia XF6300 5 Axis CNC Vertical Machining Center – Mill

Hyundai Wia XF6300 5 Axis CNC Vertical Machining Center – Mill

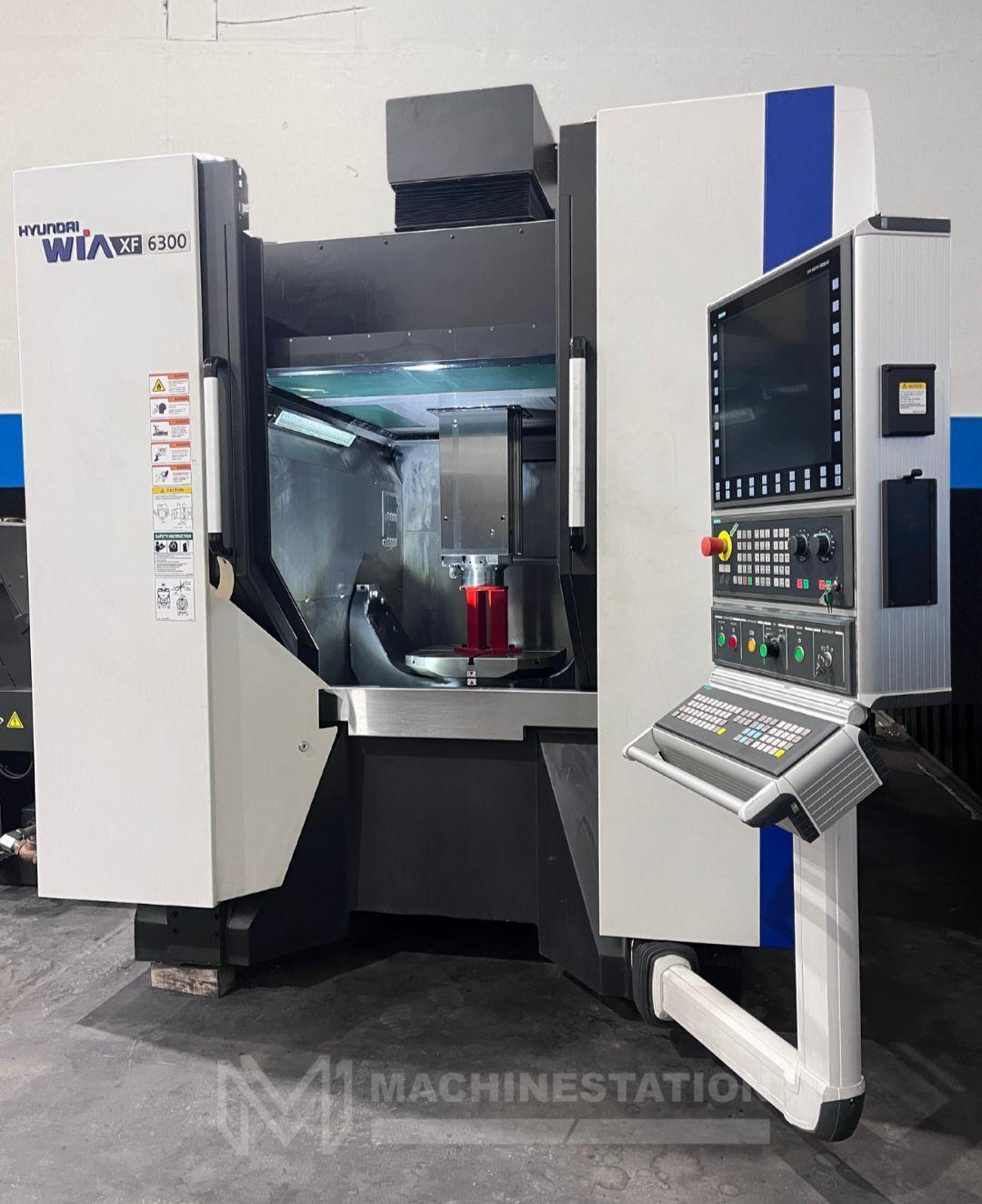

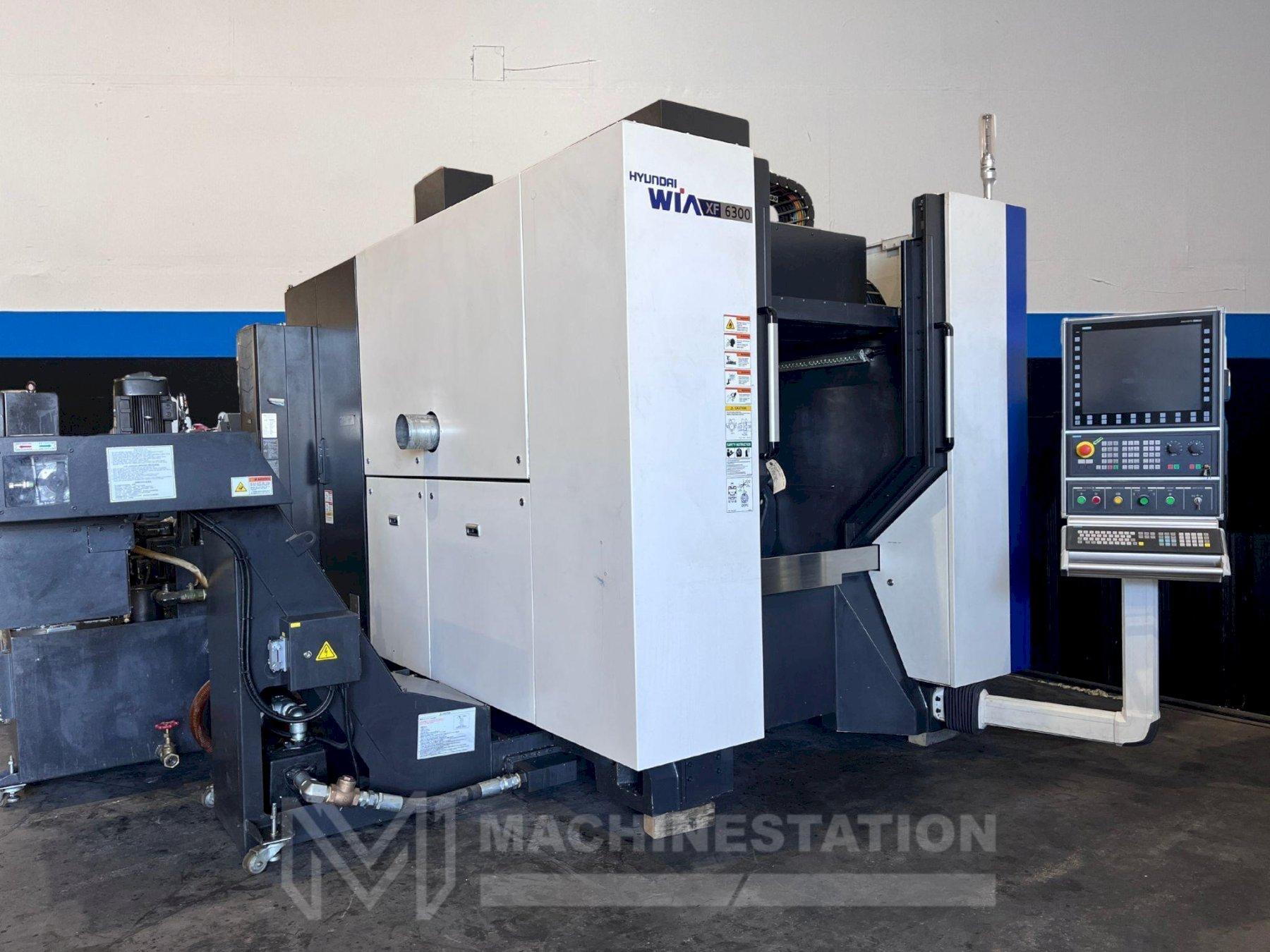

Name: Hyundai Wia XF6300 5 Axis CNC Vertical Machining Center – Mill
Brand: Unknown
SKU: 113018
Availability: PreOrder

Brand

Not specified

Location

California

REQUEST FINANCING

Specifications
Files & Videos

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Make:	Hyundai Wia
Model:	XF6300
Year:	2016
Condition:	Used – Excellent

Features:

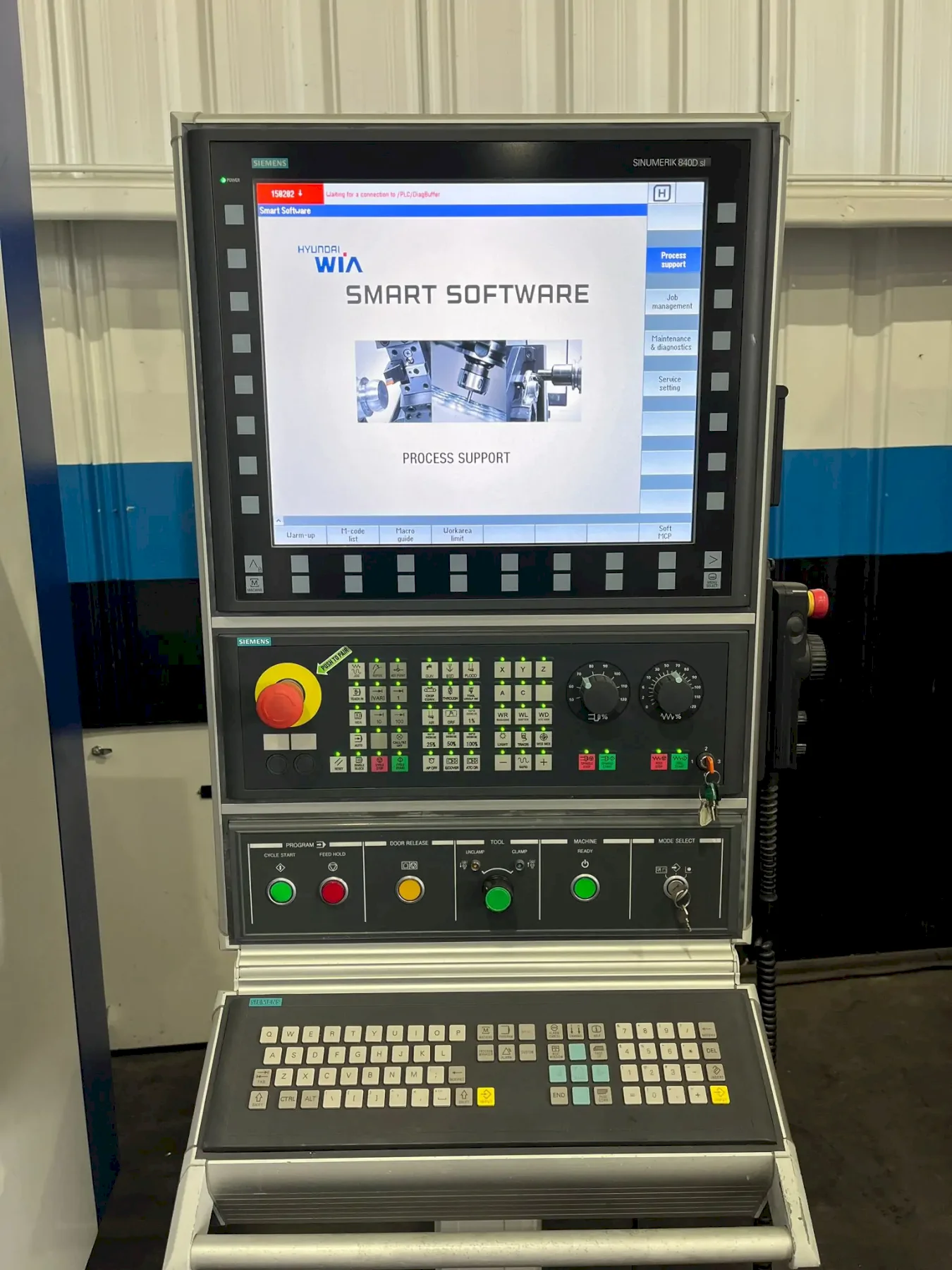

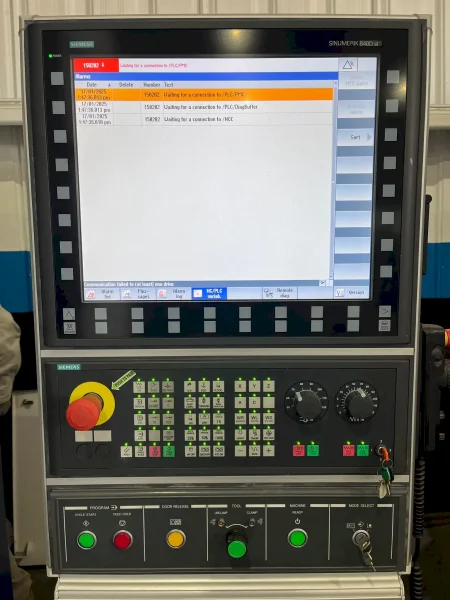

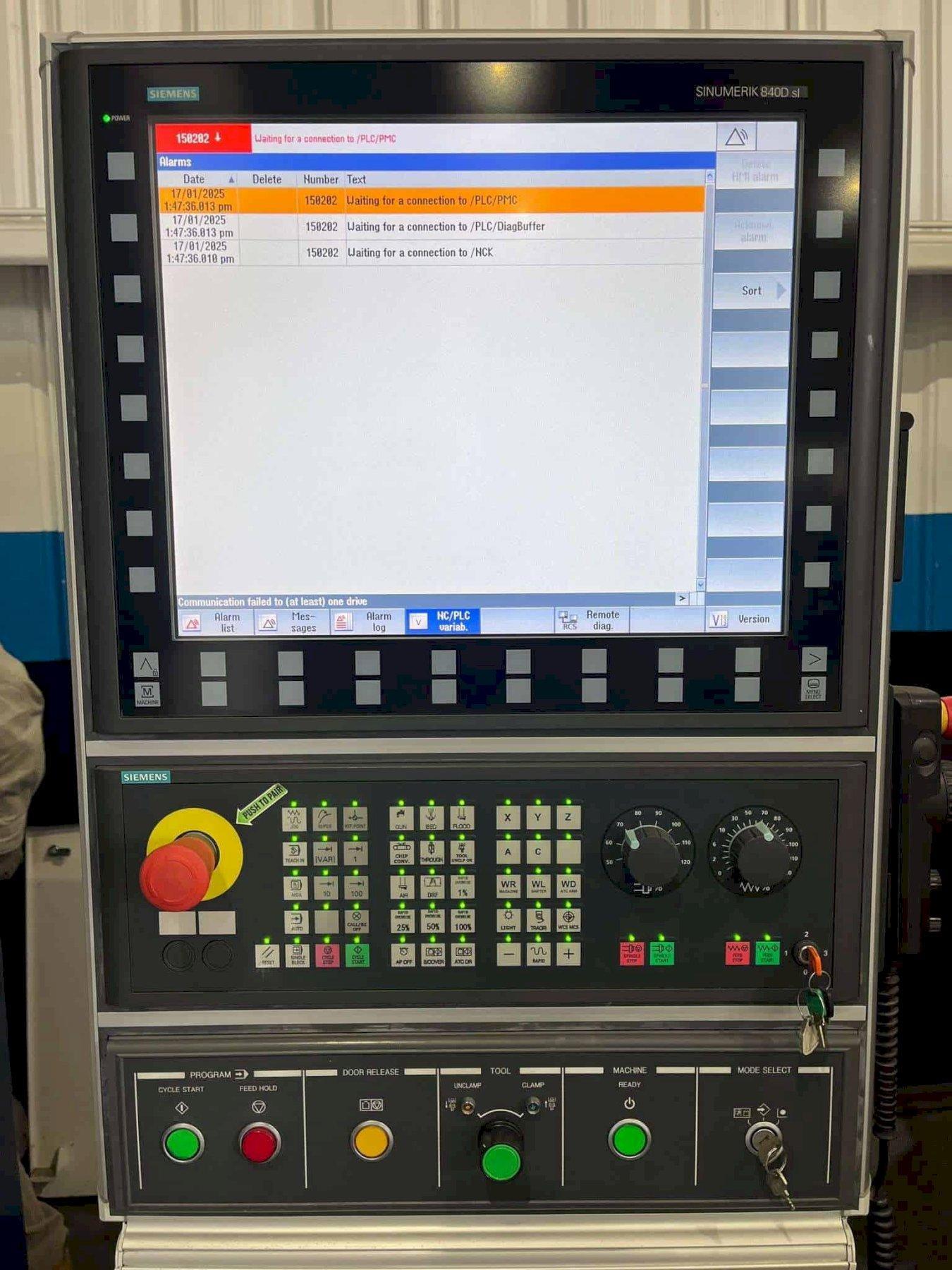

Siemens Sinumarik 840D sl CNC Control
Travelling Column Design
5 Axis Simultaneous Machining

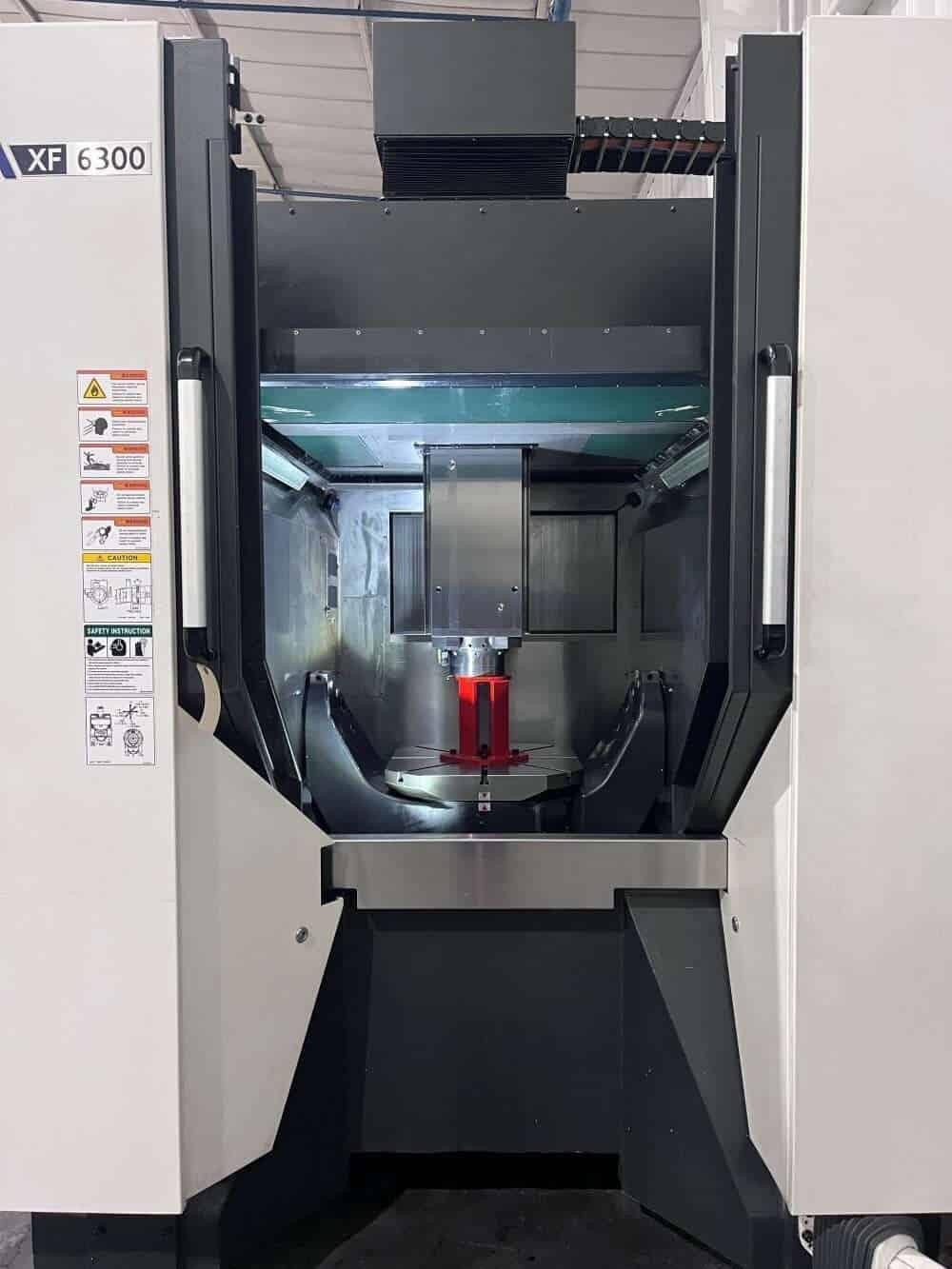

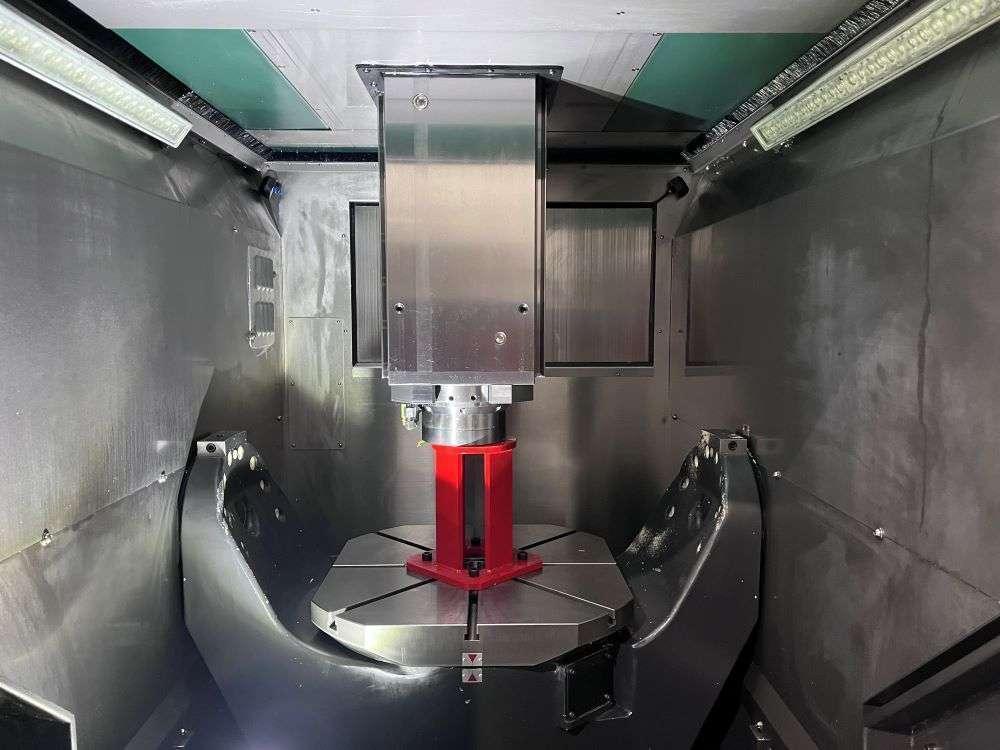

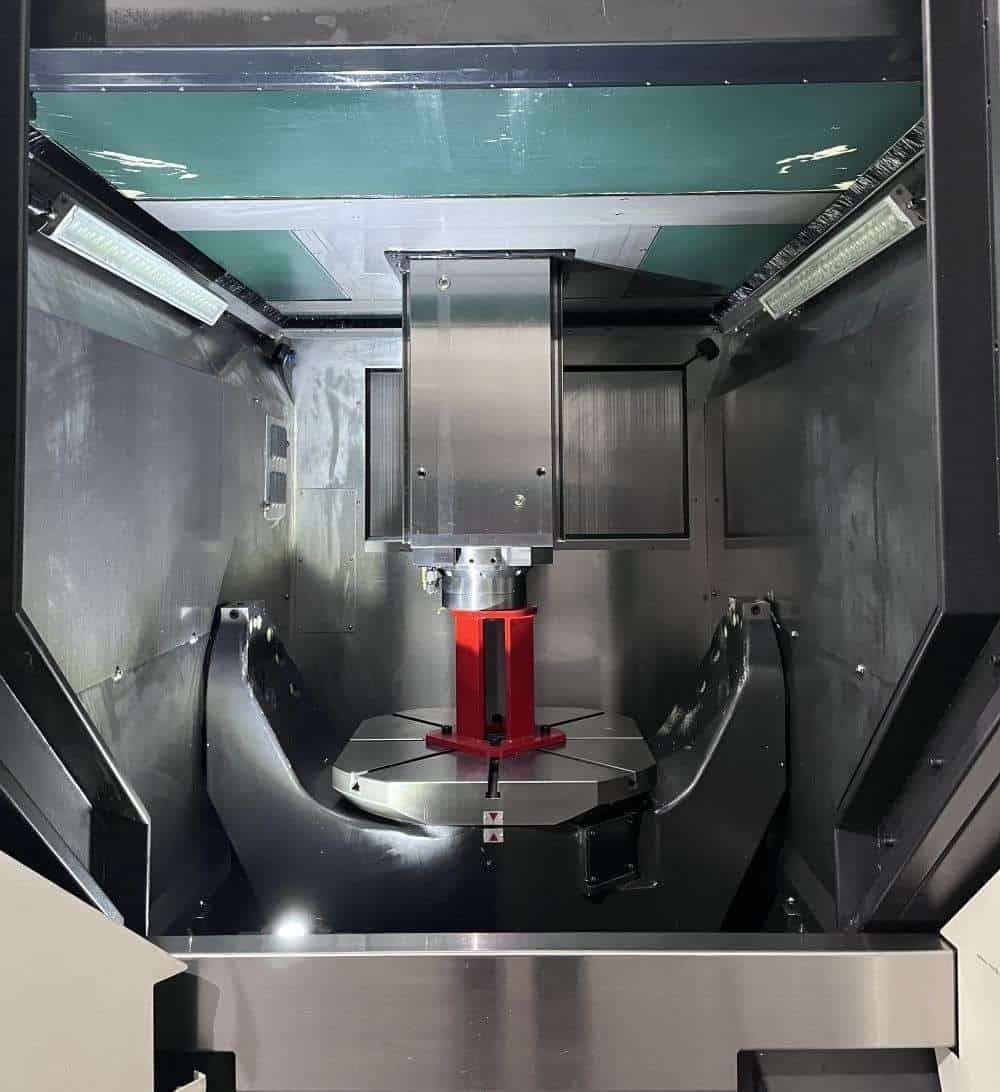

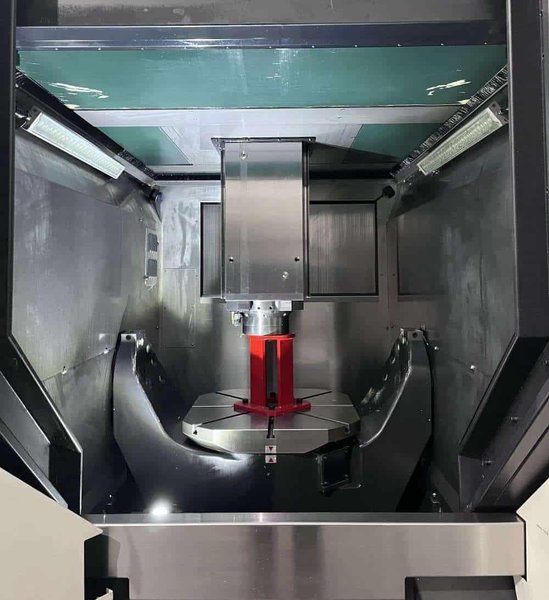

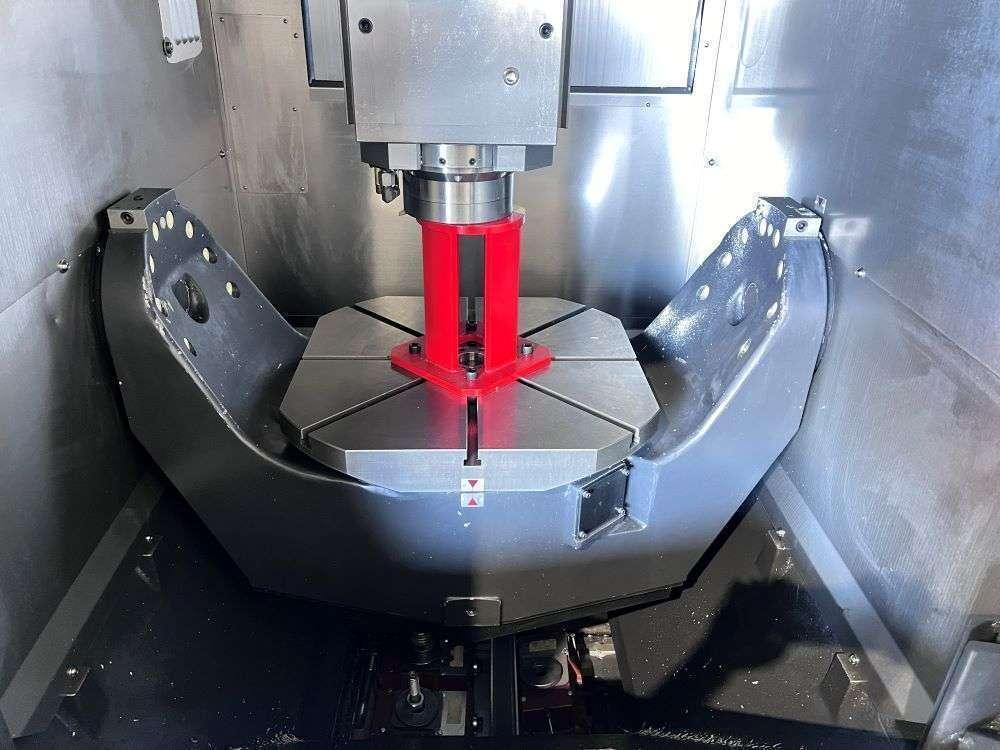

ø 24.8″ Trunnion Table
15,000 RPM High Speed Spindle
102 Station Automatic Tool Changer
High Speed Machining
HSK-A63 Spindle Taper

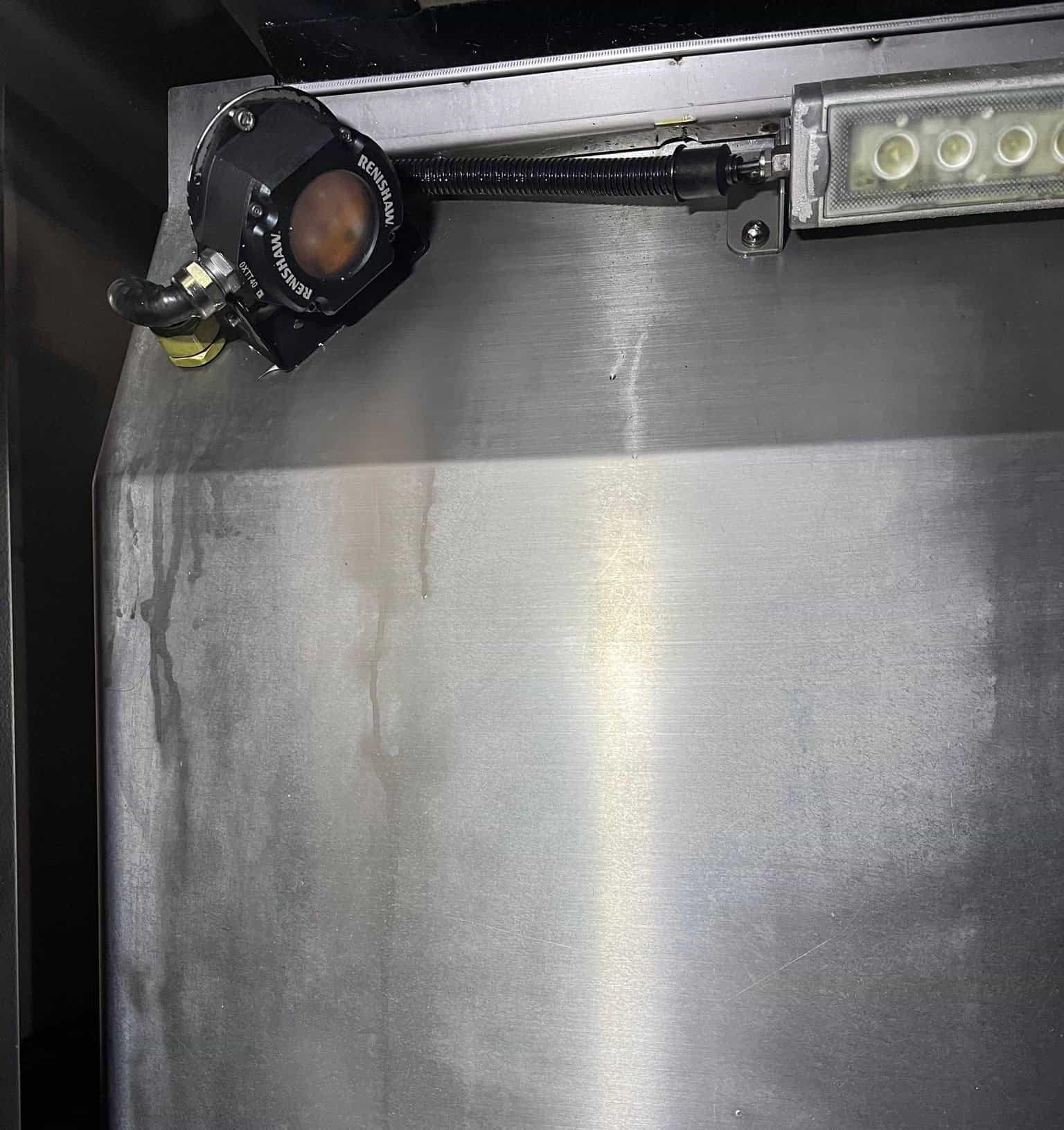

Renishaw Probing System Ready (Probe Needed)
Linear Scales
Rotary Scales
Through Spindle Coolant – 100 PSI
Spindle Chiller Unit

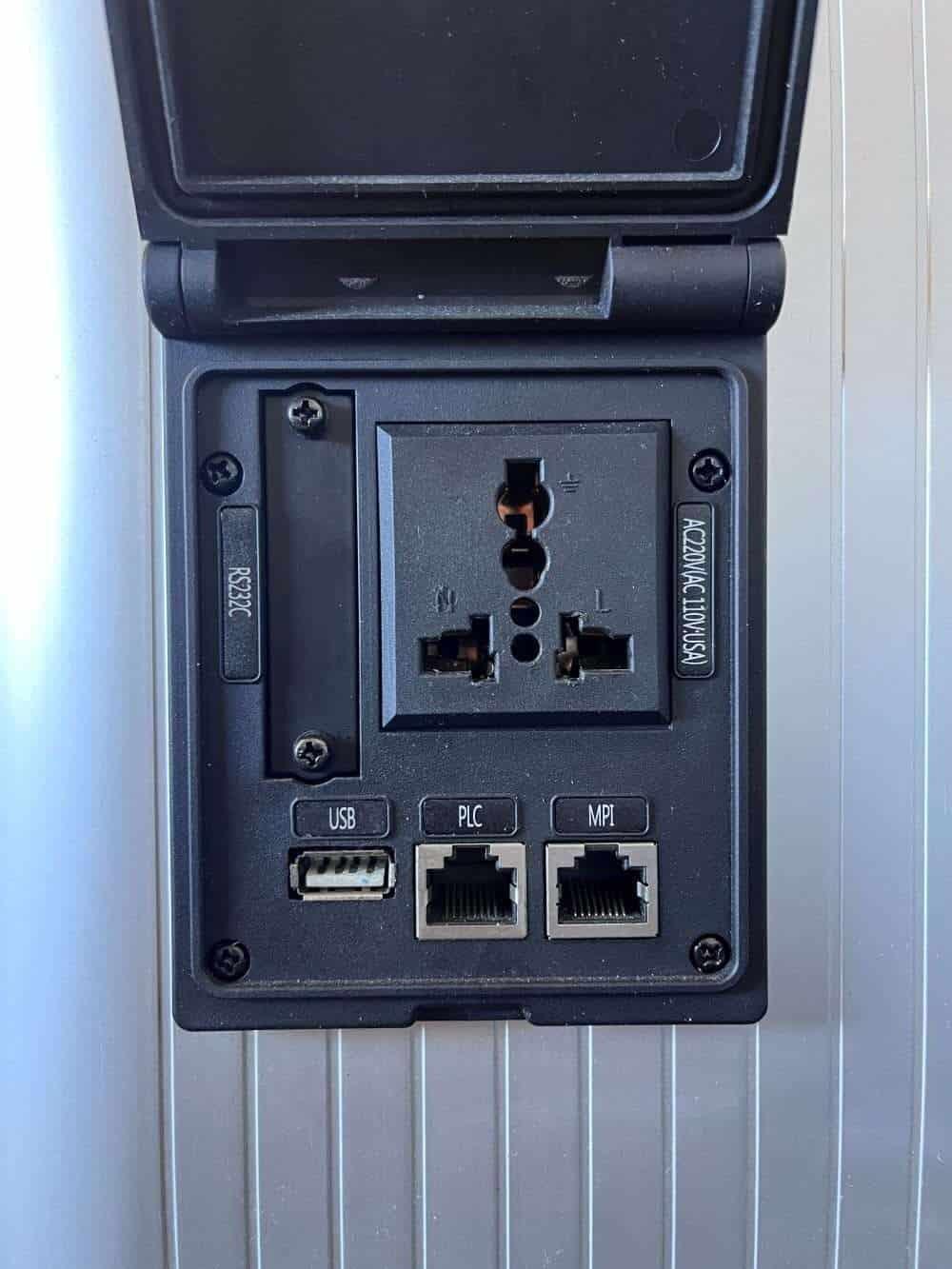

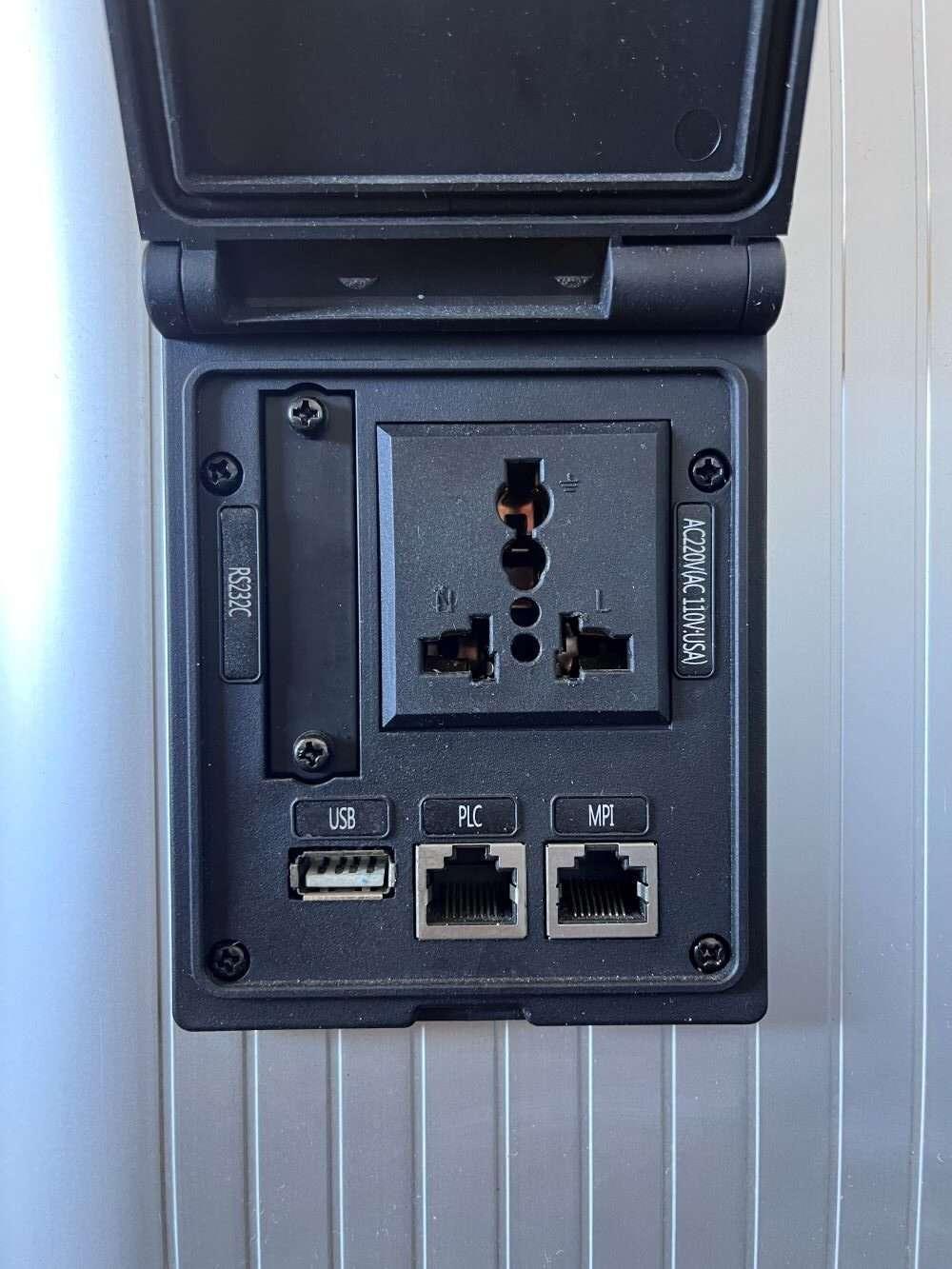

Pan Drive Slot & RS-232 Port
Spindle Orientation
Helical Interpolation
Rigid Tapping

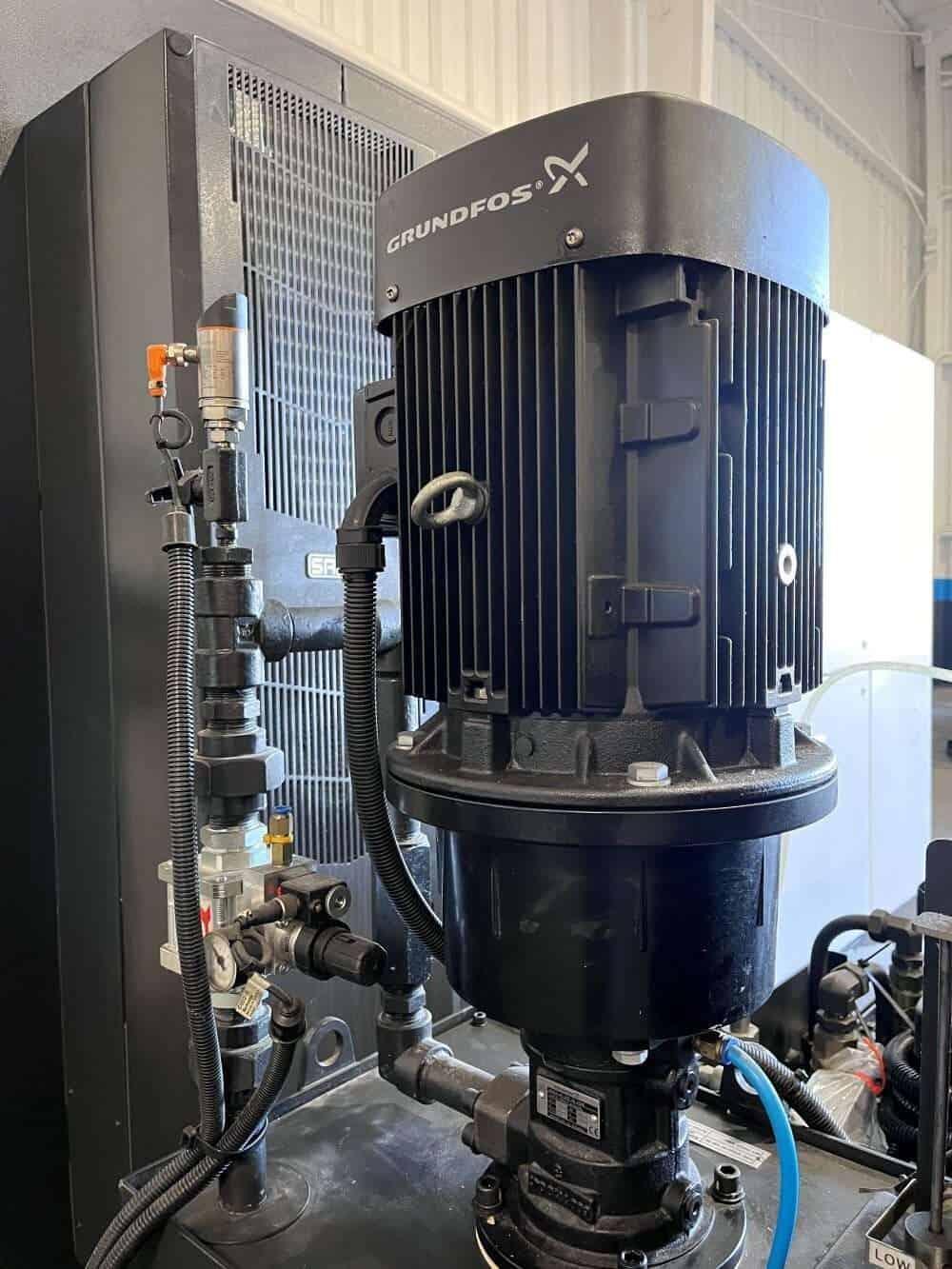

High Pressure Coolant System

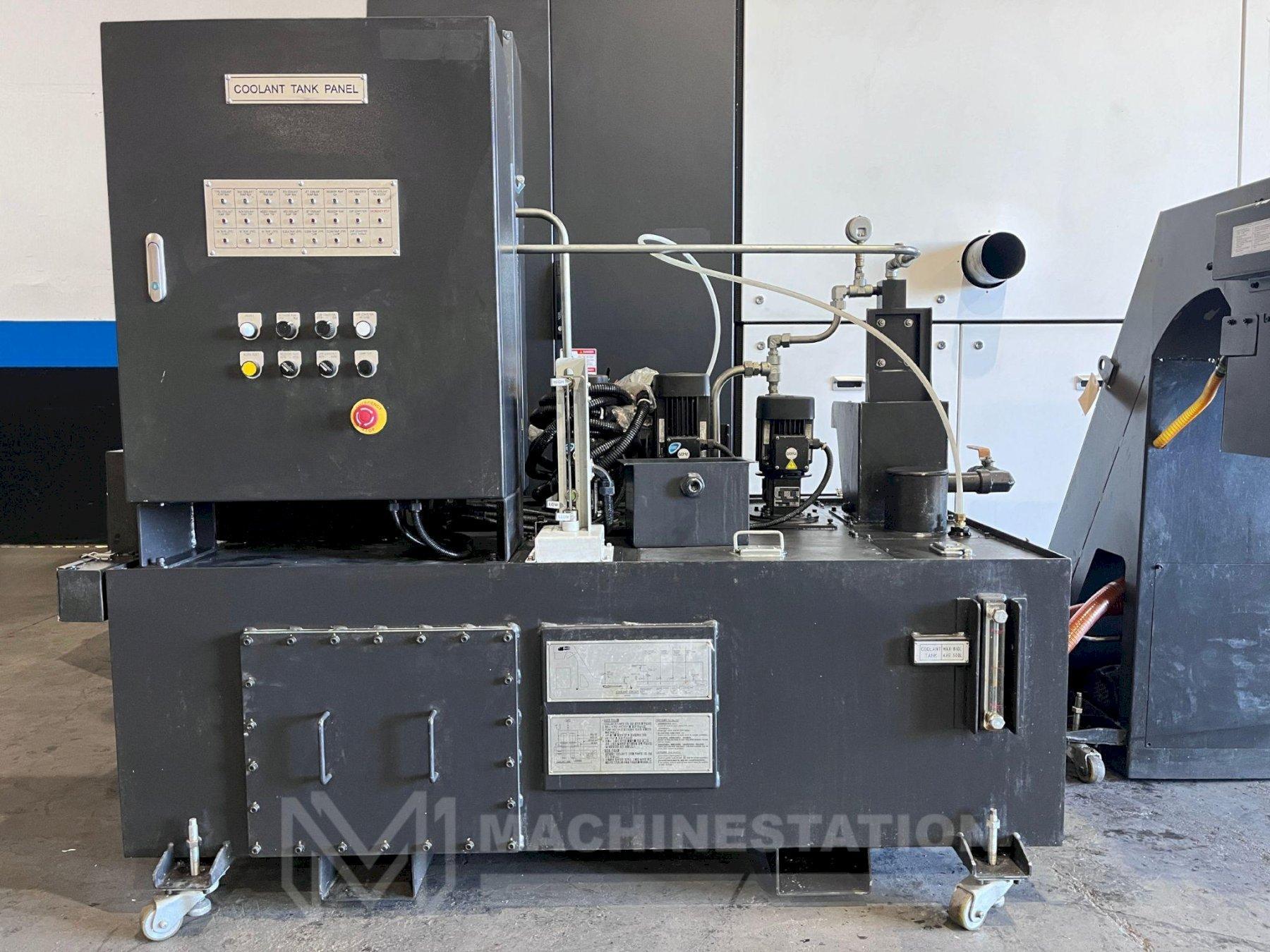

Coolant Tank
Chip Conveyor

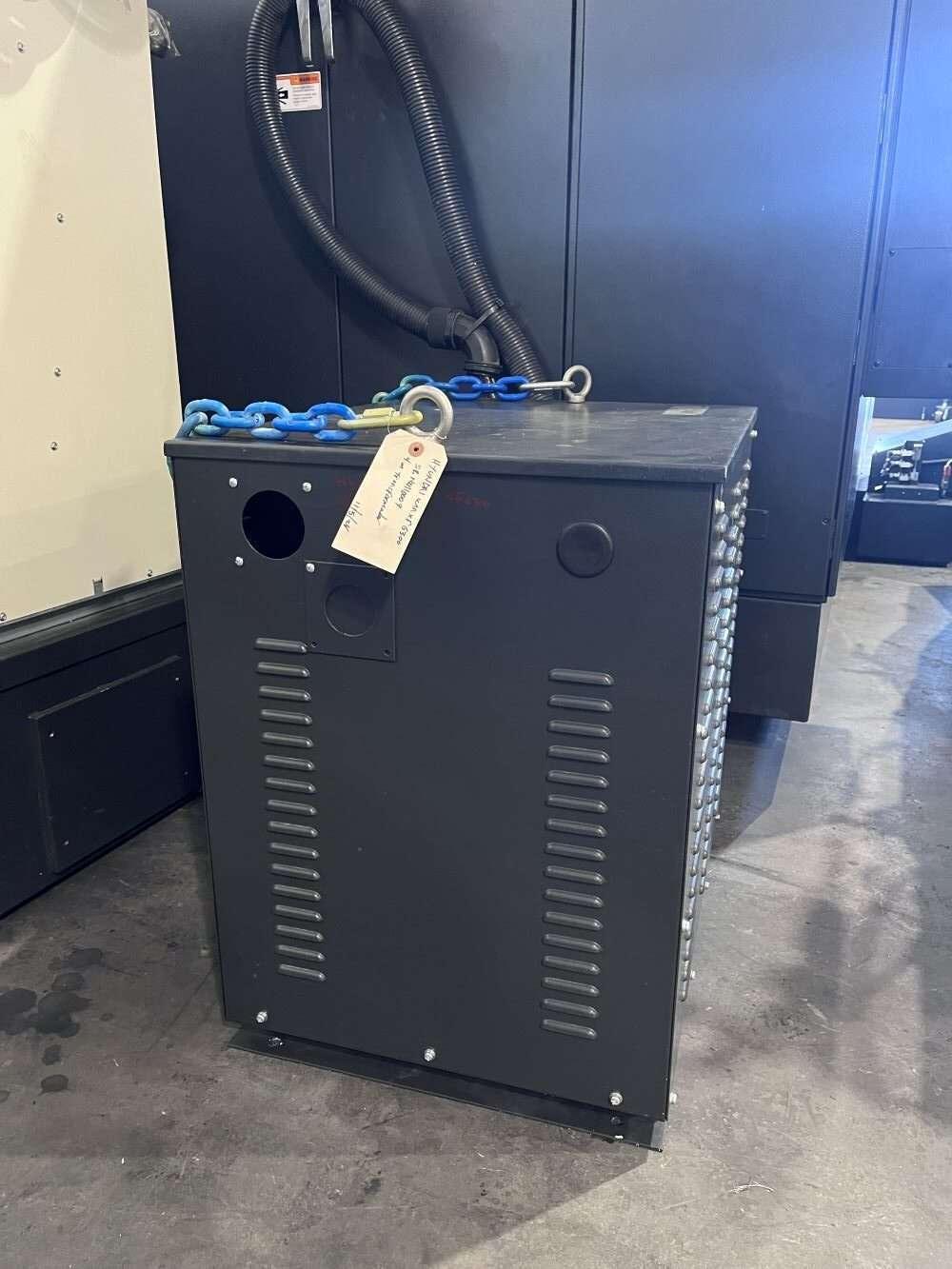

Transformer
Levelling Pads

Table:
Table size: ø 24.8″
Max Part Diameter: 31.5″
Max Part Height: 19.7″
Max Weight on Table: 1323 lbs

Travel:
X Axis: 25.6″
Y Axis: 23.6″
Z Axis: 19.7″
A Axis: +120° -30° ( Table Tilt )
C Axis: 360° ( Table Rotate )
Distance From Table Top to Spindle Nose: 8.7″ – 28.3″
Rapid Traverse X, Y, Z Axis: 2362 Inch Per Minute
Rapid Traverse A Axis: 70 RPM
Rapid Traverse C Axis: 110 RPM

Spindle:
Taper Size: HSK-A63
Speed Range: 15,000 RPM
Spindle Power: 35 HP

Tool Changer:
Capacity: 102 Tools
Taper: HSK-A63
Max Tool Diameter: 3.5″ – 4.9″
Max Tool Height: 11.8″
Tool Change Time: 4.5 Seconds

General:
Air Required: 80 psi, 4 scfm
Power: 73 kva / 220v / 3-Phase
Machine Dimensions: 83.5″ x 172″ x 120″ High
Floor Dimensions: 198″ x 172″ (Length x Width)
Weight: 24,250 lbs. Approx.
