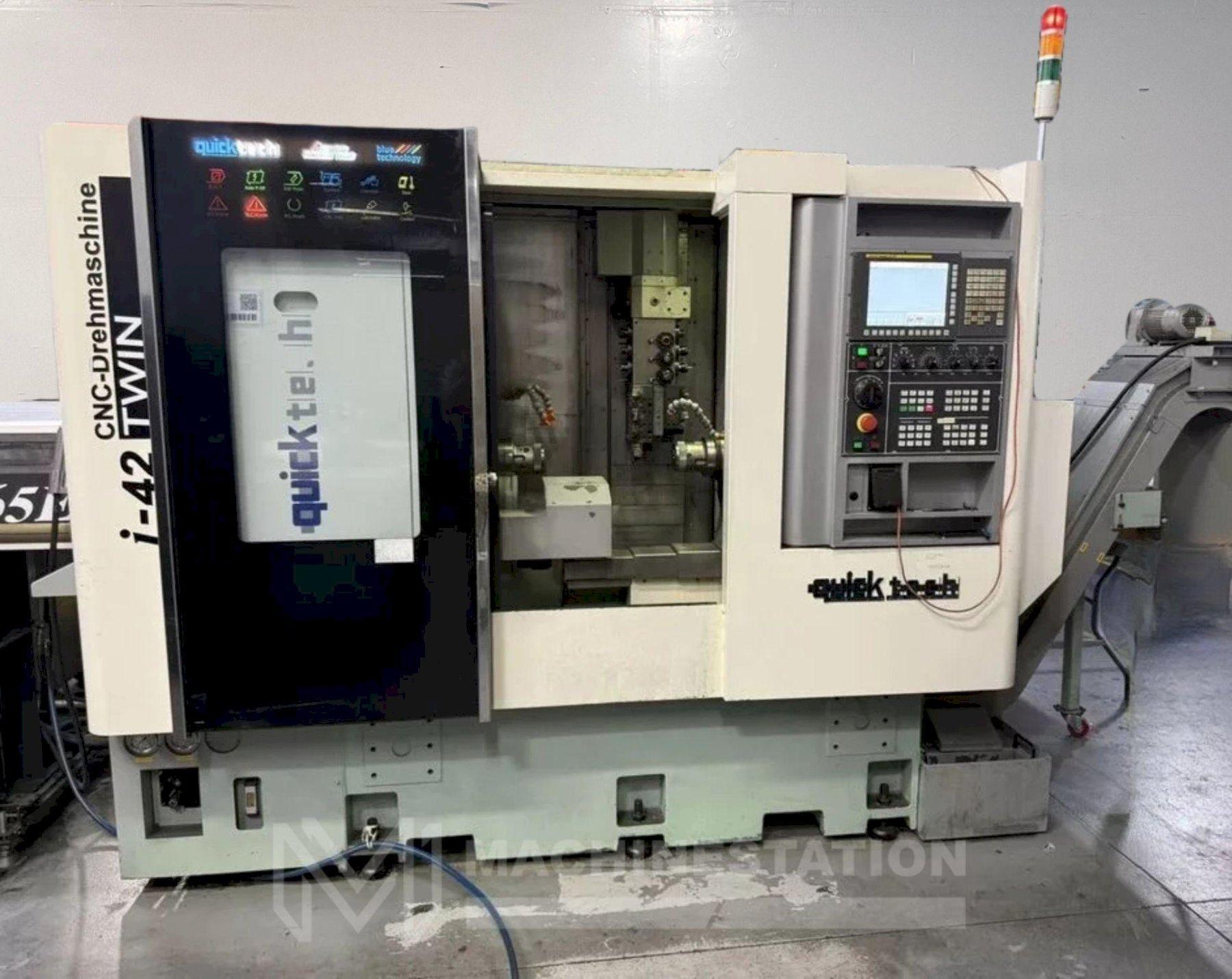

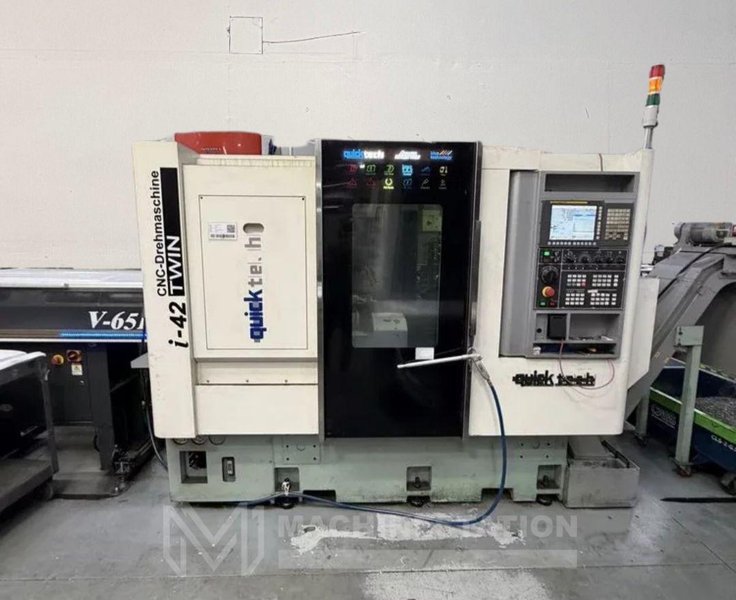

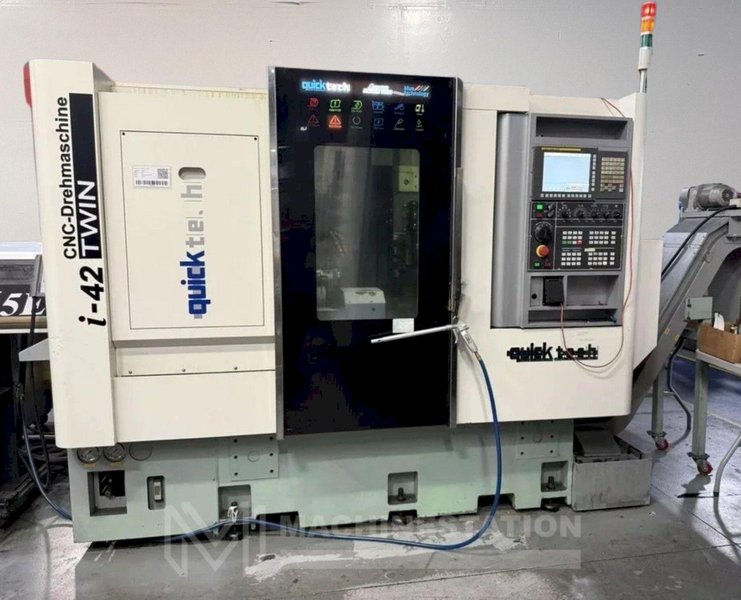

QuickTech i42-Twin Multi Axis CNC Turning Center – Lathe

QuickTech i42-Twin Multi Axis CNC Turning Center – Lathe

Name: QuickTech i42-Twin Multi Axis CNC Turning Center – Lathe
Brand: QUICK-TECH
SKU: 115120
Availability: PreOrder

Brand

QUICK-TECH

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

SKU	115120
Make	QuickTech
Model No.	i42-Twin
New	2017
Condition	Excellent

QuickTech i42-Twin Equipped With:

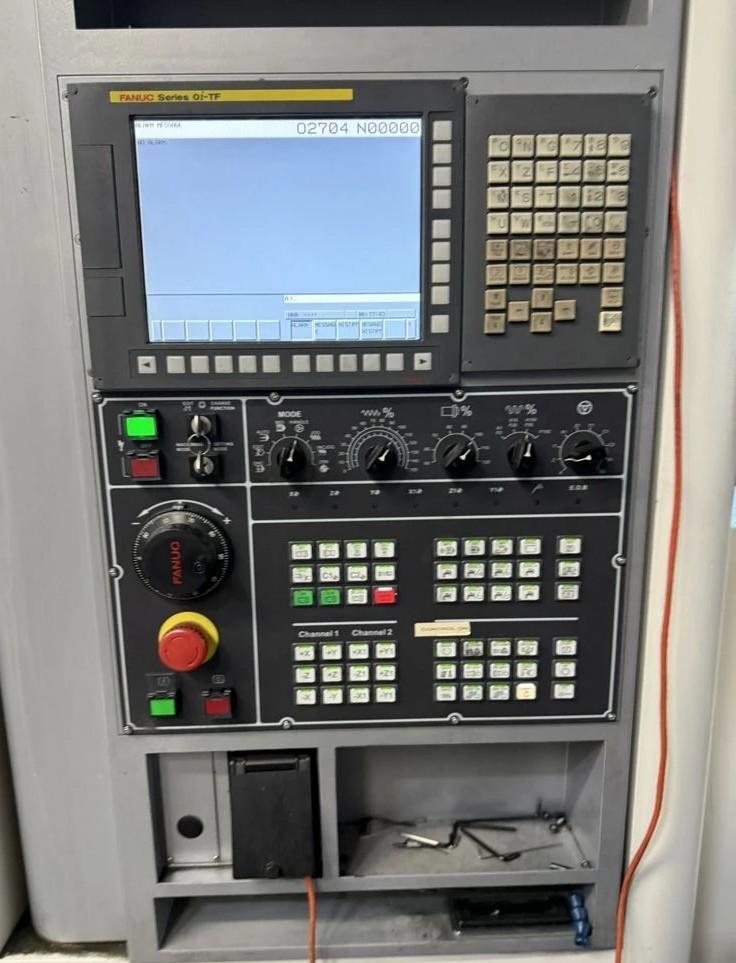

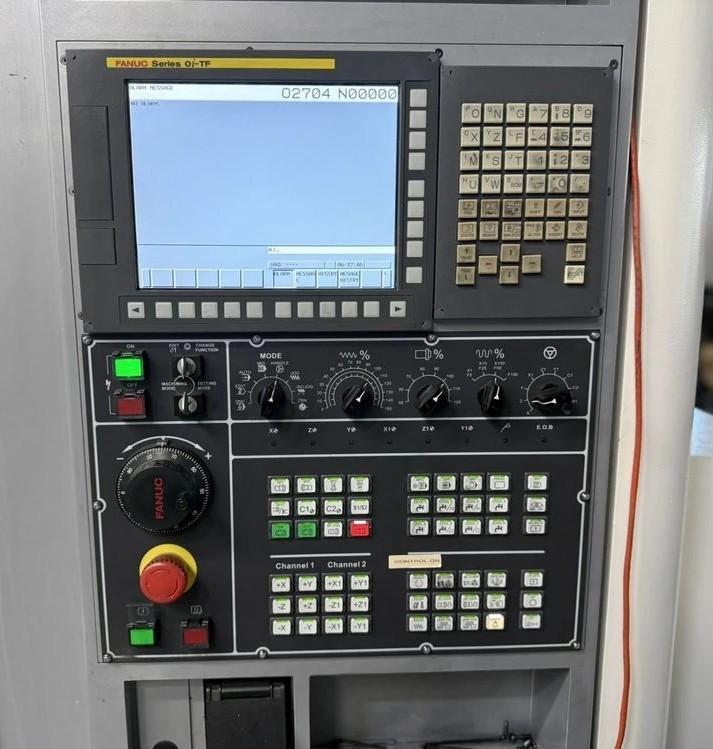

Fanuc Oi-TF CNC Control

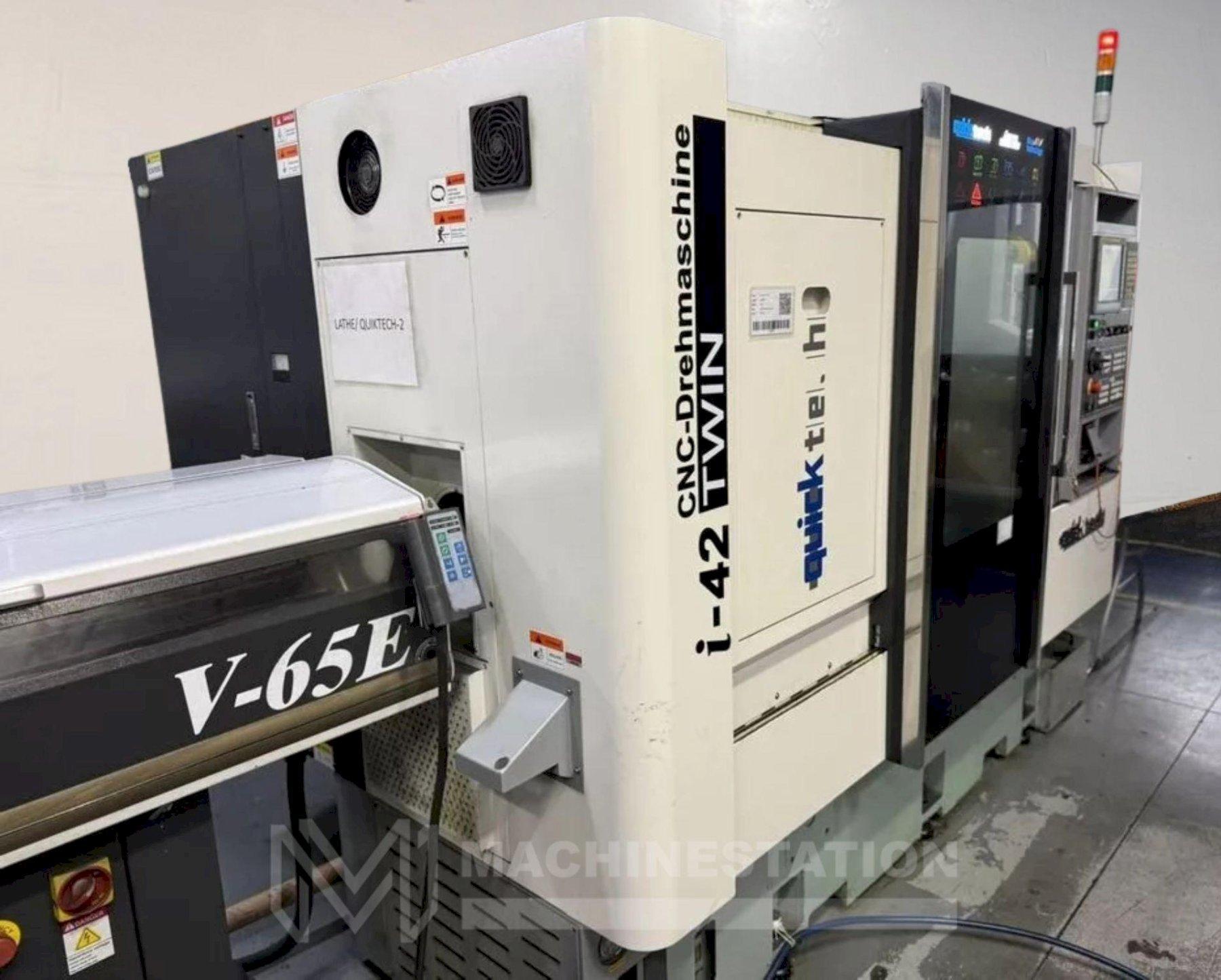

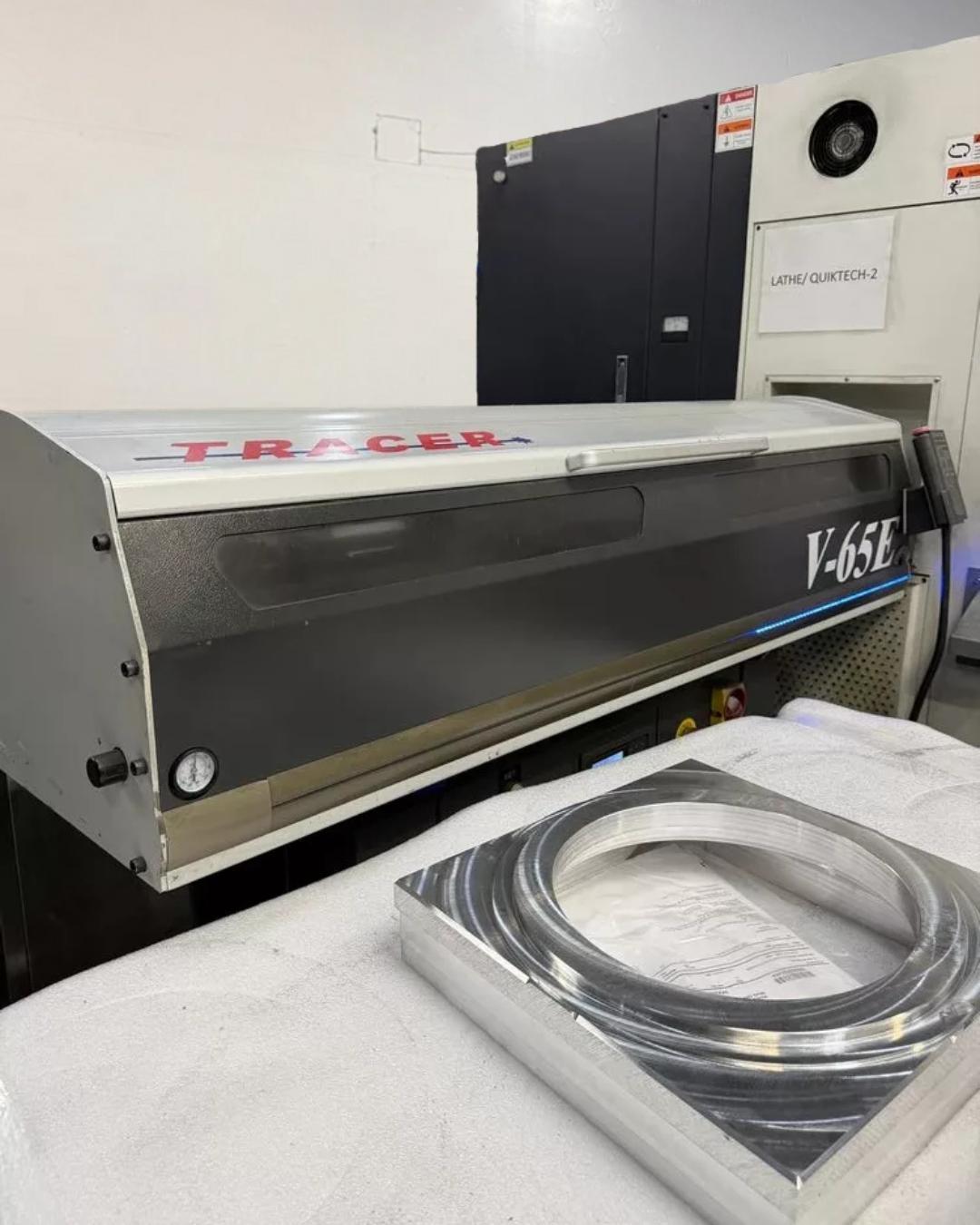

Bar Feeder

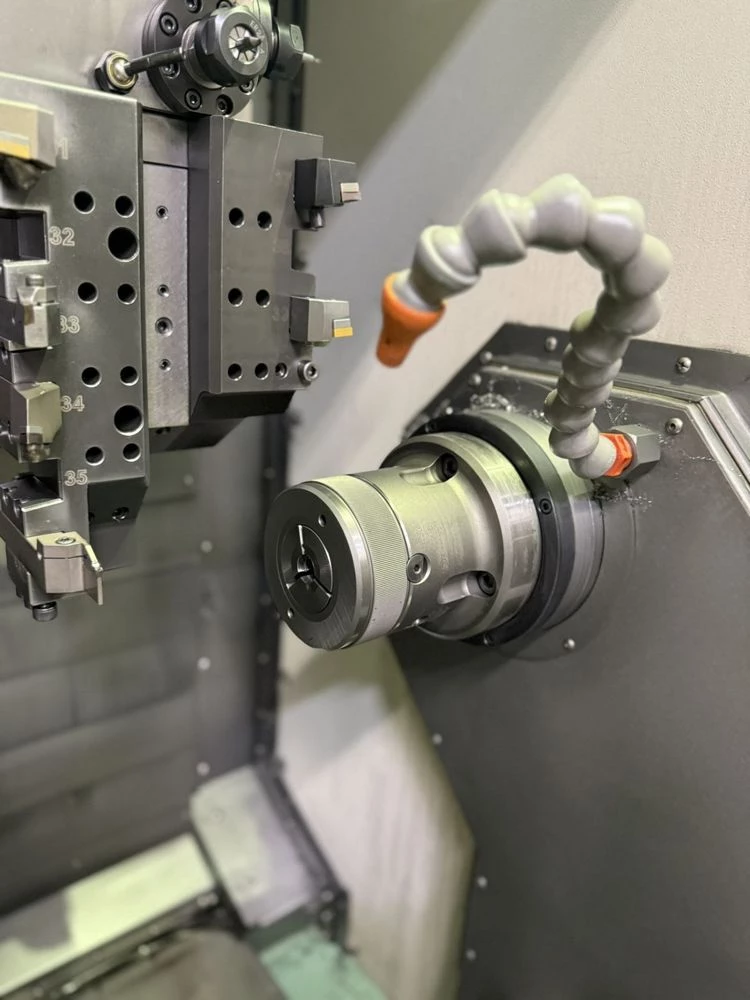

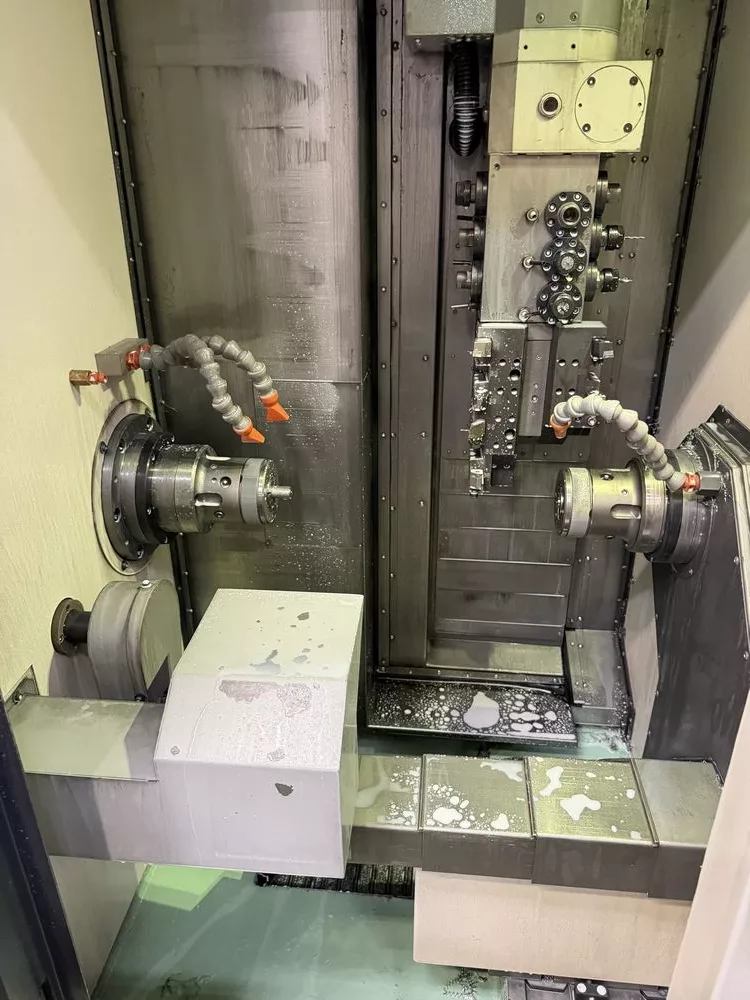

Collet Chuck on Main Spindle

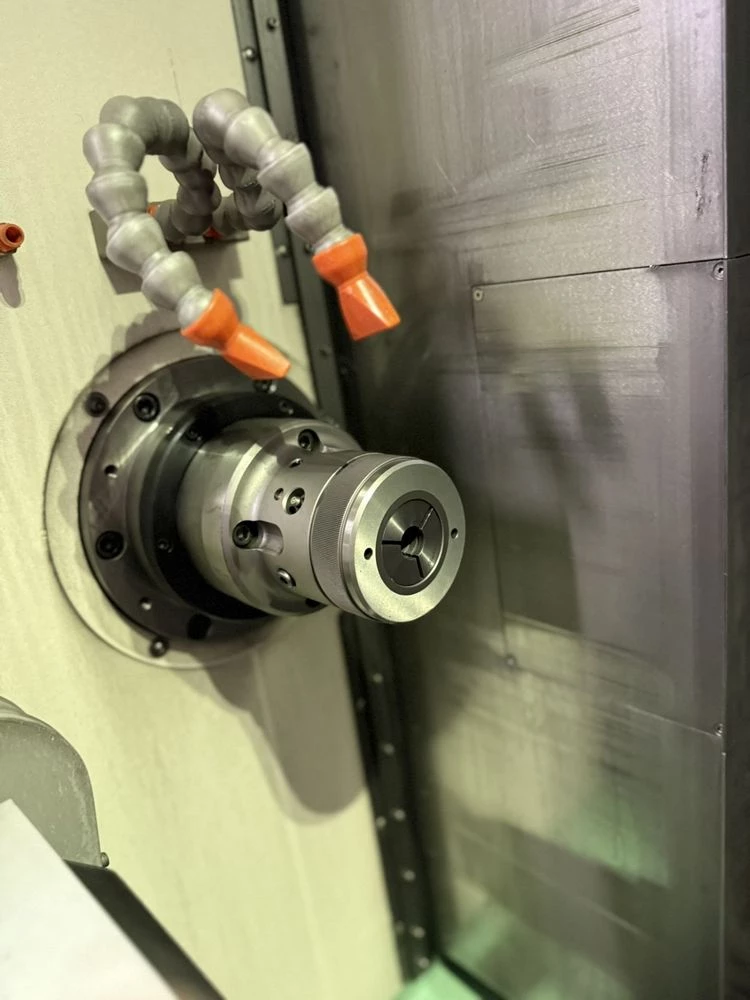

Collet Chuck on Sub Spindle
C Axis Live Tool
USB Drive & Memory Card Slot
Intelligent Door

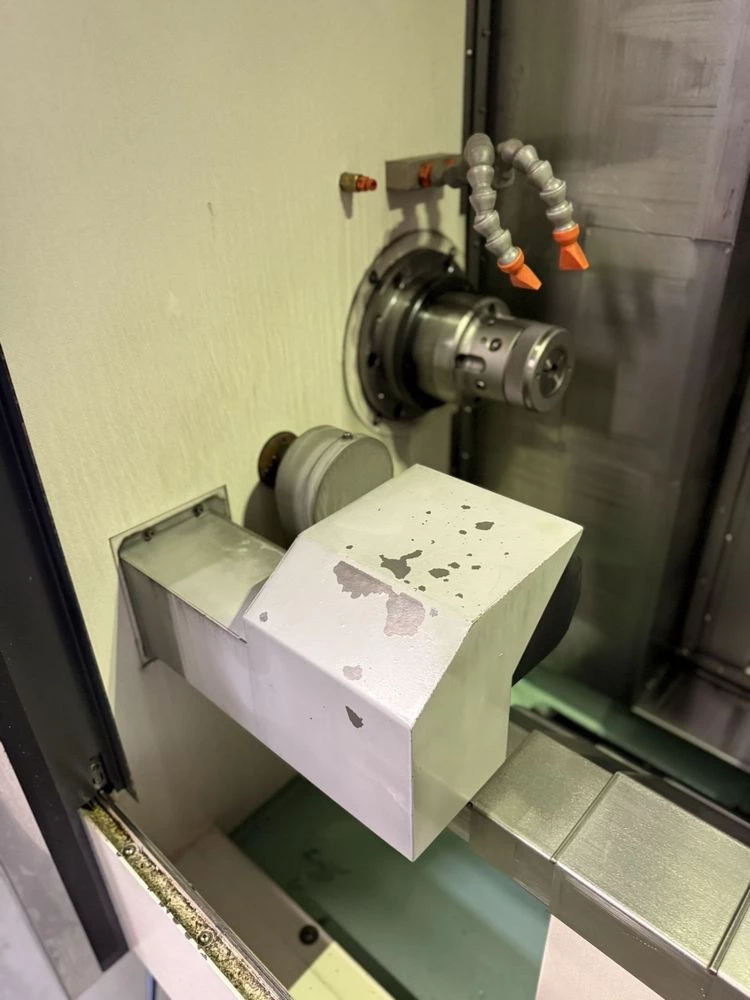

Parts Catcher
Parts Conveyor
Rigid Tapping on Both Spindles
Foot Operated Control for Chuck
Coolant System
Chip Conveyor

Spindle Capacity
Max. Bar Working Dia : 42.0 mm / 1.65″
Spindle Max. Turning Length. : 300.0 mm / 11.81″
Spindle Collet Chuck Type : KK5-173E42B
Spindle Nose : ISO(DIN) A2-5
Spindle Bore : 44.0 / 1.73″
Spindle Speed Range : 4000 RPM

Sub-Spindle Capacity
Max. Turning Dia. : 100.0 mm / 3.94″
Max. Bar Working Dia : 42.0 mm / 1.65″
Max. Turning Length. : 155.0 mm 6.10″
Collet Chuck Type : KK5-173E42B
Nose : ISO(DIN) A2-5
Bore : 30.0 mm / 1.18″
Speed Range : 4000 RPM

C Axis :
Positioning Accuracy : 0.001°

Travel & Feed
X-Axis Travel: 150.0 mm / 5.91″
Y-Axis Travel: 415.0 mm / 16.34″
Z-Axis Travel: 300.0 mm / 11.81″
Z-1 Axis Travel: 450.0 mm / 17.72″

A.T.C System
OD / ID Tools Main Spindle (1st) : 6 / 5 ?
OD / ID Tools Sub Spindle (2nd) : 3 / 4 ?
Tool Shank Size : 20.0 mm / 0.79″
Boring Bar (main) : ER-20/20mm / 0.79″
Boring Bar (sub) : ER-20/20mm / 0.79″

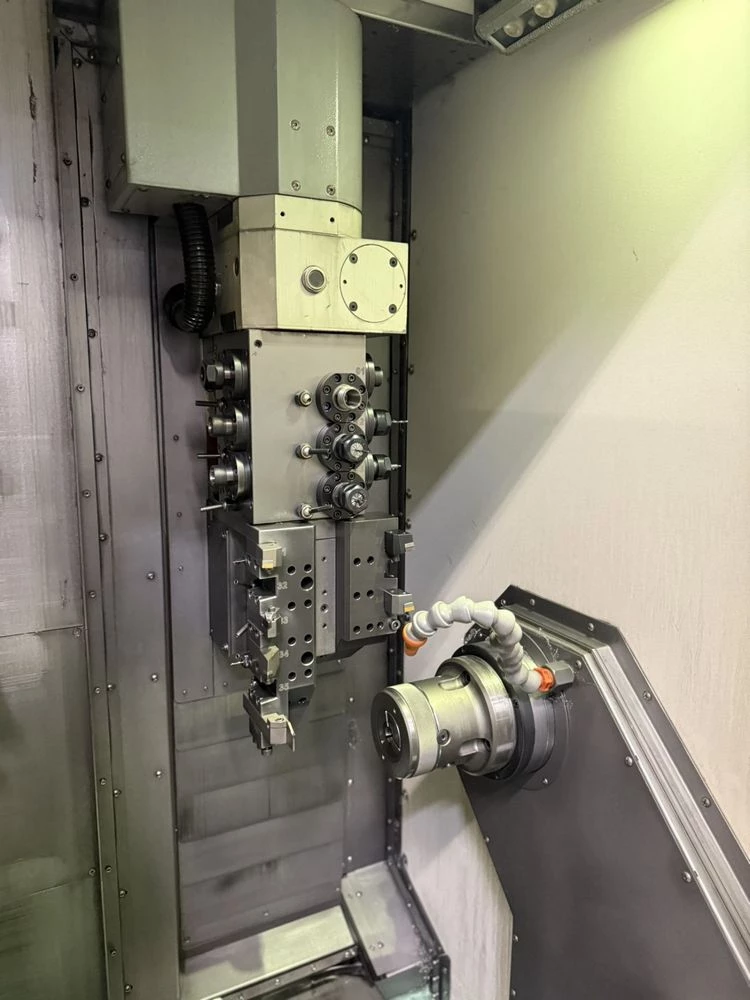

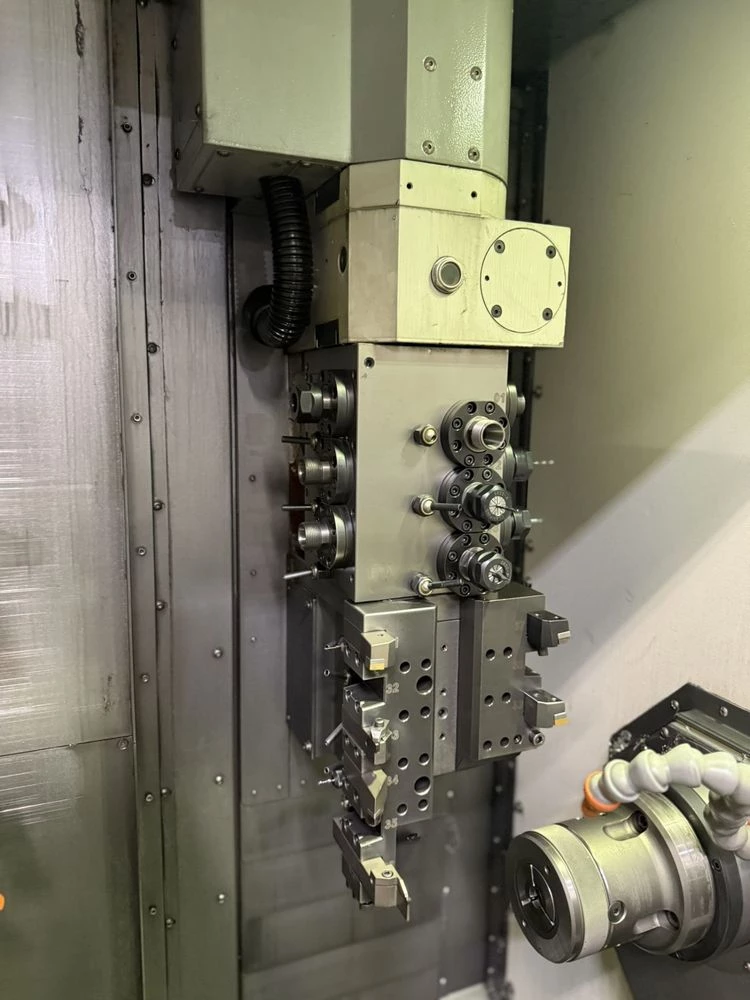

Motorized Tool
Index Time: 0.3 sec (One) / 0.6 sec (Full)
Number of motorized tools : 12
B-Axis Rotation: 360°
Max Tool Speed: 4,000 RPM
Size : ER-20
Max Drilling Diameter: 12.0 mm / 0.47″
Max Tapping Capacity: M10 × 1.5

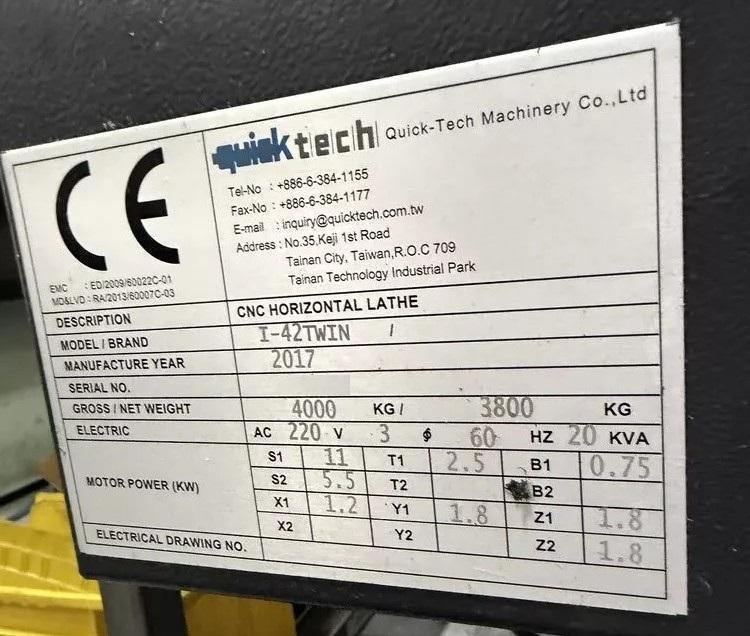

Motors (Fanuc)
Main Spindle Motor: 11.0 kW (15 HP)
Sub-Spindle Motor: 5.5 kW (7.5 HP)
X1 Axis Servo Motor: 1.2 kW (1.6 HP)
Y-1 Axis Servo Motor: 1.8 kW (2.4 HP)
Z-1, Z2 Axis Servo Motor: 1.8 kW (2.4 HP)
B1 Axis Servo Motor: 0.75 KW (1.0 HP)
T1 Motorized Tool Servo Motor: 2.5 kW (3.35 HP)

Hydraulic System
Hydraulic Motor: 1 HP
Tank Capacity: 50 L / 13.2 gal
Max Pressure: 50 kg/cm² / 711 PSI

Lubrication
Lubrication Motor: 25 W / 0.03 HP
Tank Capacity: 2.0 L / 0.53 gal
Max Pressure: 15 kg/cm² / 213 PSI

Coolant System
Coolant Pump Pressure: 5 bar / 73 PSI
Coolant Tank Capacity: 240 L / 63.4 gal
Coolant Motor: 2 HP

General
Power Required: 220v / 3-phase / 60 Hz / 20 KVA
Length: 3,500 mm / 137.8″
Width: 1,800 mm / 70.9″
Height: 1,900 mm / 74.8″
Machine Weight: 4,000 kg / 8,818 lbs
