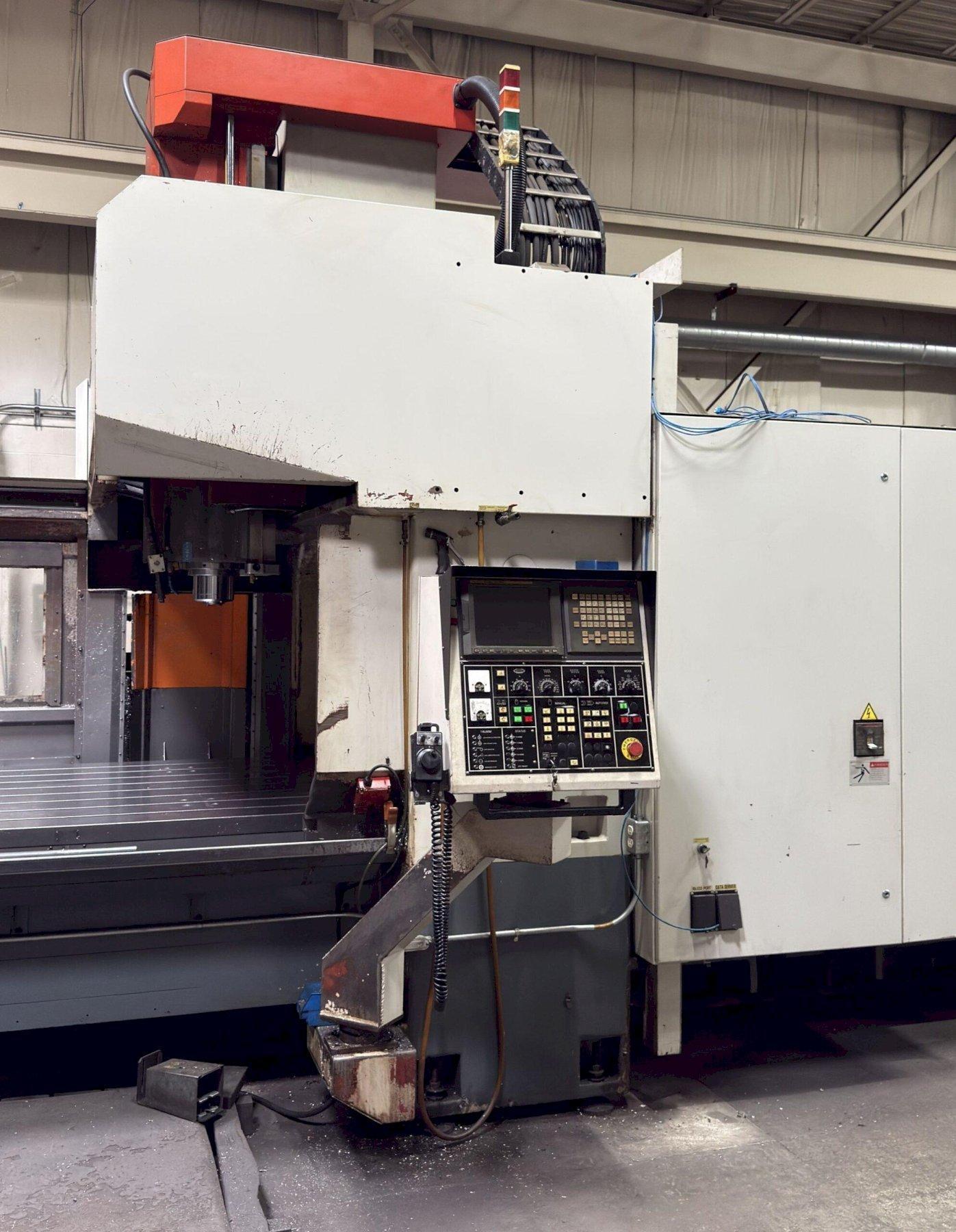

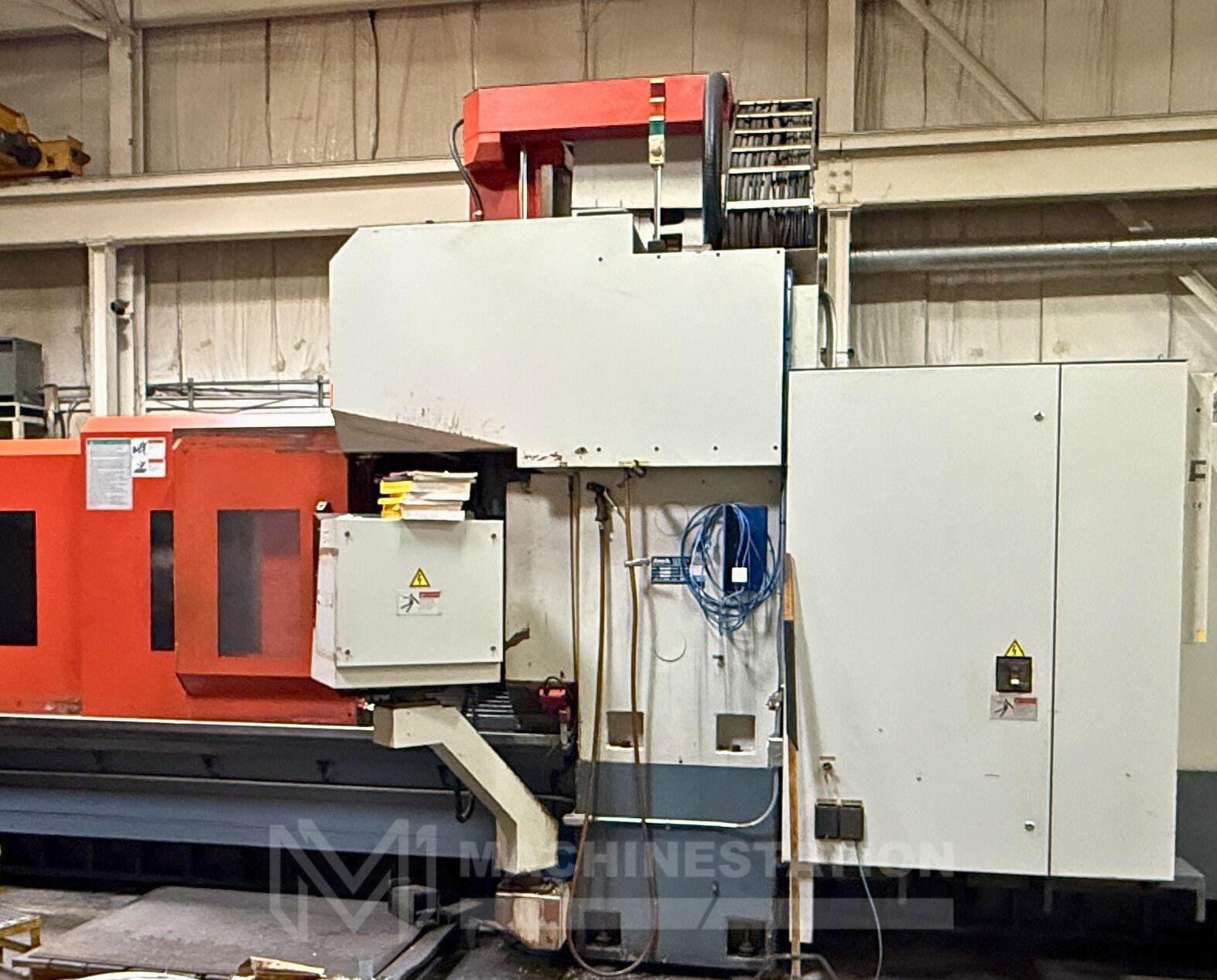

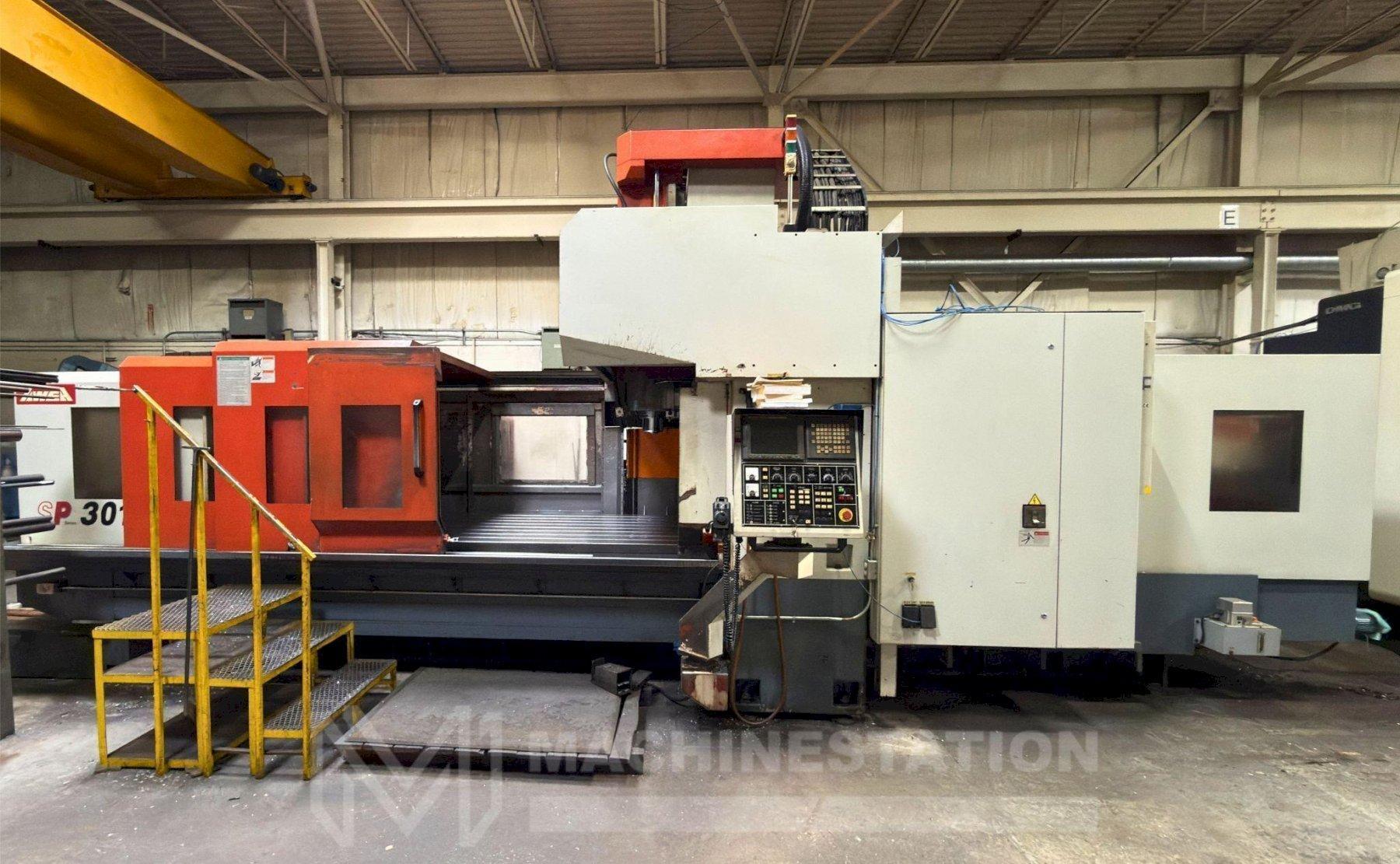

Awea SP-3016HSS High Speed Bridge Type CNC Machining Center – 15,000 RPM Mill

Awea SP-3016HSS High Speed Bridge Type CNC Machining Center – 15,000 RPM Mill

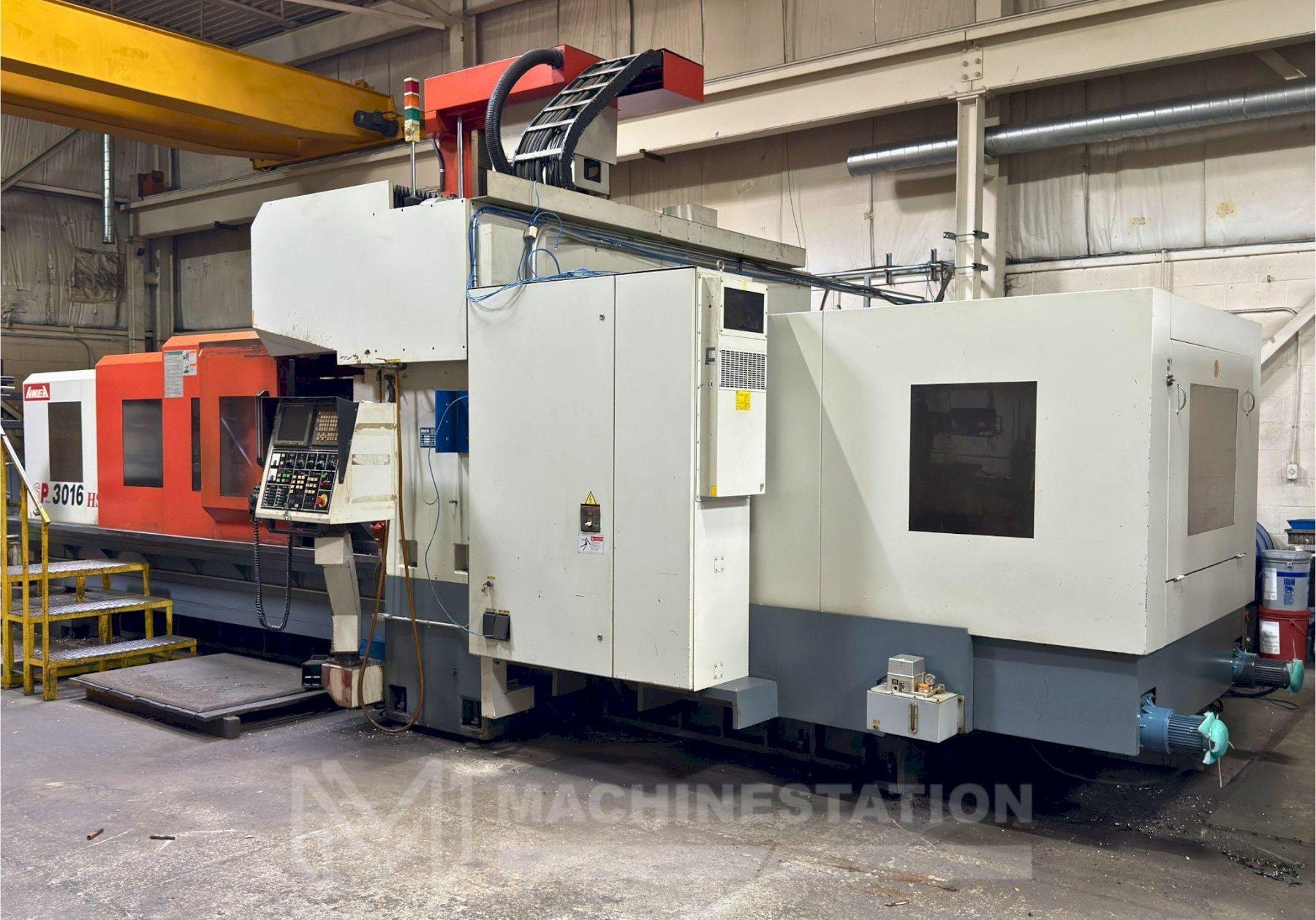

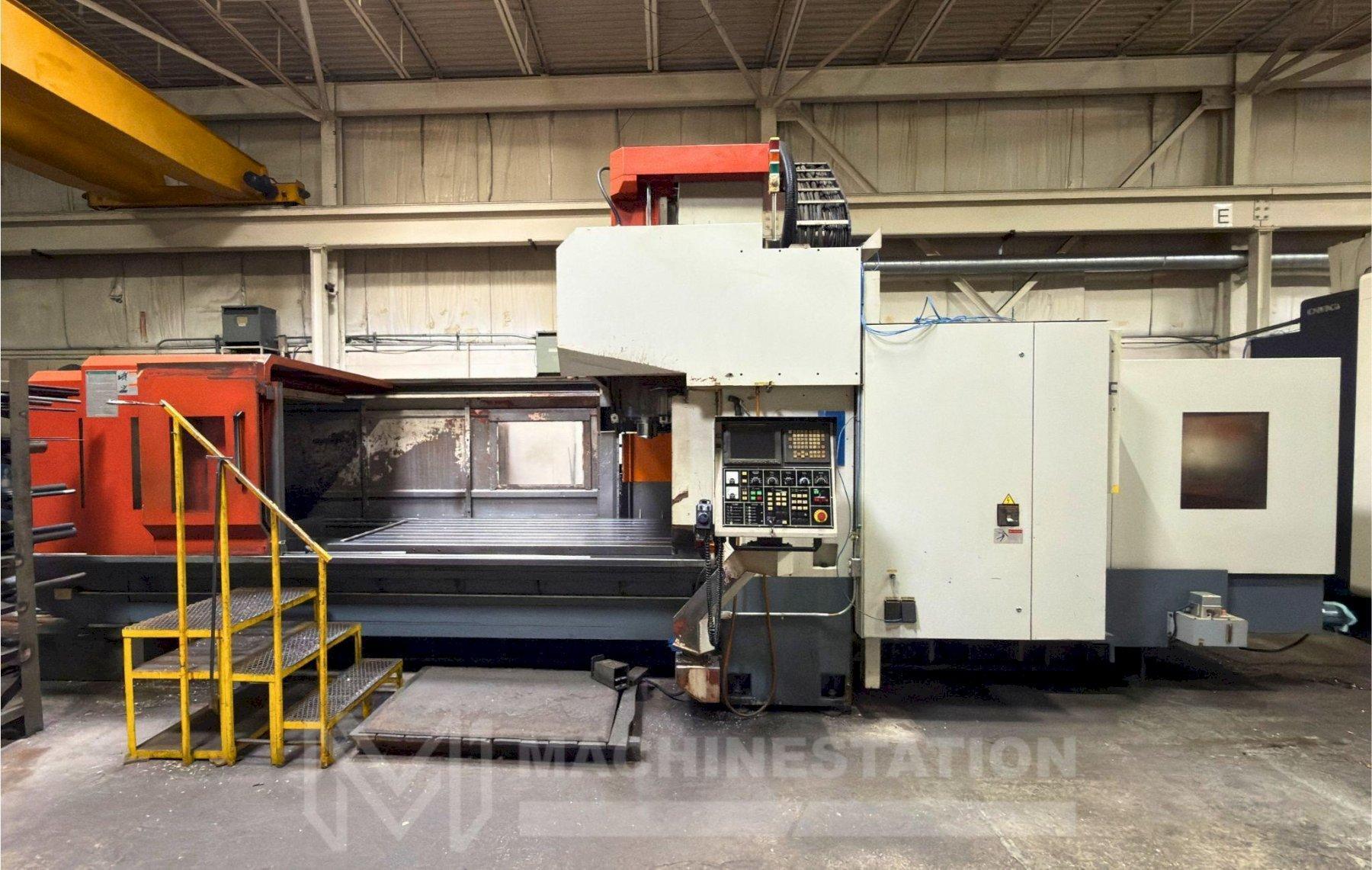

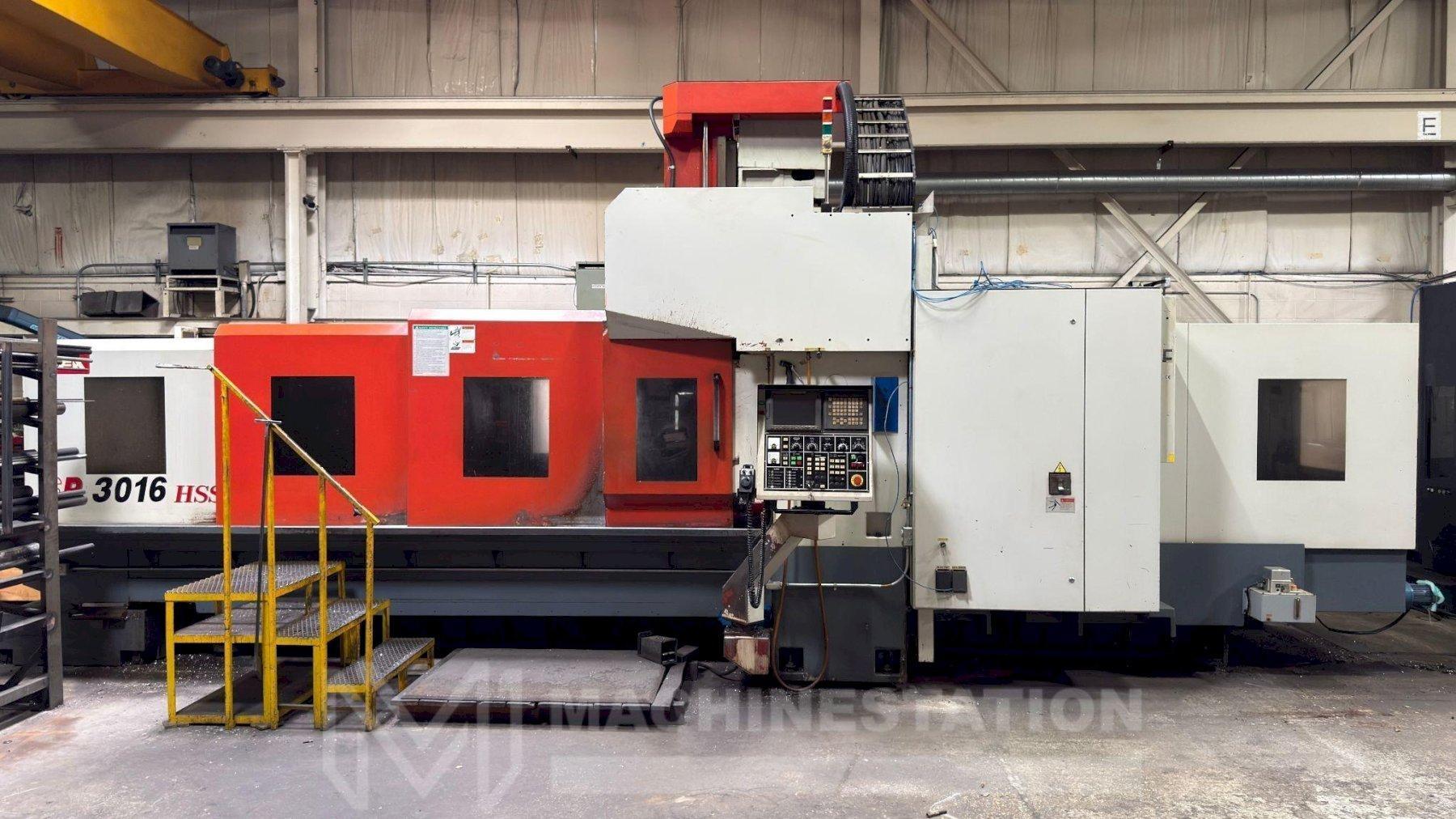

Name: Awea SP-3016HSS High Speed Bridge Type CNC Machining Center – 15,000 RPM Mill
Brand: AWEA
SKU: 112938
Availability: InStock

Brand

AWEA

Location

Not specified

Specifications
Files & Videos

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

SKU:	112938
Make:	Awea
Model:	SP-3016HSS

Equipped With:

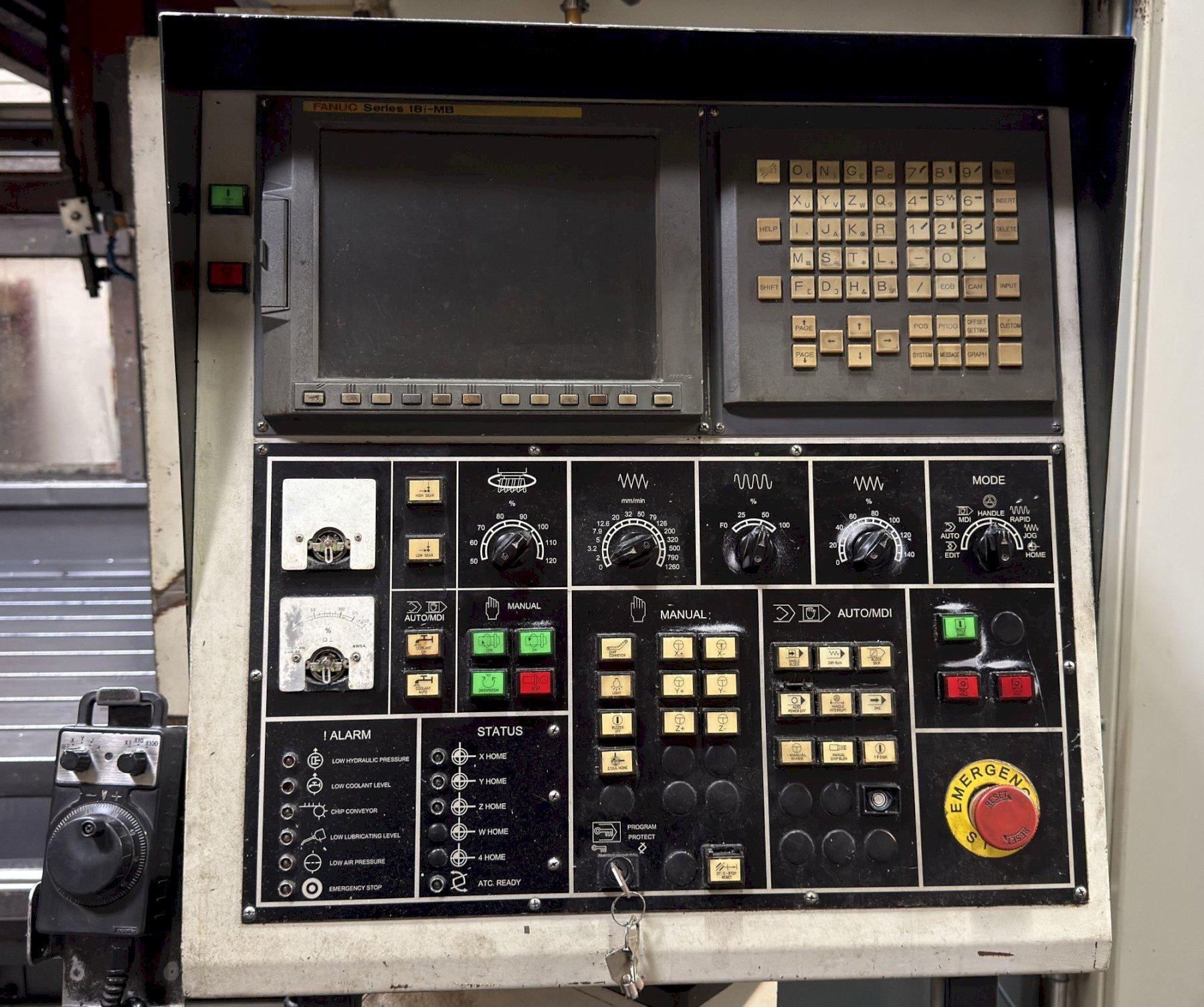

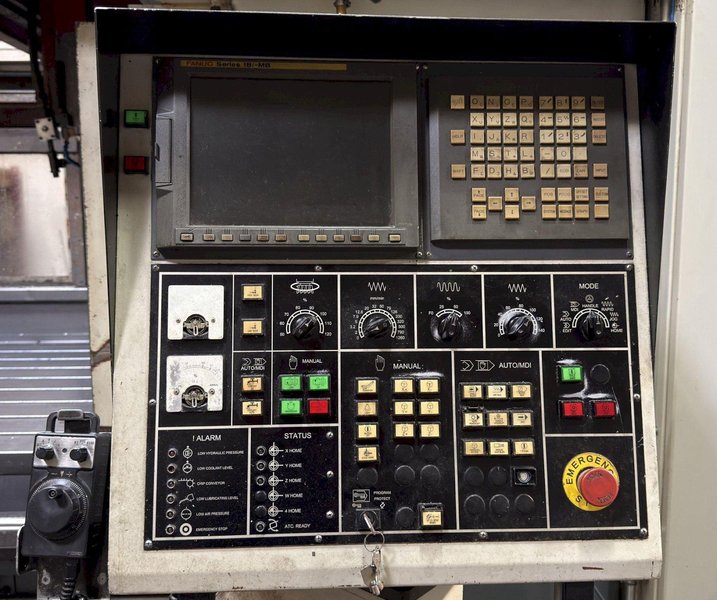

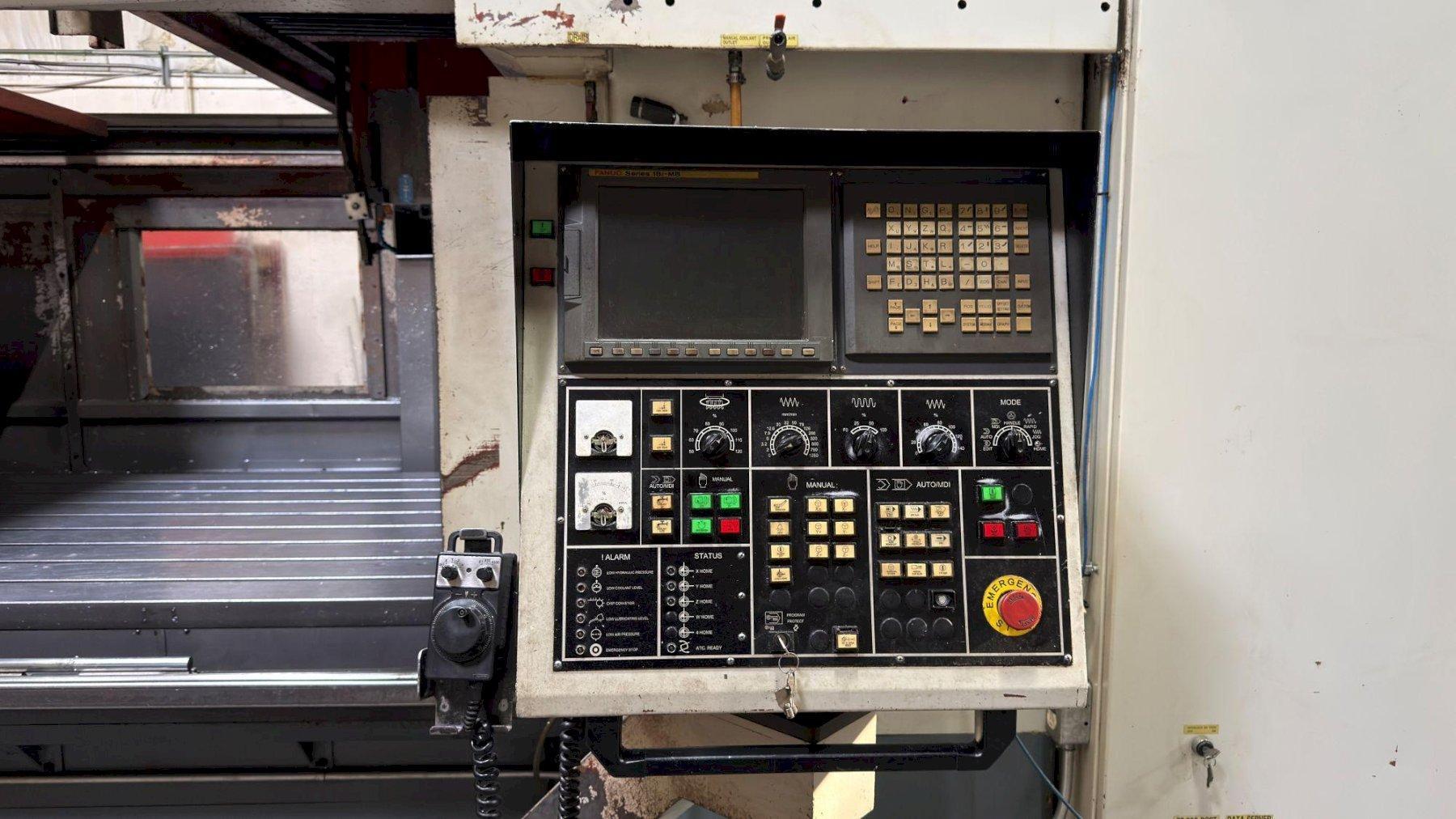

Fanuc 18iMB CNC Control

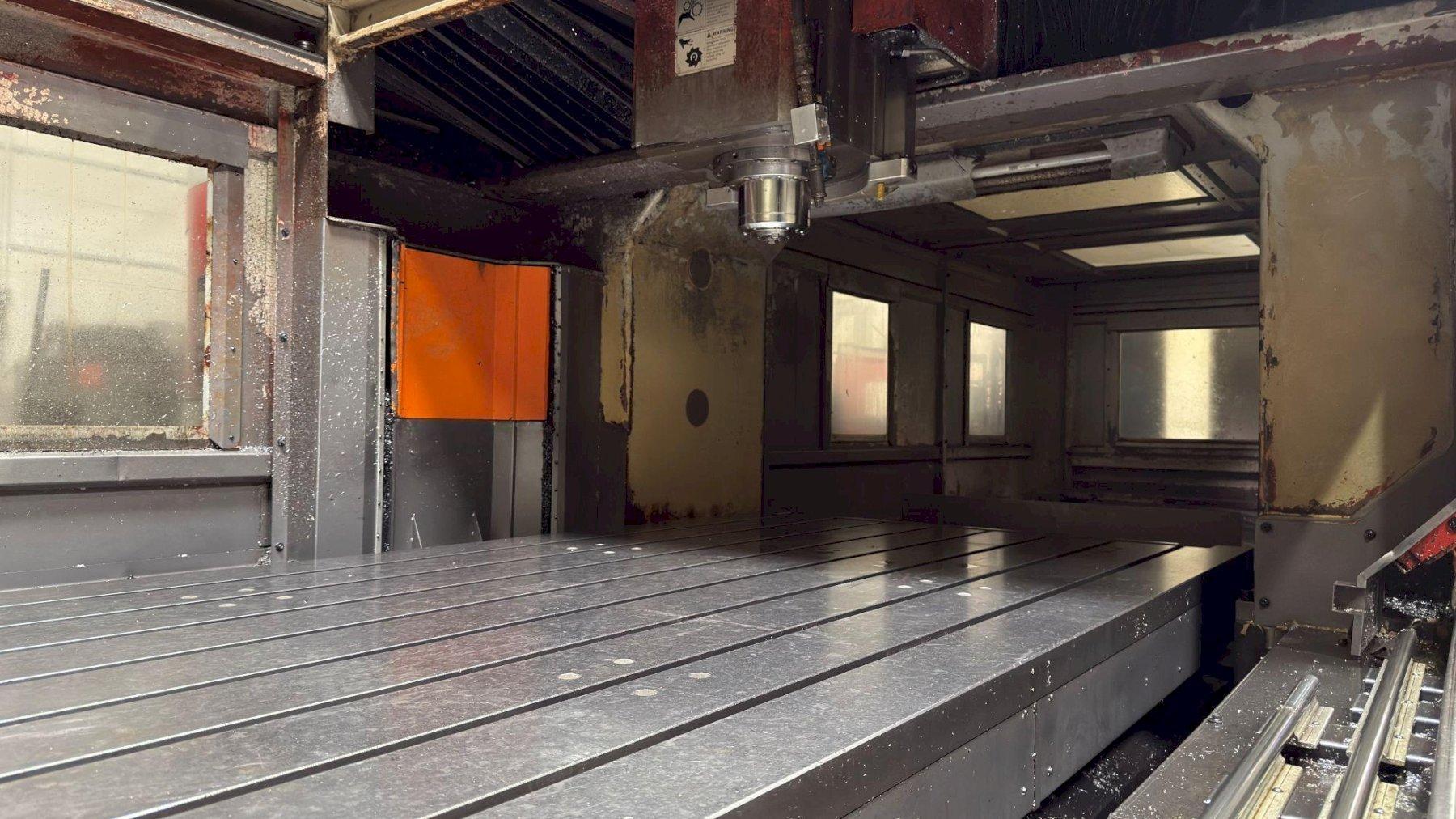

128.3″ X 59.0″ Table
19 Station Side Mount Tool Changer
CAT-40 Spindle Taper

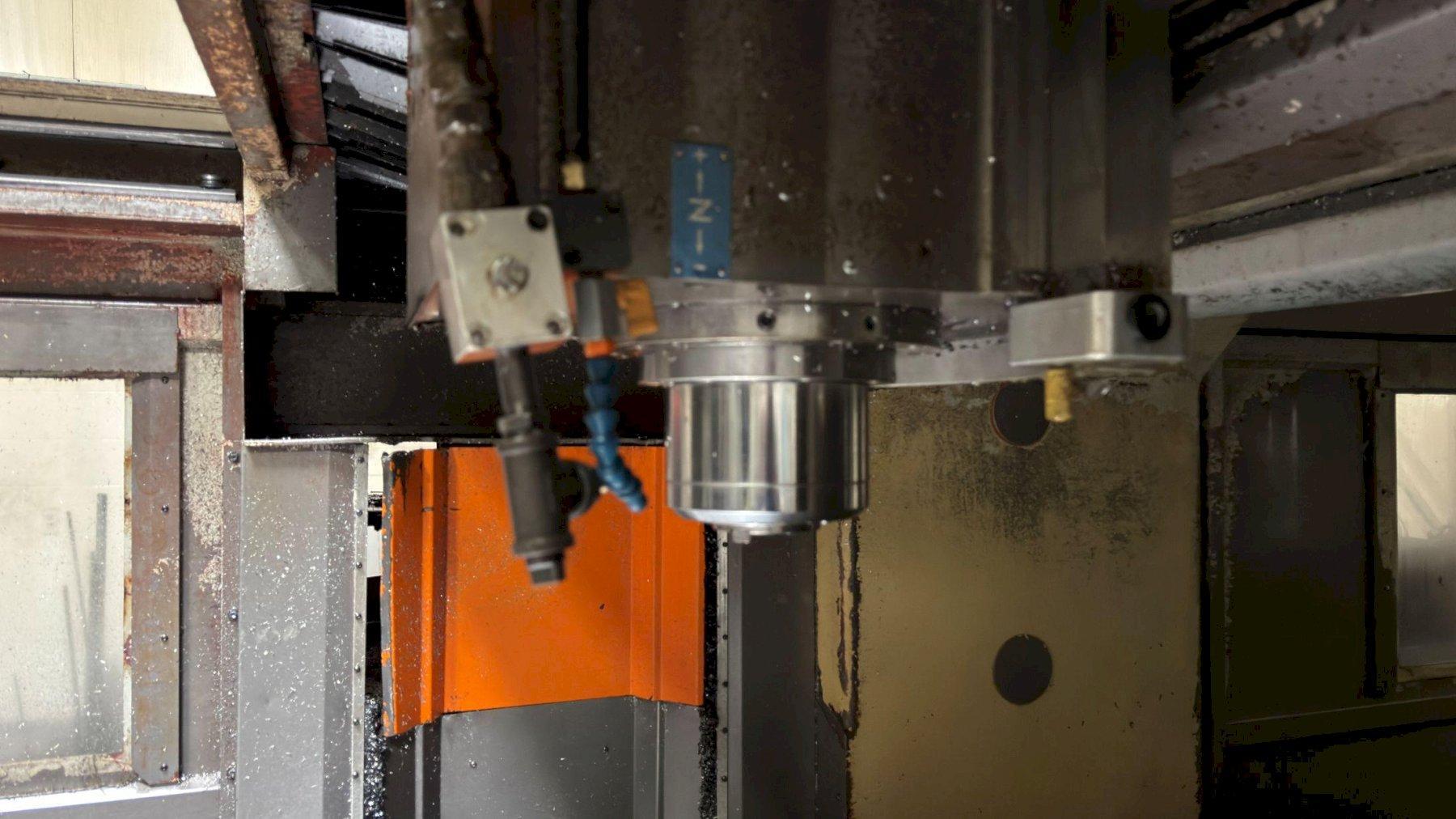

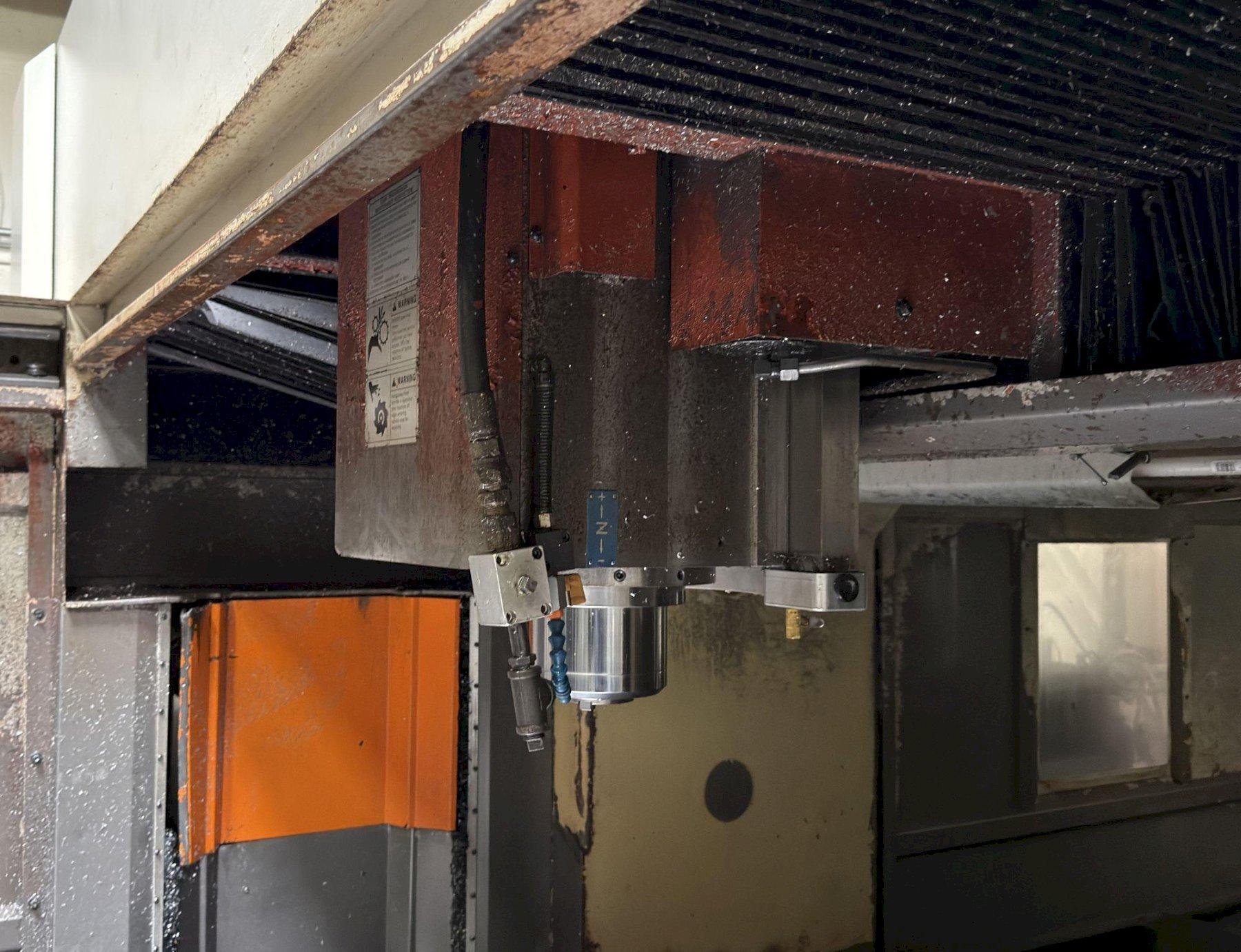

15,000 RPM High Speed Spindle
Powerful 30 HP high torque spindle motor
PCMCIA Card Slot
MPG Handwheel Control
Chiller Unit
Coolant System
Chip Conveyor

Travels:
X-Axis: 120.5″
Y-Axis: 63.0″
Z-Axis: 30.0″
Distance Between Columns: 66.9″
Spindle Nose to Table (Min.- Max.): 6.3″- 36.2″
Rapid Travers Rates X,Y-Axis: 787 inch per minute
Rapid Travers Rates Z-Axis: 591 inch per minute
Cutting Feedrate: .04″ – 591″ inch per minute

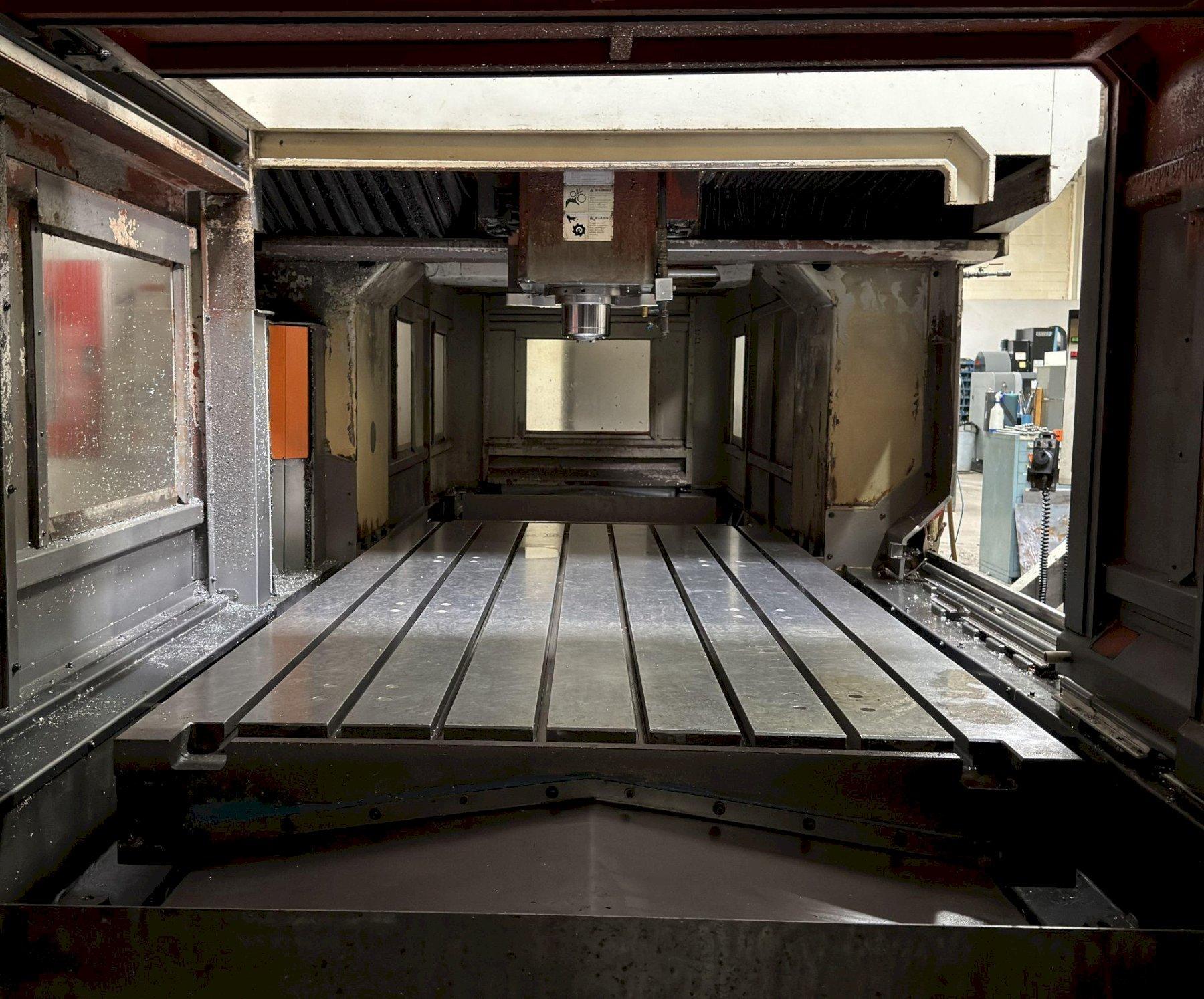

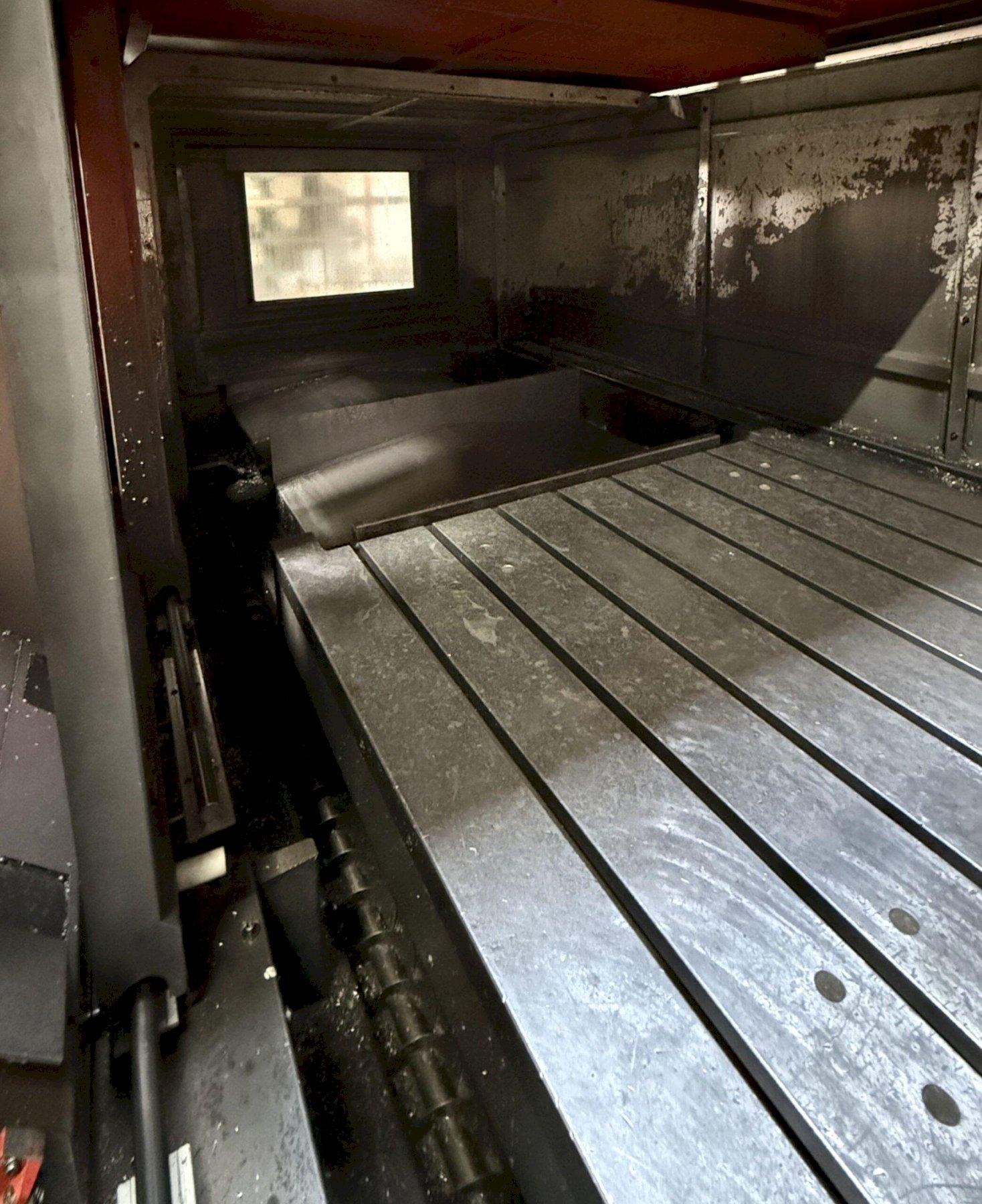

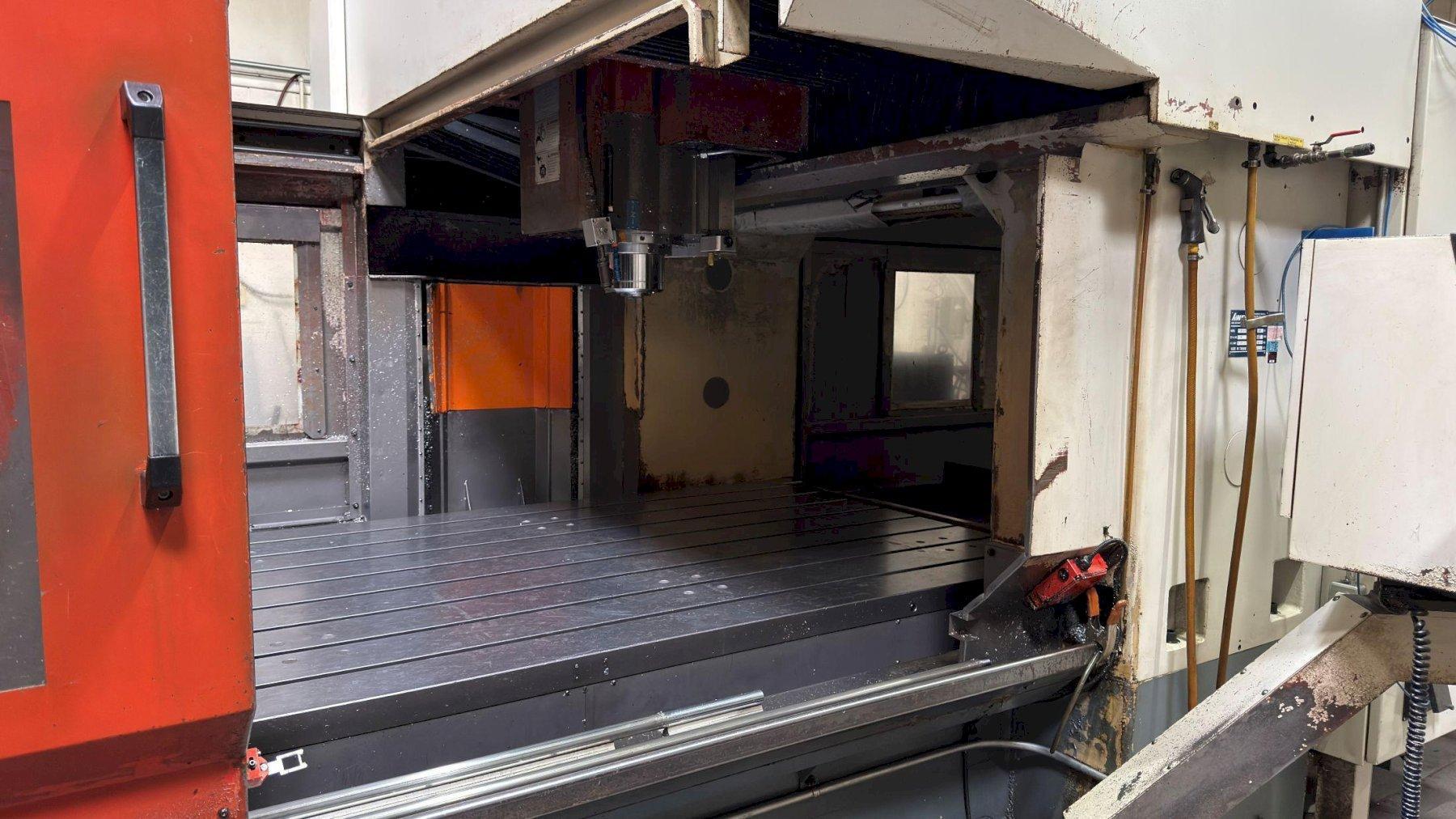

Table:
Length: 128.3″
Width: 59.0″
Max Weight on Table: 22,000 lbs

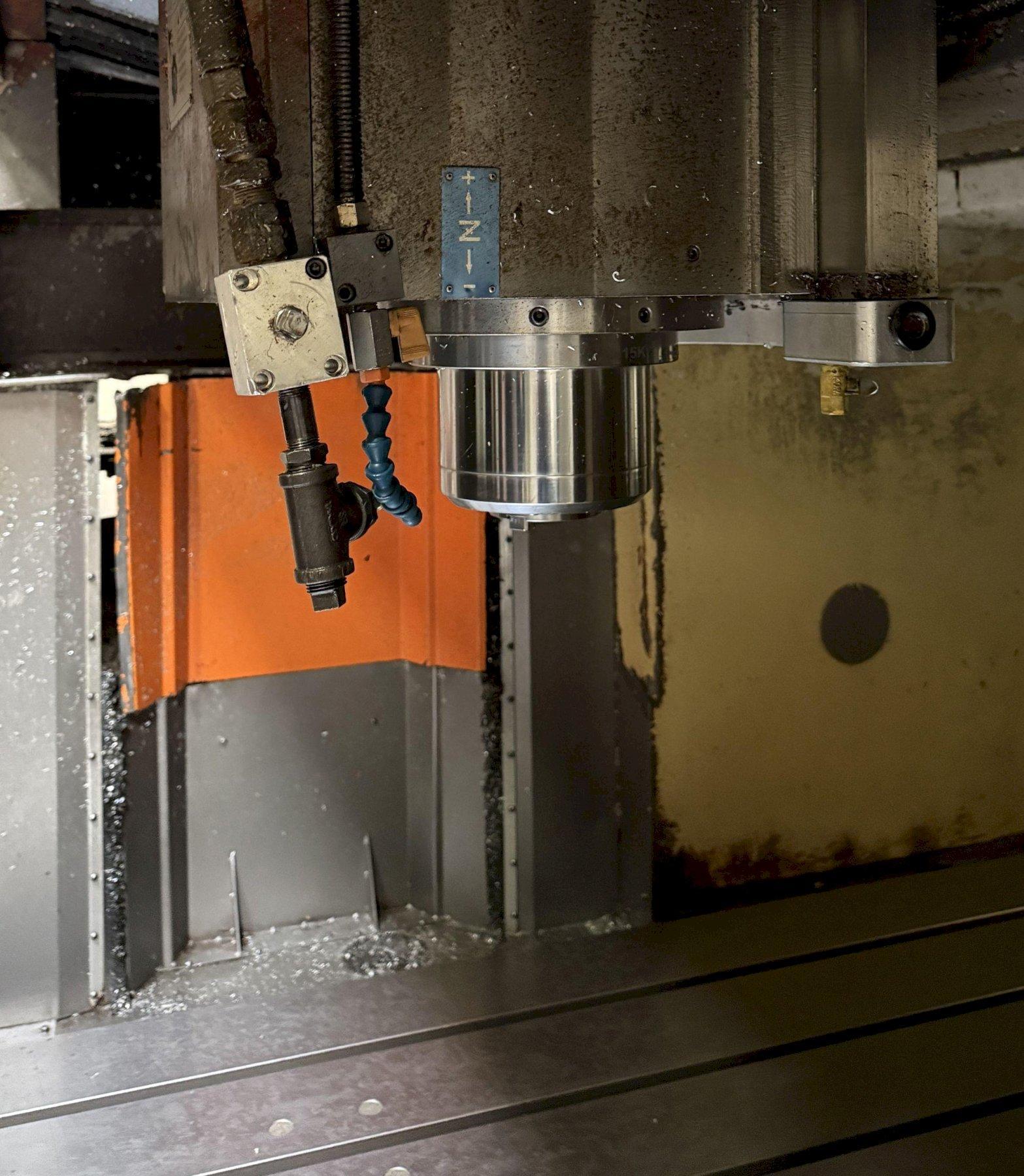

Spindle:
Taper Size: CAT-40
Speed Range: 15,000 RPM
Spindle Power: 35 HP

Automatic Tool Changer:
Capacity: 19 Tools
Max Tool Weight: 15 lbs
Max Tool Length: 11.8″
Max Tool Dia.: 4.0″ – 5.0″
Tool Change Time (Tool to Tool): 12 sec.

General:
Air Required: 100 psi, 4 scfm
Power: 220v / 3-Phase
Dimensions: 342″ X 184″ x 153″ High Approx.
Weight: 52,000 lbs. Approx.

No files or videos to display
