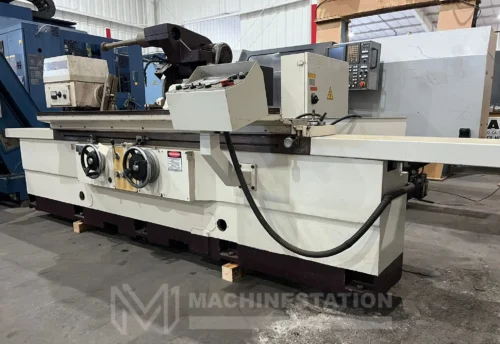

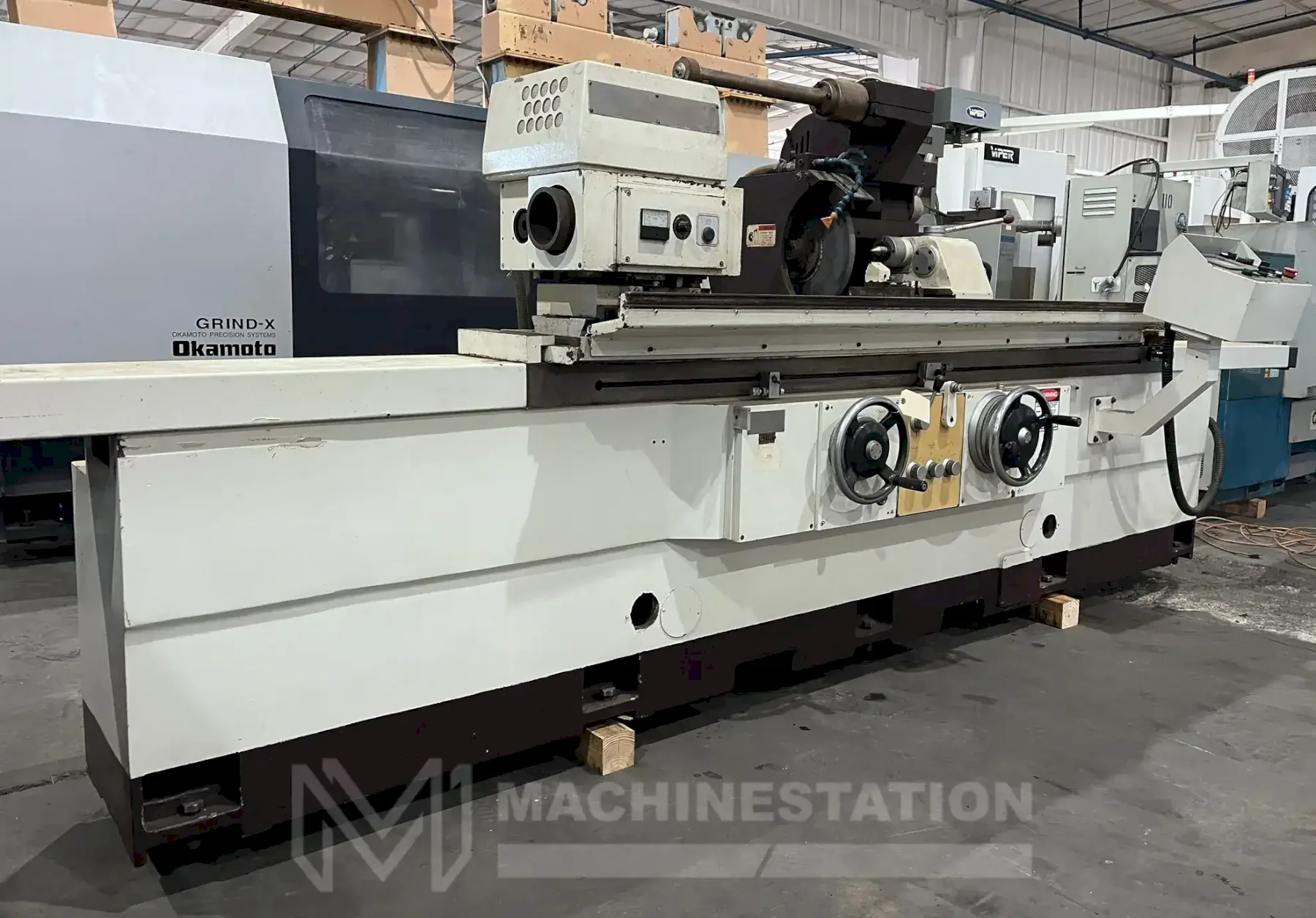

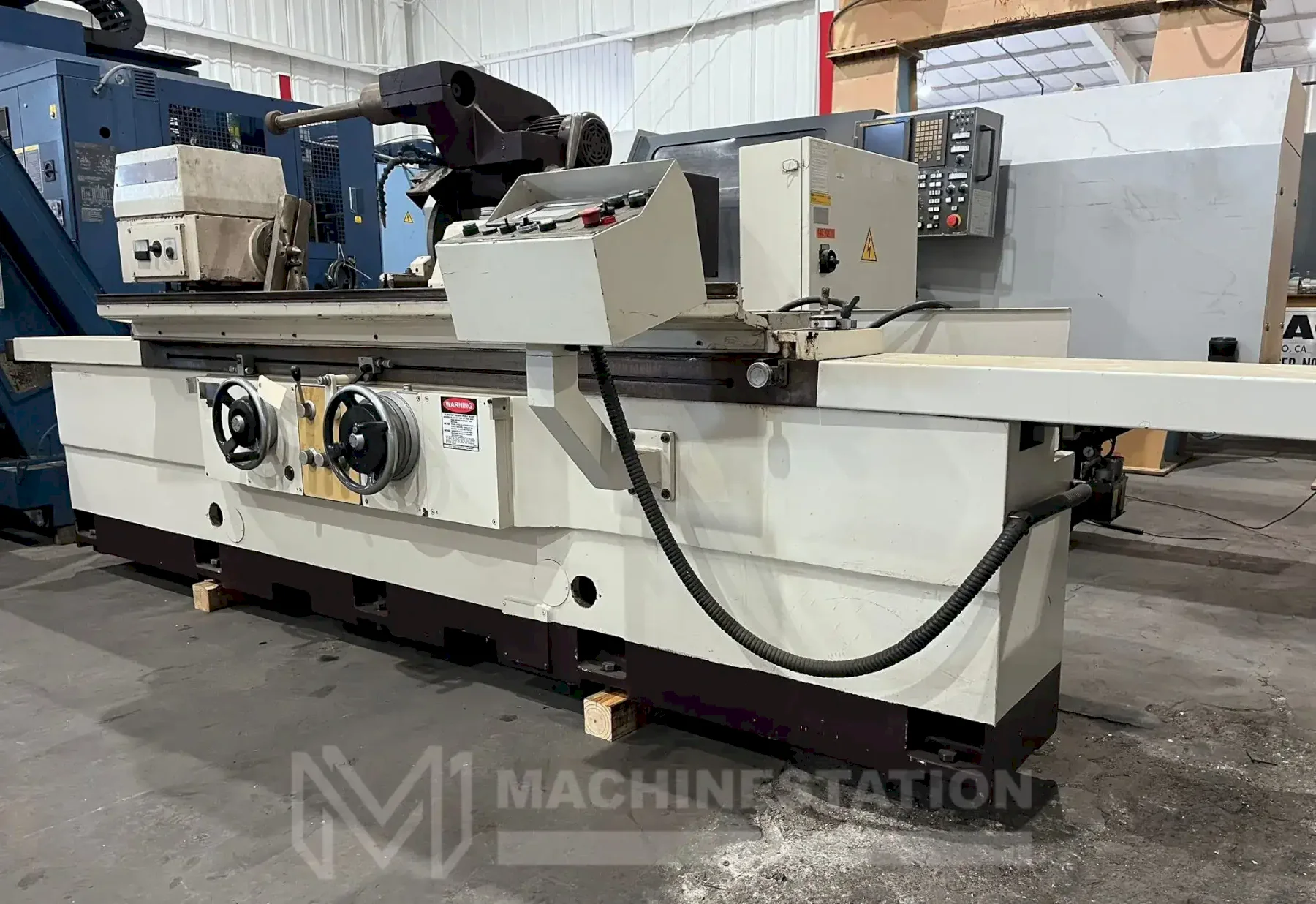

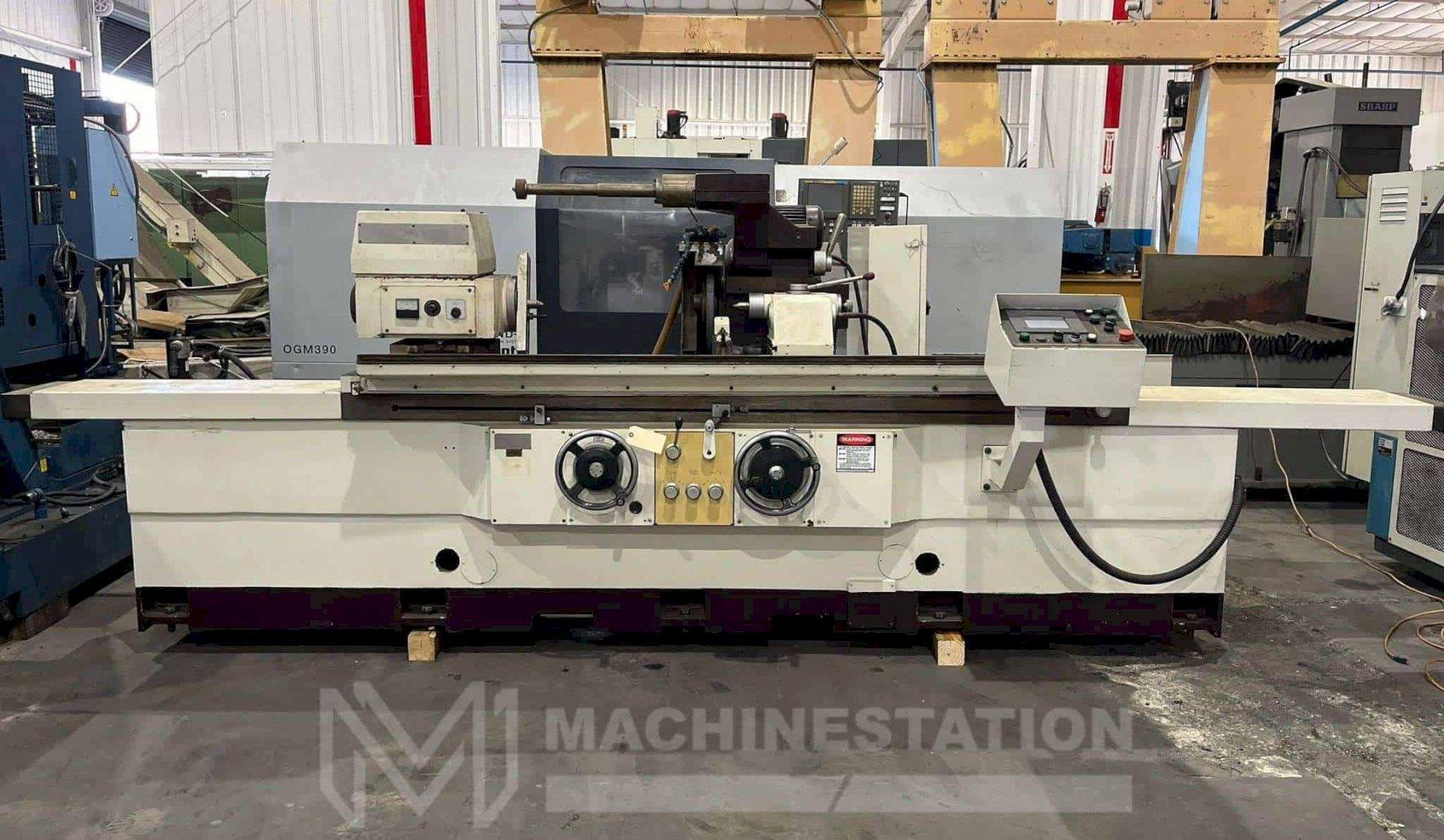

Chevalier CG-1460A Automatic Universal Cylindrical Grinder

Brand
CHEVALIER
Category
CNC, Metalworking & Manufacturing
Type
Grinding Machines
Model
CG-1460A
Stock #
112634
Year
2000
Condition
Not specified
Location
Not specified
REQUEST FINANCING

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make: Chevalier

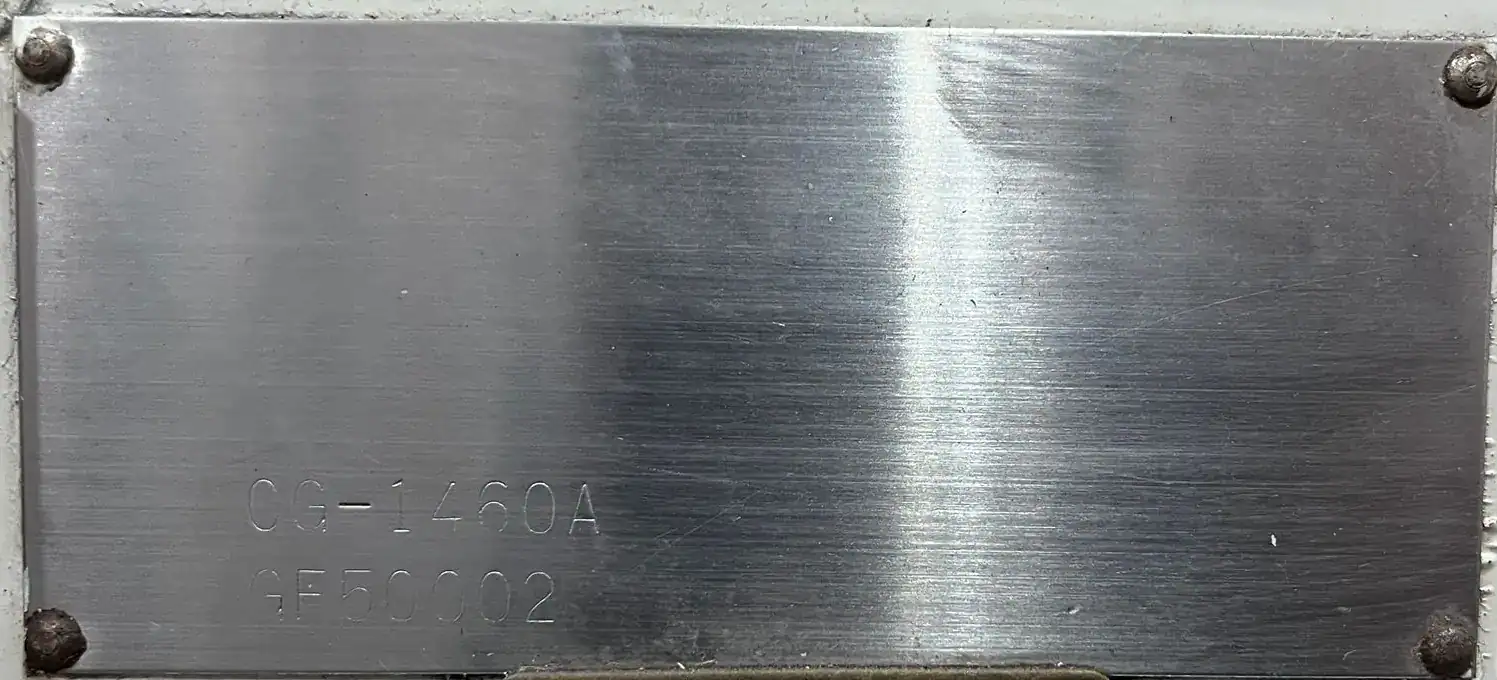

Model: CG-1460A
Year: 2000
Condition: Used – Good



Equipped With:

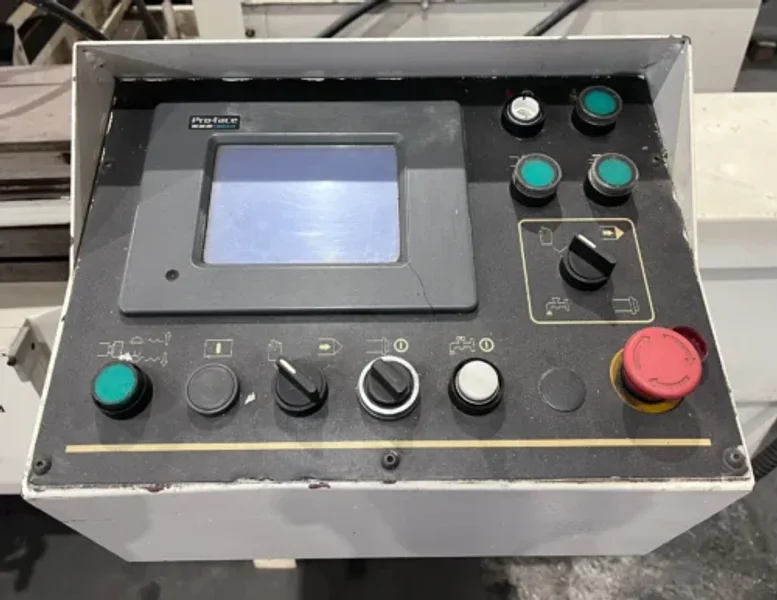

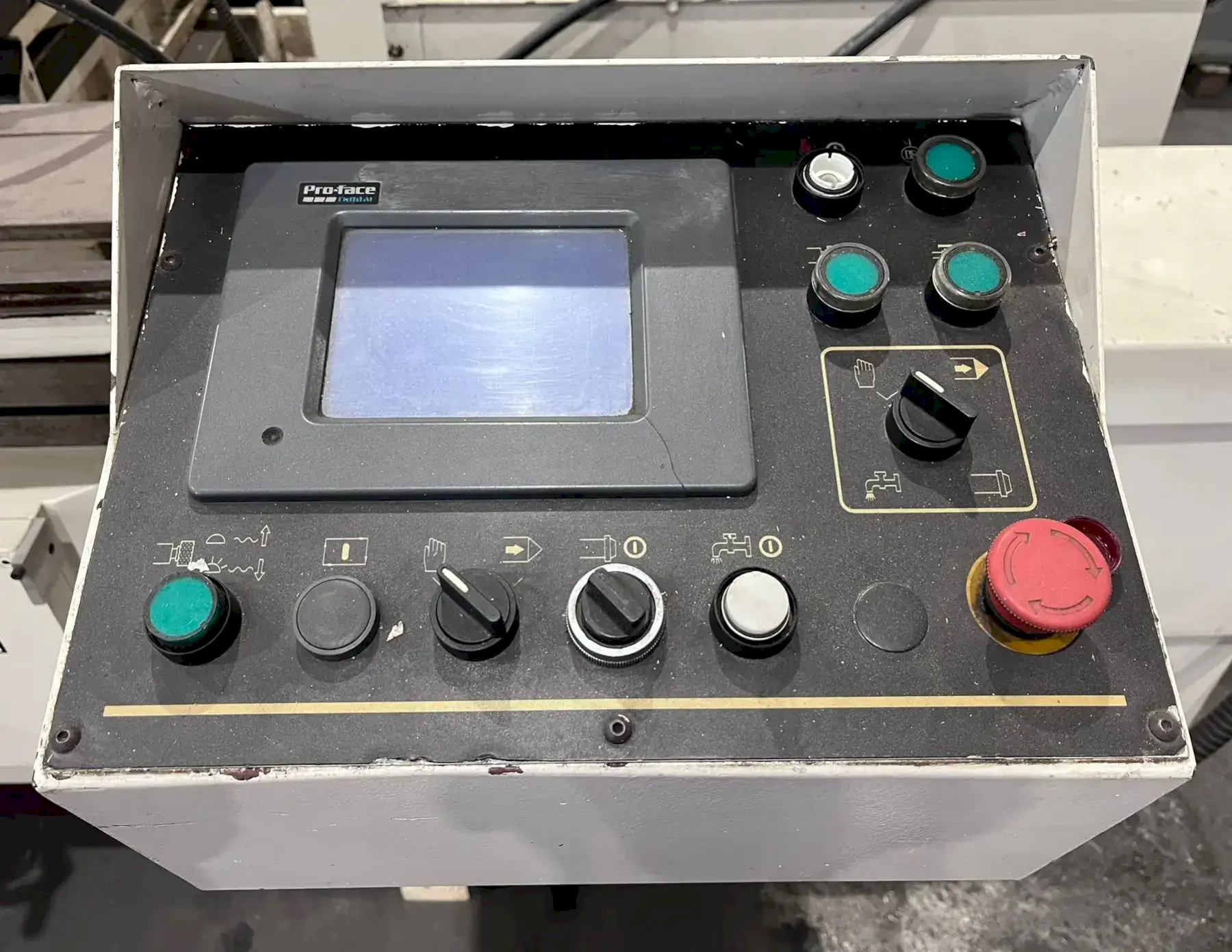

Pro-Face PLC Control
Automatic Grinder Cycle (Rough Grind, Fine Grind, Spark out, Return)

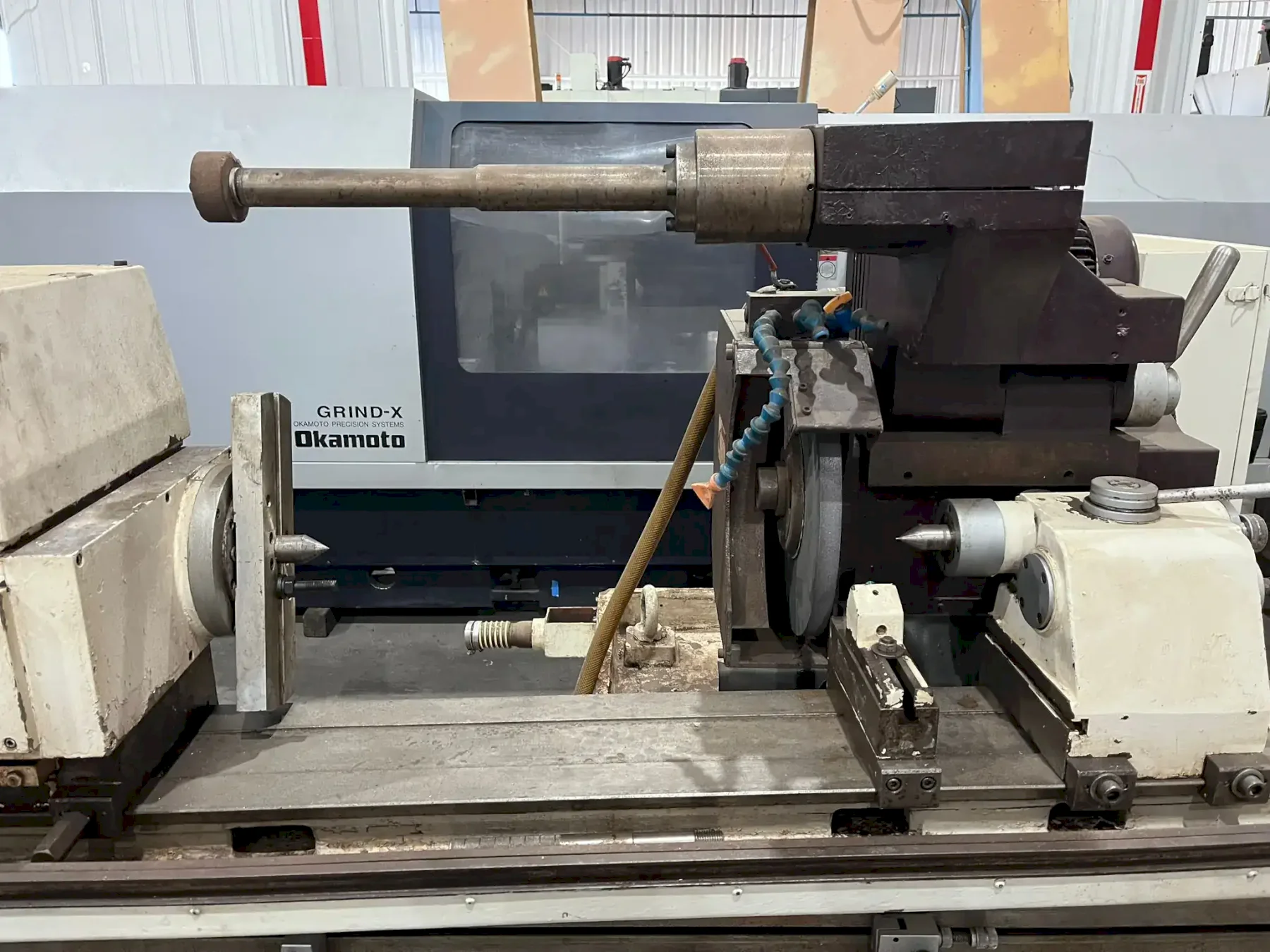

Swing Down Internal Attachment
Tailstock Mounted Dresser
Coolant System with Magnetic Separator
Hydraulic Unit



Capacity:
Max Grinding Diameter: 14.17″
Max Grinding Length: 59.0″
Max load Capacity: 330 lbs
Swing Over Bed: 14.9″
Distance Between Centers: 60.0″

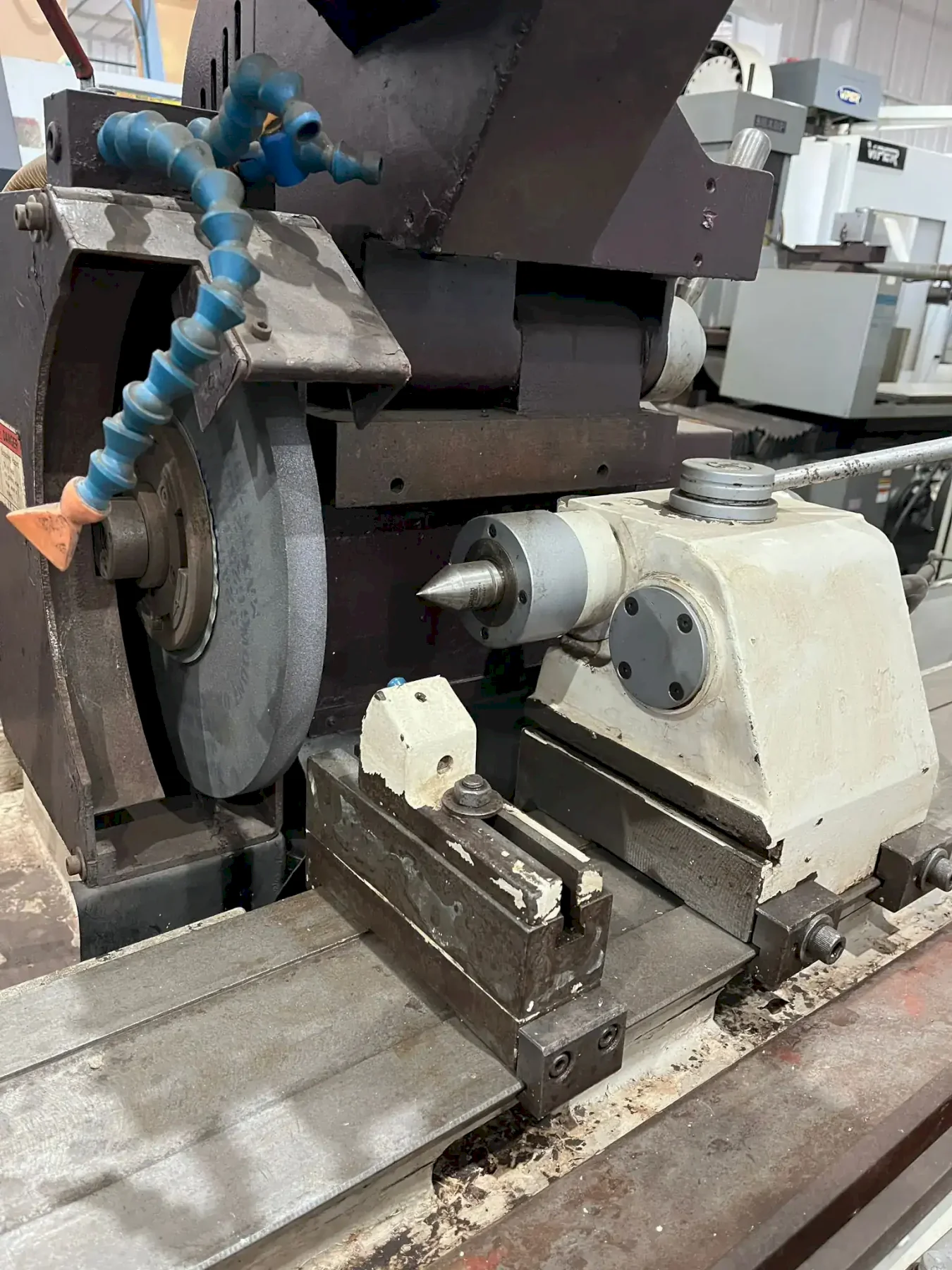

Wheelhead:
Grinding wheel Size: 16″ X 2″ X 5″
Speed: 1650 RPM
Wheelhead Motor Power: 5 HP
Maximum Infeed Travel: 9.64″

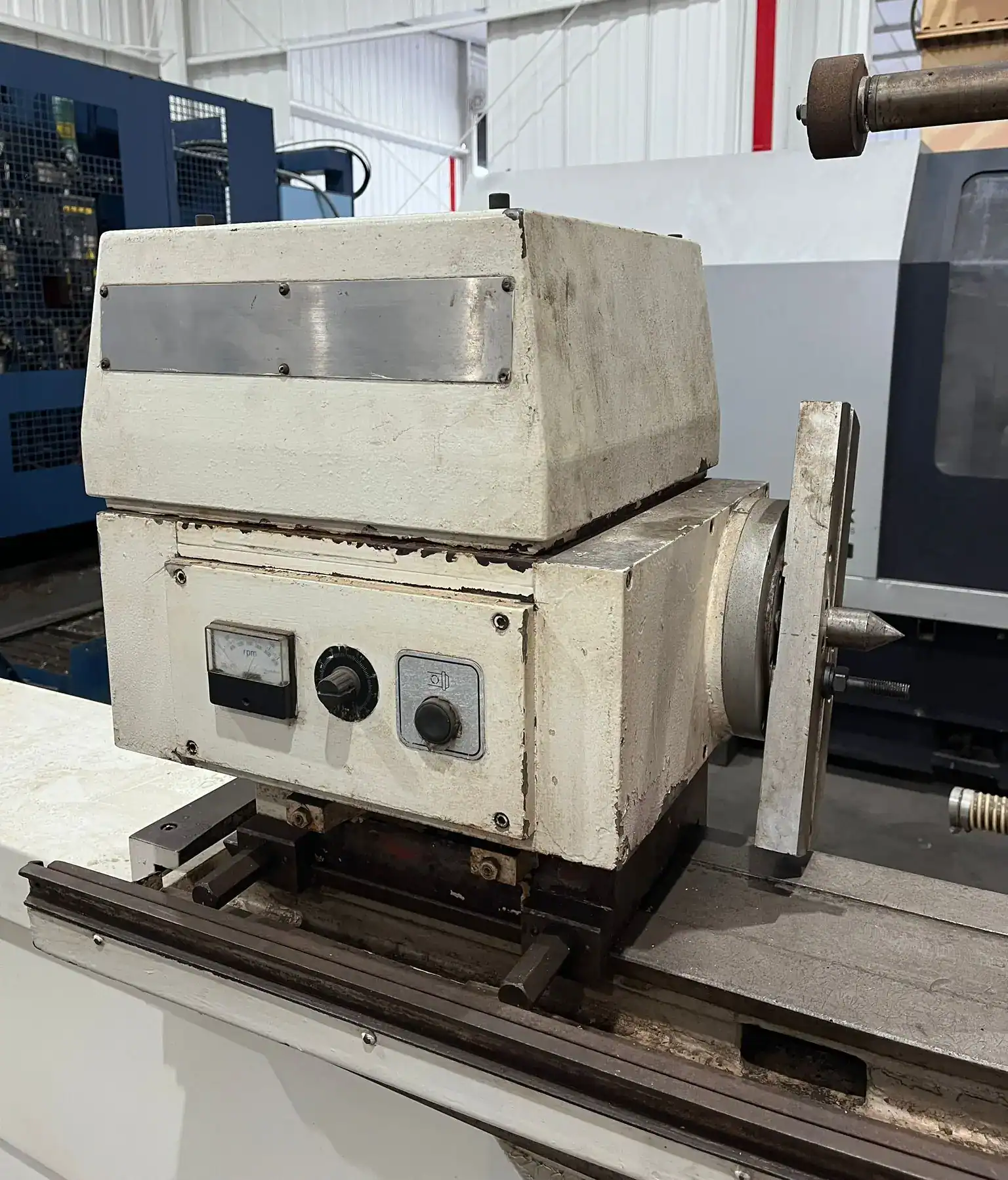

Workhead:
Spindle Speeds: 25 to 350 RPM
Spindle Center/Rotation: MT#4 / Dead & Live
Swiveling Angle: 90 degrees CCW



Table:
Table Speed: 2 to 118 IPM
Table Swivel Angle (CCW/CW): +5° /- 5°
Table Handwheel per Revolution: 0.39″
Table Minimum Traverse Length: 0.3″



Tailstock:
Tailstock Quill Stroke: 1.0″
Tailstock Taper: MT-4



General:

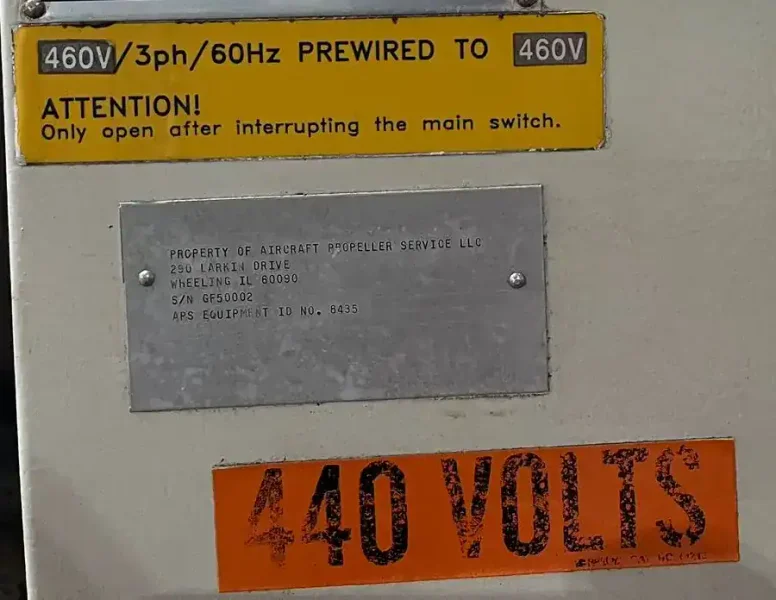

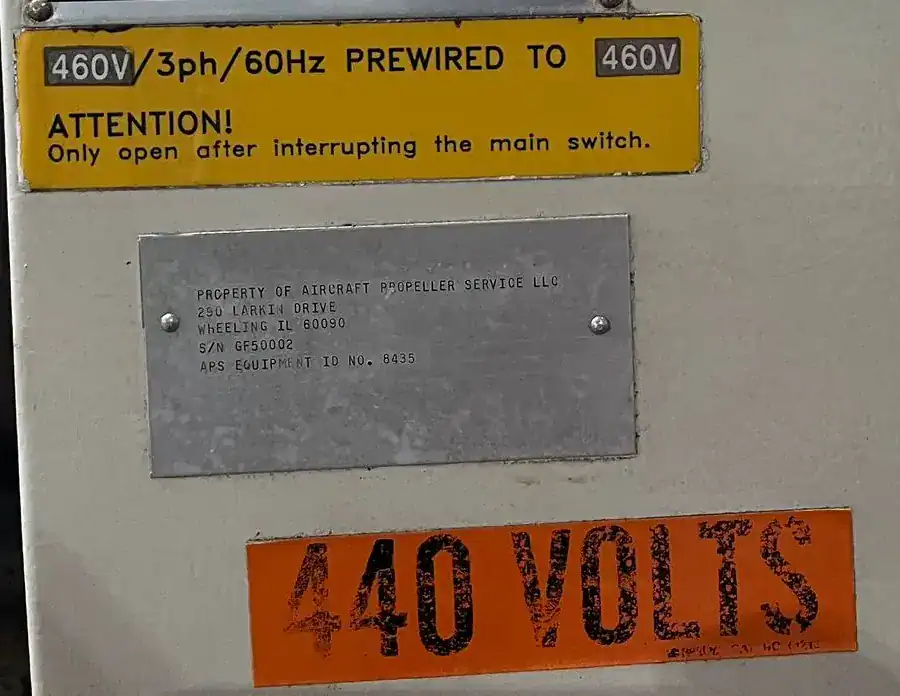

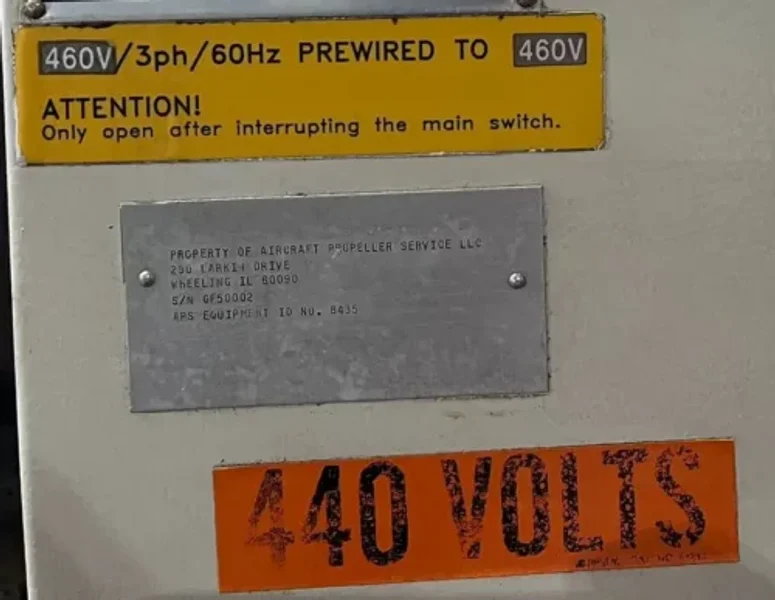

Power Source: AC 460 V Three Phase 60 Hz
Overall Dimensions: 196″ x 90″ x 66″ High Approx.
Weight : 12,100 lbs Approx.
