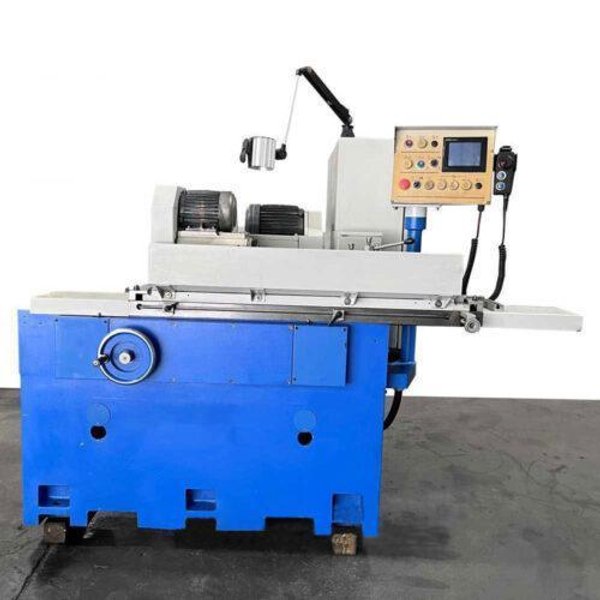

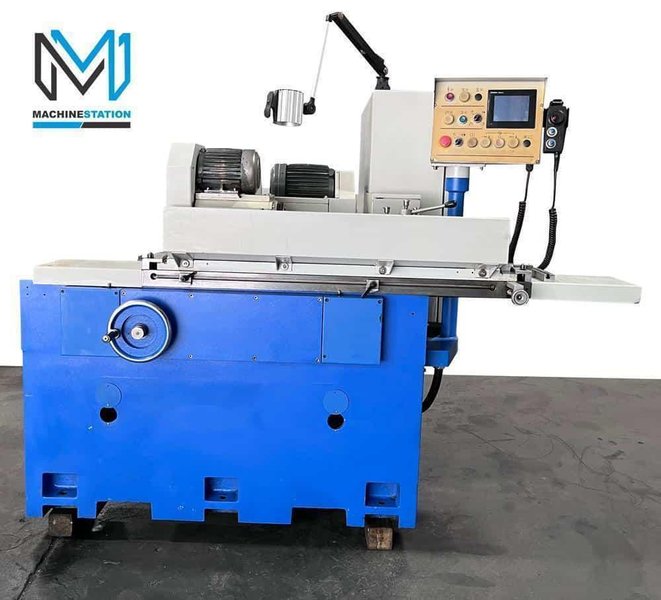

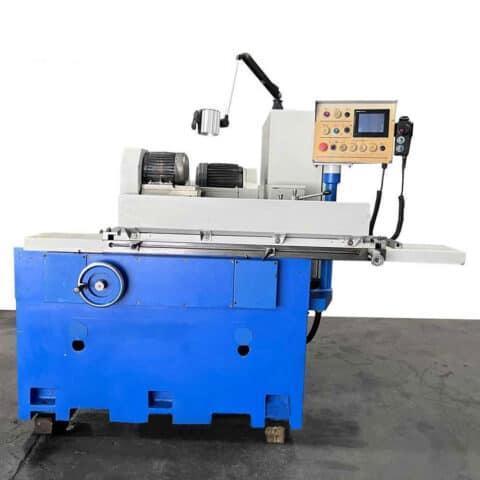

Supertec G20P-50 NC OD Cylindrical Grinder 8″ X 18″

Supertec G20P-50 NC OD Cylindrical Grinder 8″ X 18″

Name: Supertec G20P-50 NC OD Cylindrical Grinder 8″ X 18″
Brand: SUPERTEC
SKU: 112353
Availability: PreOrder

Brand

SUPERTEC

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Make:	SUPERTEC
Model:	G20P-50 NC
Year:	2012
Condition:	Used – Good

Equipped With:

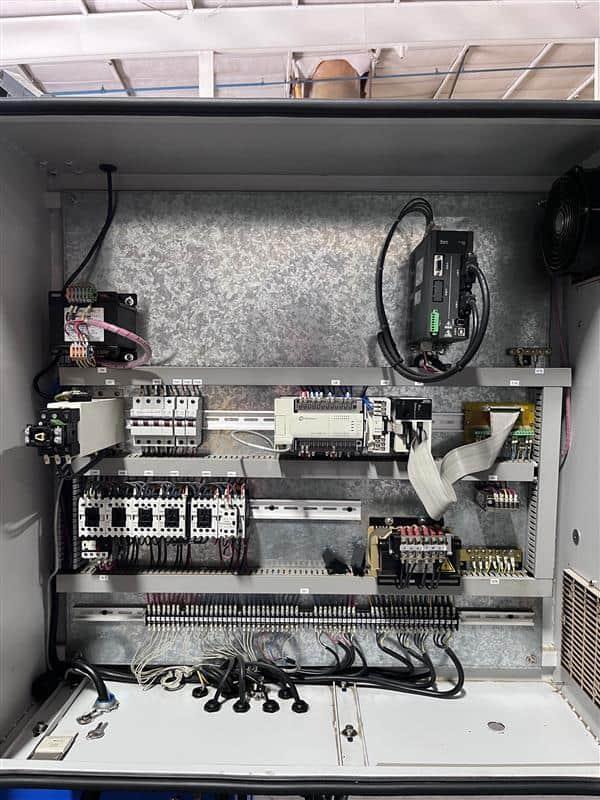

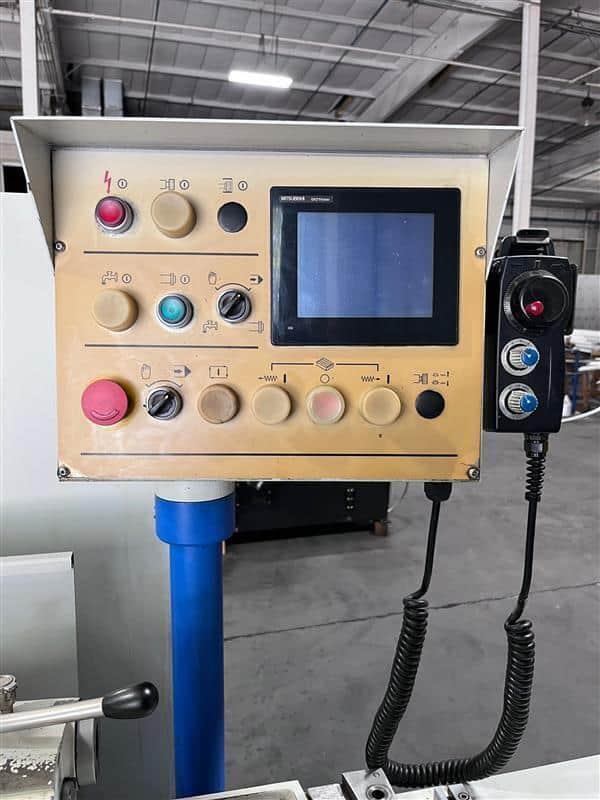

Supertec NC Control
Absolute/Incremental Combined Programming
Swivelable Table
MPG Control
Inch / Metric Conversion
Stored Stroke Check
Auto Reference Point Return
Automatic Acceleration & Deceleration
Work Light
Coolant System
Hydraulic Tailstock
Automatic Lubrication system

Capacity:
Max Grinding Diameter: 8″
Max Grinding Length: 18″
Max load Capacity: 176 lbs
Swing Over Table: 8″
Distance Between Centers: 20″

Grinding Wheel:
Speed: 1940 RPM
Wheel Size: 16″ X 2″ X 5″

Wheelhead:
X Axis Travel Distance: 6″
Swivel Angle: +/- Fixed
Least Travel Increment: 0.0001”
Rapid Feed Rate: 236 IPM
Motor: 5 HP

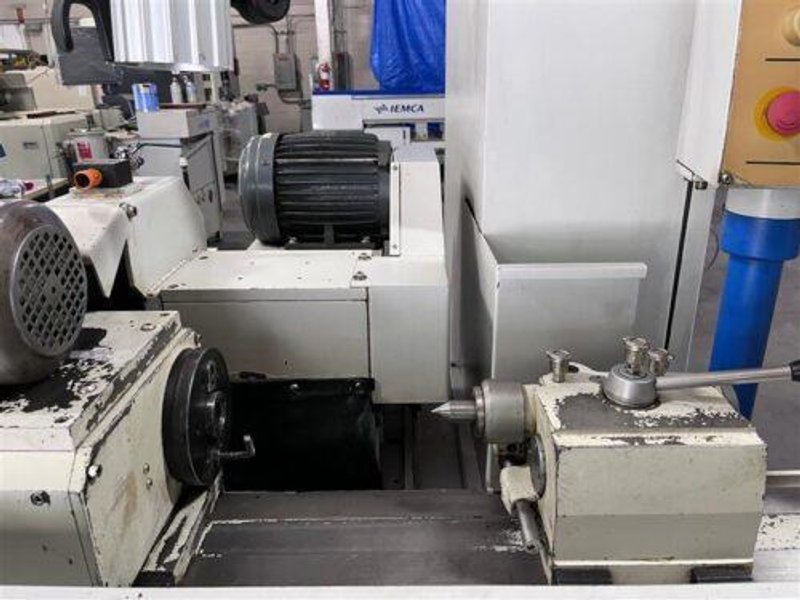

Workhead:
Swivel Angle: Fixed
Center Taper: MT-03
Spindle Bore Dia.: 0.79″
Speed: 50-500 RPM
Motor: 0.5 HP

Table:
Z Axis Travel Distance: 18″
Swivel Angle: 0 ~ 7 Degree
Least Travel Increment: 0.0001”
Rapid Feed Rate: 315 IPM

Tailstock:
Tailstock Quill Stroke: 1″
Tailstock Taper: MT-03

General:
Power Source: AC 230 V / Three Phase / 60 Hz
Power Requirement: 6.5kva
Overall Dimensions: 82″ x 47″ x 78″ High
Weight: 4700 lbs Approx.

“No Charges for loading at list Price”
