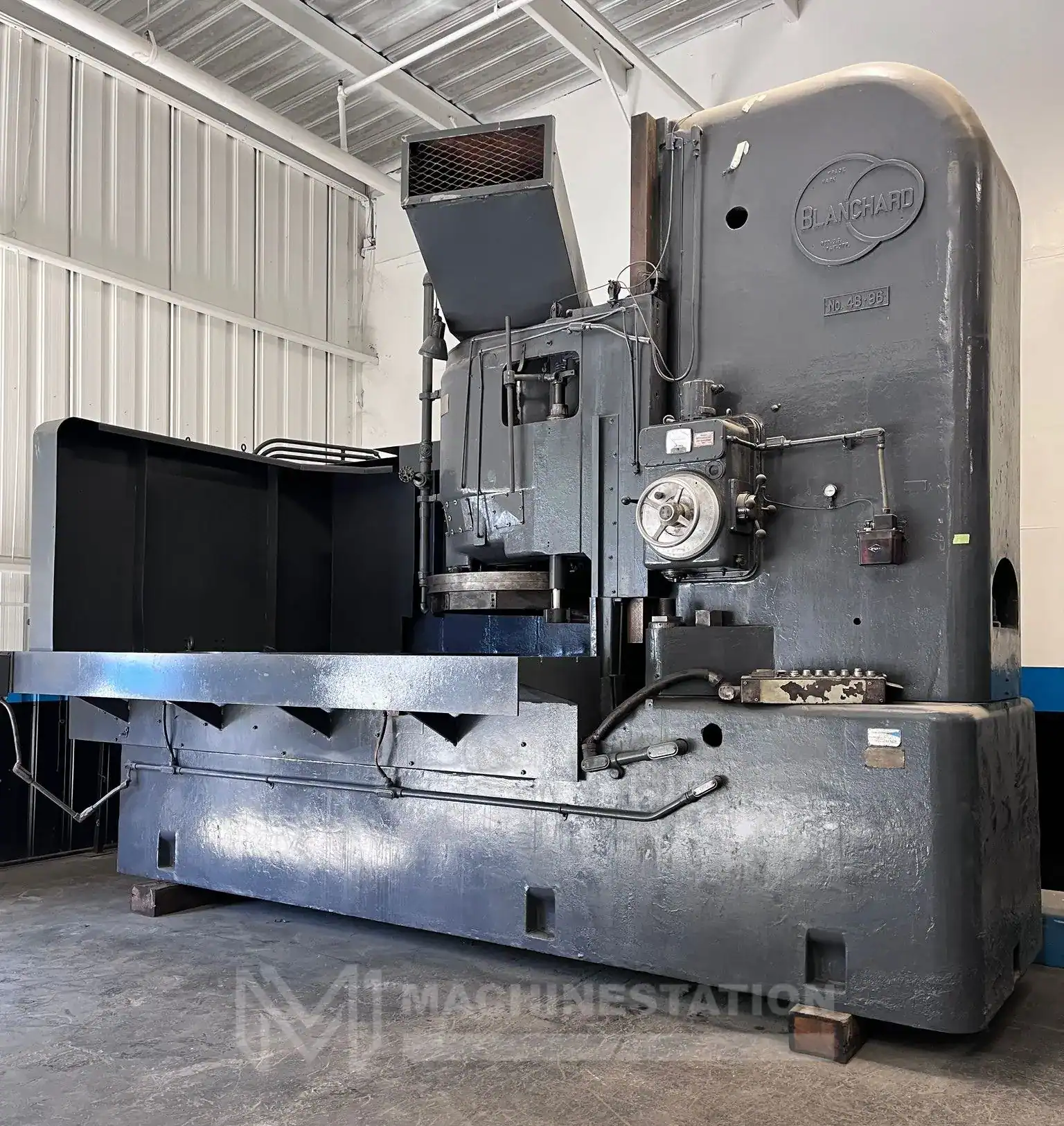

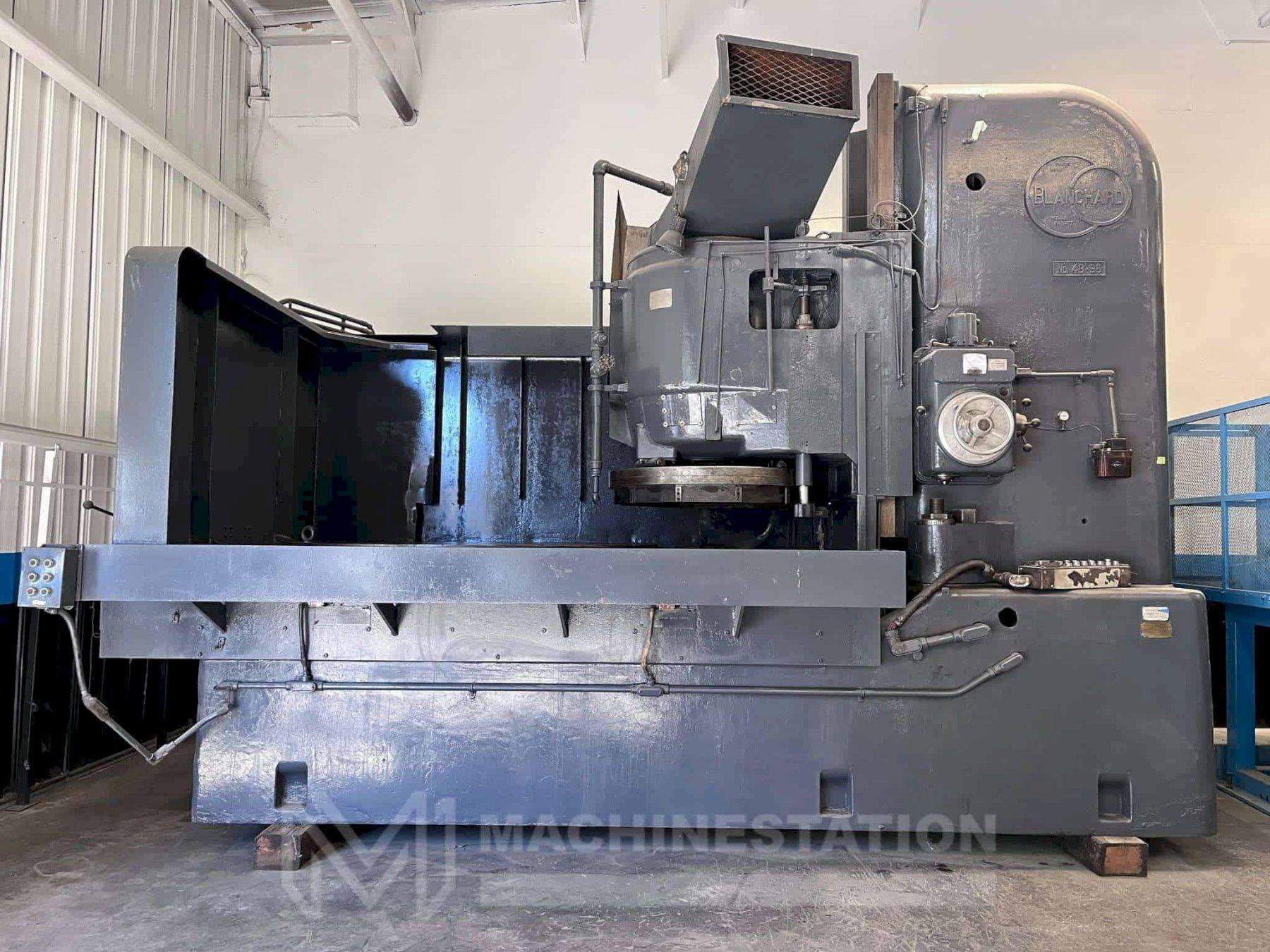

Blanchard 48-96 Vertical Rotary Surface Grinder

Blanchard 48-96 Vertical Rotary Surface Grinder

Name: Blanchard 48-96 Vertical Rotary Surface Grinder
Brand: BLANCHARD
SKU: 111774
Availability: InStock

Brand

BLANCHARD

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Make:	Blanchard
Model:	48-96
Year:
Condition:	Used – Good

Equipped With:
Segmented Magnetic Chuck
Water Guards
Coolant System
Automatic Lubrication System
Hardened Bed Ways
Magnetic Chuck Control

Capacity:
Segmented Magnetic Chuck Diameter: 96″
Grinding Wheel Diameter: 48″
Maximum Swing Inside Water Guards: 108″
Maximum Height Under Wheel: 36″
Maximum Table Load: 14,000 lbs

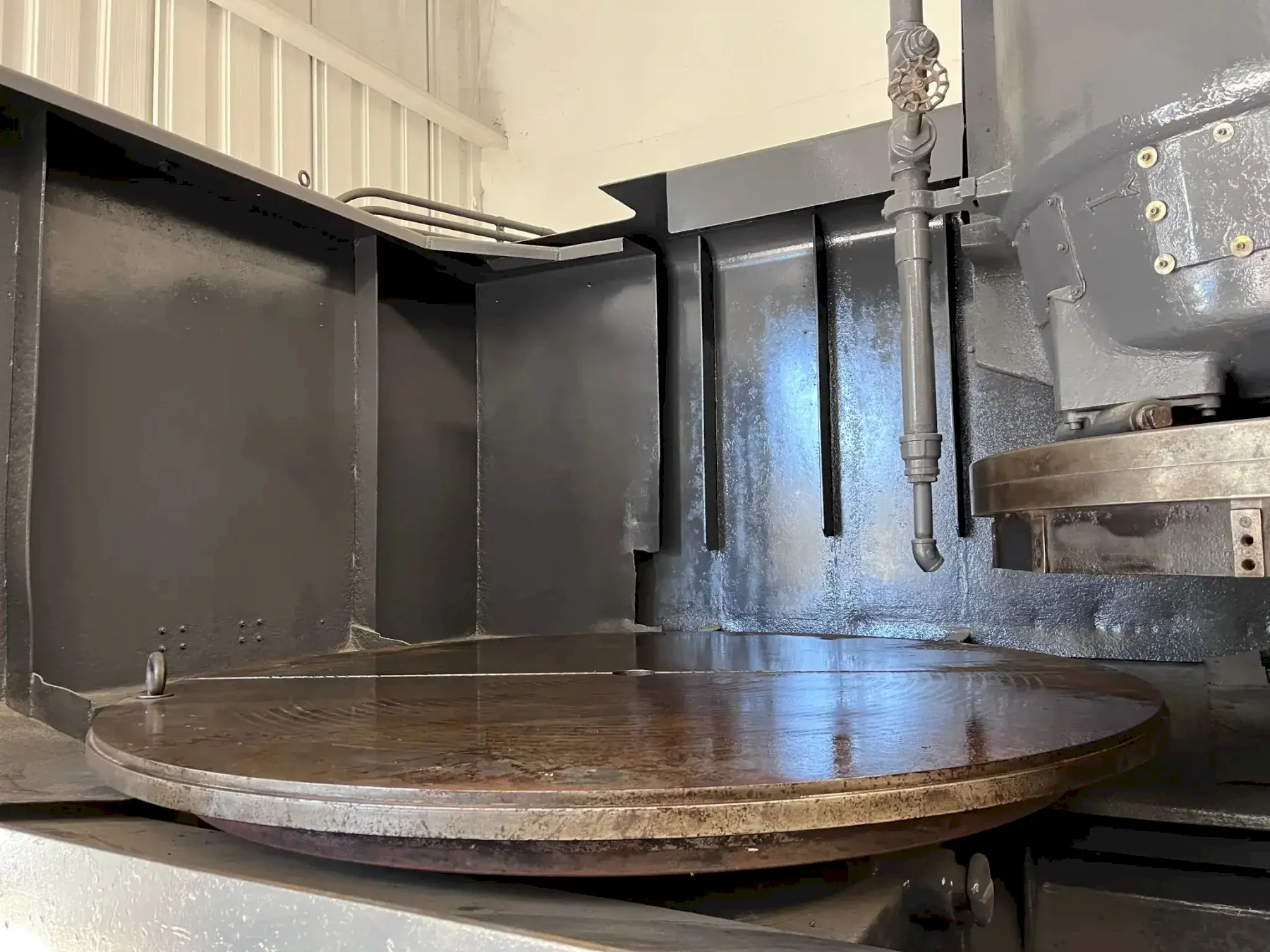

Work Table:
Table Diameter: 96″
Chuck Type: Electromagnetic, segmented
Chuck Rotation Speeds: 2.6, 4.1, 6.6, 10.2 RPM
Table Drive: Geared Drive System

Griding Head:
Spindle Type: Vertical
Spindle Motor Power: 150 HP
Grinding Wheel Speed: 297 RPM
Vertical Incremental Downfeeds: 0 – 80 IPM
Grinding Wheel Diameter: 48″
Grinding Wheel Depth: ″
Grinding Wheel Thickness: ″
