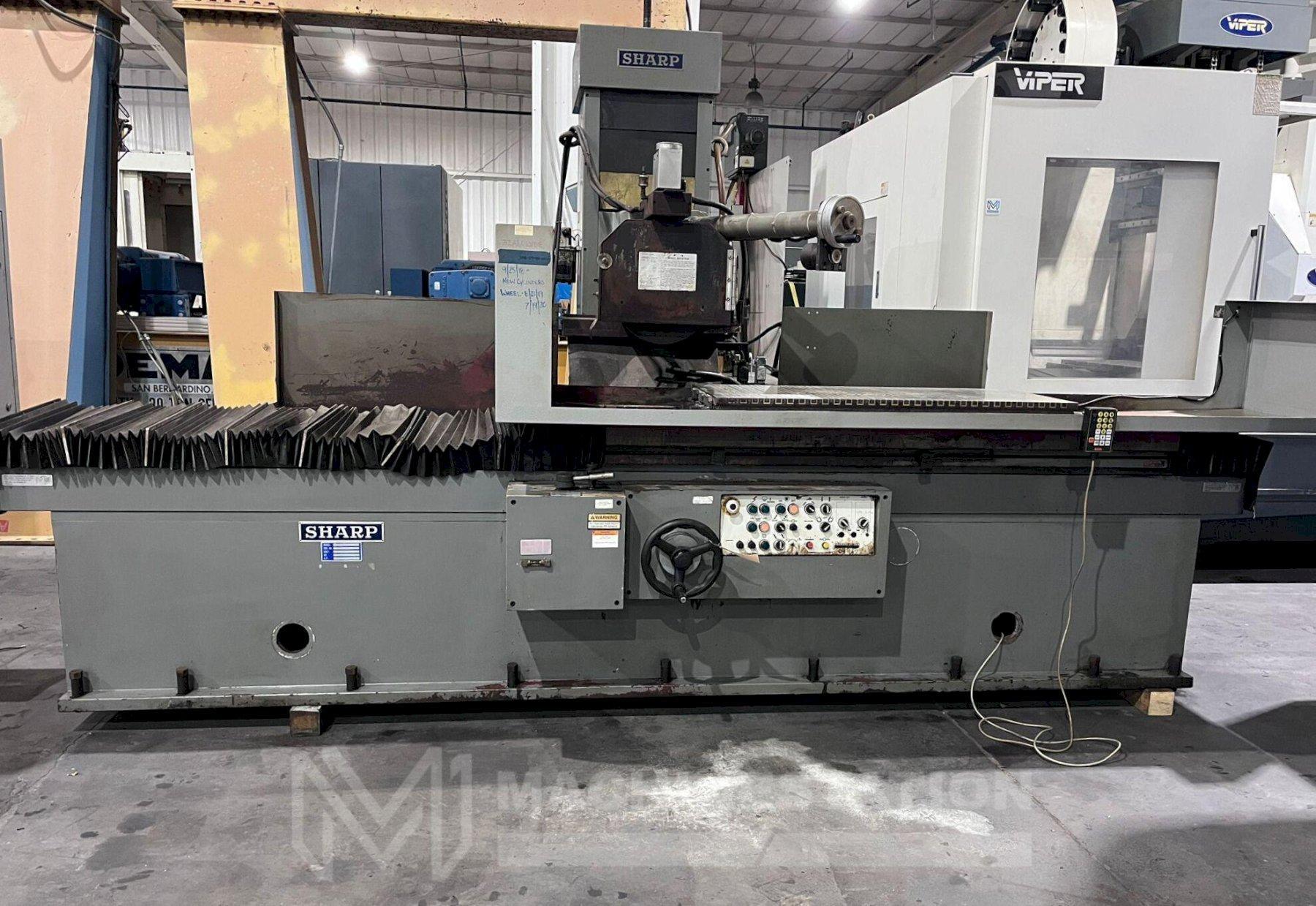

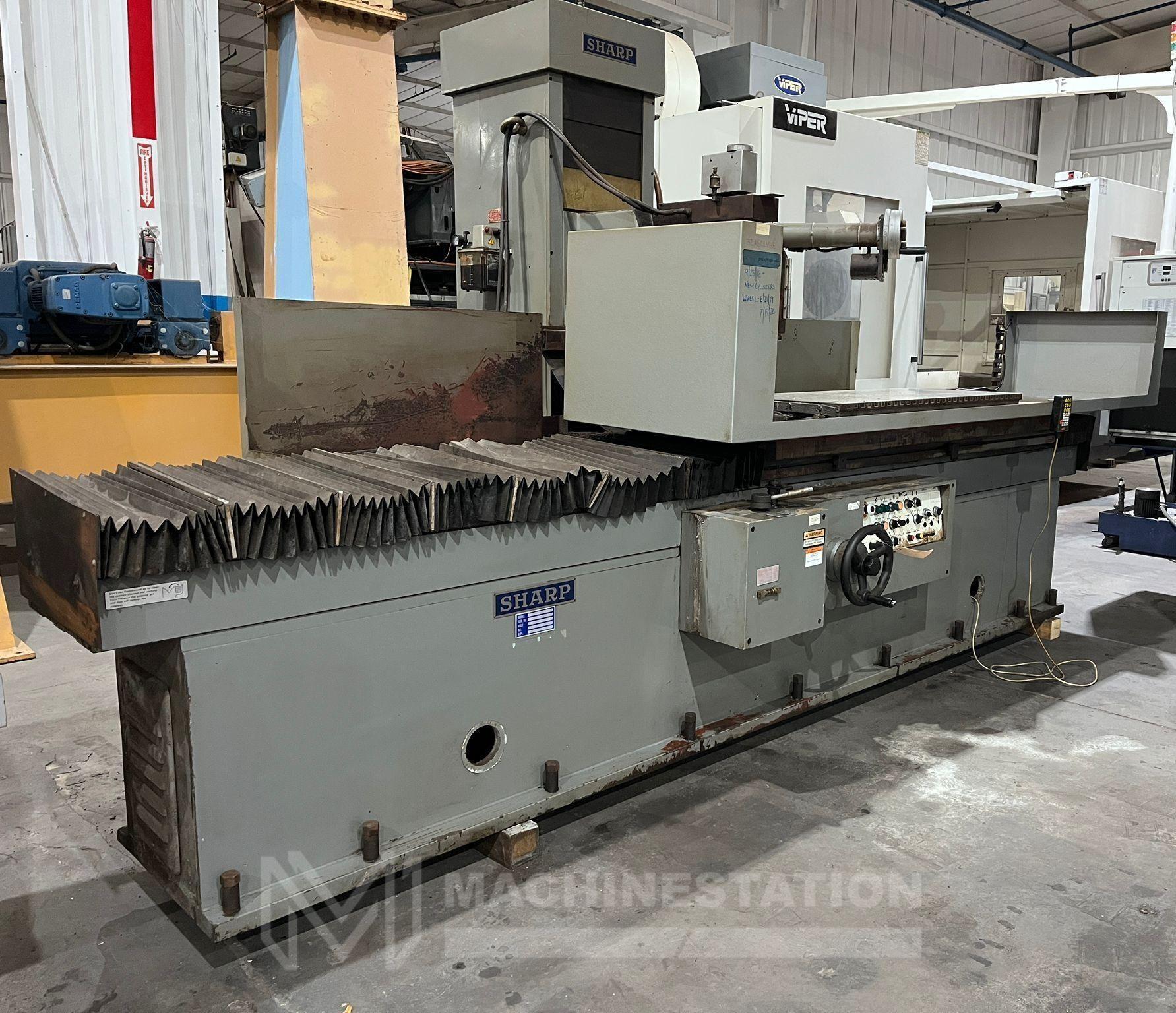

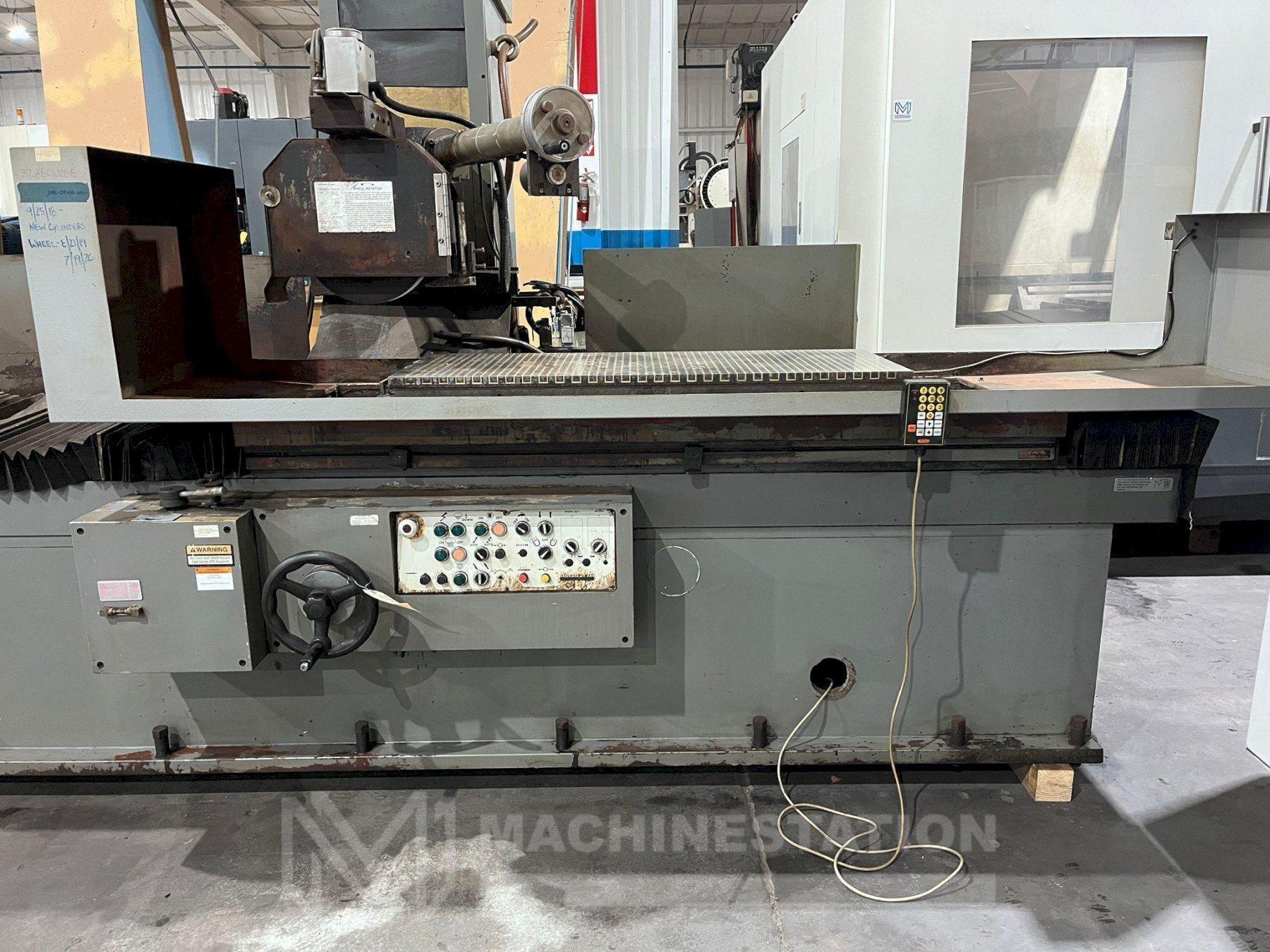

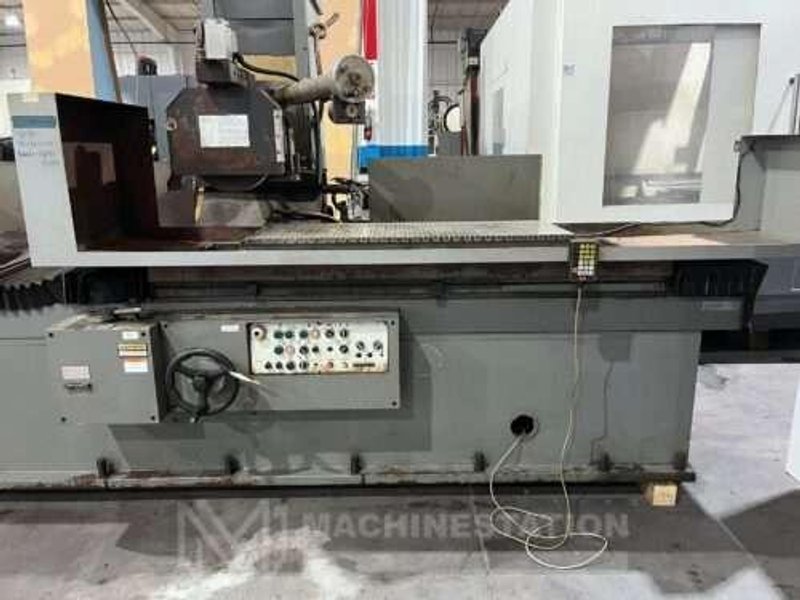

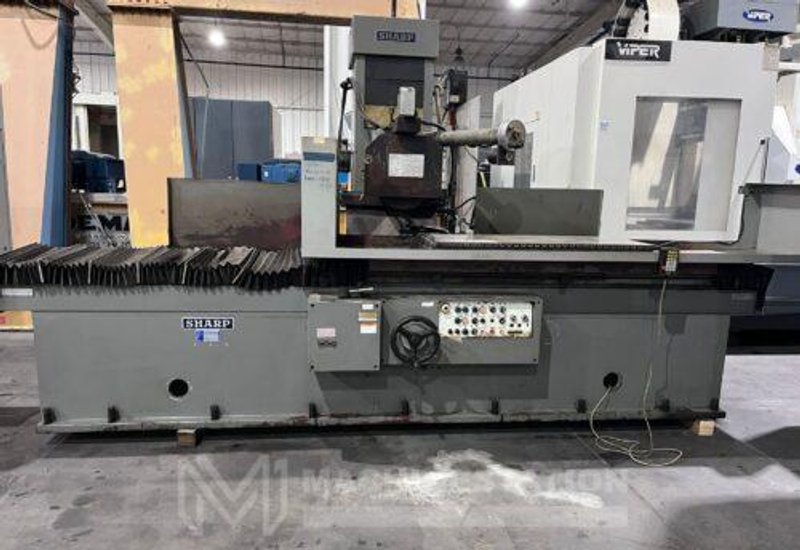

Sharp SH-2047 Automatic Travelling Column Surface Grinder

Brand
SHARP
Category
CNC, Metalworking & Manufacturing
Type
Grinding Machines
Model
Sharp SH-2047
Stock #
112638
Year
Not specified
Condition
Not specified

Location

Not specified
REQUEST FINANCING

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

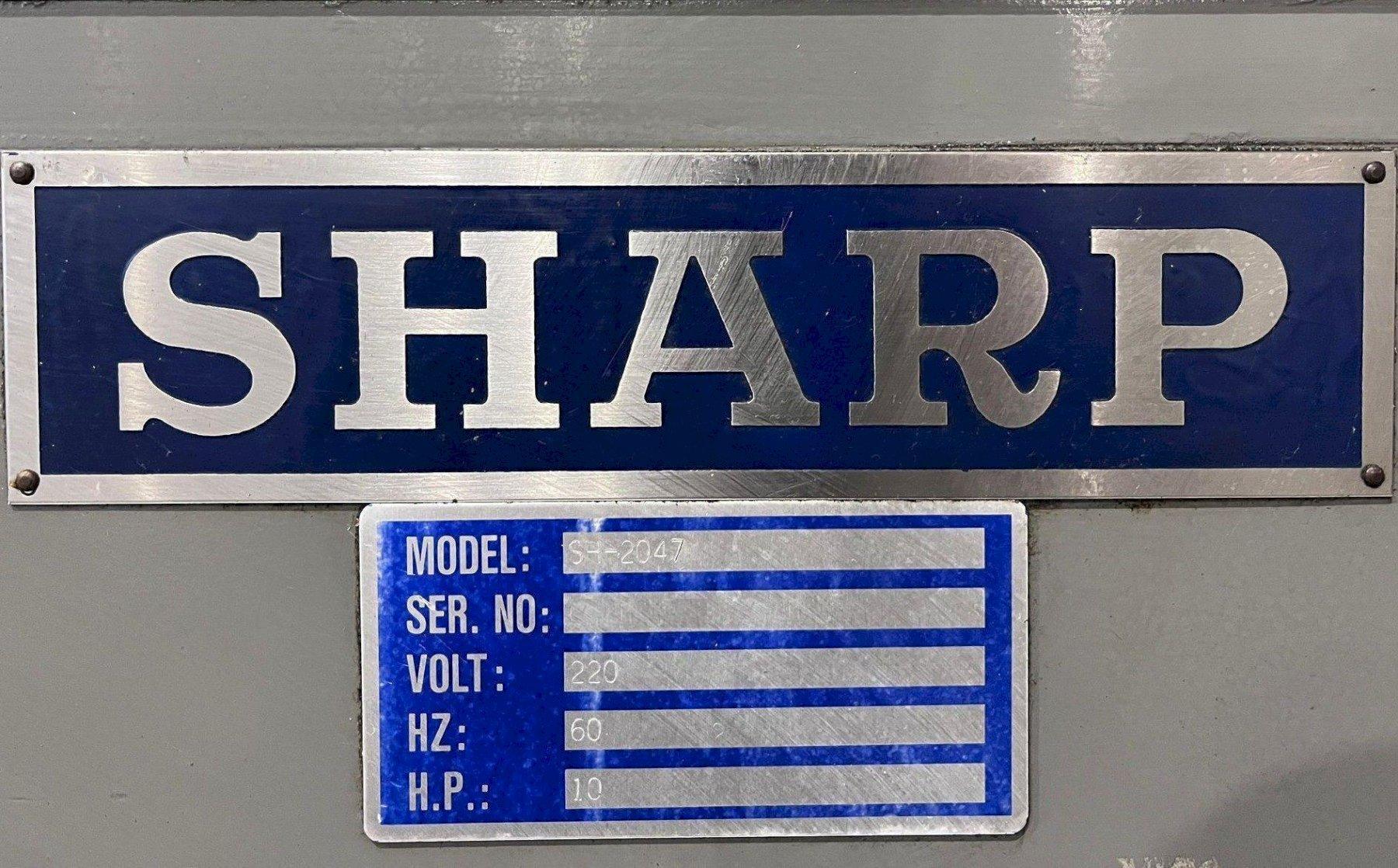

Make: Sharp
Model: SH2047
Year:
Condition: Used – Good
Features:

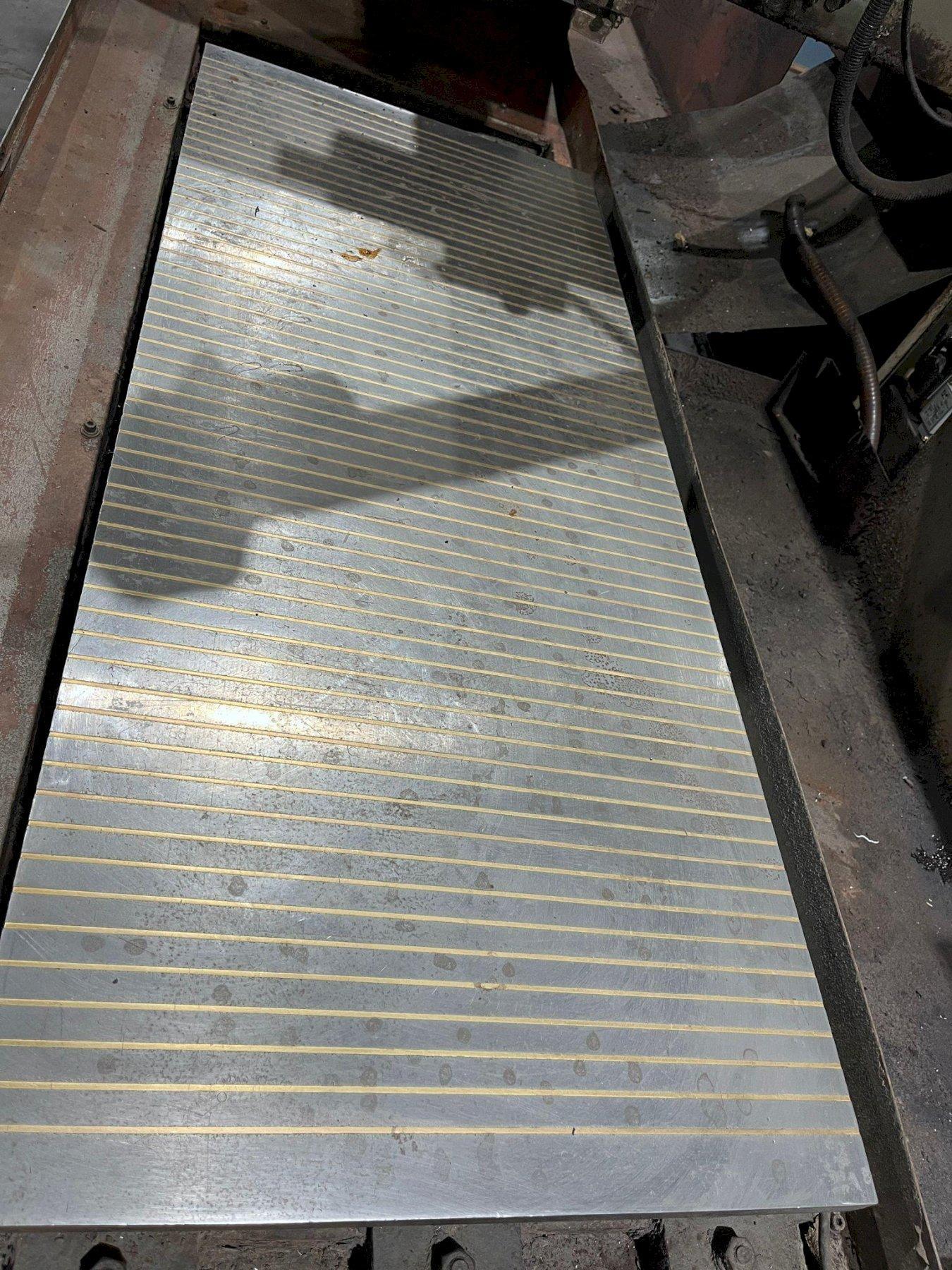

Magnetic Table
Grinding Wheel
Ballscrew on Cross Feed
Wheel Flange
Wheel Balancer and Balancing Arbor

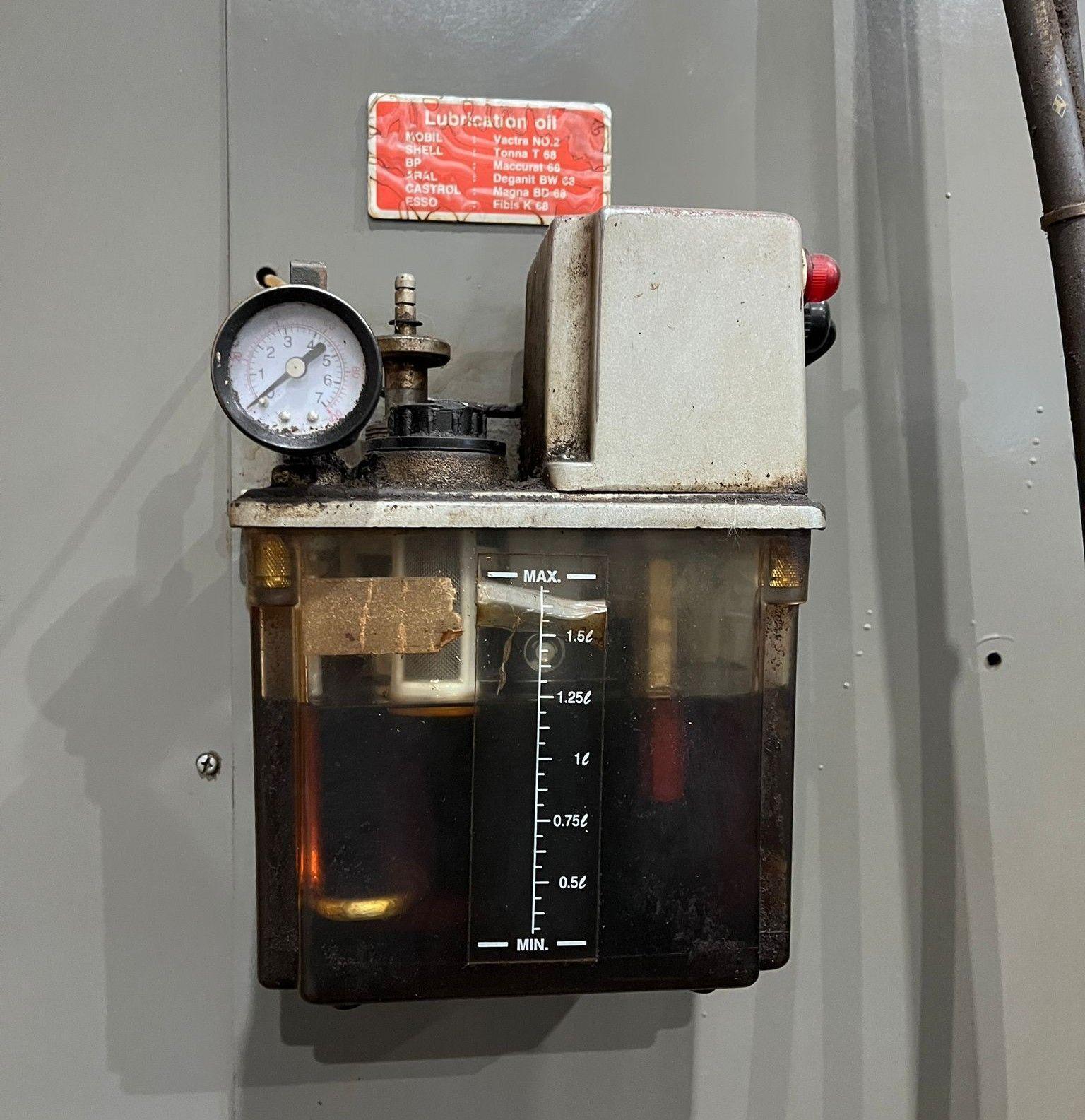

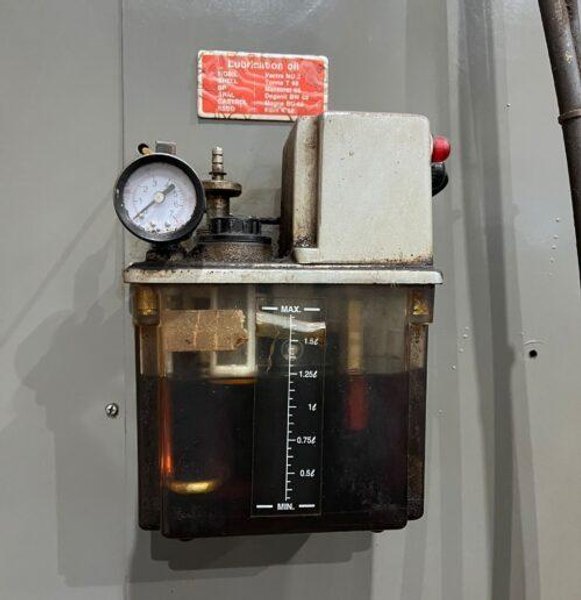

Automatic Lubrication System
Coolant System
Automatic cross feed
Capacity:
Max Grinding Length: 47″
Max Grinding Width: 20″
Maximum Distance: Table to Spindle Center: 27.6″
Table:
Length: 47″
Width: 19.7”
Table Travels:
X Axis (Longitudinal): 53.2″
Y Axis (Cross).: 20.9″
Spindle Center to Table Surface: 27.6″
Longitudinal Hydraulic Table Feed: 6.6 – 82 FPM
Intermittent Cross Feed (in. feed): 0.004 – 0.6 IPM
Continuous Cross Feed: 39 IPM
Number of Graduations on Dial: 200
Feed Per Graduation: 0.001″
Feed Per Revolution: 0.200″
Vertical Travel:
Number of Graduations on Dial: 100
Feed Per Graduation: 0.0001″
Feed Per Revolution: 0.010″
Rapid Downfeed: 11.8 IPM
Spindle and  Wheel:
Wheel size (OD x W x ID): 14 x 2 x 5″
Spindle Motor: 10 HP
General:
Power Source: AC 220 V Three Phase 60 Hz
Overall Dimensions: 180″ x 90″ x 102″ High
Weight : 16,600 lbs Approx.
