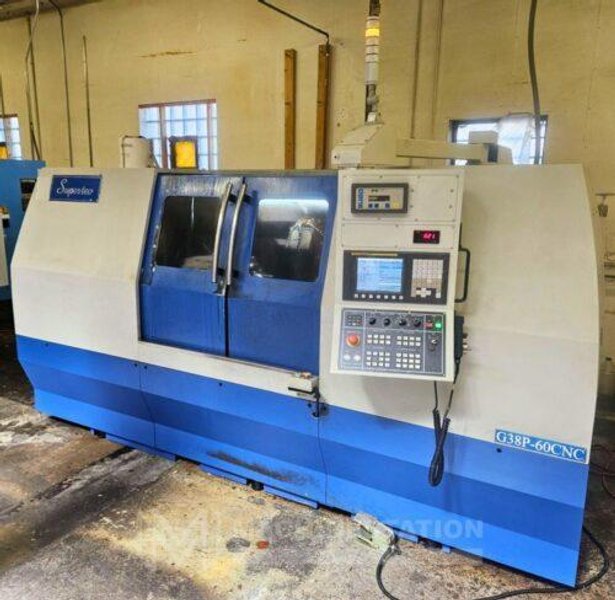

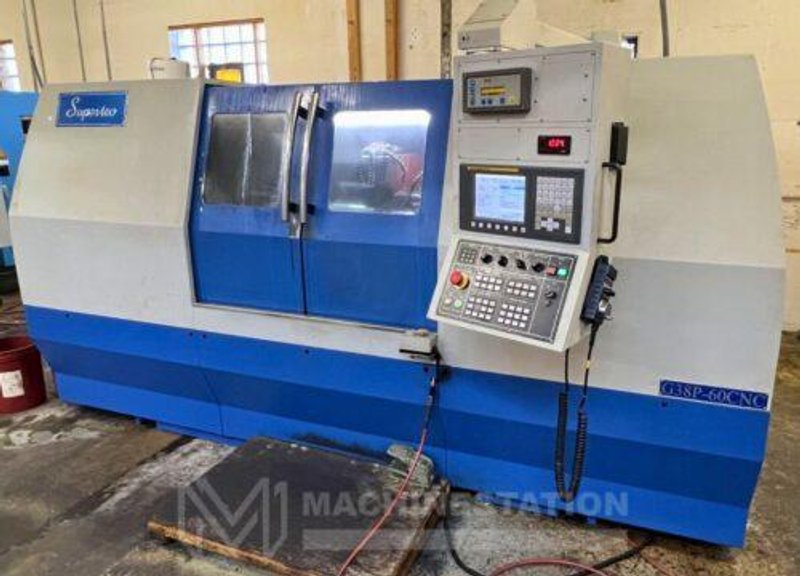

Supertec G38P-60 CNC Cylindrical Grinder – 2018

Supertec G38P-60 CNC Cylindrical Grinder – 2018

Name: Used SUPERTEC G38P-60 CNC For Sale 112826
Brand: SUPERTEC
SKU: 112826

Brand

SUPERTEC

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make:	SUPERTEC
Model:	G38P-60 CNC
Year:	2018
Condition:	Used – Good

Equipped With:

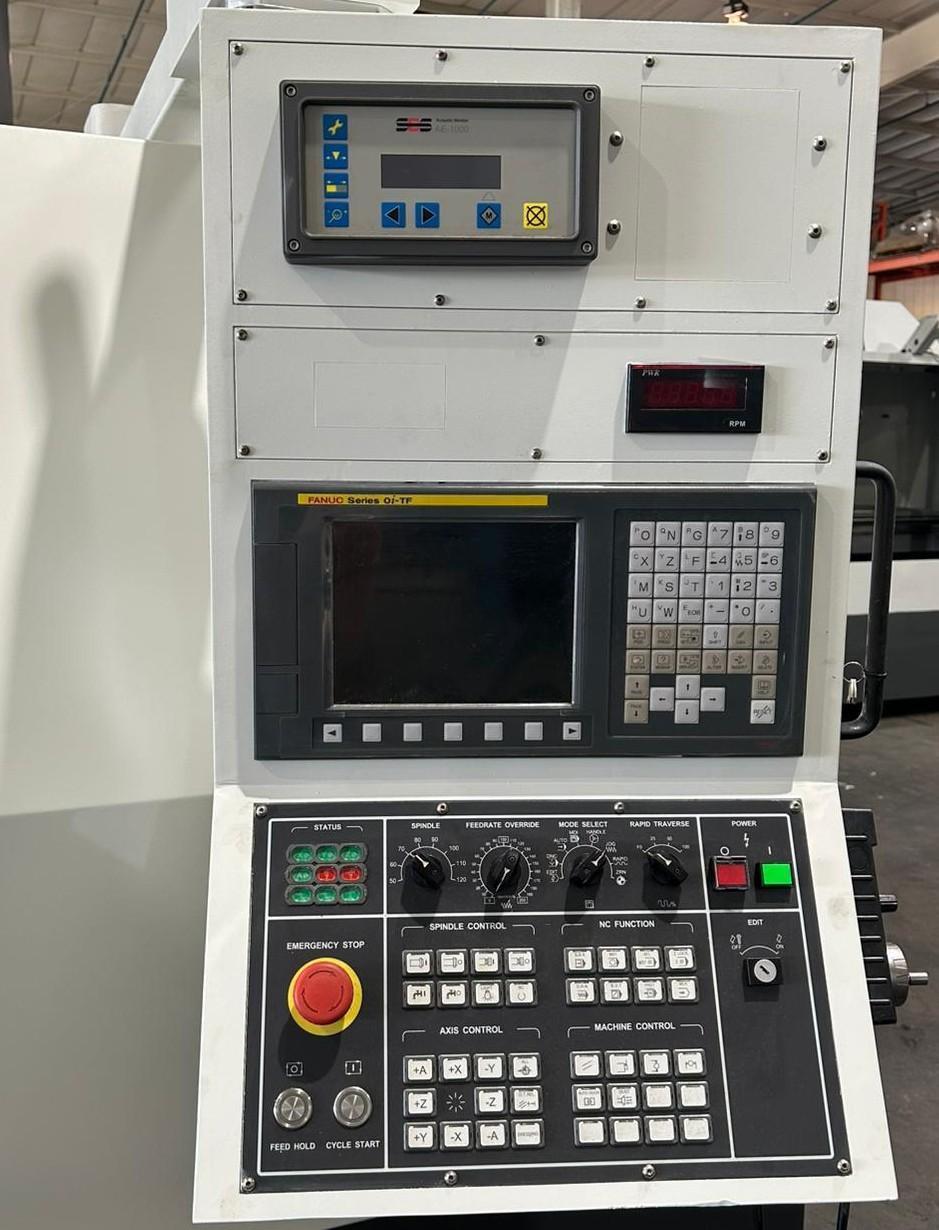

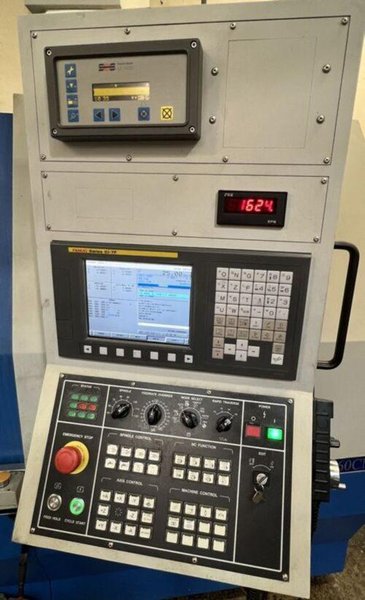

Fanuc Oi-TF CNC Control
Absolute/Incremental Combined Programming
Swivelable Table
MPG Handwheel Control
Inch / Metric Conversion
Stored Stroke Check
Auto Reference Point Return
Automatic Acceleration & Deceleration

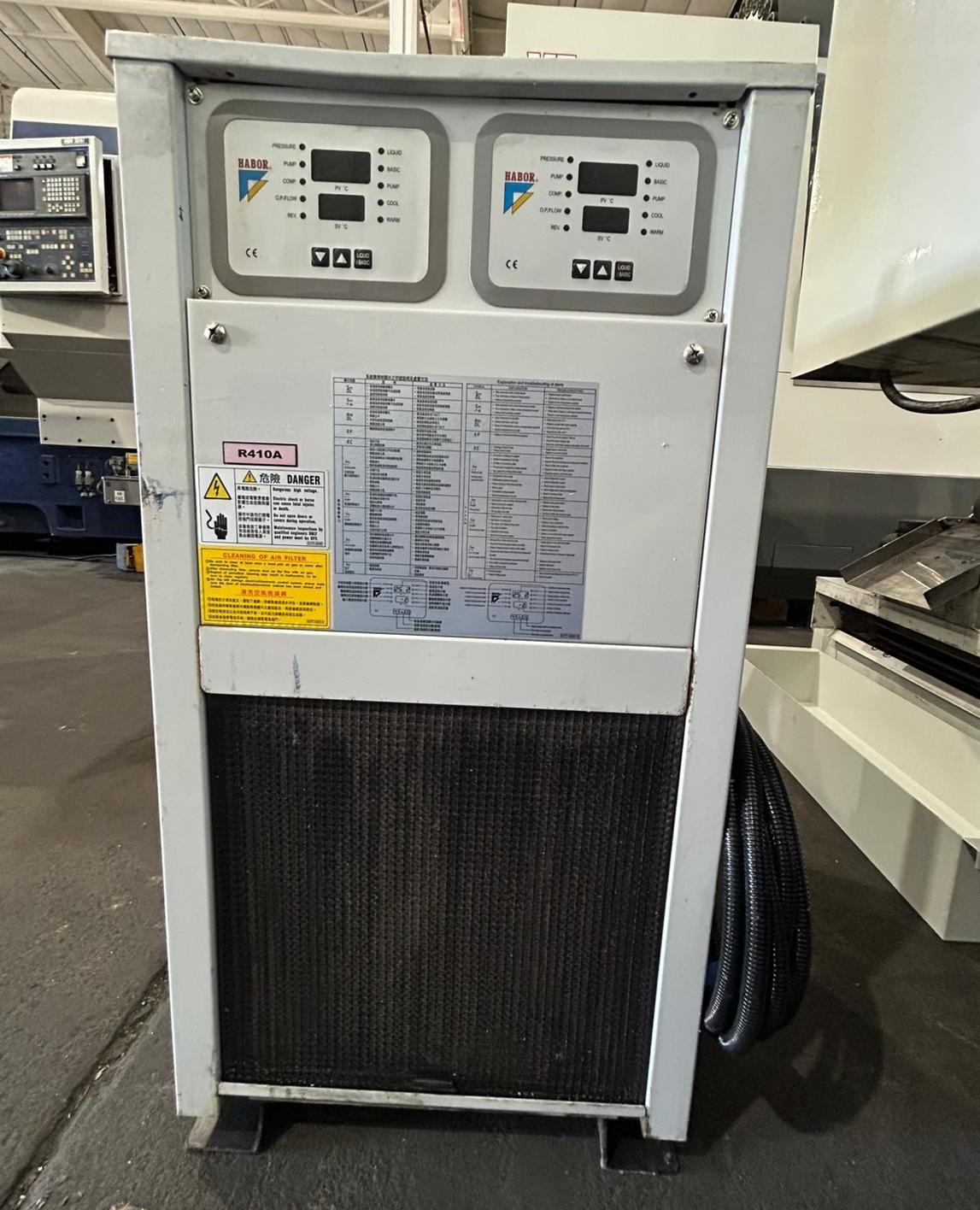

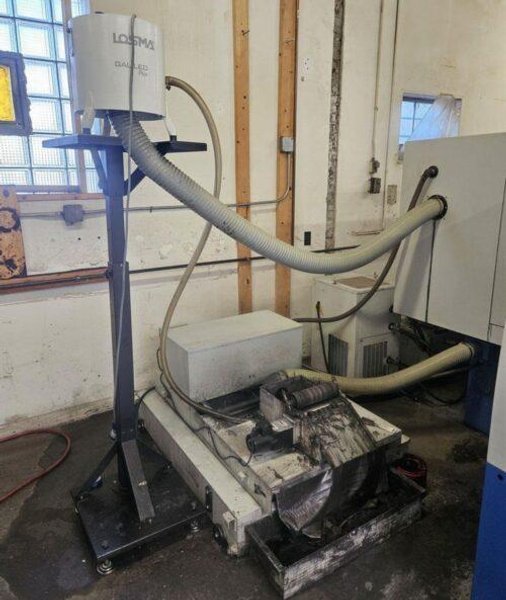

Spindle Chiller Unit
Coolant System
Hydraulic Tailstock
Automatic Lubrication system

Capacity:
Max Grinding Diameter: 14.17″
Max Grinding Length: 23.62″
Max load Capacity: 330 lbs
Swing Over Table: 15″
Center Distance Between Spindle & Slide Table: 24″
Distance Between Centers: 24″

Grinding Wheel:
Speed: 2000 RPM
Wheel Size: 20″ X 2″ – 4″ X 6″

Grinding Wheel Seat:
Feed Angle: 90 Degree
Maximum Feeding Speed: 236 IPM
Least Travel Increment: 0.001 Degree
Total Feeding Travel: 11.02″
Motor: 10 HP

Workhead:
Speed: 10 – 600 RPM
Center Taper: MT-4
Motor: 1.5 HP

Table:
Rotation Angle: +/- 9 Degree
Least Travel Increment: 0.001 Degree
Rapid Feed Rate: 393 IPM

Tailstock:
Tailstock Quill Stroke: 1″
Tailstock Taper: MT-4

General:
Power Source: AC 230 V / Three Phase / 60 Hz
Power Requirement: 6.5kva
Overall Dimensions: 187″ x 90″ x 90″ High Approx.
Weight: 14330 lbs Approx.
