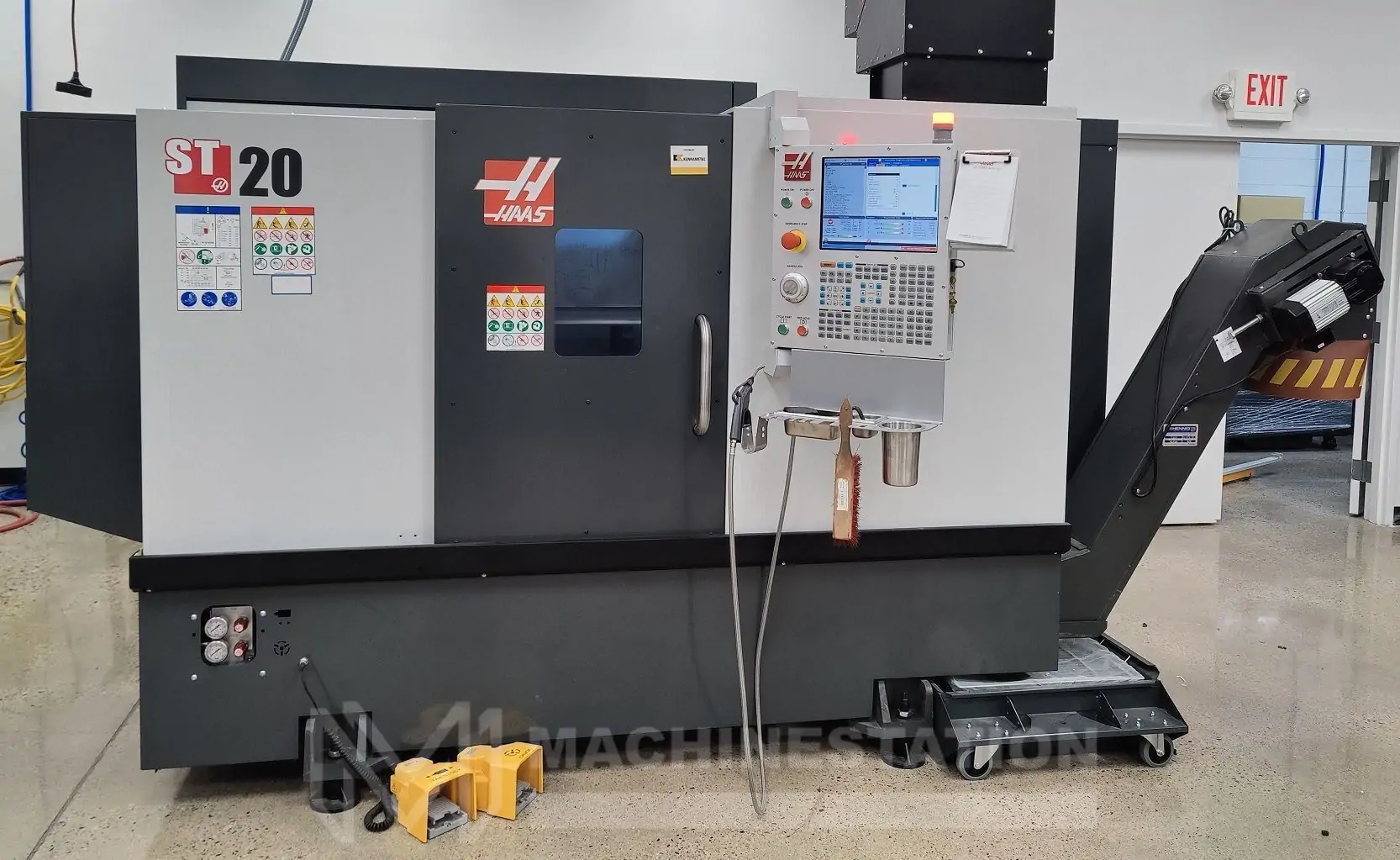

Haas ST-20 CNC Turning Center – 2021

Brand
HAAS
Category
Lathes & Turning Machines
Type
Turning Centers
Model
Make:HaasModel:ST-20
Stock #
Not specified
Year
Not specified
Condition
Not specified

Location

Not specified
REQUEST FINANCING

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make:Haas
Model:ST-20
Year:2021
Condition:Used – Excellent



Equipped With:

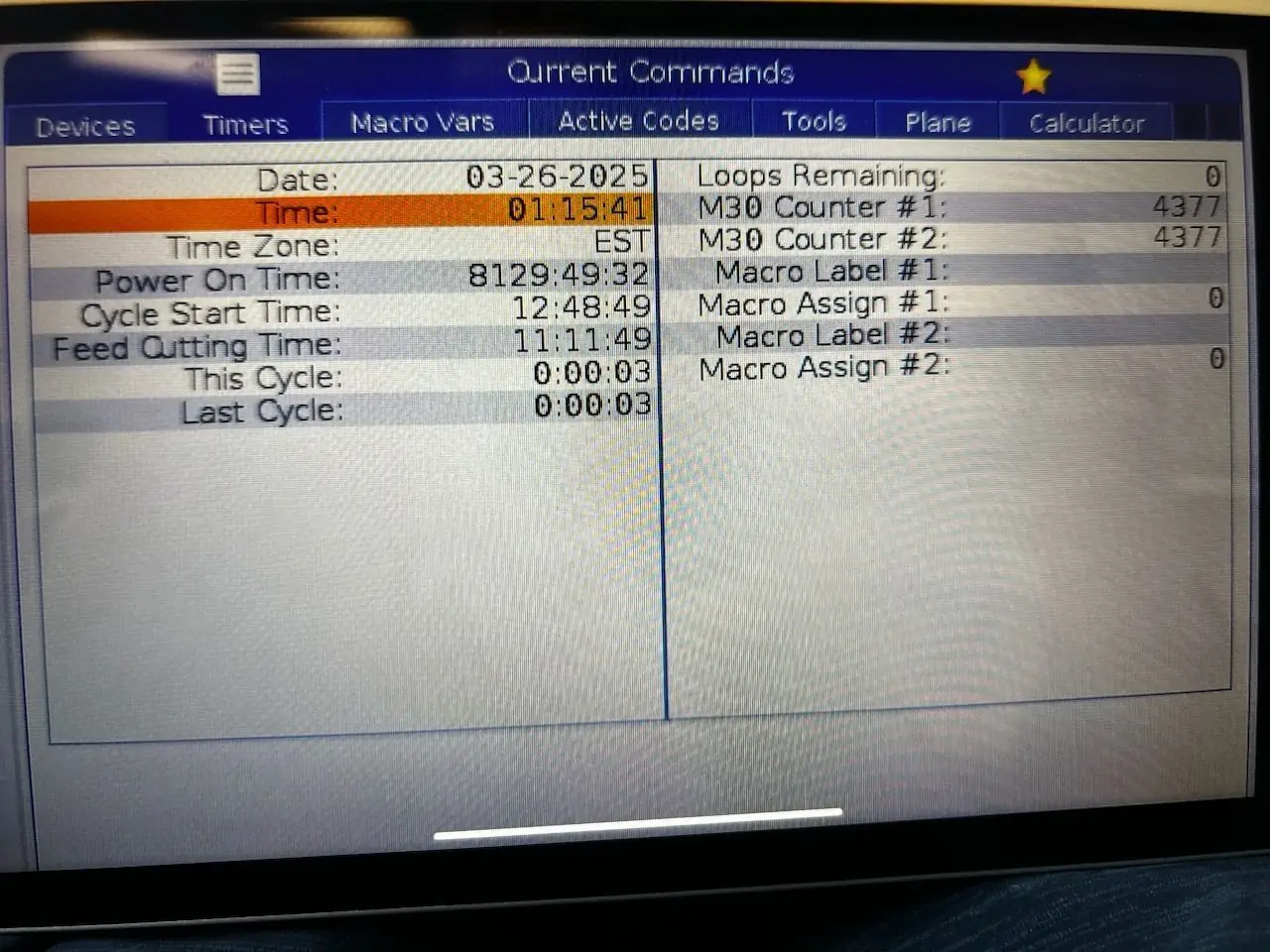

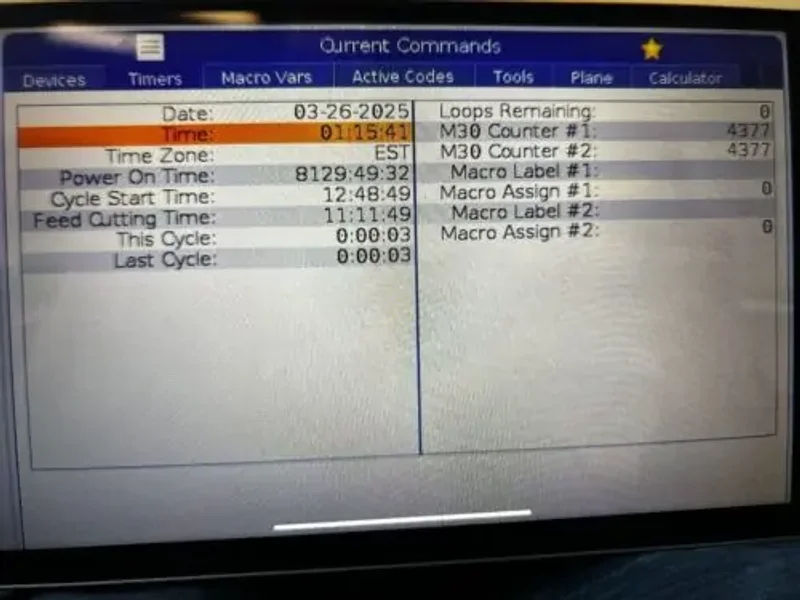

Haas CNC Control
8” 3-Jaw Hydraulic Chuck
A2-6 Spindle Nose
12 Station Automatic Turret
Tool Presetter (Upgraded $5,595 value Included)
Visual Part Programming System & User-Definable Macro
Rigid Tapping
55 Gallon Coolant Tank with Pump
High-Pressure Coolant
Programmable Tailstock (Upgraded $7,795 value Included)
Belt Type Chip Conveyor (Upgraded $5,595 value Included)
Chip Conveyor (Upgraded $5,595 value Included)
Foot Switches



Capacity:
Max Turning Diameter : 13.0″
Max Swing Over Bed : 21.0″
Max Turning Length: 22.5″
Max Bar Capacity : 2.50″



Travels:
X Axis Travel : 8.4″
Z1 Axis Travel : 22.5″



Feedrate:
Rapid Traverse X Axis: 945 IPM
Rapid Traverse Z Axis: 945 IPM



Spindle:
Spindle Nose: A2-6
Spindle Bore: 3.5″
Spindle Speed: 4000 RPM
Spindle Motor: 20 HP



Turret:
Turret Capacity: 12 Stations
Turret Index Time: 1 Second
Turret Holders Type: BMT

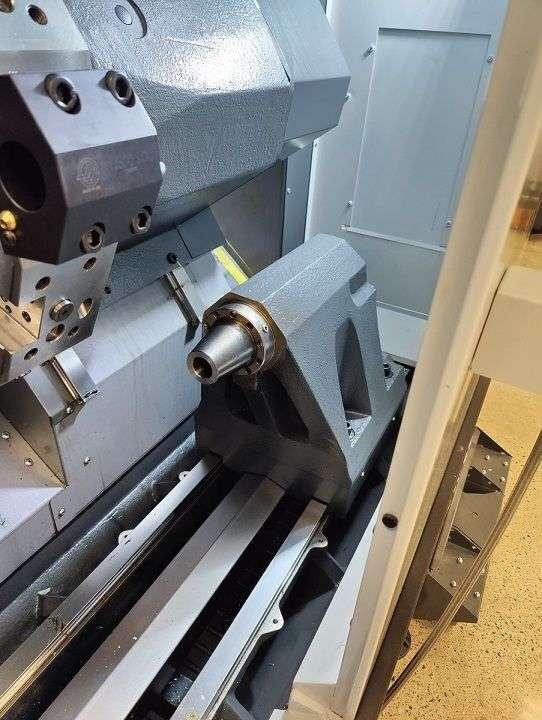

Tailstock:
Tailstock Taper: MT-4
Tailstock Quill Dia.: 2.6″
Tailstock Quill Travel: 3.1″



General:
Air Requirement: 4 scfm @ 100 psi
Power Source: AC 220v / 3-Phase / 60 Hz
Machine Dimensions: 142.5″ x 90″ x 92″ High
Machine Weight: 8820 lbs Approx.
,Show More Show Less
